When trouble arises
WA R N I N G
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recomm ended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure la bel (tire and load information label). (If your
vehicle has tires of a different size than the size indicated on the vehicle placard or tire
inflation pressure label [tire and load in formation label], you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure moni-
toring system (TPMS-tire pressure warning system) that illuminates a low tire pressure
telltale (tire pressure warning light) when on e or more of your tires is significantly
under-inflated. Accordingly, when the low ti re pressure telltale (tire pressure warning
light) illuminates, you should stop and check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a significantly under-inflated tire causes the
tire to overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency
and tire tread life, and ma y affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure wa rning system) is not a substitute for proper
tire maintenance, and it is the driver’s resp onsibility to maintain correct tire pressure,
even if under-inflation has no t reached the level to trigger illumination of the TPMS low
tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal-
function indicator to indicate when the system is not operating properly. The TPMS
(tire pressure warning system) malfunction indi cator is combined with the low tire pres-
sure telltale (tire pressure warning light). When the system detects a malfunction, the
telltale will flash for approximately one minu te and then remain continuously illumi-
nated. This sequence will cont inue upon subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indicator is illuminated, the system may not
be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfun ctions may occur for a variety of reasons,
including the installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS (tire pressure warning system) from functioning properly. Always
check the TPMS (tire pressure warning syst em) malfunction telltale after replacing one
or more tires or wheels on your vehicle to ensure that the replacement or alternate
tires and wheels allow the TPMS (tire pressure warning system) to continue to function
properly.
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different specificatio ns or makers, as the tire pressure warning
system may not operate properly.

532
LX570_OM_OM60N01U_(U)7-2. Steps to take in an emergency
If a warning message is displayed
Master warning light
The master warning light also comes on
or flashes in order to indicate that a mes-
sage is currently being displayed on the
instrument cluster.
Multi-information display
Handling Method
Follow the instructio
ns of the message
on the multi-information display.
If any of the warning messages are show n again after the following actions have
been performed, contact your Lexus dealer.

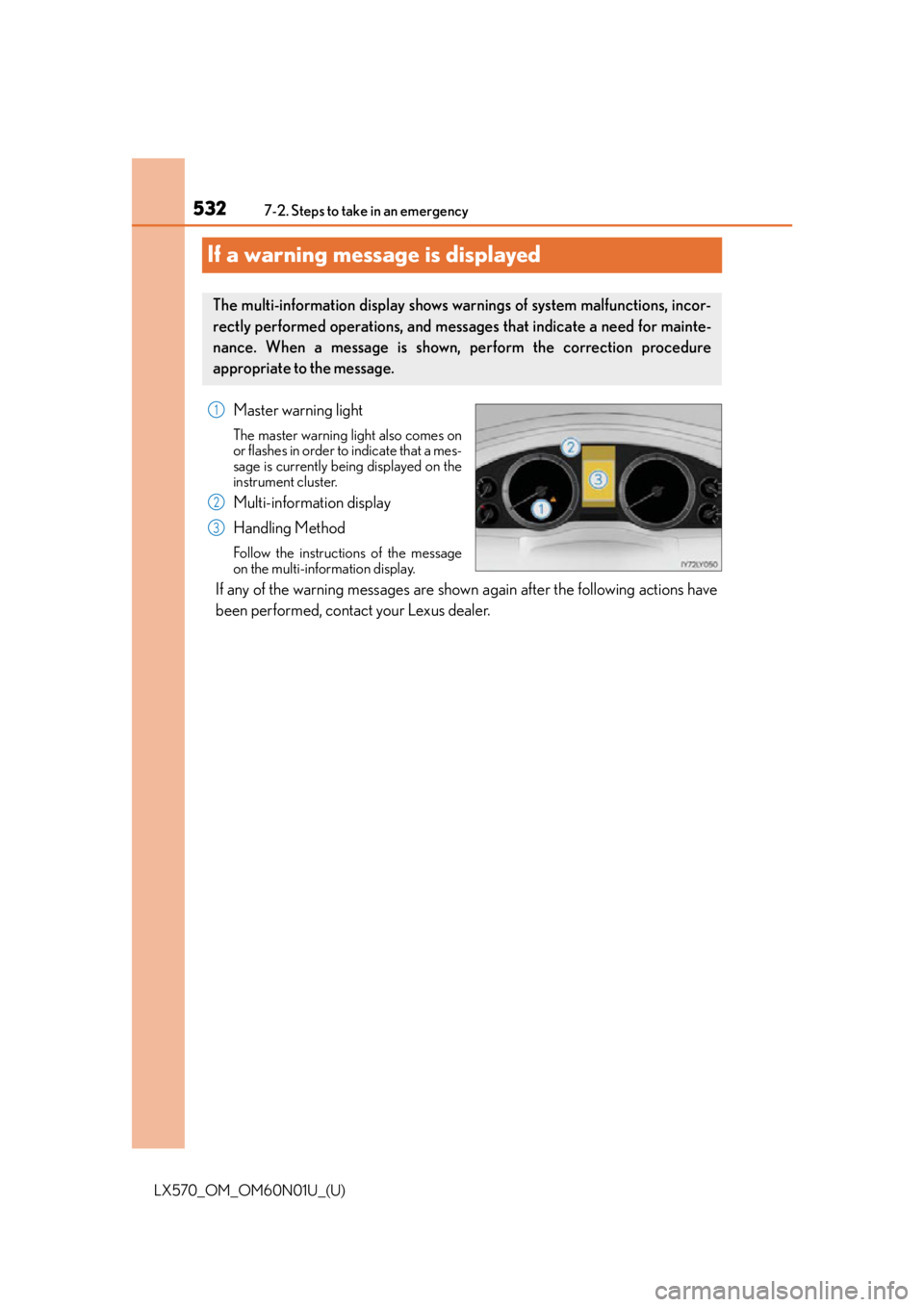

The multi-information display shows warnings of system malfunctions, incor-
rectly performed operations, and messages that indicate a need for mainte-
nance. When a message is shown, perform the correction procedure
appropriate to the message.
1
2
3

5337-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U)
7
When trouble arises
The warning lights and warning buzzers operate as follows depending on the
content of the message. If a message in dicates the need for inspection by a
dealer, have the vehicle inspected by your Lexus dealer immediately.
*: A buzzer sounds the first time a message is shown on the multi-information display.
■System warning lights
The master warning light does not come on or flash in the following case. Instead, a sepa-
rate system warning light will come on along with a message or image shown on the
multi-information display.
●Indicates that the PCS (Pre-Collision System) is not currently functional
The PCS warning light comes on. ( P. 5 2 5 )
Messages and warnings
System
warning lightWa r n i n g buzzer
*Wa r n i n g
Comes on Comes on Sounds Indicates an important situation, such as
when a system related to driving is malfunc-
tioning or that danger may result if the cor-
rection procedure is not performed
Comes onSounds
Comes on
or flashesSoundsIndicates an important situation, such as
when the systems shown on the multi-infor-
mation display may be malfunctioning
FlashesSoundsIndicates a situation, such as when damage
to the vehicle or danger may result
Comes onDoes not soundIndicates a condition, such as malfunction of
electrical components, their condition, or
indicates the need for maintenance
FlashesDoes not soundIndicates a situation, such as when an opera-
tion has been performed incorrectly, or indi-
cates how to perform an operation correctly

5347-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U)
■If “See Owner’s Manual” is shown
●If “Smart Access System Malfunction” is shown, this may be a malfunction.
Immediately have the vehicle inspected by your Lexus dealer.
●If “Transmission Fluid Temp High” is shown, it indicates that the automatic transmission
fluid temperature is too high.
Immediately stop the vehicle in a safe place, shift the shift lever to P and wait until the
warning message and light go off. If the warning message and light go off, you may
start the vehicle again. If the warning message and light do not go off, contact your
Lexus dealer.
■If “Shift to P Before Exiting Vehicle” is shown
Message is displayed when the driver’s door is opened without turning the engine switch
to off with the shift lever in any position other than P.
Shift the shift lever to P.
■If “Power Turned Off to Save Battery” is shown
Power was turned off due to the automatic power off function.
Next time when starting the engine, increase the engine speed slightly and maintain that
level for approximately 5 minutes to recharge the battery.
■When a message that indicates the need for the shift lever operation is shown
To prevent the shift lever from being operated incorrectly or the vehicle from moving
unexpectedly, a message that requires shifting the shift lever may be shown on the multi-
information display. In that case, follow the instruction of the message and shift the shift
lever.
■When “Headlight System Malfunction Visit Your Dealer” is displayed on the multi-
information display
The following systems may be malfunctioning. Have the vehicle inspected by your Lexus
dealer.
●The LED headlight system
●The automatic headlight leveling system
●AHB (Automatic High Beam) (if equipped)
■If “Forward Camera System Unavailable” or “Forward Camera System Unavailable
Clean Windshield” is displayed. (if equipped)
The following systems may be suspended un til the problem shown in the message is
resolved.
●Dynamic radar cruise control with full-speed range
●PCS (Pre-Collision System)
●LDA (Lane Departure Alert)
●AHB (Automatic High Beam)
■If “Engine Oil Level Low” is shown
Indicates that engine oil level is low.
Check the level of engine oil, and add if necessary.
This message may appear if the vehicle is stopped on a slope.
Move the vehicle to a level surface and check to see if the message disappears.

5357-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U)
7
When trouble arises
■If a following message is shown, take appr opriate action and confirm that the message
has disappeared. ( P. 3 0 9 )
●“Crawl Not Available Select L4 an d Shift to [D] or [R] Position”
●“Crawl Not Available Check System Operation Conditions”
●“Turn Assist Function Not Available Check System Operation Conditions”
●“Turn Assist Function Not Available Activate Crawl Control”
■If “Maintenance Required Soon” is shown (U.S.A. only)
Indicates that all maintenance according to the driven distance on the maintenance
schedule
* should be performed soon.
Comes on approximately 4500 miles (7200 k m) after the message has been reset.
If necessary, perform maintenance.
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual Supple-
ment” for the maintenance interval applicable to your vehicle.
■If “Maintenance Required Visit Your Dealer” is shown (U.S.A. only)
Indicates that all maintenance is required to correspond to the driven distance on the
maintenance schedule
*.
Comes on approximately 5000 miles (8000 k m) after the message has been reset.
(The indicator will not work properly unless the message has been reset.)
Perform the necessary maintenance. Please reset the message after the maintenance is
performed ( P. 4 6 5 )
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual Supple-
ment” for the maintenance interval applicable to your vehicle.
■If “Oil Maintenance Required Soon” is shown
Indicates that the engine oil is scheduled to be changed. (The indicator will not work
properly unless the message has been reset.)
Check the engine oil, and change if necessar y. After changing the engine oil, the mes-
sage should be reset. ( P. 4 7 5 )
■If “Oil Maintenance Required Visit Your Dealer” is shown
Indicates that the engine oil should be chan ged. (The indicator will not work properly
unless the message has been reset.)
Check and change the engine oil, and oil filter by your Lexus dealer. After changing the
engine oil, the message should be reset. ( P. 4 7 5 )
■If “Visit Your Dealer” is shown
The system or part shown on the multi-info rmation display is malfunctioning. Have the
vehicle inspected by your Lexus dealer immediately.
■Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location or audio
sound.
NOTICE
■While the engine oil level warning is displayed
Continued engine operation with low engine oil will damage the engine.

536
LX570_OM_OM60N01U_(U)7-2. Steps to take in an emergency
If you have a flat tire
●Stop the vehicle on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to “P”.
●Turn off the 4-Wheel AHC. (
P. 2 9 7 )
●Stop the engine.
●Turn on the emergency flashers.
Your vehicle is equipped with a spare ti re. The flat tire can be replaced with
the spare tire.
For details about tires: P. 4 8 6
WA R N I N G
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat ti re can damage the tire and the wheel beyond
repair, which could result in an accident.
Before jacking up the vehicle

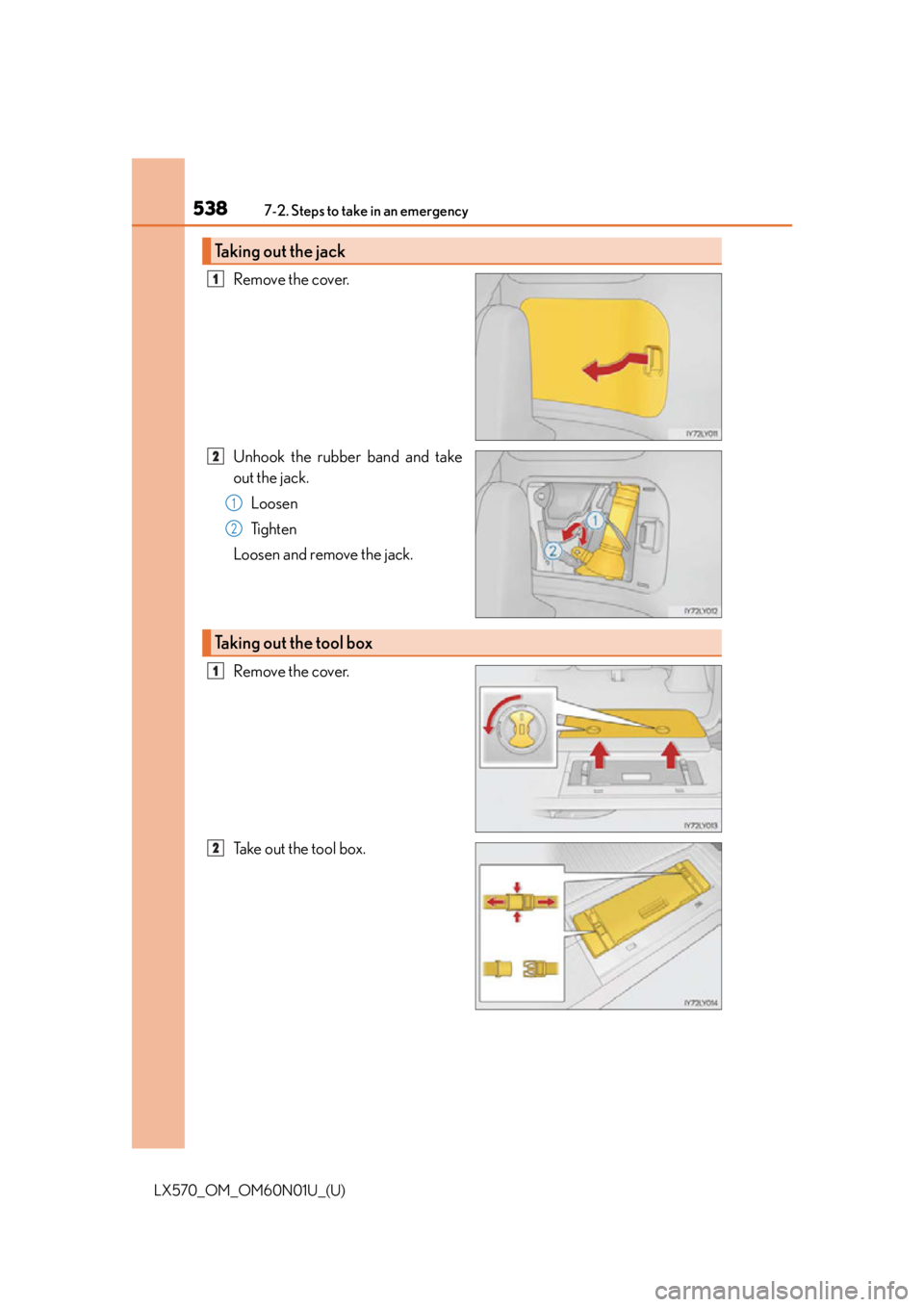

Location of the spare tire, jack and tools
Jack
Spare tire To o l b o x1
2
3

5377-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U)
7
When trouble arises
WA R N I N G
■Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the vehicle
suddenly falling off the jack.
●Do not use the tire jack for any purpose ot her than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires on
this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Be sure to turn off the 4-Wheel AHC and stop the engine.
●Do not put any part of your body under the vehicle supported by a jack.
●Do not start or run the engine while your vehicle is supported by the jack.
●Do not raise the vehicle while someone is in it.
●When raising the vehicle, do not pu t an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the ve hicle to ensure that no one working on or
near the vehicle will be injured.
■Using the jack handle
Tighten all the jack handle bolts securely using a Phillips-head screwdriver, to prevent
the extension parts from coming apart unexpectedly.

5387-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U)
Remove the cover.
Unhook the rubber band and take
out the jack.Loosen
Ti g h t e n
Loosen and remove the jack.
Remove the cover.
Take out the tool box.
Taking out the jack
1
2
1
2
Taking out the tool box
1
2

5397-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U)
7
When trouble arises
Assembling the jack handle.
Remove the jack handle and the jack extens ion bar from the tool box and assemble by
following these steps.
Loosen the screw using a screw-
driver.
Assemble the jack handle and the
jack handle extension bar and
tighten the screw.
Check that the scre w is firmly tight-
ened.
Open the cover.
Insert the jack handle extension into
the lowering screw.
Lower
Raise
Place a rag under the jack handle
extension to protect the back door.

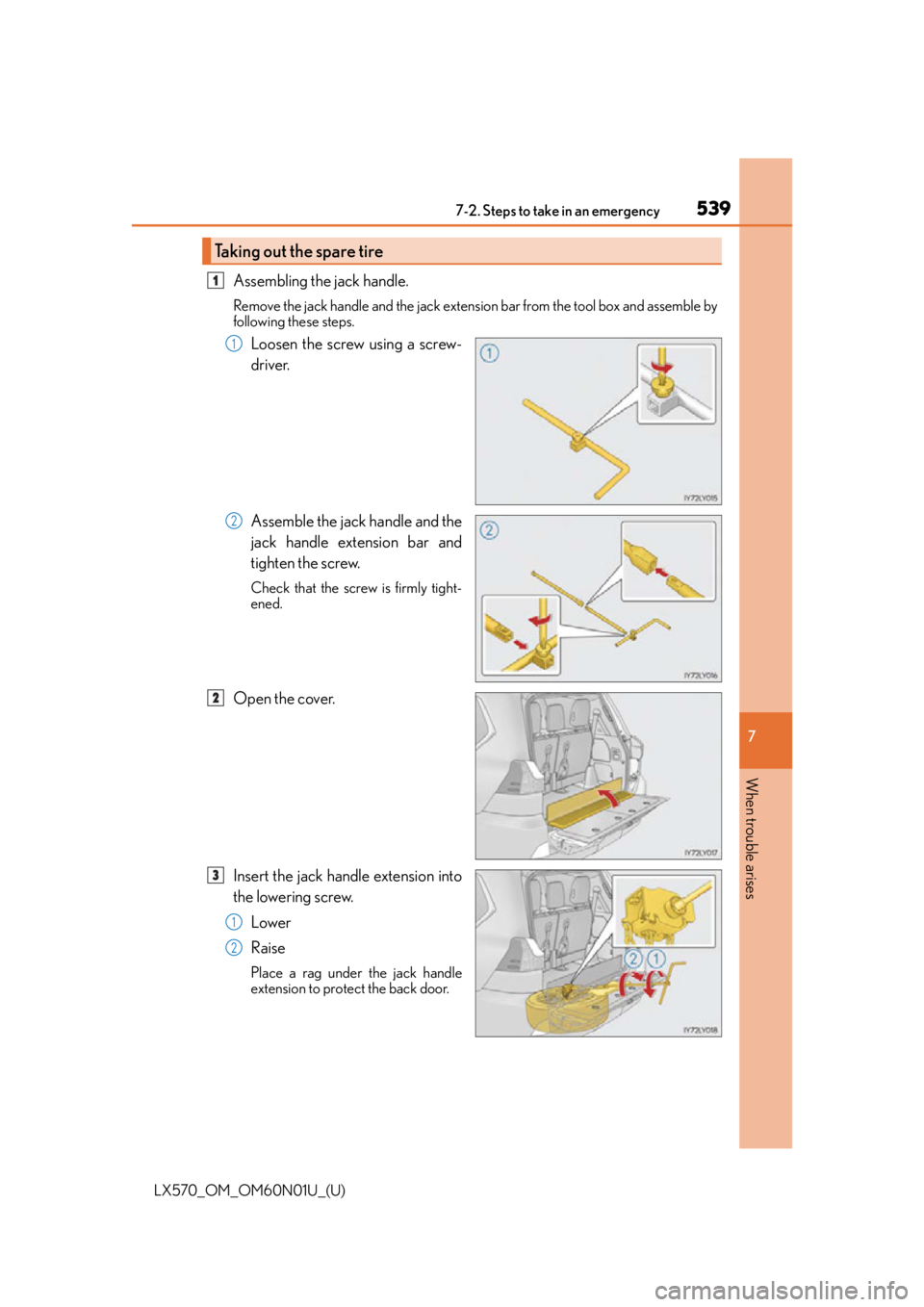

Taking out the spare tire
1
1
2
2
3
1
2

5407-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U)

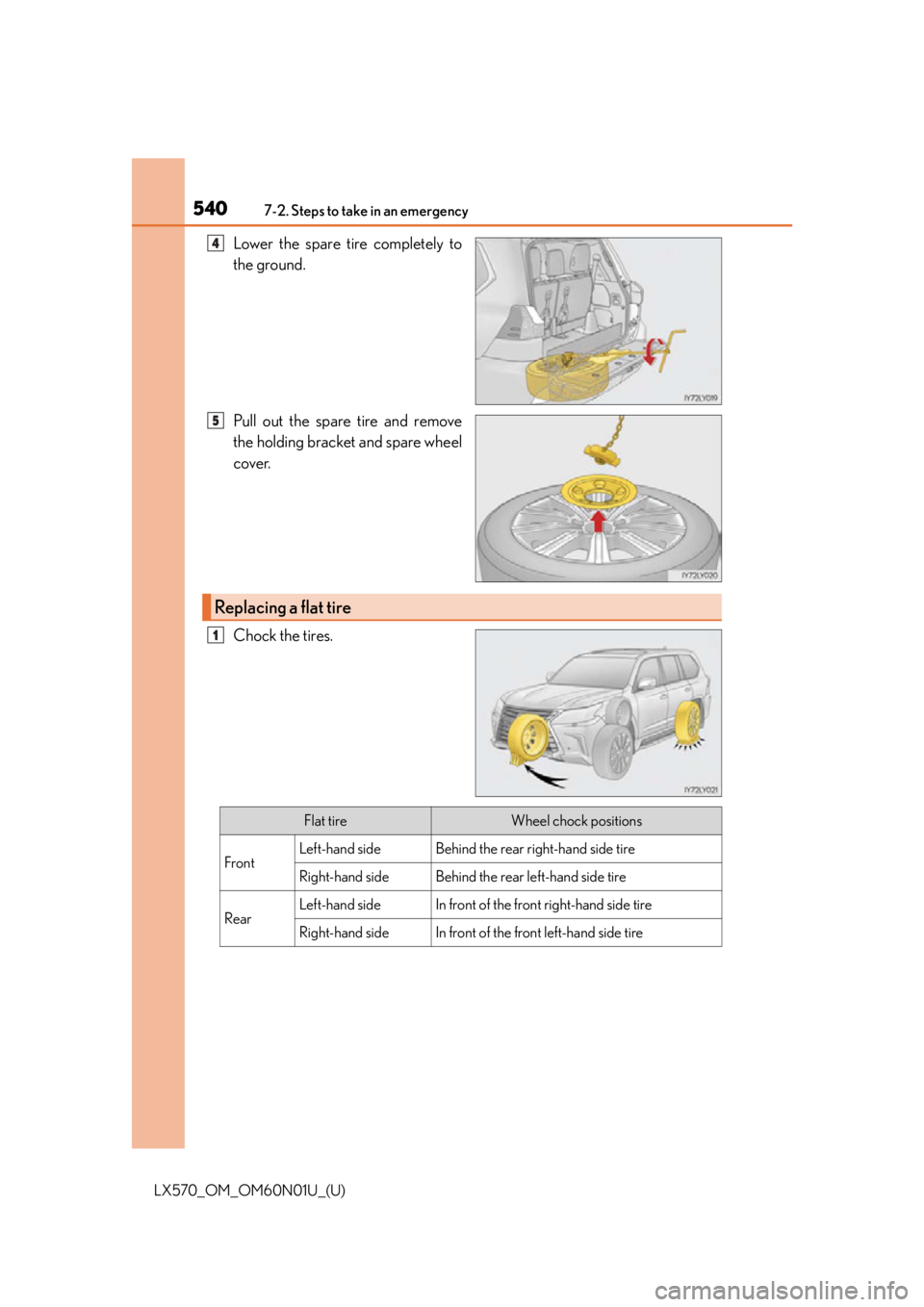

Lower the spare tire completely to
the ground.
Pull out the spare tire and remove
the holding bracket and spare wheel
cover.
Chock the tires.4
5
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
