LEXUS LX570 2016 Owners Manual

5417-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U)
7
When trouble arises

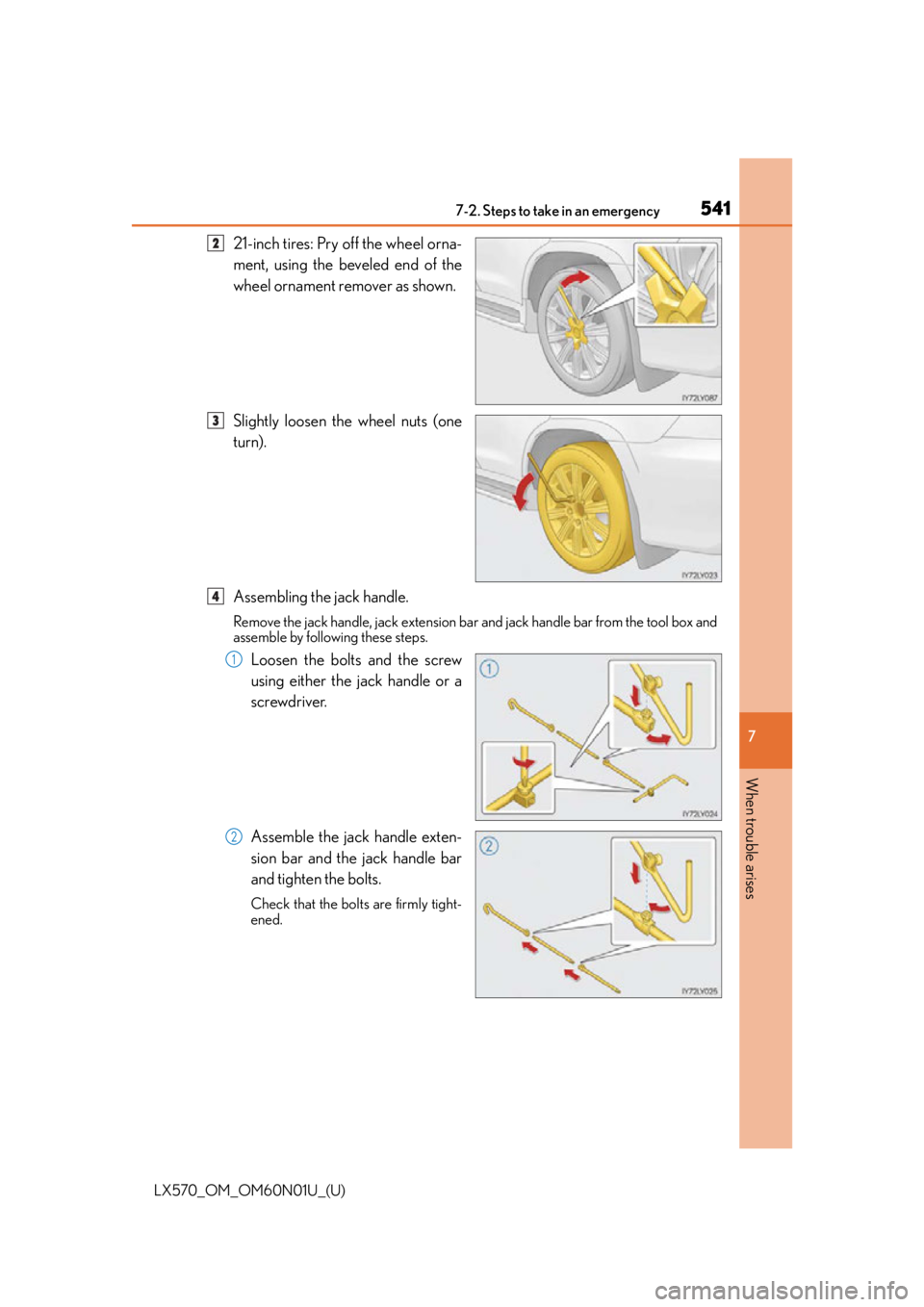

21-inch tires: Pry off the wheel orna-
ment, using the beveled end of the
wheel ornament remover as shown.
Slightly loosen the wheel nuts (one
turn).
Assembling the jack handle.
Remove the jack handle, jack extension bar and jack handle bar from the tool box and
assemble by following these steps.
Loosen the bolts and the screw
using either the jack handle or a
screwdriver.
Assemble the jack handle exten-
sion bar and the jack handle bar
and tighten the bolts.
Check that the bolts are firmly tight-
ened.
2
3
4
1
2

5427-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U)
Assemble the jack handle exten-
sion bar and the jack handle and
tighten the screw.
Check that the screw is firmly tight-
ened.
Position the jack at the jack points as
shown.
Front
Under the chassis frame side rail
Rear
Under the rear axle housing
Raise the vehicle until the tire is
slightly raised off the ground.
3
5
1
2
6

5437-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U)
7
When trouble arises
Remove all the wheel nuts and the
tire.
When resting the tire on the ground,
place the tire so that the wheel design
faces up to avoid scratching the wheel
surface.
7
WA R N I N G
■Replacing a flat tire
●Observe the following precautions.
Failure to do so may result in serious injury:
• Lower the spare tire completely to the ground before removing it from under the vehicle.
• Do not try to remove the wheel ornament by hand. Take due care in handling the
ornament to avoid unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes immediately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the brakes
will be extremely hot. Touching these areas with hands, feet or other body parts
while changing a tire, etc. may result in burns.
• Turn off the vehicle height control. The vehicle height may change due to the automatic leveling function and you may
catch part of your body in the vehicle, resulting in an accident. ( P. 2 9 7 )
●Failure to follow these precautions could cause the wheel nuts to loosen and the tire
to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened, leading to
bolt or disc wheel damage. In addition, the oil or grease can cause the wheel nuts
to loosen and the wheel may fall off, caus ing a serious accident. Remove any oil or
grease from the wheel bolts or wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 97 ft
•lbf (131 N•m, 13.4
kgf
•m) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically designed for
that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by your Lexus dealer.
• Do not attach a heavily damaged wheel ornament, as it may fly off the wheel while
the vehicle is moving.
■Replacing a flat tire for vehicles with power back door
In cases such as when replacing tires, make sure to turn off the power back door main
switch ( P. 124). Failure to do so may cause the back door to operat e unintentionally if
the power back door switch is accidentally touched, resulting in hands and fingers
being caught and injured.

5447-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U)
Remove any dirt or foreign matter
from the wheel contact surface.
If foreign matter is on the wheel contact
surface, the wheel nuts may loosen
while the vehicle is in motion, and the
tire may come off the vehicle.
Install the spare tire and loosely
tighten each nut by hand to approxi-
mately the same amount.
Turn the nut washers until they come
into contact with the disc wheel.
Lower the vehicle.
Firmly tighten each nut two or three
times in the order shown in the illus-
tration.
Tightening torque:
97 ft•lbf (131 N•m, 13.4 kgf•m)
Installing the spare tire
1
Disc wheel
Wa s h e r
2
3
4

5457-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U)
7
When trouble arises
Reinstall the wheel ornament.
Lay down the tire with the outer side
facing up, and install the spare wheel
cover and holding bracket.
Raise the tire.
Stow the tools and jack securely, and replace all covers.
■After completing the tire change
The tire pressure warning system must be reset. ( P. 4 8 7 )
5
20-inch tires21-inch tires
Remove the center wheel ornament
from the flat tire by pushing from the
reverse side, and reinstall it. Make sure to push the center part of
the wheel ornament.
Stowing the flat/spare tire, jack and tools
1
2
3

5467-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U)
NOTICE
■When stowing the flat tire
Ensure that there is no object caught between the tire and the vehicle underbody.
■When replacing the tires
●When removing or fitting the wheels, tires or the tire pressure warning valve and
transmitter, contact your Lexus dealer as the tire pressure warning valve and trans-
mitter may be damaged if not handled correctly.
●Replace the grommets for the tire pressure warning valves and transmitters as well.
■To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve and trans-
mitter may not operate properly. If a liquid se alant is used, contact your Lexus dealer or
other qualified service shop as soon as possible. Make sure to replace the tire pressure
warning valve and transmitter when replacing the tire. ( P. 4 8 7 )

547
LX570_OM_OM60N01U_(U)
7
When trouble arises
7-2. Steps to take in an emergency
If the engine will not start
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
●The engine may be flooded.
Try to restart the engine again following correct starting procedures.
(P. 2 0 5 )
●There may be a malfunction in the engine immobilizer system. ( P. 76 )
One of the following may be the cause of the problem:
●The battery may be discharged. ( P. 5 5 3 )
●The battery terminal connections may be loose or corroded.
The engine starting system may be malfun ctioning due to an electrical problem
such as an open circuit or a blown fuse. However, an interim measure is available
to start the engine. ( P. 5 4 8 )
If the engine will not start even though correct starting procedures are being
followed ( P. 205), consider each of the following points:
The engine will not start even when the starter motor operates nor-
mally.
The starter motor turns over slowly , the interior lights and headlights
are dim, or the horn does not sound or sounds at a low volume.
The starter motor does not turn over.

5487-2. Steps to take in an emergency
LX570_OM_OM60N01U_(U)
One of the following may be the cause of the problem:
●One or both of the battery terminals may be disconnected.
●The battery may be discharged. (P. 5 5 3 )
●There may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if repair procedures
are unknown.
When the engine does not start, the following steps can be used as an interim
measure to start the engine if the engine switch is functioning normally.
Set the parking brake.
Put the shift lever in P.
Set the engine switch to the ACCESSORY mode.
Push and hold the engine switch for about 15 seconds while depressing the
brake pedal firmly.
Even if the engine can be started using the above steps, the system may be mal-
functioning. Have the vehicle inspected by your Lexus dealer.
The starter motor does not turn over, the interior lights and headlights
do not turn on, or the horn does not sound.
Emergency start function
1
2
3
4

549
LX570_OM_OM60N01U_(U)
7
When trouble arises
7-2. Steps to take in an emergency
If the shift lever cannot be shifted from P
Set the parking brake.
Turn the engine switch to ACCESSORY mode.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or equivalent tool.
To prevent damage to the cover, cover
the tip of the screwdriver with a rag.
Press the shift lock override button.
The shift lever can be shifted while the
button is pressed.
If the shift lever cannot be shifted with your foot on the brake pedal, there may
be a problem with the shift lock system (a system to prevent accidental opera-
tion of the shift lever). Have the vehicl e inspected by your Lexus dealer, imme-
diately.
The following steps may be used as an emergency measure to ensure that the
shift lever can be shifted:
1
2
3
4
5

550
LX570_OM_OM60N01U_(U)7-2. Steps to take in an emergency
If the electronic key do
es not operate properly
Use the mechanical key ( P. 111) in
order to perform the following opera-
tions (driver’s door only):
Locks all the doors
Closes the windows and moon roof
*
(turn and hold)
Unlocks the doors
Turning the key rearward unlocks the
driver’s door. Turning the key once again
unlocks the other doors.
Opens the windows and moon roof* (turn and hold)
*: These settings must be cust omized at your Lexus dealer.
If communication between the electronic key and vehicle is interrupted
( P. 134) or the electronic key ca nnot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors can be opened and
the engine can be started by following the procedure below.
Locking and unlocking the doors and key linked functions
1
2
3
4
