932. Instrument cluster
2
Instrument cluster
The multi-information display is operated using the meter control switches.
:Switch menu
: Change displayed con- tent, scroll up/down the
screen and move the
cursor up/down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Press: Displays the screen registered to
When no screen has been registered, th e drive information screen will be dis-
played.
Press and hold: Registers the currently displayed screen to
When the confirmation screen is displayed, select yes to register the screen. If the
selected screen cannot be registered, a re gistration failure message will be shown.
Operating the meter control switches
1
2
3
4

94
LX570_OM_OM60N01U_(U)2. Instrument cluster
■Drive information
4 of the following items can be register
ed and displayed as the drive informa-
tion 1 and the drive information 2 (2 items on each screen).
Refer to P. 96 for the registration method of the drive information 1 and the
drive information 2.
●Current fuel consumption (bar type/value type)
Displays the current rate of fuel consumption.
●Average fuel consumption (after reset*2/after start/after refuel)*1
Displays the average fuel consumption since the function was reset, the
engine was started, and the vehicle was refueled, respectively.
●Average vehicle speed (after reset*2/a f t e r s t a r t )
Displays the average vehicle speed since the function was reset and the
engine was started, respectively.
●Elapsed time (after reset*2/a f t e r s t a r t )
Displays the elapsed time since the function was reset and the engine was
started, respectively.
●Distance (driving range/after start)
Displays the estimated maximum distance that can be driven with the
quantity of fuel remaining. • This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
*1: Use the displayed average fuel consumption as a reference.
*2: The function can be reset by pressing for longer than 1 second when the item to
reset is displayed. If there is more than on e item that can be reset, the item selection
screen will appear.
Drive information

LX570_OM_OM60N01U_(U)
952. Instrument cluster
2
Instrument cluster
■Eco Indicator (Eco Driving Indicator Zone Display)
P. 9 8
■Speed
Displays the vehicle speed.
■Outside temperature
Displays the outside temperature within the range of -40 F (-40 C) to 122 F
(50 C).
■Sway warning (if equipped)
Detects the sway of the vehicle within a lane, which is often associated with a
decrease in the driver’s attention level, and displays the decrease in attention
using a bar display.
The shorter the bar length, the more the driver may need to rest.
This display is a part of the LDA (Lane Departure Alert) system. The display is
enabled when the operating conditions of the vehicle sway warning are met.
( P. 2 6 3 )
■Blank screen (display off)
Drive information is not displayed.
■Front tire angle (if equipped)
Displays the direction of the front tires.
The tire direction is displaye d in 3 stages for both left and right, in accordance with
the angle of the tire.
If a battery terminal is disconnected an d reconnected, the display may be disabled
temporarily. After driving the vehicle fo r a while, the display will be enabled.
■Tire inflation pressure (if equipped)
Displays inflation pressure of each tire.
The inflation pressure of the spare tire will be displayed.
■Oil maintenance (if equipped)
Displays the remaining distance before the next maintenance is required.
Vehicle information

LX570_OM_OM60N01U_(U)
972. Instrument cluster
2
Instrument cluster
●Meter settings
Select to set the following items.• Language Select to change the language on the display.
•Units Select to change the unit for measure of the fuel consumption.
• Eco Driving Indicator Light (if equipped) Select to activate/deactivate the Eco Driving Indicator Light. (
P. 8 7 )
• switch settings You can register 1 screen as the top screen. To register, press and hold
while the desired screen is displayed.
• Drive information 1 and 2 Select to select up to 2 items that will be displayed on a drive informa-
tion screen, up to 2 drive in formation screens can be set.
•Pop-up display Select to set the pop-up displays, which may appear in some situations,
on/off. ( P. 9 8 )
• Accent color Select to change the accent colors on the screen, such as the cursor
color.
• Initialization Registered or changed meter settings will be deleted or returned to
their default setting.
*:If equipped

105
LX570_OM_OM60N01U_(U)2. Instrument cluster
2
Instrument cluster
Fuel consumption information
Remote Touch screen
Remote Touch knob (
P. 3 9 4 )
“MENU” button
“ENTER” button
Fuel consumption information can be di splayed on the Remote Touch screen.
The fuel consumption information can be displayed and operated on the side
display.
1
2
3
4

106
LX570_OM_OM60N01U_(U)2. Instrument cluster
Press the “MENU” button on the Remote Touch, then select “Info” on the “Menu”
screen, and then select “Fuel Consumption”.
■Trip information
If the “Past Record” screen is displayed, select “Trip Information”.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine
was started.
Cruising range ( P. 1 0 7 )
Average fuel consumption for the past 15 minutes is divided by color into past
averages and averages attained since the engine switch was last turned to IGNI-
TION ON mode. Use the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual conditions.
Fuel consumption
1
2
3
4
5
6

LX570_OM_OM60N01U_(U)
1072. Instrument cluster
2
Instrument cluster
■Past record
If the “Trip Information” screen is displayed, select “Past Record”.
Resetting the past record data
Best recorded fuel consumption
Average fuel consumption
Previous fuel consumption record
Updating the average fuel con-
sumption data
The average fuel consumption his-
tory is divided by color into past
averages and the average fuel con-
sumption since the last reset. Use the
displayed average fuel consumption
as a reference.
The image is an example only, and may vary slightly from actual conditions.
■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the current fuel
consumption again.
■Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.
1
2
3
4
5

108
LX570_OM_OM60N01U_(U)2. Instrument cluster

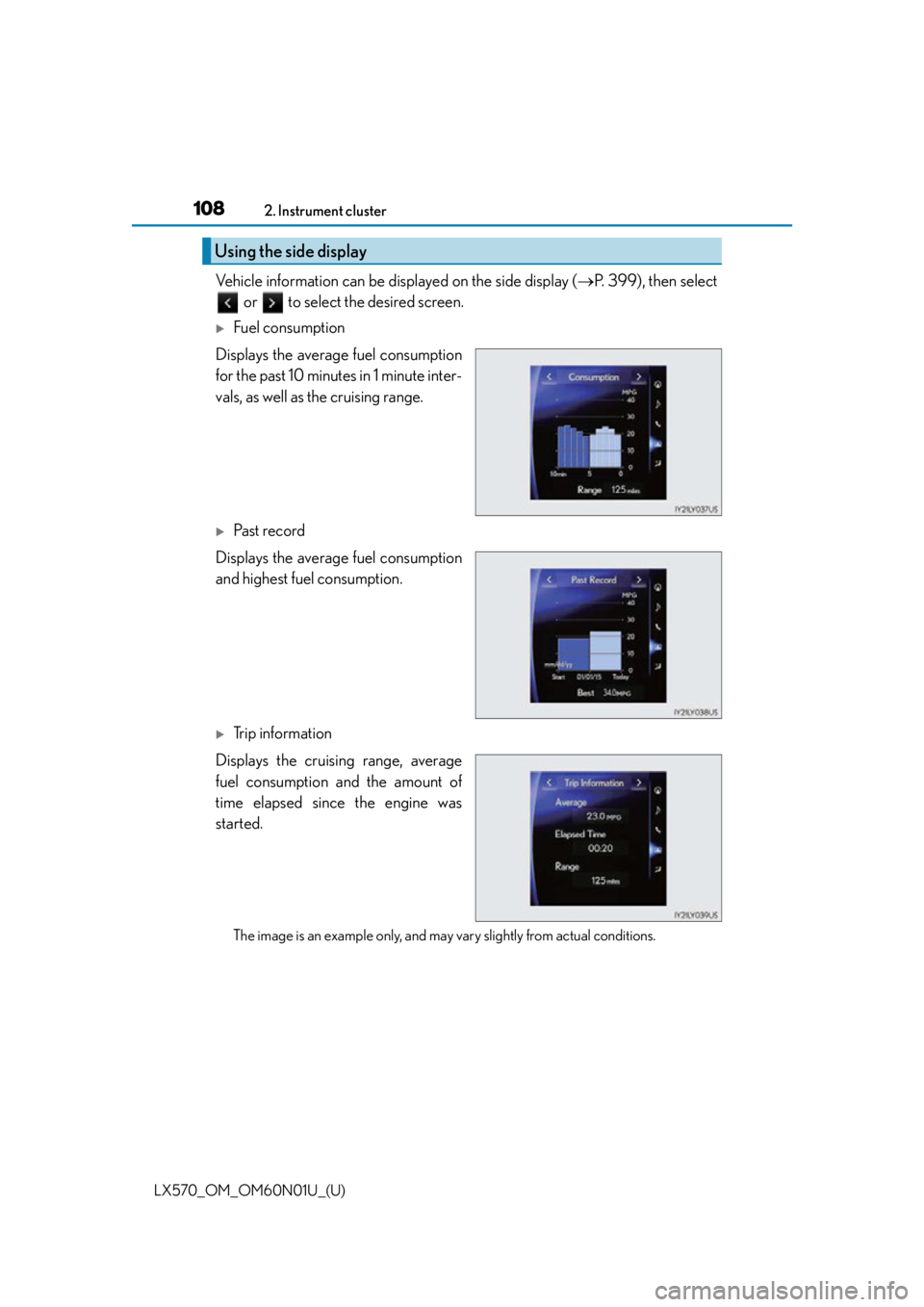

Vehicle information can be displayed on the side display (
P. 3 9 9 ) , t h e n s e l e c t
or to select the desired screen.
Fuel consumption
Displays the average fuel consumption
for the past 10 minutes in 1 minute inter-
vals, as well as the cruising range.
Past record
Displays the average fuel consumption
and highest fuel consumption.
Trip information
Displays the cruising range, average
fuel consumption and the amount of
time elapsed since the engine was
started.
The image is an example only, and may vary slightly from actual conditions.
Using the side display

266
LX570_OM_OM60N01U_(U)4-5. Using the driving support systems
Lane departure alert function display
Displayed when the multi-informa-
tion display is switched to the driving
assist system information screen.
Indications on multi-information display
Inside of displayed white lines is
whiteInside of displayed white lines is
black
Indicates that the system is recognizing
white (yellow) lines. When the vehicle
departs from its lane, the white line dis-
played on the side the vehicle departs
from flashes orange. Indicates that the system is not able to
recognize white (yellow) lines or is
temporarily canceled.
