display LEXUS LX570 2019 Owners Manual

330
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems■
Screens when the four-wheel drive control switch is in H4
: Press
: Select
: Operate the shift lever
* 1
: The displayed screen differs when the outside rear view mirrors are retracted.
* 2
: The screen display can be switched by touching the image from the camera on the
screen. * 1
* 2
* 1
Navigation screen, information set-
tings screen, etc.
Side views:  P. 341
Panoramic view & wide front view:
 P. 339 Panoramic view & rear view:
 P. 344
Wide rear view:  P. 3441
2
3 4
5

LX570_OM_OM60R07U_(U) 3314-5. Using the driving support systems
4
Driving ■
Multi-terrain Monitor screen display
The amount of time that the Multi-terrain Mo nitor screen is displayed changes as follows
according to the vehicle speed at the time the VIEW switch was pressed.
The Multi-terrain Monitor screen is displayed if the vehicle speed is approximately 7 mph
(12 km/h) or less when the camera switch is pressed.
If the vehicle speed exceeds approximately 7 mph (12 km/h), the Multi-terrain Monitor
display is canceled.
The various screens of the Multi-terrain Monitor display info rmation to support
several different driving situations, such as when checking for obstacles when
moving forward or in reverse, or when judging road surface conditions during
off-road driving. ■
Front view & dual side view
Front view & dual side view can be used to check the area around the front of
the vehicle.
• In addition to an image of the front of the vehicle, guide lines are displayed
in a composite view to provide refere nce for when deciding a direction to
move forward in.
• If the VIEW switch is pressed while the screen is displayed, the screen
switches from normal to magnified display. (Pressing the switch again
returns the screen to the normal display)
• If the steering wheel is turned 270  or more, guide lines and other features
to support turning are automatically displayed.Screen display and functions

332
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems●
Screen description
Under vehicle terrain view selection
switch Switches between front view and under
vehicle terrain view display each time
the switch is selected.
Automatic display mode selection
switch  P. 327
Tilt meter/slip display Displays the vehicle’s estimated degree
of incline or indicates a tire slippage.
(  P. 333)
Vehicle width lines (blue) Indicate the width of the vehicle includ-
ing the outside rear view mirror.
1.5 ft. (0.5 m) distance guide line
(red)
3 ft. (1 m) distance guide line (blue) 6 ft. (2 m) distance guide line
(blue) Items to indicate the estimated
distance from the front end of the vehi-
cle.
Front tire course line (yellow) Indicates the estimated course of the
front tires according to steering wheel
position.
Forward movement guide line
(blue) Indicates the estimated tire course of
the tightest possible turn.
Front tire contact line (blue)
Rear tire contact line (blue) Items and indicate estimated tire
positions on the image.
Rear tire course line (yellow) Indicates the estimated course of the
rear tires.1
2
3
4
5
6 7 5 7
8
9
10
11 10 11
12

LX570_OM_OM60R07U_(U) 3334-5. Using the driving support systems
4
Driving ●

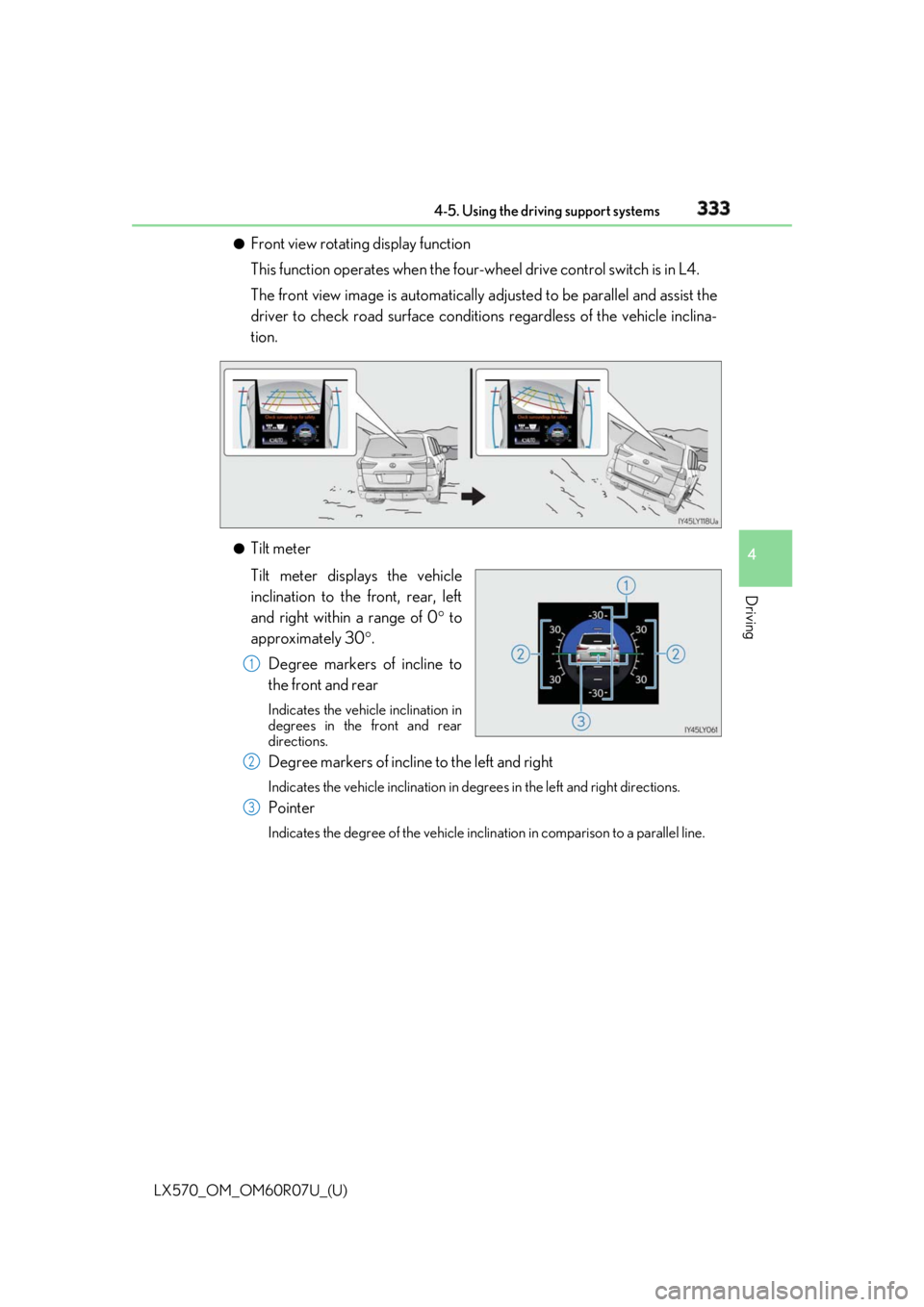

Front view rotating display function
This function operates when the four-w heel drive control switch is in L4.
The front view image is automatically ad justed to be parallel and assist the
driver to check road surface conditio ns regardless of the vehicle inclina-
tion.
●
Tilt meter
Tilt meter displays the vehicle
inclination to the front, rear, left
and right within a range of 0  to
approximately 30  .
Degree markers of incline to
the front and rear Indicates the vehicle inclination in
degrees in the front and rear
directions.
Degree markers of incline to the left and right Indicates the vehicle inclination in degr ees in the left and right directions.
Pointer Indicates the degree of the vehicle inc lination in comparison to a parallel line.1
2
3

334
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems●

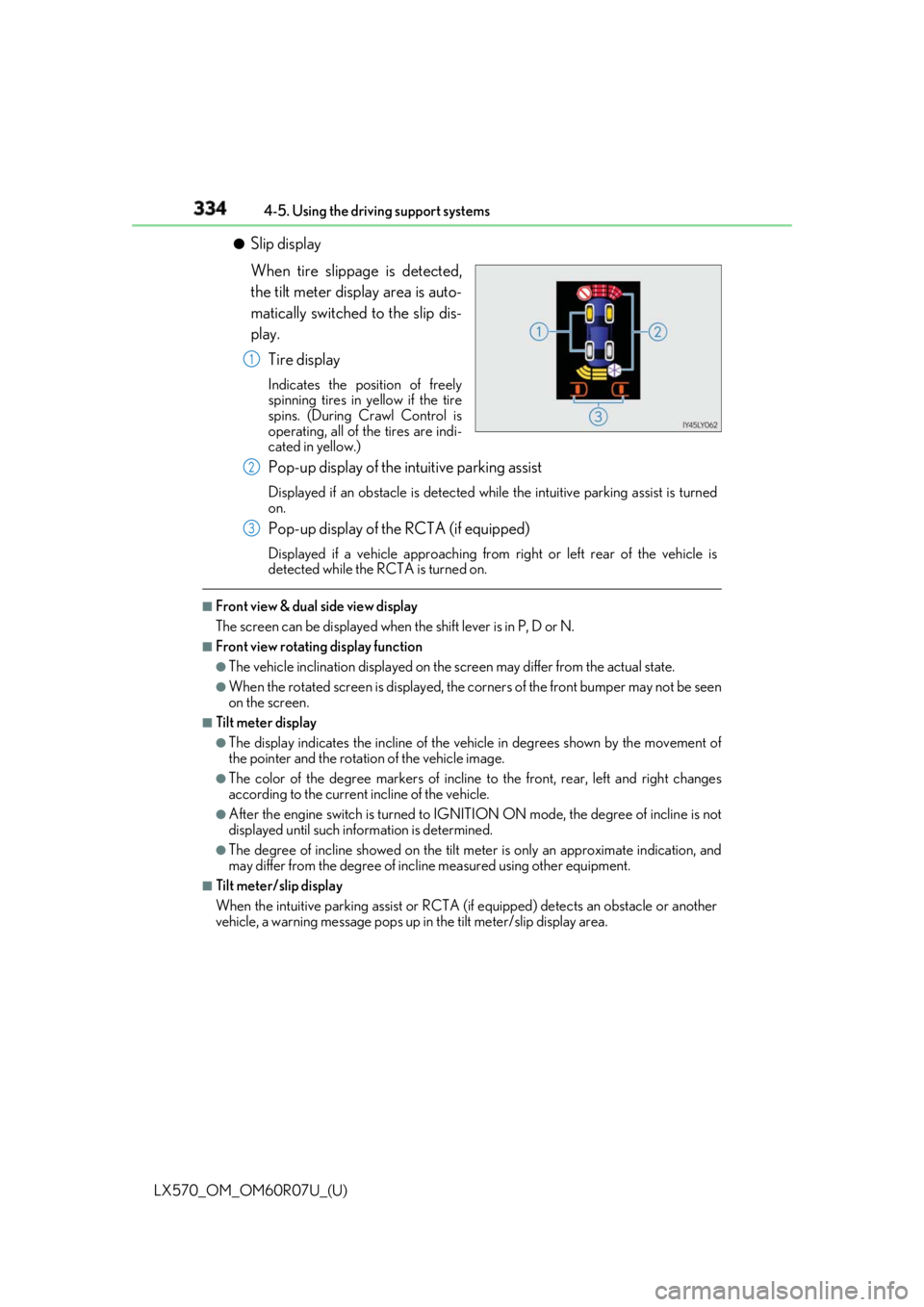

Slip display
When tire slippage is detected,
the tilt meter display area is auto-
matically switched to the slip dis-
play.
Tire display Indicates the position of freely
spinning tires in yellow if the tire
spins. (During Crawl Control is
operating, all of the tires are indi-
cated in yellow.)
Pop-up display of the intuitive parking assist Displayed if an obstacle is detected wh ile the intuitive par king assist is turned
on.
Pop-up display of the RCTA (if equipped) Displayed if a vehicle approaching from right or left rear of the vehicle is
detected while the RCTA is turned on.■
Front view & dual side view display
The screen can be displayed when the shift lever is in P, D or N.■
Front view rotating display function ●
The vehicle inclination displayed on the screen may differ from the actual state. ●
When the rotated screen is displayed, the corners of the front bumper may not be seen
on the screen. ■
Tilt meter display ●
The display indicates the incline of the vehicle in degrees shown by the movement of
the pointer and the rotation of the vehicle image. ●
The color of the degree markers of incline to the front, rear, left and right changes
according to the current incline of the vehicle. ●
After the engine switch is turned to IGNITI ON ON mode, the degree of incline is not
displayed until such info rmation is determined.●
The degree of incline showed on the tilt meter is only an approximate indication, and
may differ from the degree of incline measured using other equipment. ■
Tilt meter/slip display
When the intuitive parking assi st or RCTA (if equipped) dete cts an obstacle or another
vehicle, a warning message pops up in the tilt meter/slip display area.1
2
3

LX570_OM_OM60R07U_(U) 3354-5. Using the driving support systems
4
Driving ■

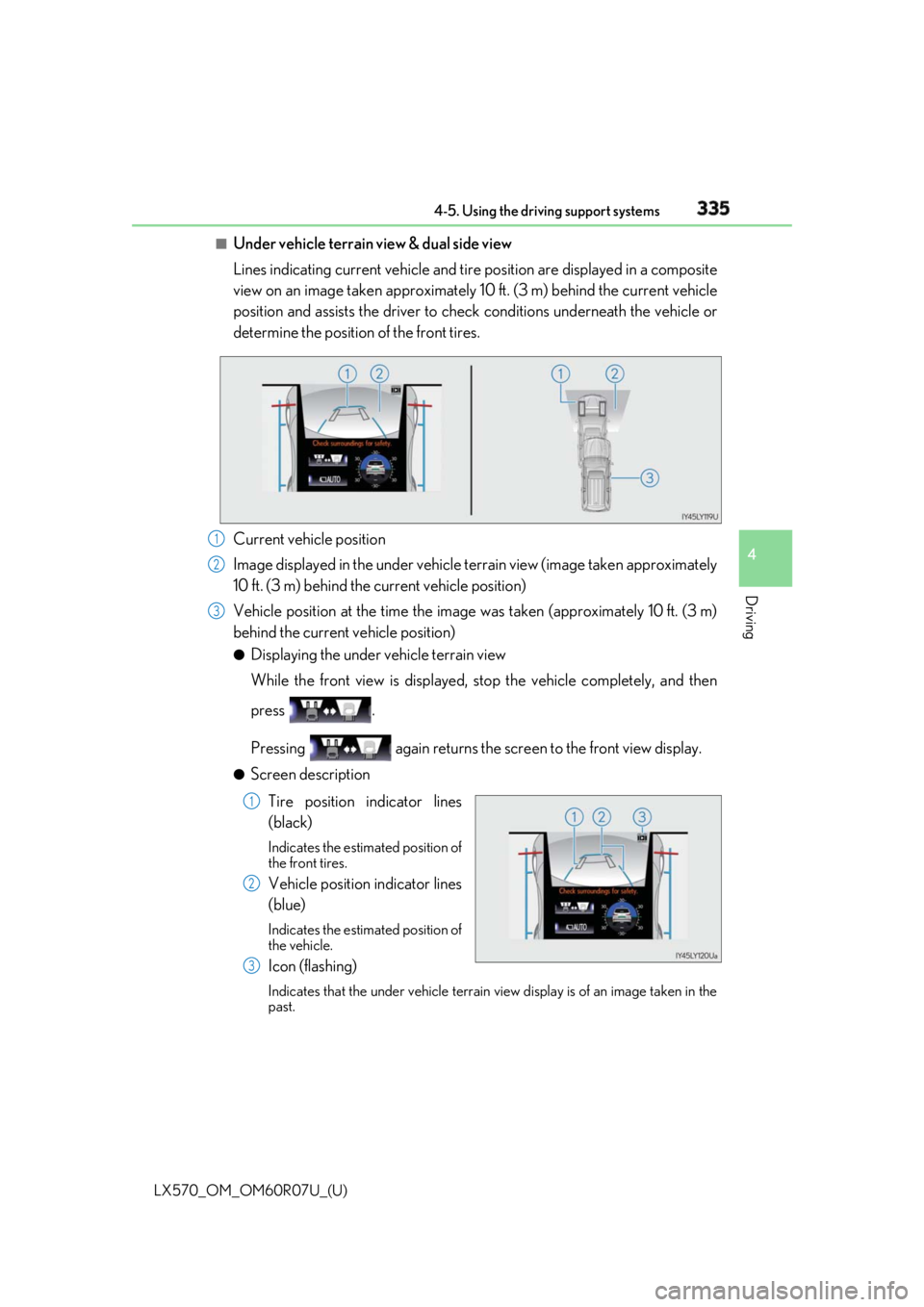

Under vehicle terrain view & dual side view
Lines indicating current vehicle and tire position are displayed in a composite
view on an image taken approximately 10 ft. (3 m) behind the current vehicle
position and assists the driver to chec k conditions underneath the vehicle or
determine the position of the front tires.
Current vehicle position
Image displayed in the under vehicle terrain view (image taken approximately
10 ft. (3 m) behind the current vehicle position)
Vehicle position at the time the image was taken (approximately 10 ft. (3 m)
behind the current vehicle position) ●
Displaying the under vehicle terrain view
While the front view is displayed, stop the vehicle completely, and then
press .
Pressing again returns the scr een to the front view display.●
Screen description
Tire position indicator lines
(black) Indicates the estimated position of
the front tires.
Vehicle position indicator lines
(blue) Indicates the estimated position of
the vehicle.
Icon (flashing) Indicates that the under vehicle terrain view display is of an image taken in the
past. 1
2
3
1
2
3

336
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems■
Under vehicle terrain view & dual side view ●
The screen can be displayed when the shift lever is in D or N.●
While the under vehicle terrain view is di splayed, if the vehicle speed reaches or
exceeds approximately 3 mph (5 km/h), the screen automatically returns to the front
view display. ●
In the following situations, the under vehi cle terrain view selection switch cannot be
operated.
• The vehicle is not completely stopped
• After the engine starts, a fixed distance or more has not been driven
• After the four-wheel drive control switch is shifted to L4, a fixed distance or more
has not been driven ●
In the following situations, the system may no t operate normally, or it may not be possi-
ble to switch to the under vehicle terrain view.
• The road is covered with snow
• It is nighttime and the road has no illumination
• Dirt or foreign matter is adhering to the camera lens
• There is water in front of the vehicle (a river, puddle , sea water, etc.)
WARNING ■
Guide lines
The tire position indicator lines and vehicl e position indicator lines may differ from
actual vehicle positions depending on the number of passengers, cargo weight, road
grade, road surface conditions, brightness of the surrounding environment, etc. Always
drive the vehicle while confirming the safety of your surroundings. ■
Under vehicle terrain view display
The image displayed is one that was previous ly taken at a point approximately 10 ft.
(3 m) behind the current vehicle position. In cases such as when objects move after the
image is taken, the image displayed on the screen may differ from the actual state.

LX570_OM_OM60R07U_(U) 3374-5. Using the driving support systems
4
Driving ■
Rear view & dual side view/wide rear view
Guide lines are displayed in a composite view on an image of the area to the
rear of the vehicle to use as a refere nce when deciding a course of movement
and assist the driver to check the safety of the area to the rear of the vehicle or
to park the vehicle. ●
Screen description
The following 2 types of display mode can be selected according to condi-
tions.
Angle selection switch Switches between rear view & dual side vi ew display and wide rear view display each
time the switch is selected.
Tilt meter/slip display  P. 333
Projected course lines (yellow) Indicate the estimated course of the vehicle according to steering operations.
1.5 ft. (0.5 m) distance guide line (red)
3 ft. (1 m) distance guide line (yellow)
8 ft. (2.5 m) distan ce guide line (yellow), and indicate the estimated distance from the rear end of the vehicle.
Vehicle width extension guide line (blue) Indicates the estimated vehicle width including the outside rear view mirrors.
Front tire contact line (blue)
Rear tire contact line (blue) Items and indicate estimated tire positions on the image. 
Rear view & dual side view display 
Wide rear view display
1
2
3
4
5
6 4 5 6
7
8
9 8 9

338
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems■
Rear view & dual side view/wide rear view
The screen can be displayed wh en the shift lever is in R.■
Guide lines
If the back door is not closed, guide lines w ill not be displayed. If the guide lines do not
display even when the back door is closed, have the vehicle inspected at your Lexus
dealer.
WARNING ■
Guide lines
The tire position indicator lines and vehicl e position indicator lines may differ from
actual vehicle positions depending on the number of passengers, cargo weight, road
grade, road surface conditions, brightness of the surrounding environment, etc. Always
drive the vehicle while confirming the safety of your surroundings.

LX570_OM_OM60R07U_(U) 3394-5. Using the driving support systems
4
Driving ■
Panoramic view & wide front view
The image looking down at the vehicl e from above and the image from the
front camera are displayed si multaneously and assist the driver to check con-
ditions in front, and to the right and le ft, of the vehicle at intersections or T-
junctions with poor visibility. ●
Screen description
The following 2 types of display mode can be selected according to condi-
tions.
Panoramic view Displays an image looking down at the vehicle from above.
Wide front view Displays an image of the area to the front of the vehicle.
Display area
Guide line display selection switch  P. 340
Automatic display mode selection switch  P. 327
Front distance guide line (blue) Indicates a distance approximately 3 ft. (1 m) from the front end of the vehicle.
Forward projected course lines Automatically displayed when the steering wheel is turned 90  or more from the cen-
ter position.
Indicates the estimated course of the vehicle according to steering wheel operations. 
Distance guide line display mode 
Projected course line display mode
1
2
3
4
5
6
7
