LX570_OM_OM60R07U_(U) 3154-5. Using the driving support systems
4
Driving 
Crawl Control
Press the ON/OFF switch while Crawl Cont rol is operating. If the switch is
turned off, the slip indicator and the Turn Assist indicator will go off (if the Turn
Assist function is in use), the Crawl Co ntrol indicator will flash until the system
has turned off completely, and a messag e stating that Crawl Control has been
turned off will be displayed on the multi- information display fo r several seconds.
When turning off Crawl Control while driv ing, stop the vehicle before the Crawl
Control indicator turns off, or drive extremely carefully.
Turn Assist function
Press the Turn Assist switch while the Turn Assist function is operating. When the
switch is pressed, the Turn Assist indicat or will go off, and a message stating that
the Turn Assist function ha s been turned off will be di splayed on the multi-infor-
mation display for several seconds. ■
The Crawl Control and Turn Assist function can be operated when
Crawl Control ●
The engine is running. ●
The shift lever is in any gear other than P or N.●
The four-wheel drive control switch is in L4. ●
The driver’s door is closed. 
Turn Assist function ●
Crawl Control is operating. ●
The center differential is not locked. ●
The accelerator and brake are not being operated. ●
The shift lever is in any ge ar other than P, R or N.●
The steering wheel is turned very far.When the system is turned off

316
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems■
Automatic system cancelation 
Crawl Control
In the following situations, the buzzer will sound intermittently an d Crawl Control will be
canceled automatically. In this event, the Crawl Control indicator will flash and then go
off, the Turn Assist indicator will go off (if th e Turn Assist function is in use), and a message
stating that Crawl Cont rol has been turned off will be di splayed on the multi-information
display for several seconds. ●
When the shift lever is moved to P or N. ●
When the four-wheel drive control switch is in H4. ●
When the driver’s door is opened. 
Turn Assist function
When the center differential is locked, the buzzer will sound inte rmittently and the Turn
Assist function will be canceled automatically. In this event, the Turn Assist indicator will
go off, and a message stating that the Turn Assi st function has been turned off will be dis-
played on the multi-informatio n display for several seconds.■
Function limitations 
Crawl Control ●
In the following situations, brake control can be used to drive downhill at a constant
speed. However, engine control is not available when drivin g uphill at a co nstant speed.
•When switched to second start mode.●
In the following situation, engine control an d brake control will stop temporarily. In this
event, the Crawl Control indicator will flash.
• When the vehicle speed exceeds approximately 15 mph (25 km/h). 
Turn Assist function
In the following situations, the Turn Assist func tion will stop temporarily. In this event, the
Turn Assist indicator will flash. ●
When the vehicle speed exceeds approximately 6 mph (10 km/h). ●
When the shift lever is moved to R. ■
When the Crawl Control system is operated continuously●
If Crawl Control is used continuously for a long time, the buzzer will sound, a malfunc-
tion notification will be displayed on the multi-information display, the Crawl Control
indicator will go off, and Crawl Control will be temporarily inoperable as a result of the
brake system overheating. In this event, stop the vehicle immediately in a safe place,
and allow the brake system to cool down sufficiently until the TRAC OFF indicator
goes off. (In the meantime, normal driving is possible.) ●
If Crawl Control is used continuously for a long time, the buzzer will sound, the system
will be temporarily canceled, and a malfunct ion notification will be displayed on the
multi-information display as a result of th e automatic transmission system overheating.
Stop the vehicle in a safe place until the display goes off. ■
When depressing the accelerator pedal while the Crawl Control is operating
Multi-terrain Select operates in AUTO mode. (  P. 319)

318
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems

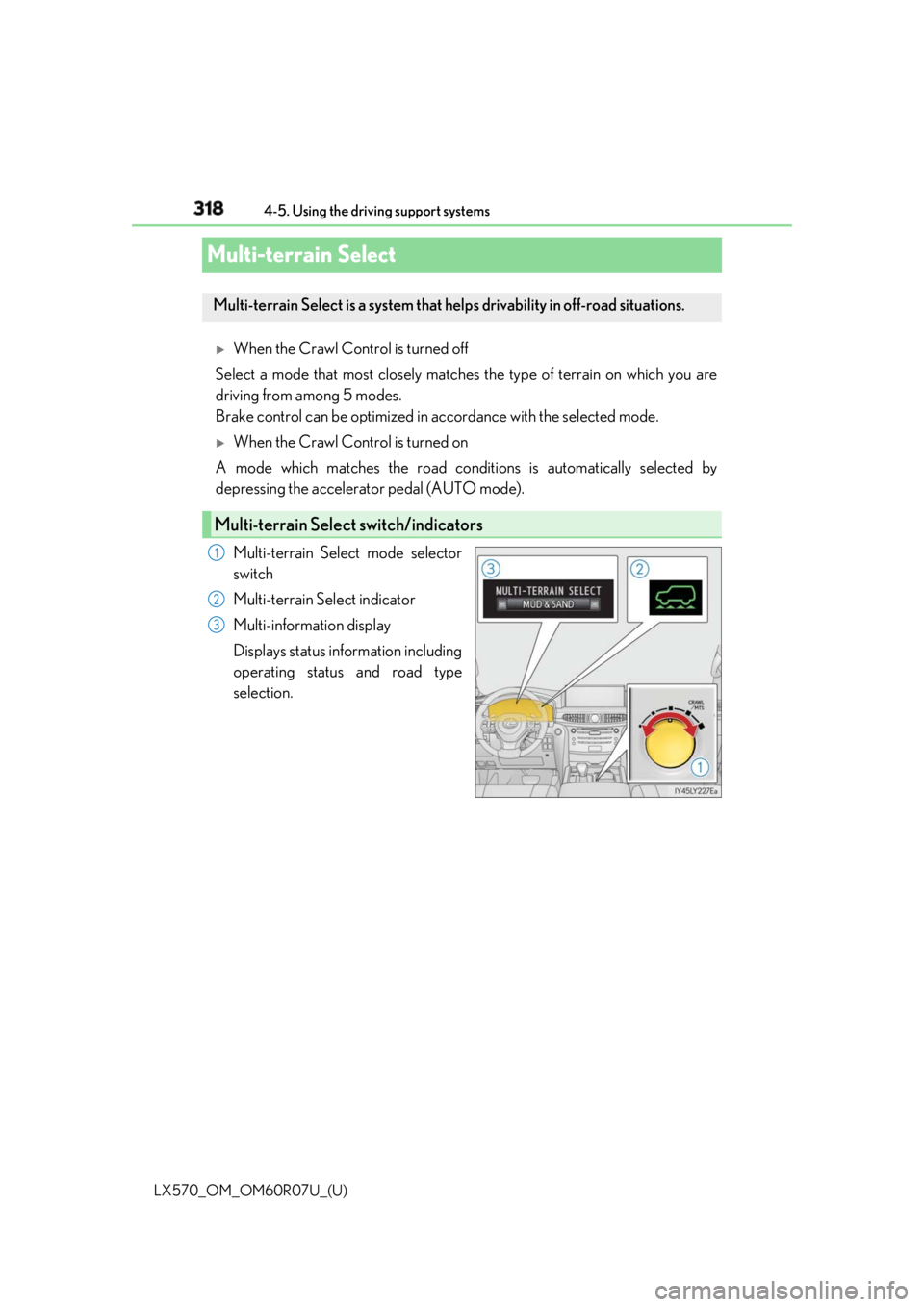

Multi-terrain Select 
When the Crawl Control is turned off
Select a mode that most closely matche s the type of terrain on which you are
driving from among 5 modes.
Brake control can be optimized in accordance with the selected mode.
When the Crawl Control is turned on
A mode which matches the road conditions is automatically selected by
depressing the accelerator pedal (AUTO mode).
Multi-terrain Select mode selector
switch
Multi-terrain Select indicator
Multi-information display
Displays status information including
operating status and road type
selection.Multi-terrain Select is a system that he lps drivability in off-road situations.
Multi-terrain Select switch/indicators 1
2
3

LX570_OM_OM60R07U_(U) 3194-5. Using the driving support systems
4

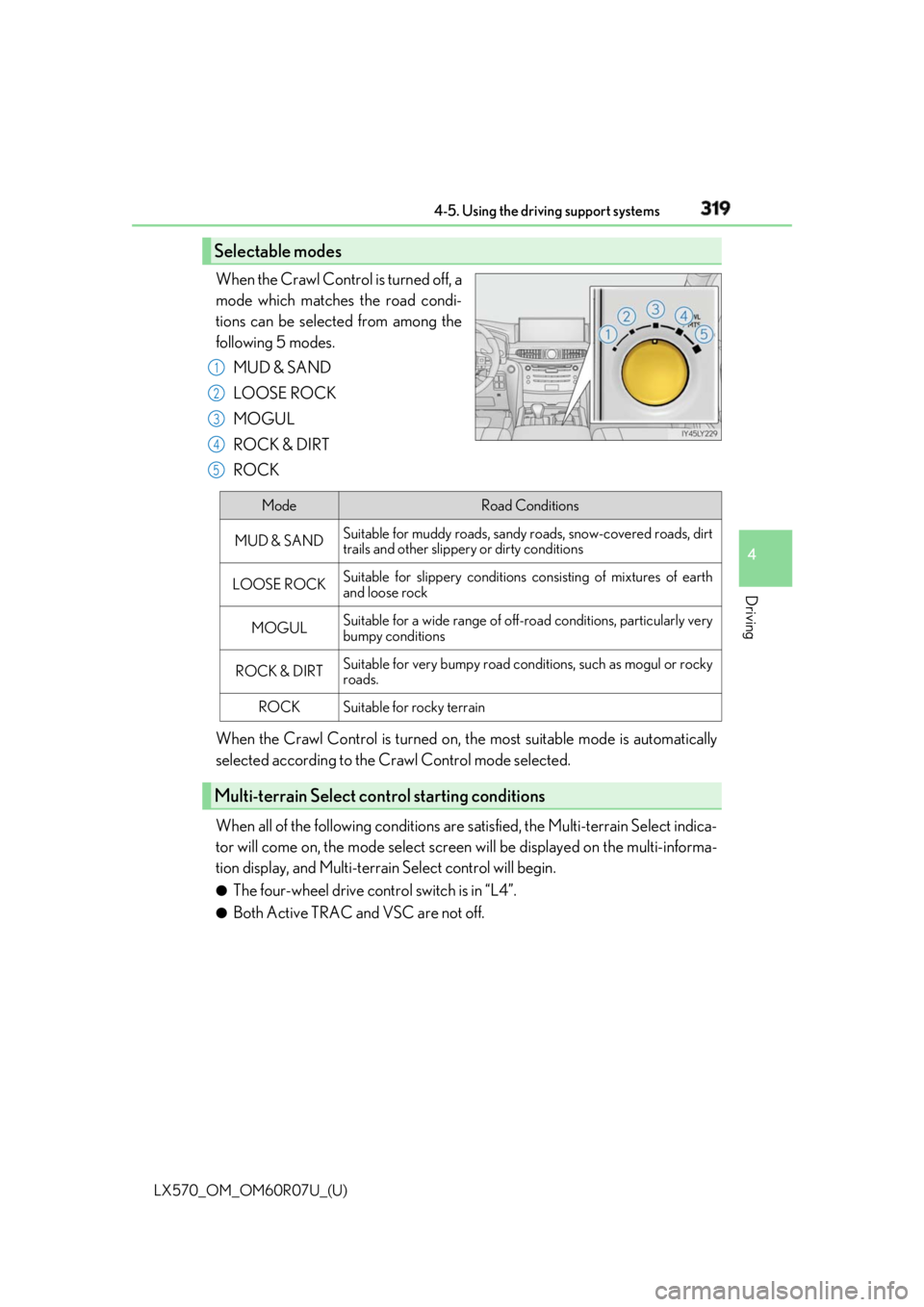

Driving When the Crawl Contro l is turned off, a
mode which matches the road condi-
tions can be selected from among the
following 5 modes.
MUD & SAND
LOOSE ROCK
MOGUL
ROCK & DIRT
ROCK
When the Crawl Control is turned on, th e most suitable mode is automatically
selected according to the Cr awl Control mode selected.
When all of the following conditions are satisfied, the Multi-terrain Select indica-
tor will come on, the mode select screen will be displayed on the multi-informa-
tion display, and Multi-terr ain Select control will begin.●
The four-wheel drive control switch is in “L4”. ●
Both Active TRAC and VSC are not off.Selectable modes 1
2
3
4
5
Mode Road Conditions
MUD & SAND Suitable for muddy roads, sandy roads, snow-covered roads, dirt
trails and other slippery or dirty conditions
LOOSE ROCK Suitable for slippery conditions consisting of mixtures of earth
and loose rock
MOGUL Suitable for a wide range of off- road conditions, particularly very
bumpy conditions
ROCK & DIRT Suitable for very bumpy road cond itions, such as mogul or rocky
roads.
ROCK Suitable for rocky terrain
Multi-terrain Select control starting conditions

320
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems

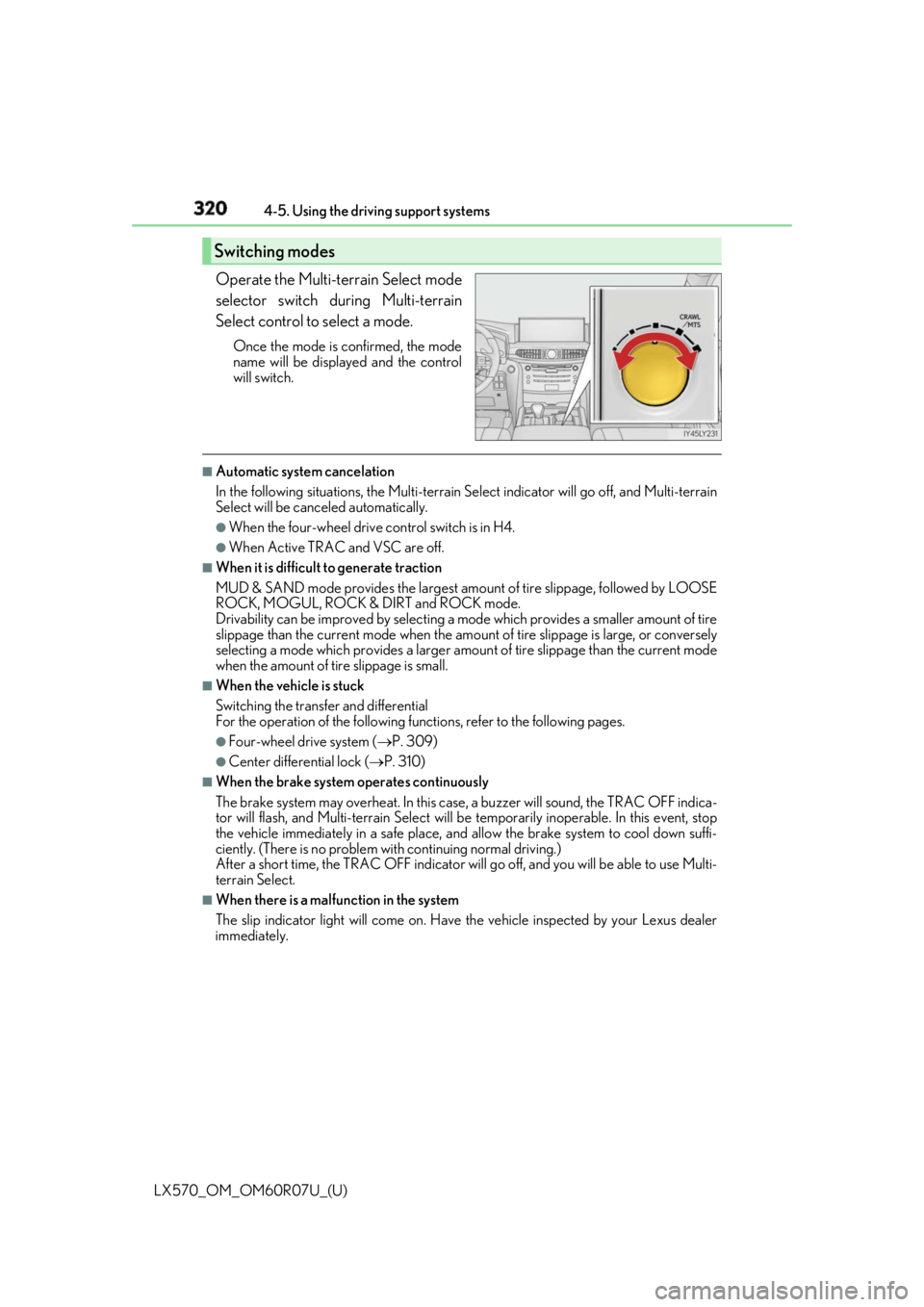

Operate the Multi-terrain Select mode
selector switch du ring Multi-terrain
Select control to select a mode. Once the mode is confirmed, the mode
name will be displayed and the control
will switch. ■
Automatic system cancelation
In the following situations, the Multi-terrain Select indicator will go off, and Multi-terrain
Select will be canceled automatically. ●
When the four-wheel drive control switch is in H4. ●
When Active TRAC and VSC are off. ■
When it is difficult to generate traction
MUD & SAND mode provides the largest amou nt of tire slippage, followed by LOOSE
ROCK, MOGUL, ROCK & DIRT and ROCK mode.
Drivability can be improved by selecting a mo de which provides a smaller amount of tire
slippage than the current mode when the amount of tire slippage is large, or conversely
selecting a mode which provides a larger amou nt of tire slippage than the current mode
when the amount of tire slippage is small. ■
When the vehicle is stuck
Switching the transfer and differential
For the operation of the following func tions, refer to th e following pages.●
Four-wheel drive system (  P. 309)●
Center differential lock (  P. 310)■
When the brake system operates continuously
The brake system may overheat. In this case , a buzzer will sound, the TRAC OFF indica-
tor will flash, and Multi-terrain Select will be temporarily inoperable. In this event, stop
the vehicle immediately in a safe place, and allow the brake system to cool down suffi-
ciently. (There is no problem wi th continuing normal driving.)
After a short time, the TRAC OFF indicator will go off, and you will be able to use Multi-
terrain Select. ■
When there is a malfunction in the system
The slip indicator light will come on. Have the vehicle in spected by your Lexus dealer
immediately.Switching modes

322
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems
Multi-terrain Monitor
The following screens can be select ed according to driving conditions.
• Screens that can be selected vary depend ing on conditions such as shift posi-
tion and vehicle speed. (  P. 328)
• Depending on the displayed screen, the display can be switched from normal
to wide view display.The Multi-terrain Monitor helps the driv er to check the vehicle surroundings.
It assists in determining the conditions around the driver in a variety of situa-
tions, such as when judging conditions during off-road driving or checking for
obstacles when parking. WARNING ■
When using the Multi-terrain Monitor system
Observe the following precautions to avoid an accident that could result in death or
serious injuries. ●
Never rely solely on the Multi-terrain Monitor. As with unequipped vehicles, drive
carefully while directly confirming the safety of your surroundings and the area to the
rear of the vehicle. Take particular care to avoid parked cars and other obstacles.●
Due to the characteristics of the camera lens, the actual position and distance of peo-
ple and other obstacles will differ from those shown on the Multi-terrain Monitor
screen. Directly confirm the safety of your surroundings before driving.●
Do not drive while only looking at the scre en. When driving, make sure to directly
confirm the safety of your surroundings, su ch as by visually checking the area and
using the vehicle’s mirrors. ●
In low temperatures, the screen may darken or the images may become faint.
Images of moving objects in particular may distort or disappear from the screen.
Therefore, make sure to drive carefully while directly visually confirming the safety of
your surroundings.
Multi-terrain Monitor screens

326
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems
■
Displaying the Multi-terrain Monitor screen
The Multi-terrain Monitor screen will be displayed when the VIEW switch is
pressed while the engine switch is in IGNITION ON mode. When the vehicle speed exceeds a certain value for a specific amount of time, the
display returns to the navigation or information display screen.
The amount of time that the Multi-terrain Monitor is displayed differs depending
on conditions such as the vehicle speed. (  P. 331)
VIEW switch
DisplayUsing the Multi-terrain Monitor screen 1
2

LX570_OM_OM60R07U_(U) 3274-5. Using the driving support systems
4
Driving ■

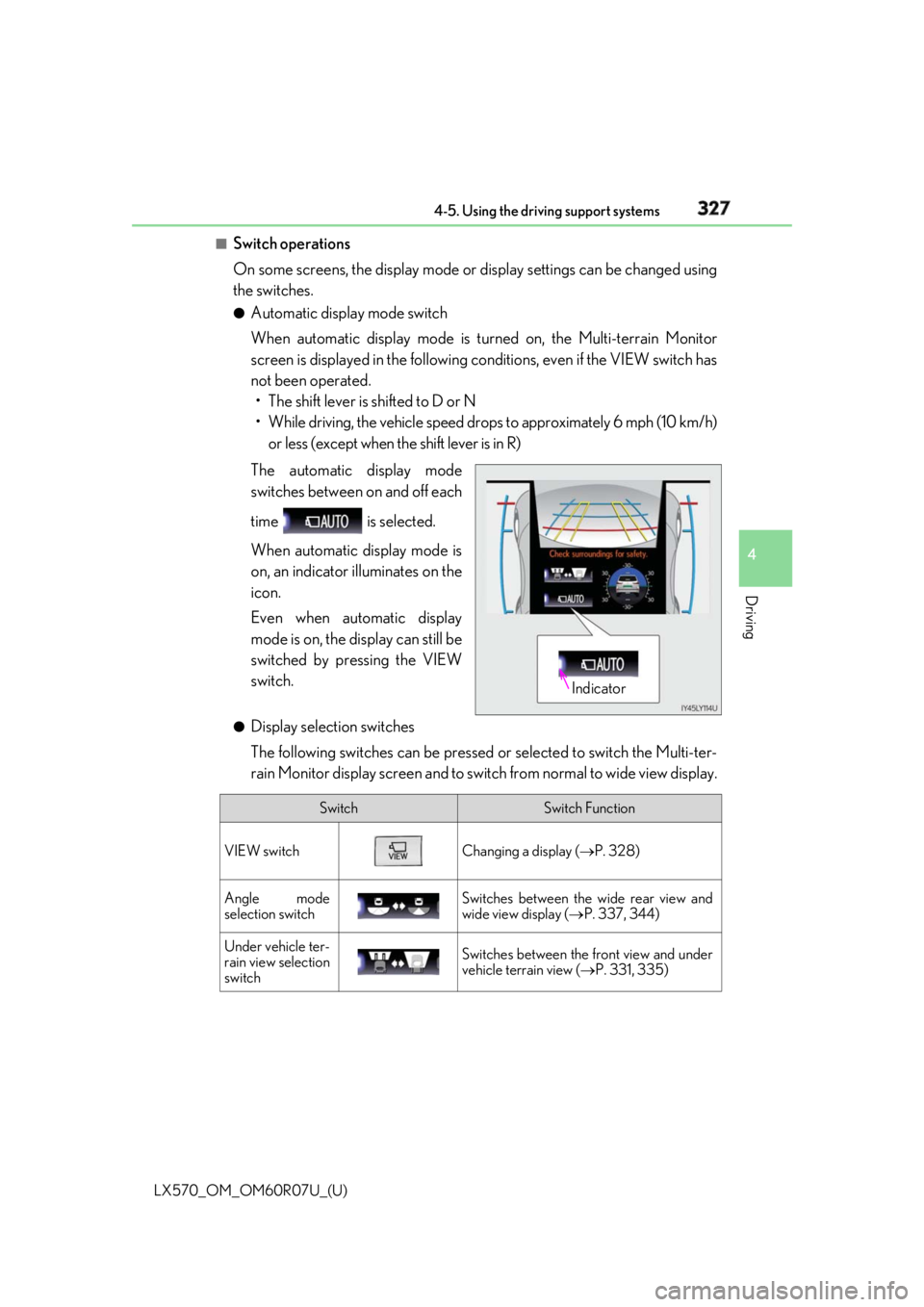

Switch operations
On some screens, the display mode or display settings can be changed using
the switches. ●
Automatic display mode switch
When automatic display mode is tu rned on, the Multi-terrain Monitor
screen is displayed in the following co nditions, even if th e VIEW switch has
not been operated.
• The shift lever is shifted to D or N
• While driving, the vehicle speed dr ops to approximately 6 mph (10 km/h)
or less (except when the shift lever is in R)
The automatic display mode
switches between on and off each
time is selected.
When automatic display mode is
on, an indicator illuminates on the
icon.
Even when automatic display
mode is on, the display can still be
switched by pressing the VIEW
switch. ●
Display selection switches
The following switches can be pressed or selected to switch the Multi-ter-
rain Monitor display screen and to switch from normal to wide view display. Indicator
Switch Switch Function
VIEW switch Changing a display (  P. 328)
Angle mode
selection switch Switches between the wide rear view and
wide view display (  P. 337, 344)
Under vehicle ter-
rain view selection
switch Switches between the front view and under
vehicle terrain view (  P. 331, 335)

328
LX570_OM_OM60R07U_(U) 4-5. Using the driving support systems

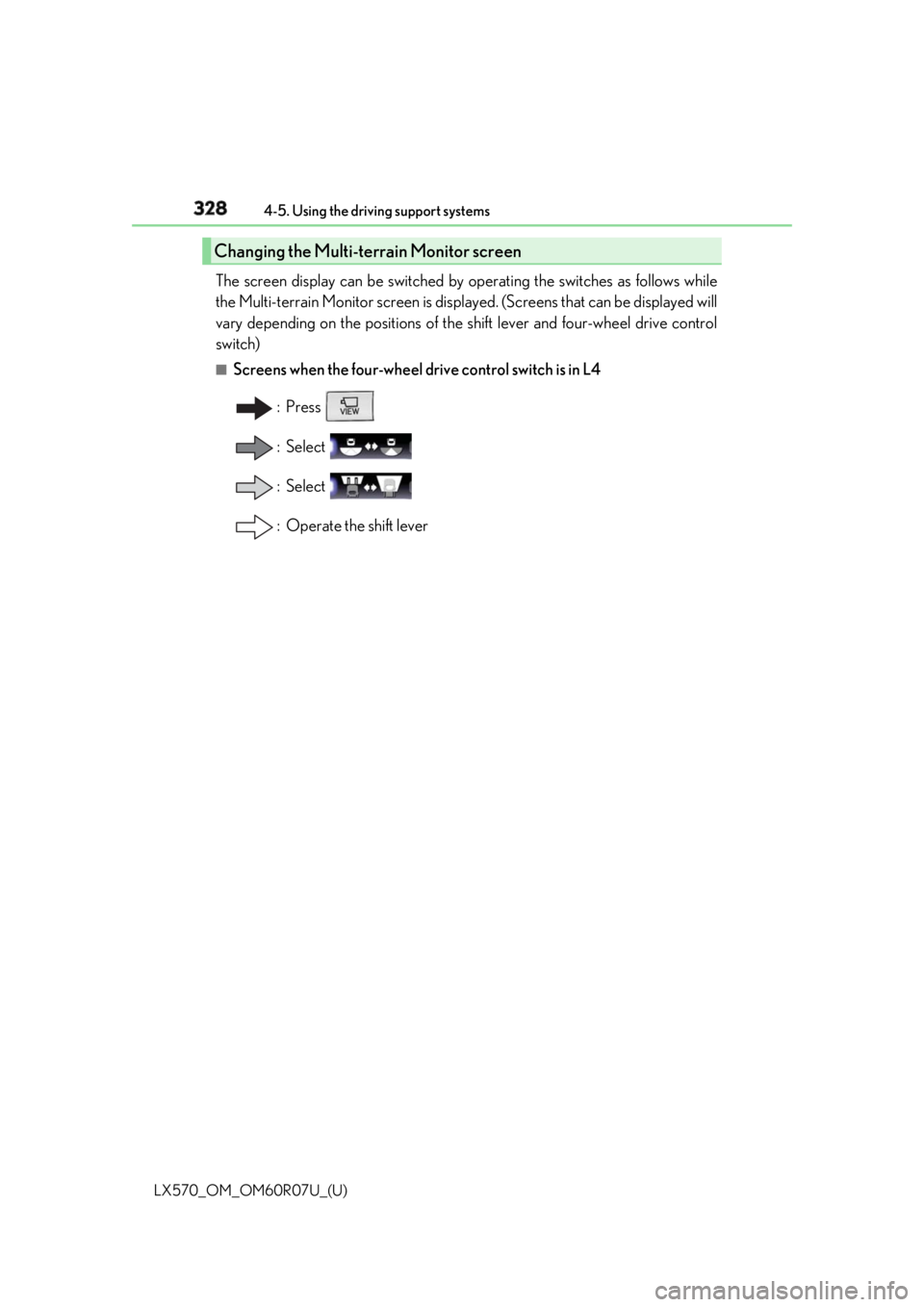

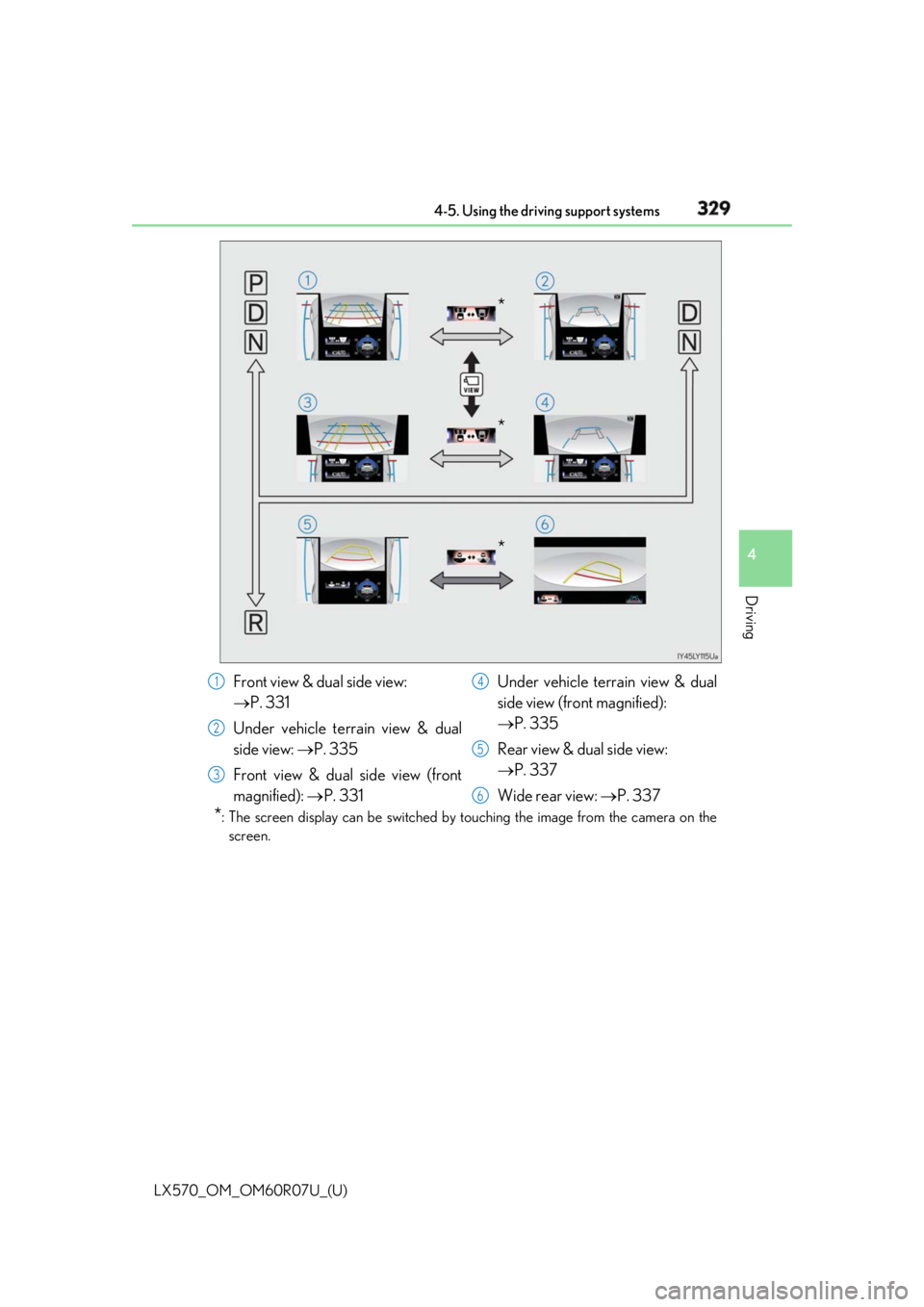

The screen display can be switched by operating the switches as follows while
the Multi-terrain Monitor screen is displa yed. (Screens that can be displayed will
vary depending on the positions of the shift lever and four-wheel drive control
switch) ■
Screens when the four-wheel drive control switch is in L4
: Press
: Select
: Select
: Operate the shift leverChanging the Multi-terrain Monitor screen

LX570_OM_OM60R07U_(U) 3294-5. Using the driving support systems
4
Driving
* : The screen display can be switched by touching the image from the camera on the
screen. *
*
*
Front view & dual side view:
 P. 331
Under vehicle terrain view & dual
side view:  P. 335
Front view & dual side view (front
magnified):  P. 331 Under vehicle terrain view & dual
side view (front magnified):
 P. 335
Rear view & dual side view:
 P. 337
Wide rear view:  P. 3371
2
3 4
5
6
