LEXUS NX300h 2015 Owners Manual

5017-3. Do-it-yourself maintenance
7
Maintenance and care

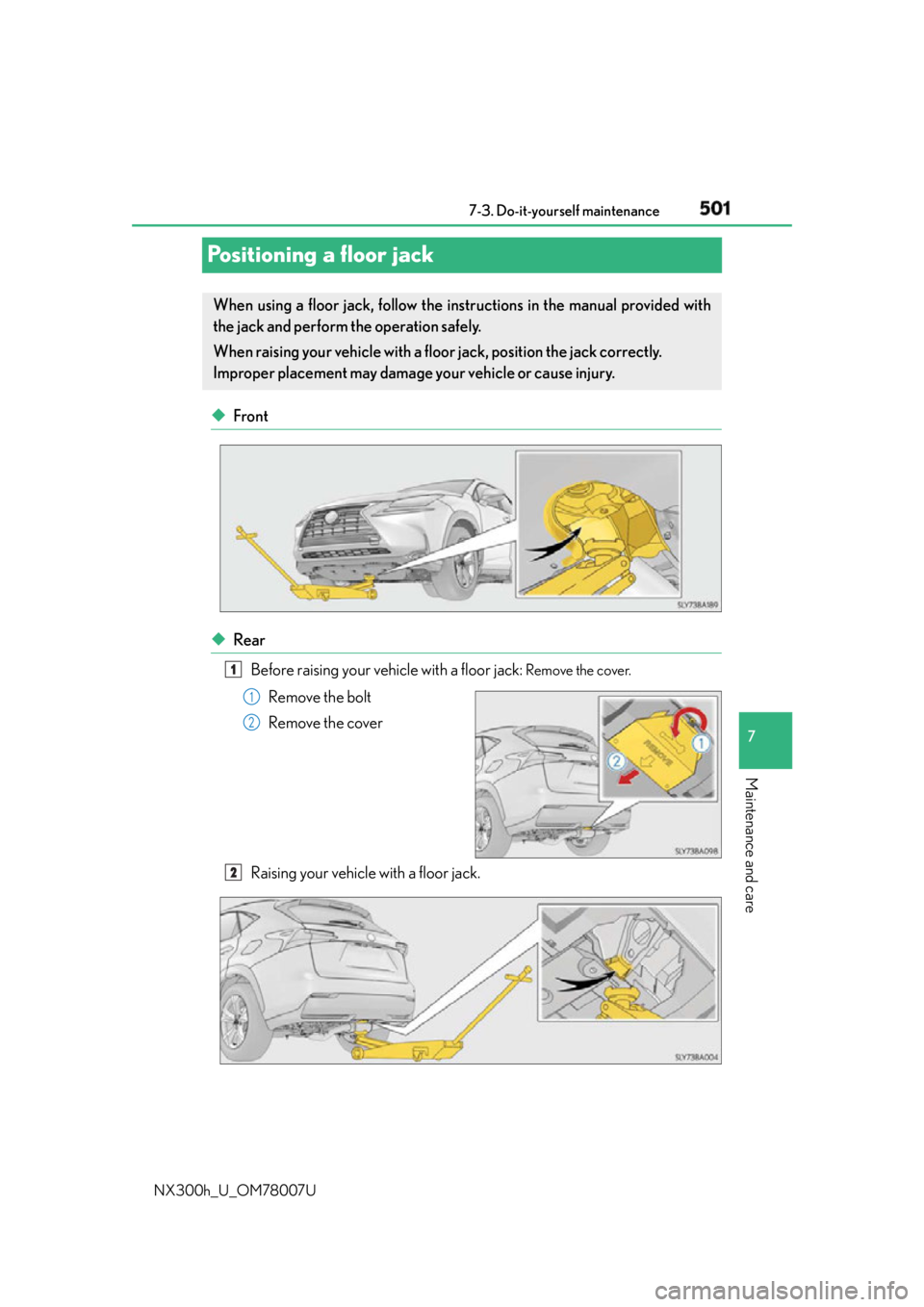

NX300h_U_OM78007UPositioning a floor jack ◆ Front
◆ Rear
Before raising your vehicle with a floor jack: Remove the cover.
Remove the bolt
Remove the cover
Raising your vehicle with a floor jack.When using a floor jack, follow the instructions in the manual provided with
the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
1
1
2
2

502 7-3. Do-it-yourself maintenance
NX300h_U_OM78007UEngine compartment
■
12-volt battery
 P. 5 1 2Fuse box (  P. 5 3 4 )
Engine coolant reservoir
(  P. 5 0 8 )
Engine oil filler cap (  P. 505)
Power control unit coolant reservoir
(  P. 5 0 8 )
Brake fluid reservoir (  P. 5 1 0 ) Radiator (  P. 5 0 9 )
Condenser (  P. 5 0 9 )
Electric cooling fans
Engine oil level dipstick
(  P. 5 0 4 )
Wa s h e r f l u i d t a n k (  P. 5 1 1 )1
2
3
4
5 6
7
8
9
10

5037-3. Do-it-yourself maintenance
7
Maintenance and care
NX300h_U_OM78007U ■

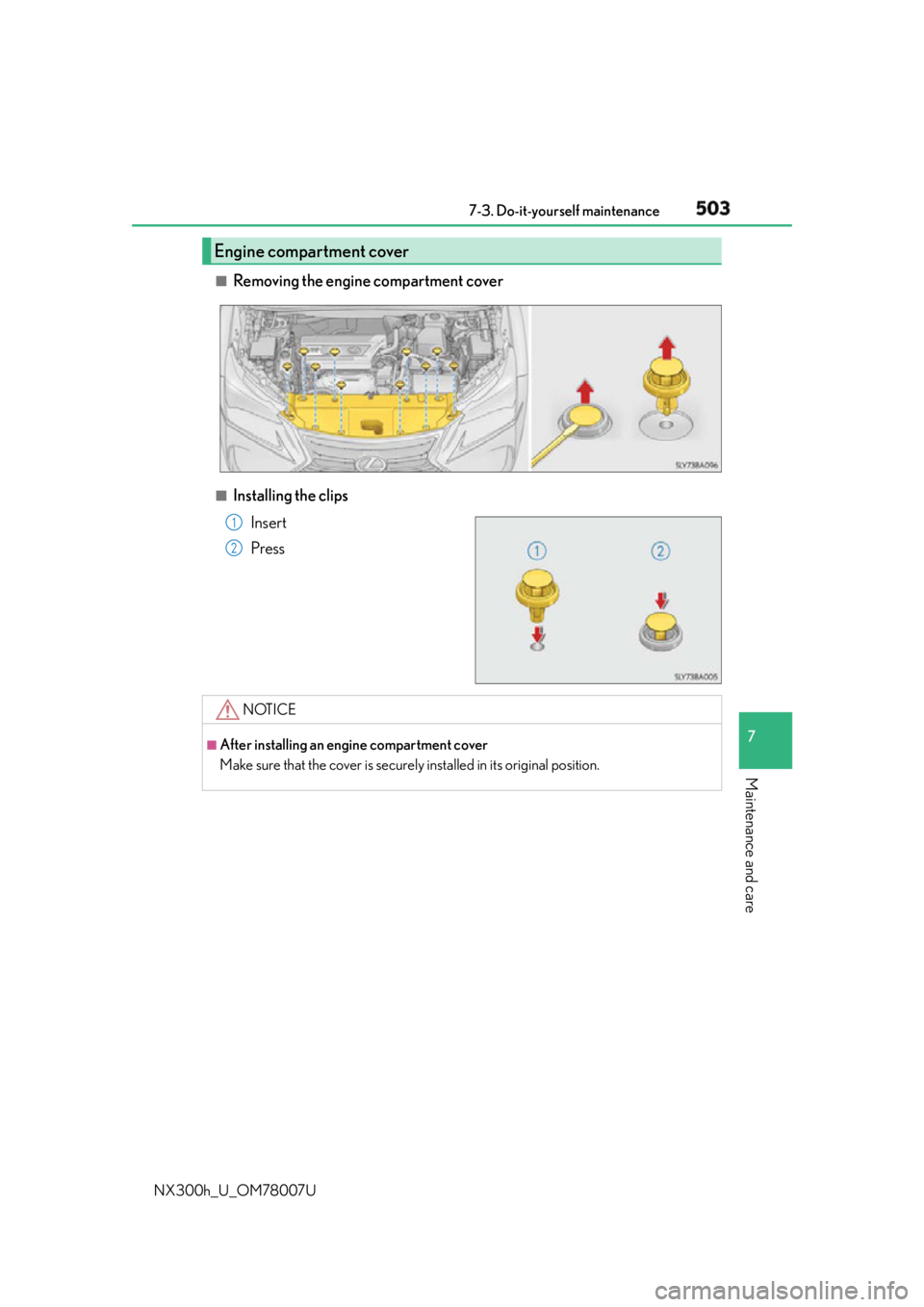

Removing the engine compartment cover
■
Installing the clips
Insert
PressEngine compartment cover
1
2
NOTICE ■
After installing an engine compartment cover
Make sure that the cover is securely installed in its original position.

504 7-3. Do-it-yourself maintenance
NX300h_U_OM78007U With the engine at operating temperatur e and turned off, check the oil level on
the dipstick. ■
Checking the engine oil
Park the vehicle on level ground. After warming up the engine and turning
off the hybrid system, wait more than 5 minutes for the oil to drain back into
the bottom of the engine.
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully with its
protruding areas ( in the illus-
tration) pointing towards engine.
Holding a rag under the end, pull the dipstick out and check the oil level.
Low
Normal
Excessive
Wipe the dipstick and reinsert it fully.Engine oil 1
2
3
4
1
5
Measuring side1
2
3
6

5057-3. Do-it-yourself maintenance
7
Maintenance and care
NX300h_U_OM78007U ■
Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of the
same type as that already in the
engine.
Make sure to check the oil type and prepare the items needed before adding
oil.
Remove the oil filler cap by turning it coun terclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise. ■
Engine oil consumption
A certain amount of engine oil will be consum ed while driving. In th e following situations,
oil consumption may increase, and engine o il may need to be refilled in between oil
maintenance intervals. ●
When the engine is new, for example directly after purchasing the vehicle or after
replacing the engine ●
If low quality oil or oil of an inappropriate viscosity is used●
When driving at high engine speeds or with a heavy load, when towing, or when driving
while accelerating or de celerating frequently●
When leaving the engi ne idling for a long time, or when driving frequently through
heavy trafficEngine oil selection  P. 6 1 2
Oil quantity (Low  Full) 1.6 qt. (1.5 L, 1.3 Imp.qt.)
Items Clean funnel1
2
3

506 7-3. Do-it-yourself maintenance
NX300h_U_OM78007U ■
After changing the engine oil
The engine oil maintenance da ta should be reset. Perform the following procedures:
Press of the meter control switch.
Press or of the meter control switch,
select , and then press .
Press or of the meter control switch,
select the “Oil Mainte nance” screen and then
press and hold the .
Select the “Yes” and push .
A message is displayed on the multi-informa-
tion display. 1
2
3
4
5

5077-3. Do-it-yourself maintenance
7
Maintenance and care
NX300h_U_OM78007U WA R N I N G ■
Used engine oil ●
Used engine oil contains potentially harm ful contaminants which may cause skin dis-
orders such as inflammation and skin canc er, so care should be taken to avoid pro-
longed and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water. ●
Dispose of used oil and filters only in a safe and acceptable manner. Do not dispose of
used oil and filters in household trash, in sewers or onto the ground. Call your Lexus
dealer, service station or auto parts store for information concerning recycling or dis-
posal. ●
Do not leave used engine oil within the reac h of children.
NOTICE ■
To prevent serious engine damage
Check the oil level on a regular basis. ■
When replacing the engine oil ●
Be careful not to spill engine oil on the vehicle components. ●
Avoid overfilling, or the engine could be damaged.●
Check the oil level on the dipstick every time you refill the vehicle. ●
Be sure the engine oil filler cap is properly tightened.

508 7-3. Do-it-yourself maintenance
NX300h_U_OM78007U The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on
the reservoir when the hybrid system is cold. ■
Engine coolant reservoir
Reservoir cap
“FULL” line
“LOW” line If the level is on or below the “LOW”
line, add coolant up to the “FULL”
line. (  P. 6 0 0 )
■
Power control unit coolant reservoir
Reservoir cap
“FULL” line
“LOW” line If the level is on or below the “LOW”
line, add coolant up to the “FULL”
line.■
Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high qu ality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid
organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mixt ure of 50% coolant and 50% deionized water.
(Minimum temperature: -31  F [-35  C])
Canada:
“Toyota Super Long Life Coolant” is a mixt ure of 55% coolant and 45% deionized water.
(Minimum temperature: -44  F [-42  C])
For more details about coolant, contact your Lexus dealer. ■
If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine/p ower control unit coolant reservoir caps,
drain cock and water pump.
If you cannot find a leak, have your Lexus dealer test the cap and check for leaks in the
cooling system.Coolant 1
2
3
1
2
3

5097-3. Do-it-yourself maintenance
7
Maintenance and care
NX300h_U_OM78007U Check the radiator and condenser and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of their condi-
tion, have your vehicle inspected by your Lexus dealer. WA R N I N G ■
When the hybrid system is hot
Do not remove the engine/power control unit coolant reservoir caps.
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.
NOTICE ■
When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water and
antifreeze must be used to provide proper lubrication, corrosion protection and cool-
ing. Be sure to read the antifreeze or coolant label. ■
If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
Radiator and condenser WA R N I N G ■
When the hybrid system is hot
Do not touch the radiator or condenser as they may be hot and cause serious injuries,
such as burns. ■
When the electric cooling fans are operating
Do not touch the engine compartment.
With the power switch in ON mode, the electric cooling fans may automatically start to
run if the air conditioning is on and/or the coolant temperature is high. Be sure the
power switch is off when working near the electric cooling fans or radiator grille.

510 7-3. Do-it-yourself maintenance
NX300h_U_OM78007U ■

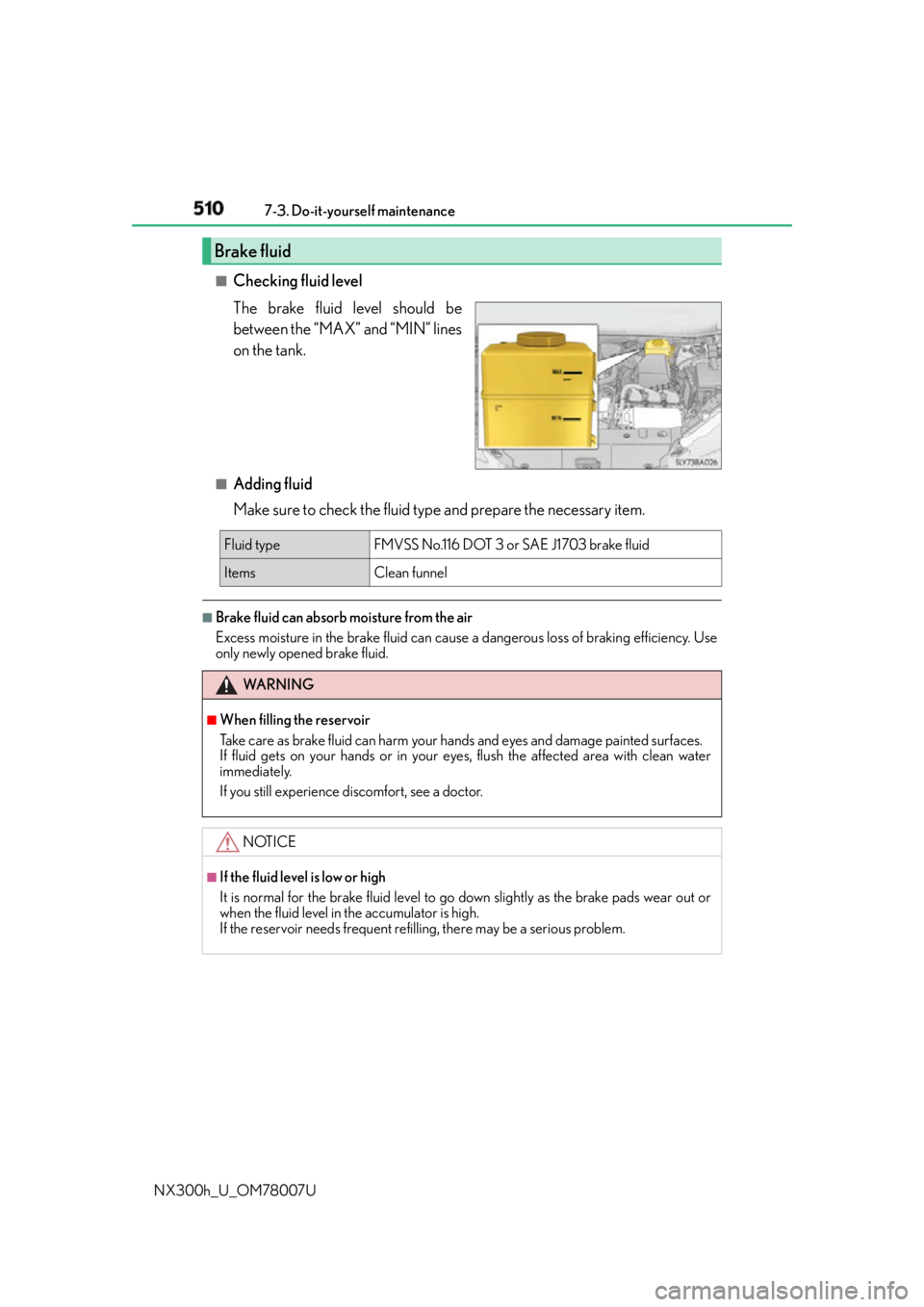

Checking fluid level
The brake fluid level should be
between the “MAX” and “MIN” lines
on the tank.
■
Adding fluid
Make sure to check the fluid type and prepare the necessary item. ■
Brake fluid can absorb moisture from the air
Excess moisture in the brake fluid can cause a dangerous loss of braking efficiency. Use
only newly opened brake fluid.Brake fluid
Fluid type FMVSS No.116 DOT 3 or SAE J1703 brake fluid
Items Clean funnel
WA R N I N G ■
When filling the reservoir
Take care as brake fluid can harm your hands and eyes and damage painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean water
immediately.
If you still experience discomfort, see a doctor.
NOTICE ■
If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear out or
when the fluid level in the accumulator is high.
If the reservoir needs frequent refil ling, there may be a serious problem.
