LEXUS NX300h 2015 Owners Manual

4616-4. Other interior features
6
Interior features
NX300h_U_OM78007U ■
While charging, noise enters the AM radio
Turn off the wireless charger and confirm th at the noise has decreased. If the noise
decreases, continuously pushing the power supply switch of the wireless charger for 2
seconds, the frequency of the charger can be changed and the noise can be reduced.
Also, on that occasion, the operation indicator light will flash orange 2 times. ■
Important points of the wireless charger ●
If the electronic key cannot be detected within the vehicle interior, charging cannot be
done. When the door is opened and closed , charging may be temporarily suspended.●
When charging, the wireless charging device and portable device will get warmer,
however this is not a malfunction.
When a portable device gets warm while charging, charging may stop due to the pro-
tection function on the portable device side. In this case, when the temperature of the
portable device drops significantly, charge again. ■
Operation sounds
When the power supply is turned on, while se arching for the portable device a sound will
be produced, however this is not a malfunction. ■

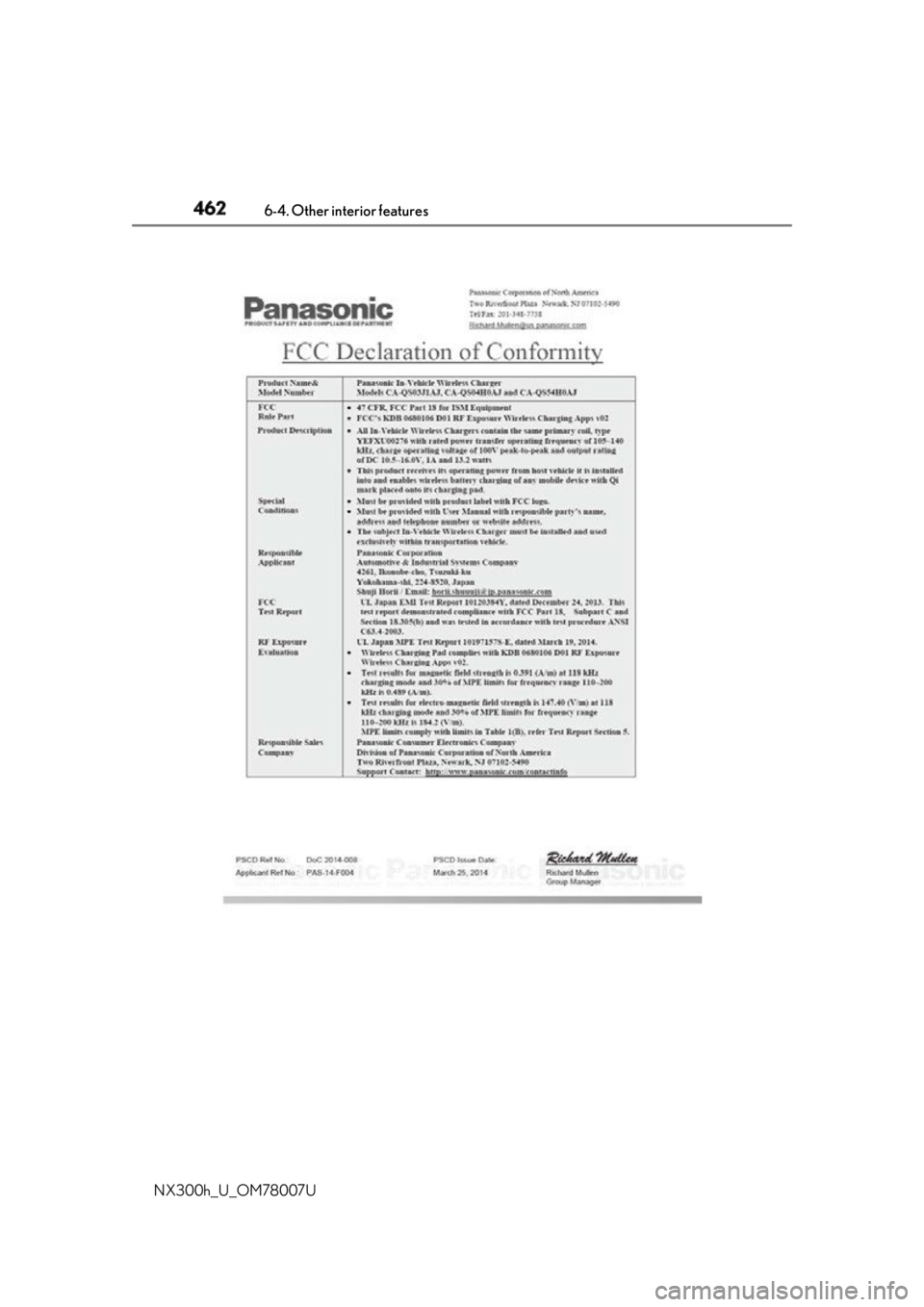

Certification for the wireless charger
FCC Note: This equipment has been tested and found to comply with Part 18 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful inter-
ference in a residential installation.
FCC Caution: Any changes or modification s not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.

462 6-4. Other interior features
NX300h_U_OM78007U

4636-4. Other interior features
6
Interior features
NX300h_U_OM78007U WA R N I N G ■
Caution while driving
When charging a portable device, for safety reasons, the driver should not operate the
main the part of the port able device while driving.■
Caution regarding interference with electronic devices
People with implantable cardiac pacema kers, cardiac resynchronization therapy-
pacemakers or implantable cardioverter defi brillators, as well as any other electrical
medical device, should consult their physicia n about the usage of the wireless charger.
The operations of the wireless charger may have an affect on medical devices. ■
To prevent damage or burns
Observe the following precautions.
Failure to do so may result in a possibility of equipment failure and damage, catch fire,
burns due to overheat. ●
Do not insert any metallic objects between the charging area and the portable device
while charging ●
Do not attach stickers, metallic objects, etc., to the charger area or portable device ●
Do not cover with cloth, etc., and charge ●
Do not charge portable devices other than designated ●
Do not attempt to dismantle for disassembly or modifications ●
Do not hit or apply a strong force

464 6-4. Other interior features
NX300h_U_OM78007U WA R N I N G ■
Conditions in which the function may not operate correctly
In the following conditions, it may not operate correctly ●
The portable device is fully charged ●
There is foreign matter between the charge area and portable device ●
The temperature of the portable device gets higher from charging ●
The charging surface of the portable device is facing up ●
The placement of the portable device is out of alignment with the charge area●
Near a TV tower, electric power plant, gas st ation, radio station, large display, airport
or other facility that generates strong radio waves or electrical noise ●
When the electronic key is in contact with , or is covered by the following metallic
objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
•Hand warmers made of metal
• Media such as CDs and DVDs ●
When other wireless keys (that emit radio waves) are being used nearby
In addition, excluding the above-mentioned, when the charger does not perform nor-
mally or the operation display lamp is flashi ng continuously, it is considered that the
wireless charger is malfunctioning. Contact your Lexus dealer. ■
To prevent failure or damage to data ●
Do not bring magnetic cards, such as credit cards, or magnetic recording media, etc.,
close to the charger while charging, otherw ise, data may disapp ear under the influ-
ence of magnetism. Also, do not bring pr ecision instruments such as wrist watches,
etc., close to the charger, as such objects may break. ●
Do not leave portable devices in the cab in. The temperature inside the cabin may
become high, when under the sun, and cause damage to the device. ■
To prevent 12-volt battery discharge
When the hybrid system is stopped, do not use the wireless charger for a long time.

4656-4. Other interior features
6
Interior features
NX300h_U_OM78007U Fold down the armrest for use.
An assist grip installed on the ceiling
can be used to support your body while
sitting on the seat.Armrest
NOTICE
To prevent damage to the armrest, do not apply too much load on the armrest.
Assist grips
WA R N I N G
Do not use the assist grip when getting in or out of the vehicle or rising from your seat.
NOTICE
To prevent damage to the assist grip, do not hang any heavy object or put a heavy load
on the assist grip.

466 6-4. Other interior features
NX300h_U_OM78007U The coat hooks are provided with the
rear assist grips.
Coat hooks
WA R N I N G
Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS cur-
tain shield airbags deploy, these items may become projectiles, causing death or seri-
ous injury.

4676-4. Other interior features
6
Interior features
NX300h_U_OM78007UGarage door opener 
The HomeLink ®
wireless control system in your vehicle has 3 buttons which can
be programmed to operate 3 different devices. Refer to the programming meth-
ods on the following pages to determine the method which is appropriate for the
device.
HomeLink ®
indicator light
Garage door operation indicators
Buttons
■
Before programming the HomeLink ®
●
During programming, it is possible th at garage doors, gates, or other
devices may operate. For this reason, make sure that people and objects
are clear of the garage door or other devices to prevent injury or other
potential harm. ●
It is recommended that a new battery be placed in the remote control
transmitter for more accurate programming. ●
Garage door opener motors manufactured after 1995 may be equipped
with rolling code protection. If this is the case, you may need a stepladder
or other sturdy, safe device to reach the “Learn” or “Smart” button on the
garage door opener motor.
 : If equippedThe garage door opener can be programmed to operate garage doors, gates,
entry doors, door locks, home lighting systems, security systems, and other
devices.
HomeLink ®
1
2
3

468 6-4. Other interior features
NX300h_U_OM78007U ■
Programming HomeLink ®
Press and release the HomeLink ®
button you want to program and check
that the HomeLink ®
indicator light flashes orange.Perform within 60 seconds of , or th e indicator light will stop flashing and
programming will not be able to be completed.
Point the remote control transmit-
ter for the device at the rear view
mirror, 1 to 3 in. (25 to 75 mm)
from the HomeLink ®
buttons.Keep the HomeLink ®
indicator light
in view while programming. 
For U.S.A. owners
Press and hold the handheld
transmitter button until the
HomeLink ®
indicator light
changes from slowly flashing
orange to rapidly flashing green
(rolling code) or continuously lit
green (fixed code), then release
the button. 
Programming an entry gate (for U.S. A. owners)/Programming a device in
the Canadian market
Press and release the remote control transmitter button at 2 second inter-
vals, repeatedly, until the HomeLink ®
indicator light changes from slowly
flashing orange to rapidly flashing green (rolling code) or continuously lit
green (fixed code).
Te s t t h e H o m e L i n k ®

operation by pressing the newly programmed button
and observing the indicator light: ●
Device with fixed code: If the indi cator light is solid/continuous, pro-
gramming has been completed and your garage door or other device
should operate when the HomeLink ®

button is pressed and released.●
Device with rolling code: If the indicator light flashes rapidly, your
garage door opener motor (or other device) is equipped with a rolling
code. Complete the programming process by firmly pressing and hold-
ing the programmed HomeLink ®

button for 2 seconds and then release
the button. 1 3 1
2
3
3
4

4696-4. Other interior features
6
Interior features
NX300h_U_OM78007U ●
If the garage door or other device does not operate, proceed to “Pro-
gramming a rolling code system”.
Repeat the steps above to program another device for any of the remaining
HomeLink ®
buttons.■
Programming a rolling code system
Locate the “Learn” or “Smart”
button on the garage door
opener motor in the garage. This button can usually be found
where the hanging antenna wire is
attached to the unit. The name and
color of the button may vary by man-
ufacturer. Refer to the Owner’s man-
ual supplied with the garage door
opener motor for details.
Press and release the “Learn” or
“Smart” button.
Pe r f o r m w i t h i n 3 0 s e c o n d s
after performing .
Press and hold the desired
HomeLink ®
button (inside the
vehicle) for 2 seconds and
release it. Repeat this sequence
(press/hold/release) up to 3
times to complete programming. If the garage door opener motor
operates when the HomeLink ®
but-
ton is pressed, the garage door
opener motor recognizes the
HomeLink ®
signal. 5
1
2
3
2
3

470 6-4. Other interior features
NX300h_U_OM78007U ■
Enabling 2-way communication with a garage door (only available for com-
patible devices)
When enabled, 2-way communication allows you to check the status of the
opening and closing of a garage door through indicators in your vehicle.
2-way communication is only available if the garage door opener motor used
is a compatible device. (To check device compatibility, refer to
www.HomeLink.com.)
Within 5 seconds after programming the garage door opener has been
completed, if the garage door opener motor is trained to HomeLink ®
,
both garage door operation indicator s will flash rapidly green and the light
on the garage door open er motor will blin k twice, indicating that 2-way
communication is enabled.
If the indicators do not flash, perform and within the first 10 presses of
the HomeLink ®
button after programming has been completed.
Press a programmed HomeLink ®
button to operate a garage door.
Within 1 minute of pressing the HomeLink ®

button, after the garage door
operation has stopped, press the “Learn” or “Smart” button on the garage
door opener motor. Within 5 second s of the establishment of 2-way com-
munication with the garage door opener, both garage door operation indi-
cators in the vehicle will flash rapidly green and the light on the garage
door opener motor will blink twice, indicating that 2-way communication is
enabled.■
Reprogramming a single HomeLink ®
button
When the following procedure is performed, buttons which already have
devices registered to them can be overwritten:
With one hand, press and hold the desired HomeLink ®
button.
When the HomeLink ®
indicator starts flashing orange, continue to hold
the HomeLink ®
button and perform “Programming HomeLink ®
” (it
takes 20 seconds for the HomeLink ®
indicator to start flashing).
Press the appropriate HomeLink ®
button. The HomeLink ®
indicator light
should turn on.Operating the HomeLink ®1
2 3
2
3
1
2
1
