6018-2. Steps to take in an emergency
8
When trouble arises
NX300h_U_OM78007U The coolant level is satisfactory if it is between the “FULL” and “LOW” lines
on the reservoir.
Reservoir
“FULL” line
“LOW” line
Add coolant if necessary. Water can be used in an emergency
if coolant is unavailable.
Start the hybrid system and turn the air conditioning system on to check
that the radiator cooling fans operate and to check for coolant leaks from
the radiator or hoses. The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are op erating by checking the fan sound and air
flow. If it is difficult to check these, tu rn the air conditioning system on and off
repeatedly. (The fans may not operate in freezing temperatures.)
If the fans are not operating: Stop the hybrid system immediately and contact your Lexus dealer.
If the fans are operating: Have the vehicle inspected at the nearest Lexus dealer.
Check if “Engine Coolant Temp High” is shown on the multi-information
display.
If the message does not disappear:
Stop the hybrid system and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer. 4
1
2
3
5
6
7
8

602 8-2. Steps to take in an emergency
NX300h_U_OM78007U ■
If “Hybrid System Overheated” is shown on the multi-information display
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has cooled down, inspect the hoses and radiator
core (radiator) for any leaks.
Radiator
Cooling fans If a large amount of coolant leaks,
immediately contact your Lexus
dealer.

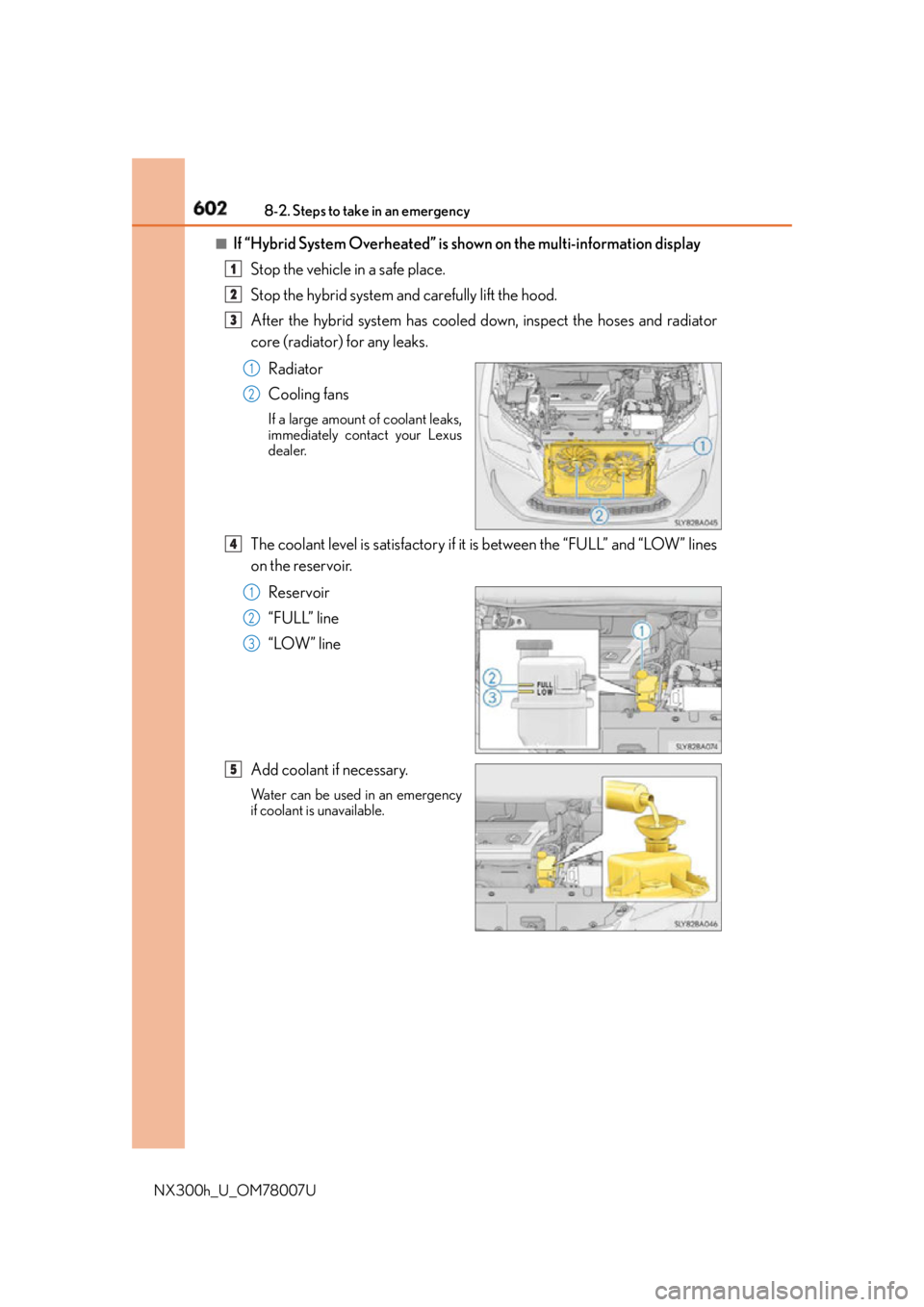

The coolant level is satisfactory if it is between the “FULL” and “LOW” lines
on the reservoir.
Reservoir
“FULL” line
“LOW” line
Add coolant if necessary. Water can be used in an emergency
if coolant is unavailable. 1
2
3
1
2
4
1
2
3
5

6038-2. Steps to take in an emergency
8
When trouble arises
NX300h_U_OM78007U Start the hybrid system and check if “Hybrid System Overheated” is shown
on the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer. WA R N I N G ■
To prevent an accident or injury when in specting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns. ●
If steam is seen coming from under the h ood, do not open the hood until the steam
has subsided. The engine compartment may be very hot. ●
After the hybrid system has been turned off, check that the “READY” indicator are
off.
When the hybrid system is operating, the gasoline engine may au tomatically start, or
the cooling fan may suddenly operate even if the gasoline engine stops. Do not touch
or approach rotating parts such as the fa n, which may lead to fingers or clothing
(especially a tie, a scarf or a muffler) ge tting caught, resulting in serious injury.●
Do not loosen the coolant reservoir cap while the hybrid system and radiator are hot.
High temperature steam or coolant could spray out.
NOTICE ■
When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding cool
coolant to a hot hybrid system too quickly can cause damage to the hybrid system. ■
To prevent damage to the cooling system
Observe the following precautions: ●
Avoid contaminating the coolant with foreign matter (such as sand or dust etc.). ●
Do not use any coolant additive. 6

604 8-2. Steps to take in an emergency
NX300h_U_OM78007UIf the vehicle becomes stuck Stop the hybrid system. Shift the shift lever to P and set the parking brake.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels to help pro-
vide traction.
Restart the hybrid system.
Shift the shift lever to D or R, release the parking brake. Then, while exercising
caution, depress the accelerator pedal. ■
When it is difficult to free the vehicleCarry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press to turn off TRAC. (  P. 3 0 7 )1
2
3
4
5

6058-2. Steps to take in an emergency
8
When trouble arises
NX300h_U_OM78007U WA R N I N G ■
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear to avoid striking other vehicl es, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution. ■
When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid accelerati on of the vehicle that may cause an acci-
dent resulting in death or serious injury.
NOTICE ■
To avoid damage to the hybrid transmission and other components ●
Avoid spinning the front wheels and depressing the accelerator pedal more than nec-
essary. ●
If the vehicle remains stuck even after th ese procedures are performed, the vehicle
may require towing to be freed.

606 8-2. Steps to take in an emergency
NX300h_U_OM78007U

607
9Vehicle specifications
NX300h_U_OM78007U 9-1. Specifications
Maintenance data
(fuel, oil level, etc.).................. 608
Fuel information........................... 618
Tire information .............................621
9-2. Customization
Customizable features ............ 633
9-3. Initialization
Items to initialize ......................... 643

608 9-1. Specifications
NX300h_U_OM78007UMaintenance data (fuel, oil level, etc.)
* 1
: Unladen vehicle
* 2

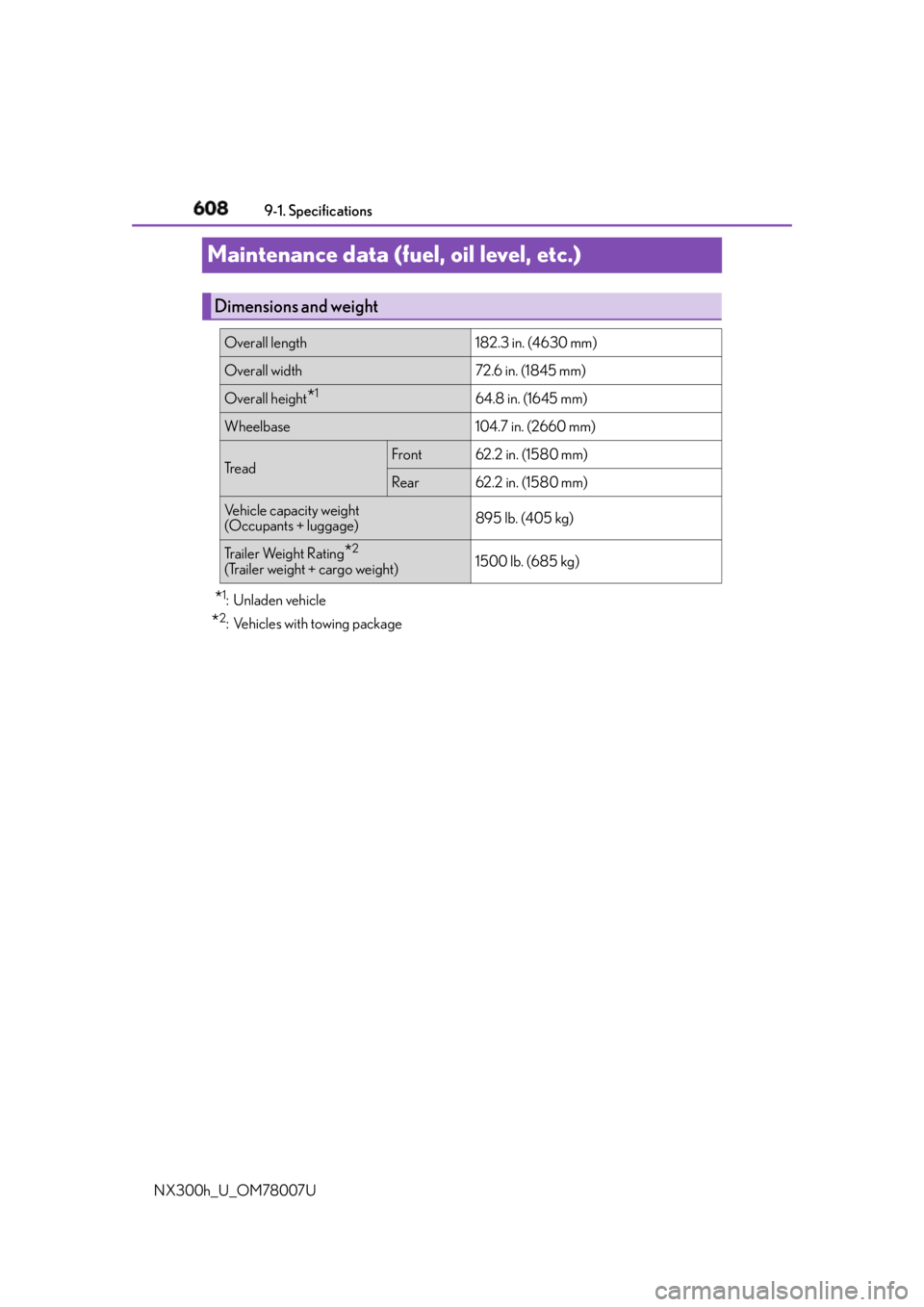

: Vehicles with towing packageDimensions and weight Overall length 182.3 in. (4630 mm)
Overall width 72.6 in. (1845 mm)
Overall height
* 1
64.8 in. (1645 mm)
Wheelbase 104.7 in. (2660 mm)
Tr e a d Front 62.2 in. (1580 mm)
Rear 62.2 in. (1580 mm)
Vehicle capacity weight
(Occupants + luggage) 895 lb. (405 kg)
Trailer Weight Rating
* 2

(Trailer weight + cargo weight) 1500 lb. (685 kg)

6099-1. Specifications
9
Vehicle specifications
NX300h_U_OM78007U ■
Vehicle identification number

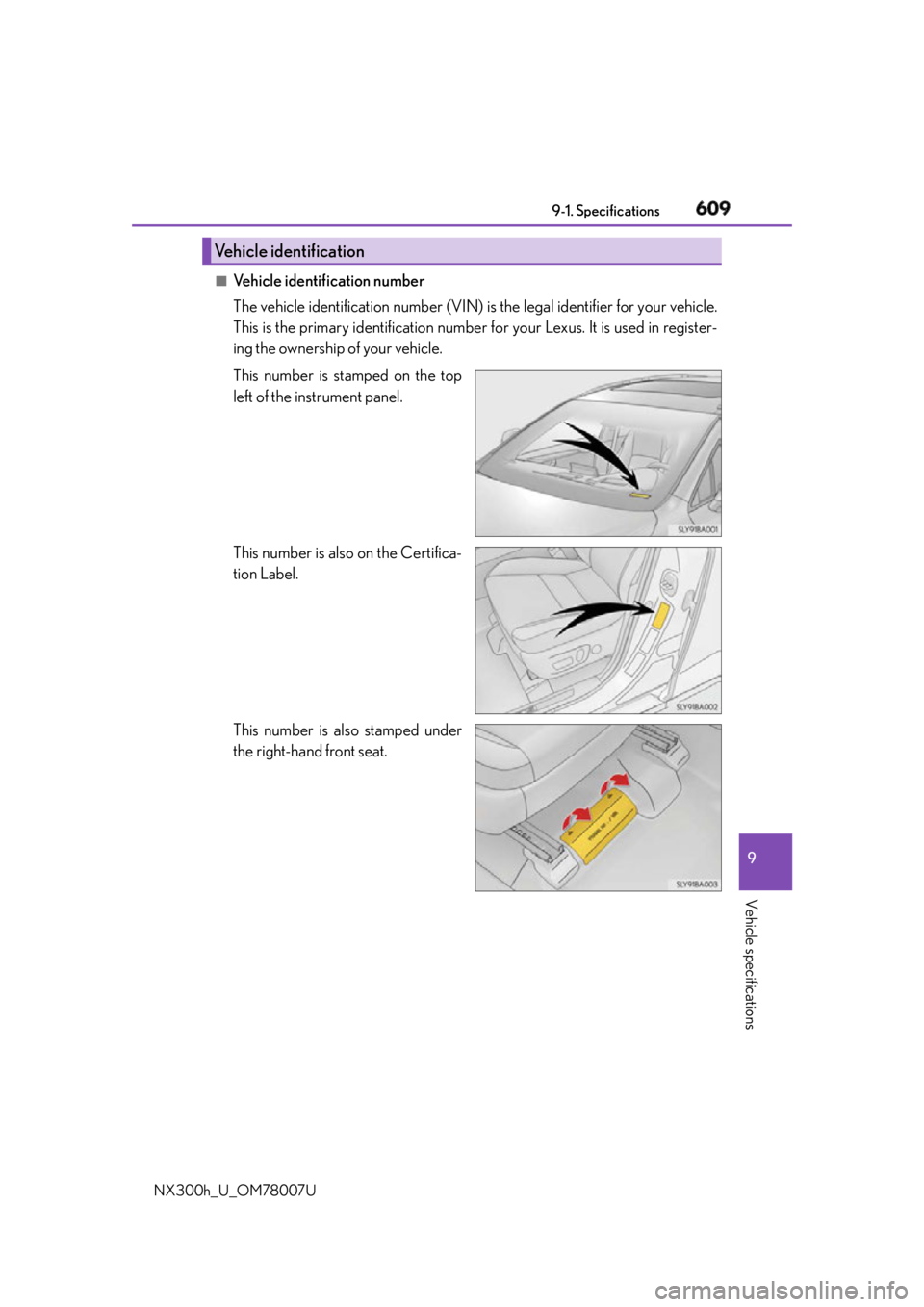

The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel.
This number is also on the Certifica-
tion Label.
This number is also stamped under
the right-hand front seat.Vehicle identification

610 9-1. Specifications
NX300h_U_OM78007U ■

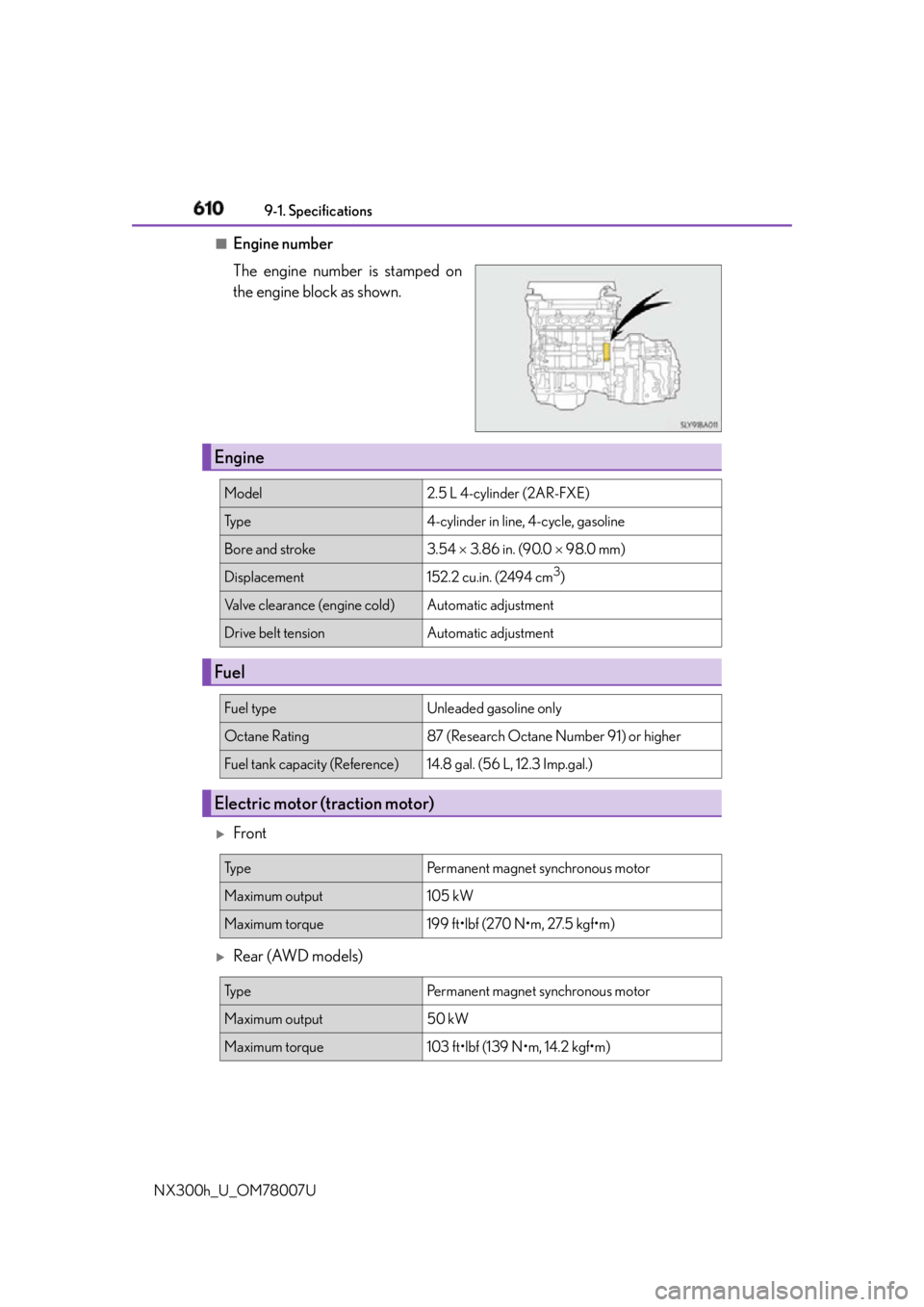

Engine number
The engine number is stamped on
the engine block as shown.

Front 
Rear (AWD models)Engine Model 2.5 L 4-cylinder (2AR-FXE)
Ty p e 4-cylinder in line, 4-cycle, gasoline
Bore and stroke 3.54  3.86 in. (90.0  98.0 mm)
Displacement 152.2 cu.in. (2494 cm 3
)
Valve clearance (engine cold) Automatic adjustment
Drive belt tension Automatic adjustment
Fuel Fuel type Unleaded gasoline only
Octane Rating 87 (Research Octane Number 91) or higher
Fuel tank capacity (Reference) 14.8 gal. (56 L, 12.3 Imp.gal.)
Electric motor (traction motor) Ty p e Permanent magnet synchronous motor
Maximum output 105 kW
Maximum torque 199 ft•lbf (270 N•m, 27.5 kgf•m)
Ty p e Permanent magnet synchronous motor
Maximum output 50 kW
Maximum torque 103 ft•lbf (139 N•m, 14.2 kgf•m)
