LEXUS NX300h 2015 Owners Manual

6319-1. Specifications
9
Vehicle specifications

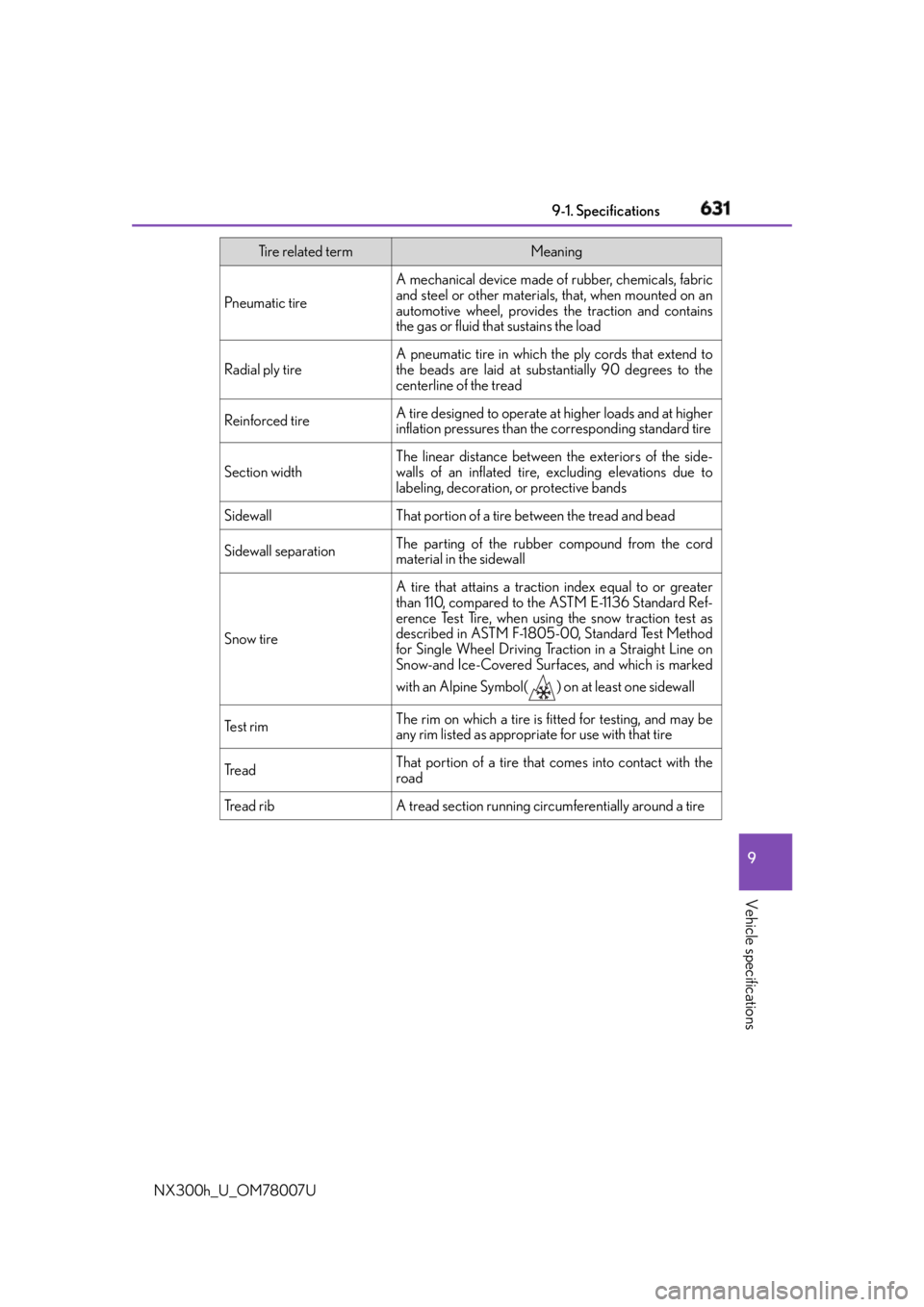

NX300h_U_OM78007U Pneumatic tire A mechanical device made of rubber, chemicals, fabric
and steel or other materials, that, when mounted on an
automotive wheel, provides the traction and contains
the gas or fluid that sustains the load
Radial ply tire A pneumatic tire in which the ply cords that extend to
the beads are laid at substantially 90 degrees to the
centerline of the tread
Reinforced tire A tire designed to operate at higher loads and at higher
inflation pressures than the corresponding standard tire
Section width The linear distance between the exteriors of the side-
walls of an inflated tire, excluding elevations due to
labeling, decoration, or protective bands
Sidewall That portion of a tire between the tread and bead
Sidewall separation The parting of the rubber compound from the cord
material in the sidewall
Snow tire A tire that attains a traction index equal to or greater
than 110, compared to the ASTM E-1136 Standard Ref-
erence Test Tire, when using the snow traction test as
described in ASTM F-1805-00, Standard Test Method
for Single Wheel Driving Tract ion in a Straight Line on
Snow-and Ice-Covered Surfaces, and which is marked
with an Alpine Symbol( ) on at least one sidewall
Te s t r i m The rim on which a tire is fitted for testing, and may be
any rim listed as appropriate for use with that tire
Tr e a d That portion of a tire that comes into contact with the
road
Tr e a d r i b A tread section running circumferentially around a tireTire related term Meaning

632 9-1. Specifications

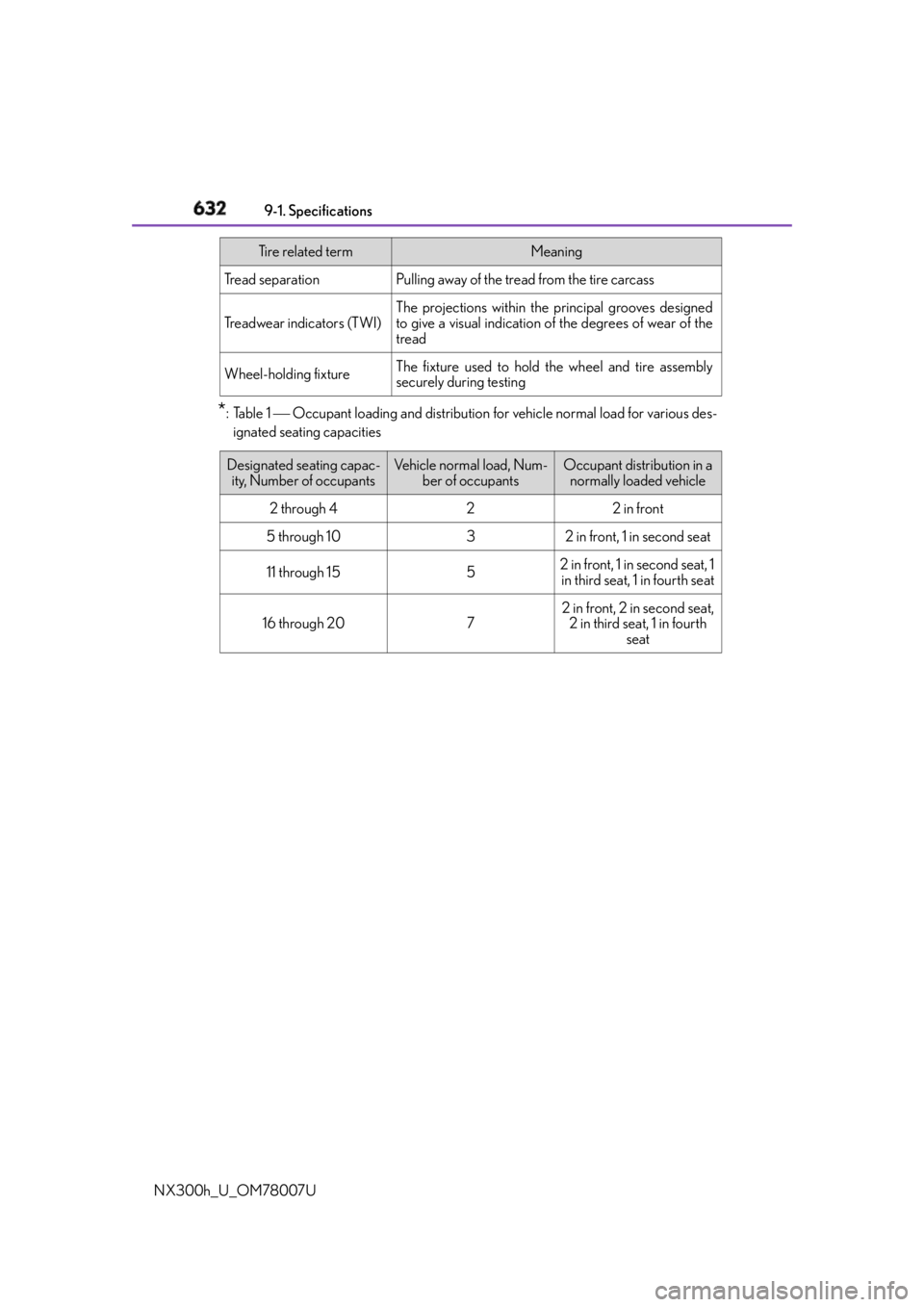

NX300h_U_OM78007U * :Table 1  Occupant loading and distribution fo r vehicle normal load for various des-
ignated seating capacitiesTread separation Pulling away of the tread from the tire carcass
Treadwear indicators (TWI) The projections within the principal grooves designed
to give a visual indication of the degrees of wear of the
tread
Wheel-holding fixture The fixture used to hold the wheel and tire assembly
securely during testingTire related term Meaning
Designated seating capac-
ity, Number of occupants Vehicle normal load, Num-
ber of occupants Occupant distribution in a
normally loaded vehicle
2 through 4 2 2 in front
5 through 10 3 2 in front, 1 in second seat
11 through 15 5 2 in front, 1 in second seat, 1
in third seat, 1 in fourth seat
16 through 20 7 2 in front, 2 in second seat,
2 in third seat, 1 in fourth
seat

6339-2. Customization
9
Vehicle specifications
NX300h_U_OM78007UCustomizable features Some function settings are changed simultaneously with other functions being
customized. Contact your Lexus dealer.
When customizing vehicle features, ensure that the vehicle is parked in a safe
place with the shift lever in P and the parking brake set. ■
Changing using the Remote Touch
Press the “MENU” button on the Remote Touch.
Select “Setup” on the “MENU” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details. ■
Changing using the Lexus Display Audio controller
Press the “MENU” button on the Lexus Display Audio controller.
Select “Setup” on the “MENU” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details. ■
Changing using the multi-information display
Press or of the meter control switches, select , and then
press .
Press or of the meter control switches, select the item, and then
press .
Press or of the meter control switches, select the desired setting,
and then press .
To go back to the previous screen or exit the customize mode, press .Your vehicle includes a variety of electronic features that can be personalized
to suit your preferences. The settings of these features can be changed using
the multi-information display, the Remo te Touch or Lexus Display Audio con-
troller, or at your Lexus dealer.
Customizing vehicle features 1
2
1
2
1
2
3

634 9-2. Customization
NX300h_U_OM78007U Settings that can be changed using the Remote Touch or Lexus Display Audio
controller
Settings that can be changed us ing the multi-information display
Settings that can be changed by your Lexus dealer
Settings that can be changed using the vehicle switch
Definition of symbols: O = Available, – =Not available ■
Door lock (  P. 1 2 4 , 5 9 2 )Customizable Features 1
2
3
4
Function Default
setting Customized
setting
Unlocking using a mechanical
key Driver’s door
unlocked in first
step, all doors
unlocked in
second step All doors
unlocked in first
step – – O –
Automatic door locking func-
tion Shift position
linked door
locking opera-
tion Off O – O –
Speed linked
door locking
operation O – O –
Automatic door unlocking
function Shift position
linked door
unlocking oper-
ation Off O – O –
Driver’s door
linked door
unlocking oper-
ation O – O – 1 2 3 4

6359-2. Customization
9
Vehicle specifications
NX300h_U_OM78007U ■
Smart access system with push-button start and wireless remote control
(  P. 124, 140)
■
Smart access system with push-button start (  P. 1 4 0 )Function Default
setting Customized
setting
Operation signal (emergency
flashers) On Off O – O –
Operation buzzer volume 5 Off
O – O –
1 to 7
Time elapsed before the auto-
matic door lock function is
activated if a door is not
opened after being unlocked 60 seconds Off
O – O –30 seconds
120 seconds
Open door reminder buzzer
(When locking the vehicle) On Off – – O – 1 2 3 4
Function Default
setting Customized
setting
The doors that are unlocked
using the smart access system
with push-button start can be
selected Driver’s door All the doors O – O O
Smart access system with
push-button start On Off – – O –
Number of consecutive door
lock operations 2 times As many as
desired ––O– 1 2 3 4

636 9-2. Customization
NX300h_U_OM78007U ■
Wireless remote control (  P. 1 2 4 )
■
Automatic light control system (  P. 2 1 9 )
■
Lights ( 
P. 2 1 9 ) Function Default
setting Customized
setting
Wireless remote control On Off – – O –
Unlocking operation Driver’s door
unlocked in first
step, all doors
unlocked in
second step All doors
unlocked in first
step O–O–
Panic function On Off – – O –
The function that validates the
switch of the wireless
remote control when locking
the door (  P. 1 2 9 ) When locking
the door When unlock-
ing the door ––O– 1 2 3 4
Function Default
setting Customized
setting
Light sensor sensitivity Standard -2 to 2 O – O –
Adjust the time elapsed
before the headlights auto-
matically turn off 30 seconds Off
O–O–
60 seconds
90 seconds 1 2 3 4
Function Default
setting Customized
setting
Daytime Running Lights
(Daytime running lights can
be disabled) On Off O – O – 1 2 3 4

6379-2. Customization
9
Vehicle specifications
NX300h_U_OM78007U ■
Illumination (  P. 443)Function Default
setting Customized
setting
Time elapsed before the inte-
rior lights turn off 15 seconds Off
O–O–7. 5 s e c o n d s
30 seconds
Time elapsed before the exte-
rior lights turn off 15 seconds Off
O – O –7. 5 s e c o n d s
30 seconds
Operation after the power
switch is turned off On Off – – O –
Operation when the doors
are unlocked On Off – – O –
Operation when you
approach the vehicle with the
electronic key on your person On Off – – O –
Footwell lighting On Off – – O –
Fading out of the outer foot
lights when they turn off Long Short – – O – 1 2 3 4

638 9-2. Customization
NX300h_U_OM78007U ■

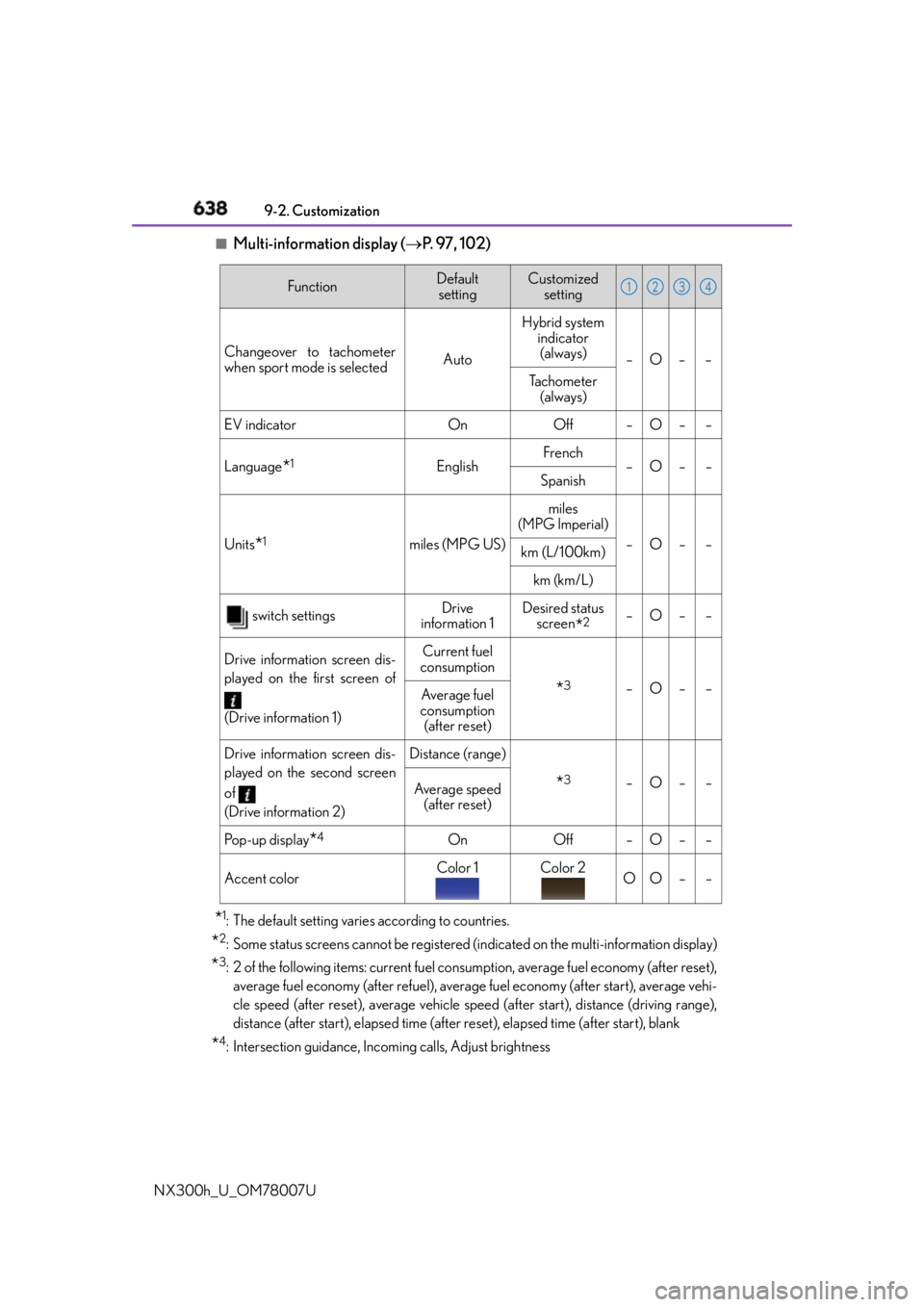

Multi-information display (  P. 9 7 , 1 0 2 )
* 1
: The default setting varies according to countries.
* 2
: Some status screens cannot be registered (indicated on the multi-information display)
* 3
: 2 of the following items: current fuel consumption, average fuel economy (after reset),
average fuel economy (after refuel), average fuel economy (after start), average vehi-
cle speed (after reset), average vehicle speed (after start), distance (driving range),
distance (after start), elapsed time (after reset), elapsed time (after start), blank
* 4
: Intersection guidance, Incoming calls, Adjust brightness Function Default
setting Customized
setting
Changeover to tachometer
when sport mode is selected Auto Hybrid system
indicator
(always)
–O– –
Tachometer
(always)
EV indicator On Off – O – –
Language
* 1
English French
– O – –
Spanish
Units
* 1
miles (MPG US) miles
(MPG Imperial )
– O – –
km (L/100km)
km (km/ L)
switch settings Drive
information 1 Desired status
screen
* 2
– O – –
Drive information screen dis-
played on the first screen of

(Drive information 1) Current fuel
consumption
* 3
– O – –
Average fuel
consumption
(after reset)
Drive information screen dis-
played on the second screen
of
(Drive information 2) Distance (range)
* 3
– O – –
Average speed
(after reset)
Po p - u p d i s p l a y
* 4
On Off – O – –
Accent color Color 1 Color 2
O O – – 1 2 3 4

6399-2. Customization
9
Vehicle specifications
NX300h_U_OM78007U ■

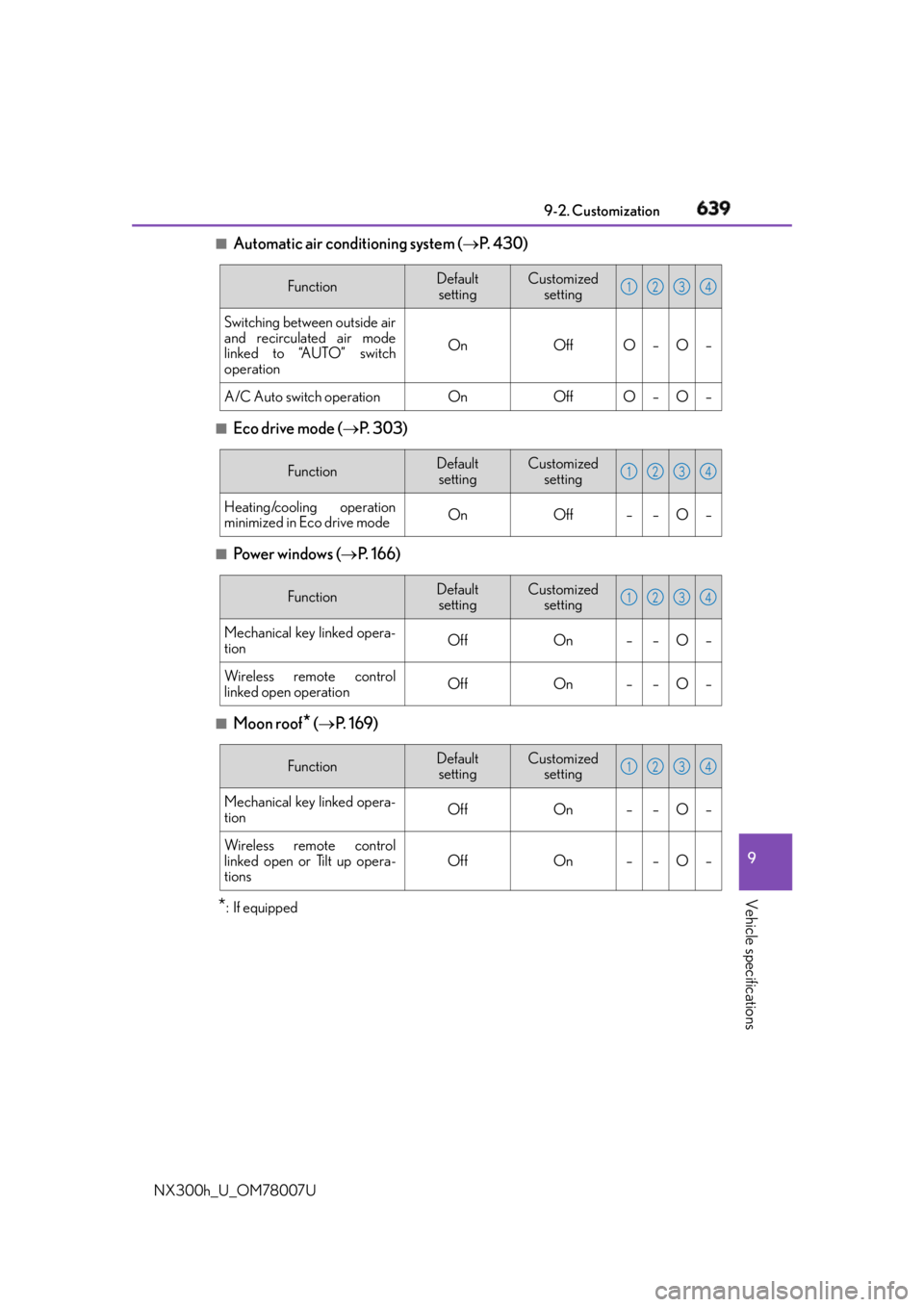

Automatic air conditioning system (  P. 4 3 0 )
■
Eco drive mode (  P. 3 0 3 )
■
Powe r w i n d ow s (  P. 166)
■
Moon roof
* (  P. 1 6 9 )
* : If equipped Function Default
setting Customized
setting
Switching between outside air
and recirculated air mode
linked to “AUTO” switch
operation On Off O – O –
A/C Auto switch operation On Off O – O – 1 2 3 4
Function Default
setting Customized
setting
Heating/cooling operation
minimized in Eco drive mode On Off – – O – 1 2 3 4
Function Default
setting Customized
setting
Mechanical key linked opera-
tion Off On – – O –
Wireless remote control
linked open operation Off On – – O – 1 2 3 4
Function Default
setting Customized
setting
Mechanical key linked opera-
tion Off On – – O –
Wireless remote control
linked open or Tilt up opera-
tions Off On – – O – 1 2 3 4

640 9-2. Customization
NX300h_U_OM78007U ■
Intuitive parking assist (  P. 2 7 9 )
* : If equipped ■
Driving position memory
* (  P. 1 5 4 )
* : If equipped ■
Outside rear view mirrors (  P. 1 6 3 )
■
LDA (Lane Departure Alert with steering control)
* (  P. 2 7 0 )
* : If equipped Function Default
setting Customized
setting
Detection distance of the
front center sensor Long Short O – O –
Detection distance of the rear
center sensor Long Short O – O –
Display setting (When intui-
tive parking assist is operat-
ing) On Off O – O –
Buzzer volume 3 1 to 5 O – O – 1 2 3 4
Function Default
setting Customized
setting
Driver’s seat movement when
exiting the vehicle Standard Off
O – O –
Pa r t i a l
Selection the door linking
driving position memory with
door unlock operation Driver’s door All doors – – O – 1 2 3 4
Function Default
setting Customized
setting
Linked mirror function when
reversing On Off – – O – 1 2 3 4
Function Default
setting Customized
setting
Steerage assist On Off – O – –
Sensitivity adjustment for the
lane deviation alert buzzer Standard High – O – – 1 2 3 4
