5107-1. Maintenance and care
RC200t_RC F_EE(OM24728E)
NOTICE

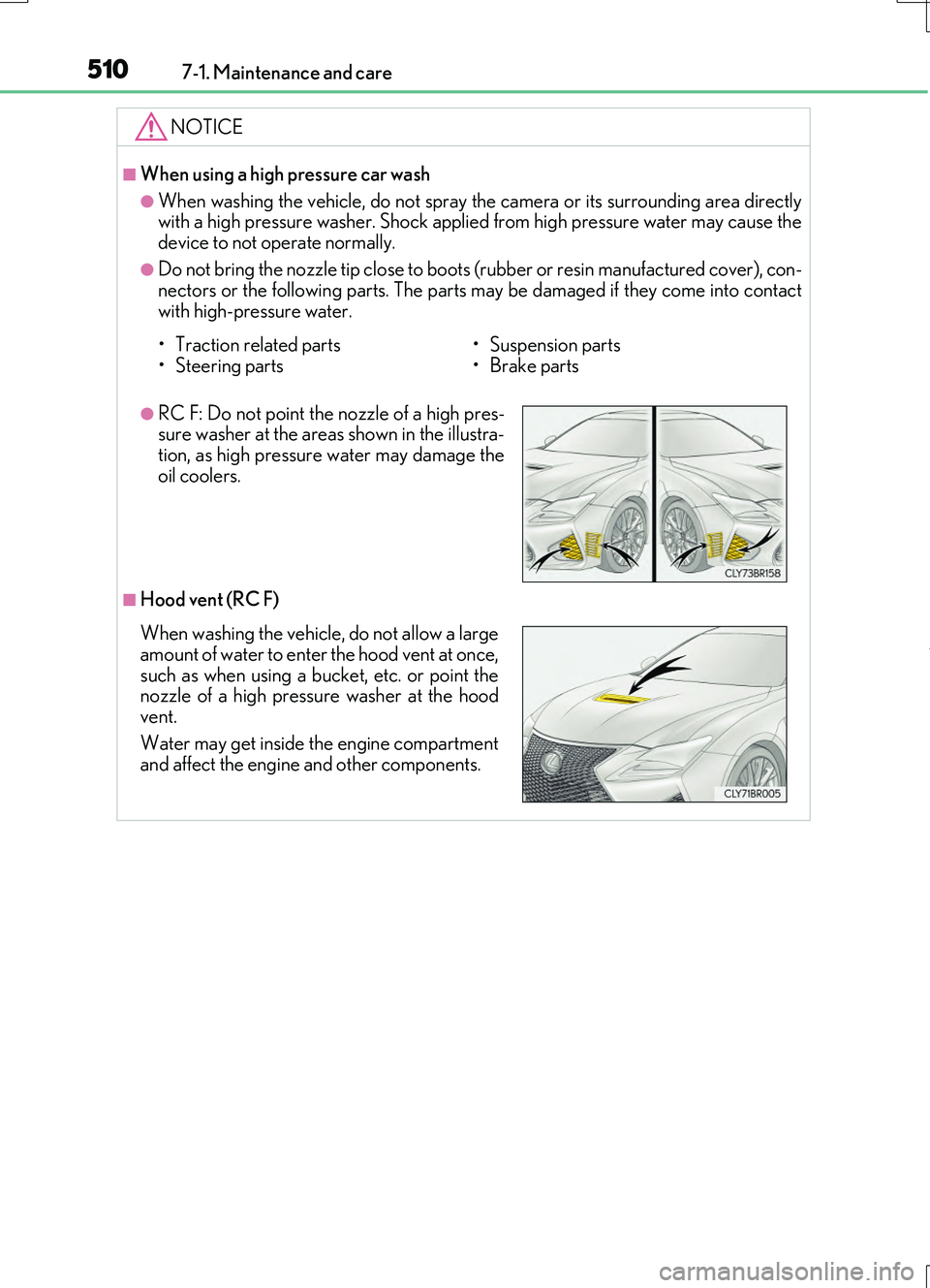

■When using a high pressure car wash
●When washing the vehicle, do not spray the camera or its surrounding area directly with a high pressure washer. Shock applied from high pressure water may cause the
device to not operate normally.
●Do not bring the nozzle tip close to boots (rubber or resin manufactured cover), con- nectors or the following parts. The parts may be damaged if they come into contact
with high-pressure water.
■Hood vent (RC F)
• Traction related parts
• Steering parts
•Suspension parts
• Brake parts
●RC F: Do not point the nozzle of a high pres- sure washer at the areas shown in the illustra-tion, as high pressure water may damage the
oil coolers.
When washing the vehicle, do not allow a large amount of water to enter the hood vent at once,
such as when using a bucket, etc. or point the nozzle of a high pressure washer at the hoodvent.
Water may get inside the engine compartment and affect the engine and other components.

5157-2. Maintenance
7
Maintenance and care
RC200t_RC F_EE(OM24728E)

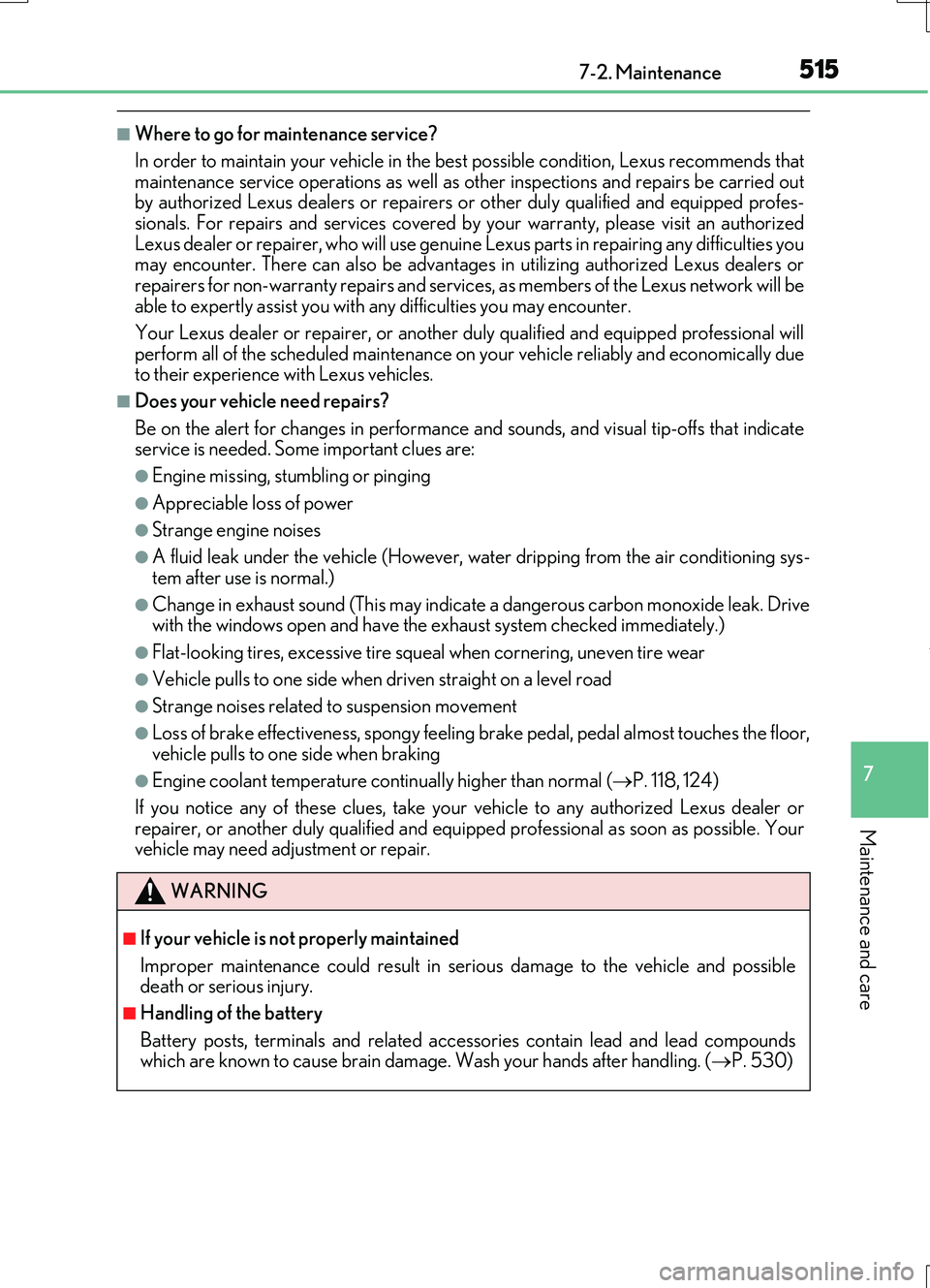

■Where to go for maintenance service?
In order to maintain your vehicle in the best possible condition, Lexus recommends that maintenance service operations as well as ot her inspections and repairs be carried out by authorized Lexus dealers or repairers or other duly qualified and equipped profes-
sionals. For repairs and services covered by your warranty, please visit an authorized Lexus dealer or repairer, who will use genuine Lexus parts in repairing any difficulties youmay encounter. There can also be advantages in utilizing authorized Lexus dealers or
repairers for non-warranty repa irs and services, as members of the Lexus network will be able to expertly assist you with any difficulties you may encounter.
Your Lexus dealer or repairer, or another duly qualified and equipped professional will
perform all of the scheduled maintenance on your vehicle reliably and economically due to their experience with Lexus vehicles.
■Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visual tip-offs that indicate service is needed. Some important clues are:
●Engine missing, stumbling or pinging
●Appreciable loss of power
●Strange engine noises
●A fluid leak under the vehicle (However, water dripping from the air conditioning sys-
tem after use is normal.)
●Change in exhaust sound (This may indicate a dangerous carbon monoxide leak. Drive with the windows open and have the exhaust system checked immediately.)
●Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
●Vehicle pulls to one side when driven straight on a level road
●Strange noises related to suspension movement
●Loss of brake effectiveness, spongy feeling brake pedal, pedal almost touches the floor,vehicle pulls to one side when braking
●Engine coolant temperature continually higher than normal ( P. 118, 124)
If you notice any of these clues, take your vehicle to any authorized Lexus dealer or repairer, or another duly qualified and equipp ed professional as soon as possible. Your vehicle may need adjustment or repair.
WARNING
■If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehicle and possible death or serious injury.
■Handling of the battery
Battery posts, terminals and related accessories contain lead and lead compounds which are known to cause brain damage. Wash your hands after handling. ( P. 530)

516
RC200t_RC F_EE(OM24728E)
7-3. Do-it-yourself maintenance

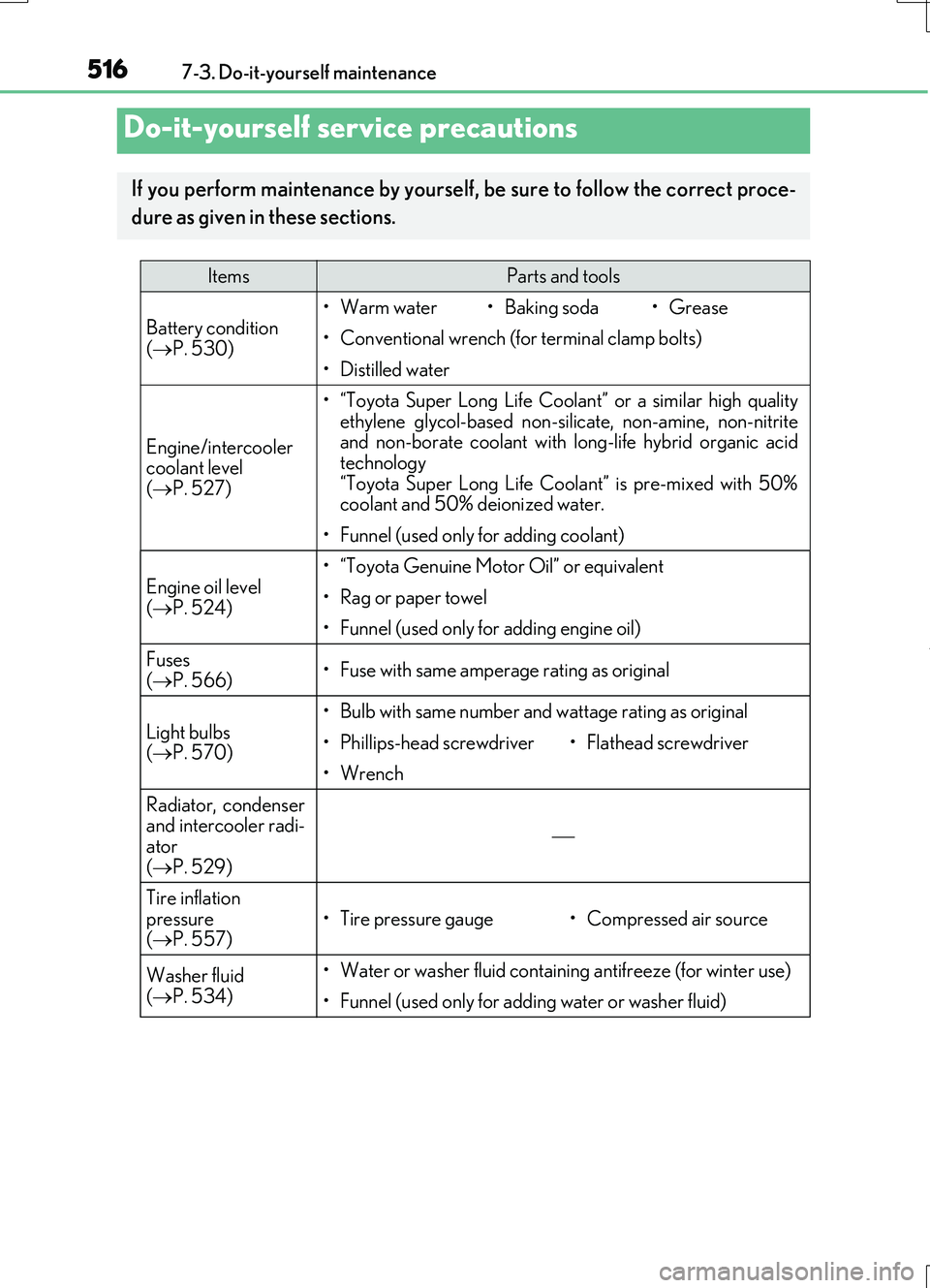

Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct proce-
dure as given in these sections.
ItemsParts and tools
Battery condition ( P. 530)
•Warm water•Baking soda•Grease
• Conventional wrench (for terminal clamp bolts)
• Distilled water
Engine/intercooler coolant level
( P. 527)
• “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol-based non-silicate, non-amine, non-nitriteand non-borate coolant with long-life hybrid organic acid
technology “Toyota Super Long Life Coolant” is pre-mixed with 50%coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level ( P. 524)
• “Toyota Genuine Motor Oil” or equivalent
•Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses
( P. 566)• Fuse with same amperage rating as original
Light bulbs ( P. 570)
• Bulb with same number and wattage rating as original
• Phillips-head screwdriver• Flathead screwdriver
•Wrench
Radiator, condenser and intercooler radi-ator
( P. 529)

Tire inflation pressure ( P. 557)• Tire pressure gauge• Compressed air source
Washer fluid
( P. 534)
• Water or washer fluid containing antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)

5177-3. Do-it-yourself maintenance
7
Maintenance and care
RC200t_RC F_EE(OM24728E)

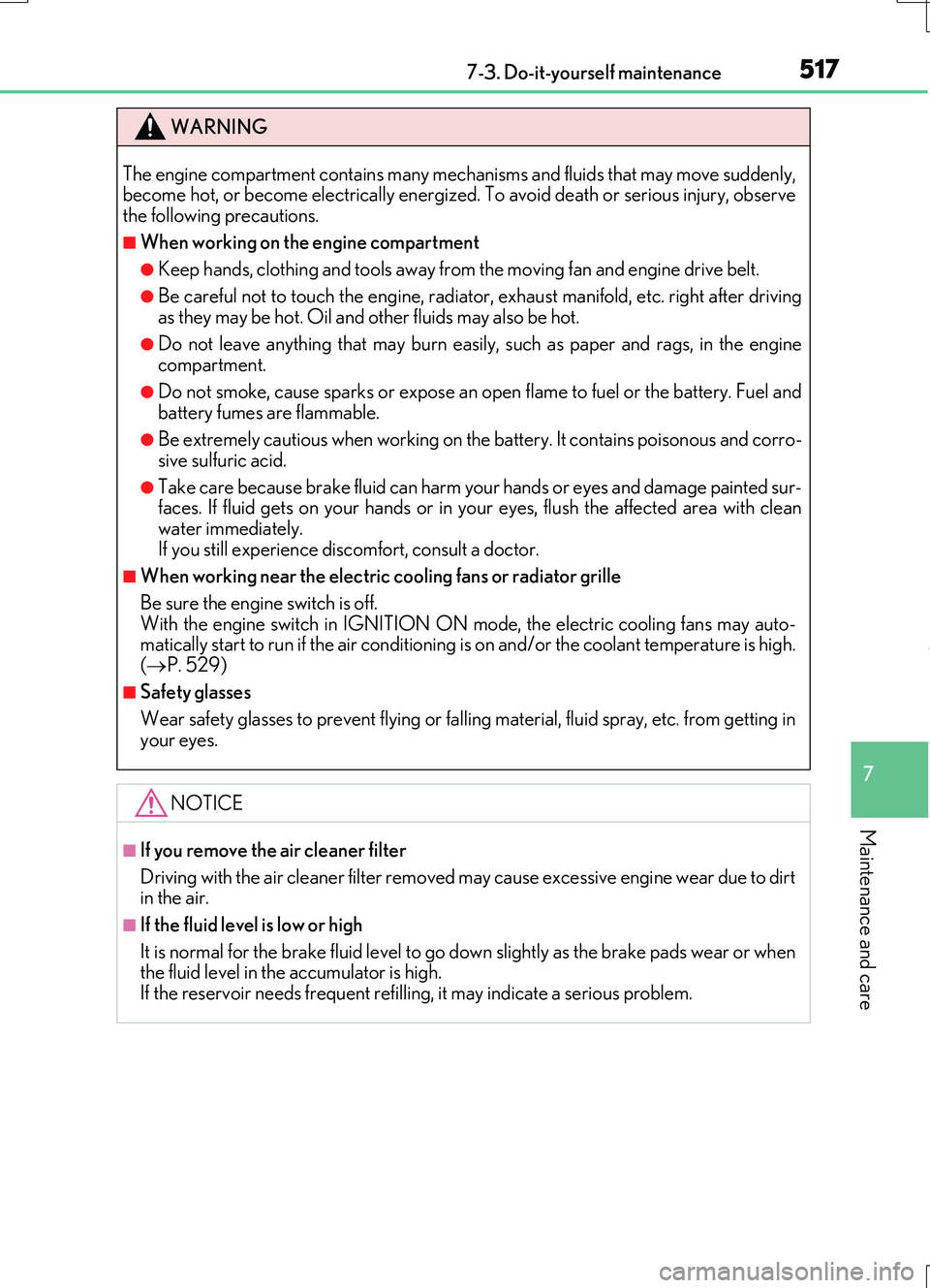

WARNING
The engine compartment contains many mechanisms and fluids that may move suddenly, become hot, or become electrically energize d. To avoid death or serious injury, observe the following precautions.
■When working on the engine compartment
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driving
as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel andbattery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and corro-
sive sulfuric acid.
●Take care because brake fluid can harm your hands or eyes and damage painted sur- faces. If fluid gets on your hands or in your eyes, flush the affected area with clean
water immediately. If you still experience discomfort, consult a doctor.
■When working near the electric cooling fans or radiator grille
Be sure the engine switch is off. With the engine switch in IGNITION ON mode, the electric cooling fans may auto-matically start to run if the air conditioning is on and/or the coolant temperature is high.
( P. 529)
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting in
your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to dirt in the air.
■If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refillin g, it may indicate a serious problem.

5227-3. Do-it-yourself maintenance
RC200t_RC F_EE(OM24728E)
RC200t
For right-hand drive vehicles: The battery and the fuse box in front of the battery are located on the opposite side of the
engine compartment.
Engine compartment
Fuse boxes ( P. 566)
Battery ( P. 530)
Engine oil level dipstick
( P. 524)
Engine oil filler cap ( P. 525)
Engine coolant reservoir
( P. 527)
Washer fluid tank ( P. 534)
Electric cooling fans
Condenser ( P. 529)
Intercooler radiator ( P. 529)
Radiator ( P. 529)
Intercooler coolant reservoir
( P. 527)
1
2
3
4
5
6
7
8
9
10
11

5237-3. Do-it-yourself maintenance
7
Maintenance and care
RC200t_RC F_EE(OM24728E)
RC F
For right-hand drive vehicles: The battery and the fuse box in front of the battery are located on the opposite side of theengine compartment.
Fuse boxes ( P. 566)
Battery ( P. 530)
Engine oil level dipstick
( P. 524)
Engine coolant reservoir
( P. 527)
Engine oil filler cap ( P. 525)
Washer fluid tank ( P. 534)
Electric cooling fans
Condenser ( P. 529)
Radiator ( P. 529)
1
2
3
4
5
6
7
8
9

5247-3. Do-it-yourself maintenance
RC200t_RC F_EE(OM24728E)

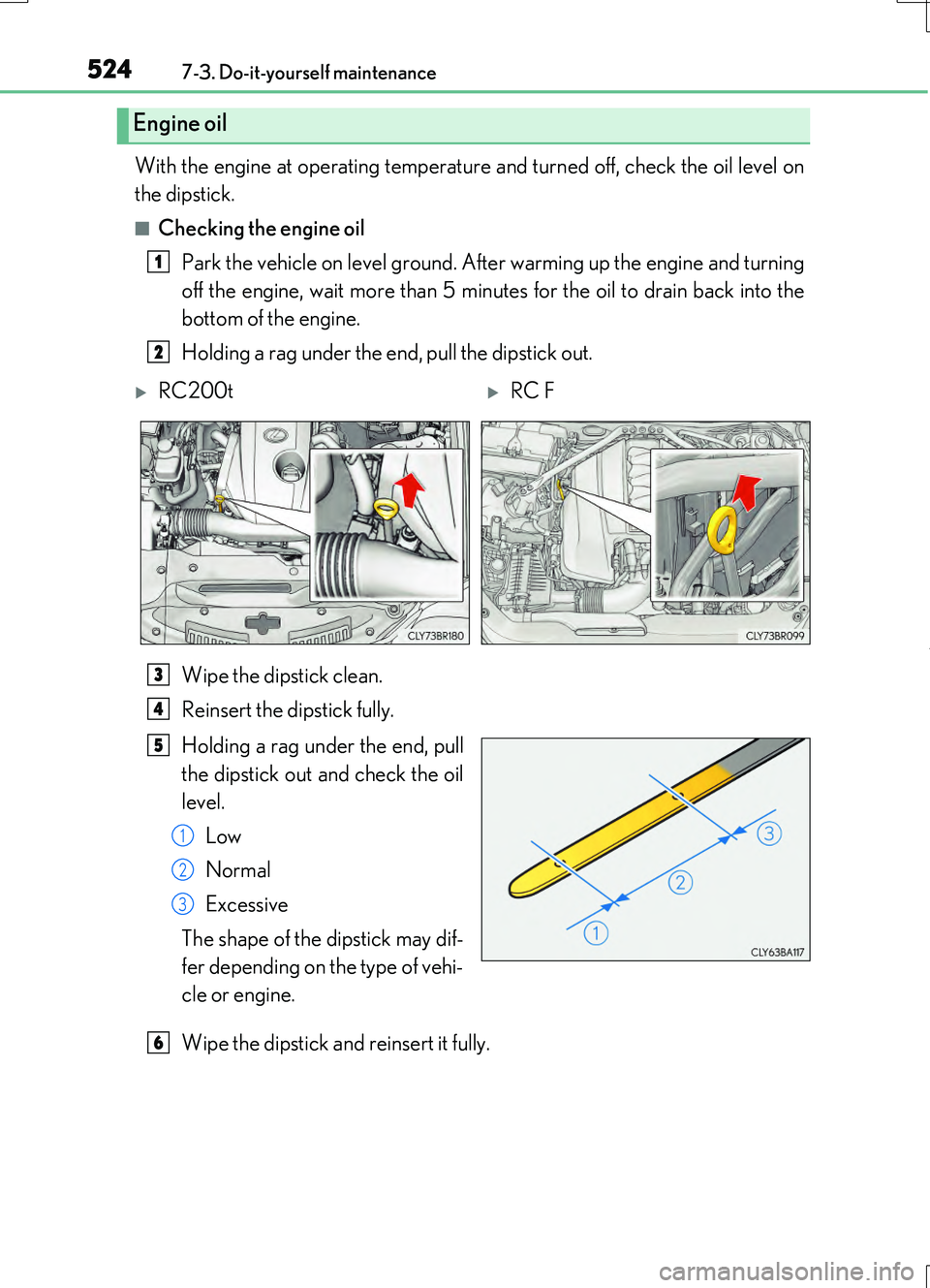

With the engine at operating temperature and turned off, check the oil level on
the dipstick.
■Checking the engine oil
Park the vehicle on level ground. After warming up the engine and turning
off the engine, wait more than 5 minutes for the oil to drain back into the
bottom of the engine.
Holding a rag under the end, pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull
the dipstick out and check the oil
level.
Low
Normal
Excessive
The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.
Wipe the dipstick and reinsert it fully.
Engine oil
1
2
RC200tRC F
3
4
5
1
2
3
6

5257-3. Do-it-yourself maintenance
7
Maintenance and care
RC200t_RC F_EE(OM24728E)

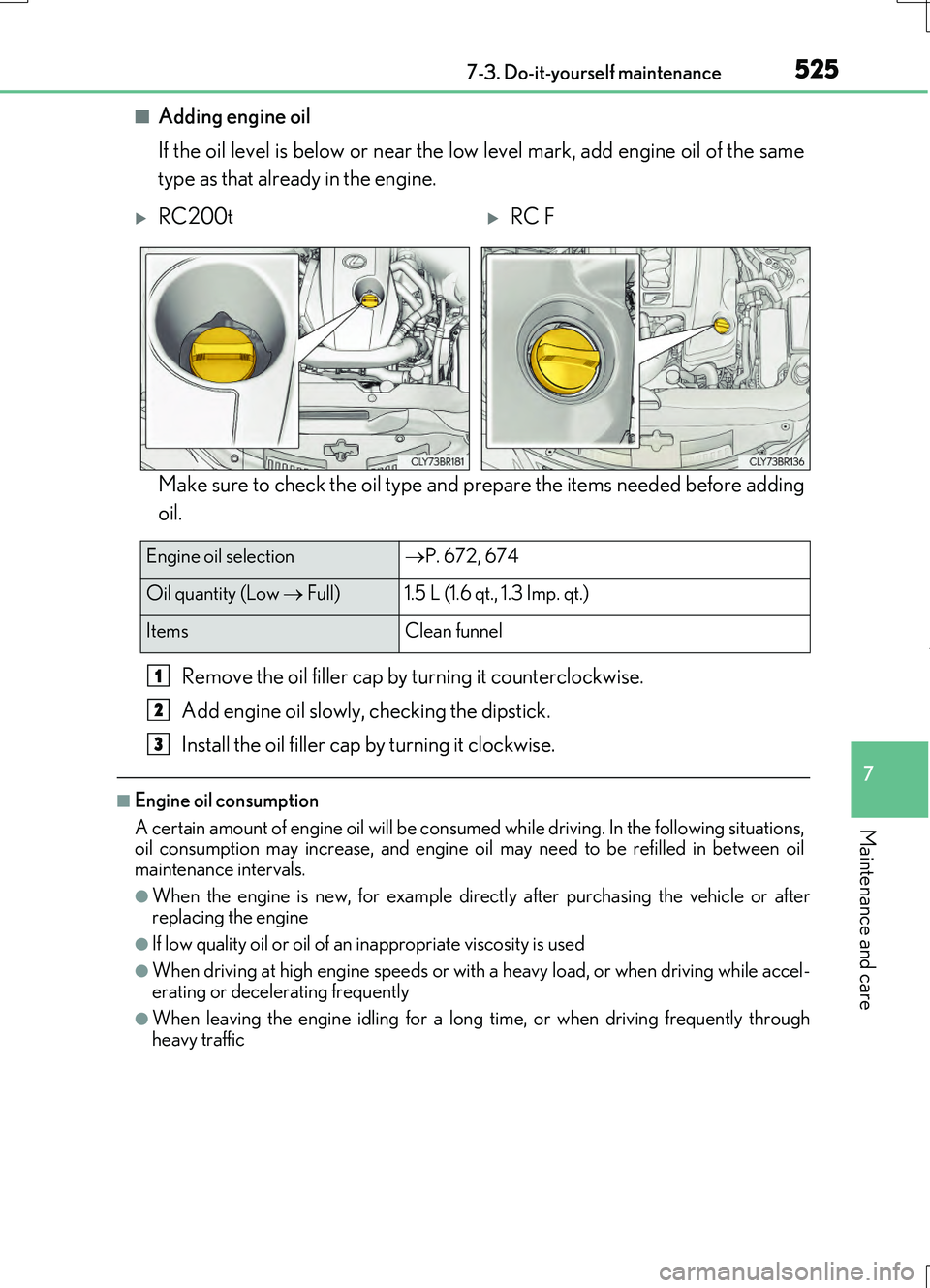

■Adding engine oil
If the oil level is below or near the low level mark, add engine oil of the same
type as that already in the engine.
Make sure to check the oil type and prepare the items needed before adding
oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
■Engine oil consumption
A certain amount of engine oil will be consum ed while driving. In the following situations, oil consumption may increase, and engine o il may need to be refilled in between oil maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or afterreplacing the engine
●If low quality oil or oil of an inappropriate viscosity is used
●When driving at high engine speeds or with a heavy load, or when driving while accel- erating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently through
heavy traffic
RC200tRC F
Engine oil selection P. 672, 674
Oil quantity (Low  Full) 1.5 L (1.6 qt., 1.3 Imp. qt.)
Items Clean funnel
1
2
3

5267-3. Do-it-yourself maintenance
RC200t_RC F_EE(OM24728E)
■After changing the engine oil (RC200t only)
The engine oil maintenance data should be reset. Perform the following procedures:
While the vehicle is stopped, press the meter control switch on the steering wheel.
Press the  or  meter control switch on the st eering wheel, select, and then
press the meter control switch.
Press  or  meter control switch on the steering wheel to select “Oil Maintenance”
and then press .
Select “Yes” and then press .
A message will be displayed on the multi-information display.
WARNING
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin dis-
orders such as inflammation and skin cancer, so care should be taken to avoid pro-
longed and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dispose of
used oil and filters in household trash, in sewers or onto the ground.
Call any authorized Lexus dealer or repair er, or another duly qualified and equipped
professional, service station or auto parts store for information concerning recycling
or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.
1
2
3
4

5277-3. Do-it-yourself maintenance
7
Maintenance and care
RC200t_RC F_EE(OM24728E)

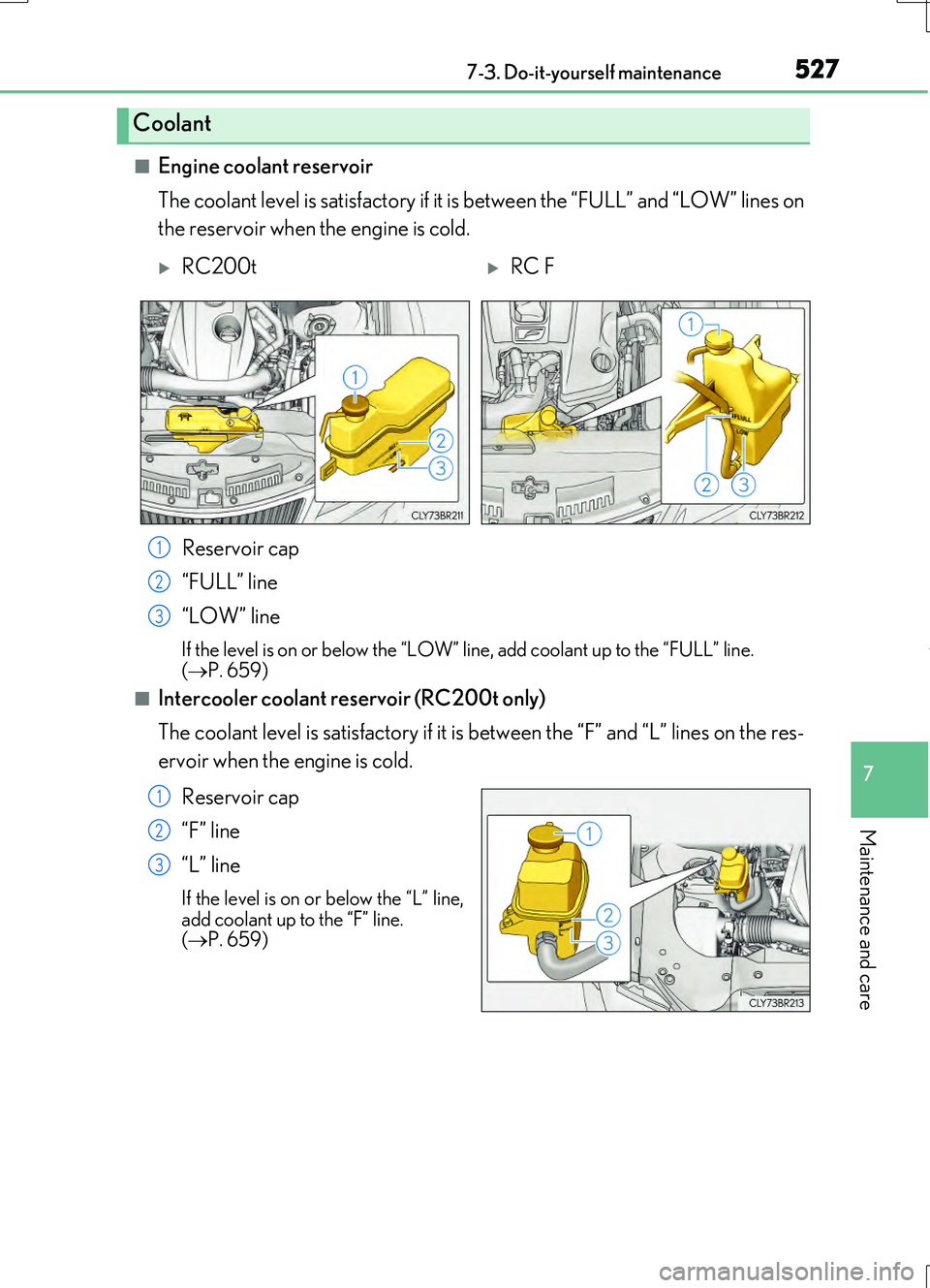

■Engine coolant reservoir
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on
the reservoir when the engine is cold.
■Intercooler coolant reservoir (RC200t only)
The coolant level is satisfactory if it is between the “F” and “L” lines on the res-
ervoir when the engine is cold.
Reservoir cap
“F” line
“L” line
If the level is on or below the “L” line, add coolant up to the “F” line. ( P. 659)
Coolant
RC200tRC F
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the “LOW” lin e, add coolant up to the “FULL” line.
( P. 659)
1
2
3
1
2
3
