LEXUS RC200T 2017 Owners Manual

6118-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)
(If equipped)
Indicates that the Automatic High Beam switch is
pressed while the headlights are in low beam.  Turn the high beam on and press the Automatic High Beam switch again.
(If equipped)
Indicates that, since the VSC (Vehicle Stability Control)system was turned off, the pre-crash brake system oper-ation is stopped
Operation of the pre-crash brake assist is also stopped. Turn the VSC on. (P. 352)
(If equipped)
Indicates that the PCS (Pre-Crash Safety system) is not currently functional because the grille cover or the sen-
sor is dirty  Check the grille cover and the sensor and clean
them if they are dirty.
Indicates that operation of large electricity consuming
systems such as the air conditioning system are sus- pended Stop using unnecessary electric components to
reduce electricity consumpt ion. Wait a while until the electric power supply is restored.
Warning messageDetails/Actions
(Flashes)

6128-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)
■Warning messages
The warning message illustrations used are in tended as examples, and may differ from the image that is actually displaye d on the multi-information display.
■Warning message in radar cruise mode (if equipped)
In the following situations, the warning message may not be displayed even if vehicle-to- vehicle distance decreases:
●When the speed of the preceding vehicle matches or exceeds your vehicle speed
●When the preceding vehicle is traveling at an extremely slow speed
●Immediately after the cruise control speed was set
●When depressing the accelerator pedal
■The LDA (Lane Departure Alert) lane departure warning function (if equipped)
In the following situations, the warning message will not be displayed even if a lane line is crossed.
●When the vehicle speed deviates from the operating range of the LDA system func-tions
●When the lane lines cannot be recognized
■Resetting the message indicating maintenance is required (RC200t)
Make sure to reset the oil change system. ( P. 526)
■Conditions that the tire pressure warning system may not function properly
P. 540
■Warning buzzer
 P. 595

6138-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)
Interior buzzerExteriorbuzzerWarning messageDetails/Actions
Con-
tinuous  The driver’s door was opened when
the shift lever was not in P and the
engine switch was not turned off.
 Shift the shift lever to P.
Con-
tinuousCon-
tinuous
The driver’s door was opened and
closed while the electronic key was
not in the vehicle, the shift lever was
not in P and the engine switch was
not turned off.
 Shift the shift lever to P.
 Bring the electronic key back
into the vehicle.
OnceCon-
tinuous
An attempt was made to exit the
vehicle with the electronic key and
lock the doors without first turning
the engine switch off when the shift
lever was in P.
 Turn the engine switch off and
lock the doors again.
(Flashes)
(Displayed alternately)
(Flashes)
(Displayed alternately)
(Flashes)

6148-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)
Once3 times
The electronic key was carried out-
side the vehicle and a door other
than the driver’s door was opened
and closed while the engine switch
was in a mode other than off.
 Bring the electronic key back
into the vehicle.
The driver’s door was opened and
closed while the electronic key was
not in the vehicle, the shift lever was
in P and the engine switch was not
turned off.
 Turn the engine switch off.
 Bring the electronic key back
into the vehicle.
Once
The electronic key is not detected
when an attempt is made to start the
engine.
 Start the engine with the elec-
tronic key present.
9 times
An attempt was made to drive when
the electronic key was not inside the
vehicle.
 Confirm that the electronic key
is inside the vehicle.
Interior buzzerExteriorbuzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)

6158-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)
OnceCon- tinuous
An attempt was made to lock the
doors using the smart entry & start system while the electronic key wasstill inside the vehicle.
 Retrieve the electronic key from the vehicle and lock thedoors again.
An attempt was made to lock either
door by opening a door and putting the inside lock button into the lockposition, then closing the door by
pulling on the outside door handle with the electronic key still inside thevehicle.
 Retrieve the electronic key from the vehicle and lock thedoors again.
An attempt was made to lock the
doors other than using the smart entry & start system while the elec-tronic key was still inside the vehicle.
 Retrieve the electronic key from the vehicle and lock the
doors again.
Once
The electronic key has a low battery.
 Replace the electronic key bat- tery. ( P. 563)
Once
The steering lock could not be released within 3 seconds of the
engine switch being pressed.  Press the engine switch while depressing the brake pedal and
moving the steering wheel left and right.
InteriorbuzzerExteriorbuzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

6168-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)
Once
Indicates a malfunction in the smart
entry & start system  Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly quali- fied and equipped professional.
Once
• When the doors were unlockedwith the mechanical key and thenthe engine swit ch was pressed,
the electronic key could not be detected in the vehicle.• The electronic key could not be
detected in the vehicle even after the engine switch was pressedtwo consecutive times.
 Touch the electronic key to the engine switch while depressingthe brake pedal.
Once
During an engine starting procedurein the event that the electronic key
was not functioning properly ( P. 652), the engine switch was touchedwith the electronic key.
 Press the engine switch within 10 seconds of the buzzer sound-ing.

Indicates that: • With the engine switch off, the
doors were unlocked and then the driver’s door was opened andclosed
• The engine switch was turned to ACCESSORY mode withoutstarting the engine
• The shift lever was shifted to P or N from another position with theengine switch in IGNITION ON
mode.  Press the engine switch while depressing the brake pedal.
InteriorbuzzerExteriorbuzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

6178-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)
*: The engine may not be restarted depending on the vehicle condition.
Once
The engine switch has been turned
off with the shift lever in a position
other than P or N.
 Shift the shift lever to P.
Once
After the engine switch has been
turned off with the shift lever in a
position other than P, the shift lever
has been shifted to P.
 Turn the engine switch off.

Power was turned off due to the
automatic power off function.
 Next time when starting the
engine, increase the engine
speed slightly and maintain that
level for approximately 5 min-
utes to recharge the battery.
Con-
tinuous
Indicates that the engine was
stopped in an emergency while driv-
ing
 To restart the engine, shift the
shift lever to N and turn the
engine switch to IGNITION
ON mode.
*
Once
Indicates that the engine switch has
been pressed while driving
 Except when emergency stop-
ping of the vehicle is needed,
immediately release the engine
switch.
Interior buzzerExteriorbuzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)
(Flashes)

6188-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)

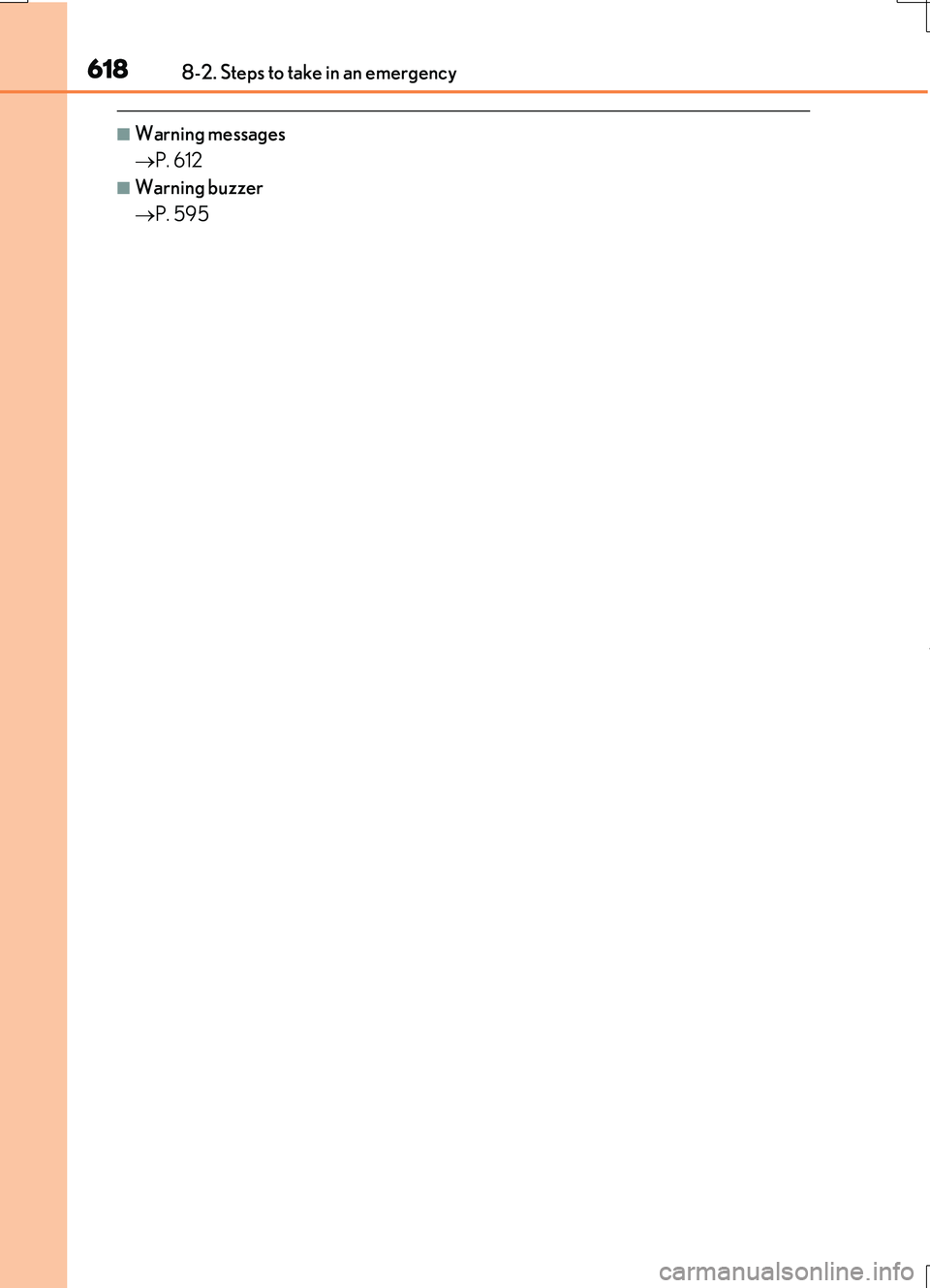

■Warning messages
 P. 612
■Warning buzzer
 P. 595

6198-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)
●Stop the vehicle in a safe place on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Stop the engine.
●Turn on the emergency flashers. (P. 580)
If you have a flat tire (vehicles with a spare tire)
Your vehicle is equipped with a spare tire. The flat tire can be replaced with
the spare tire.
For details about tires: P. 535
WARNING
■If you have a flat tire
Do not continue driving with a flat tire. Driving even a short distance with a flat tire can damage the tire and the wheel beyond
repair, which could result in an accident.
Before jacking up the vehicle

6208-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)

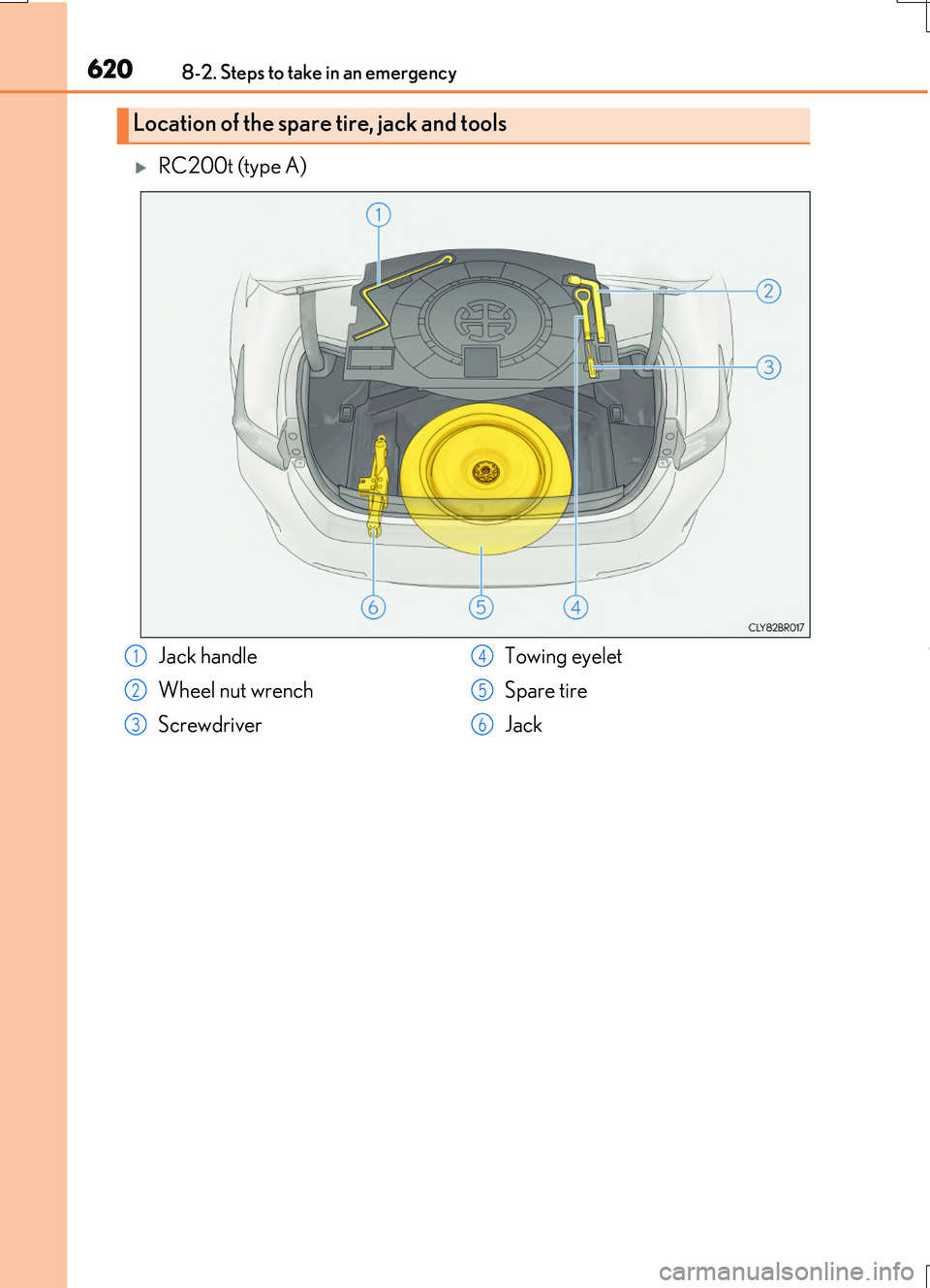

RC200t (type A)
Location of the spare tire, jack and tools
Jack handle
Wheel nut wrench
Screwdriver
Towing eyelet
Spare tire
Jack
1
2
3
4
5
6
