6218-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)

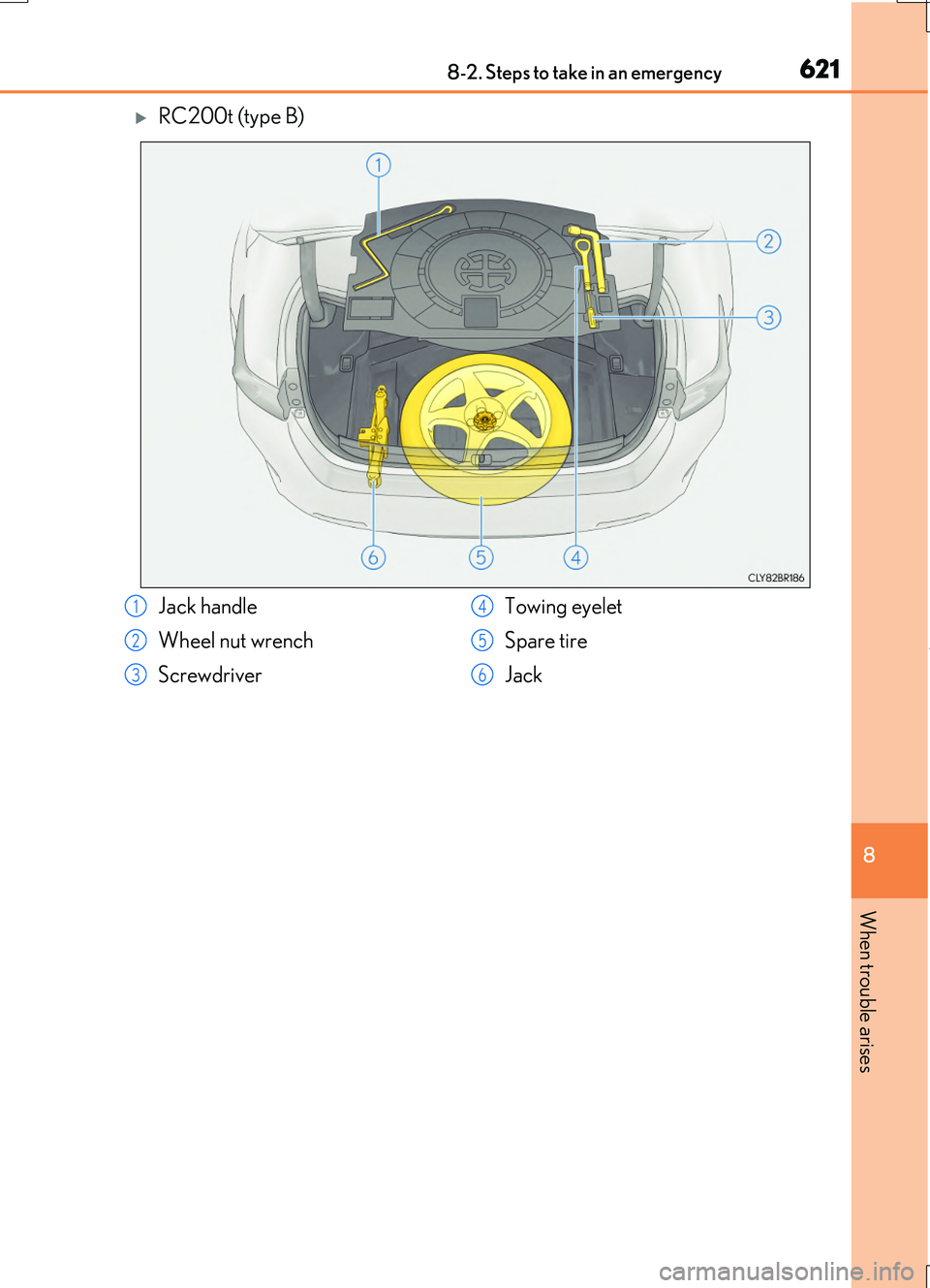

RC200t (type B)
Jack handle
Wheel nut wrench
Screwdriver
Towing eyelet
Spare tire
Jack
1
2
3
4
5
6

6228-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)

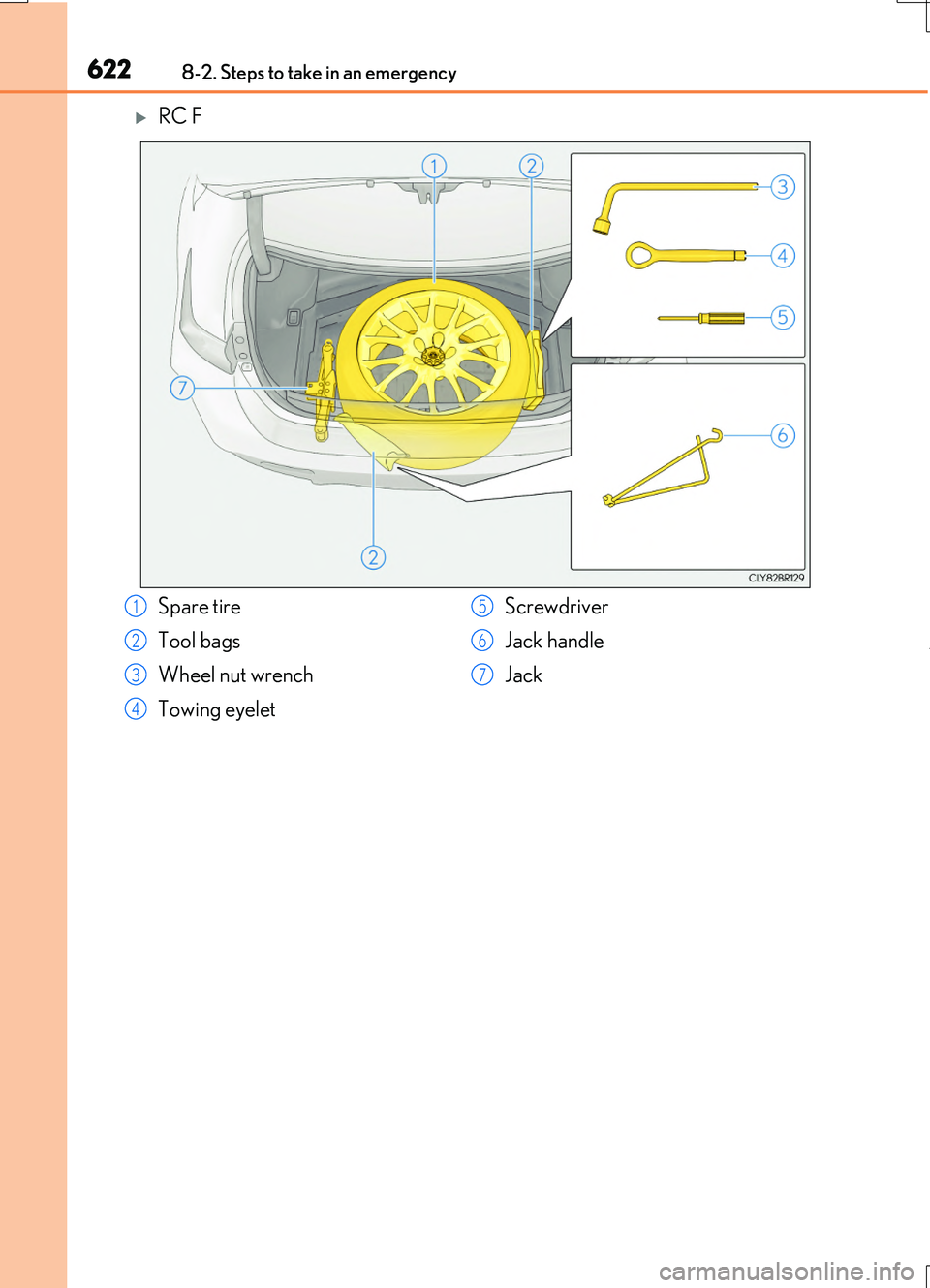

RC F
Spare tire
Tool bags
Wheel nut wrench
Towing eyelet
Screwdriver
Jack handle
Jack
1
2
3
4
5
6
7

6238-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)
WARNING
■Using the tire jack
Observe the following precautions. Improper use of the tire jack may cause the vehicle to suddenly fall off the jack, leading
to death or serious injury.
●Do not use the tire jack for any purpose ot her than replacing tires or installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire. Do not use it on other vehicles, and do no t use other tire jacks for replacing tires on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported by the jack.
●Do not start the engine or drive the vehicle while the vehicle is supported by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the vehicle. If there are people nearby, warn them vocally before lowering.

6248-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)
RC200t

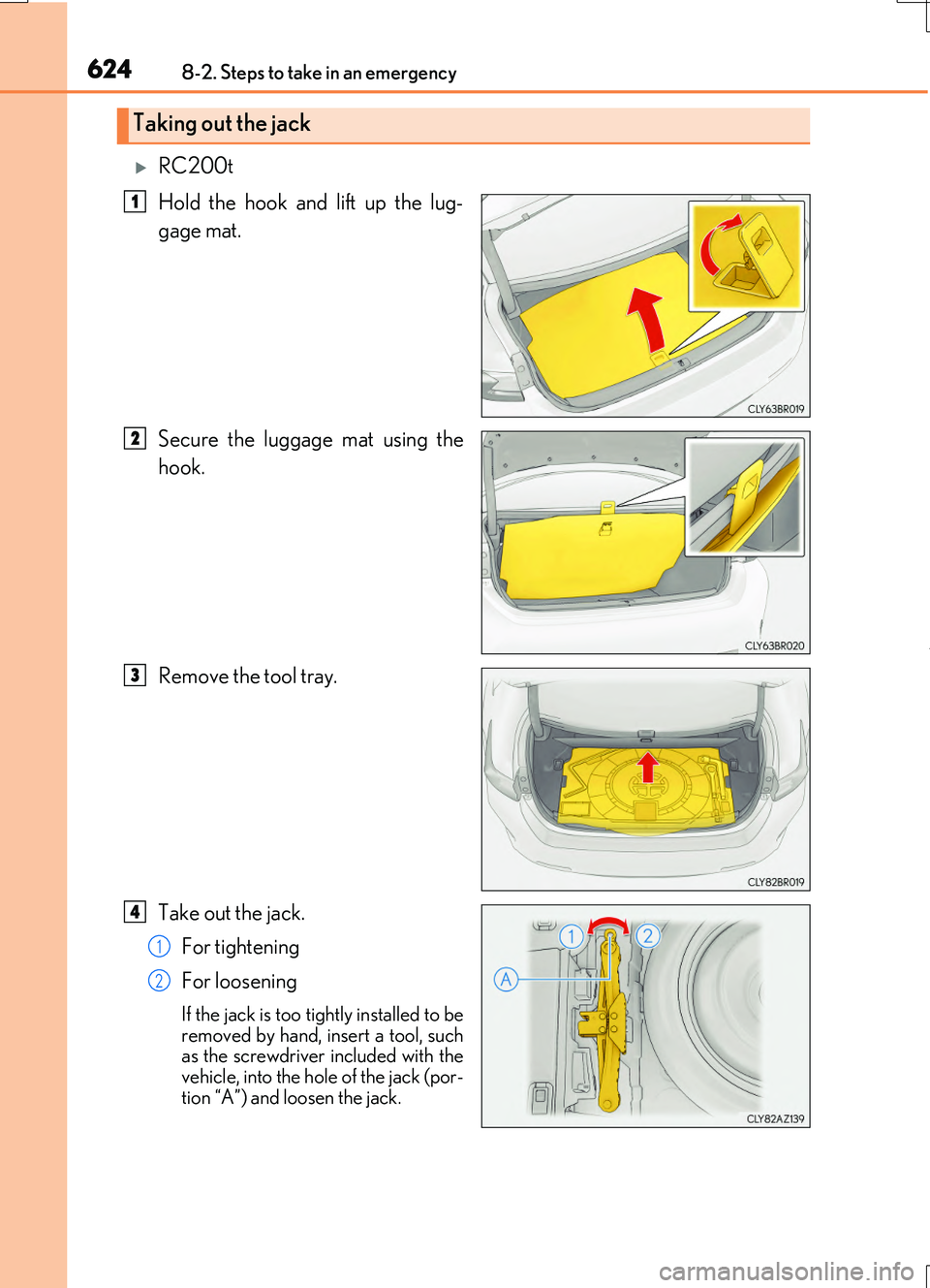

Hold the hook and lift up the lug-
gage mat.
Secure the luggage mat using the
hook.
Remove the tool tray.
Take out the jack.
For tightening
For loosening
If the jack is too tightly installed to be removed by hand, insert a tool, suchas the screwdriver included with the
vehicle, into the hole of the jack (por- tion “A”) and loosen the jack.
Taking out the jack
1
2
3
4
1
2

6258-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)

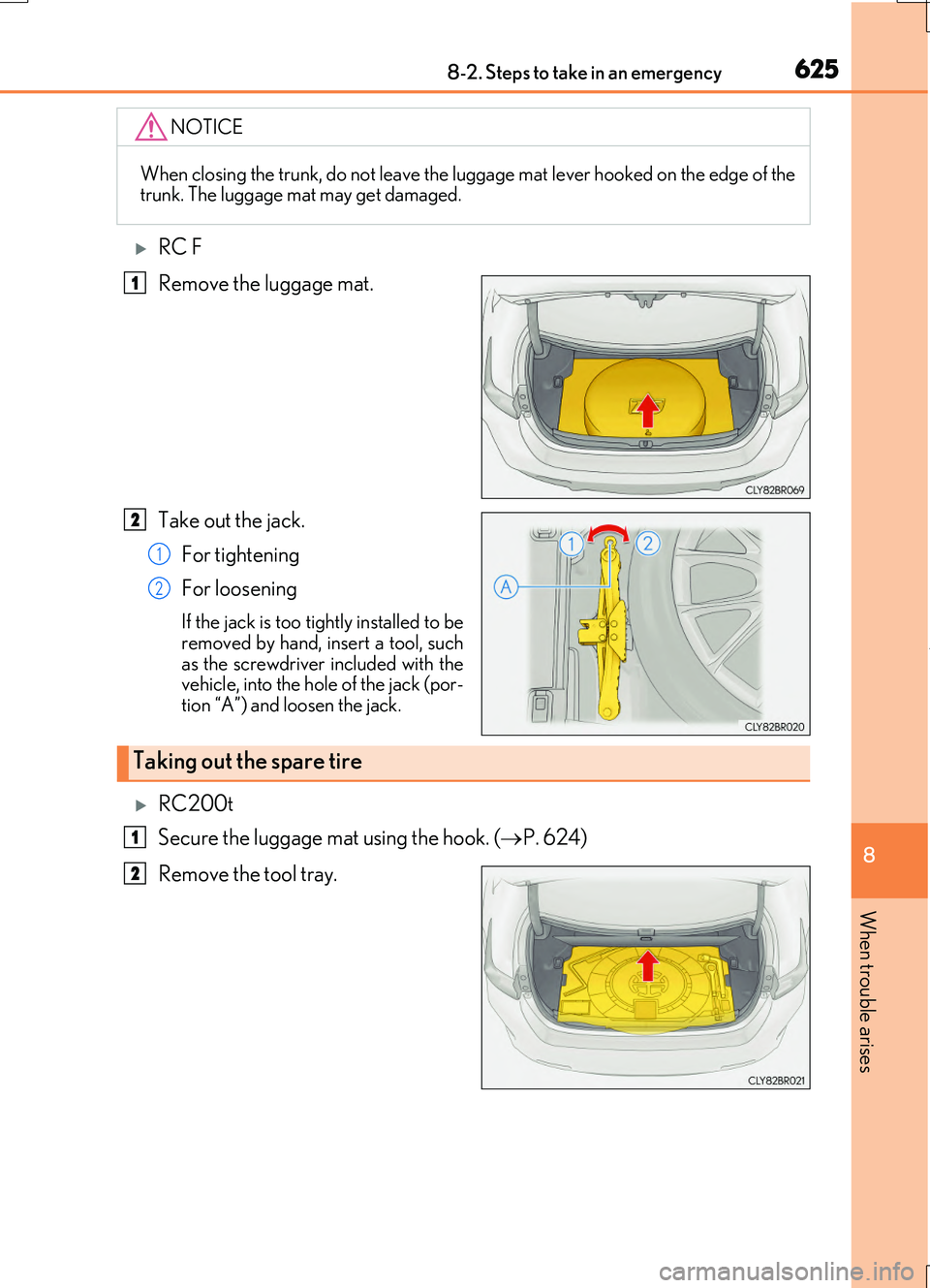

RC F
Remove the luggage mat.
Take out the jack.
For tightening
For loosening
If the jack is too tightly installed to be
removed by hand, insert a tool, such as the screwdriver included with thevehicle, into the hole of the jack (por-
tion “A”) and loosen the jack.
RC200t
Secure the luggage mat using the hook. ( P. 624)
Remove the tool tray.
NOTICE
When closing the trunk, do not leave the luggage mat lever hooked on the edge of the trunk. The luggage mat may get damaged.
1
2
1
2
Taking out the spare tire
1
2

6268-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)
Loosen the center fastener that
secures the spare tire.
If the center fastener cannot be turned
by hand, use the wheel nut wrench that
is stored in the trunk. (To secure the tire,
tighten the center fastener by hand. Do
not use the wrench or other tools.)
RC F
Remove the luggage mat.
Loosen the center fastener that
secures the spare tire.
If the center fastener cannot be turned
by hand, use the wheel nut wrench that
is stored in the trunk. (To secure the tire,
tighten the center fastener by hand. Do
not use the wrench or other tools.)
3
1
2
WARNING
■When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire and the body
of the vehicle.

6278-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)
Chock the tires.
Slightly loosen the wheel nuts (one
turn).
Turn the tire jack portion “A” by hand
until the notch of the jack is in con-
tact with the jack point.
The jack point guides are located under
the rocker panel. They indicate the jack point positions.
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3

6288-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)

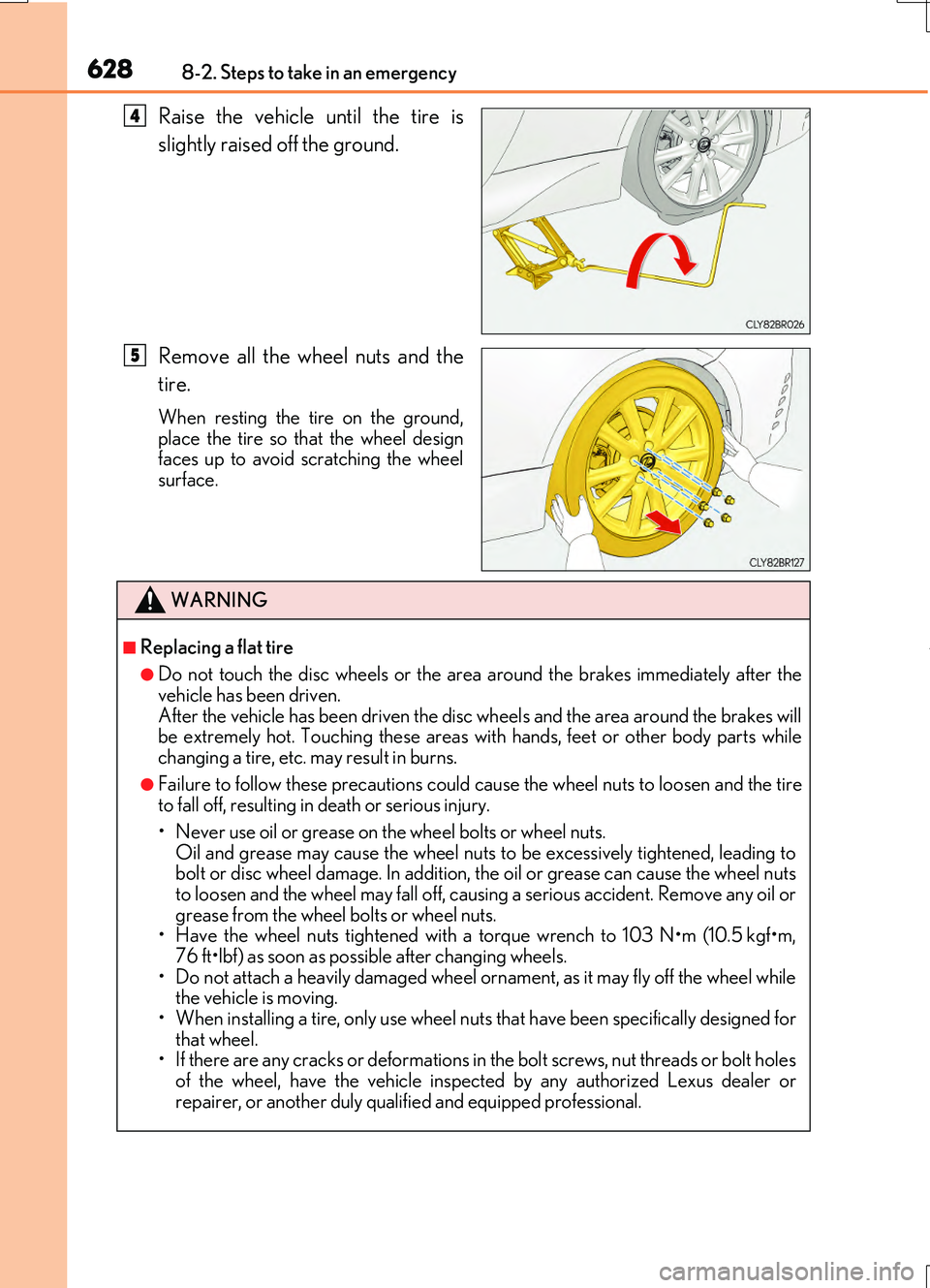

Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and the
tire.
When resting the tire on the ground,
place the tire so that the wheel design faces up to avoid scratching the wheelsurface.
4
5
WARNING
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immediately after thevehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the brakes will be extremely hot. Touching these areas wi th hands, feet or other body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to loosen and the tireto fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened, leading to bolt or disc wheel damage. In addition, the oil or grease can cause the wheel nuts to loosen and the wheel may fall off, causing a serious accident. Remove any oil or
grease from the wheel bolts or wheel nuts. • Have the wheel nuts tightened with a torque wrench to 103 N•m (10.5 kgf•m,76 ft•lbf) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel or nament, as it may fly off the wheel while the vehicle is moving.• When installing a tire, only use wheel nuts that have been specifically designed for
that wheel. • If there are any cracks or deformations in the bolt screws, nut threads or bolt holesof the wheel, have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualif ied and equipped professional.

6298-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)

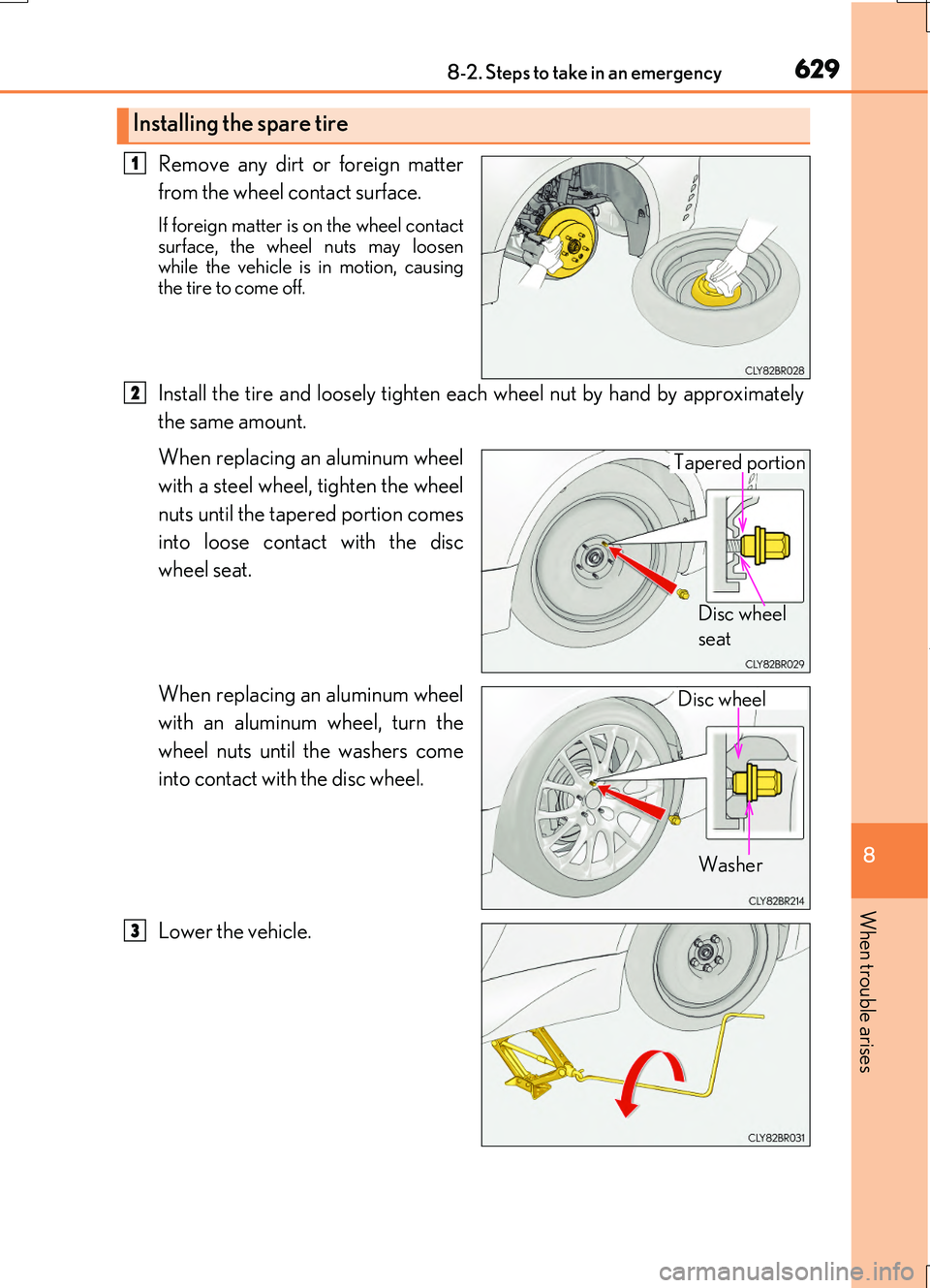

Remove any dirt or foreign matter
from the wheel contact surface.
If foreign matter is on the wheel contact
surface, the wheel nuts may loosen while the vehicle is in motion, causingthe tire to come off.
Install the tire and loosely tighten each wheel nut by hand by approximately
the same amount.
When replacing an aluminum wheel
with a steel wheel, tighten the wheel
nuts until the tapered portion comes
into loose contact with the disc
wheel seat.
When replacing an aluminum wheel
with an aluminum wheel, turn the
wheel nuts until the washers come
into contact with the disc wheel.
Lower the vehicle.
Installing th e spare tire
1
2
Disc wheel
seat
Tapered portion
Washer
Disc wheel
3

6308-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)

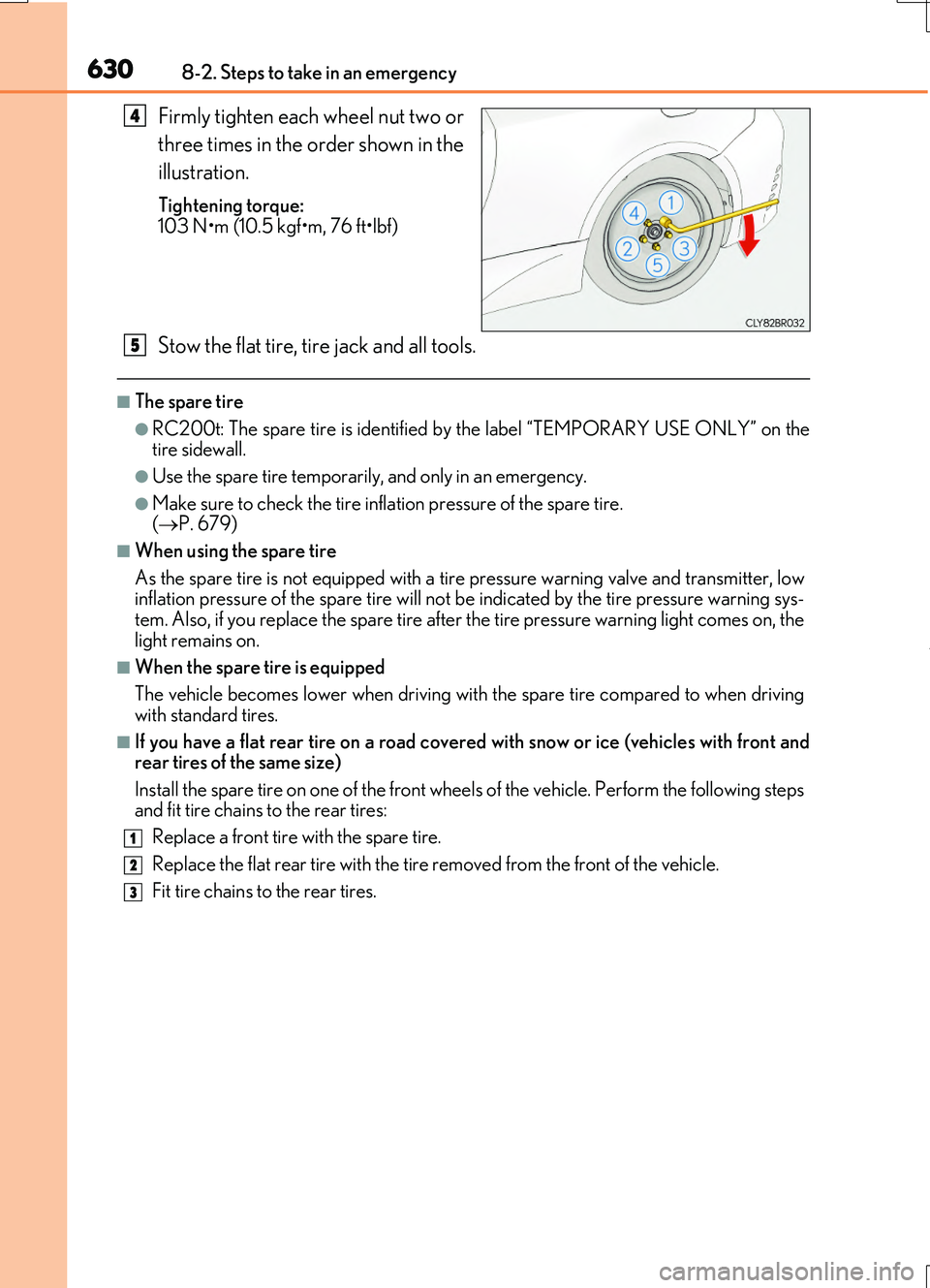

Firmly tighten each wheel nut two or
three times in the order shown in the
illustration.
Tightening torque:
103 N•m (10.5 kgf•m, 76 ft•lbf)
Stow the flat tire, tire jack and all tools.
■The spare tire
●RC200t: The spare tire is identified by the label “TEMPORARY USE ONLY” on the tire sidewall.
●Use the spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the spare tire. ( P. 679)
■When using the spare tire
As the spare tire is not equipped with a tire pressure warning valve and transmitter, low inflation pressure of the spare tire will not be indicated by the tire pressure warning sys- tem. Also, if you replace the spare tire after the tire pressure warning light comes on, the
light remains on.
■When the spare tire is equipped
The vehicle becomes lower when driving with the spare tire compared to when driving
with standard tires.
■If you have a flat rear tire on a road covered with snow or ice (vehicles with front and rear tires of the same size)
Install the spare tire on one of the front wheels of the vehicle. Perform the following steps and fit tire chains to the rear tires:
Replace a front tire with the spare tire.
Replace the flat rear tire with the tire removed from the front of the vehicle.
Fit tire chains to the rear tires.
4
5
1
2
3
