Add coolant if necessary.
Water can be used in an emergency if coolant is unavailable.
Start the engine and turn the air conditioning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses.
The fans operate when the air conditioning system is turned on immediately after a cold start. Confirm that the fans are operating by checking the fan sound and air flow.
If it is difficult to check these, turn the air conditioning system on and off repeatedly. (The fan may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately and contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
If the fans are operating:
Have the vehicle inspected at the nearest authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
5
Engine (RC200t)Engine (RC F)
Intercooler (RC200t)
6
7

6628-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions. Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the h ood, do not open the hood until the steam has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans and
belts. Failure to do so may cause the hands or clothing to be caught, resulting in seri- ous injury.
●RC200t: While the engine and radiators arehot, do not loosen or remove the coolant res-ervoir cap, radiator cap, or intercooler cool-
ant reservoir cap. High temperature steam or coolant couldspray out.
●RC F: While the engine and radiator are hot,do not loosen or remove the coolant reser-voir cap.
High temperature steam or coolant could spray out.

6638-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cool ed down sufficiently. Adding cool coolant to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additive.

6648-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)
Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other material under the rear wheels to help pro-
vide traction.
Restart the engine.
Shift the shift lever to D or R and rele ase the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
RC200t
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press ( ) to turn off TRC.
1
2
3
4
5

6658-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)
RC F

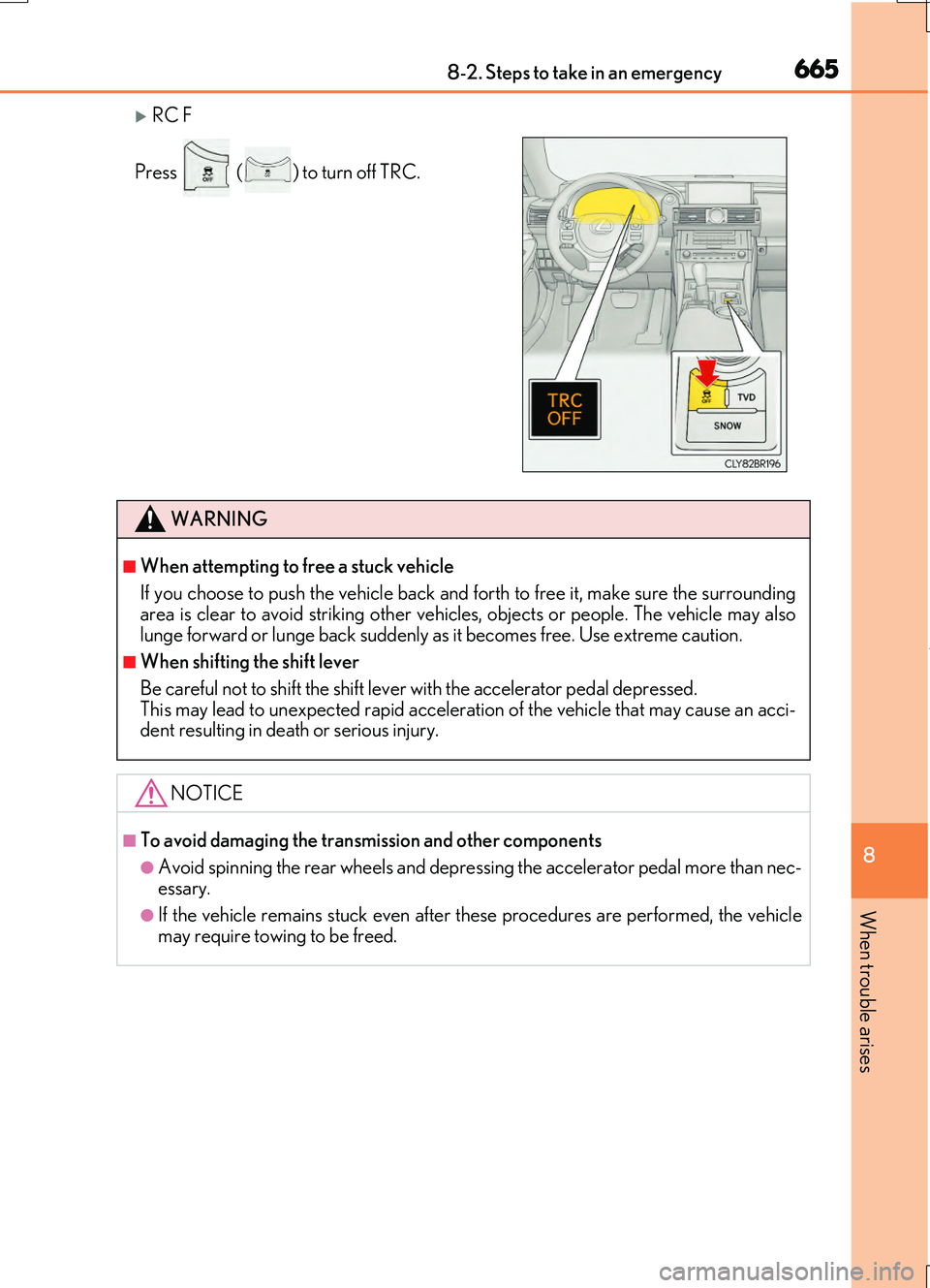

Press ( ) to turn off TRC.
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear to avoid striking other vehi cles, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an acci-
dent resulting in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more than nec-
essary.
●If the vehicle remains stuck even after these procedures are performed, the vehicle
may require towing to be freed.

6668-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)

667
9Vehicle specifications
RC200t_RC F_EE(OM24728E)
9-1. Specifications
Maintenance data
(fuel, oil level, etc.) ..................668
Fuel information..........................683
9-2. Customization
Customizable features ............685
9-3. Items to initialize
Items to initialize ......................... 697

668
RC200t_RC F_EE(OM24728E)
9-1. Specifications
RC200t
*1: Unladen vehicle
*2: Vehicles with 265/35R19 tires
RC F
*: Unladen vehicle
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length4695 mm (184.8 in.)
Overall width1840 mm (72.4 in.)
Overall height*11395 mm (54.9 in.)
Wheelbase2730 mm (107.5 in.)
Tread*1
Front1580 mm (62.2 in.)
Rear1600 mm (63.0 in.)
1570 mm (61.8 in.)*2
Gross vehicle mass2170 kg (4784 lb.)
Maximum permissi-
ble axle capacity
Front1120 kg (2469 lb.)
Rear1205 kg (2657 lb.)
Overall length 4705 mm (185.2 in.)
Overall width 1845 mm (72.6 in.)
Overall height*1390 mm (54.7 in.)
Wheelbase 2730 mm (107.5 in.)
Tread*Front 1555 mm (61.2 in.)
Rear 1560 mm (61.4 in.)
Gross vehicle mass 2250 kg (4960 lb.)
Maximum permissi- ble axle capacity
Front 1260 kg (2778 lb.)
Rear 1260 kg (2778 lb.)

669
9
9-1. Specifications
Vehicle specifications
RC200t_RC F_EE(OM24728E)
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel and in the
engine compartment.
This number is also on the manufac-
turer’s label.
Vehicle identification
RC200tRC F

6709-1. Specifications
RC200t_RC F_EE(OM24728E)
■Engine number
The engine number is located as shown.
RC200t
RC F
RC200tRC F
Engine
Model8AR-FTS
Type4-cylinder in line, 4-cycle, gasoline (with turbocharger)
Bore and stroke86.0  86.0 mm (3.39  3.39 in.)
Displacement1998 cm3 (121.9 cu. in.)
Drive belt tensionAutomatic adjustment
Model2UR-GSE
Type8-cylinder V type, 4-cycle, gasoline
Bore and stroke94.0  89.5 mm (3.70  3.52 in.)
Displacement4969 cm3 (303.2 cu. in.)
Drive belt tensionAutomatic adjustment
