6318-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)

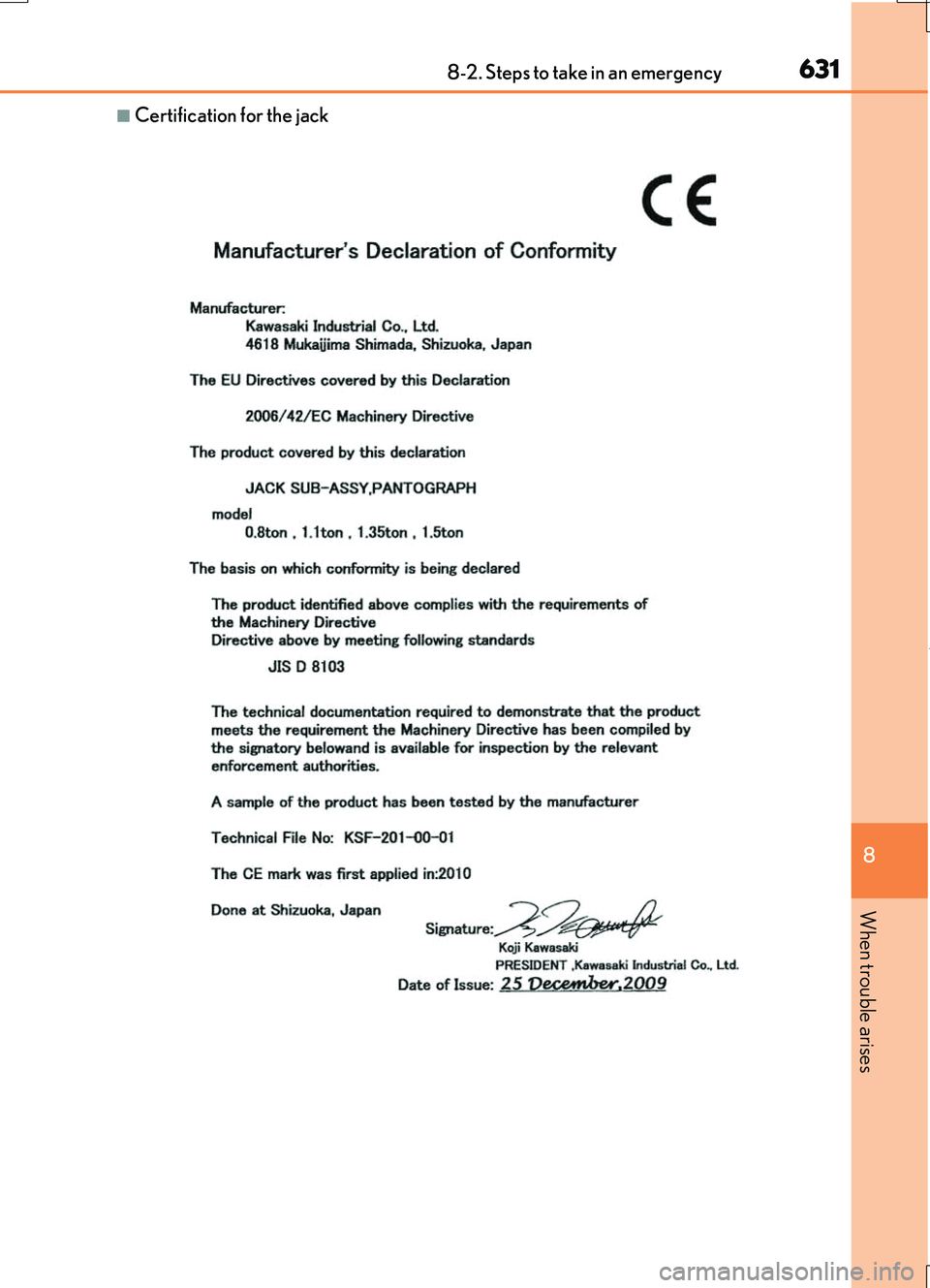

■Certification for the jack

6328-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)
WARNING
■When using the spare tire
●Remember that the spare tire provided is specifically designed for use with your vehi- cle. Do not use your spare tire on another vehicle.
●Do not use more than one spare tires simultaneously.
●Replace the spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steerin g, sudden braking and shifting operations
that cause sudden engine braking.
■When the spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may not
operate correctly:
■Speed limit when using the spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a spare tire is installed on the vehicle.
The spare tire is not designed for driving at high speeds. Failure to observe this precau- tion may lead to an accident cau sing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage location to reduce the possibility of personal injury during a collision or sudden brak- ing.
NOTICE
■Driving with tire chains and the spare tire
Do not fit tire chains to the spare tire. Tire chains may damage the vehicle body and adversely affect driving performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning valve and trans- mitter, contact any authorized Lexus dealer or repairer, or another duly qualified andequipped professional as the tire pressure warning valve and transmitter may be dam-
aged if not handled correctly.
• ABS & Brake assist
•VSC •TRC• Cruise control (if equipped)
• Dynamic radar cruise control (if equipped)• PCS (if equipped)
•EPS • Adaptive Variable Suspension System (if equipped)
• LDA (Lane departure alert)
(if equipped) • VDIM (Vehicle Dynamics IntegratedManagement)
• Tire pressure warning system • Lexus parking assist monitor (if equipped)
• Lexus parking assist-sensor (if equipped)• Navigation system (if equipped)

6338-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)

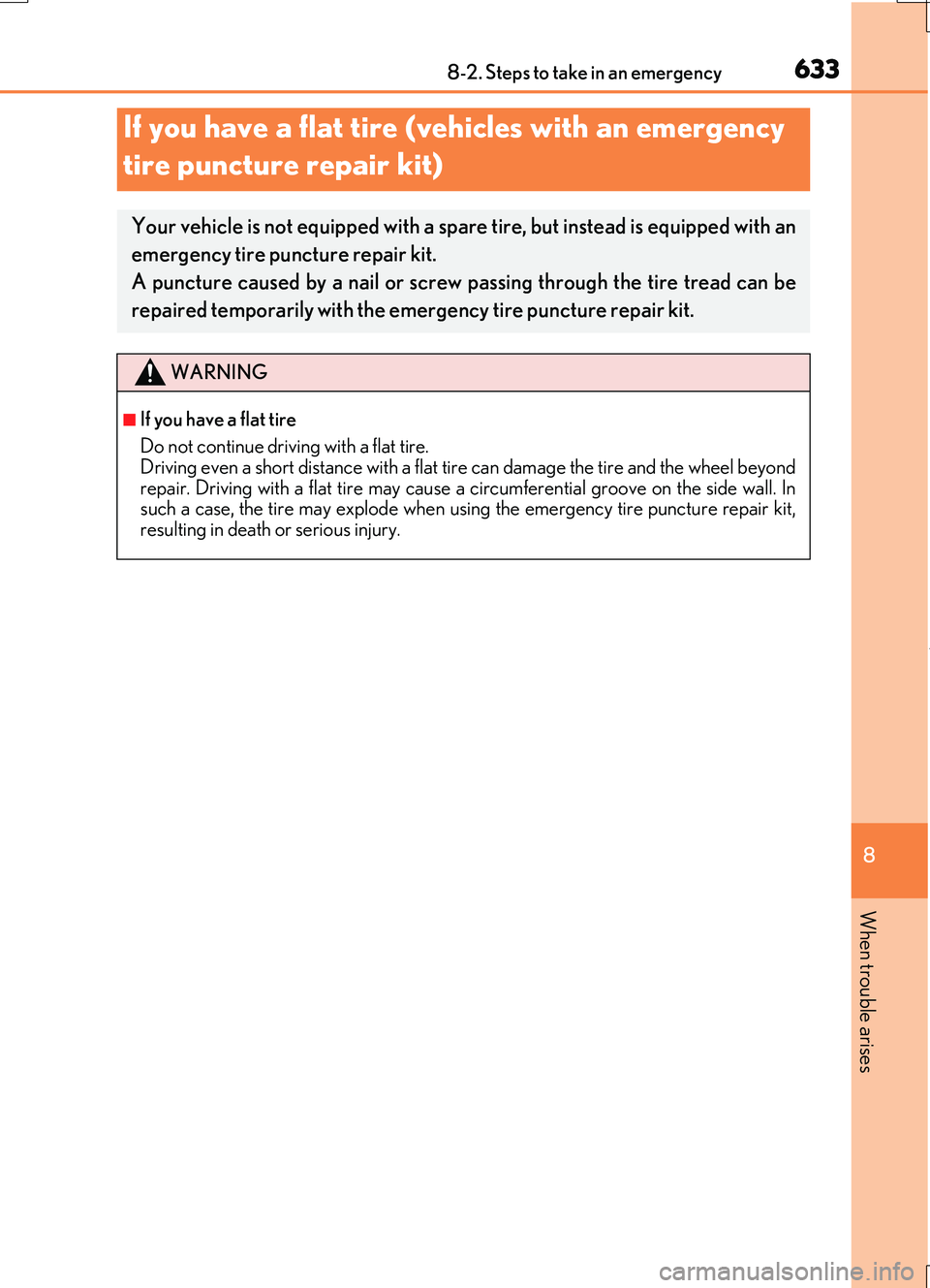

If you have a flat tire (vehicles with an emergency
tire puncture repair kit)
Your vehicle is not equipped with a spare tire, but instead is equipped with an
emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread can be
repaired temporarily with the emergency tire puncture repair kit.
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel beyond repair. Driving with a flat tire may cause a circumferential groove on the side wall. Insuch a case, the tire may explode when using the emergency tire puncture repair kit,
resulting in death or serious injury.

6348-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)
●Stop the vehicle in a safe place on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Stop the engine.
●Turn on the emergency flashers. (P. 580)
●Check the degree of the tire damage.
A tire should only be repaired with the
emergency tire puncture repair kit if
the damage is caused by a nail or screw
passing through the tire tread.
• Do not remove the nail or screw
from the tire. Removing the object
may widen the opening and
disenable emergency repair with the
kit.
• To avoid sealant leakage, move the vehicle until the area of the puncture, if
known, is positioned at the top of the tire.
■A flat tire that cannot be repaired with the emergency tire puncture repair kit
In the following cases, the tire cannot be repaired with the emergency tire puncture repair kit. Contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
●When the tire is damaged due to driving without sufficient air pressure
●When the tire lost air pressure due to a crack or damage in the tire sidewall
●When the tire is visibly separated from the wheel
●When the cut or damage to the tread is 4 mm (0.16 in.) long or more
●When the wheel is damaged
●When 2 or more sharp objects, such as nails or screws, have passed through the tread on a single tire
●When there is more than one hole or cut in the damaged tire
●When the sealant has expired
Before repairing the vehicle

6358-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)
*: Use of the jack (P. 627)

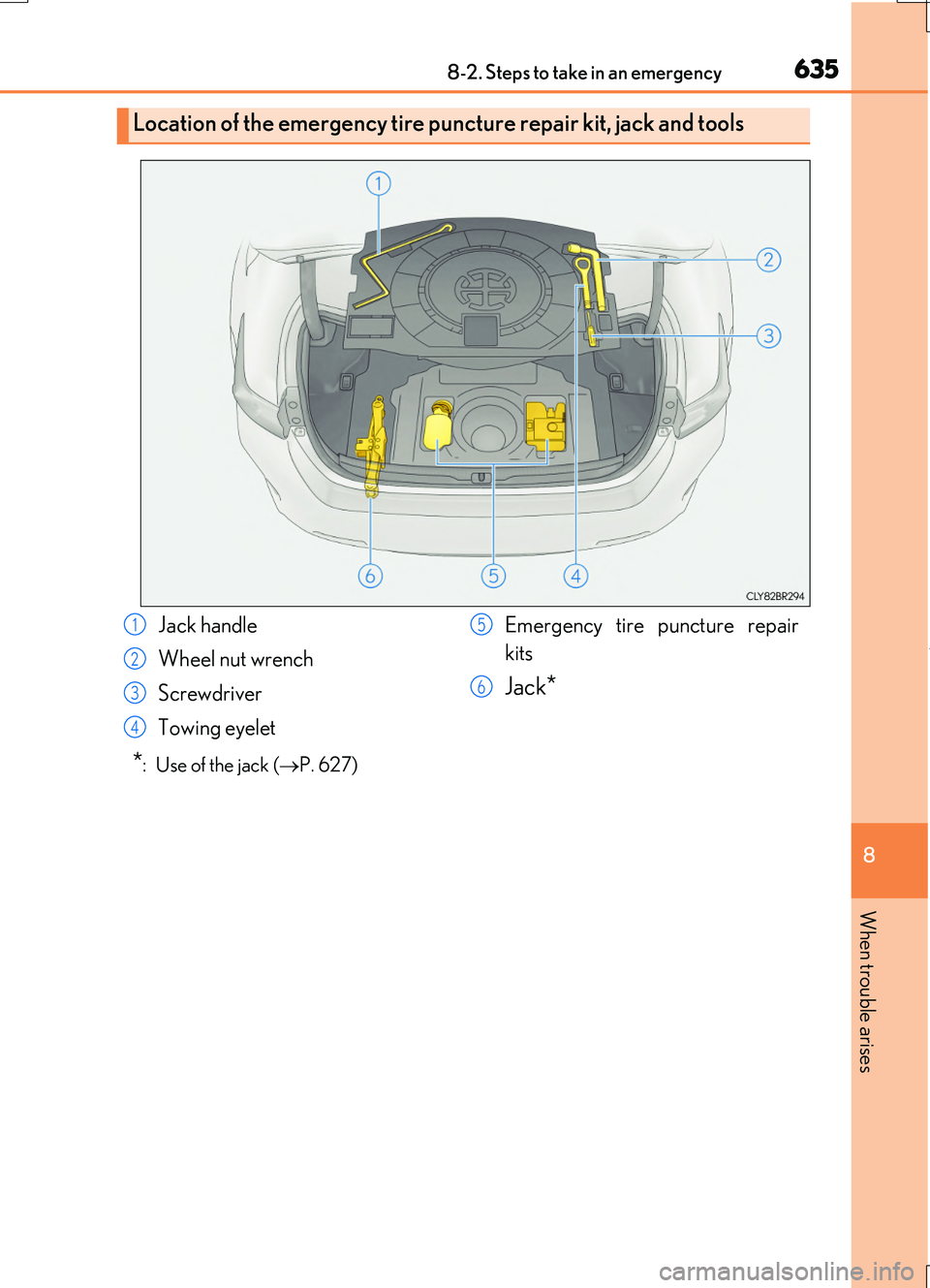

Location of the emergency tire puncture repair kit, jack and tools
Jack handle
Wheel nut wrench
Screwdriver
Towing eyelet
Emergency tire puncture repair
kits
Jack*
1
2
3
4
5
6

6368-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)

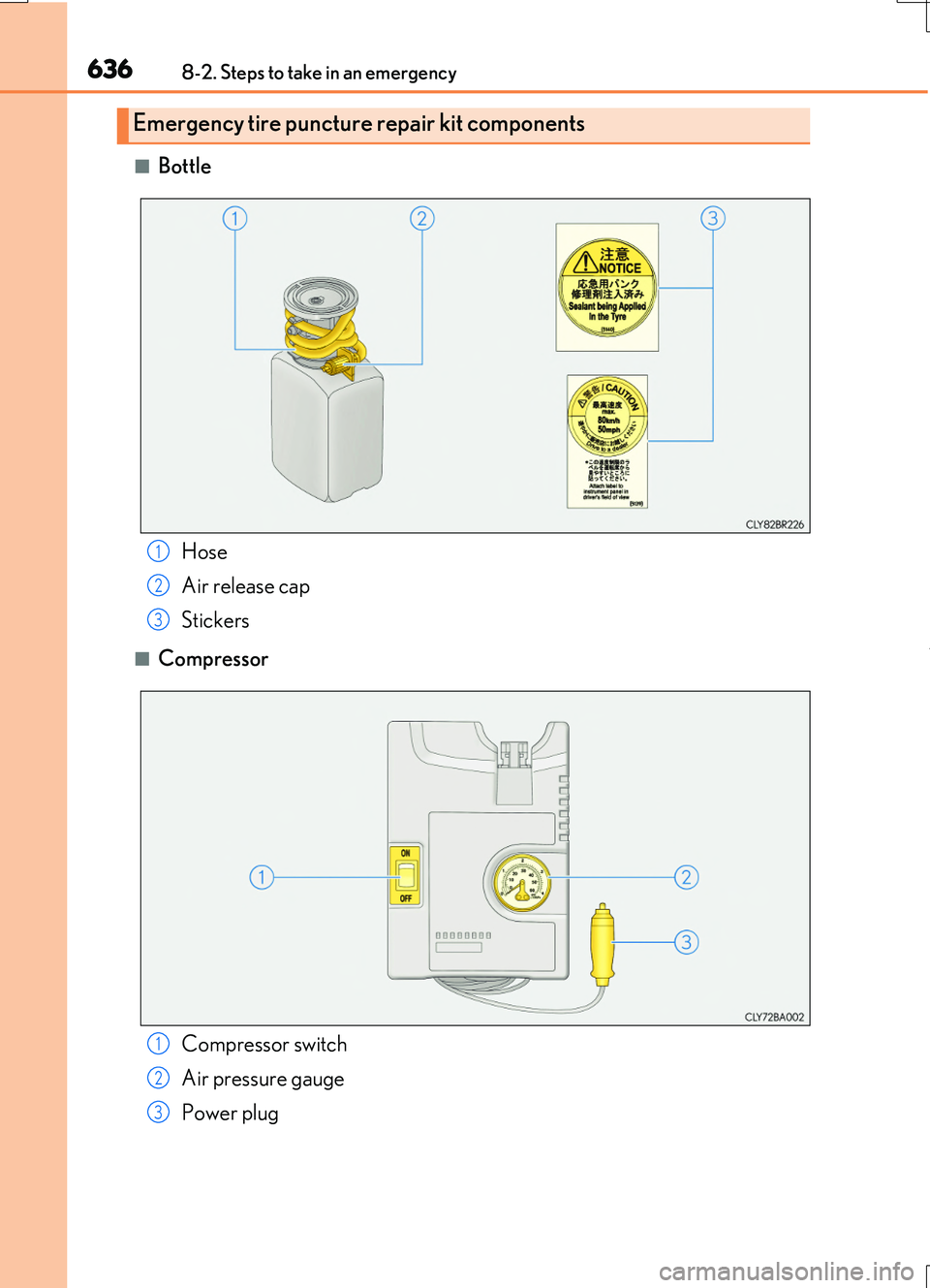

■Bottle
■Compressor
Emergency tire puncture repair kit components
Hose
Air release cap
Stickers
1
2
3
Compressor switch
Air pressure gauge
Power plug
1
2
3

6378-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)

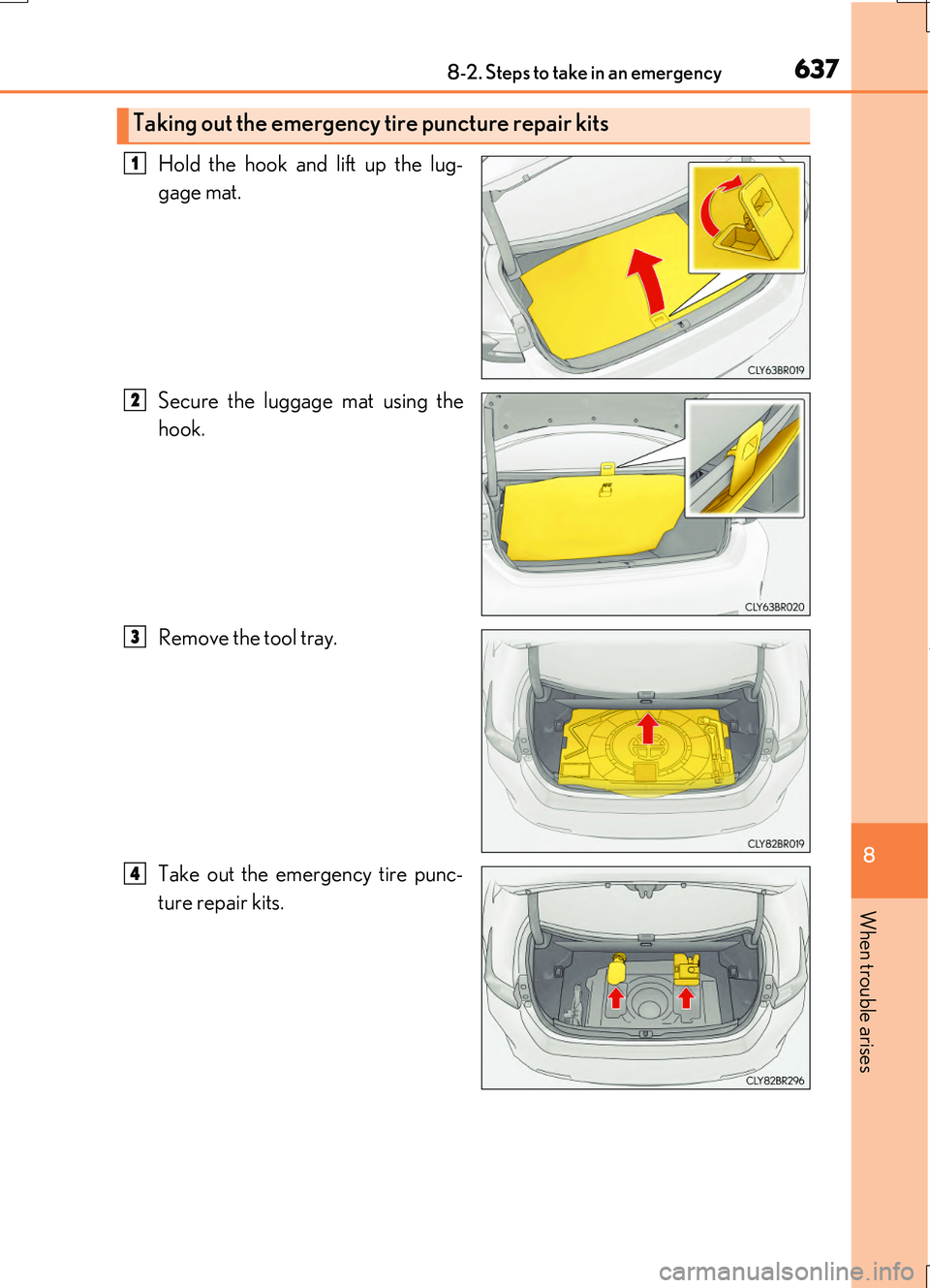

Hold the hook and lift up the lug-
gage mat.
Secure the luggage mat using the
hook.
Remove the tool tray.
Take out the emergency tire punc-
ture repair kits.
Taking out the emergency tire puncture repair kits
1
2
3
4

6388-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)

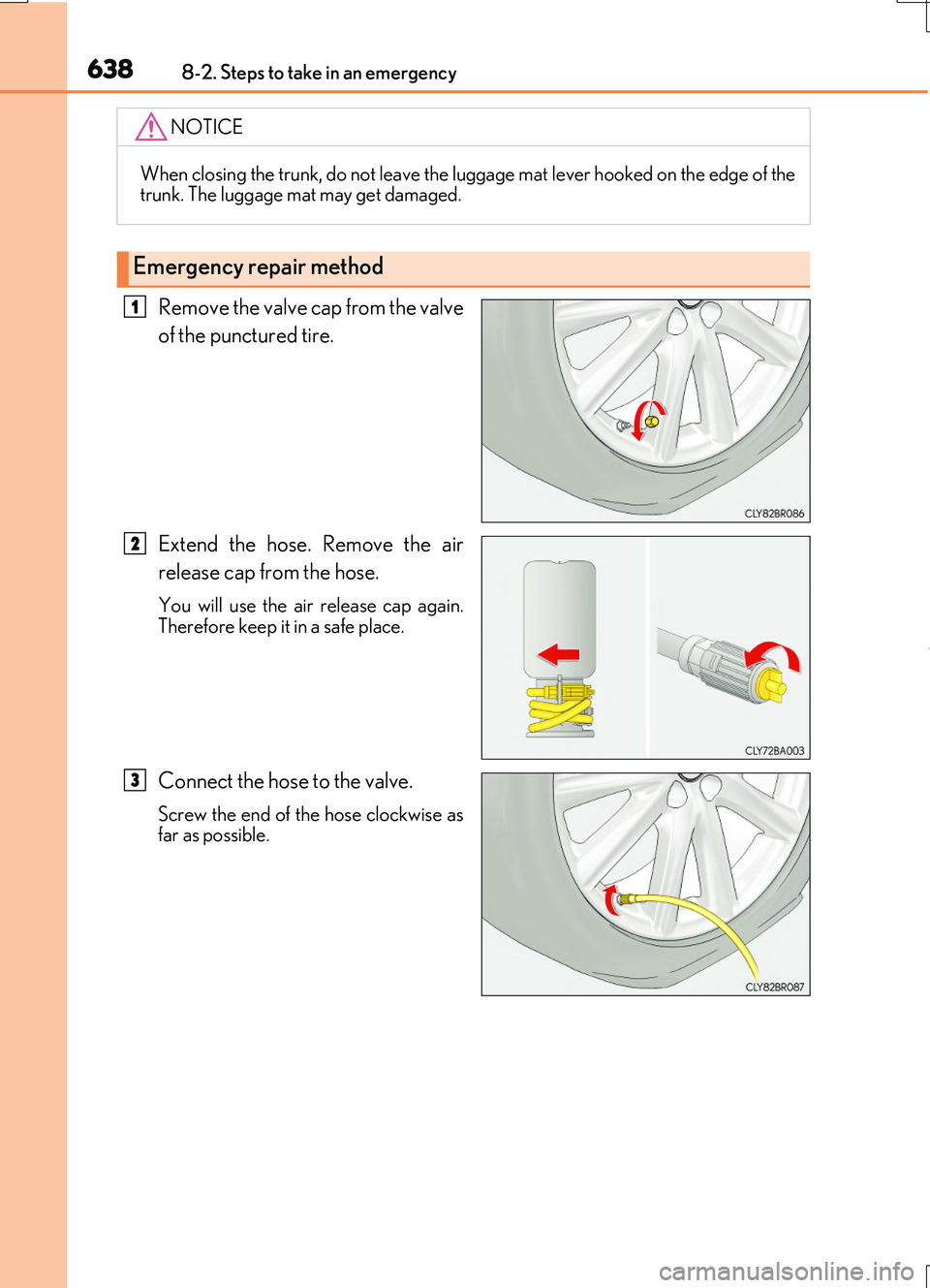

Remove the valve cap from the valve
of the punctured tire.
Extend the hose. Remove the air
release cap from the hose.
You will use the air release cap again. Therefore keep it in a safe place.
Connect the hose to the valve.
Screw the end of the hose clockwise asfar as possible.
NOTICE
When closing the trunk, do not leave the luggage mat lever hooked on the edge of thetrunk. The luggage mat may get damaged.
Emergency repair method
1
2
3

6398-2. Steps to take in an emergency
8
When trouble arises
RC200t_RC F_EE(OM24728E)

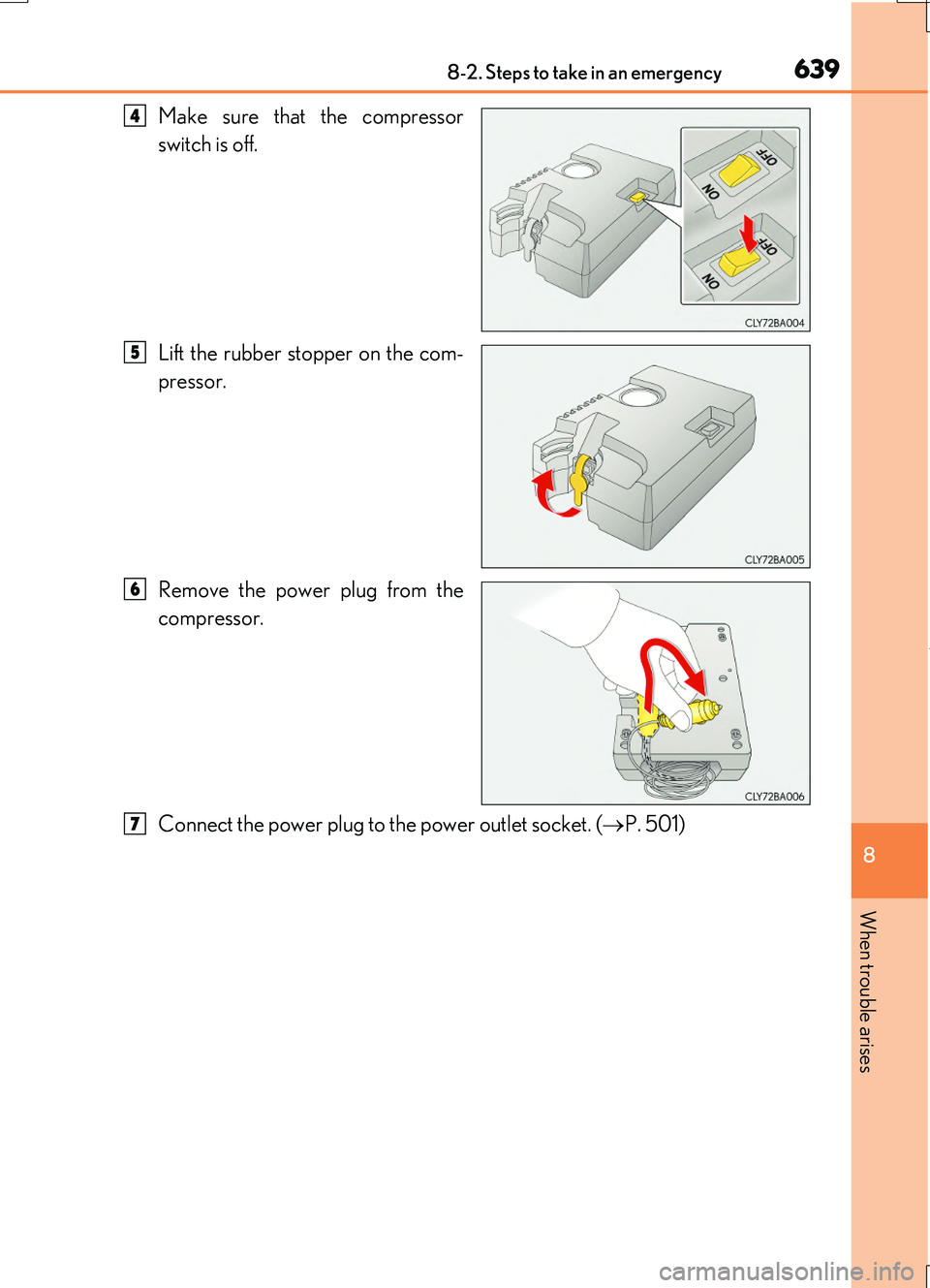

Make sure that the compressor
switch is off.
Lift the rubber stopper on the com-
pressor.
Remove the power plug from the
compressor.
Connect the power plug to the power outlet socket. ( P. 501)
4
5
6
7

6408-2. Steps to take in an emergency
RC200t_RC F_EE(OM24728E)

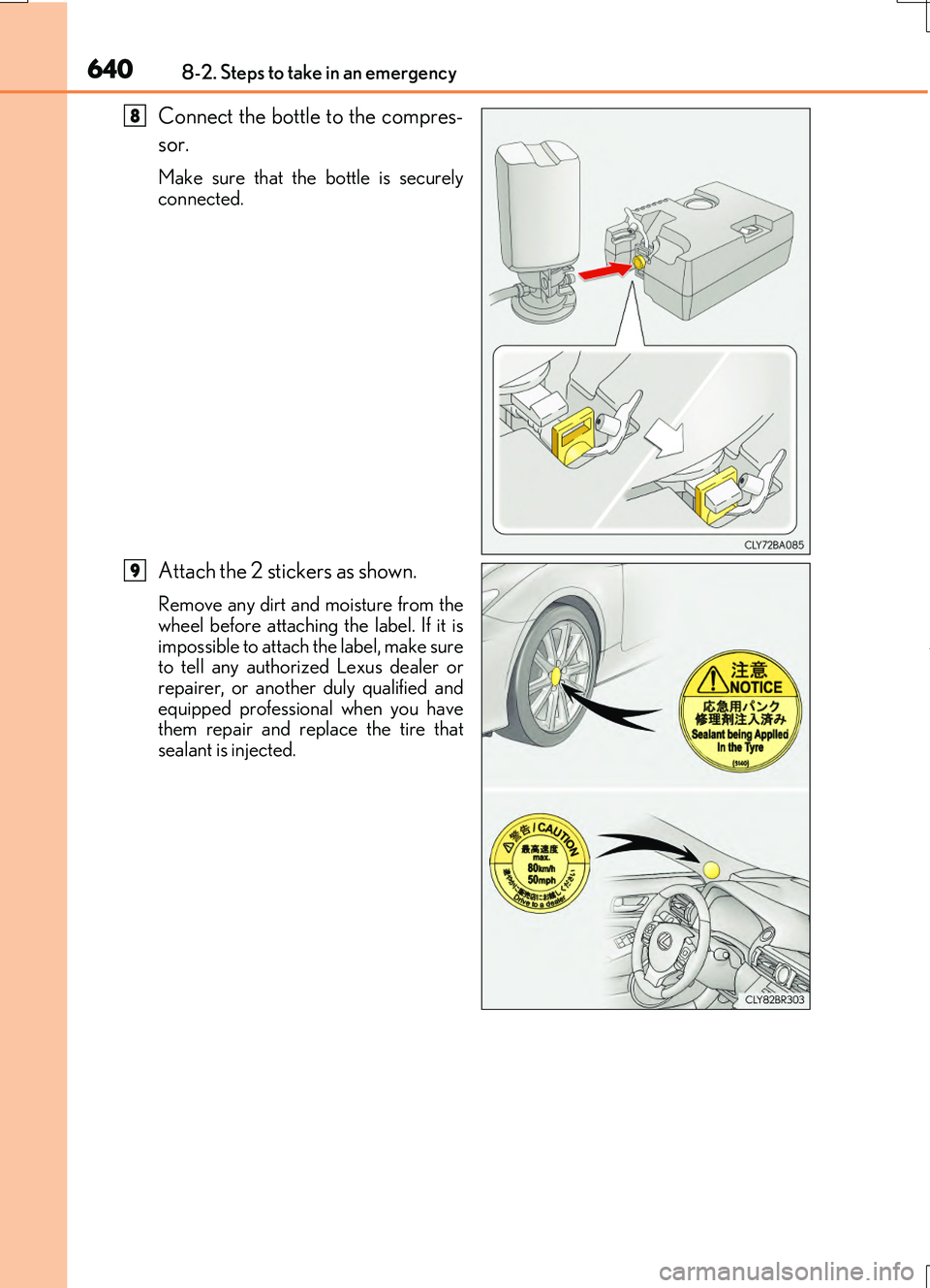

Connect the bottle to the compres-
sor.
Make sure that the bottle is securely connected.
Attach the 2 stickers as shown.
Remove any dirt and moisture from thewheel before attaching the label. If it is
impossible to attach the label, make sure to tell any authorized Lexus dealer orrepairer, or another duly qualified and
equipped professional when you have them repair and replace the tire thatsealant is injected.
8
9
