LEXUS RC350 2023 Manual PDF

70

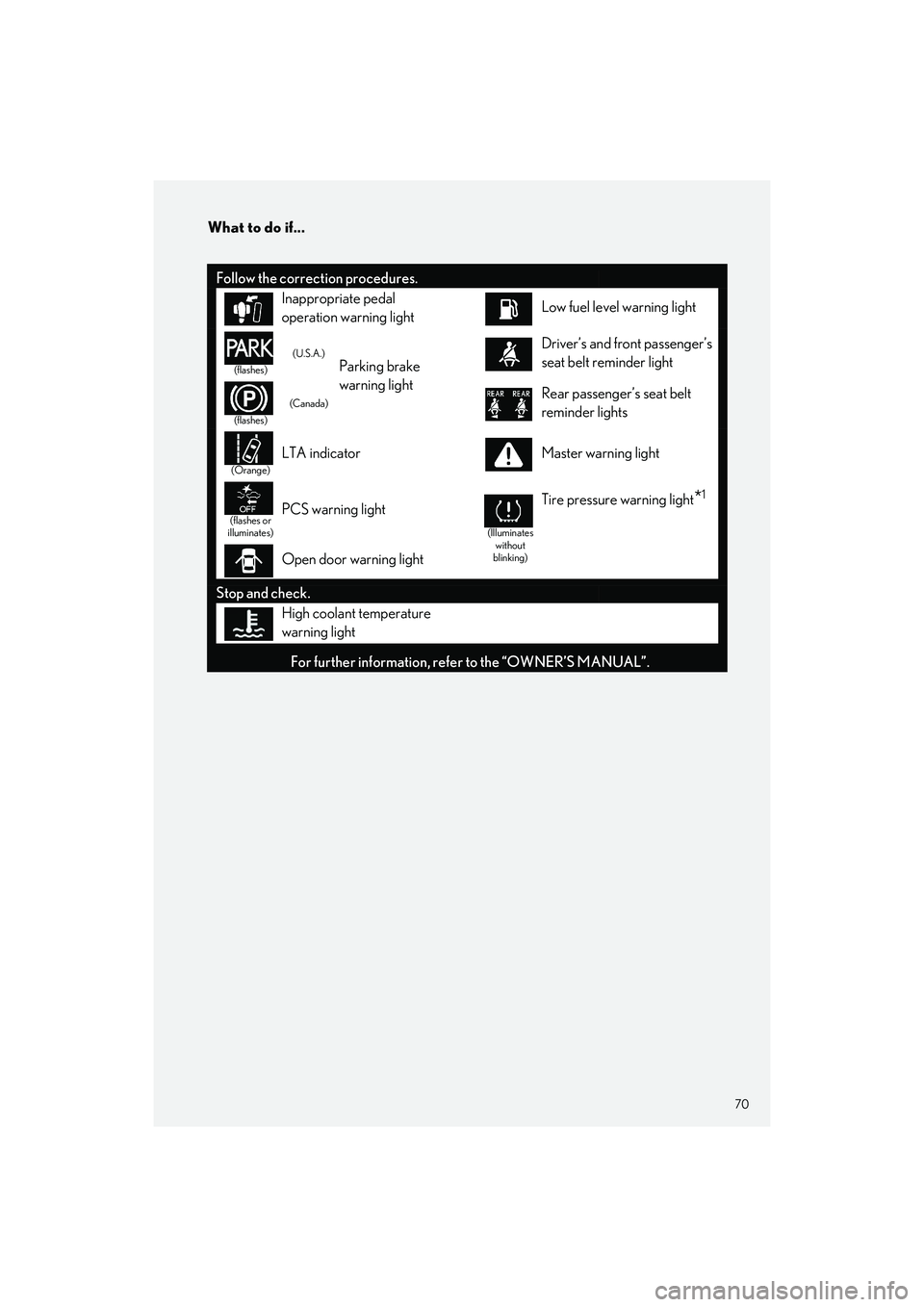

What to do if...
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)
Follow the correction procedures.
Inappropriate pedal
operation warning lightLow fuel level warning light
(flashes)
(U.S.A.)Parking brake
warning light
Driver’s and front passenger’s
seat belt reminder light
(flashes)
(Canada)Rear passenger’s seat belt
reminder lights
(Orange)
LTA indicatorMaster warning light
(flashes or
illuminates)PCS warning light
(Illuminates without
blinking)
Tire pressure warning light*1
Open door wa rning light
Stop and check.
High coolant temperature
warning light
For further information, refe r to the “OWNER’S MANUAL”.

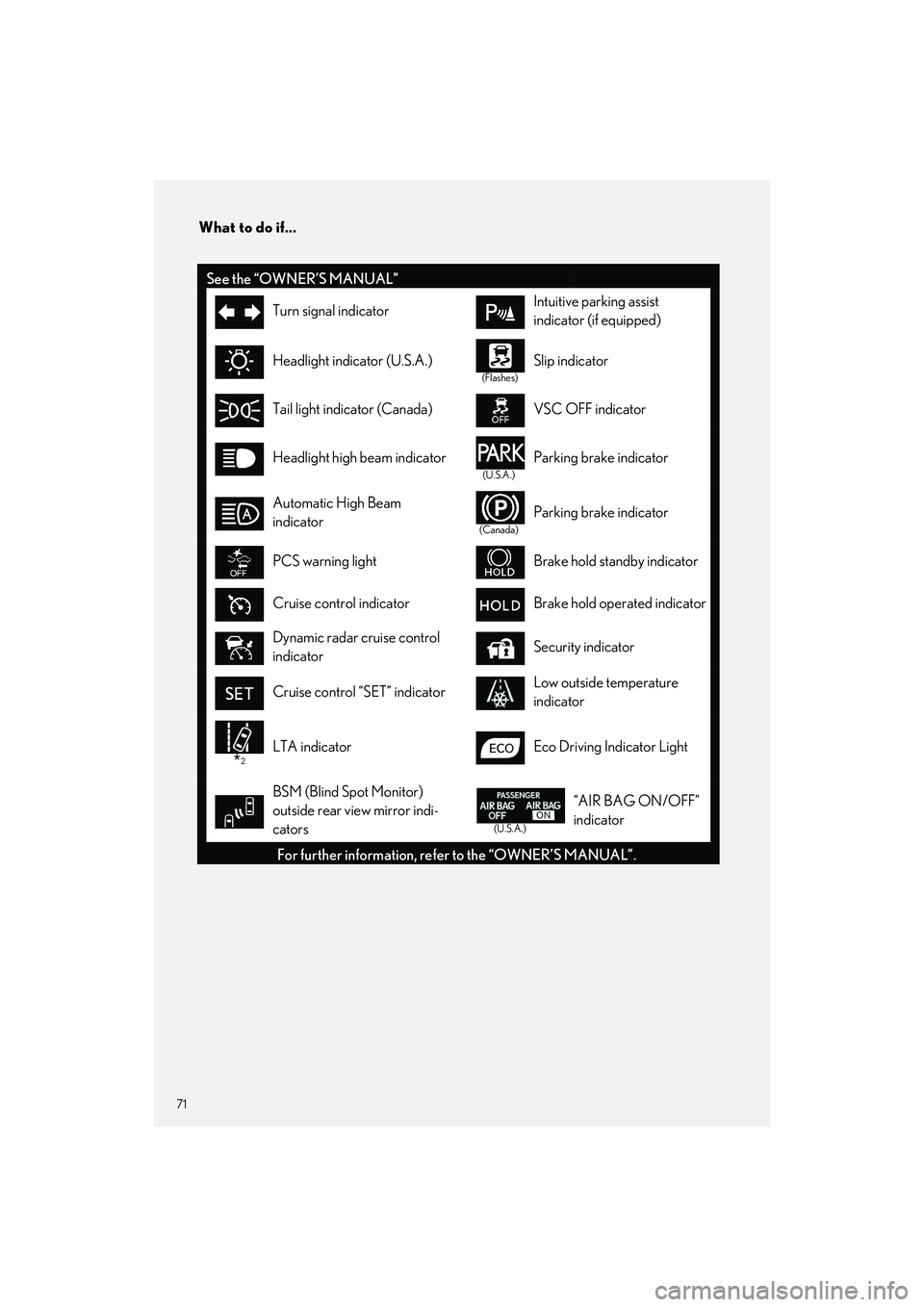

What to do if...
71
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)
See the “OWNER’S MANUAL”
Turn signal indicatorIntuitive parking assist
indicator (if equipped)
Headlight indicator (U.S.A.)
(Flashes)
Slip indicator
Tail light indicator (Canada)VSC OFF indicator
Headlight high beam indicator
(U.S.A.)
Parking brake indicator
Automatic High Beam
indicator
(Canada)
Parking brake indicator
PCS warning lightBrake hold standby indicator
Cruise control indicatorBrake hold operated indicator
Dynamic radar cruise control
indicatorSecurity indicator
Cruise control “SET” indicatorLow outside temperature
indicator
*2LTA indicatorEco Driving Indicator Light
BSM (Blind Spot Monitor)
outside rear view mirror indi-
cators
(U.S.A.)
“AIR BAG ON/OFF”
indicator
For further information, refer to the “OWNER’S MANUAL”.

72
What to do if...
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)

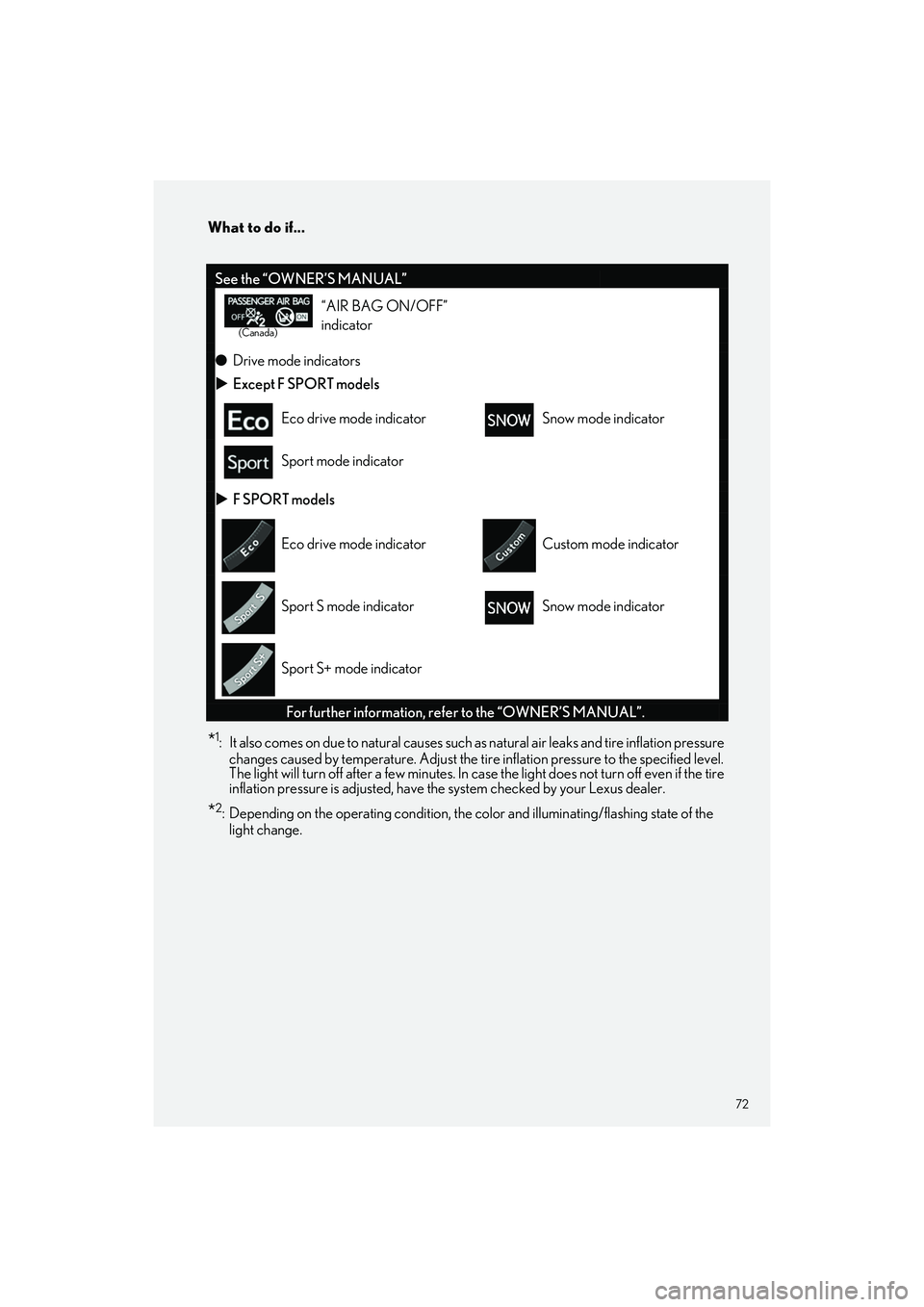

*1: It also comes on due to natural causes such as natural air leaks and tire inflation pressure
changes caused by temper ature. Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In cas e the light does not turn off even if the tire
inflation pressure is adju sted, have the system chec ked by your Lexus dealer.
*2: Depending on the operating condition, the color and illuminating/flashing state of the
light change.
See the “OWNER’S MANUAL”
(Canada)
“AIR BAG ON/OFF”
indicator
● Drive mode indicators
 Except F SPORT models
Eco drive mode indicatorSnow mode indicator
Sport mode indicator
F SPORT models
Eco drive mode indicatorCustom mode indicator
Sport S mode indicatorSnow mode indicator
Sport S+ mode indicator
For further information, refer to the “OWNER’S MANUAL”.

What to do if...
73
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)

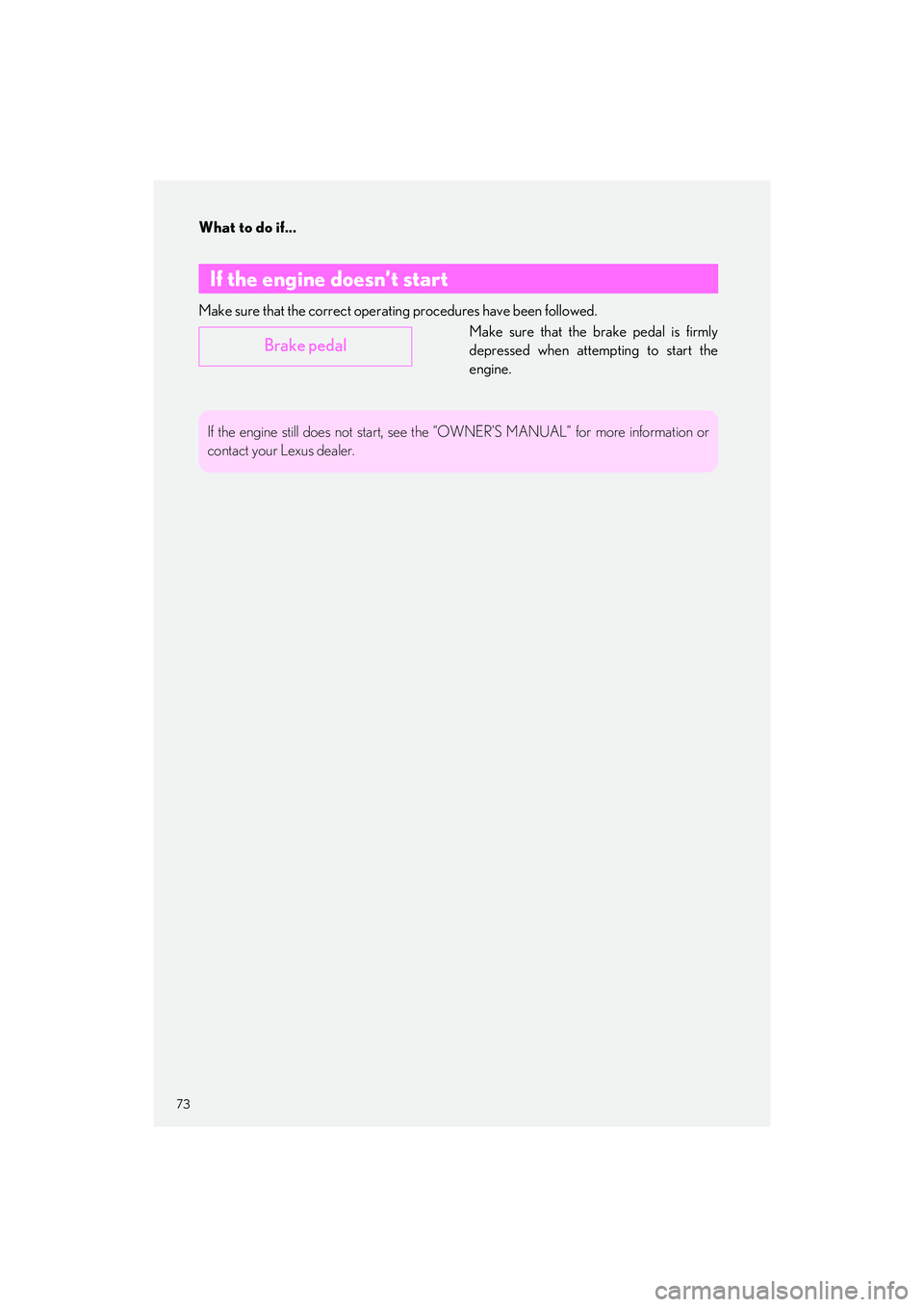

Make sure that the correct operating procedures have been followed.
Make sure that the brake pedal is firmly
depressed when attempting to start the
engine.
If the engine doesn’t start
Brake pedal
If the engine still does no t start, see the “OWNER’S MA NUAL” for more information or
contact your Lexus dealer.

74
What to do if...
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)

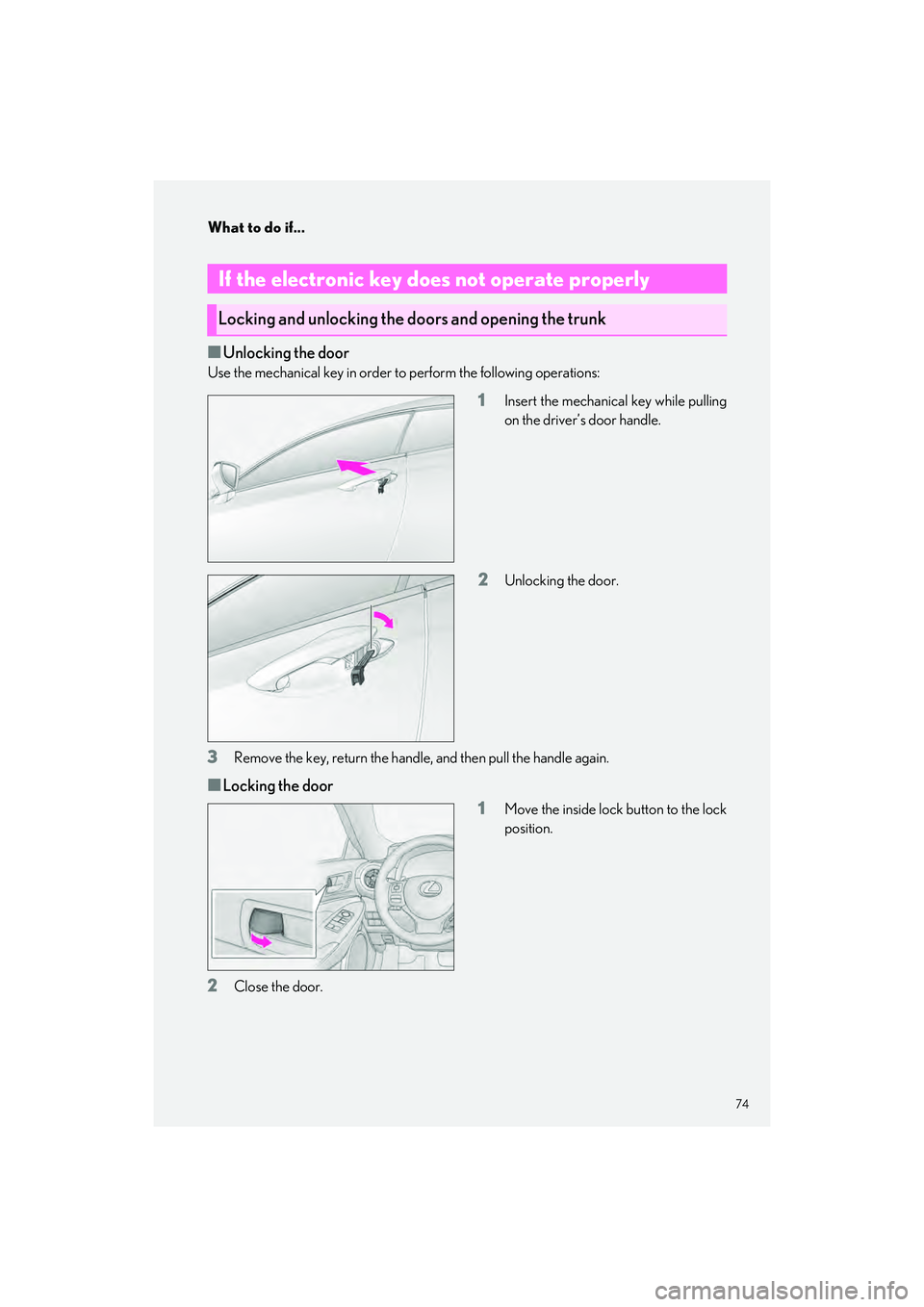

■Unlocking the door
Use the mechanical key in order to perform the following operations:
1Insert the mechanical key while pulling
on the driver’s door handle.
2Unlocking the door.
3Remove the key, return the handle, and then pull the handle again.
■Locking the door
1
Move the inside lock button to the lock
position.
2Close the door.
If the electronic key does not operate properly
Locking and unlocking the doors and opening the trunk

What to do if...
75
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)

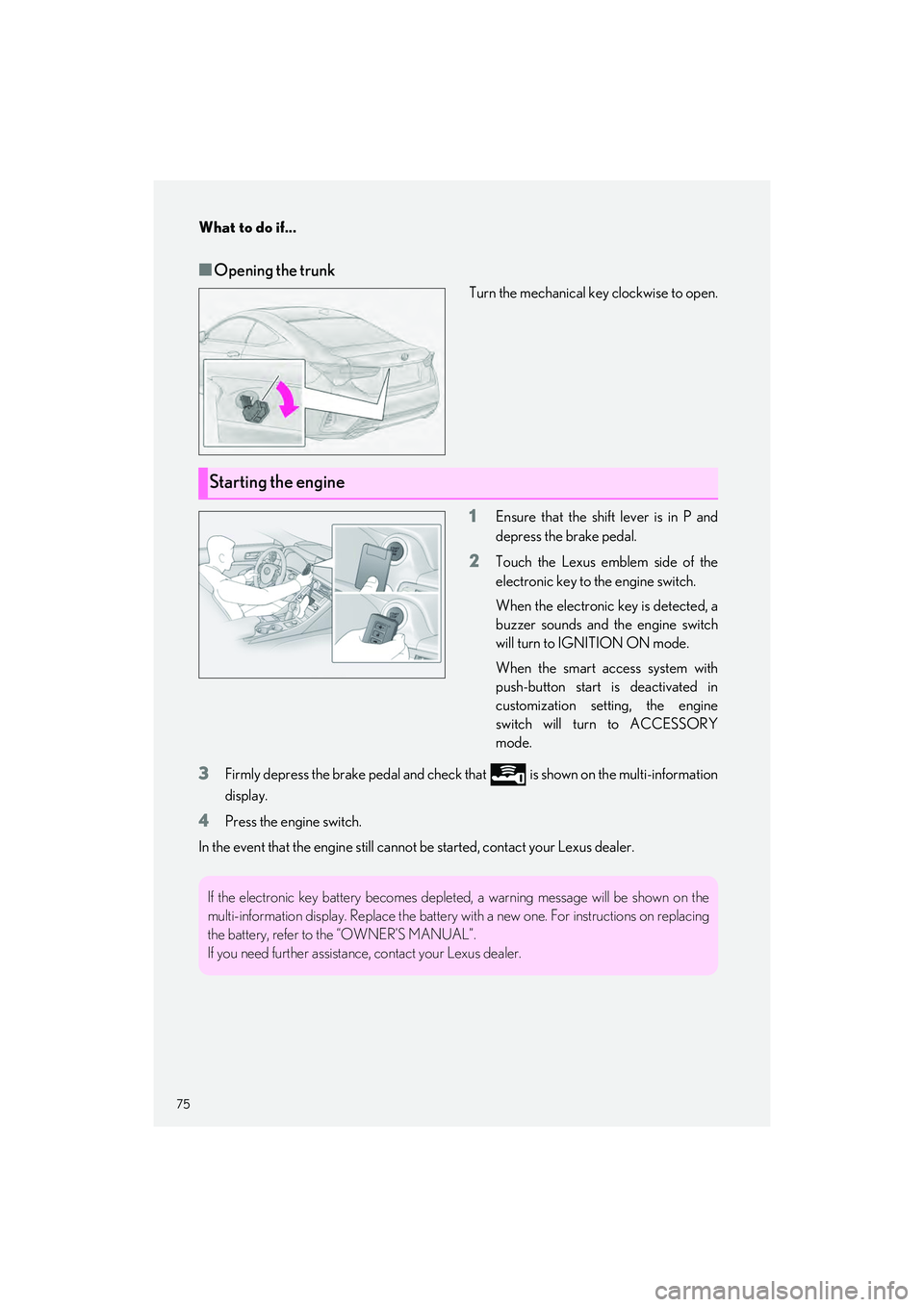

■Opening the trunk
Turn the mechanical key clockwise to open.
1Ensure that the shift lever is in P and
depress the brake pedal.
2Touch the Lexus emblem side of the
electronic key to the engine switch.
When the electronic key is detected, a
buzzer sounds and the engine switch
will turn to IGNITION ON mode.
When the smart access system with
push-button start is deactivated in
customization sett ing, the engine
switch will turn to ACCESSORY
mode.
3Firmly depress the brake pedal and check th at is shown on the multi-information
display.
4Press the engine switch.
In the event that the engine still cannot be started, contact your Lexus dealer.
Starting the engine
If the electronic key battery becomes deplet ed, a warning message will be shown on the
multi-information display. Replac e the battery with a new one. For instructions on replacing
the battery, refer to the “OWNER’S MANUAL”.
If you need further assistance , contact your Lexus dealer.

Memo
76
Memo
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)

77
Memo
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)

78
RC350 AWD_RC350_RC300 AWD_RC300_QG_(U)

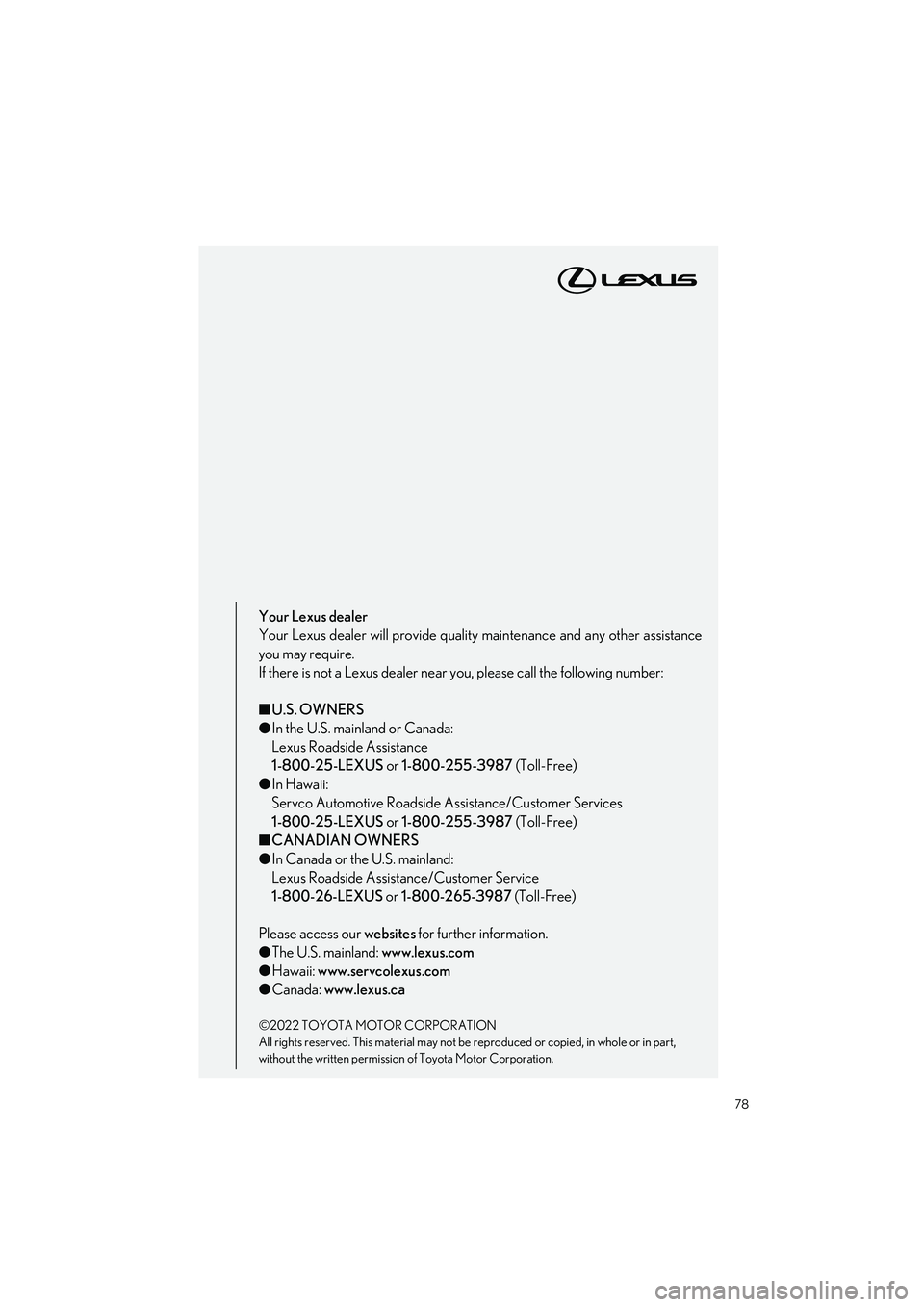

Your Lexus dealer
Your Lexus dealer will provide quality maintenance and any other assistance
you may require.
If there is not a Lexus dealer near you, please call the following number:
■ U.S. OWNERS
● In the U.S. mainland or Canada:
Lexus Roadside Assistance
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
● In Hawaii:
Servco Automotive Roadside Assistance/Customer Services
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
■ CANADIAN OWNERS
● In Canada or the U.S. mainland:
Lexus Roadside Assistance/Customer Service
1-800-26-LEXUS or 1-800-265-3987 (Toll-Free)
Please access our websites for further information.
● The U.S. mainland: www.lexus.com
● Hawaii: www.servcolexus.com
● Canada: www.lexus.ca
©2022 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part,
without the written permission of Toyota Motor Corporation.
