LEXUS RX200T 2017 Owners Manual

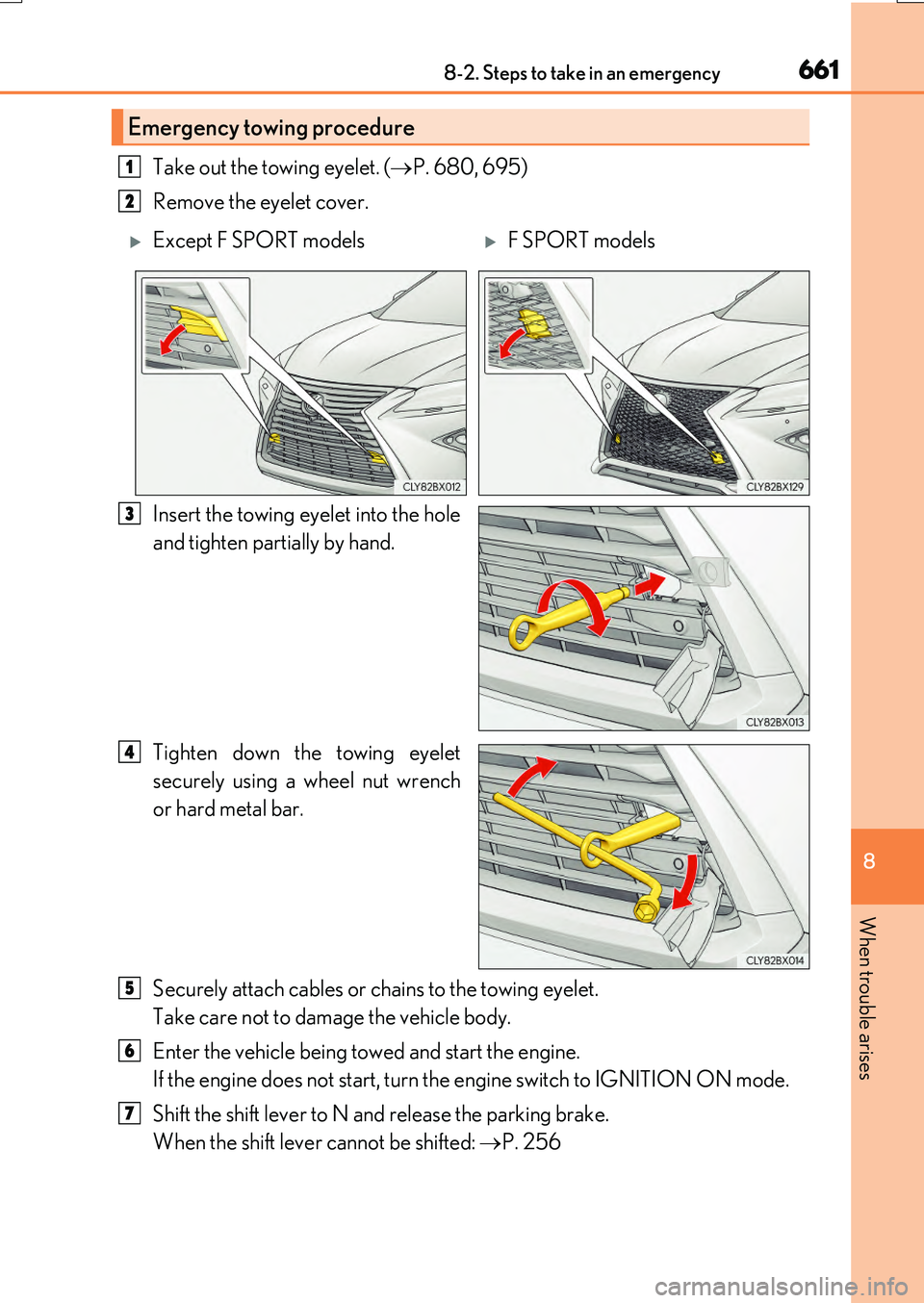

6618-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
Take out the towing eyelet. (P. 680, 695)
Remove the eyelet cover.
Insert the towing eyelet into the hole
and tighten partially by hand.
Tighten down the towing eyelet
securely using a wheel nut wrench
or hard metal bar.
Securely attach cables or chains to the towing eyelet.
Take care not to damage the vehicle body.
Enter the vehicle being towed and start the engine.
If the engine does not start, turn the engine switch to IGNITION ON mode.
Shift the shift lever to N and release the parking brake.
When the shift lever cannot be shifted: P. 256
Emergency towing procedure
1
2
Except F SPORT modelsF SPORT models
3
4
5
6
7

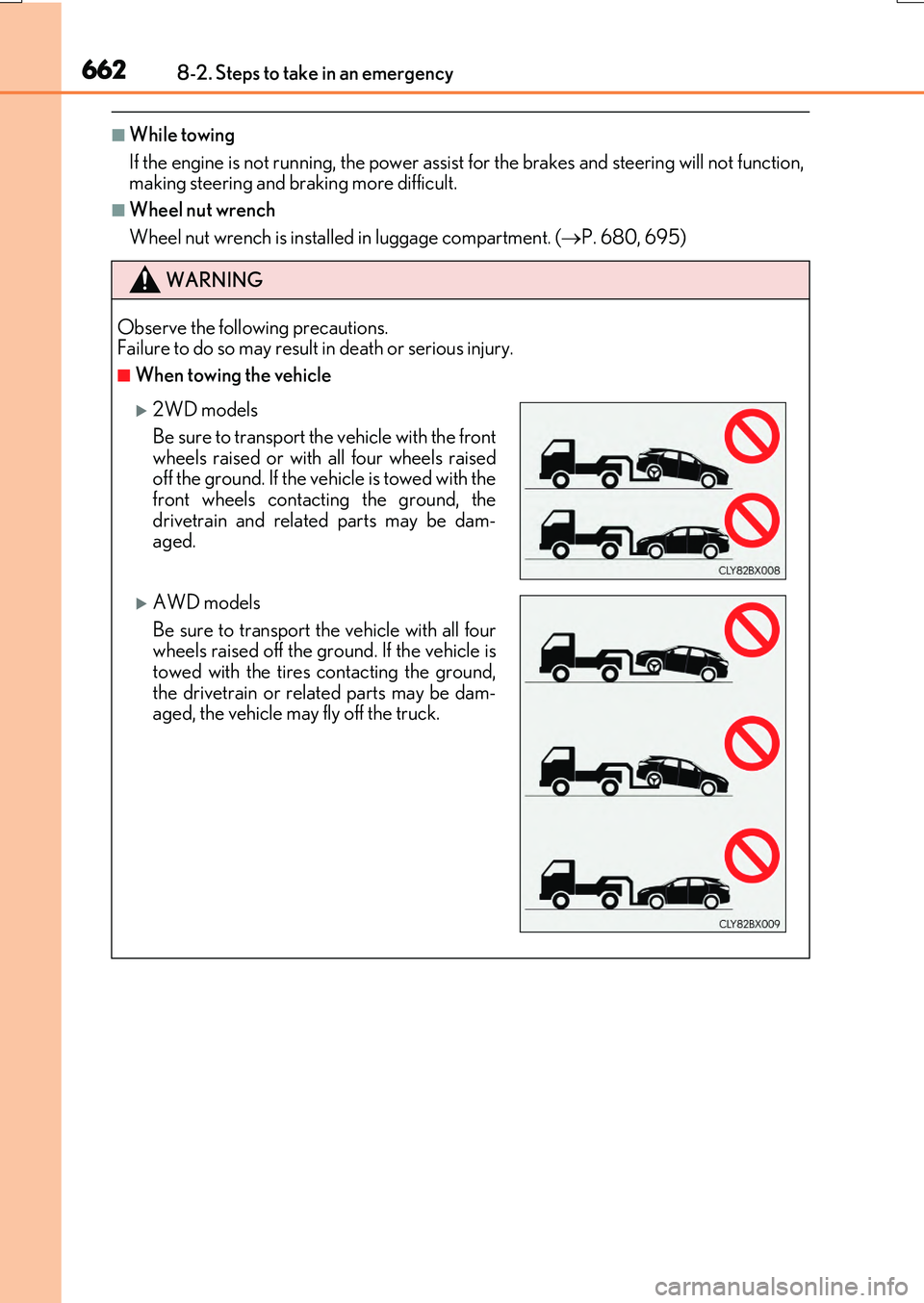

6628-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
■While towing
If the engine is not running, the power assist for the brakes and steering will not function, making steering and braking more difficult.
■Wheel nut wrench
Wheel nut wrench is installe d in luggage compartment. (P. 680, 695)
WARNING
Observe the following precautions. Failure to do so may result in death or serious injury.
■When towing the vehicle
2WD models
Be sure to transport the vehicle with the front
wheels raised or with all four wheels raised off the ground. If the vehicle is towed with thefront wheels contacting the ground, the
drivetrain and related parts may be dam- aged.
AWD models
Be sure to transport the vehicle with all four wheels raised off the ground. If the vehicle istowed with the tires contacting the ground,
the drivetrain or related parts may be dam- aged, the vehicle may fly off the truck.

6638-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
WARNING
■While towing
●When towing using cables or chains, avoid sudden starts, etc. which place excessive stress on the towing eyelets, cables or ch ains. The towing eyelets, cables or chains
may become damaged, broken debris ma y hit people, and cause serious damage.
●Do not turn the engine switch off. There is a possibility that the steering wheel is locked and cannot be operated.
■Installing towing eyelets to the vehicle
Make sure that towing eyelets is installed securely. If not securely installed, towing ey elets may come loose during towing.
NOTICE
■To prevent damage to the vehicle when towing using a wheel-lift type truck
●Do not tow the vehicle from the rear when the engine switch is off. The steering lock mechanism is not strong enough to hold the front wheels straight.
●When raising the vehicle, ensure adequate ground clearance for towing at the oppo-
site end of the raised vehicle. Without adequate clearance, the vehicle could be dam- aged while being towed.
■To prevent body damage to the vehi cle towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■To prevent damage to the vehicle during emergency towing
Do not secure cables or chains to the suspension components.
■When towing a vehicle equipped with the Stop & Start system (RX200t)
When it is necessary to tow the vehicle with all 4 wheels contacting the ground, per- form the following procedure before towing the vehicle to protect the system.
Turn the engine switch off once, and then start the engine. If the engine does not start, turn the engine switch to IGNITION ON mode.

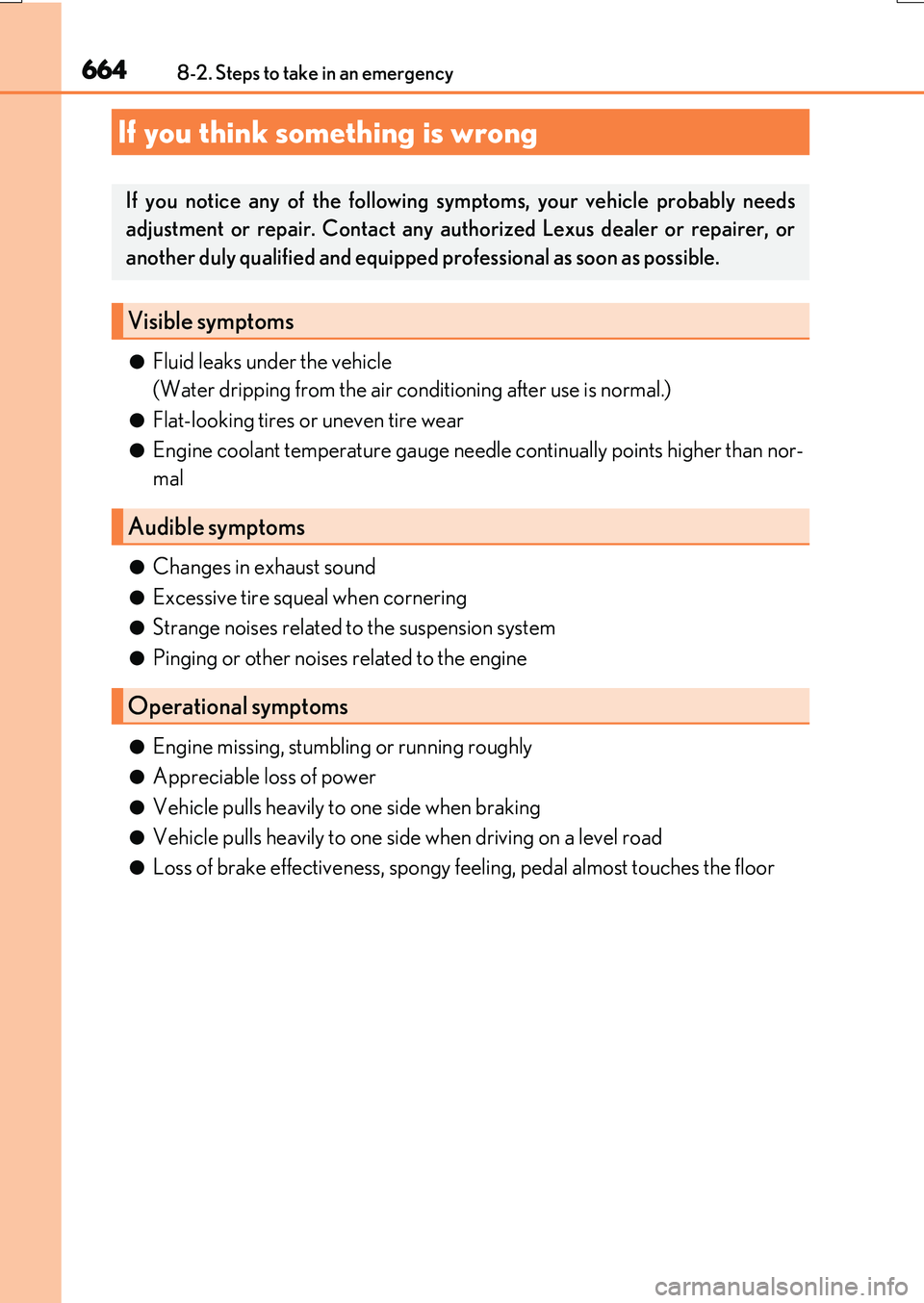

6648-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher than nor-
mal
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the engine
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy fe eling, pedal almost touches the floor
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact any authorized Lexus dealer or repairer, or
another duly qualified an d equipped professional as soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

6658-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
Follow the procedure below to restart the engine after the system is activated.
Turn the engine switch to ACCESSORY mode or turn it off.
Restart the engine.
Fuel pump shut off system
To minimize the risk of fuel leakage when the engine stalls or when an airbag
inflates upon collisio n, the fuel pump shut off system stops the supply of fuel to
the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle. If you find that fuel has leaked onto the ground, the fuel system has been damaged and
is in need of repair. Do not restart the engine.
1
2

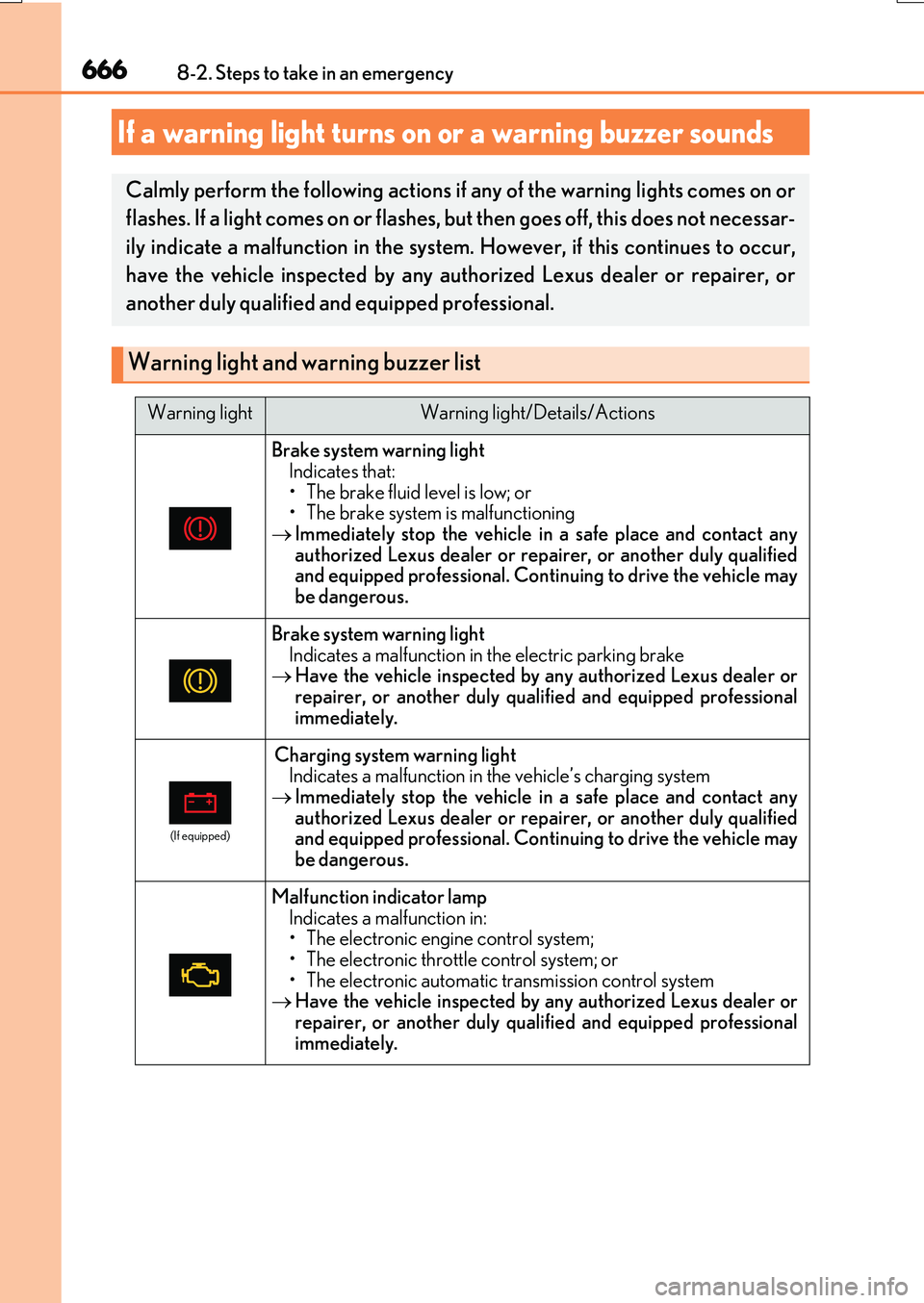

6668-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
If a warning light turns on or a warning buzzer sounds
Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, but then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified an d equipped professional.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
Brake system warning light Indicates that:
• The brake fluid level is low; or • The brake system is malfunctioning Immediately stop the vehicle in a safe place and contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped professional. Continuing to drive the vehicle maybe dangerous.
Brake system warning light
Indicates a malfunction in the electric parking brake  Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional
immediately.
(If equipped)
Charging system warning light Indicates a malfunction in the vehicle’s charging system
 Immediately stop the vehicle in a safe place and contact any authorized Lexus dealer or repairer, or another duly qualifiedand equipped professional. Continuing to drive the vehicle may
be dangerous.
Malfunction indicator lamp Indicates a malfunction in:• The electronic engine control system;
• The electronic throttle control system; or • The electronic automatic transmission control system Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional immediately.

6678-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
SRS warning light Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
 Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
ABS warning light Indicates a malfunction in:
•The ABS; or
• The brake assist system
 Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
(Flashes)
Parking brake indicator It is possible that the parking br ake is not fully engaged or released
 Operate the parking brake switch once again.
This light comes on when the park ing brake is not released. If the
light turns off after the parking brak e is fully released, the system is
operating normally.
(Flashes)
Brake hold operated indicator Indicates a malfunction in the brake hold system
 Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Electric power steering system warning light (warning buzzer)
Indicates a malfunction in the EPS (Electric Power Steering) sys-
tem
 Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
(If equipped)
LKA indicator Indicates a malfunction in the LKA (Lane-Keeping Assist)
 When “Lane Keeping Assist Unavailable” is displayed on the
multi-information display, turn the LKA system off, drive the
vehicle for a short time, and then turn the LKA system back on.
(  P. 318)
When a message other than above is displayed, follow the
instructions displayed in the message.
Warning lightWarning light/Details/Actions

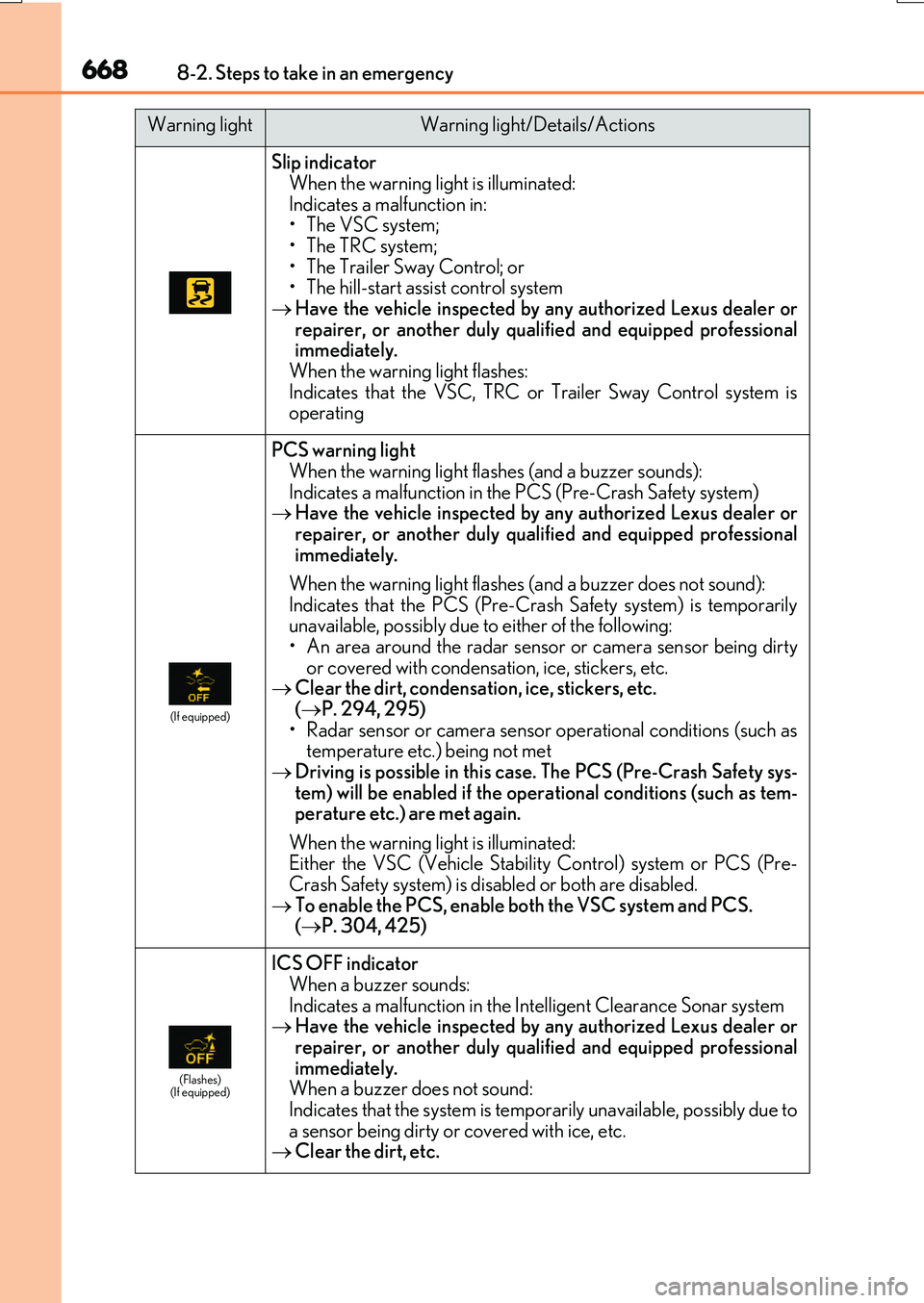

6688-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
Slip indicator When the warning light is illuminated:
Indicates a malfunction in: •The VSC system;•The TRC system;
• The Trailer Sway Control; or • The hill-start assist control system Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional immediately.When the warning light flashes:
Indicates that the VSC, TRC or Trailer Sway Control system is operating
(If equipped)
PCS warning lightWhen the warning light flashes (and a buzzer sounds):
Indicates a malfunction in the PCS (Pre-Crash Safety system)  Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional
immediately.
When the warning light flashes (and a buzzer does not sound):
Indicates that the PCS (Pre-Crash Safety system) is temporarily unavailable, possibly due to either of the following:• An area around the radar sensor or camera sensor being dirty
or covered with condensation, ice, stickers, etc.  Clear the dirt, condensation, ice, stickers, etc.
( P. 294, 295) • Radar sensor or camera sensor operational conditions (such astemperature etc.) being not met
 Driving is possible in this case. The PCS (Pre-Crash Safety sys- tem) will be enabled if the oper ational conditions (such as tem- perature etc.) are met again.
When the warning light is illuminated: Either the VSC (Vehicle Stability Control) system or PCS (Pre-
Crash Safety system) is disa bled or both are disabled.  To enable the PCS, enable both the VSC system and PCS. ( P. 304, 425)
(Flashes) (If equipped)
ICS OFF indicator
When a buzzer sounds: Indicates a malfunction in the Intelligent Clearance Sonar system Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional immediately.When a buzzer does not sound:
Indicates that the system is temporarily unavailable, possibly due to a sensor being dirty or covered with ice, etc. Clear the dirt, etc.
Warning lightWarning light/Details/Actions

6698-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
*: Seat belt warning buzzer: The seat belt warning buzzer sounds to al ert the driver, front passenger and rear pas-
sengers (if equipped) that his or her seat belt is not fastened. The buzzer sounds for
30 seconds after the vehicle reaches a speed of 20 km/h (12 mph). Then, if the seat
belt is still unfastened, the buzzer will sound in a different tone for 90 more seconds.
(Flashes)
(If equipped)
Stop & Start cancel indicator Indicates a malfunction in the Stop & Start system
(The Stop & Start cancel indicator will come on when the system is
canceled: P. 348)
 Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Low fuel level warning light Indicates that remaining fuel is approximately 10.8 L (2.8 gal.,
2.3 Imp. gal.) or less
 Refuel the vehicle.
Driver’s and front passenger’s seat belt reminder light (warning
buzzer)
*
Warns the driver and/or front passe nger to fasten their seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the front passenger’s
seat belt also needs to be fastened to make the warning light
(warning buzzer) turn off.
(If equipped)
Rear passengers’ seat belt reminder light (warning buzzer)*
Warns the rear passengers to fasten their seat belts
 Fasten the seat belt.
Tire pressure warning light
Indicates the following:
• Low tire pressure due to flat tire;
• Low tire pressure due to natural causes; or
• The tire pressure warning system is malfunctioning
 Immediately stop the vehicle in a safe place.
Handling method ( P. 670)
Master warning light
A buzzer sounds and the warning light comes on and flashes to
indicate that the master warnin g system has detected a malfunc-
tion.
 P. 673
Warning lightWarning light/Details/Actions

6708-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
■Front passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on the front passenger seat, the front passenger detection sensor may cause the warning light to flash and the warning buzzer to sound even if a passen-ger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the warn-ing light may not operate properly.
■Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficien t or the voltage temporarily drops, the electric power steering system warning lig ht may come on and the warning buzzer may sound.
■If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes completely empty. If the fuel tank is empty, refuel the vehicle immediately. The malfunction indicator lamp
will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized Lexus dealer or repairer, or another duly qualified and eq uipped professional as soon as possible.
■When the tire pressure warning light comes on
Inspect the tires to check if a tire is punctured.
If a tire is punctured: P. 679, 693
If none of the tires are punctured: Turn the engine switch off then turn it to IGNITION ON mode. Check if the tire pressurewarning light comes on or blinks.
If the tire pressure warning light comes on
After the temperature of the tires has lowere d sufficiently, check the inflation pressure of each tire and adjust them to the specified level.
If the warning light does not turn off even after several minutes have elapsed, check that the inflation pressure of each tire is at the specified level and perform initialization. ( P. 616)
If the warning light does not turn off severa l minutes after the initialization has been per- formed, have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional immediately.
If the tire pressure warning light blinks for 1 minute then stays on
There may be a malfunction in the tire pressure warning system. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional immediately.
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural air leaks or tire inflation pressure changes caused by temperature. In this case, adjusting the tire inflation pressure will turn off th e warning light (after a few minutes).
1
2
