LEXUS RX200T 2017 Owners Manual

7018-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
Inflate the tire until the recom-
mended pressure is reached.
The sealant will be injected and
the pressure will spike to between
300 kPa (3.0 kgf/cm2 or bar, 44
psi) and 400 kPa (4.0 kgf/cm2 or
bar, 58 psi), then gradually
decrease.
The air pressure gauge will dis-
play the actual tire inflation pres-
sure about 1 to 5 minutes after the
switch is turned on.
• Turn the compressor switch off
and then check the tire infla-
tion pressure. Being careful
not to over inflate, check and
repeat the inflation procedure
until the recommended tire
inflation pressure is reached.
• If the tire inflation pressure is still lower than the recommended level
after inflation for 25 minutes with the switch on, the tire is too damaged
to be repaired. Turn the compressor switch off and contact any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped
professional.
• If the tire inflation pressure exceeds the recommended level, let out
some air to adjust the tire inflation pressure. ( P. 704)
With the compressor switch off, disconne ct the hose from the valve on the tire
and then pull out the power plug from the power outlet socket.
Some sealant may leak wh en the hose is removed.
Install the valve cap onto the valve of the emergency repaired tire.
13
1
2
14
15

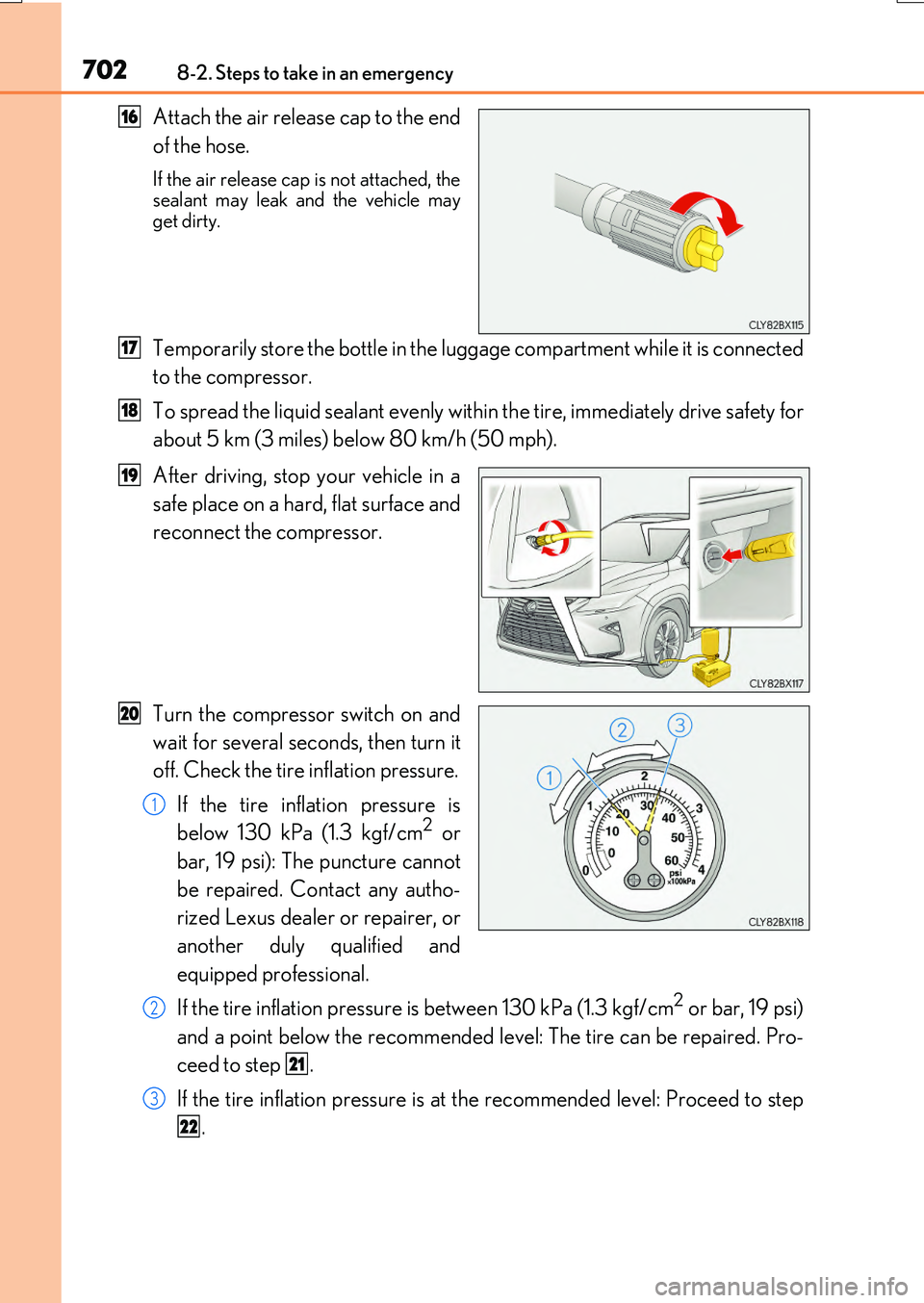

7028-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
Attach the air release cap to the end
of the hose.
If the air release cap is not attached, the sealant may leak and the vehicle mayget dirty.
Temporarily store the bottle in the luggage compartment while it is connected
to the compressor.
To spread the liquid sealant evenly within the tire, immediately drive safety for
about 5 km (3 miles) below 80 km/h (50 mph).
After driving, stop your vehicle in a
safe place on a hard, flat surface and
reconnect the compressor.
Turn the compressor switch on and
wait for several seconds, then turn it
off. Check the tire inflation pressure.
If the tire inflation pressure is
below 130 kPa (1.3 kgf/cm2 or
bar, 19 psi): The puncture cannot
be repaired. Contact any autho-
rized Lexus dealer or repairer, or
another duly qualified and
equipped professional.
If the tire inflation pressure is between 130 kPa (1.3 kgf/cm2 or bar, 19 psi)
and a point below the recommended level: The tire can be repaired. Pro-
ceed to step .
If the tire inflation pressure is at the recommended level: Proceed to step
.
16
17
18
19
20
1
2
21
3
22

7038-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
Turn the compressor switch on to inflate the tire until the recommended tire
inflation pressure is reached. Drive for about 5 km (3 miles) and then perform
step .
Attach the air release cap to the end
of the hose.
If the air release cap is not attached, the
sealant may leak and the vehicle may
get dirty.
Store the bottle in the luggage compartment while it is connected to the com-
pressor.
Taking precautions to avoid sudden br aking, sudden acceleration and sharp
turns, drive carefully at under 80 km/h (50 mph) to any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional that is
less than 100 km (62 miles) away for tire repair or replacement.
Make sure to tell any authorized Lexus deal er or repairer, or another duly qualified
and equipped professional when you have them repair or replace the tire that sealant
is injected.
21
19
22
23
24

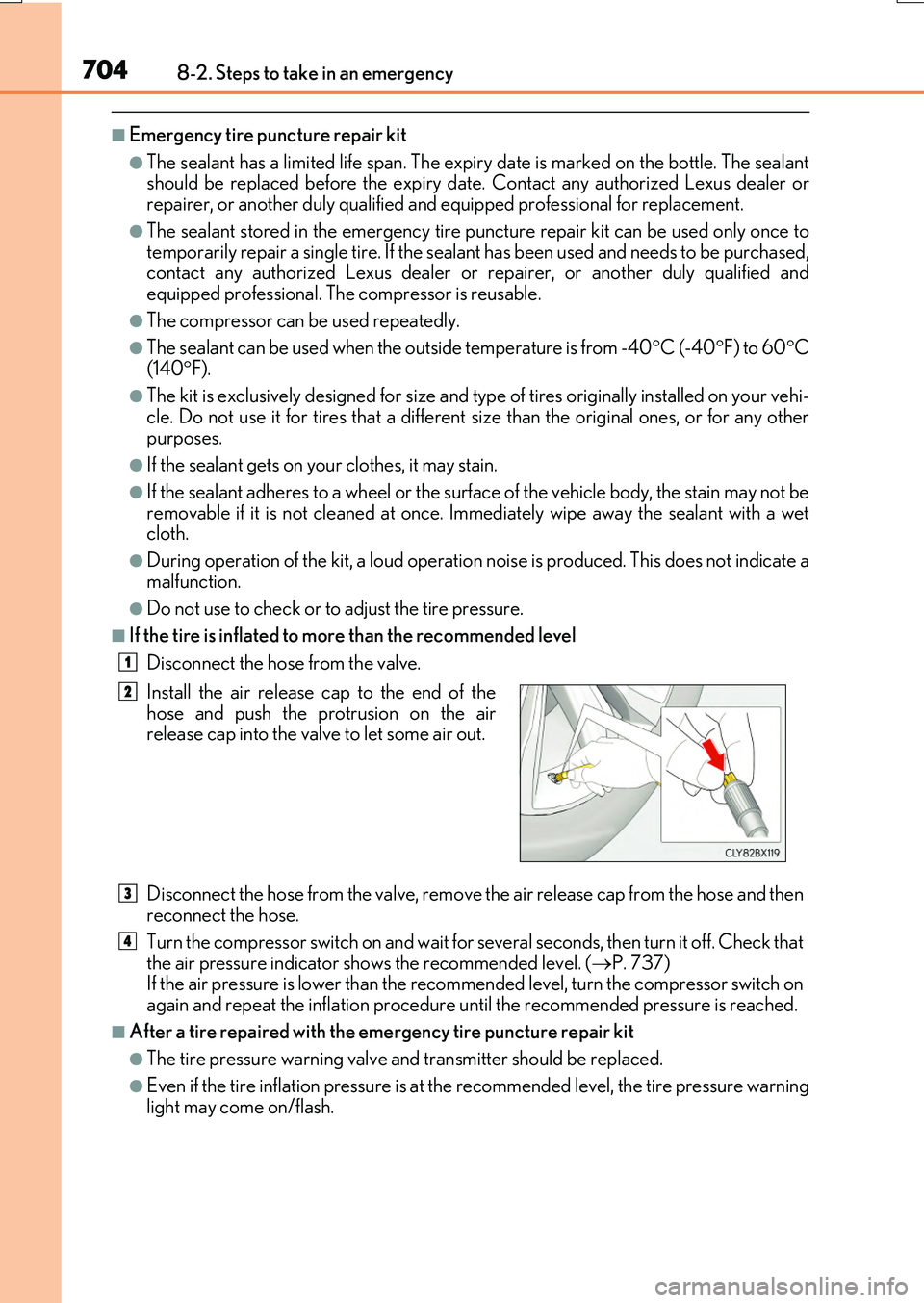

7048-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
■Emergency tire puncture repair kit
●The sealant has a limited life span. The expiry date is marked on the bottle. The sealant should be replaced before the expiry da te. Contact any authorized Lexus dealer or repairer, or another duly qualified an d equipped professional for replacement.
●The sealant stored in the emergency tire puncture repair kit can be used only once to temporarily repair a single tire. If the seal ant has been used and needs to be purchased, contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional. The compressor is reusable.
●The compressor can be used repeatedly.
●The sealant can be used when the outside temperature is from -40 C (-40F) to 60C
(140 F).
●The kit is exclusively designed for size and type of tires originally installed on your vehi- cle. Do not use it for tires that a different size than the original ones, or for any other
purposes.
●If the sealant gets on your clothes, it may stain.
●If the sealant adheres to a wheel or the surface of the vehicle body, the stain may not be
removable if it is not cleaned at once. Immediately wipe away the sealant with a wet cloth.
●During operation of the kit, a loud operatio n noise is produced. This does not indicate a
malfunction.
●Do not use to check or to adjust the tire pressure.
■If the tire is inflated to mo re than the recommended level
Disconnect the hose from the valve.
Disconnect the hose from the valve, remove the air release cap from the hose and then reconnect the hose.
Turn the compressor switch on and wait for several seconds, then turn it off. Check that
the air pressure indicator sh ows the recommended level. (P. 737) If the air pressure is lower than the reco mmended level, turn the compressor switch on again and repeat the inflation procedure un til the recommended pressure is reached.
■After a tire repaired with the emergency tire puncture repair kit
●The tire pressure warning valve and transmitter should be replaced.
●Even if the tire inflation pressure is at the recommended level, the tire pressure warning
light may come on/flash.
Install the air release cap to the end of the
hose and push the protrusion on the air release cap into the valve to let some air out.
1
2
3
4

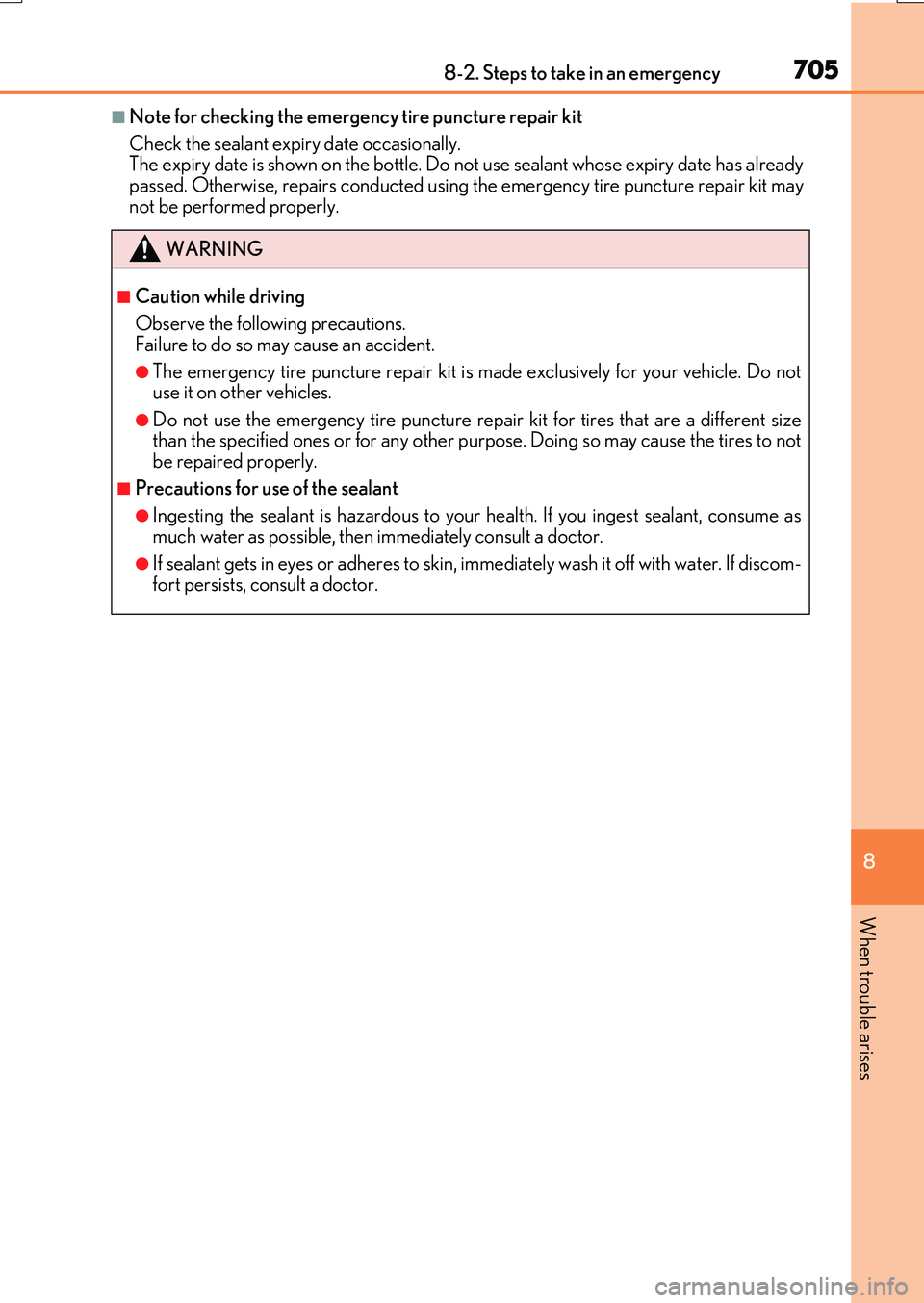

7058-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
■Note for checking the emergency tire puncture repair kit
Check the sealant expiry date occasionally. The expiry date is shown on the bottle. Do not use sealant whose expiry date has already
passed. Otherwise, repairs conducted using th e emergency tire puncture repair kit may not be performed properly.
WARNING
■Caution while driving
Observe the following precautions.
Failure to do so may cause an accident.
●The emergency tire puncture repair kit is made exclusively for your vehicle. Do not use it on other vehicles.
●Do not use the emergency tire puncture repa ir kit for tires that are a different size than the specified ones or fo r any other purpose. Doing so may cause the tires to not be repaired properly.
■Precautions for use of the sealant
●Ingesting the sealant is hazardous to your health. If you ingest sealant, consume asmuch water as possible, then immediately consult a doctor.
●If sealant gets in eyes or adheres to skin, immediately wash it off with water. If discom- fort persists, consult a doctor.

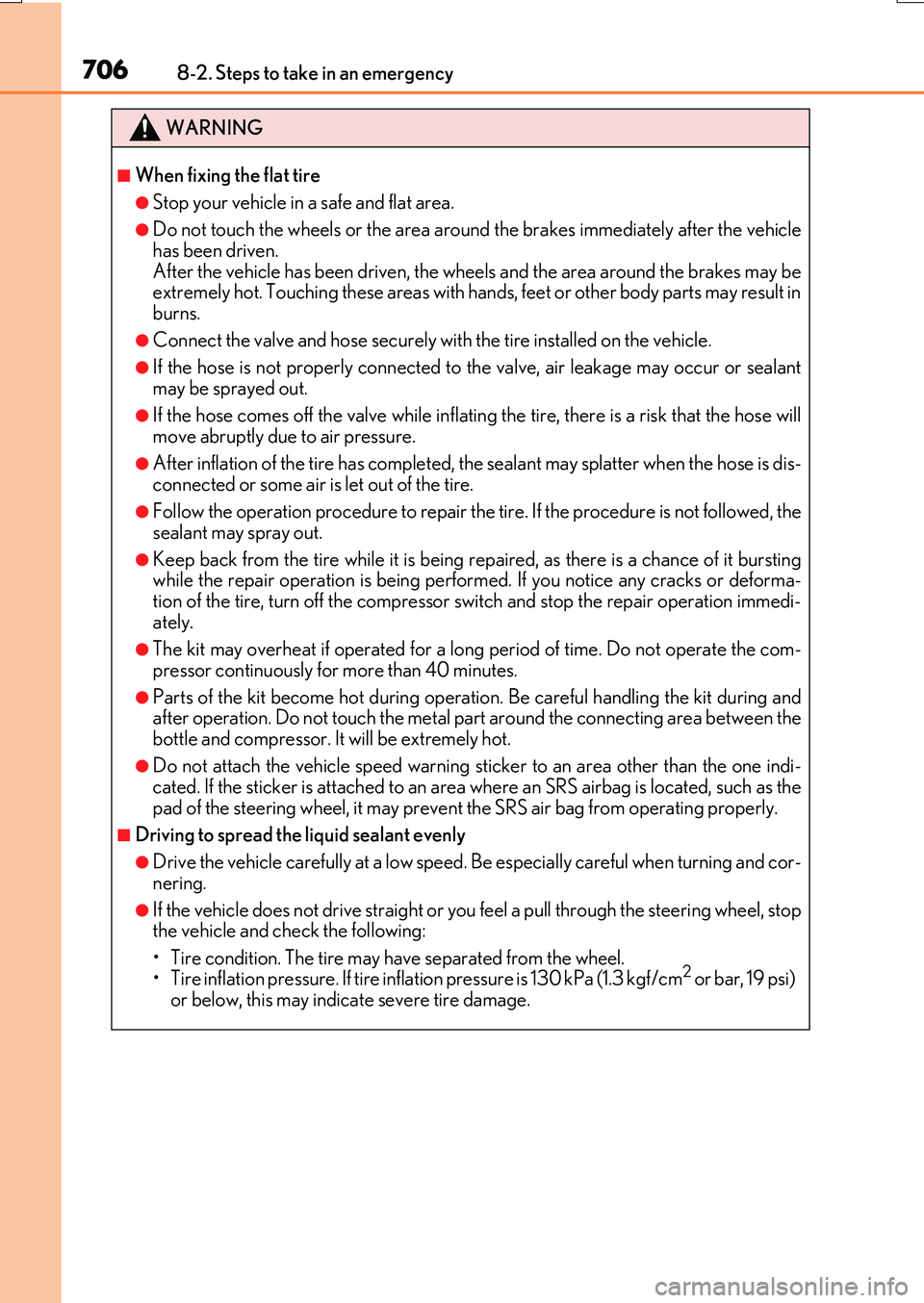

7068-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
WARNING
■When fixing the flat tire
●Stop your vehicle in a safe and flat area.
●Do not touch the wheels or the area around the brakes immediately after the vehicle
has been driven. After the vehicle has been driven, the wheels and the area around the brakes may beextremely hot. Touching these areas with hands, feet or other body parts may result in
burns.
●Connect the valve and hose securely with the tire installed on the vehicle.
●If the hose is not properly connected to the valve, air leakage may occur or sealant
may be sprayed out.
●If the hose comes off the valve while inflating the tire, there is a risk that the hose will move abruptly due to air pressure.
●After inflation of the tire has completed, the sealant may splatter when the hose is dis-connected or some air is let out of the tire.
●Follow the operation procedure to repair the tire. If the procedure is not followed, the
sealant may spray out.
●Keep back from the tire while it is being repaired, as there is a chance of it bursting while the repair operation is being performe d. If you notice any cracks or deforma-
tion of the tire, turn off the compressor sw itch and stop the repair operation immedi- ately.
●The kit may overheat if operated for a long period of time. Do not operate the com-
pressor continuously for more than 40 minutes.
●Parts of the kit become hot during operatio n. Be careful handling the kit during and after operation. Do not touch the metal part around the connecting area between the
bottle and compressor. It will be extremely hot.
●Do not attach the vehicle speed warning sticker to an area other than the one indi- cated. If the sticker is attached to an area where an SRS airbag is located, such as the
pad of the steering wheel, it may prevent the SRS air bag from operating properly.
■Driving to spread the liquid sealant evenly
●Drive the vehicle carefully at a low speed. Be especially careful when turning and cor-
nering.
●If the vehicle does not drive straight or you feel a pull through the steering wheel, stop the vehicle and check the following:
• Tire condition. The tire may have separated from the wheel. • Tire inflation pressure. If tire inflation pressure is 130 kPa (1.3 kgf/cm2 or b ar, 1 9 p si)or below, this may indica te severe tire damage.

7078-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
NOTICE
■When performing an emergency repair
●Perform the emergency repair without removing the nail or screw that has punctured the tread of the tire. If the object that has punctured the tire is removed, repair by the
emergency tire puncture repair kit may not be possible.
●The kit is not waterproof. Make sure that the kit is not exposed to water, such as when it is being used in the rain.
●Do not put the kit directly onto dusty ground such as sand at the side of the road. If thekit vacuums up dust, etc., a malfunction may occur.
●Make sure to stand the kit with the bottle vertical. The kit cannot work properly if it is
laid on its side.
■Handling the emergency ti re puncture repair kit
●The compressor power source should be 12 V DC suitable for vehicle use. Do not
connect the compressor to any other source.
●If gasoline splatters on the kit, the kit may deteriorate. Take care not to allow gasoline to contact it.
●Store the kit in its assigned place out of reach of children.
●Do not disassemble or modify the kit. Do not subject parts such as the air pressure indicator to impacts. This may cause a malfunction.
■To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve and trans- mitter may not operate properly. If a liquid sealant is used, contact any authorized
Lexus dealer or repairer, or another duly qu alified and equipped professional or other qualified service shop as soon as possible. After use of liquid sealant, make sure toreplace the tire pressure warning valve and transmitter when repairing or replacing the
tire. ( P. 615)

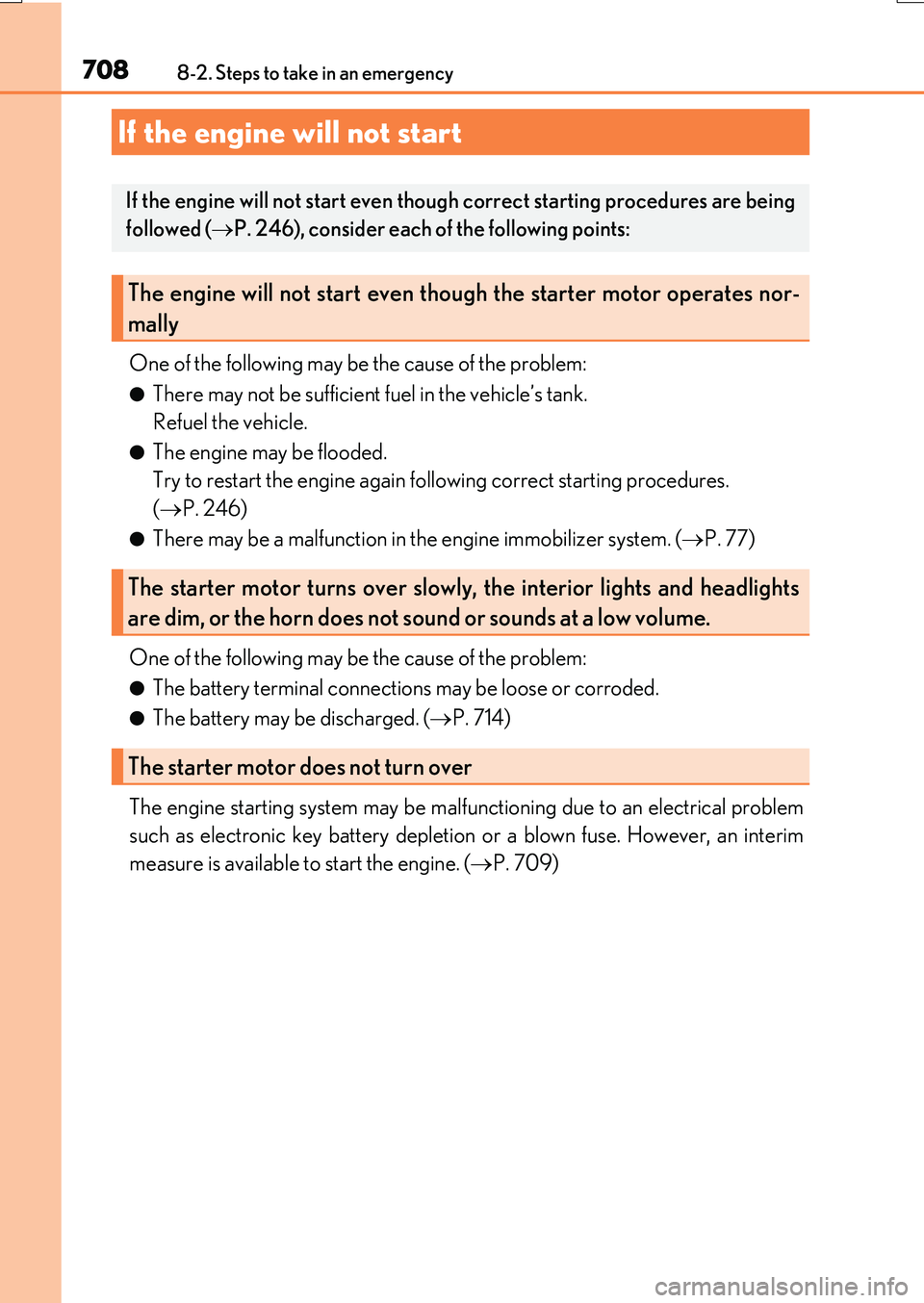

7088-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
●The engine may be flooded.
Try to restart the engine again following correct starting procedures.
( P. 246)
●There may be a malfunction in the engine immobilizer system. (P. 77)
One of the following may be the cause of the problem:
●The battery terminal connections may be loose or corroded.
●The battery may be discharged. ( P. 714)
The engine starting system may be malfunctioning due to an electrical problem
such as electronic key battery depletion or a blown fuse. However, an interim
measure is available to start the engine. ( P. 709)
If the engine will not start
If the engine will not start even though correct starting procedures are being
followed ( P. 246), consider each of the following points:
The engine will not start even though the starter motor operates nor-
mally
The starter motor turns over slowly, the interior lights and headlights
are dim, or the horn does not so und or sounds at a low volume.
The starter motor does not turn over

7098-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
One of the following may be the cause of the problem:
●One or both of the battery terminals may be disconnected.
●The battery may be discharged. (P. 714)
●There may be a malfunction in the steering lock system.
Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional if the problem cannot be repaired, or if repair procedures are unknown.
When the engine does not start, the foll owing steps can be used as an interim
measure to start the engine if the engine switch is functioning normally.
Turn the engine switch to IGNITION ON mode and check that the parking
brake is set. ( P. 247, 259)
Shift the shift lever to P.
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while depressing the
brake pedal firmly.
Even if the engine can be started using the above steps, the system may be mal-
functioning. Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
The starter motor does not turn over , the interior lights and headlights
do not turn on, or the horn does not sound.
Emergency start function
1
2
3
4

7108-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
■Unlocking the door
Use the mechanical key ( P. 135) in order to perform the following opera-
tions:
Insert the mechanical key while
pulling on the driver’s door han-
dle.
Unlocking the door.
Remove the key, return the handle, and then pull the handle again.
If the electronic key does not operate properly
If communication between the electronic key and vehicle is interrupted
( P. 170) or the electronic key cannot be used because the battery is
depleted, the smart entry & start system and wireless remote control cannot
be used. In such cases, the doors can be opened and the engine can be
started by following the procedure below.
Locking and unlocking the doors
1
2
3
