6517-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX200t_EE_OM48F32E
■Back-up lights
Open the back door and remove
the cover.
Using a flathead sc rewdriver, remove the cover.
To prevent scratching to the vehicle,
wrap the tip of the flathead screw- driver with a cloth, etc.
Turn the bulb base
counterclockwise and remove it.
Remove the light bulb.
Install a new light bulb and then
install the bulb base to the light
unit by inserting it and turning it
clockwise.
After installing the bulb base, wiggle
it lightly to make sure it is securely installed and turn on the back-uplights to visually check that there is no
light leaking from between the bulb base and light unit.
1
2
3
4

6527-3. Do-it-yourself maintenance
RX350/RX200t_EE_OM48F32E
Install the cover.
Align the tabs of the cover with the
grooves and install the cover.
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
●Headlight low beams
●Headlight high beams
●Front turn signal lights (vehicles with triple-beam headlights)
●Front position lights and daytime running lights
●Front fog lights
●Cornering lights (if equipped)
●Rear fog lights
●Rear turn signal light (vehicles with triple-beam headlights)
●Side turn signal lights
●Stop/tail lights
●Rear side marker lights
●High mounted stoplight
●License plate lights
●Outer foot lights
5

6537-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX200t_EE_OM48F32E
■LED lights
The headlight low beams, headlight high beams, front turn signal lights (vehicles with tri- ple-beam headlights), front position lights and daytime running lights, front fog lights, cornering lights (if equipped), rear fog lights, rear turn signal light (vehicles with triple-
beam headlights), side turn signal lights, st op/tail lights, rear side marker lights, high mounted stoplight, license plate lights, and outer foot lights consist of a number of LEDs.If any of the LEDs has burned out, take your vehicle to any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional to have the light replaced.
■Condensation build-up on the inside of a lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a
malfunction. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional for more info rmation in the following situations:
●Large drops of water have built up on the inside of a lens.
●Water has built up inside a headlight.
■When replacing light bulbs
 P. 642
WARNING
■To prevent injury
Before performing any light bulb replacement procedure, be sure to turn the engine switch off. Failure to do so may result in burns from hot components or a part of your body may get caught on an operating co mponent, possibly causing serious injury.
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is unavoid- able to hold the glass portion, use and hold with a clean dry cloth to avoid getting
moisture and oils on the bulb. Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may result
in heat damage, fire, or wate r entering the headlight unit. This may damage the head- lights or cause condensation to build up on the lens.
●Do not attempt to repair or disassemble the light bulbs, connectors, electric circuits
or component parts. Doing so may result in death or serious injury due to electric shock.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installing to prevent heat damage.

6547-3. Do-it-yourself maintenance
RX350/RX200t_EE_OM48F32E

655
8When trouble arises
RX350/RX200t_EE_OM48F32E
8-1. Essential information
Emergency flashers ..................656
If your vehicle has
to be stopped
in an emergency ...................... 657
8-2. Steps to take
in an emergency
If your vehicle needs
to be towed................................658
If you think something
is wrong....................................... 664
Fuel pump shut off system ...... 665
If a warning light turns
on or a warning buzzer
sounds.......................................... 666
If a warning message
is displayed ................................ 673
If you have a flat tire
(vehicles with
a spare tire)................................ 679
If you have a flat tire
(vehicles without
a spare tire)................................ 693
If the engine will not start ........708
If the electronic key does
not operate properly ...............710
If the vehicle battery
is discharged............................... 714
If your vehicle overheats .......... 718
If the vehicle becomes
stuck ............................................. 722

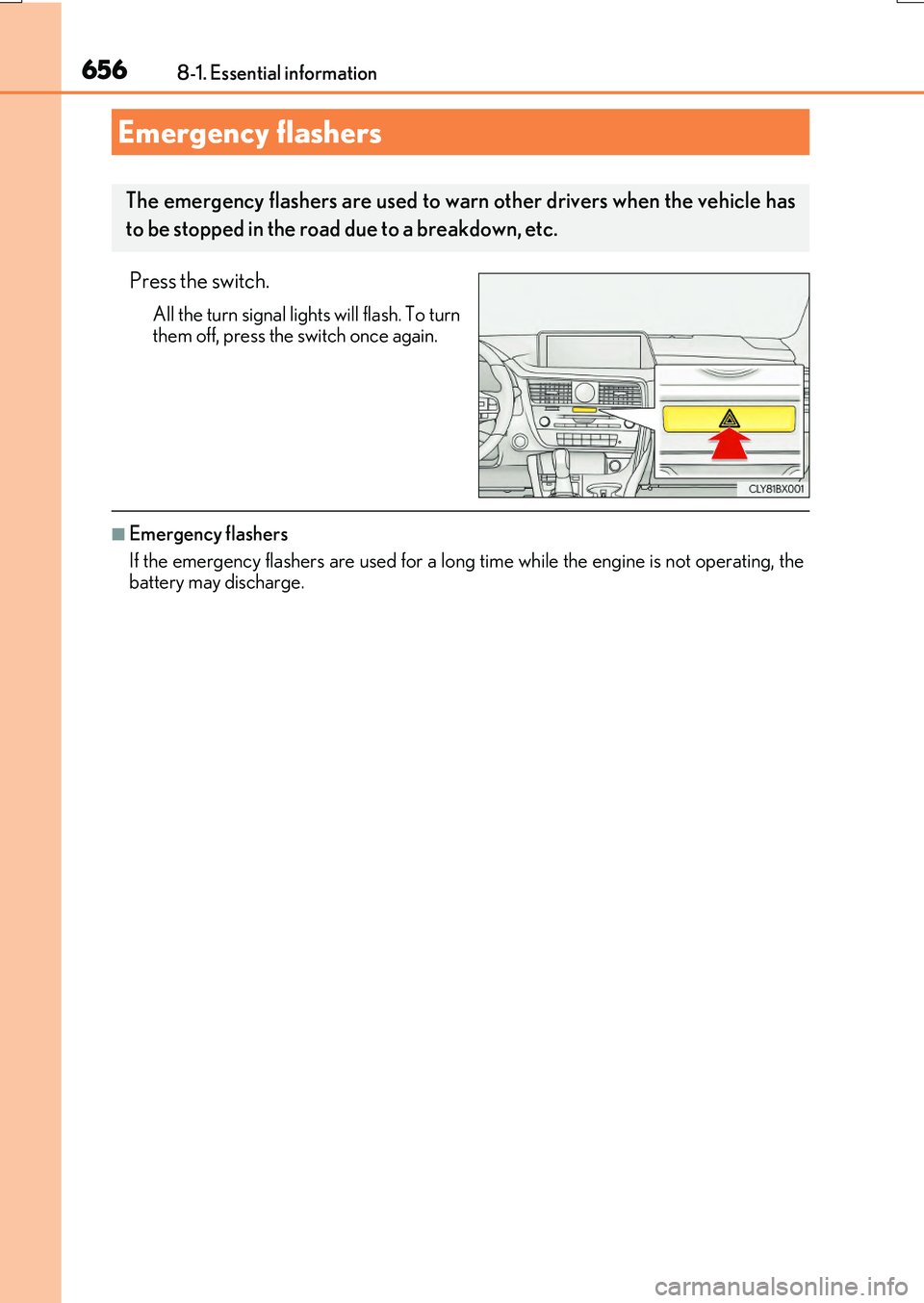

656
RX350/RX200t_EE_OM48F32E
8-1. Essential information
Press the switch.
All the turn signal lights will flash. To turn
them off, press the switch once again.
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not operating, the
battery may discharge.
Emergency flashers
The emergency flashers are used to wa rn other drivers when the vehicle has
to be stopped in the road due to a breakdown, etc.

6578-1. Essential information
8
When trouble arises
RX350/RX200t_EE_OM48F32E
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle speed as
much as possible.
To stop the engine, press and hold
the engine switch for 2 consecutive
seconds or more, or press it briefly 3
times or more in succession.
Stop the vehicle in a safe place by the road.
If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the vehicle in
the normal way, stop the vehicle using the following procedure:
1
2
3
4
3
Press and hold for 2 seconds or more,
or press briefly 3 times or more
4
WARNING
■If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the brake pedal harder to depress and the steering wheel heavier to turn. Decelerate as much as possi-
ble before turning off the engine.
5

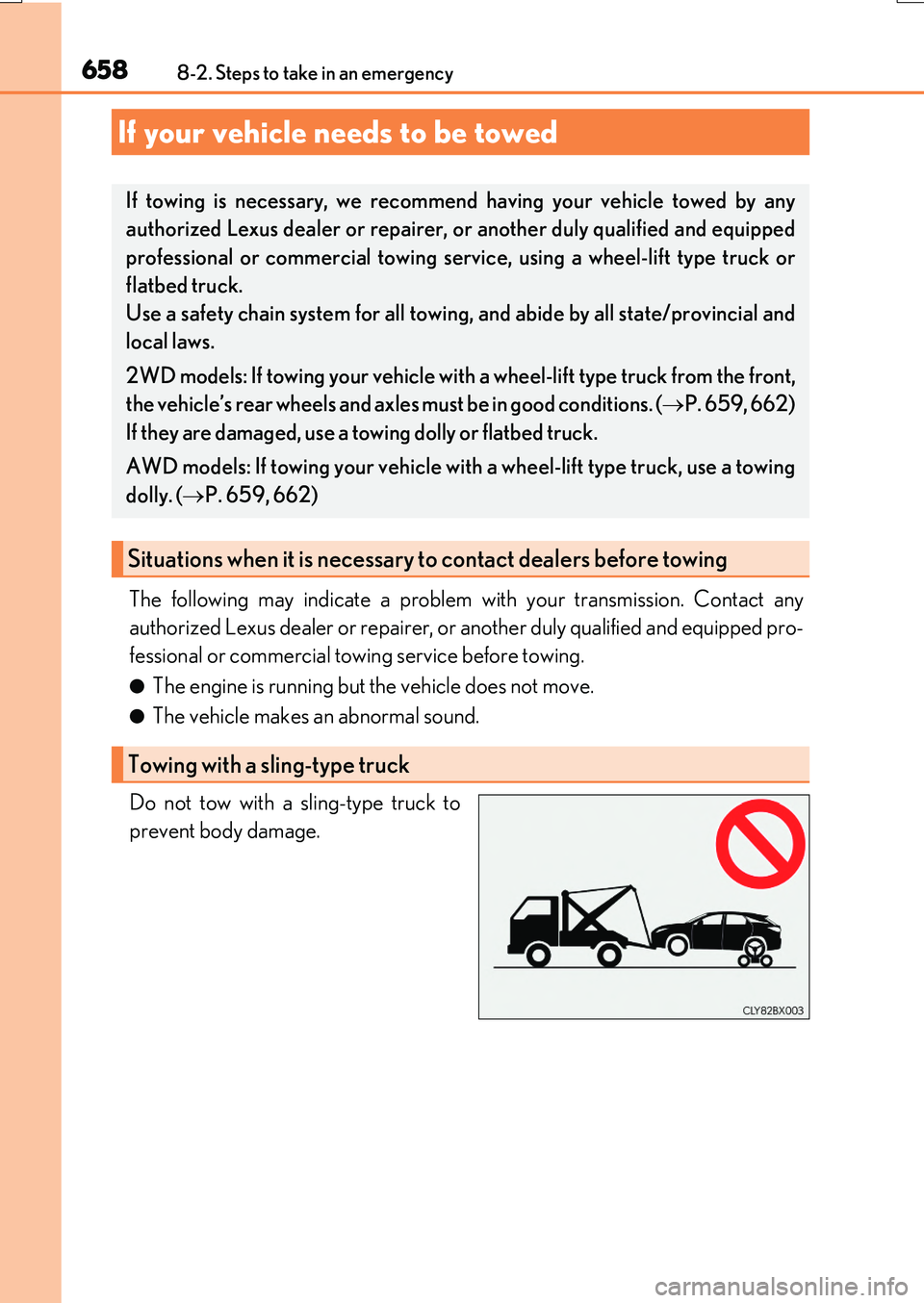

658
RX350/RX200t_EE_OM48F32E
8-2. Steps to take in an emergency
The following may indicate a problem with your transmission. Contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional or commercial towing service before towing.
●The engine is running but the vehicle does not move.
●The vehicle makes an abnormal sound.
Do not tow with a sling-type truck to
prevent body damage.
If your vehicle needs to be towed
If towing is necessary, we recommend having your vehicle towed by any
authorized Lexus dealer or repairer , or another duly qualified and equipped
professional or commercial towing se rvice, using a wheel-lift type truck or
flatbed truck.
Use a safety chain system for all towing , and abide by all state/provincial and
local laws.
2WD models: If towing your vehicle with a wheel-lift type truck from the front,
the vehicle’s rear wheels and axles must be in good conditions. (P. 659, 662)
If they are damaged, use a towing dolly or flatbed truck.
AWD models: If towing your vehicle with a wheel-lift type truck, use a towing
dolly. ( P. 659, 662)
Situations when it is necessary to contact dealers before towing
Towing with a sling-type truck

6598-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
Towing with a wheel-lift type truck
From the front (2WD models)From the front (AWD models)
Release the parking brake. Use a towing dolly under the rear
wheels.
From the rear
Use a towing dolly under the front
wheels.

6608-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
If your vehicle is transported by a flat-
bed truck, it should be tied down at the
locations shown in the illustration.
If you use chains or cables to tie down
your vehicle, the angles shaded in black
must be 45 .
Do not overly tighten the tie downs or
the vehicle may be damaged.
If a tow truck is not available in an emergency, your vehicle may be temporarily
towed using cables or chains secured to the emergency towing eyelets. This
should only be attempted on hard surfac ed roads for at most 80 km (50 miles)
at under 30 km/h (18 mph).
A driver must be in the vehicle to steer and operate the brakes. The vehicle’s
wheels, drive train, axles, steering and brakes must be in good condition.
Using a flatbed truck
Front
Emergency towing
