LEXUS RX200T 2017 Owners Manual

6918-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
WARNING
■When using the compact spare tire (vehicles with a compact spare tire)
●Remember that the compact spare tire provided is specifically designed for use with your vehicle. Do not use your compact spare tire on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steerin g, sudden braking and shifting operations
that cause sudden engine braking.
■When the compact spare tire is attached (vehicles with a compact spare tire)
The vehicle speed may not be correctly detected, and the following systems may not
operate correctly:
Also, not only can the following system not be utilized fully, but it may even negatively affect the drive-train components:
• AWD system (AWD models)
■Speed limit when using the compact spare tire (vehicles with a compact spare tire)
Do not drive at speeds in excess of 80 km /h (50 mph) when a compact spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to observe this precaution may lead to an accid ent causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage location to reduce the possibility of personal injury during a collision or sudden brak- ing.
• ABS & Brake assist
•VSC •TRC• Trailer Sway Control
•EPS • VDIM (if equipped)• Adaptive Variable Suspension System
(if equipped) • Cruise control (if equipped)• Dynamic radar cruise control with full-
speed range (if equipped) • PCS (Pre-Crash Safety system) (ifequipped)
• LKA (Lane-Keeping Assist) (if
equipped) • RSA (Road Sign Assist) (if equipped)• Automatic High Beam (if equipped)
• AHS (Adaptive High-beam System) (if equipped)• Tire pressure warning system
• Lexus parking assist-sensor (if equipped)• Intelligent Clearance Sonar (ICS) (if
equipped) • Lexus parking assist monitor (ifequipped)
• Panoramic view monitor (if equipped) • BSM (Blind Spot Monitor) (ifequipped)
• Navigation system (if equipped)

6928-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E

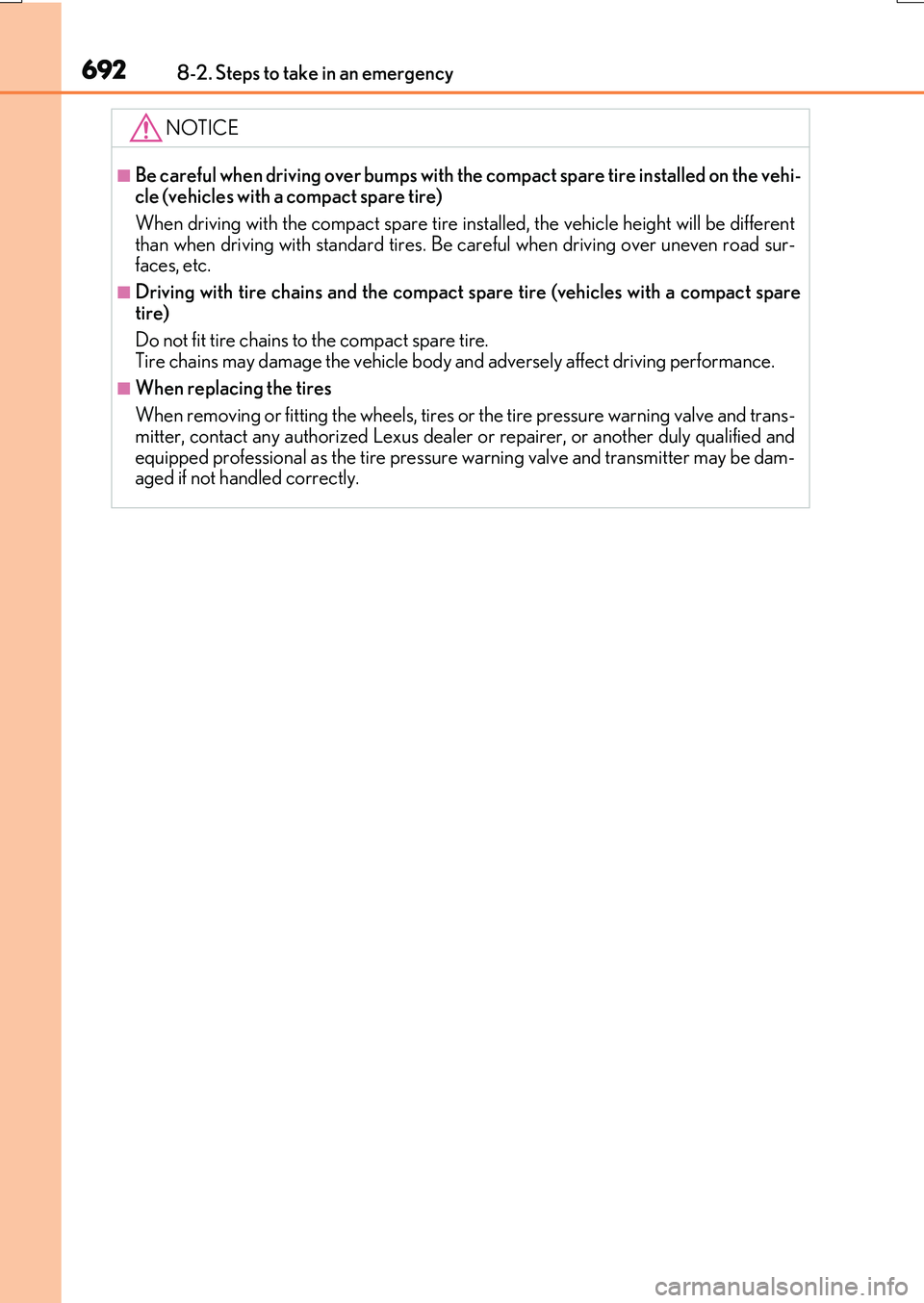

NOTICE
■Be careful when driving over bumps with the compact spare tire installed on the vehi- cle (vehicles with a compact spare tire)
When driving with the compact spare tire installed, the vehicle height will be different
than when driving with standard tires. Be careful when driving over uneven road sur- faces, etc.
■Driving with tire chains and the compact spare tire (vehicles with a compact spare
tire)
Do not fit tire chains to the compact spare tire. Tire chains may damage the vehicle body and adversely affect driving performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning valve and trans- mitter, contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional as the tire pressure warning valve and transmitter may be dam- aged if not handled correctly.

6938-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E

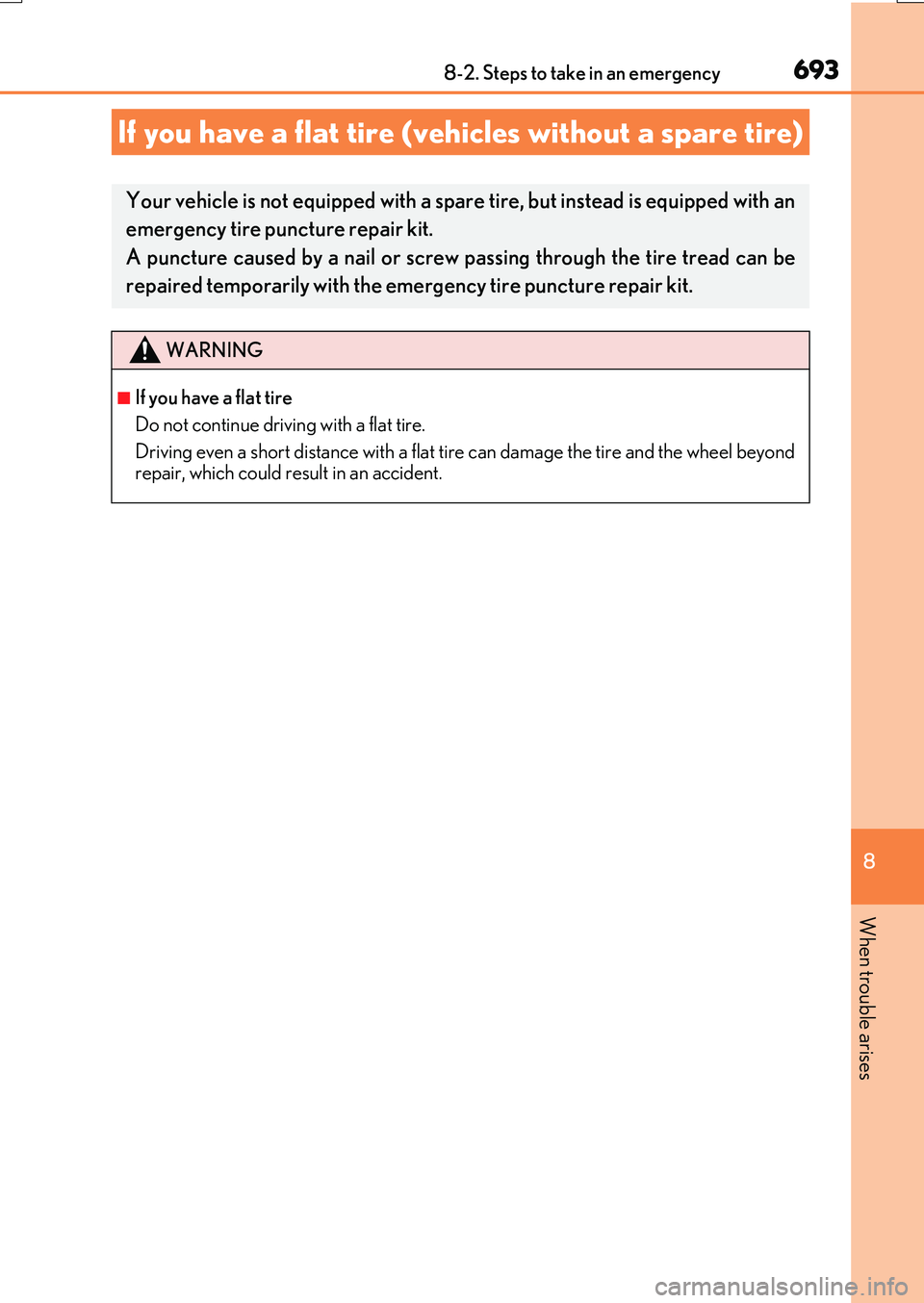

If you have a flat tire (vehicles without a spare tire)
Your vehicle is not equipped with a spare tire, but instead is equipped with an
emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread can be
repaired temporarily with the emergency tire puncture repair kit.
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel beyond repair, which could result in an accident.

6948-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
●Stop the vehicle in a safe place on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Stop the engine.
●Turn on the emergency flashers. (P. 656)
●Check the degree of the tire damage.
A tire should only be repaired with
the emergency tire puncture repair
kit if the damage is caused by a nail
or screw passing through the tire
tread.
• Do not remove the nail or screw
from the tire. Removing the
object may widen the opening
and disenable emergency repair
with the kit.
• To avoid sealant leakage, move
the vehicle until the area of the
puncture, if known, is positioned
at the top of the tire.
■A flat tire that cannot be repaired with the emergency tire puncture repair kit
In the following cases, the tire cannot be repaired with the emergency tire puncture
repair kit. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
●When the tire is damaged due to driving without sufficient air pressure
●When the tire lost air pressure due to a crack or damage in the tire sidewall
●When the tire is visibly separated from the wheel
●When the cut or damage to the tread is 4 mm (0.16 in.) long or more
●When the wheel is damaged
●When 2 or more sharp objects, such as nails or screws, have passed through the tread
on a single tire
●When there is more than one hole or cut in the damaged tire
●When the sealant has expired
Before repairing the vehicle

6958-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
*: Use of the jack (P. 682, 683)
Location of the emergency tire puncture repair kit, jack and tools
Towing eyelet
Jack handle
Wheel nut wrench
Emergency tire puncture repair kit
Jack*
1
2
3
4
5

6968-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E

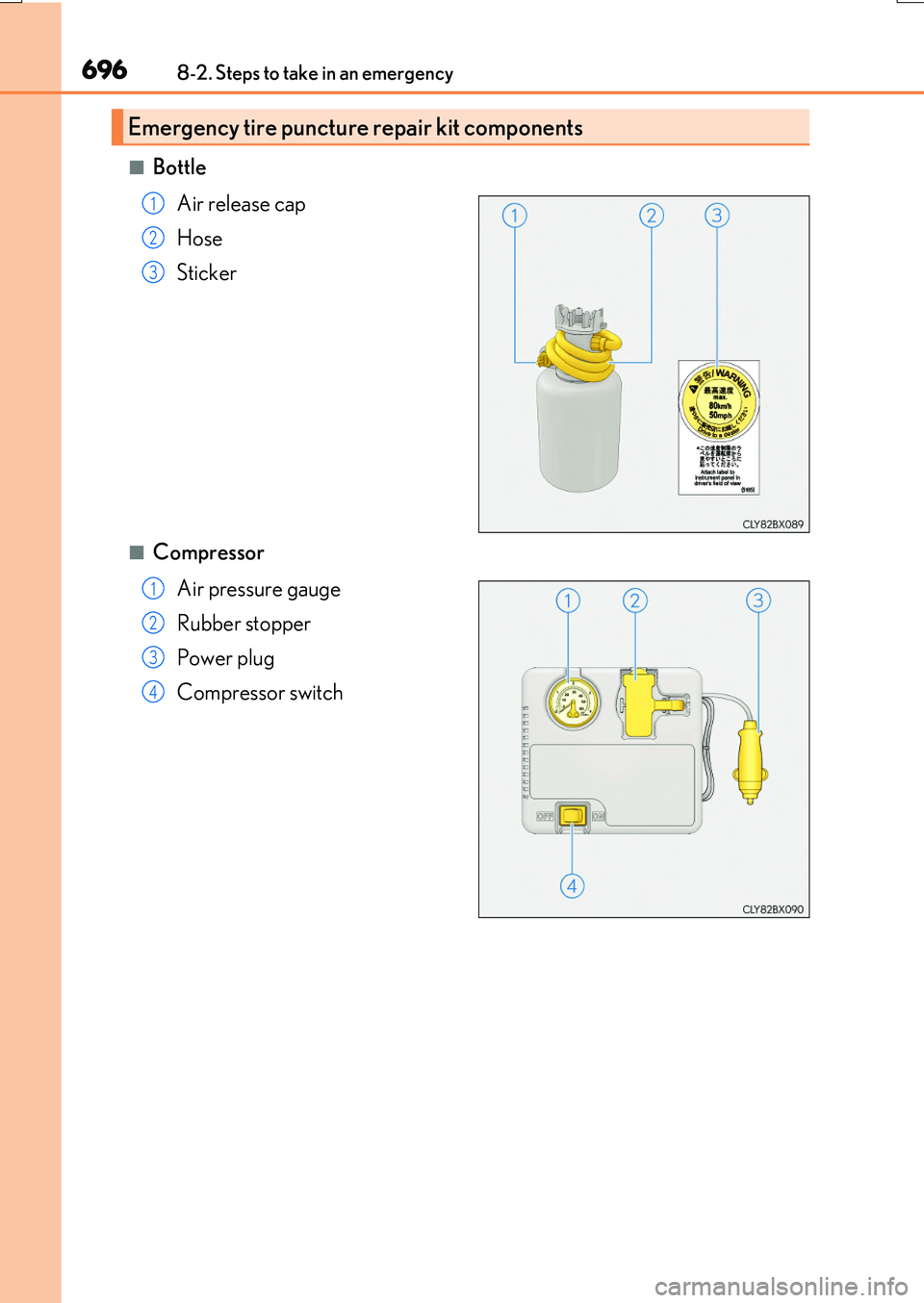

■Bottle
Air release cap
Hose
Sticker
■Compressor
Air pressure gauge
Rubber stopper
Power plug
Compressor switch
Emergency tire puncture repair kit components
1
2
3
1
2
3
4

6978-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E
Secure the deck board using the hook. (P. 565)
Take out the emergency tire punc-
ture repair kit.
Taking out the emergency tire puncture repair kit
1
2

6988-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E

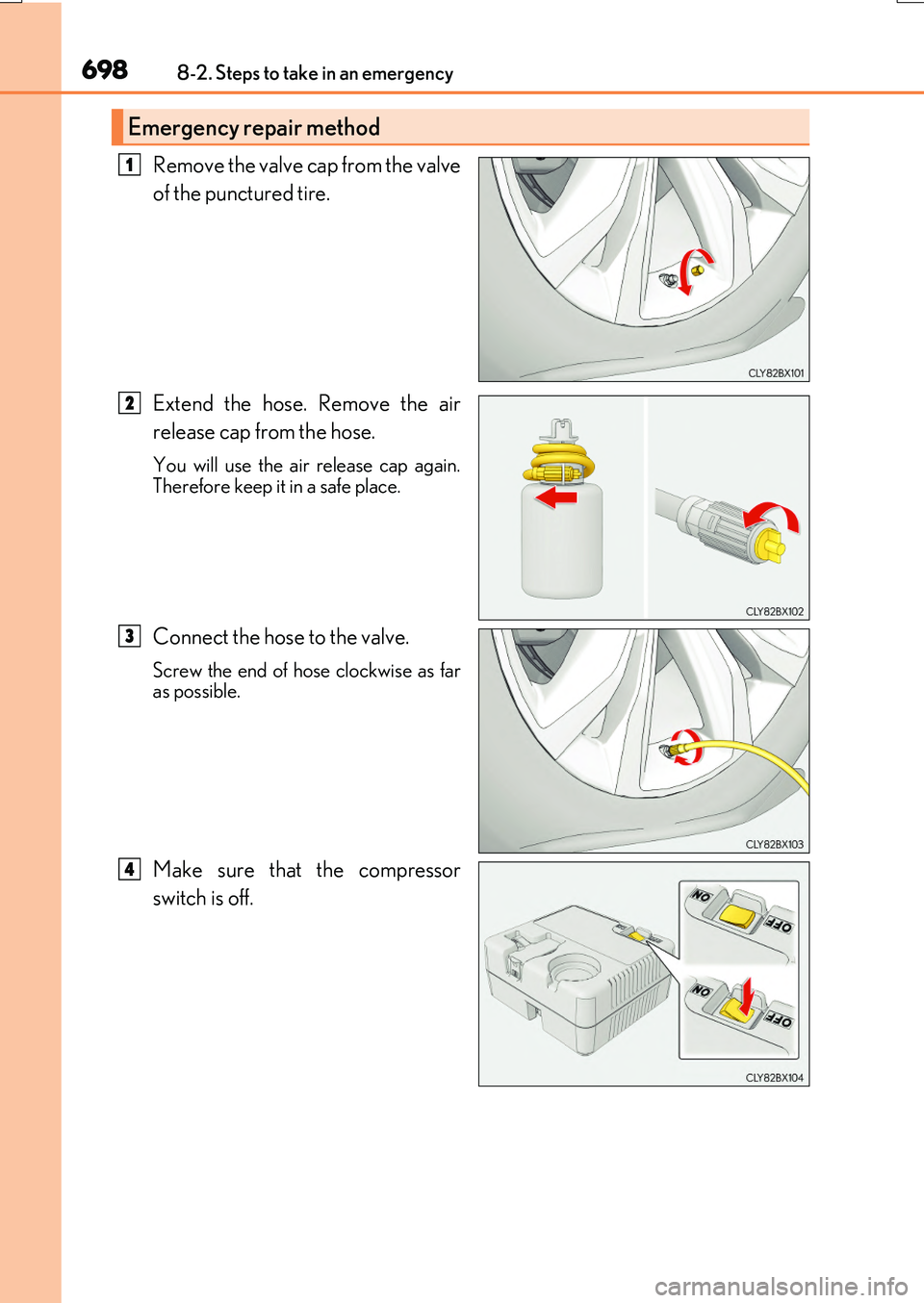

Remove the valve cap from the valve
of the punctured tire.
Extend the hose. Remove the air
release cap from the hose.
You will use the air release cap again.
Therefore keep it in a safe place.
Connect the hose to the valve.
Screw the end of hose clockwise as far as possible.
Make sure that the compressor
switch is off.
Emergency repair method
1
2
3
4

6998-2. Steps to take in an emergency
8
When trouble arises
RX350/RX200t_EE_OM48F32E

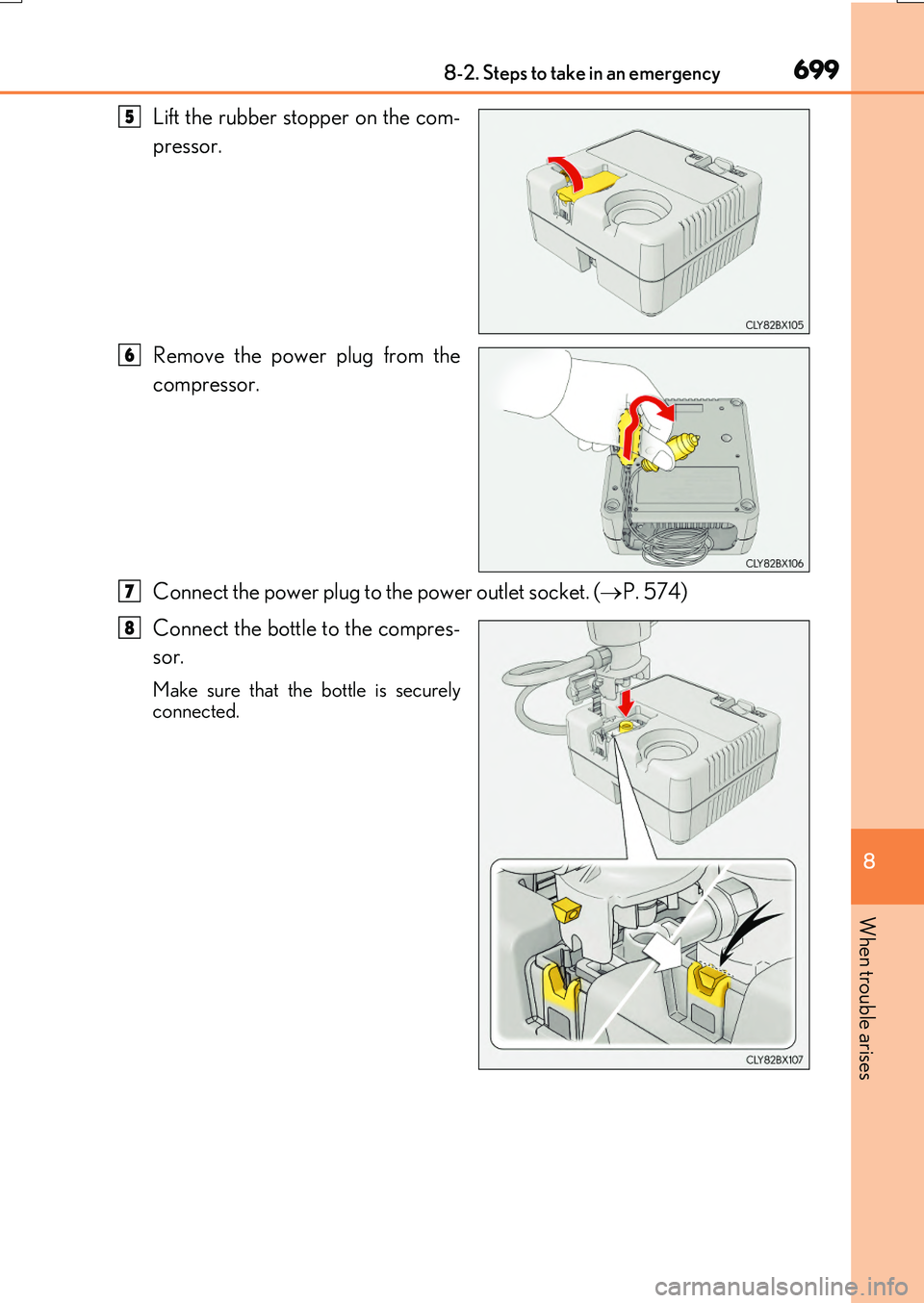

Lift the rubber stopper on the com-
pressor.
Remove the power plug from the
compressor.
Connect the power plug to the power outlet socket. ( P. 574)
Connect the bottle to the compres-
sor.
Make sure that the bottle is securely connected.
5
6
7
8

7008-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
Attach the sticker as shown.
Check the specified tire inflation pressure.
Tire inflation pressure is spec ified on the label as shown. (P. 737)
Start the engine. (P. 246)
To inject the sealant and inflate the
tire, turn the compressor switch on.
9
10
Left-hand drive vehiclesRight-hand drive vehicles
11
12
