LEXUS RX270 2014 Owners Manual

111
1-5. Refueling
1
Before driving
RX350/270_EE

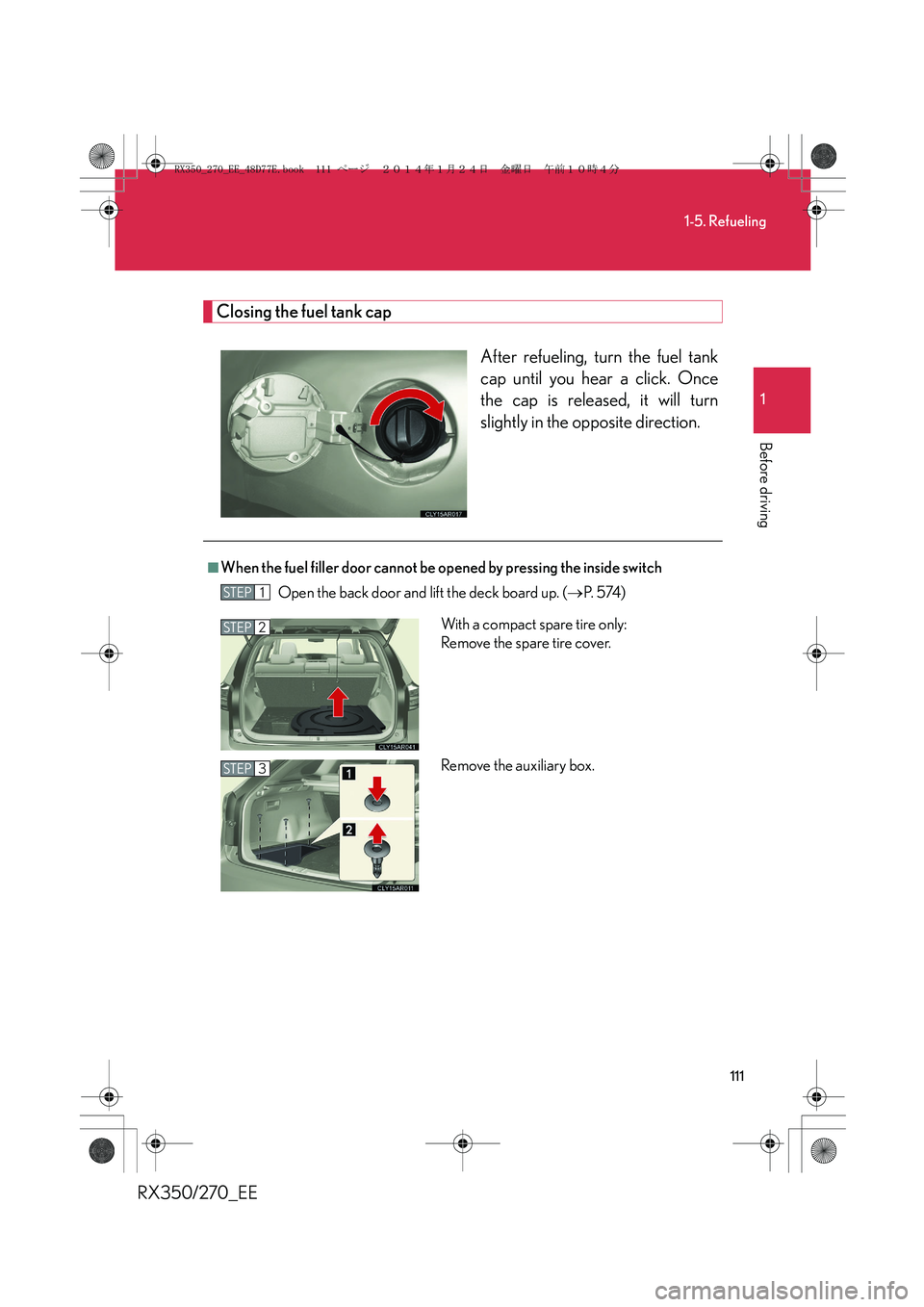

Closing the fuel tank cap
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
■When the fuel filler door cannot be opened by pressing the inside switch
Open the back door and lift the deck board up. (→P. 5 74 )
STEP1
With a compact spare tire only:
Remove the spare tire cover.
Remove the auxiliary box.STEP2
STEP3
RX350_270_EE_48D77E.book 111 ページ ２０１４年１月２４日　金曜日　午前１０時４分

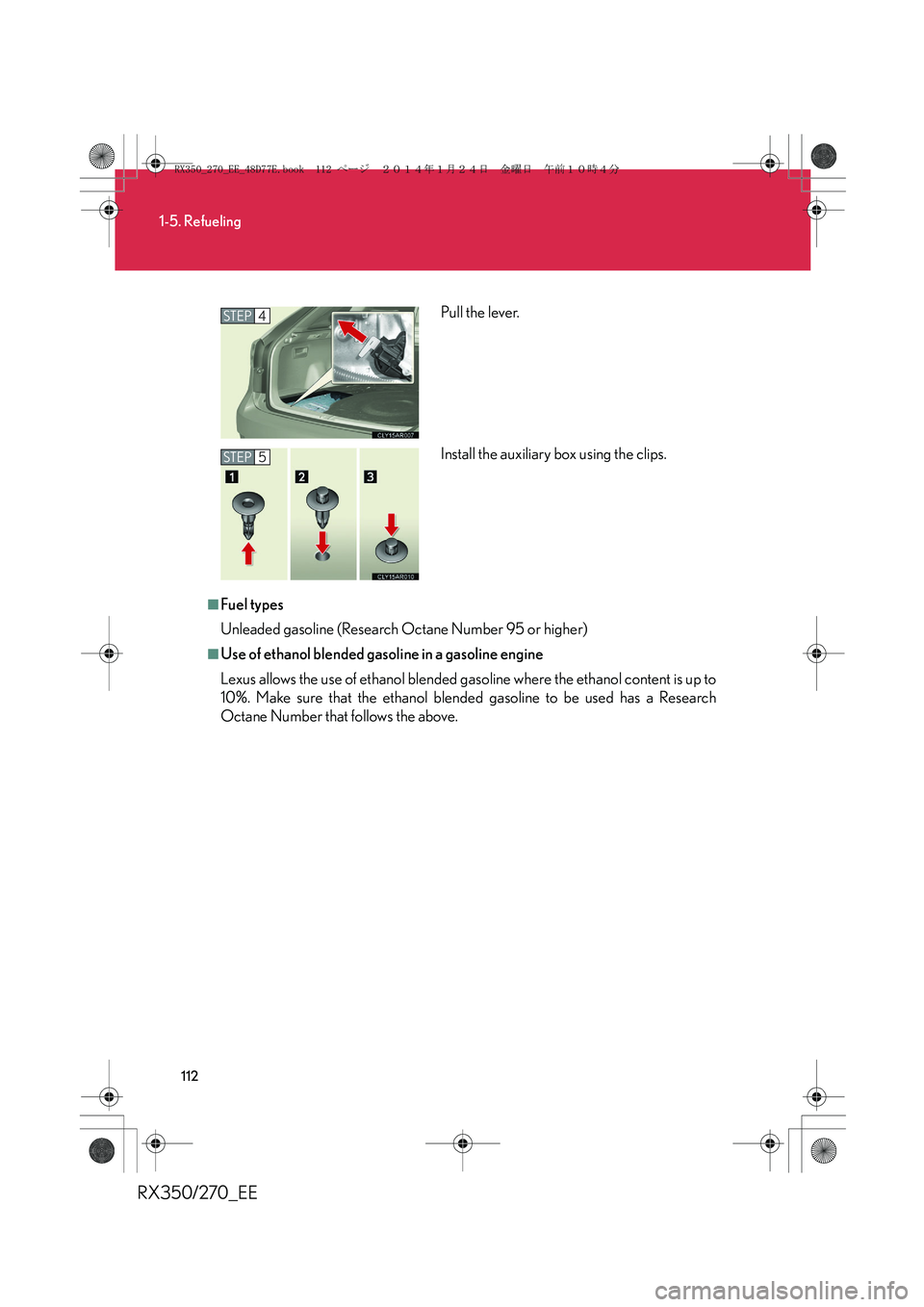

112
1-5. Refueling
RX350/270_EE
■Fuel types
Unleaded gasoline (Research Octane Number 95 or higher)
■Use of ethanol blended gasoline in a gasoline engine
Lexus allows the use of ethanol blended gasoline where the ethanol content is up to
10%. Make sure that the ethanol blended gasoline to be used has a Research
Octane Number that follows the above.Pull the lever.
Install the auxiliary box using the clips.
STEP4
STEP5
RX350_270_EE_48D77E.book 112 ページ ２０１４年１月２４日　金曜日　午前１０時４分

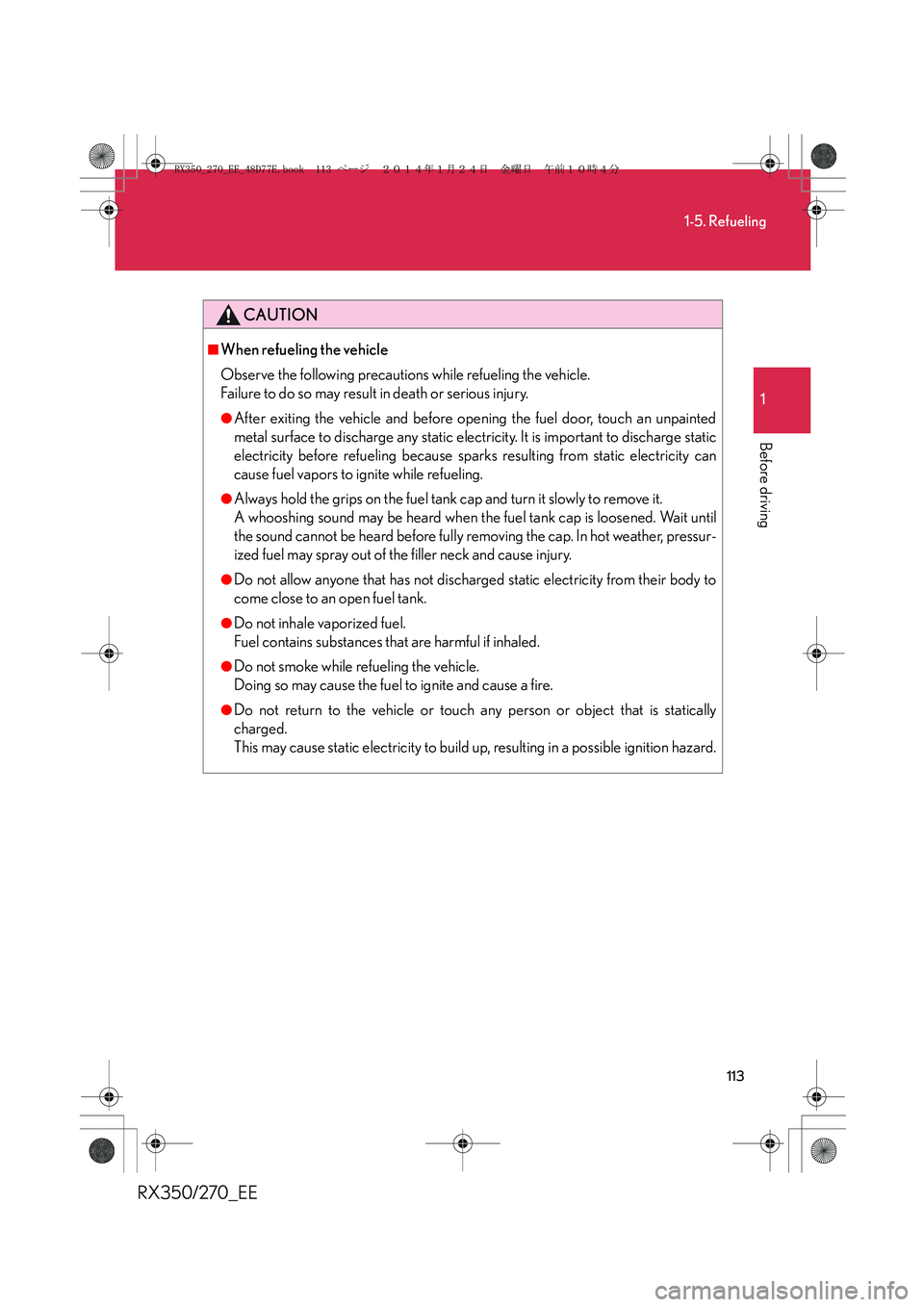

113
1-5. Refueling
1
Before driving
RX350/270_EE
CAUTION
■When refueling the vehicle
Observe the following precautions while refueling the vehicle.
Failure to do so may result in death or serious injury.
●After exiting the vehicle and before opening the fuel door, touch an unpainted
metal surface to discharge any static electricity. It is important to discharge static
electricity before refueling because sparks resulting from static electricity can
cause fuel vapors to ignite while refueling.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully removing the cap. In hot weather, pressur-
ized fuel may spray out of the filler neck and cause injury.
●Do not allow anyone that has not discharged static electricity from their body to
come close to an open fuel tank.
●Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.
RX350_270_EE_48D77E.book 113 ページ ２０１４年１月２４日　金曜日　午前１０時４分

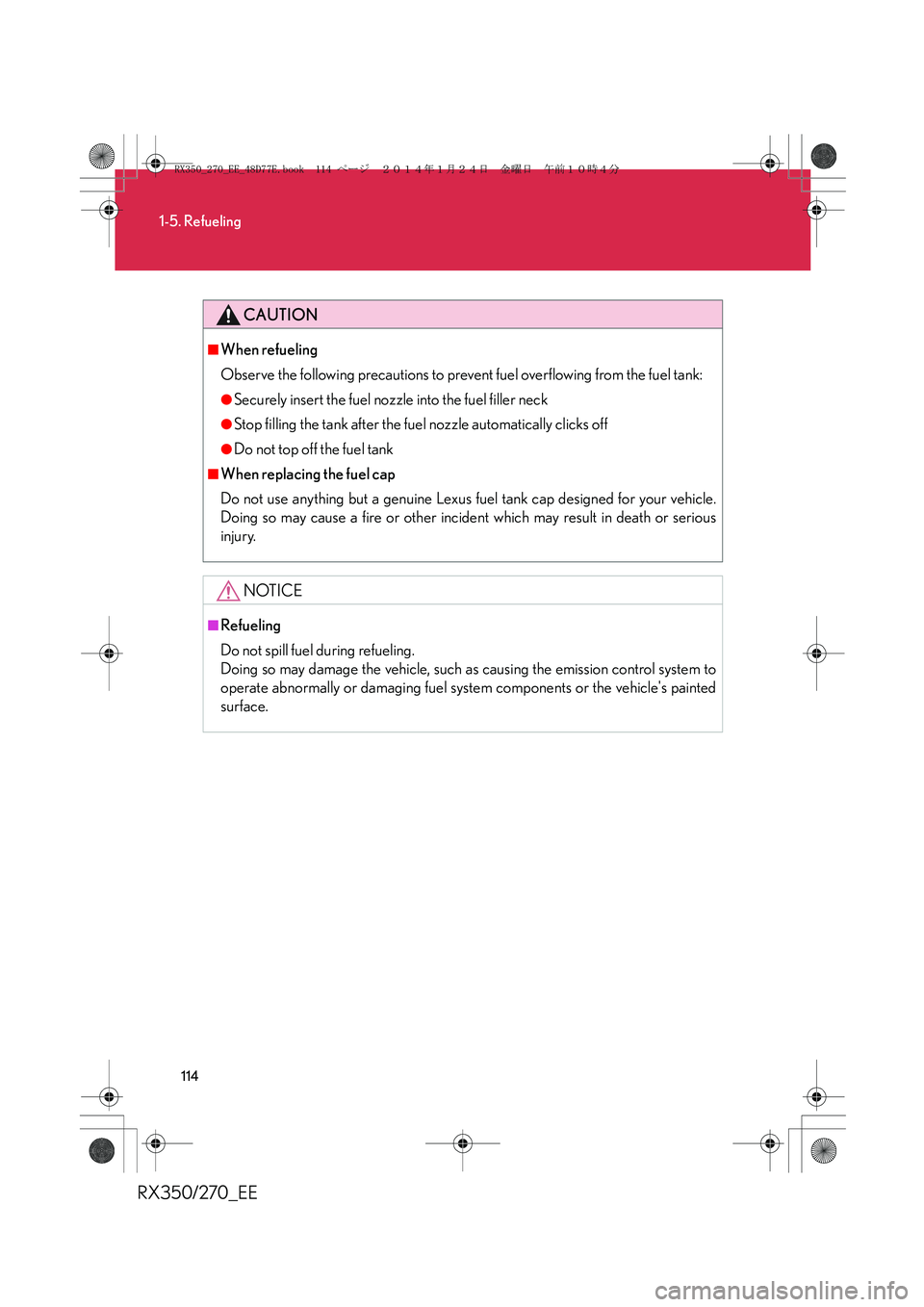

114
1-5. Refueling
RX350/270_EE
CAUTION
■When refueling
Observe the following precautions to prevent fuel overflowing from the fuel tank:
●Securely insert the fuel nozzle into the fuel filler neck
●Stop filling the tank after the fuel nozzle automatically clicks off
●Do not top off the fuel tank
■When replacing the fuel cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.
Doing so may cause a fire or other incident which may result in death or serious
injury.
NOTICE
■Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control system to
operate abnormally or damaging fuel system components or the vehicle's painted
surface.
RX350_270_EE_48D77E.book 114 ページ ２０１４年１月２４日　金曜日　午前１０時４分

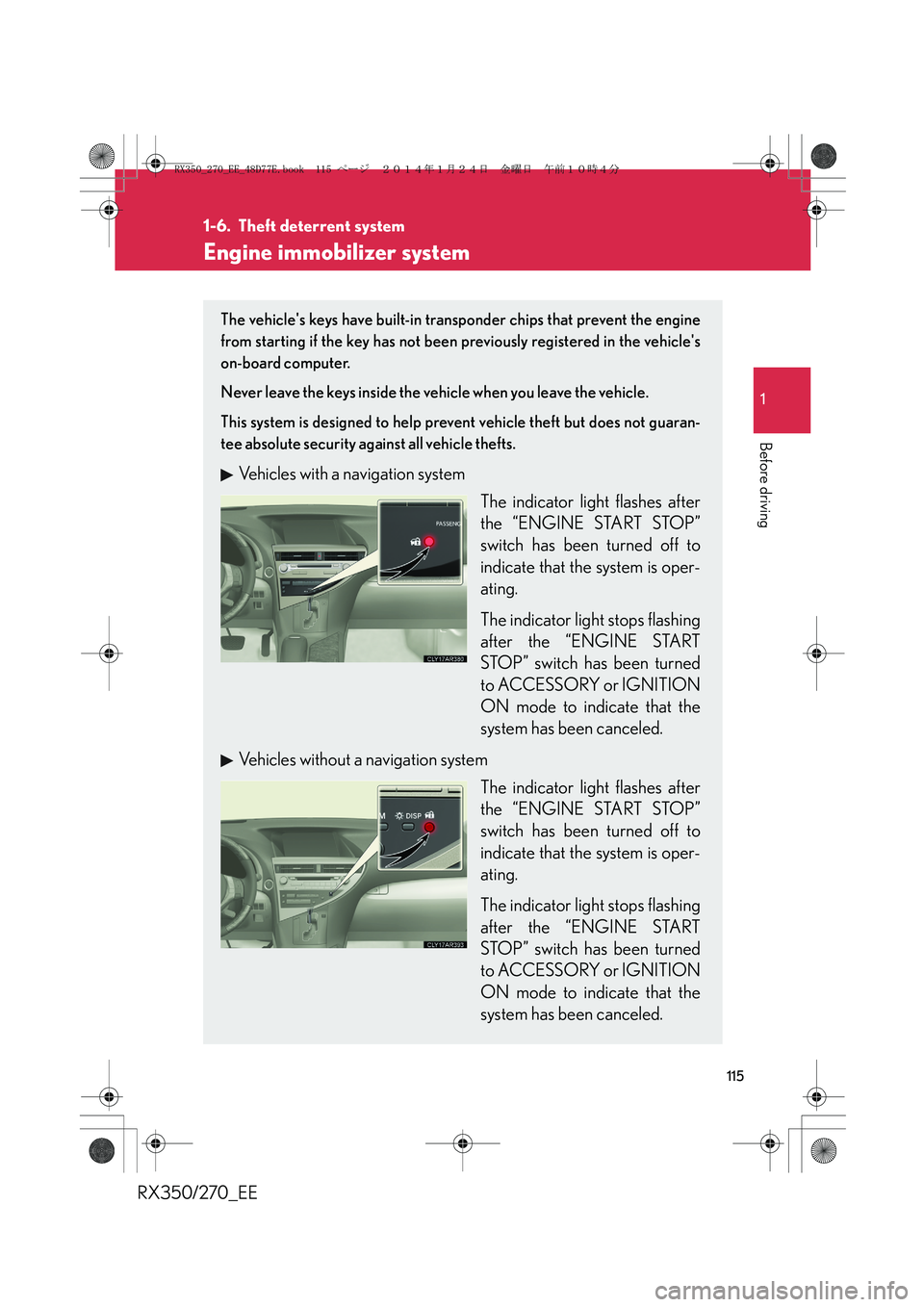

115
1
Before driving
RX350/270_EE
1-6. Theft deterrent system
Engine immobilizer system
The vehicle's keys have built-in transponder chips that prevent the engine
from starting if the key has not been previously registered in the vehicle's
on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not guaran-
tee absolute security against all vehicle thefts.
Vehicles with a navigation system
The indicator light flashes after
the “ENGINE START STOP”
switch has been turned off to
indicate that the system is oper-
ating.
The indicator light stops flashing
after the “ENGINE START
STOP” switch has been turned
to ACCESSORY or IGNITION
ON mode to indicate that the
system has been canceled.
Vehicles without a navigation system
The indicator light flashes after
the “ENGINE START STOP”
switch has been turned off to
indicate that the system is oper-
ating.
The indicator light stops flashing
after the “ENGINE START
STOP” switch has been turned
to ACCESSORY or IGNITION
ON mode to indicate that the
system has been canceled.
RX350_270_EE_48D77E.book 115 ページ ２０１４年１月２４日　金曜日　午前１０時４分

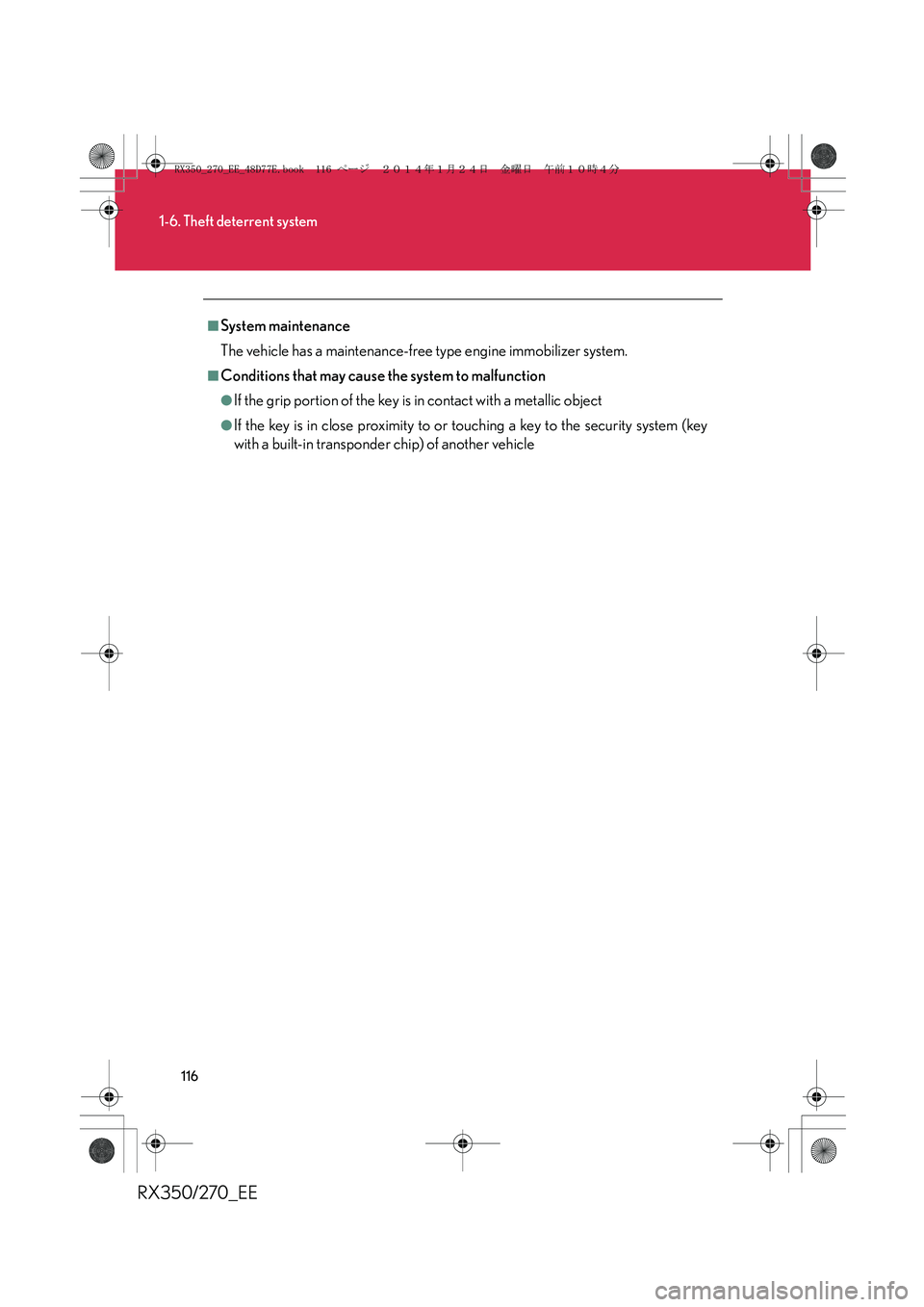

116
1-6. Theft deterrent system
RX350/270_EE
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touching a key to the security system (key
with a built-in transponder chip) of another vehicle
RX350_270_EE_48D77E.book 116 ページ ２０１４年１月２４日　金曜日　午前１０時４分

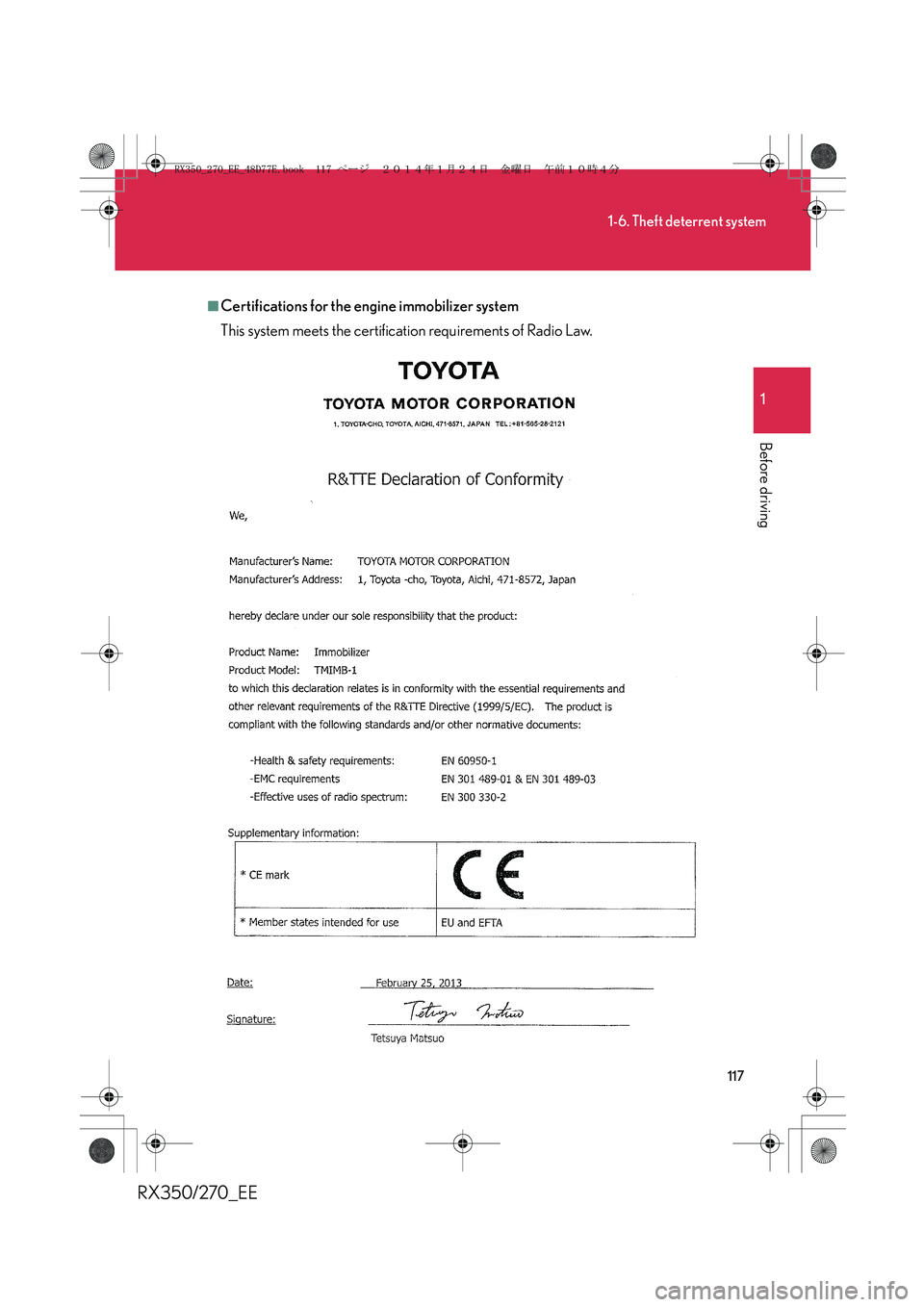

117
1-6. Theft deterrent system
1
Before driving
RX350/270_EE
■Certifications for the engine immobilizer system
This system meets the certification requirements of Radio Law.
RX350_270_EE_48D77E.book 117 ページ ２０１４年１月２４日　金曜日　午前１０時４分

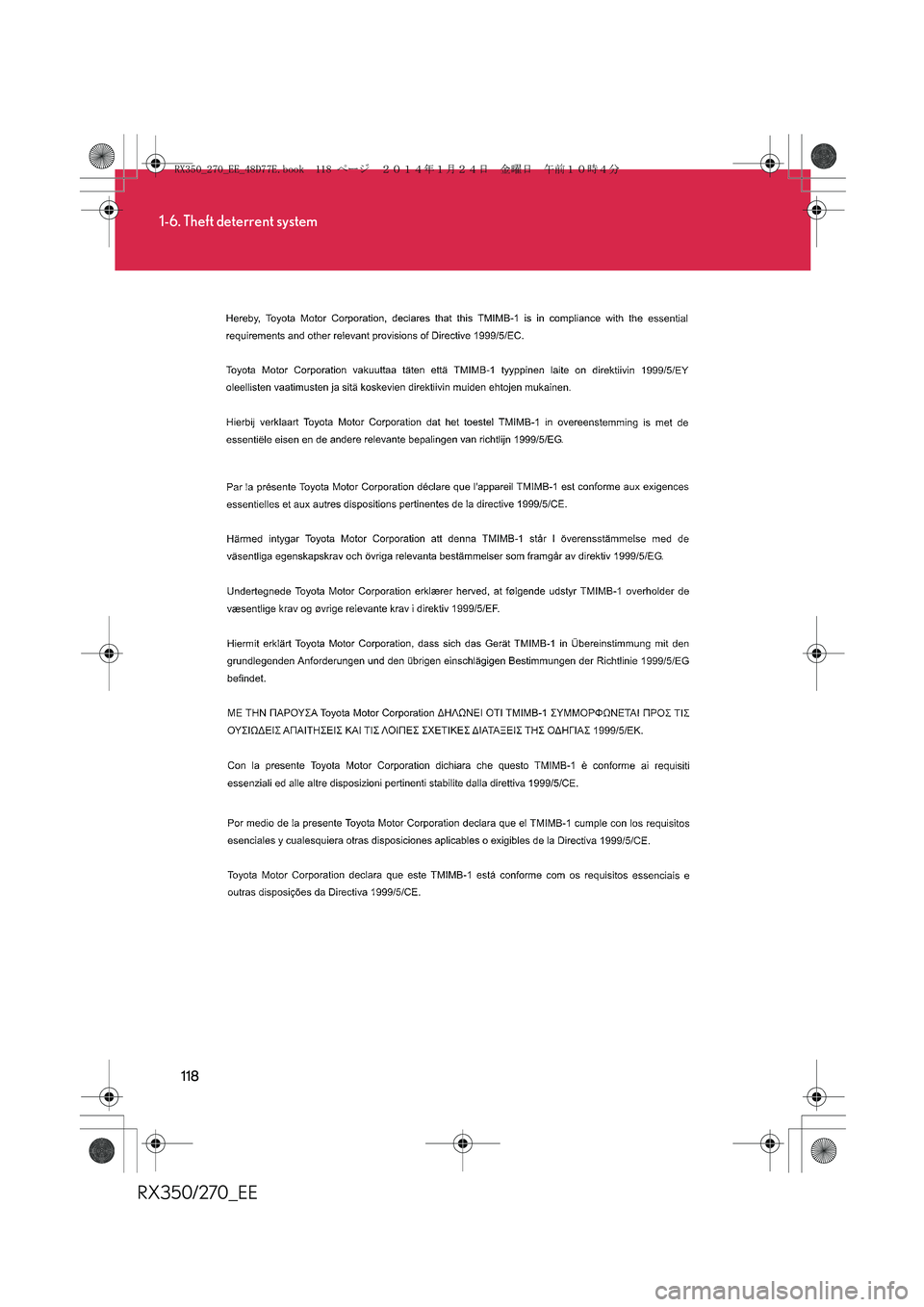

118
1-6. Theft deterrent system
RX350/270_EE
RX350_270_EE_48D77E.book 118 ページ ２０１４年１月２４日　金曜日　午前１０時４分

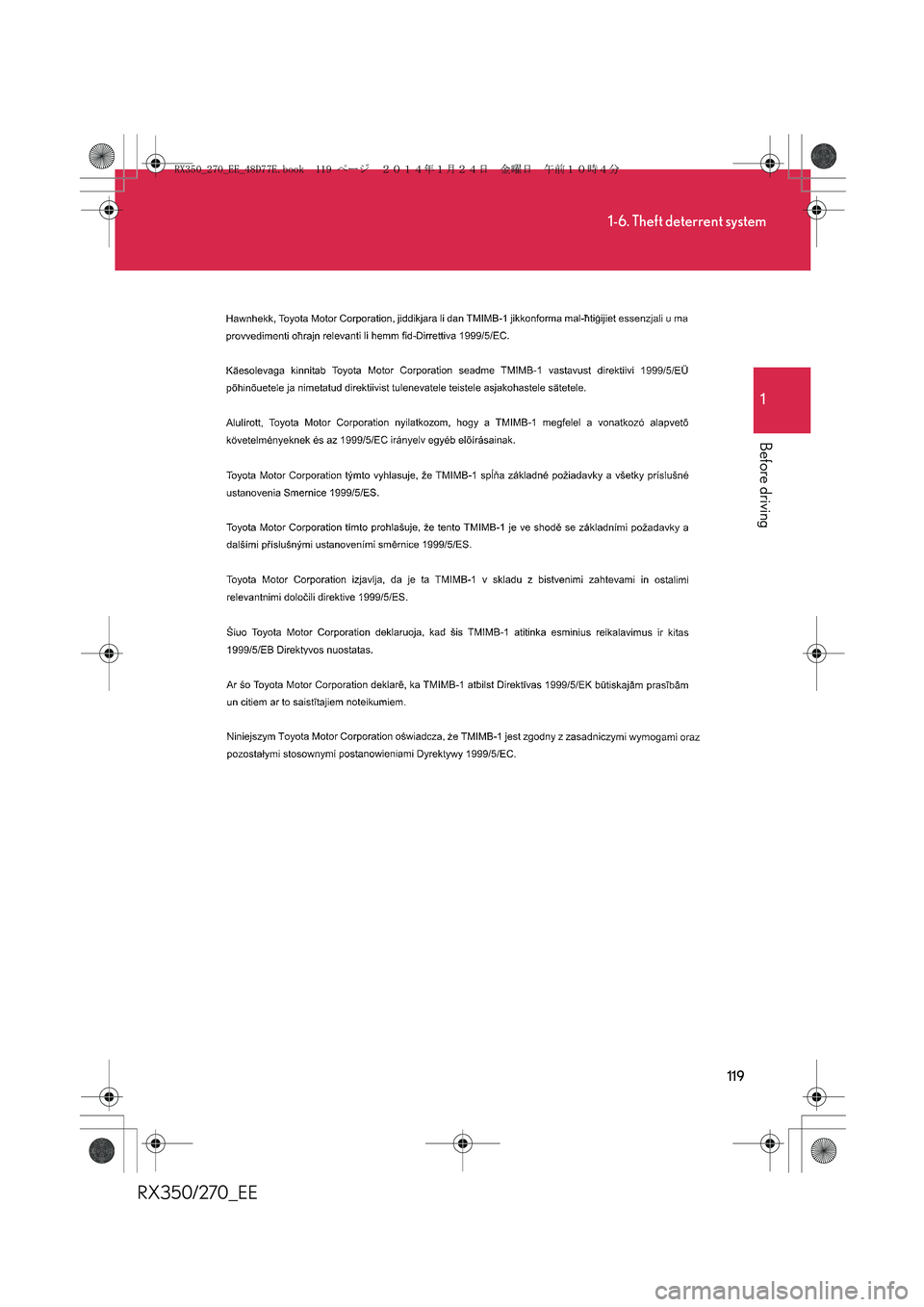

119
1-6. Theft deterrent system
1
Before driving
RX350/270_EE
RX350_270_EE_48D77E.book 119 ページ ２０１４年１月２４日　金曜日　午前１０時４分

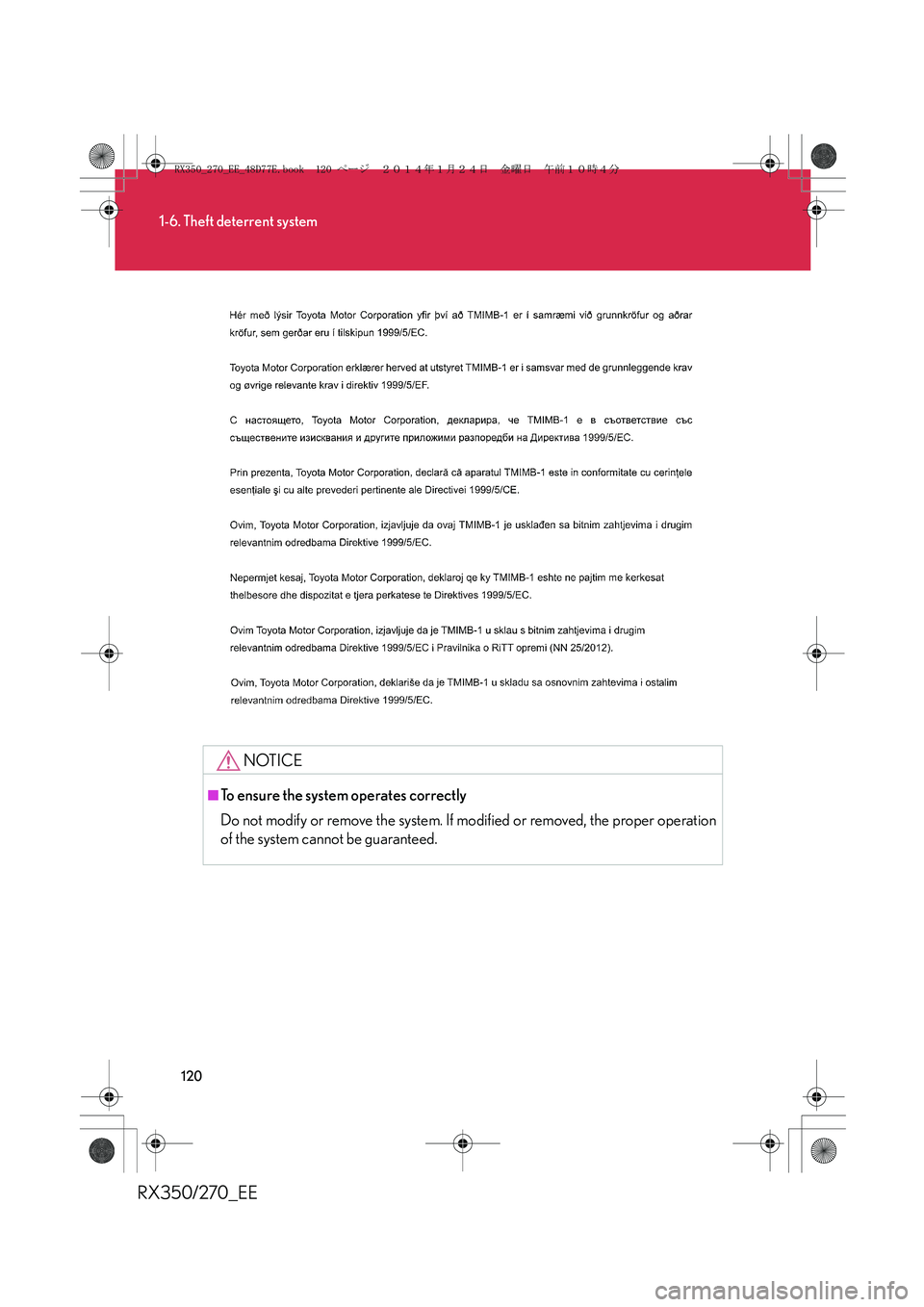

120
1-6. Theft deterrent system
RX350/270_EE
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.
