LEXUS RX270 2014 Owners Manual

101
1
Before driving
RX350/270_EE
1-4. Opening and closing the windows and moon roof

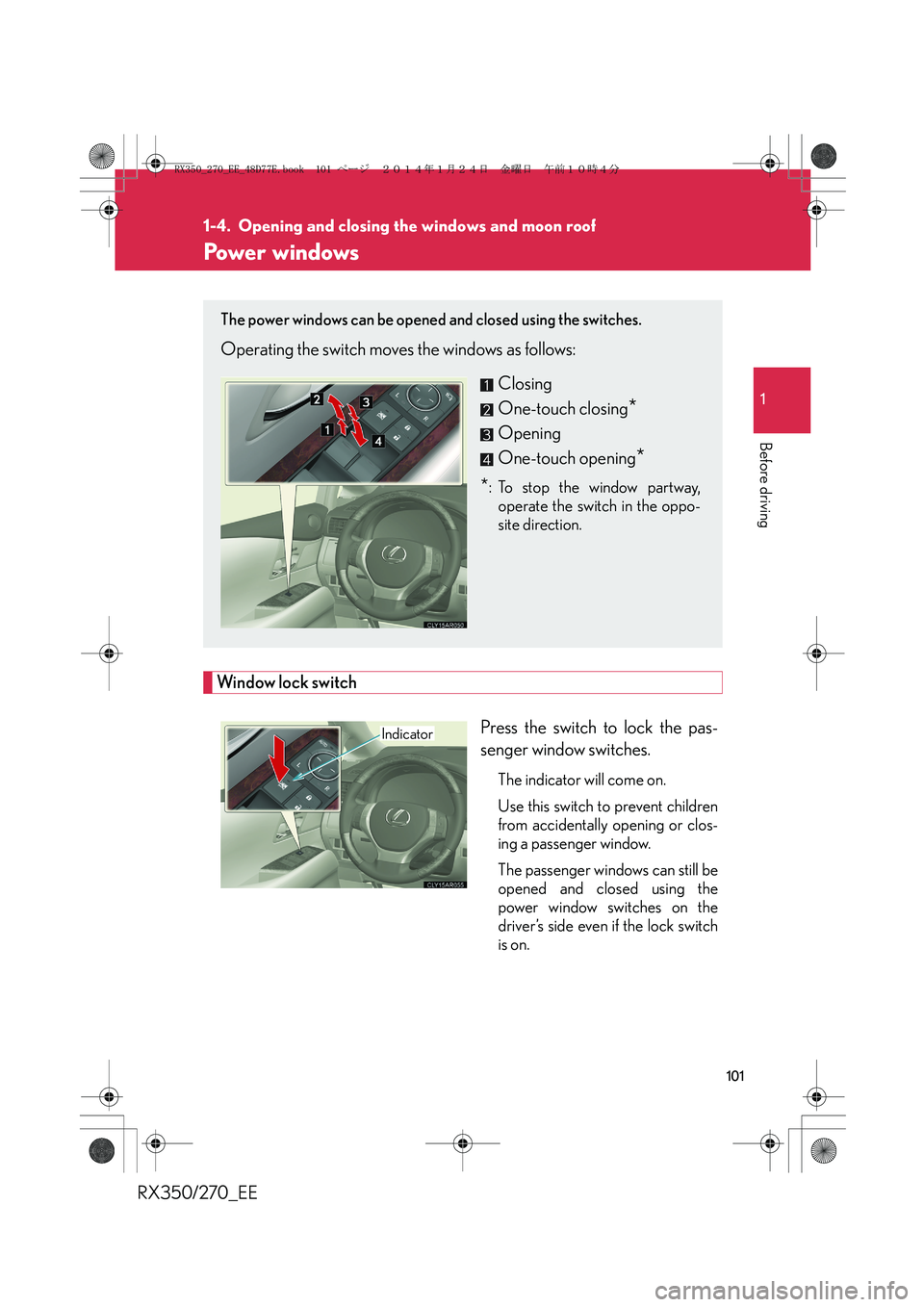

Power windows
Window lock switch
Press the switch to lock the pas-
senger window switches.
The indicator will come on.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
The passenger windows can still be
opened and closed using the
power window switches on the
driver’s side even if the lock switch
is on.
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
One-touch closing
*
Opening
One-touch opening
*
*: To stop the window partway,
operate the switch in the oppo-
site direction.
Indicator
RX350_270_EE_48D77E.book 101 ページ ２０１４年１月２４日　金曜日　午前１０時４分

102
1-4. Opening and closing the windows and moon roof
RX350/270_EE

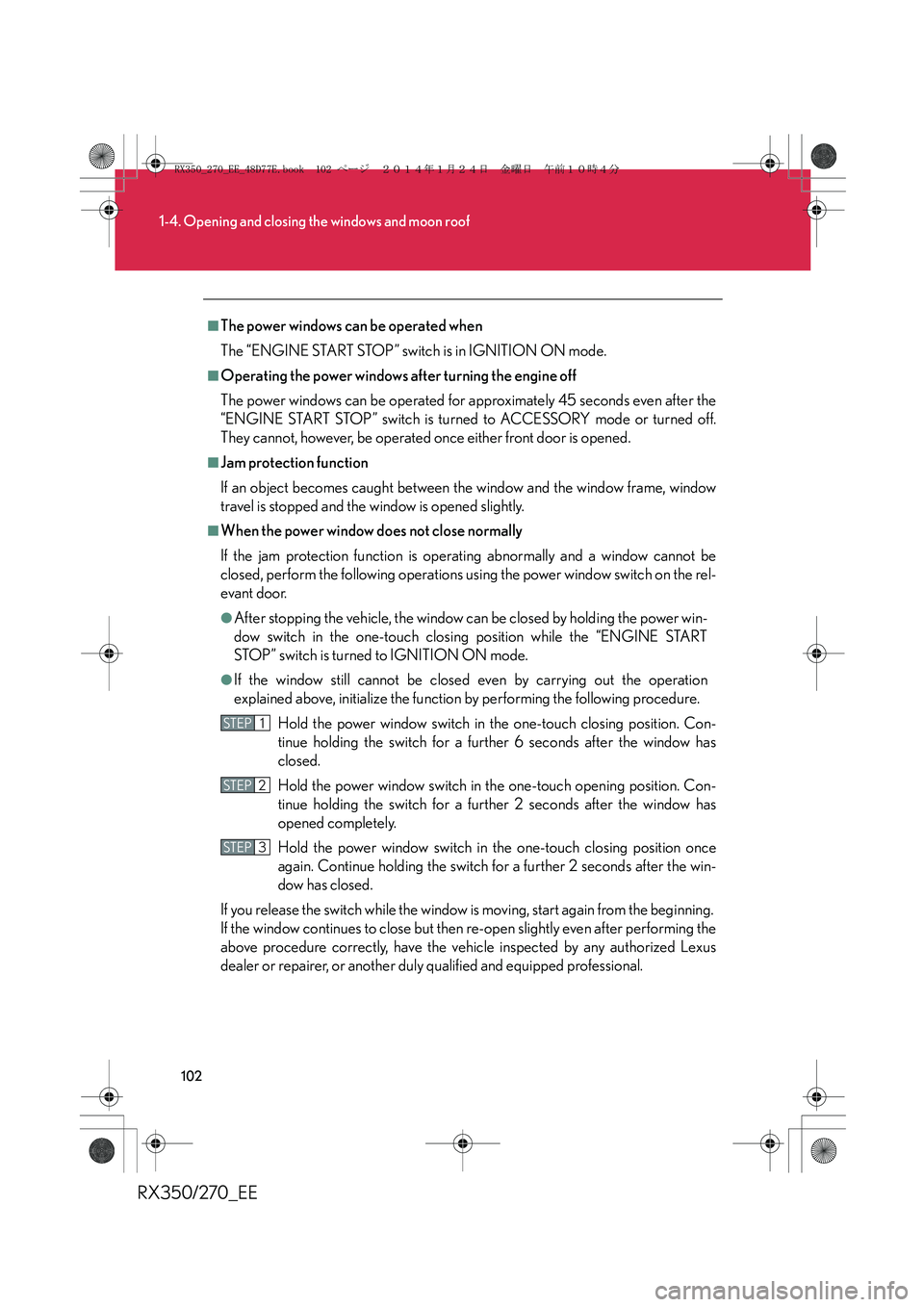

■The power windows can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Operating the power windows after turning the engine off
The power windows can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is turned to ACCESSORY mode or turned off.
They cannot, however, be operated once either front door is opened.
■Jam protection function
If an object becomes caught between the window and the window frame, window
travel is stopped and the window is opened slightly.
■When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot be
closed, perform the following operations using the power window switch on the rel-
evant door.
●After stopping the vehicle, the window can be closed by holding the power win-
dow switch in the one-touch closing position while the “ENGINE START
STOP” switch is turned to IGNITION ON mode.
●If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following procedure.
Hold the power window switch in the one-touch closing position. Con-
tinue holding the switch for a further 6 seconds after the window has
closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for a further 2 seconds after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win-
dow has closed.
If you release the switch while the window is moving, start again from the beginning.
If the window continues to close but then re-open slightly even after performing the
above procedure correctly, have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 102 ページ ２０１４年１月２４日　金曜日　午前１０時４分

103
1-4. Opening and closing the windows and moon roof
1
Before driving
RX350/270_EE
■Door lock linked window operation
●The power windows can be opened and closed using the mechanical key.
(→P. 5 9 1 )
●The power windows can be opened and closed using the wireless remote con-
trol if customized at any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional. (→P. 5 3 )
■Window close suggestion mode
If the “ENGINE START STOP” switch is turned off with the windows open, a sug-
gestion to close all the windows is shown on the multi-information display.
(→P. 2 0 8 )
■When the battery is disconnected
The window lock switch is disabled. If necessary, press the window lock switch after
reconnecting the battery.
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 6 2 2 )
CAUTION
■Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
The driver is responsible for instructing children not to operate the power win-
dows.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the window fully closes. Also, the jam protection does not operate when the
power window switch is pulled up continually to close the windows.
RX350_270_EE_48D77E.book 103 ページ ２０１４年１月２４日　金曜日　午前１０時４分

104
1-4. Opening and closing the windows and moon roof
RX350/270_EE

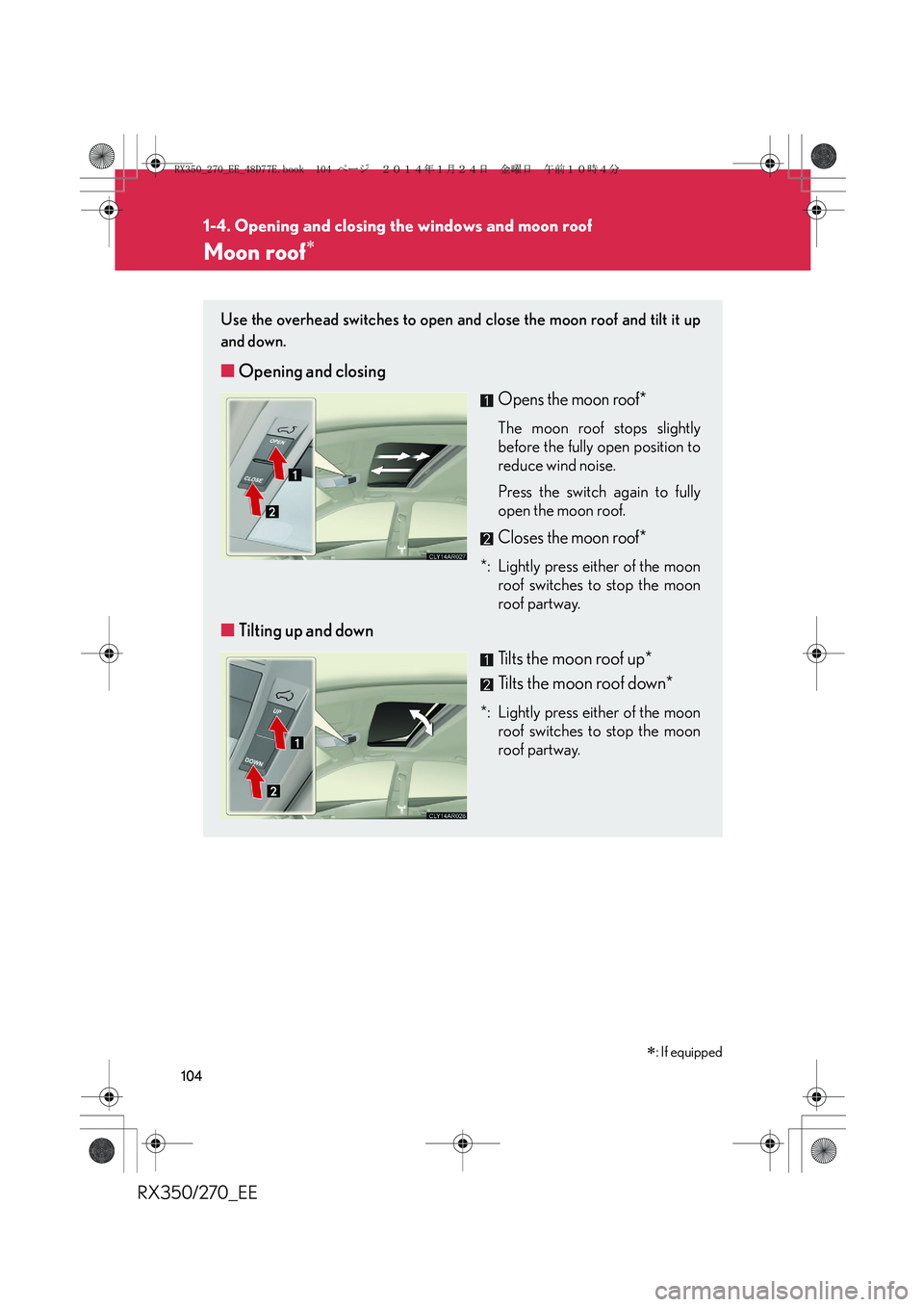

Moon roof∗
Use the overhead switches to open and close the moon roof and tilt it up
and down.
■Opening and closing
Opens the moon roof*
The moon roof stops slightly
before the fully open position to
reduce wind noise.
Press the switch again to fully
open the moon roof.
Closes the moon roof*
*: Lightly press either of the moon
roof switches to stop the moon
roof partway.
■Tilting up and down
Tilts the moon roof up*
Tilts the moon roof down*
*: Lightly press either of the moon
roof switches to stop the moon
roof partway.
∗: If equipped
RX350_270_EE_48D77E.book 104 ページ ２０１４年１月２４日　金曜日　午前１０時４分

105
1-4. Opening and closing the windows and moon roof
1
Before driving
RX350/270_EE
■The moon roof can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Operating the moon roof after turning the engine off
The moon roof can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is turned to ACCESSORY mode or turned off. It
cannot, however, be operated once either front door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while the moon roof is
closing or tilting down, travel is stopped and the moon roof opens slightly.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.
■Door lock linked moon roof operation
●The moon roof can be opened and closed using the mechanical key.
(→P. 5 9 1 )
●The moon roof can be opened and closed using the wireless remote control if
customized at any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional. * (→P. 5 3 )
*: This function cannot be customized unless power window operation using the
wireless remote control is enabled.
RX350_270_EE_48D77E.book 105 ページ ２０１４年１月２４日　金曜日　午前１０時４分

106
1-4. Opening and closing the windows and moon roof
RX350/270_EE

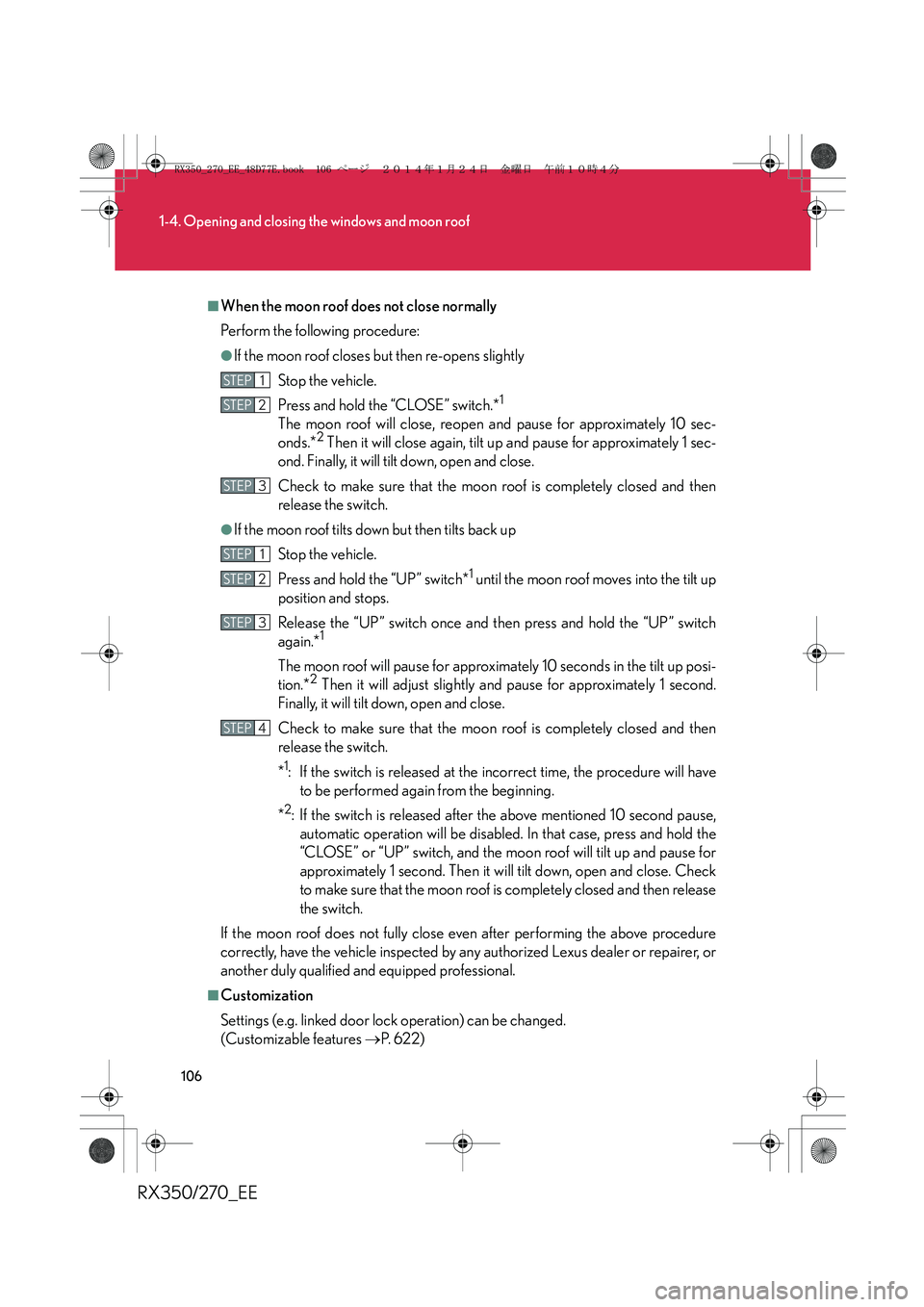

■When the moon roof does not close normally
Perform the following procedure:
●If the moon roof closes but then re-opens slightly
Stop the vehicle.
Press and hold the “CLOSE” switch.*
1
The moon roof will close, reopen and pause for approximately 10 sec-
onds.*2 Then it will close again, tilt up and pause for approximately 1 sec-
ond. Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then
release the switch.
●If the moon roof tilts down but then tilts back up
Stop the vehicle.
Press and hold the “UP” switch*
1 until the moon roof moves into the tilt up
position and stops.
Release the “UP” switch once and then press and hold the “UP” switch
again.*
1
The moon roof will pause for approximately 10 seconds in the tilt up posi-
tion.*2 Then it will adjust slightly and pause for approximately 1 second.
Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then
release the switch.
*
1: If the switch is released at the incorrect time, the procedure will have
to be performed again from the beginning.
*
2: If the switch is released after the above mentioned 10 second pause,
automatic operation will be disabled. In that case, press and hold the
“CLOSE” or “UP” switch, and the moon roof will tilt up and pause for
approximately 1 second. Then it will tilt down, open and close. Check
to make sure that the moon roof is completely closed and then release
the switch.
If the moon roof does not fully close even after performing the above procedure
correctly, have the vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 6 2 2 )
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3
STEP4
RX350_270_EE_48D77E.book 106 ページ ２０１４年１月２４日　金曜日　午前１０時４分

107
1-4. Opening and closing the windows and moon roof
1
Before driving
RX350/270_EE

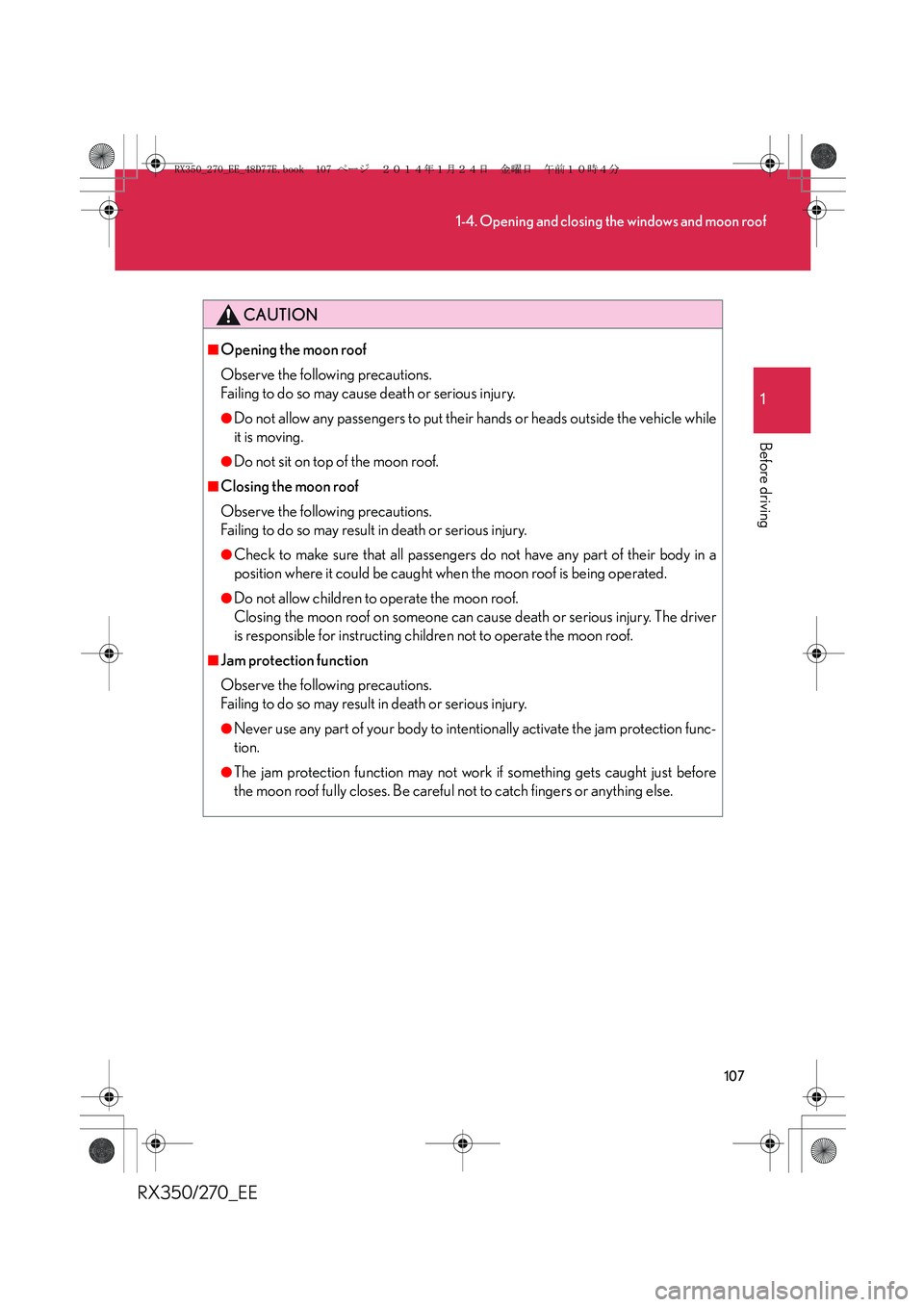

CAUTION
■Opening the moon roof
Observe the following precautions.
Failing to do so may cause death or serious injury.
●Do not allow any passengers to put their hands or heads outside the vehicle while
it is moving.
●Do not sit on top of the moon roof.
■Closing the moon roof
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when the moon roof is being operated.
●Do not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury. The driver
is responsible for instructing children not to operate the moon roof.
■Jam protection function
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the moon roof fully closes. Be careful not to catch fingers or anything else.
RX350_270_EE_48D77E.book 107 ページ ２０１４年１月２４日　金曜日　午前１０時４分

108
1-4. Opening and closing the windows and moon roof
RX350/270_EE

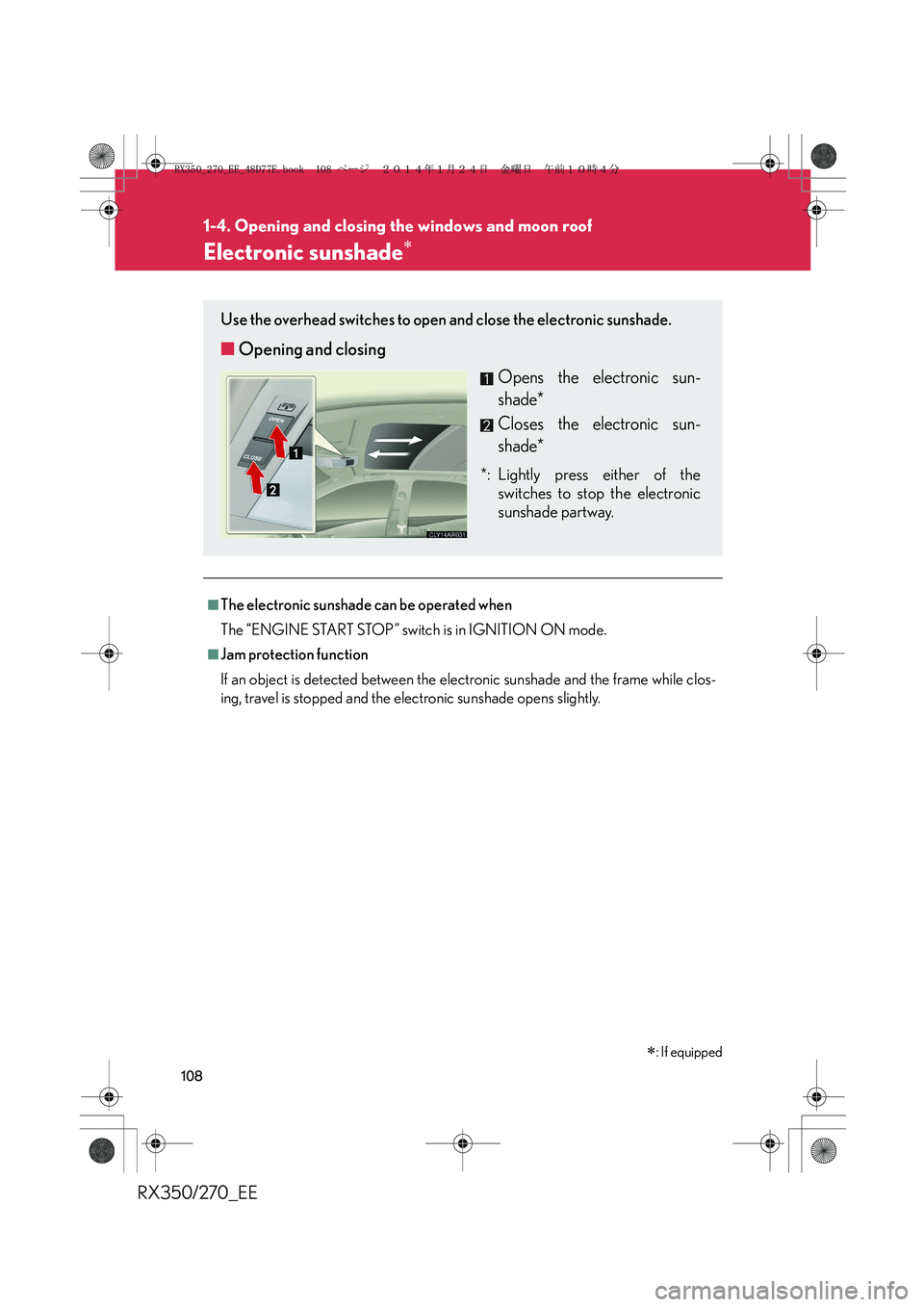

Electronic sunshade∗
■The electronic sunshade can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Jam protection function
If an object is detected between the electronic sunshade and the frame while clos-
ing, travel is stopped and the electronic sunshade opens slightly.
Use the overhead switches to open and close the electronic sunshade.
■Opening and closing
Opens the electronic sun-
shade*
Closes the electronic sun-
shade*
*: Lightly press either of the
switches to stop the electronic
sunshade partway.
∗: If equipped
RX350_270_EE_48D77E.book 108 ページ ２０１４年１月２４日　金曜日　午前１０時４分

109
1-4. Opening and closing the windows and moon roof
1
Before driving
RX350/270_EE

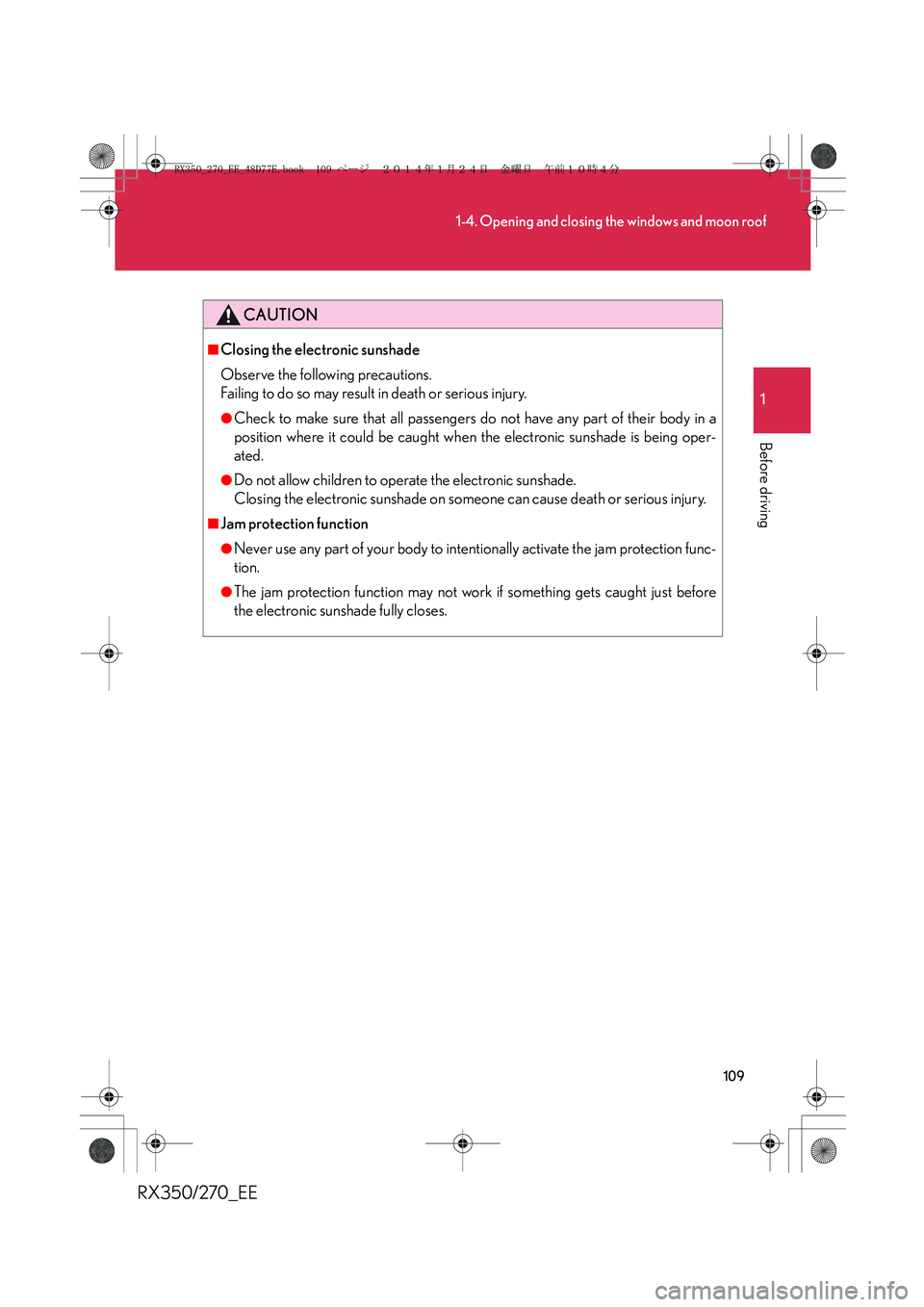

CAUTION
■Closing the electronic sunshade
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when the electronic sunshade is being oper-
ated.
●Do not allow children to operate the electronic sunshade.
Closing the electronic sunshade on someone can cause death or serious injury.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the electronic sunshade fully closes.
RX350_270_EE_48D77E.book 109 ページ ２０１４年１月２４日　金曜日　午前１０時４分

110
RX350/270_EE

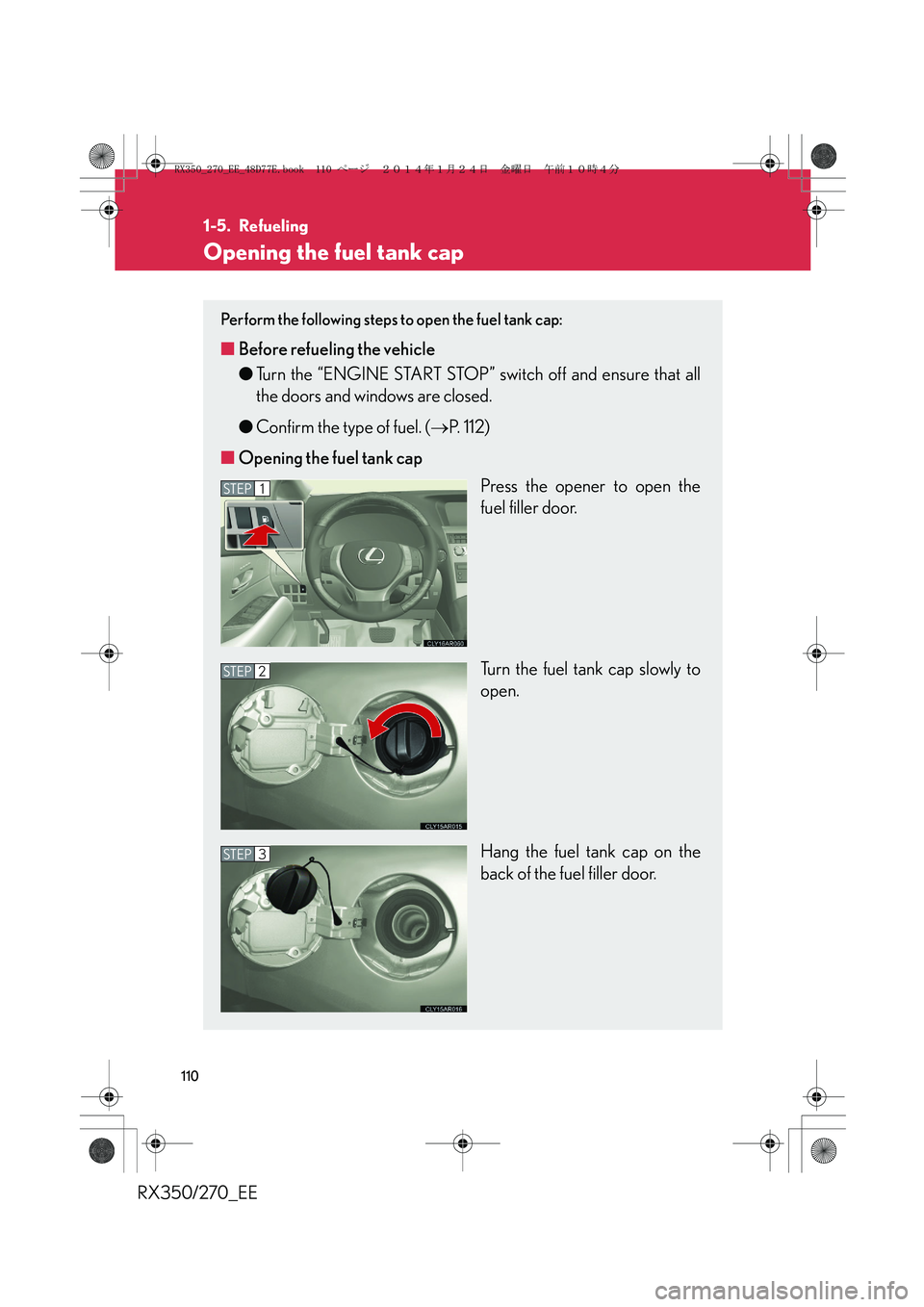

1-5. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap:
■Before refueling the vehicle
●Turn the “ENGINE START STOP” switch off and ensure that all
the doors and windows are closed.
●Confirm the type of fuel. (→P. 112)
■Opening the fuel tank cap
Press the opener to open the
fuel filler door.
Turn the fuel tank cap slowly to
open.
Hang the fuel tank cap on the
back of the fuel filler door.
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 110 ページ ２０１４年１月２４日　金曜日　午前１０時４分
