LEXUS RX270 2014 Owners Manual

91
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX350/270_EE

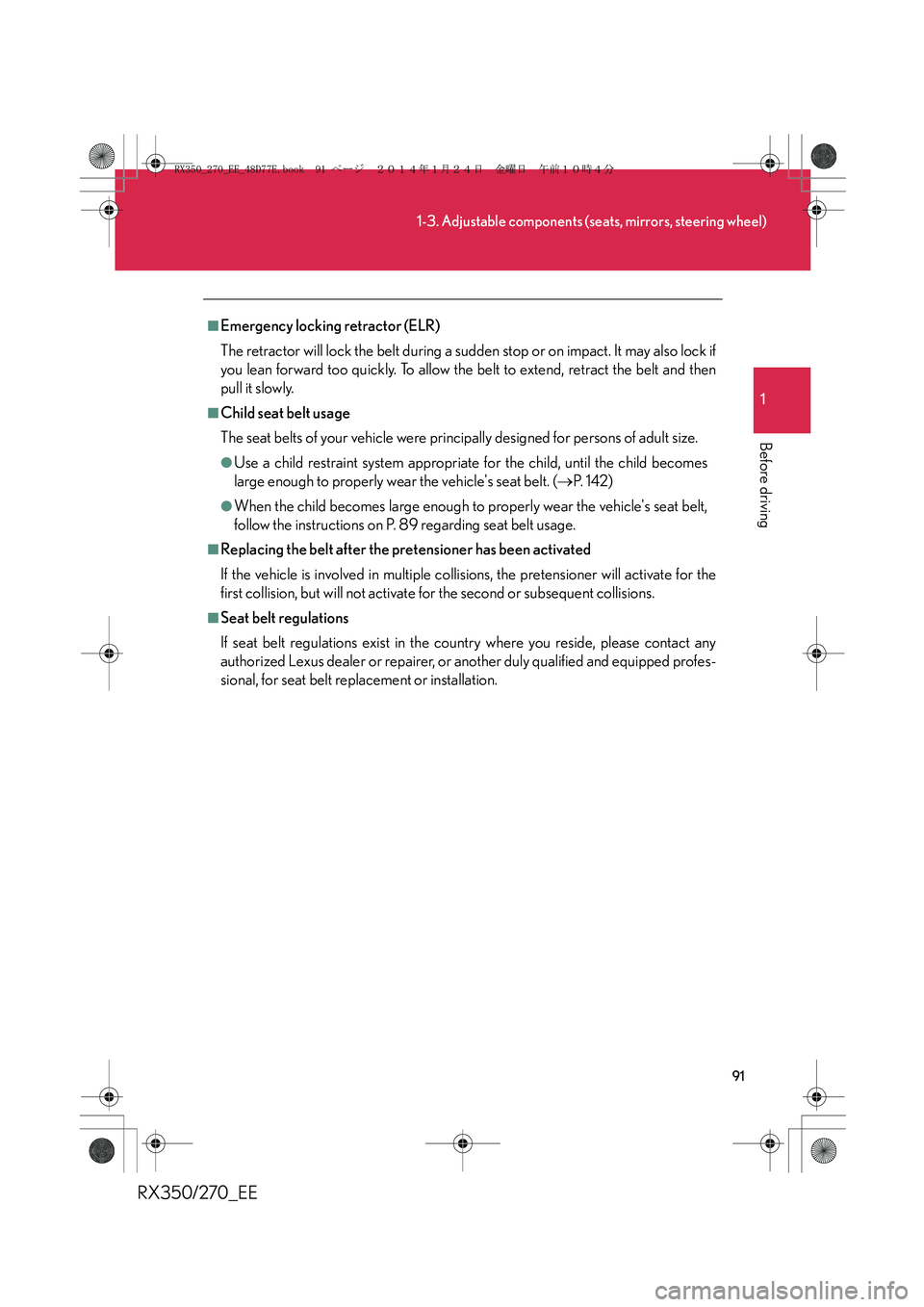

■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if
you lean forward too quickly. To allow the belt to extend, retract the belt and then
pull it slowly.
■Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size.
●Use a child restraint system appropriate for the child, until the child becomes
large enough to properly wear the vehicle's seat belt. (→P. 1 4 2 )
●When the child becomes large enough to properly wear the vehicle's seat belt,
follow the instructions on P. 89 regarding seat belt usage.
■Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the second or subsequent collisions.
■Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped profes-
sional, for seat belt replacement or installation.
RX350_270_EE_48D77E.book 91 ページ ２０１４年１月２４日　金曜日　午前１０時４分

92
1-3. Adjustable components (seats, mirrors, steering wheel)
RX350/270_EE

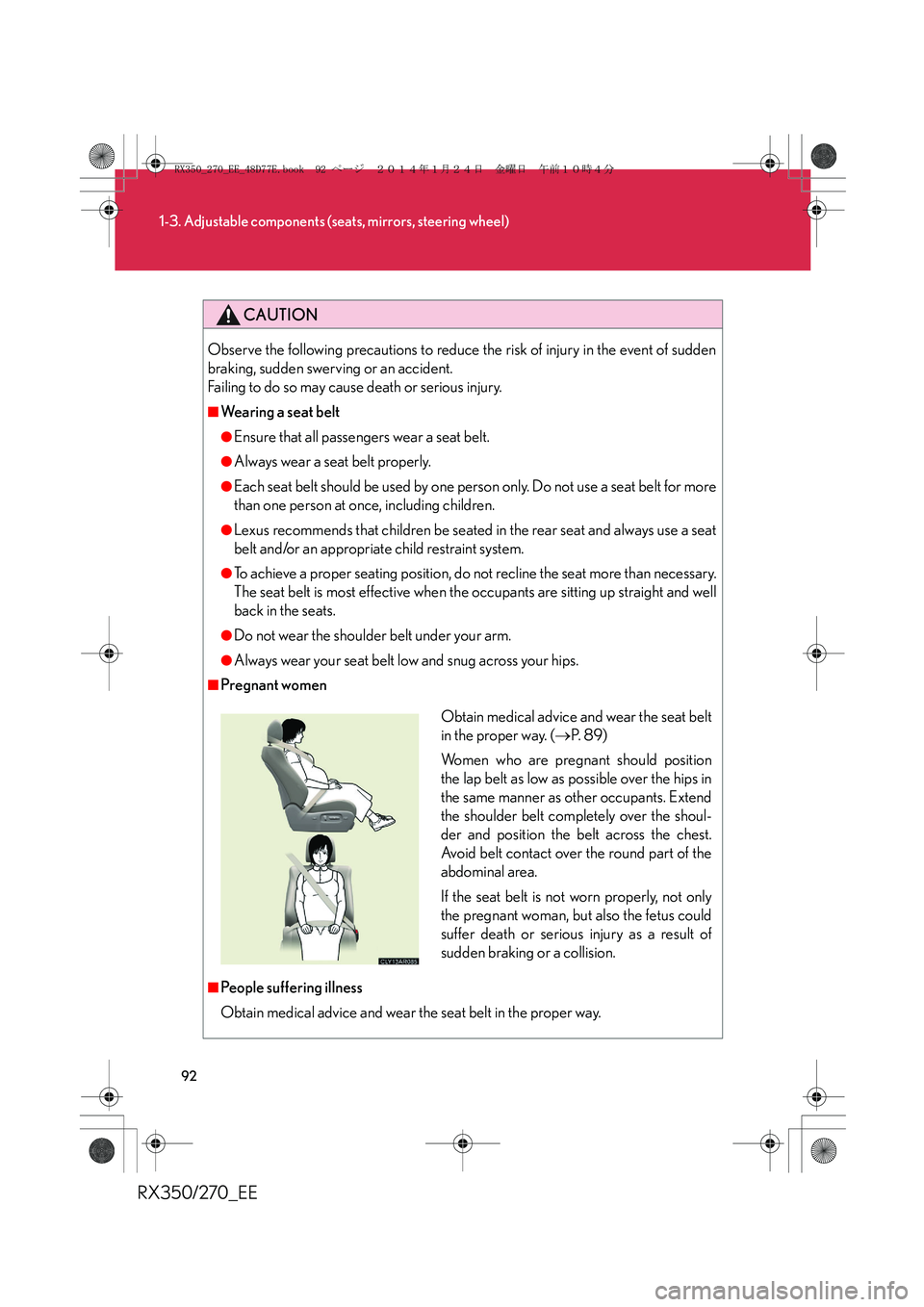

CAUTION
Observe the following precautions to reduce the risk of injury in the event of sudden
braking, sudden swerving or an accident.
Failing to do so may cause death or serious injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at once, including children.
●Lexus recommends that children be seated in the rear seat and always use a seat
belt and/or an appropriate child restraint system.
●To achieve a proper seating position, do not recline the seat more than necessary.
The seat belt is most effective when the occupants are sitting up straight and well
back in the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
■Pregnant women
■People suffering illness
Obtain medical advice and wear the seat belt in the proper way.
Obtain medical advice and wear the seat belt
in the proper way. (→P. 8 9 )
Women who are pregnant should position
the lap belt as low as possible over the hips in
the same manner as other occupants. Extend
the shoulder belt completely over the shoul-
der and position the belt across the chest.
Avoid belt contact over the round part of the
abdominal area.
If the seat belt is not worn properly, not only
the pregnant woman, but also the fetus could
suffer death or serious injury as a result of
sudden braking or a collision.
RX350_270_EE_48D77E.book 92 ページ ２０１４年１月２４日　金曜日　午前１０時４分

93
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX350/270_EE

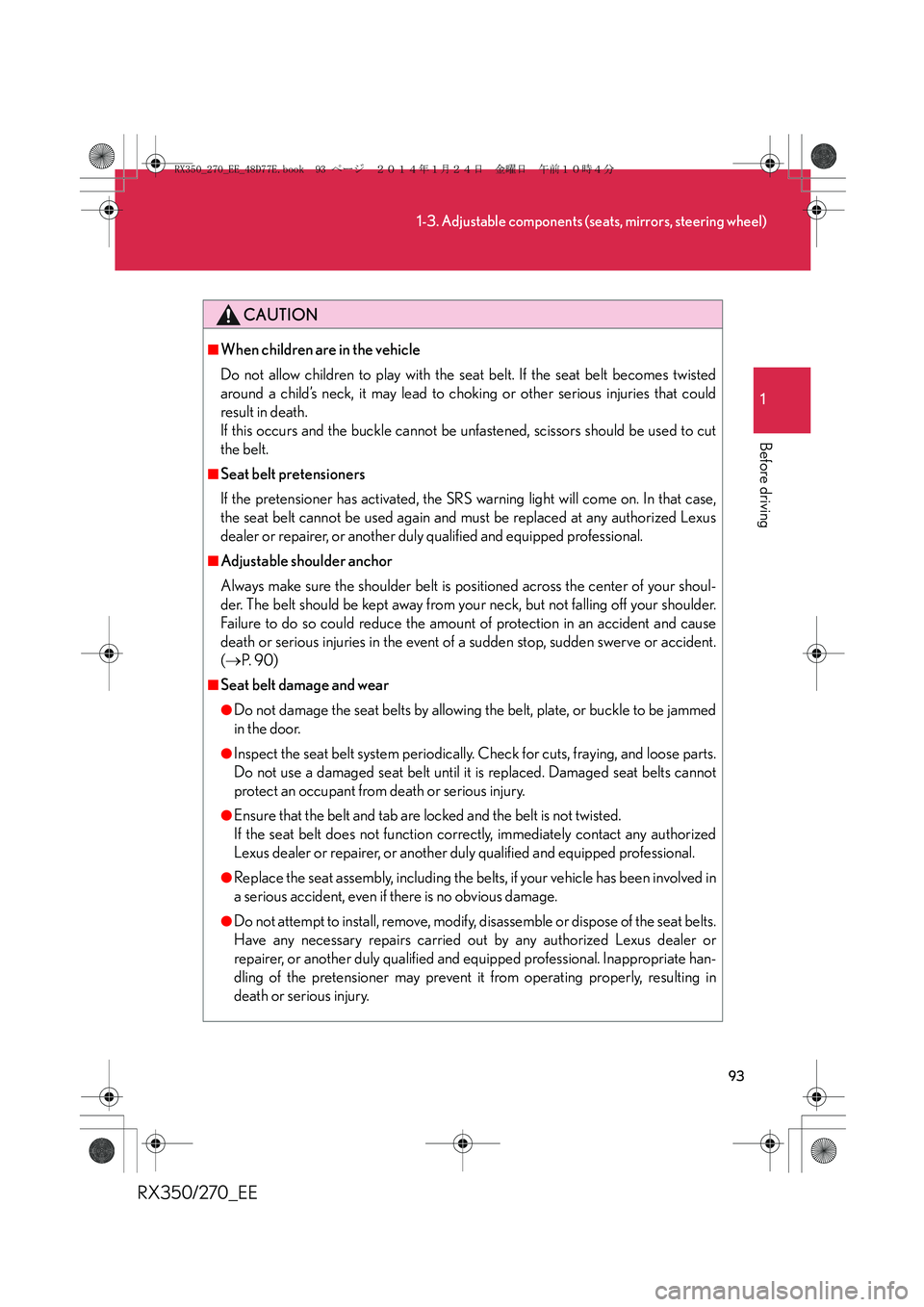

CAUTION
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut
the belt.
■Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that case,
the seat belt cannot be used again and must be replaced at any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
■Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoul-
der. The belt should be kept away from your neck, but not falling off your shoulder.
Failure to do so could reduce the amount of protection in an accident and cause
death or serious injuries in the event of a sudden stop, sudden swerve or accident.
(→P. 9 0 )
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed
in the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.
Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot
protect an occupant from death or serious injury.
●Ensure that the belt and tab are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
●Replace the seat assembly, including the belts, if your vehicle has been involved in
a serious accident, even if there is no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional. Inappropriate han-
dling of the pretensioner may prevent it from operating properly, resulting in
death or serious injury.
RX350_270_EE_48D77E.book 93 ページ ２０１４年１月２４日　金曜日　午前１０時４分

94
1-3. Adjustable components (seats, mirrors, steering wheel)
RX350/270_EE

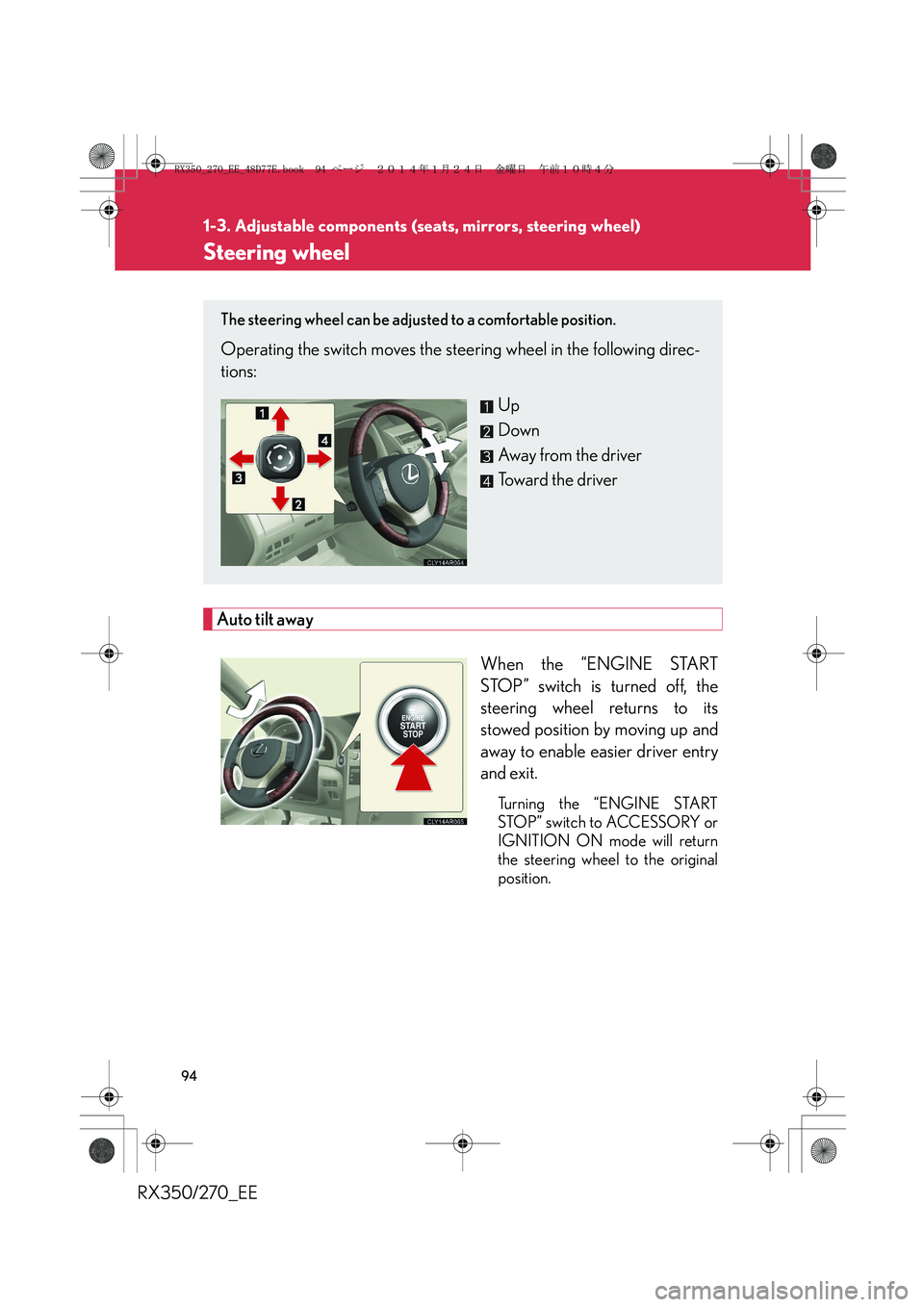

Steering wheel
Auto tilt away
When the “ENGINE START
STOP” switch is turned off, the
steering wheel returns to its
stowed position by moving up and
away to enable easier driver entry
and exit.
Tu r n i n g t h e “ E N G I N E S T A R T
STOP” switch to ACCESSORY or
IGNITION ON mode will return
the steering wheel to the original
position.
The steering wheel can be adjusted to a comfortable position.
Operating the switch moves the steering wheel in the following direc-
tions:
Up
Down
Away from the driver
Toward the driver
RX350_270_EE_48D77E.book 94 ページ ２０１４年１月２４日　金曜日　午前１０時４分

95
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX350/270_EE

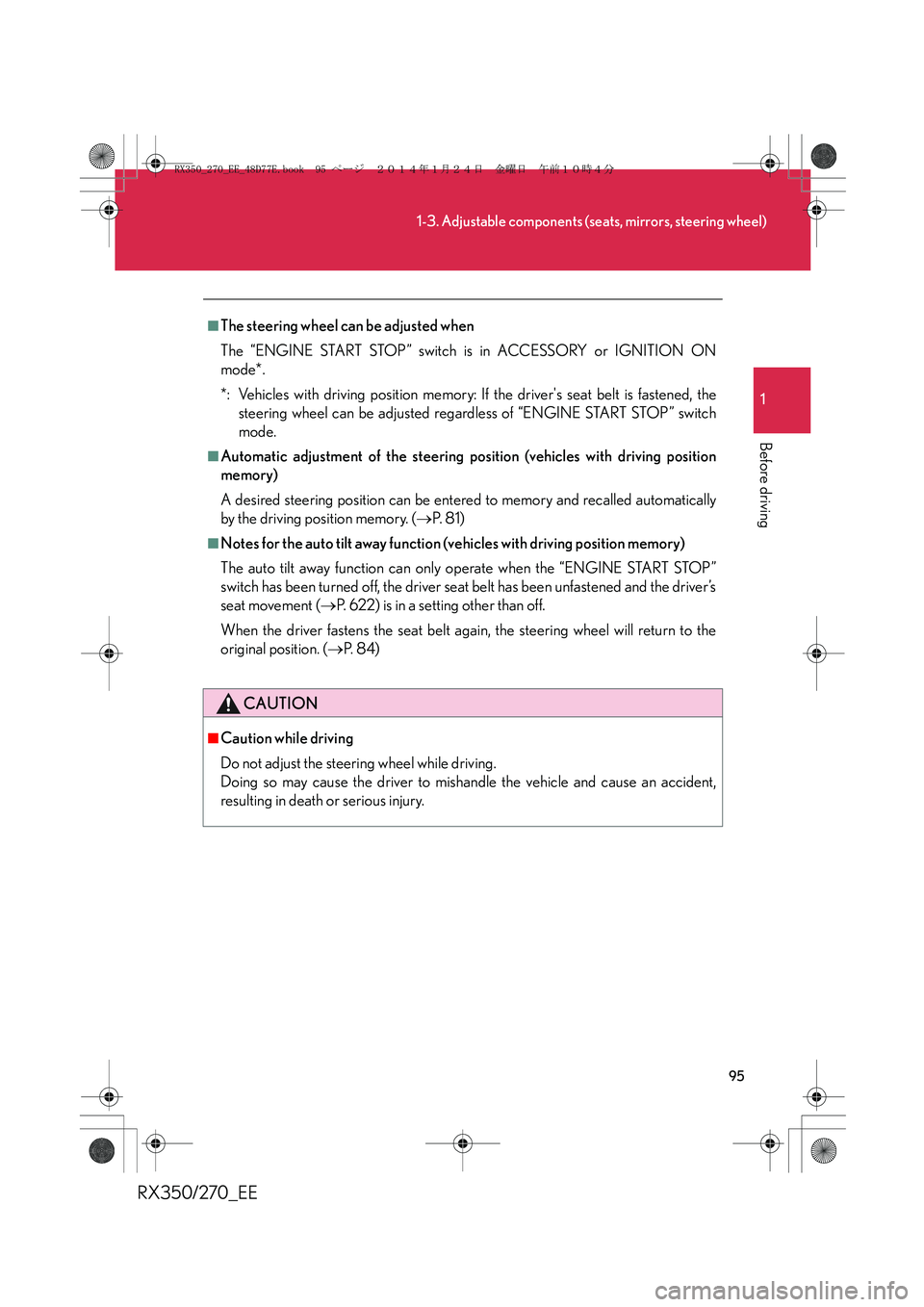

■The steering wheel can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode*.
*: Vehicles with driving position memory: If the driver's seat belt is fastened, the
steering wheel can be adjusted regardless of “ENGINE START STOP” switch
mode.
■Automatic adjustment of the steering position (vehicles with driving position
memory)
A desired steering position can be entered to memory and recalled automatically
by the driving position memory. (→P. 8 1 )
■Notes for the auto tilt away function (vehicles with driving position memory)
The auto tilt away function can only operate when the “ENGINE START STOP”
switch has been turned off, the driver seat belt has been unfastened and the driver’s
seat movement (→P. 622) is in a setting other than off.
When the driver fastens the seat belt again, the steering wheel will return to the
original position. (→P. 8 4 )
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident,
resulting in death or serious injury.
RX350_270_EE_48D77E.book 95 ページ ２０１４年１月２４日　金曜日　午前１０時４分

96
1-3. Adjustable components (seats, mirrors, steering wheel)
RX350/270_EE

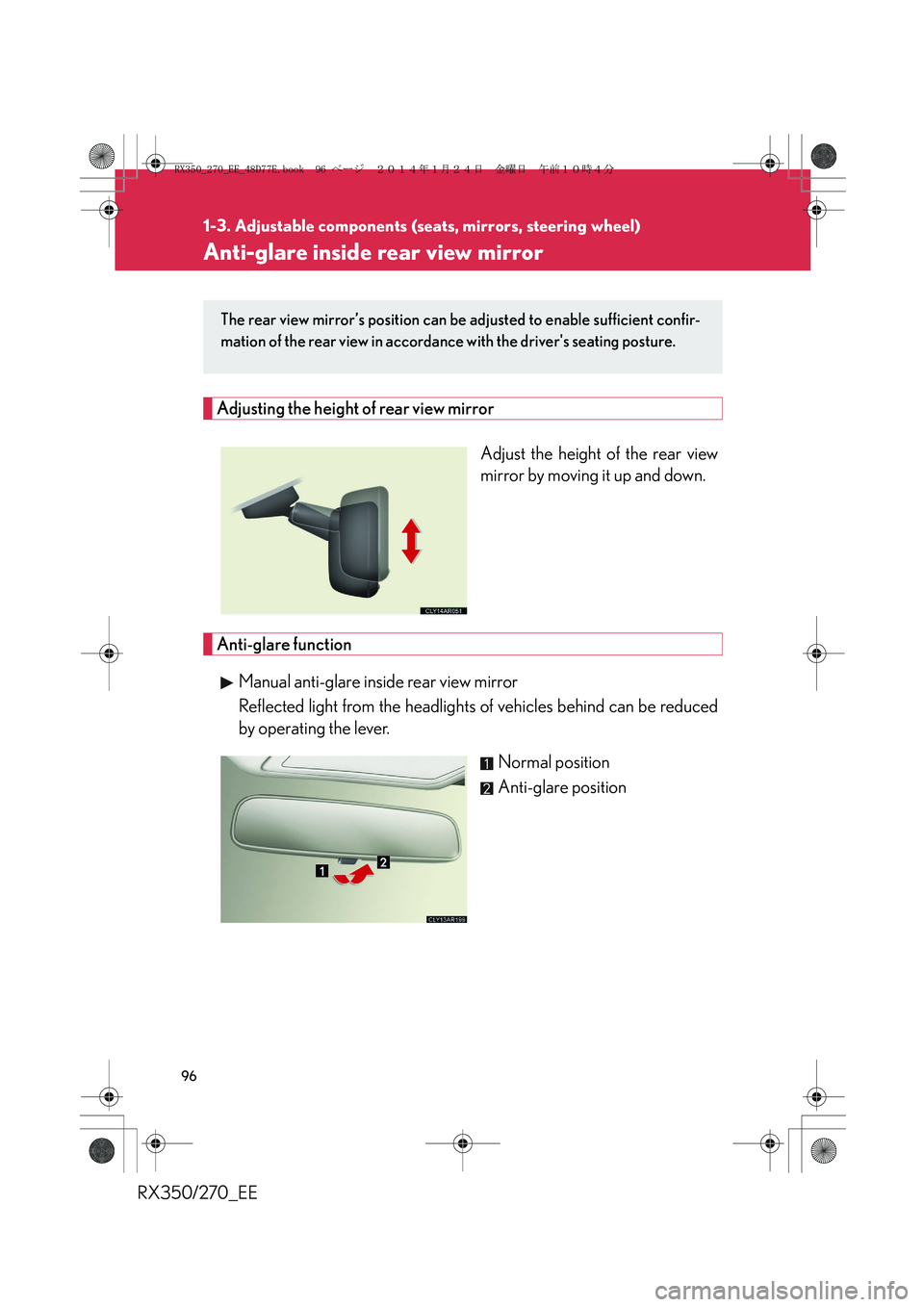

Anti-glare inside rear view mirror
Adjusting the height of rear view mirror
Adjust the height of the rear view
mirror by moving it up and down.
Anti-glare function
Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable sufficient confir-
mation of the rear view in accordance with the driver's seating posture.
RX350_270_EE_48D77E.book 96 ページ ２０１４年１月２４日　金曜日　午前１０時４分

97
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX350/270_EEAuto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
ON/OFF
When the automatic anti-glare
function is in ON mode, the indica-
tor illuminates.
The function will set to ON mode
each time the “ENGINE START
STOP” switch is turned to IGNI-
TION ON mode.
Pressing the button turns the func-
tion to OFF mode. (The indicator
also turns off.)
Indicator
■To prevent sensor error (vehicles with auto anti-glare inside rear view mirror)
CAUTION
■Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident, resulting in
death or serious injury.
To ensure that the sensors operate properly,
do not touch or cover them.
RX350_270_EE_48D77E.book 97 ページ ２０１４年１月２４日　金曜日　午前１０時４分

98
1-3. Adjustable components (seats, mirrors, steering wheel)
RX350/270_EE

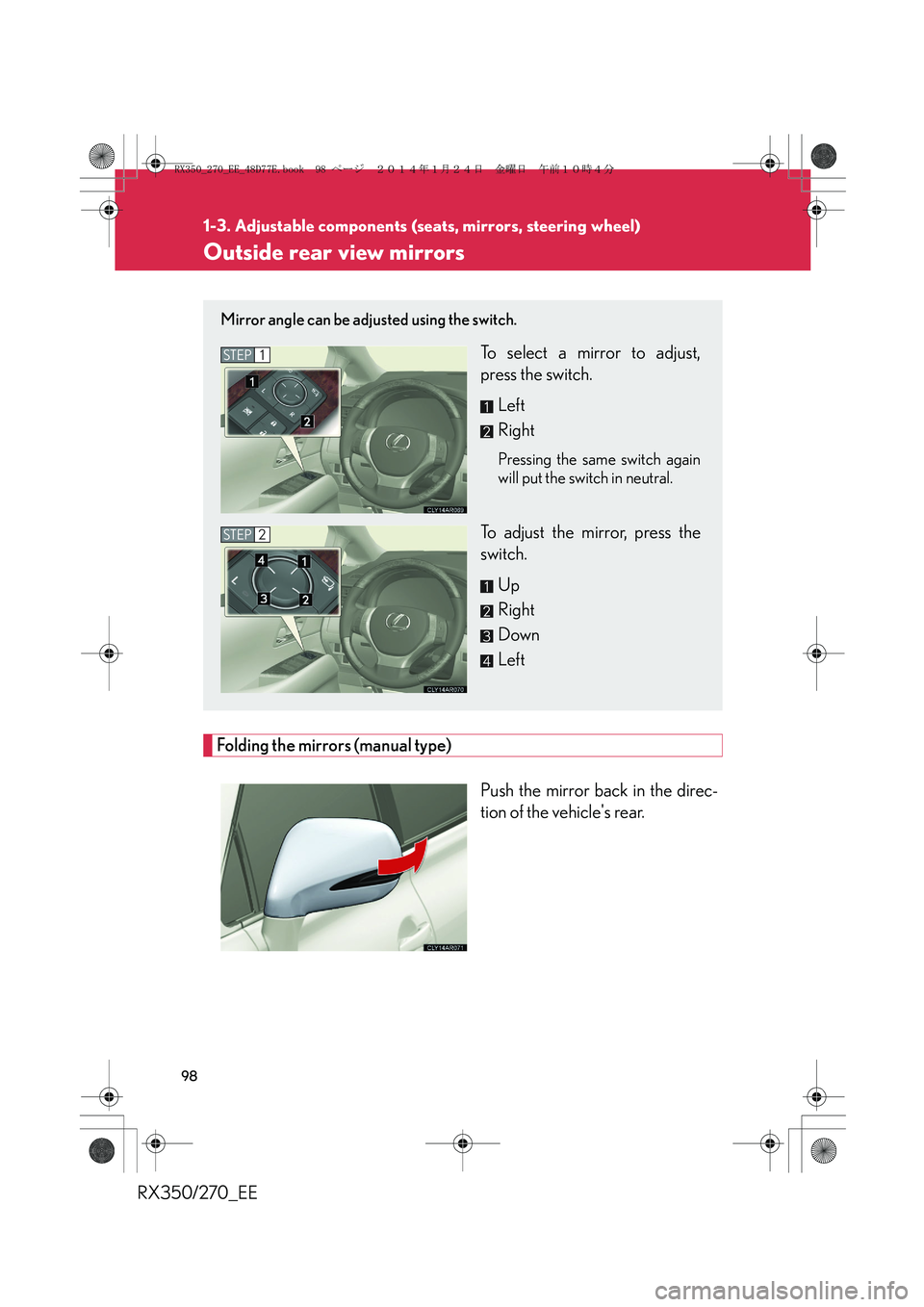

Outside rear view mirrors
Folding the mirrors (manual type)
Push the mirror back in the direc-
tion of the vehicle's rear.
Mirror angle can be adjusted using the switch.
To select a mirror to adjust,
press the switch.
Left
Right
Pressing the same switch again
will put the switch in neutral.
To adjust the mirror, press the
switch.
Up
Right
Down
Left
STEP1
STEP2
RX350_270_EE_48D77E.book 98 ページ ２０１４年１月２４日　金曜日　午前１０時４分

99
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX350/270_EE

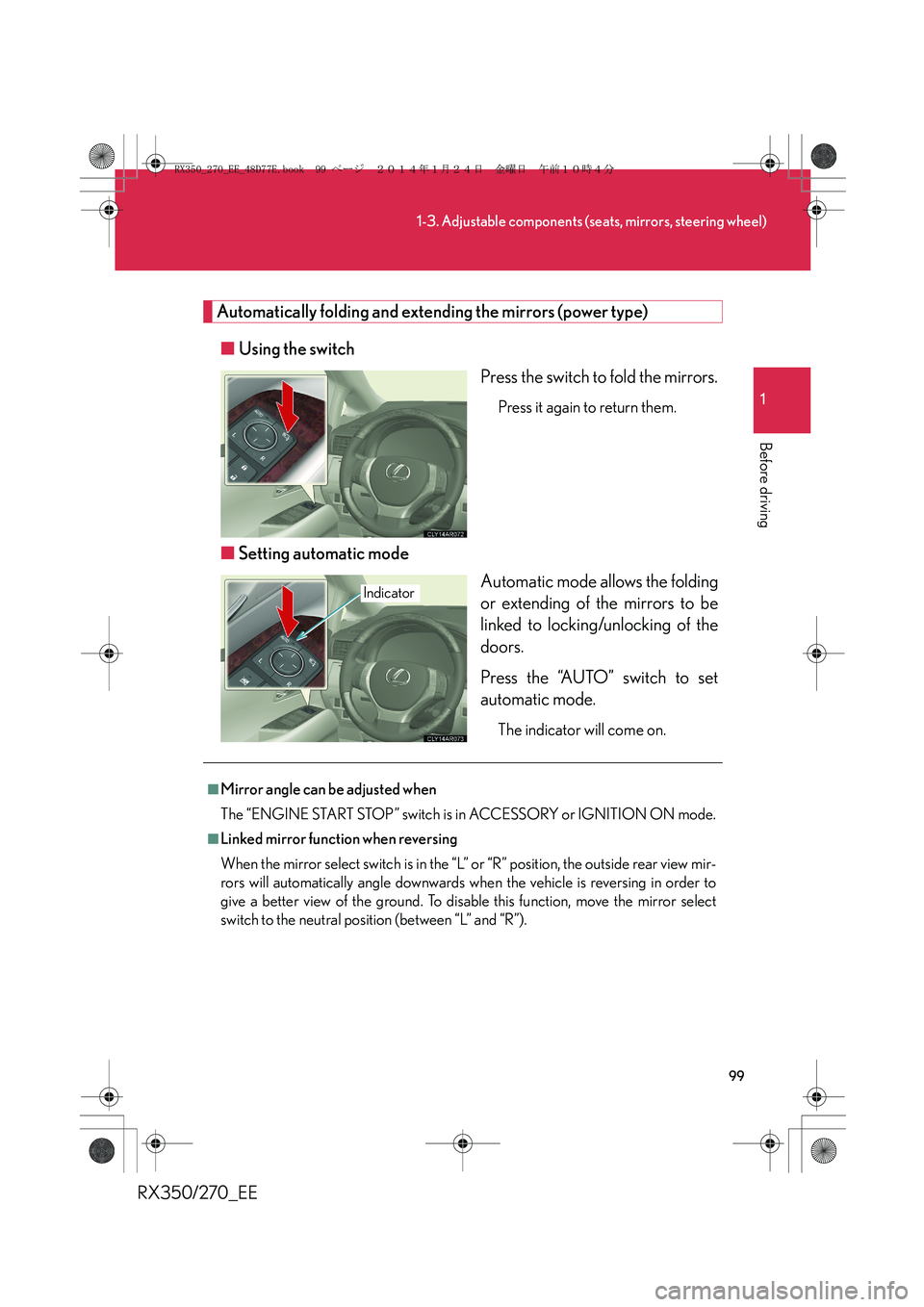

Automatically folding and extending the mirrors (power type)
■Using the switch
Press the switch to fold the mirrors.
Press it again to return them.
■Setting automatic mode
Automatic mode allows the folding
or extending of the mirrors to be
linked to locking/unlocking of the
doors.
Press the “AUTO” switch to set
automatic mode.
The indicator will come on.
Indicator
■Mirror angle can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
■Linked mirror function when reversing
When the mirror select switch is in the “L” or “R” position, the outside rear view mir-
rors will automatically angle downwards when the vehicle is reversing in order to
give a better view of the ground. To disable this function, move the mirror select
switch to the neutral position (between “L” and “R”).
RX350_270_EE_48D77E.book 99 ページ ２０１４年１月２４日　金曜日　午前１０時４分

100
1-3. Adjustable components (seats, mirrors, steering wheel)
RX350/270_EE

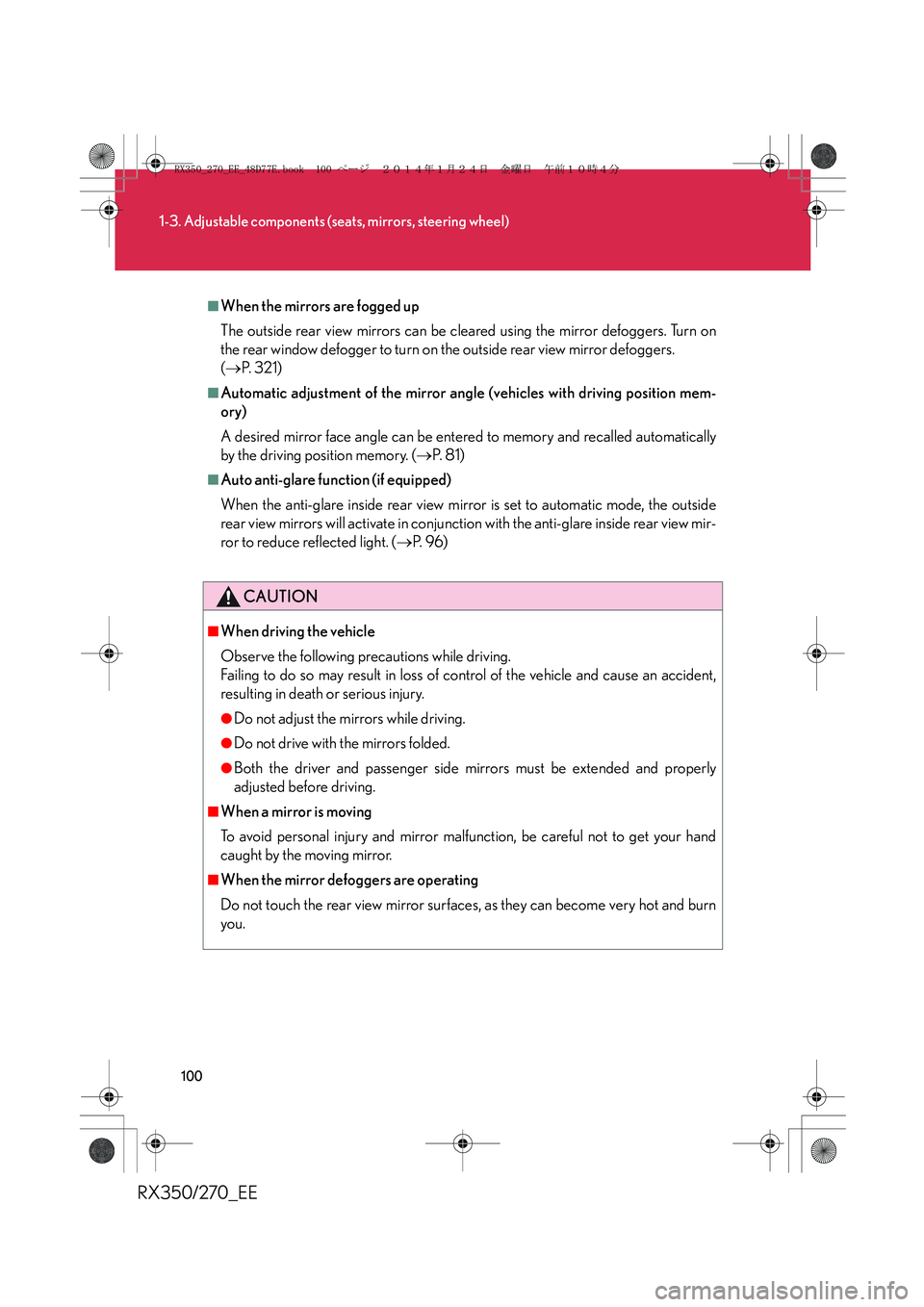

■When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn on
the rear window defogger to turn on the outside rear view mirror defoggers.
(→P. 3 2 1 )
■Automatic adjustment of the mirror angle (vehicles with driving position mem-
ory)
A desired mirror face angle can be entered to memory and recalled automatically
by the driving position memory. (→P. 8 1 )
■Auto anti-glare function (if equipped)
When the anti-glare inside rear view mirror is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light. (→P. 9 6 )
CAUTION
■When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an accident,
resulting in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded.
●Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your hand
caught by the moving mirror.
■When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and burn
you.
RX350_270_EE_48D77E.book 100 ページ ２０１４年１月２４日　金曜日　午前１０時４分
