LEXUS RX270 2014 Owners Manual

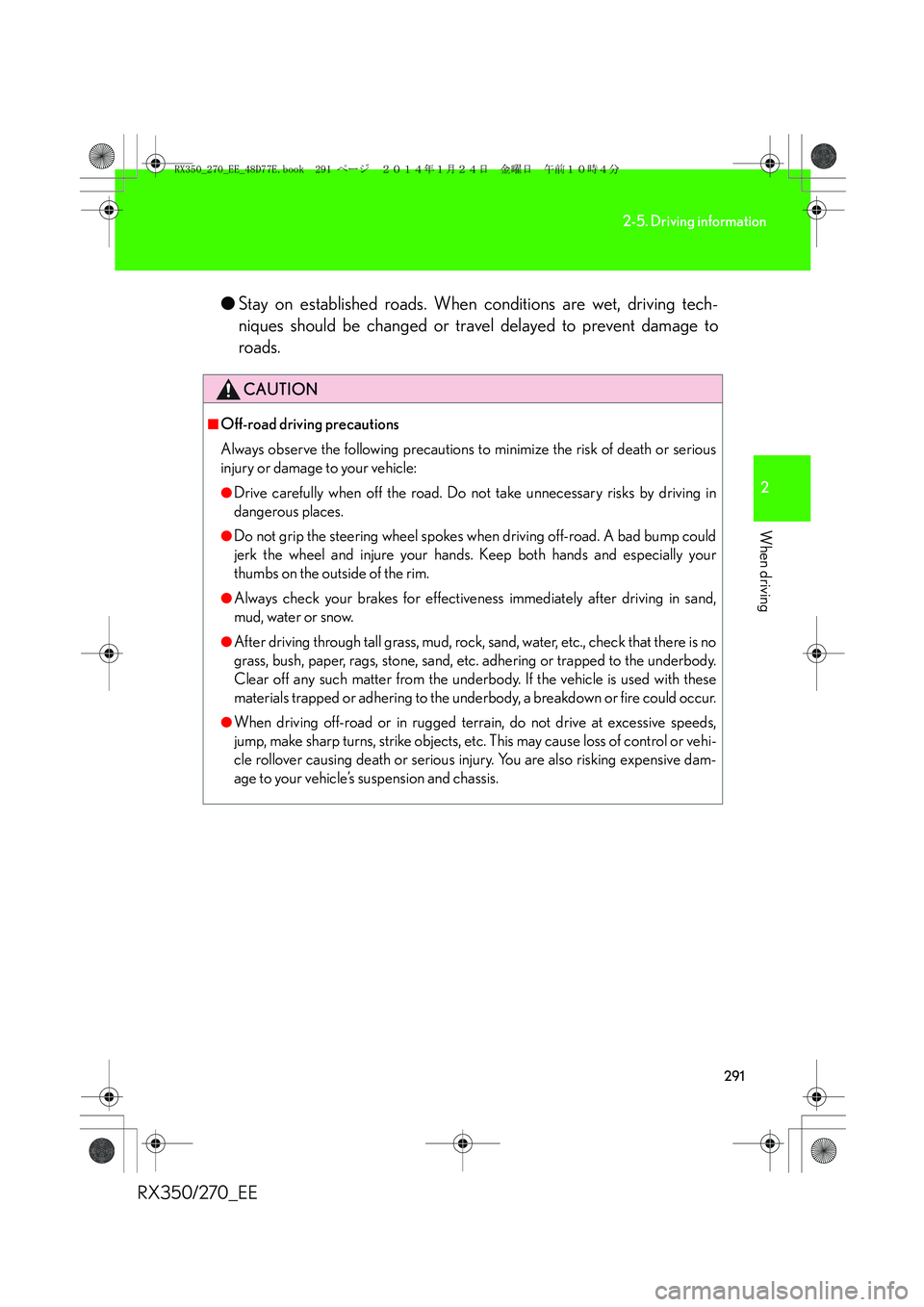

291
2-5. Driving information
2
When driving
RX350/270_EE●Stay on established roads. When conditions are wet, driving tech-
niques should be changed or travel delayed to prevent damage to
roads.
CAUTION
■Off-road driving precautions
Always observe the following precautions to minimize the risk of death or serious
injury or damage to your vehicle:
●Drive carefully when off the road. Do not take unnecessary risks by driving in
dangerous places.
●Do not grip the steering wheel spokes when driving off-road. A bad bump could
jerk the wheel and injure your hands. Keep both hands and especially your
thumbs on the outside of the rim.
●Always check your brakes for effectiveness immediately after driving in sand,
mud, water or snow.
●After driving through tall grass, mud, rock, sand, water, etc., check that there is no
grass, bush, paper, rags, stone, sand, etc. adhering or trapped to the underbody.
Clear off any such matter from the underbody. If the vehicle is used with these
materials trapped or adhering to the underbody, a breakdown or fire could occur.
●When driving off-road or in rugged terrain, do not drive at excessive speeds,
jump, make sharp turns, strike objects, etc. This may cause loss of control or vehi-
cle rollover causing death or serious injury. You are also risking expensive dam-
age to your vehicle’s suspension and chassis.
RX350_270_EE_48D77E.book 291 ページ ２０１４年１月２４日　金曜日　午前１０時４分

292
2-5. Driving information
RX350/270_EE
NOTICE
■To prevent water damage
Take all necessary safety measures to ensure that water damage to the engine or
other components does not occur.
●Water entering the engine air intake will cause severe engine damage.
●Water entering the automatic transmission will cause deterioration in shift quality,
locking up of your transmission accompanied by vibration, and ultimately dam-
age.
●Water can wash the grease from wheel bearings, causing rusting and premature
failure, and may also enter the differentials, transmission and transfer case (AWD
models), reducing the gear oil’s lubricating qualities.
■When you drive through water
If driving through water, such as when crossing shallow streams, first check the
depth of the water and the bottom of the stream for firmness. Drive slowly and avoid
deep water.
■Inspection after off-road driving
●Sand and mud that has accumulated around brake discs may affect braking effi-
ciency and may damage brake system components.
●Always perform a maintenance inspection after each day of off-road driving that
has taken you through rough terrain, sand, mud, or water.
RX350_270_EE_48D77E.book 292 ページ ２０１４年１月２４日　金曜日　午前１０時４分

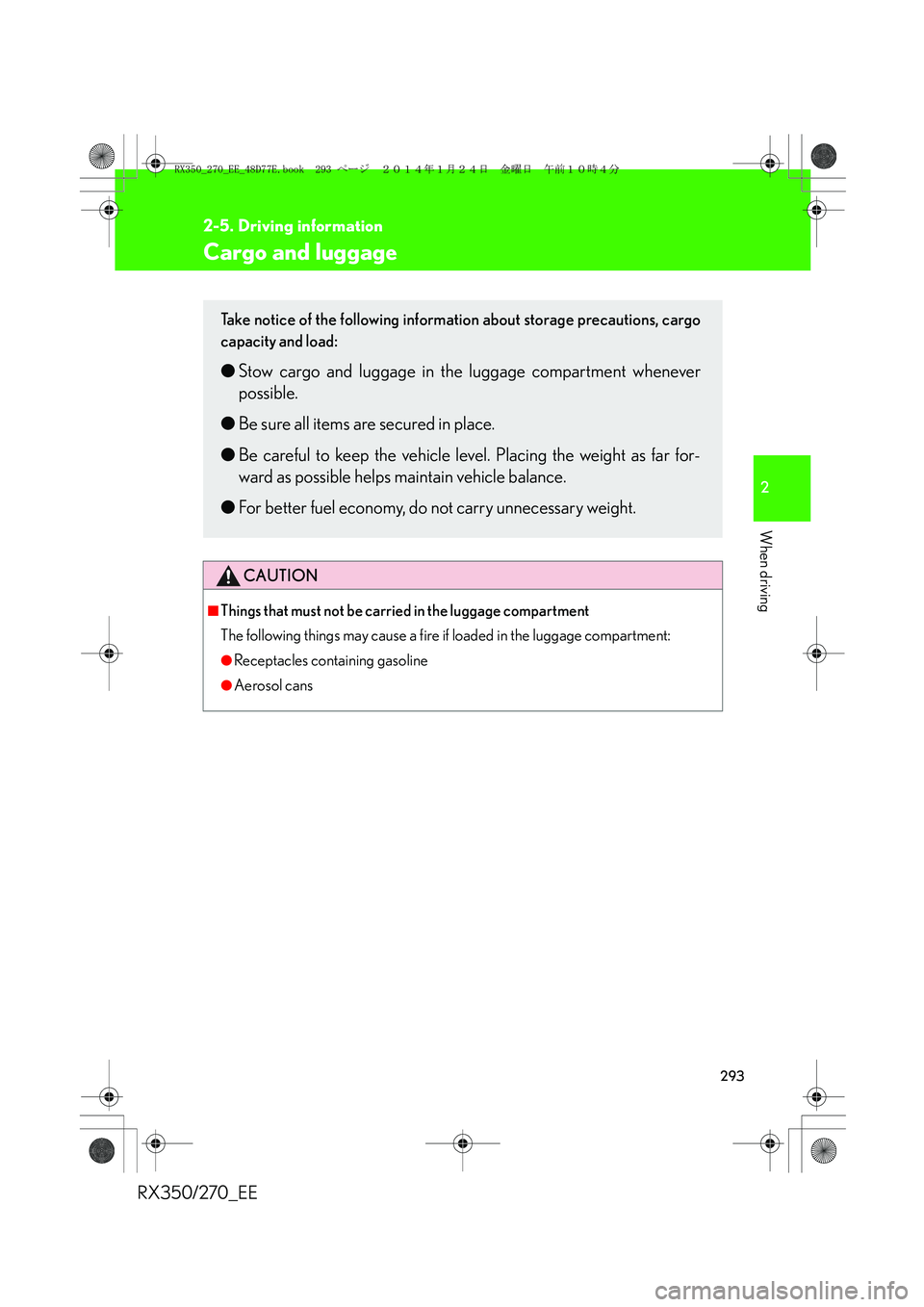

293
2-5. Driving information
2
When driving
RX350/270_EE
Cargo and luggage
CAUTION
■Things that must not be carried in the luggage compartment
The following things may cause a fire if loaded in the luggage compartment:
●Receptacles containing gasoline
●Aerosol cans
Take notice of the following information about storage precautions, cargo
capacity and load:
●Stow cargo and luggage in the luggage compartment whenever
possible.
●Be sure all items are secured in place.
●Be careful to keep the vehicle level. Placing the weight as far for-
ward as possible helps maintain vehicle balance.
●For better fuel economy, do not carry unnecessary weight.
RX350_270_EE_48D77E.book 293 ページ ２０１４年１月２４日　金曜日　午前１０時４分

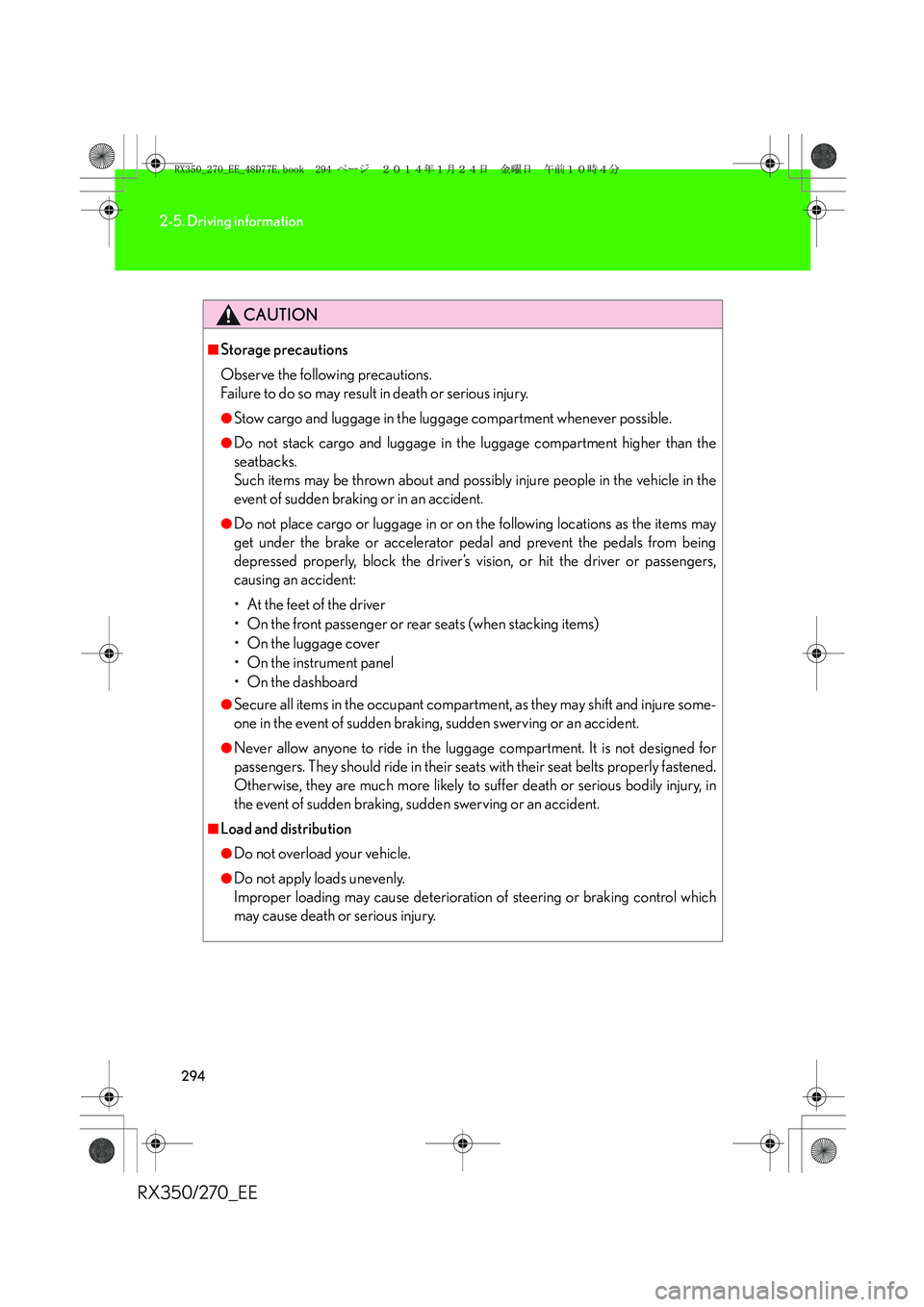

294
2-5. Driving information
RX350/270_EE
CAUTION
■Storage precautions
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Stow cargo and luggage in the luggage compartment whenever possible.
●Do not stack cargo and luggage in the luggage compartment higher than the
seatbacks.
Such items may be thrown about and possibly injure people in the vehicle in the
event of sudden braking or in an accident.
●Do not place cargo or luggage in or on the following locations as the items may
get under the brake or accelerator pedal and prevent the pedals from being
depressed properly, block the driver’s vision, or hit the driver or passengers,
causing an accident:
• At the feet of the driver
• On the front passenger or rear seats (when stacking items)
• On the luggage cover
• On the instrument panel
• On the dashboard
●Secure all items in the occupant compartment, as they may shift and injure some-
one in the event of sudden braking, sudden swerving or an accident.
●Never allow anyone to ride in the luggage compartment. It is not designed for
passengers. They should ride in their seats with their seat belts properly fastened.
Otherwise, they are much more likely to suffer death or serious bodily injury, in
the event of sudden braking, sudden swerving or an accident.
■Load and distribution
●Do not overload your vehicle.
●Do not apply loads unevenly.
Improper loading may cause deterioration of steering or braking control which
may cause death or serious injury.
RX350_270_EE_48D77E.book 294 ページ ２０１４年１月２４日　金曜日　午前１０時４分

295
2-5. Driving information
2
When driving
RX350/270_EE
CAUTION
■Roof luggage carrier precautions (if equipped)
To use the roof rails as a roof luggage carrier, you must fit the roof rails with two or
more genuine Lexus cross rails or their equivalent.
When you load cargo on the roof luggage carrier, observe the following:
●Before driving, make sure the cargo is securely fastened on the roof luggage car-
rier.
●Loading cargo on the roof luggage carrier will make the center of gravity of the
vehicle higher. Avoid high speeds, sudden starts, sharp turns, sudden braking or
abrupt maneuvers, otherwise the result may be a loss of control or vehicle roll-
over due to failure to operate this vehicle correctly and result in death or serious
injury.
●If driving for long distances, on rough roads, or at high speeds, stop the vehicle
now and then during the trip to make sure the cargo remains in its place.
●Do not exceed 75 kg (165 lb.) cargo weight on the roof luggage carrier.
NOTICE
■When loading cargo
Be careful not to scratch the surface of the moon roof.
●Place the cargo so that its weight is distrib-
uted evenly between the front and rear
axles.
●If loading long or wide cargo, never exceed
the vehicle’s overall length or width.
(→P. 606)
Roof rails
Cross rails
RX350_270_EE_48D77E.book 295 ページ ２０１４年１月２４日　金曜日　午前１０時４分

296
2-5. Driving information
RX350/270_EE
Winter driving tips
Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the vehicle in a manner appropriate to the
prevailing weather conditions.
■Pre-winter preparations
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
●Have a service technician inspect the condition of the battery.
●Have the vehicle fitted with four snow tires or purchase a set of
tire chains for the front tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
■Before driving the vehicle
Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is fro-
zen. Pour warm water over the frozen area to melt the ice. Wipe
away the water immediately to prevent it from freezing.
●To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
●Check for and remove any excess ice or snow that may have
accumulated on the exterior lights, vehicle's roof, chassis, around
the tires or on the brakes.
●Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
RX350_270_EE_48D77E.book 296 ページ ２０１４年１月２４日　金曜日　午前１０時４分

297
2-5. Driving information
2
When driving
RX350/270_EE
Selecting tire chains
Use the correct tire chain size when mounting the tire chains.
Chain size is regulated for each tire size.
Side chain
3 mm (0.12 in.) in diameter
25 mm (0.98 in.) in length
11 mm (0.43 in.) in width
Cross chain
4 mm (0.16 in.) in diameter
25 mm (0.98 in.) in length
14 mm (0.55 in.) in width
Regulations on the use of tire chains
Regulations regarding the use of tire chains vary depending on location
and type of road. Always check local regulations before installing chains.
■When driving the vehicle
Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to road
conditions.
■When parking the vehicle
Park the vehicle and move the shift lever to P without setting the
parking brake. The parking brake may freeze up, preventing it from
being released. If necessary, block the wheels to prevent inadvert-
ent sliding or creeping.
RX350_270_EE_48D77E.book 297 ページ ２０１４年１月２４日　金曜日　午前１０時４分

298
2-5. Driving information
RX350/270_EE
■Tire chain installation
Observe the following precautions when installing and removing chains:
●Install and remove tire chains in a safe location.
●Install tire chains on the front tires only. Do not install tire chains on the rear tires.
●Install tire chains on front tires as tightly as possible. Retighten chains after driv-
ing 0.5  1.0 km (1 /4  1 /2 mile).
●Install tire chains following the instructions provided with the tire chains.
CAUTION
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or serious
injury.
●Use tires of the specified size.
●Maintain the recommended level of air pressure.
●Do not drive at speeds in excess of the speed limit or the speed limit specified for
the snow tires being used.
●Use snow tires on all, not just some wheels.
■Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely, and may
cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains being used,
or 50 km/h (30 mph), whichever is lower.
●Avoid driving on bumpy road surfaces or over potholes.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting opera-
tions that cause sudden engine braking.
●Slow down sufficiently before entering a curve to ensure that vehicle control is
maintained.
RX350_270_EE_48D77E.book 298 ページ ２０１４年１月２４日　金曜日　午前１０時４分

299
2-5. Driving information
2
When driving
RX350/270_EE
NOTICE
■Repairing or replacing snow tires (vehicles with tire pressure warning system)
Request repairs or replacement of snow tires from Lexus dealers or legitimate tire
retailers.
This is because the removal and attachment of snow tires affects the operation of
the tire pressure warning valves and transmitters.
■Fitting tire chains (vehicles with tire pressure warning system)
The tire pressure warning valves and transmitters may not function correctly when
tire chains are fitted.
RX350_270_EE_48D77E.book 299 ページ ２０１４年１月２４日　金曜日　午前１０時４分

300
2-5. Driving information
RX350/270_EE
Trailer towing (RX350)
The strain of towing a trailer will have a negative impact on the running per-
formance, handling, fuel consumption and endurance of your vehicle. Use
the vehicle features in the correct manner and operate the vehicle with
care for safer driving and optimal comfort. Damage and/or malfunctions
that occur as a result of towing performed for commercial purposes are
not covered by the Lexus warranty.
Ask your local authorized Lexus dealer or repairer, or another duly quali-
fied and equipped professional for further details before towing, as there
are additional legal requirements in some countries.
■Weight limits
Check the allowable towing capacity, GVM (Gross Vehicle Mass),
MPAC (Maximum Permissible Axle Capacity), and permissible
drawbar load before towing. (→P. 606)
■Towing hitch/bracket
Lexus recommends the use of the Lexus hitch/bracket for your
vehicle. Other products of a suitable nature and comparable quality
may also be used.
■To prevent an accident
The handling of the vehicle will feel different when towing a trailer.
Beware of the 3 most common causes of towing-related accidents:
driver error, excessive speed, and overloading.
RX350_270_EE_48D77E.book 300 ページ ２０１４年１月２４日　金曜日　午前１０時４分
