LEXUS RX270 2014 Owners Manual

331
3-2. Using the audio system
3
Interior features
RX350/270_EE

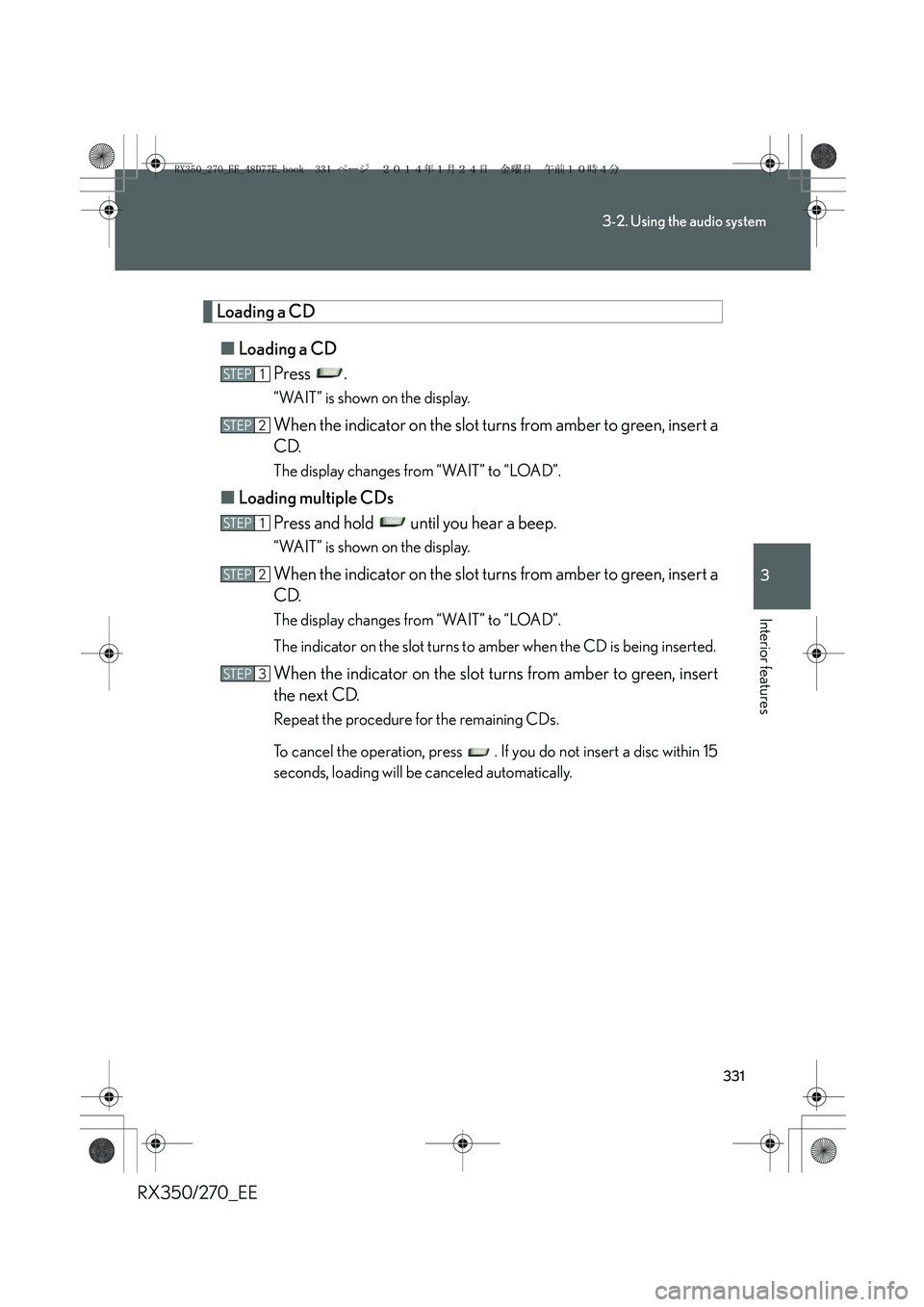

Loading a CD
■Loading a CD
Press .
“WAIT” is shown on the display.
When the indicator on the slot turns from amber to green, insert a
CD.
The display changes from “WAIT” to “LOAD”.
■Loading multiple CDs
Press and hold until you hear a beep.
“WAIT” is shown on the display.
When the indicator on the slot turns from amber to green, insert a
CD.
The display changes from “WAIT” to “LOAD”.
The indicator on the slot turns to amber when the CD is being inserted.
When the indicator on the slot turns from amber to green, insert
the next CD.
Repeat the procedure for the remaining CDs.
To cancel the operation, press . If you do not insert a disc within 15
seconds, loading will be canceled automatically.
STEP1
STEP2
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 331 ページ ２０１４年１月２４日　金曜日　午前１０時４分

332
3-2. Using the audio system
RX350/270_EE

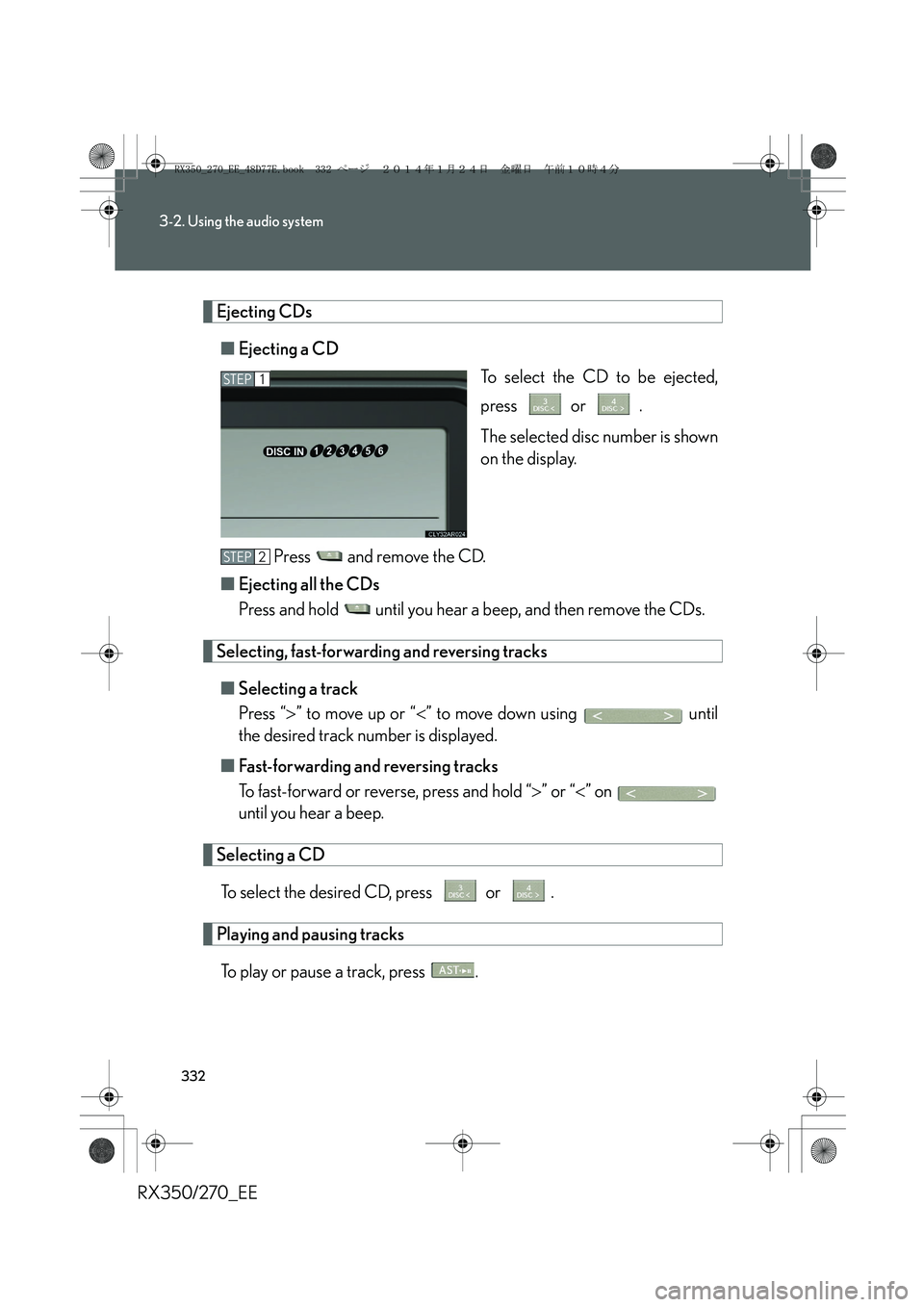

Ejecting CDs
■Ejecting a CD
To select the CD to be ejected,
press or .
The selected disc number is shown
on the display.
Press and remove the CD.
■Ejecting all the CDs
Press and hold until you hear a beep, and then remove the CDs.
Selecting, fast-forwarding and reversing tracks
■Selecting a track
Press “>” to move up or “<” to move down using until
the desired track number is displayed.
■Fast-forwarding and reversing tracks
To fast-forward or reverse, press and hold “>” or “<” on
until you hear a beep.
Selecting a CD
To select the desired CD, press or .
Playing and pausing tracks
To play or pause a track, press .
STEP1
STEP2
RX350_270_EE_48D77E.book 332 ページ ２０１４年１月２４日　金曜日　午前１０時４分

333
3-2. Using the audio system
3
Interior features
RX350/270_EE

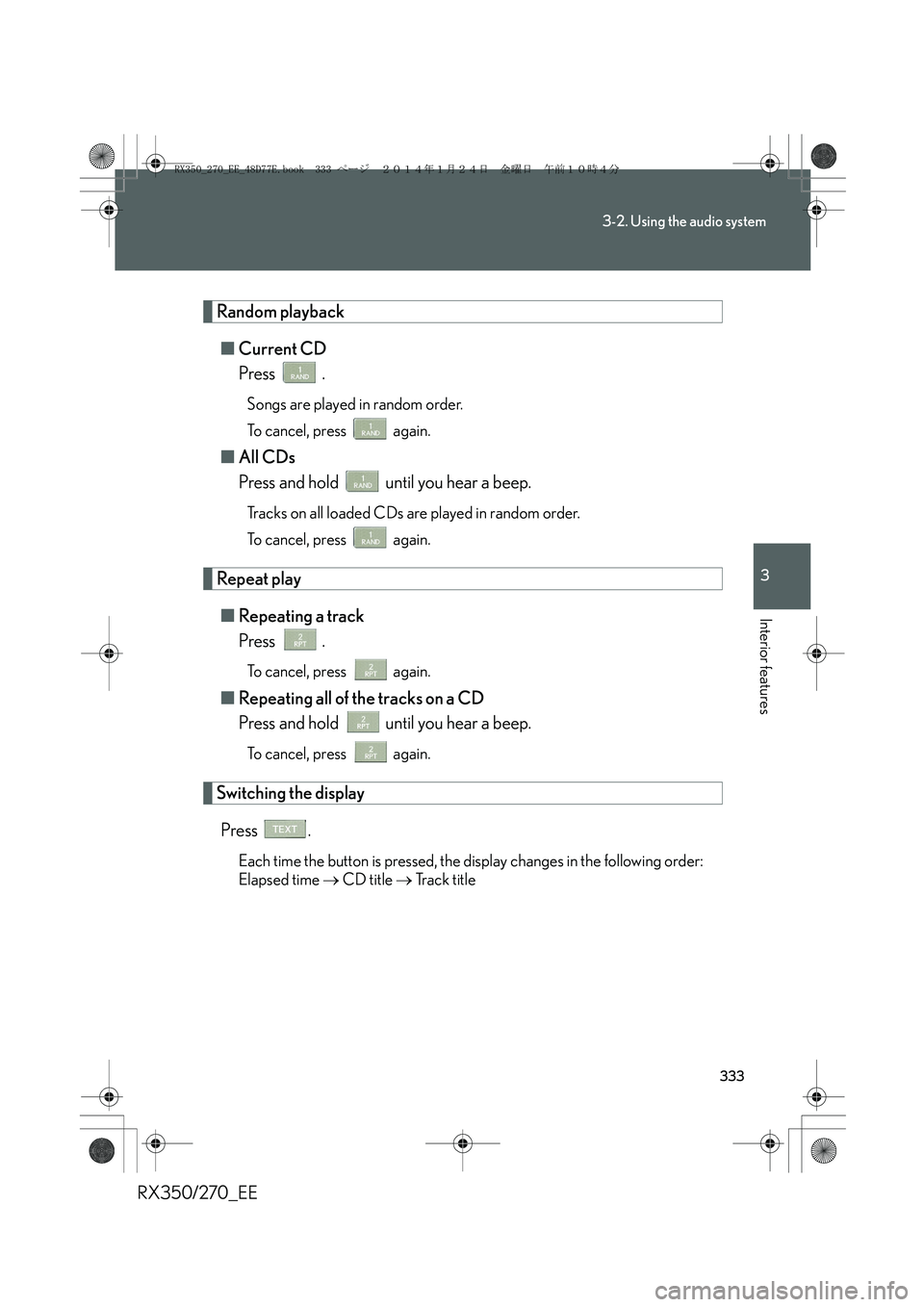

Random playback
■Current CD
Press .
Songs are played in random order.
To cancel, press again.
■All CDs
Press and hold until you hear a beep.
Tracks on all loaded CDs are played in random order.
To cancel, press again.
Repeat play
■Repeating a track
Press .
To cancel, press again.
■Repeating all of the tracks on a CD
Press and hold until you hear a beep.
To cancel, press again.
Switching the display
Press .
Each time the button is pressed, the display changes in the following order:
Elapsed time → CD title → Tr a c k t i t l e
RX350_270_EE_48D77E.book 333 ページ ２０１４年１月２４日　金曜日　午前１０時４分

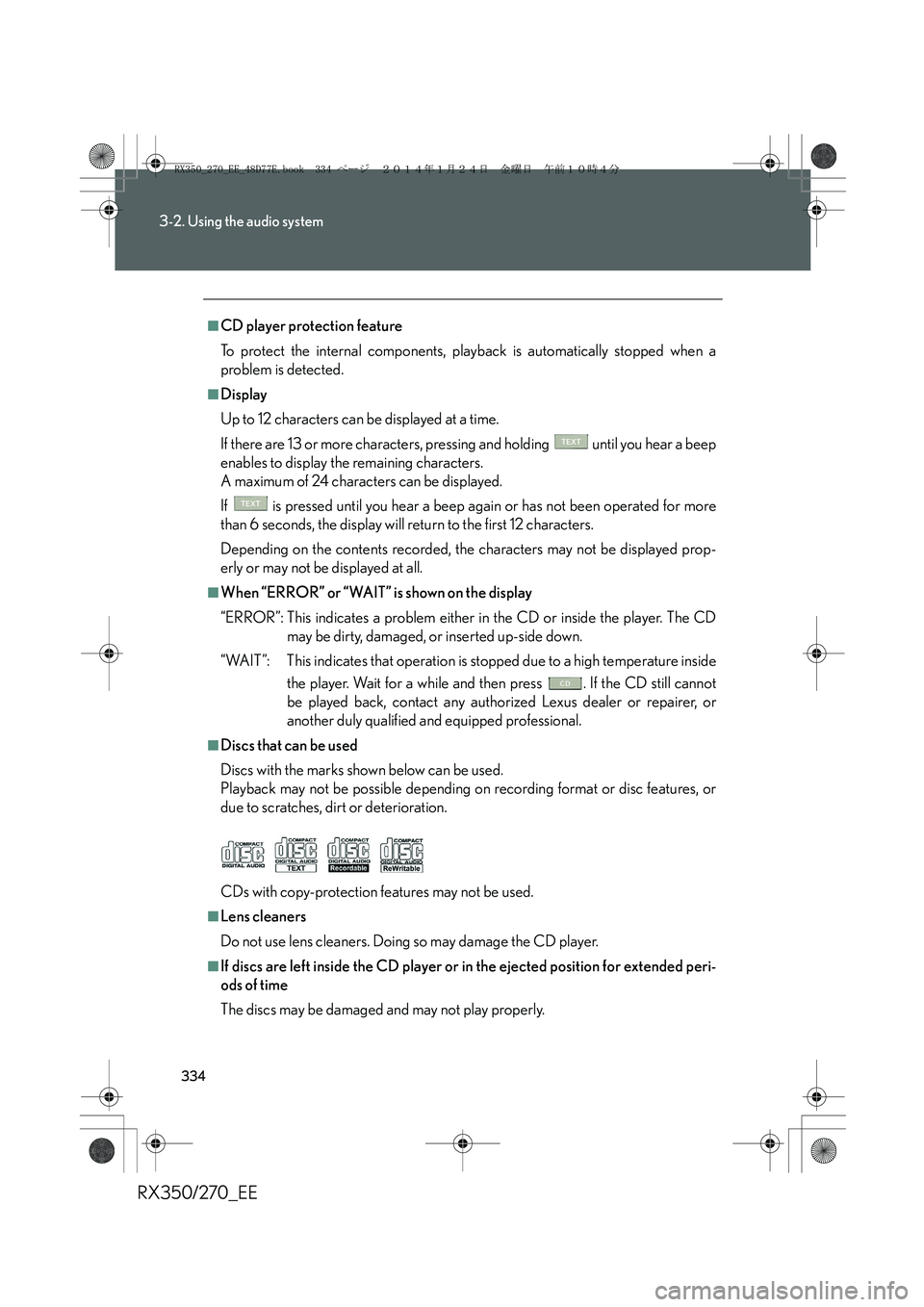

334
3-2. Using the audio system
RX350/270_EE
■CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected.
■Display
Up to 12 characters can be displayed at a time.
If there are 13 or more characters, pressing and holding until you hear a beep
enables to display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed until you hear a beep again or has not been operated for more
than 6 seconds, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed prop-
erly or may not be displayed at all.
■When “ERROR” or “WAIT” is shown on the display
“ERROR”: This indicates a problem either in the CD or inside the player. The CD
may be dirty, damaged, or inserted up-side down.
“WAIT”: This indicates that operation is stopped due to a high temperature inside
the player. Wait for a while and then press . If the CD still cannot
be played back, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
■Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc features, or
due to scratches, dirt or deterioration.
CDs with copy-protection features may not be used.
■Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
■If discs are left inside the CD player or in the ejected position for extended peri-
ods of time
The discs may be damaged and may not play properly.
RX350_270_EE_48D77E.book 334 ページ ２０１４年１月２４日　金曜日　午前１０時４分

335
3-2. Using the audio system
3
Interior features
RX350/270_EE

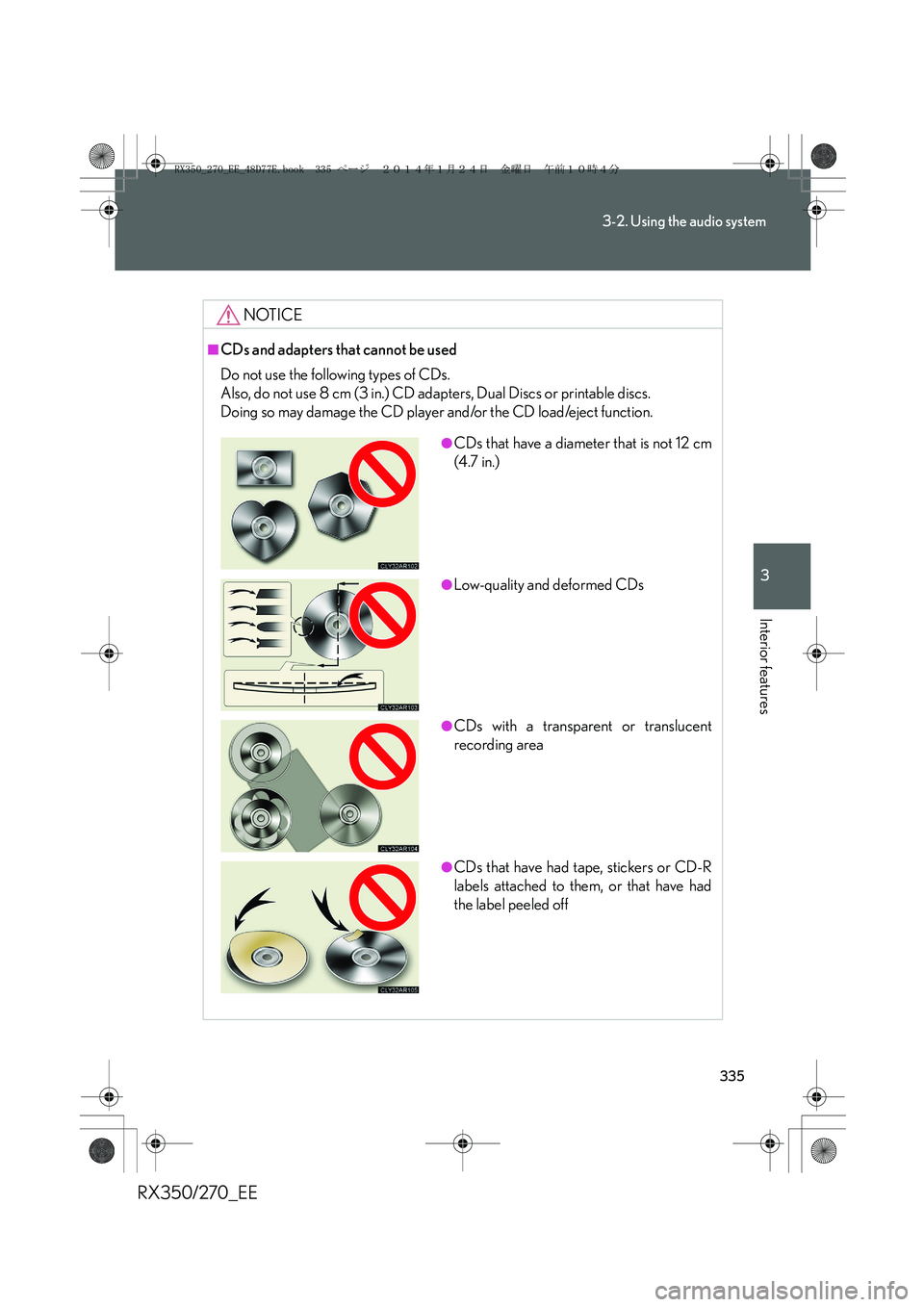

NOTICE
■CDs and adapters that cannot be used
Do not use the following types of CDs.
Also, do not use 8 cm (3 in.) CD adapters, Dual Discs or printable discs.
Doing so may damage the CD player and/or the CD load/eject function.
●CDs that have a diameter that is not 12 cm
(4.7 in.)
●Low-quality and deformed CDs
●CDs with a transparent or translucent
recording area
●CDs that have had tape, stickers or CD-R
labels attached to them, or that have had
the label peeled off
RX350_270_EE_48D77E.book 335 ページ ２０１４年１月２４日　金曜日　午前１０時４分

336
3-2. Using the audio system
RX350/270_EE

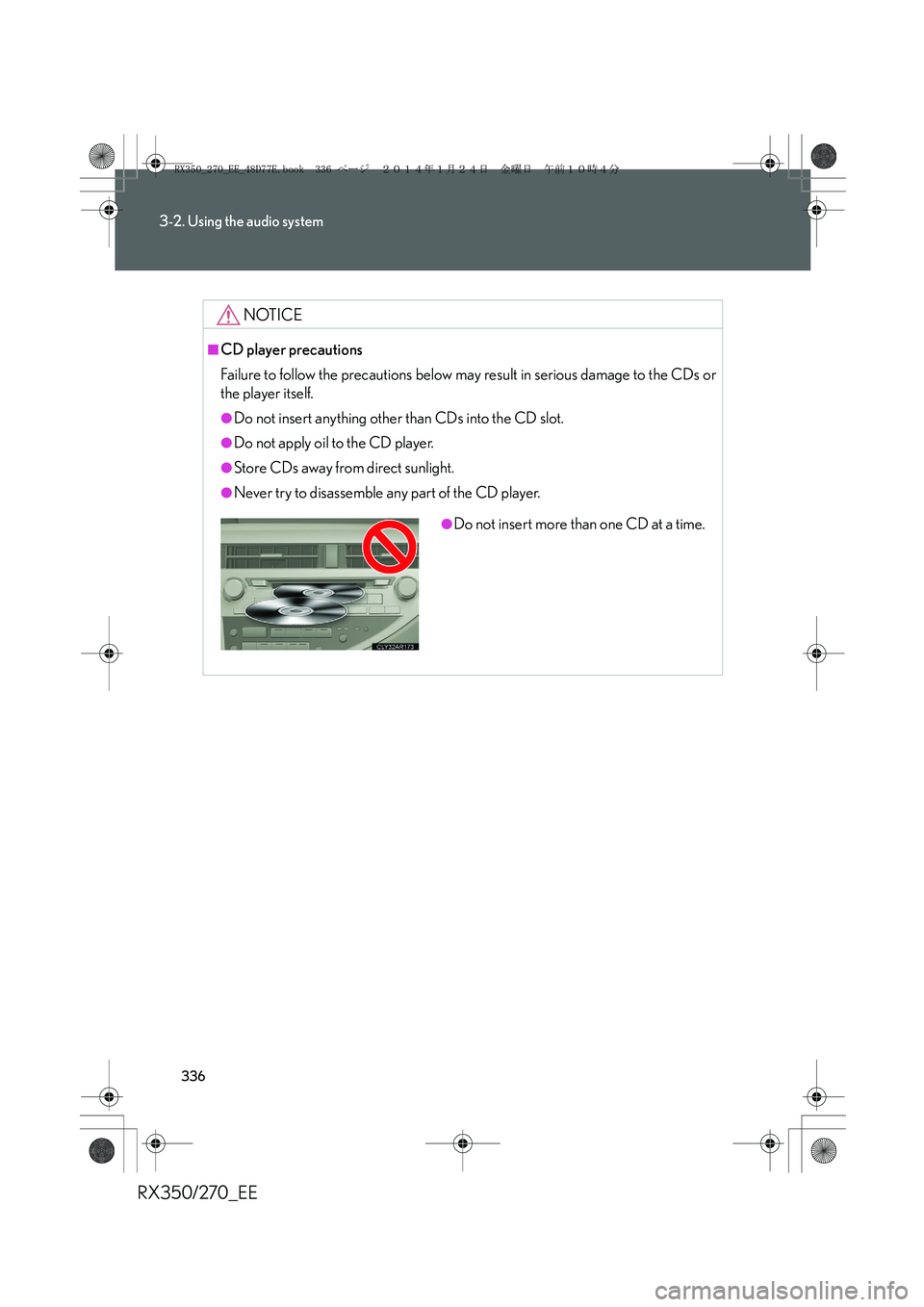

NOTICE
■CD player precautions
Failure to follow the precautions below may result in serious damage to the CDs or
the player itself.
●Do not insert anything other than CDs into the CD slot.
●Do not apply oil to the CD player.
●Store CDs away from direct sunlight.
●Never try to disassemble any part of the CD player.
●Do not insert more than one CD at a time.
RX350_270_EE_48D77E.book 336 ページ ２０１４年１月２４日　金曜日　午前１０時４分

337
3-2. Using the audio system
3
Interior features
RX350/270_EE

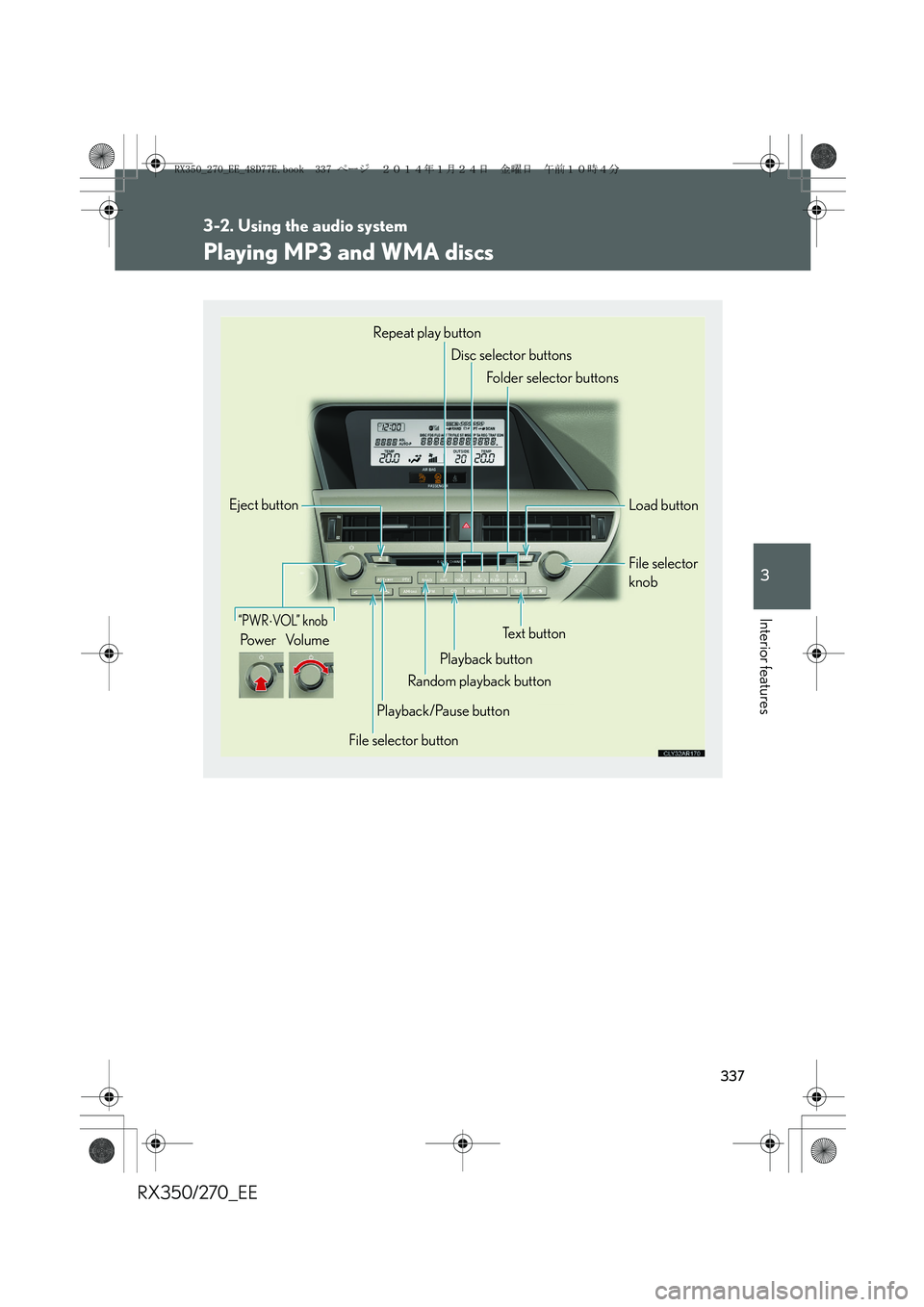

Playing MP3 and WMA discs
“PWR⋅VOL” knob
Pow e r Vo l u m e
Repeat play button
Disc selector buttons
Folder selector buttons
Load button
File selector
knob
Te x t b u t t o n
Playback button
Random playback button
Playback/Pause button
File selector button Eject button
RX350_270_EE_48D77E.book 337 ページ ２０１４年１月２４日　金曜日　午前１０時４分

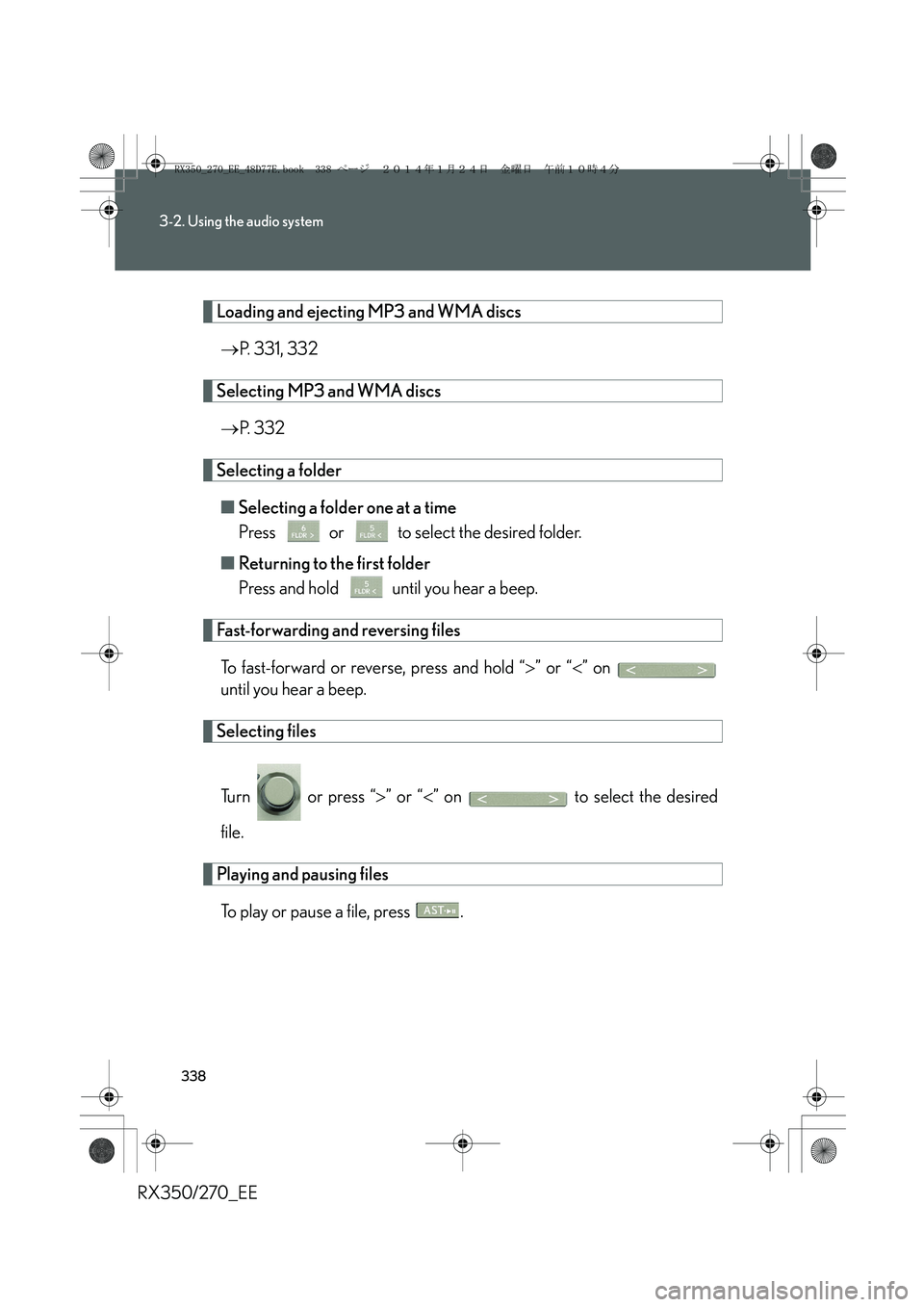

338
3-2. Using the audio system
RX350/270_EE
Loading and ejecting MP3 and WMA discs
→P. 331, 332
Selecting MP3 and WMA discs
→P. 3 3 2
Selecting a folder
■Selecting a folder one at a time
Press or to select the desired folder.
■Returning to the first folder
Press and hold until you hear a beep.
Fast-forwarding and reversing files
To fast-forward or reverse, press and hold “>” or “<” on
until you hear a beep.
Selecting files
Tu r n o r p r e s s “>” or “<” on to select the desired
file.
Playing and pausing files
To play or pause a file, press .
RX350_270_EE_48D77E.book 338 ページ ２０１４年１月２４日　金曜日　午前１０時４分

339
3-2. Using the audio system
3
Interior features
RX350/270_EE

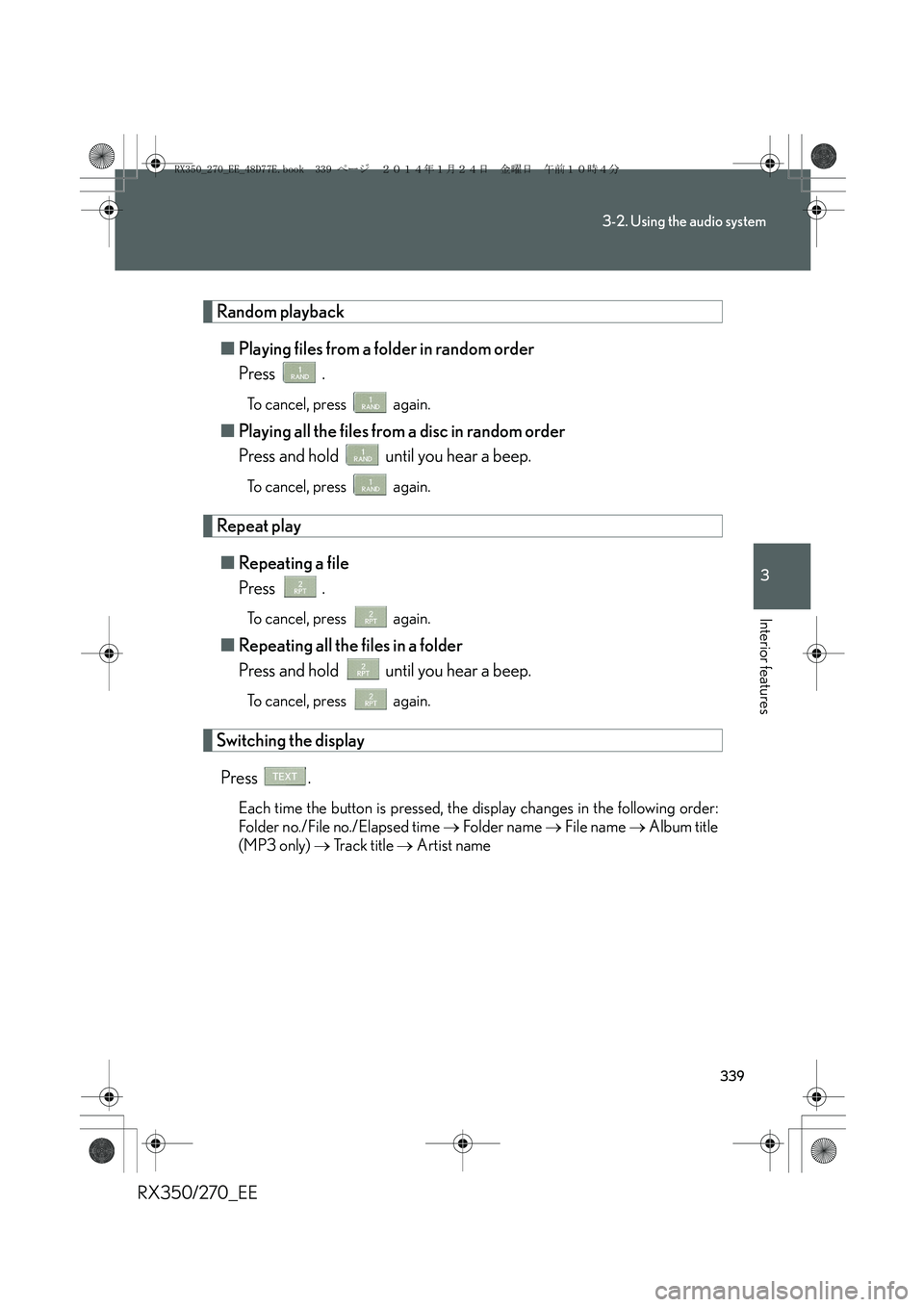

Random playback
■Playing files from a folder in random order
Press .
To cancel, press again.
■Playing all the files from a disc in random order
Press and hold until you hear a beep.
To cancel, press again.
Repeat play
■Repeating a file
Press .
To cancel, press again.
■Repeating all the files in a folder
Press and hold until you hear a beep.
To cancel, press again.
Switching the display
Press .
Each time the button is pressed, the display changes in the following order:
Folder no./File no./Elapsed time → Folder name → File name → Album title
(MP3 only) → Track title → Artist name
RX350_270_EE_48D77E.book 339 ページ ２０１４年１月２４日　金曜日　午前１０時４分

340
3-2. Using the audio system
RX350/270_EE

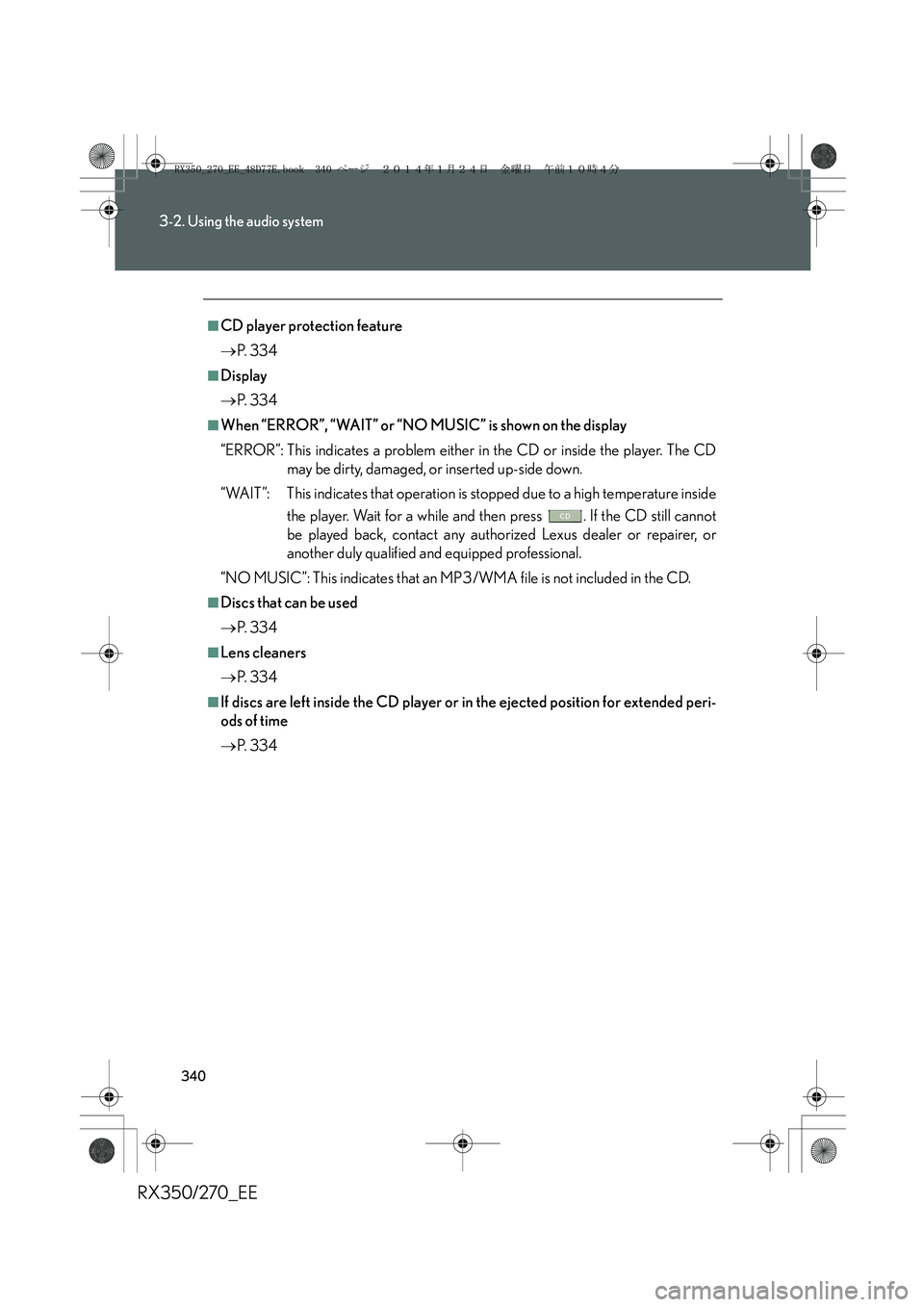

■CD player protection feature
→P. 3 3 4
■Display
→P. 3 3 4
■When “ERROR”, “WAIT” or “NO MUSIC” is shown on the display
“ERROR”: This indicates a problem either in the CD or inside the player. The CD
may be dirty, damaged, or inserted up-side down.
“WAIT”: This indicates that operation is stopped due to a high temperature inside
the player. Wait for a while and then press . If the CD still cannot
be played back, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
“NO MUSIC”: This indicates that an MP3/WMA file is not included in the CD.
■Discs that can be used
→P. 3 3 4
■Lens cleaners
→P. 3 3 4
■If discs are left inside the CD player or in the ejected position for extended peri-
ods of time
→P. 3 3 4
