LEXUS RX270 2014 Owners Manual

461
4
Maintenance and care
RX350/270_EE
4-3. Do-it-yourself maintenance

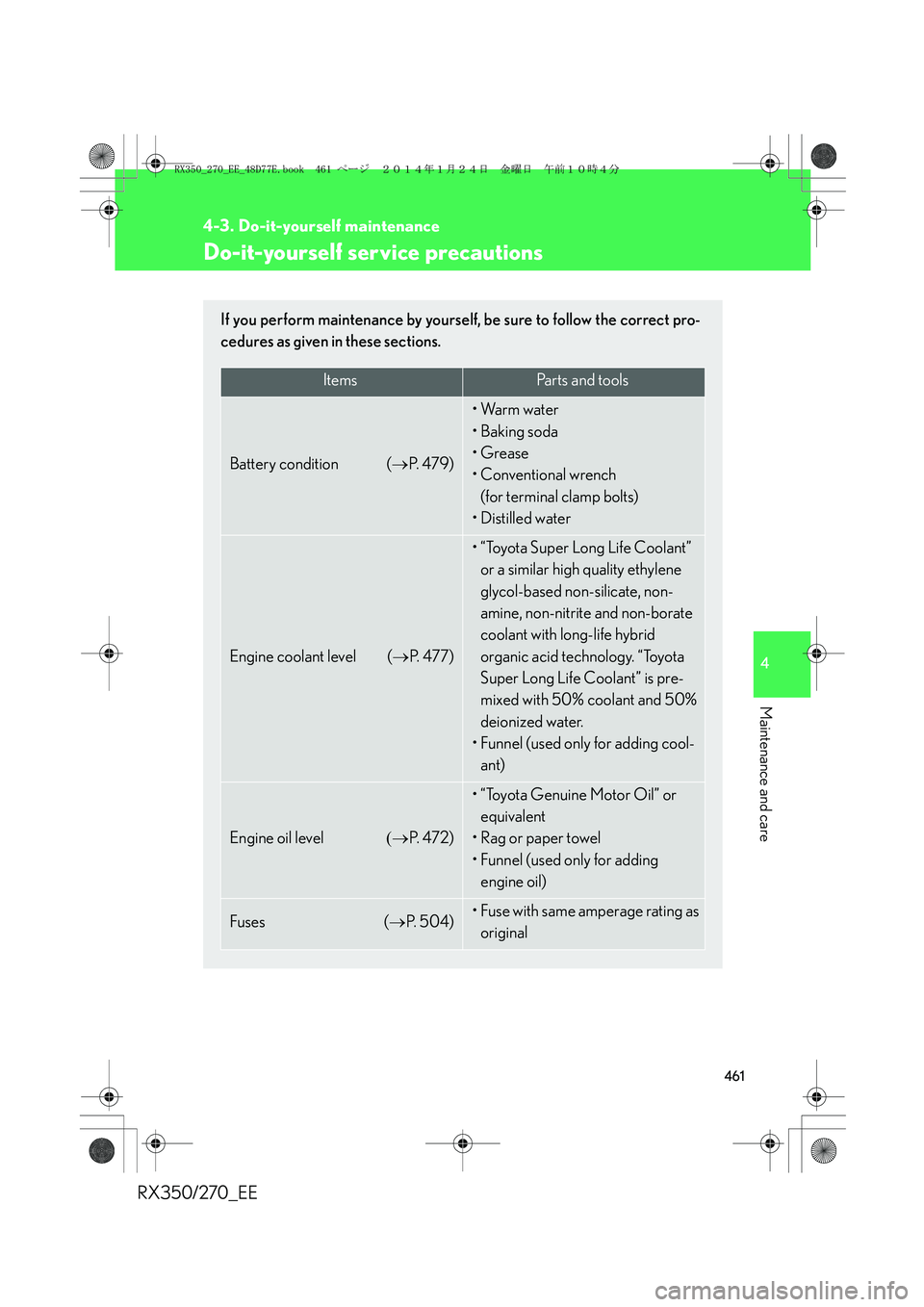

Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct pro-
cedures as given in these sections.
ItemsParts and tools
Battery condition (→P. 4 7 9 )
•Warm water
• Baking soda
•Grease
•Conventional wrench
(for terminal clamp bolts)
• Distilled water
Engine coolant level (→P. 4 7 7 )
• “Toyota Super Long Life Coolant”
or a similar high quality ethylene
glycol-based non-silicate, non-
amine, non-nitrite and non-borate
coolant with long-life hybrid
organic acid technology. “Toyota
Super Long Life Coolant” is pre-
mixed with 50% coolant and 50%
deionized water.
• Funnel (used only for adding cool-
ant)
Engine oil level(→P. 4 7 2 )
• “Toyota Genuine Motor Oil” or
equivalent
•Rag or paper towel
• Funnel (used only for adding
engine oil)
Fuses (→P. 5 0 4 )• Fuse with same amperage rating as
original
RX350_270_EE_48D77E.book 461 ページ ２０１４年１月２４日　金曜日　午前１０時４分

462
4-3. Do-it-yourself maintenance
RX350/270_EE
ItemsParts and tools
Light bulbs (→P. 5 1 6 )
• Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
•Flathead screwdriver
•Wrench
Radiator and condenser (→P. 4 7 8 )
Tire inflation pressure (→P. 4 9 5 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d (→P. 4 8 2 )
• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding water
or washer fluid)
RX350_270_EE_48D77E.book 462 ページ ２０１４年１月２４日　金曜日　午前１０時４分

463
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE

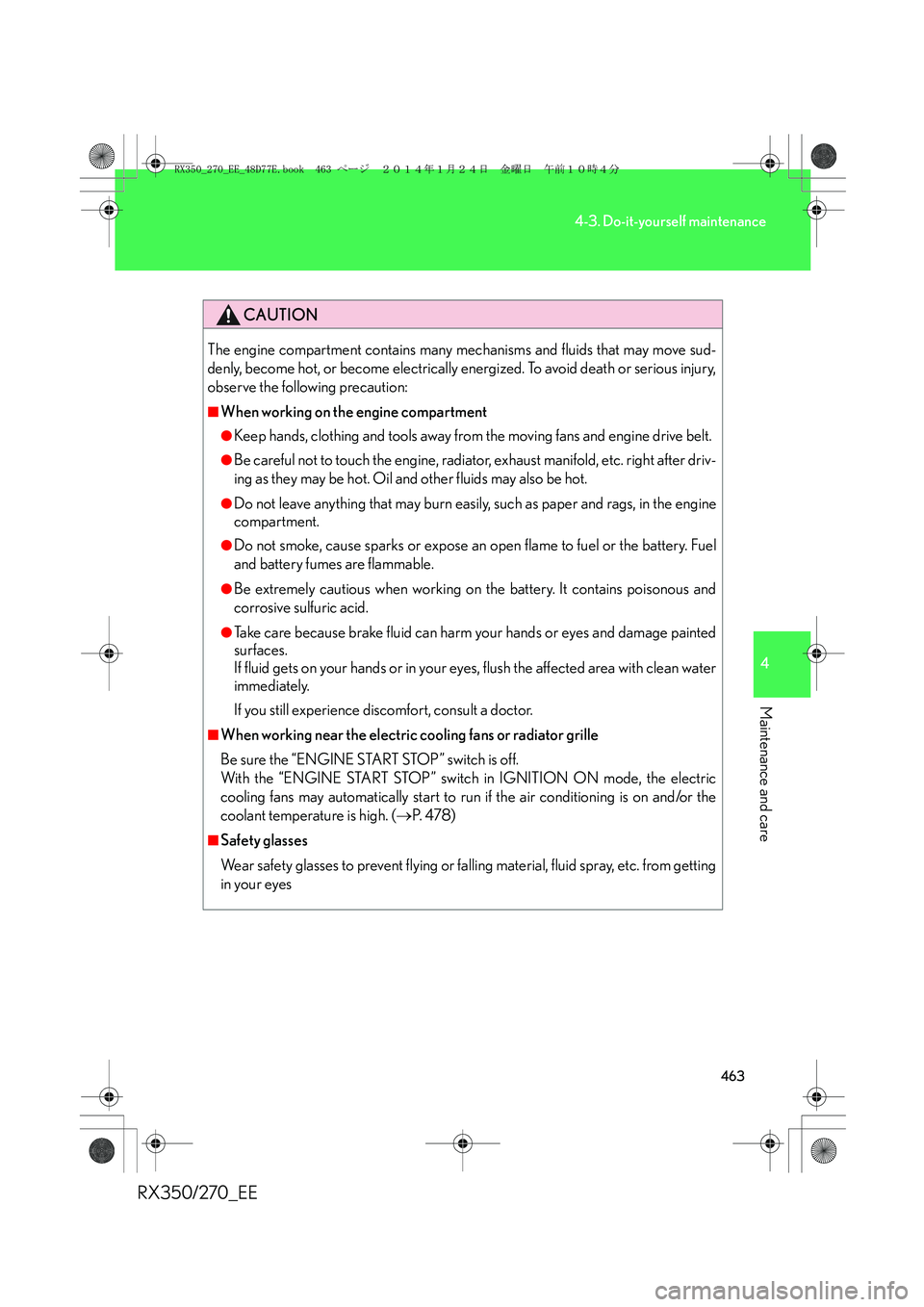

CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury,
observe the following precaution:
■When working on the engine compartment
●Keep hands, clothing and tools away from the moving fans and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
●Take care because brake fluid can harm your hands or eyes and damage painted
surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean water
immediately.
If you still experience discomfort, consult a doctor.
■When working near the electric cooling fans or radiator grille
Be sure the “ENGINE START STOP” switch is off.
With the “ENGINE START STOP” switch in IGNITION ON mode, the electric
cooling fans may automatically start to run if the air conditioning is on and/or the
coolant temperature is high. (→P. 4 7 8 )
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting
in your eyes
RX350_270_EE_48D77E.book 463 ページ ２０１４年１月２４日　金曜日　午前１０時４分

464
4-3. Do-it-yourself maintenance
RX350/270_EE
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air.
■If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear or
when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.
RX350_270_EE_48D77E.book 464 ページ ２０１４年１月２４日　金曜日　午前１０時４分

465
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE

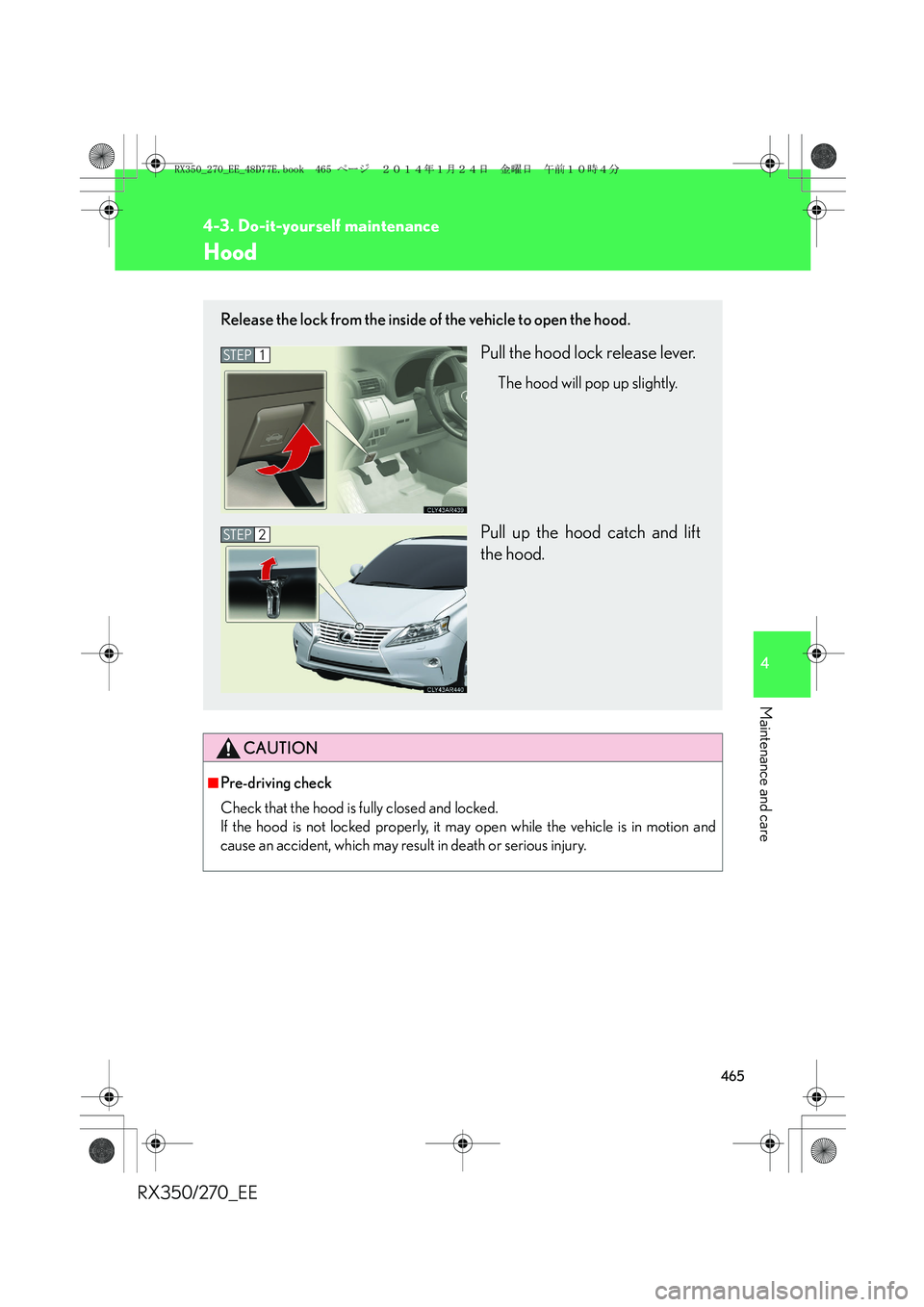

Hood
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion and
cause an accident, which may result in death or serious injury.
Release the lock from the inside of the vehicle to open the hood.
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the hood catch and lift
the hood.
STEP1
STEP2
RX350_270_EE_48D77E.book 465 ページ ２０１４年１月２４日　金曜日　午前１０時４分

466
4-3. Do-it-yourself maintenance
RX350/270_EE

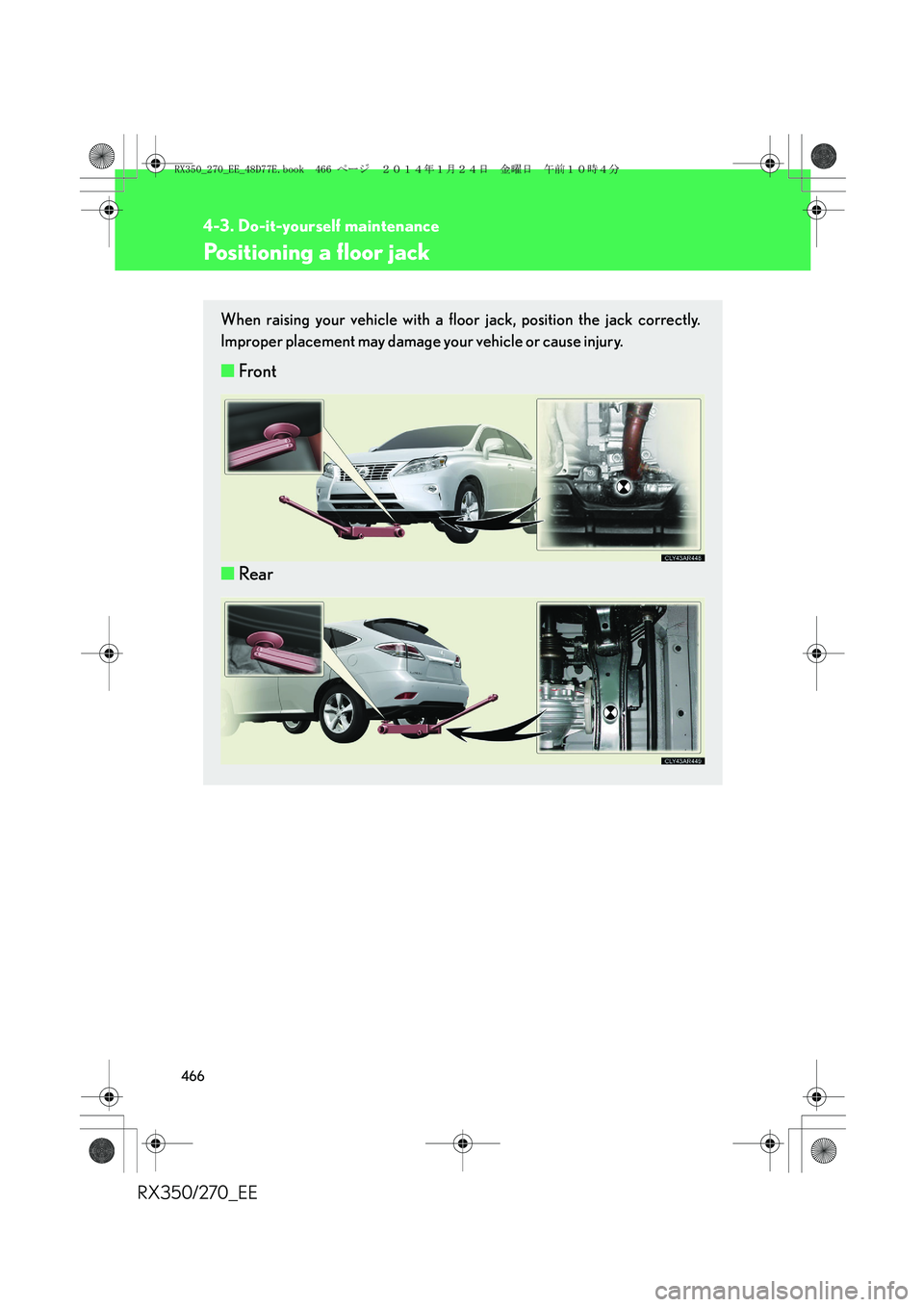

Positioning a floor jack
When raising your vehicle with a floor jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
■Front
■Rear
RX350_270_EE_48D77E.book 466 ページ ２０１４年１月２４日　金曜日　午前１０時４分

467
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE

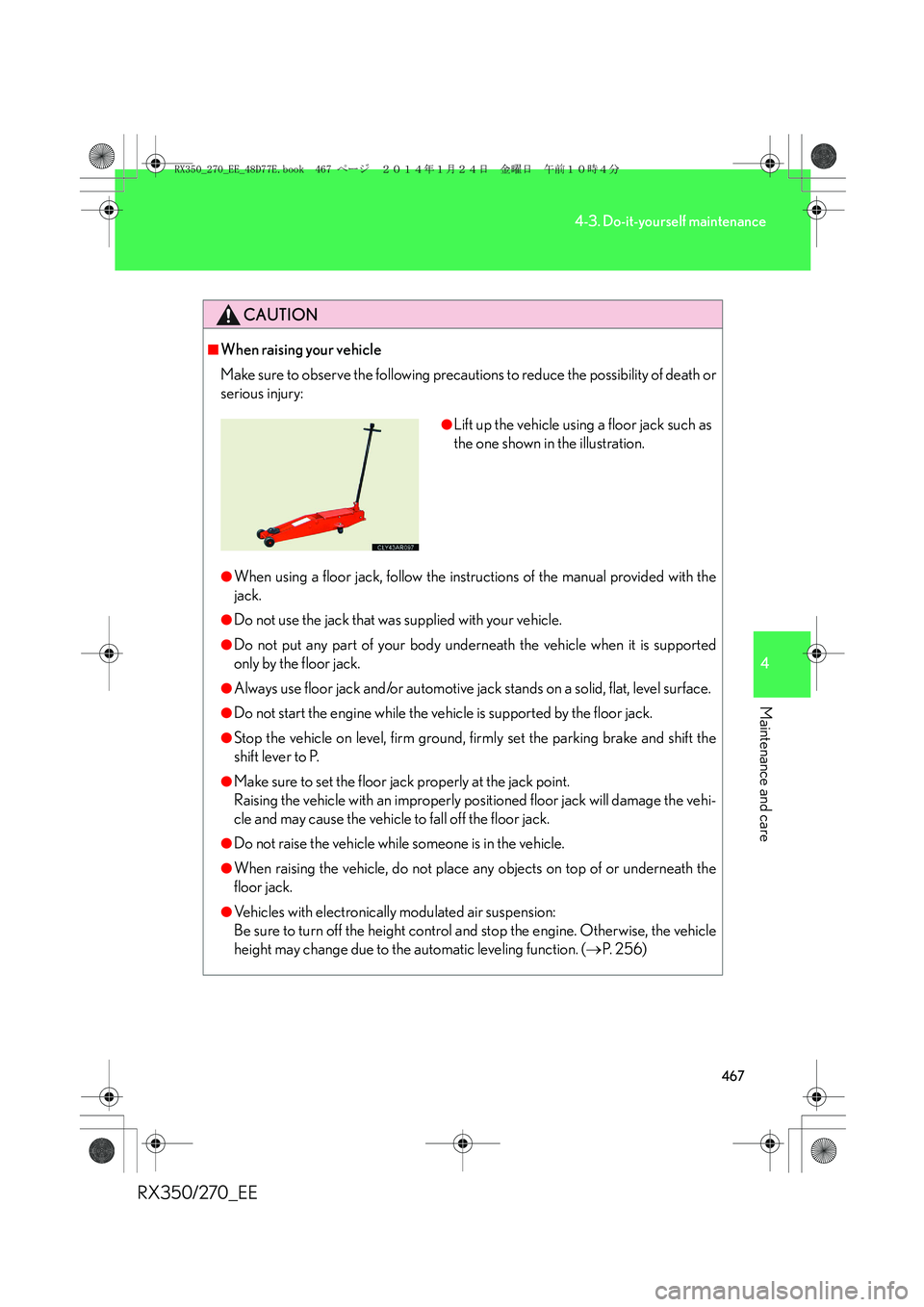

CAUTION
■When raising your vehicle
Make sure to observe the following precautions to reduce the possibility of death or
serious injury:
●When using a floor jack, follow the instructions of the manual provided with the
jack.
●Do not use the jack that was supplied with your vehicle.
●Do not put any part of your body underneath the vehicle when it is supported
only by the floor jack.
●Always use floor jack and/or automotive jack stands on a solid, flat, level surface.
●Do not start the engine while the vehicle is supported by the floor jack.
●Stop the vehicle on level, firm ground, firmly set the parking brake and shift the
shift lever to P.
●Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage the vehi-
cle and may cause the vehicle to fall off the floor jack.
●Do not raise the vehicle while someone is in the vehicle.
●When raising the vehicle, do not place any objects on top of or underneath the
floor jack.
●Vehicles with electronically modulated air suspension:
Be sure to turn off the height control and stop the engine. Otherwise, the vehicle
height may change due to the automatic leveling function. (→P. 2 5 6 )
●Lift up the vehicle using a floor jack such as
the one shown in the illustration.
RX350_270_EE_48D77E.book 467 ページ ２０１４年１月２４日　金曜日　午前１０時４分

468
4-3. Do-it-yourself maintenance
RX350/270_EE

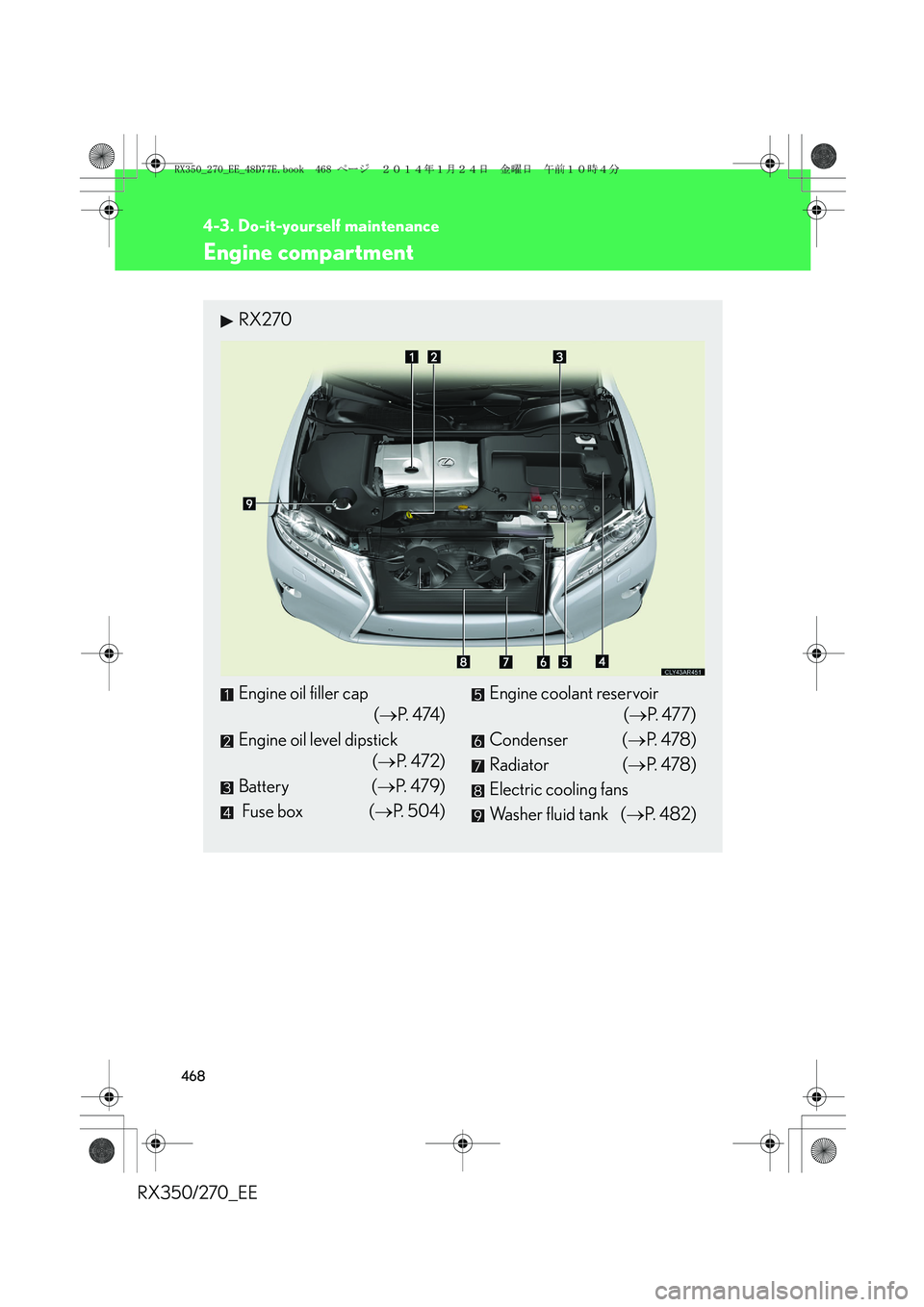

Engine compartment
RX270
Engine oil filler cap
(→P. 4 74 )
Engine oil level dipstick
(→P. 4 7 2 )
Battery (→P. 4 7 9 )
Fuse box (→P. 504)Engine coolant reservoir
(→P. 477)
Condenser (→P. 4 7 8 )
Radiator (→P. 4 7 8 )
Electric cooling fans
Washer fluid tank (→P. 4 8 2 )
RX350_270_EE_48D77E.book 468 ページ ２０１４年１月２４日　金曜日　午前１０時４分

469
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE

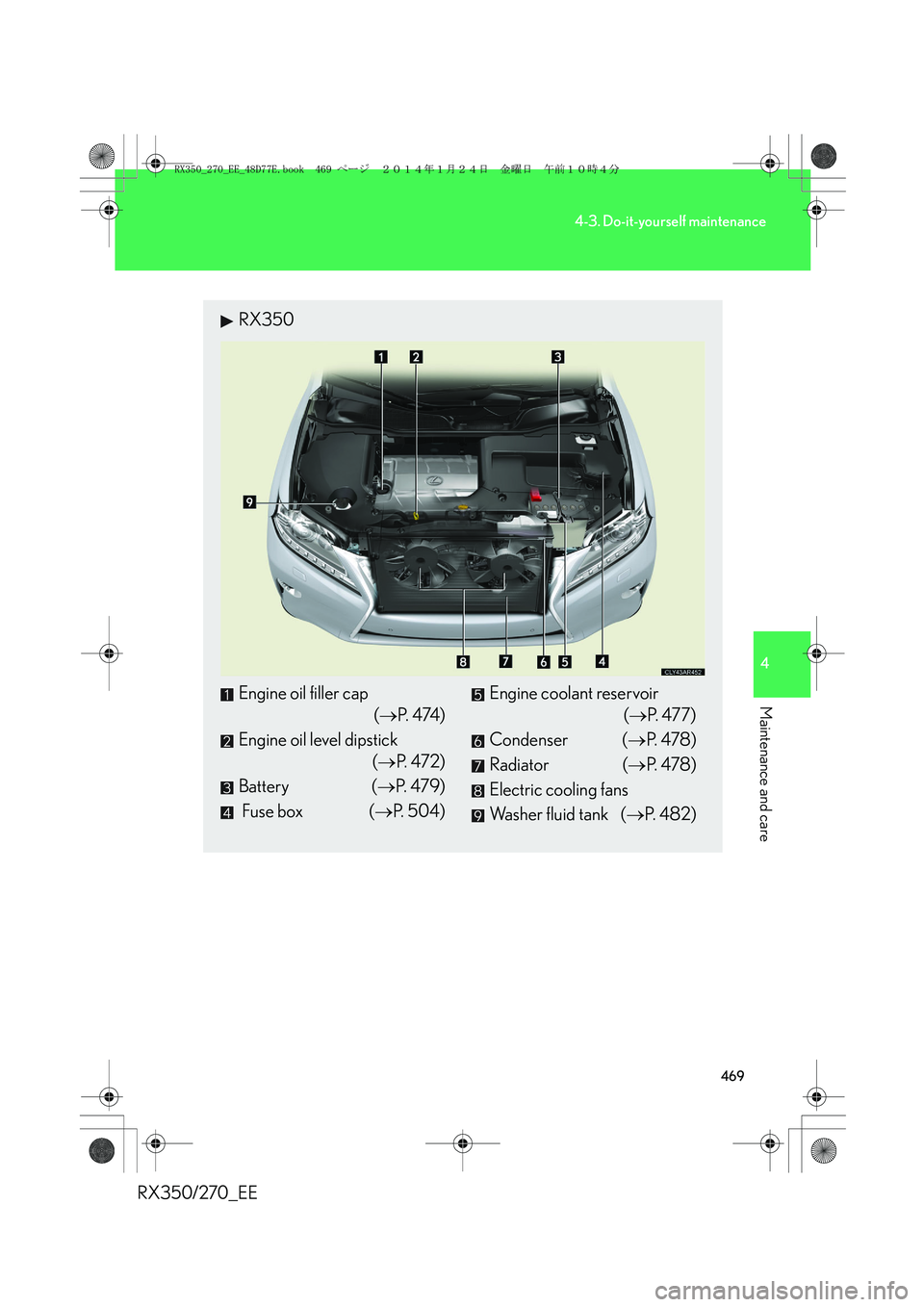

RX350
Engine oil filler cap
(→P. 4 74 )
Engine oil level dipstick
(→P. 4 7 2 )
Battery (→P. 4 7 9 )
Fuse box (→P. 504)Engine coolant reservoir
(→P. 477)
Condenser (→P. 4 7 8 )
Radiator (→P. 4 7 8 )
Electric cooling fans
Washer fluid tank (→P. 4 8 2 )
RX350_270_EE_48D77E.book 469 ページ ２０１４年１月２４日　金曜日　午前１０時４分

470
4-3. Do-it-yourself maintenance
RX350/270_EE

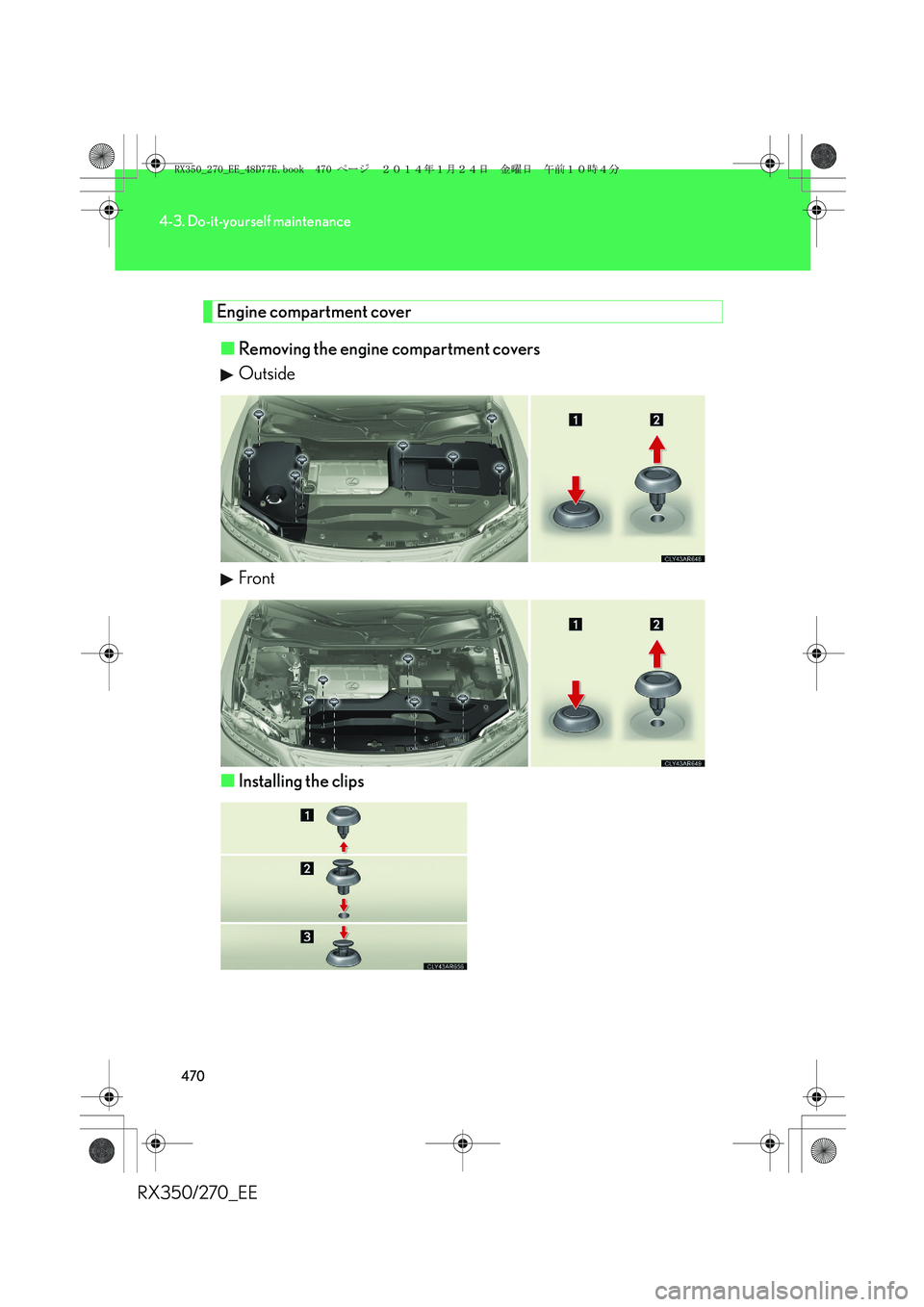

Engine compartment cover
■Removing the engine compartment covers
Outside
Front
■Installing the clips
