LEXUS RX270 2014 Owners Manual

471
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE

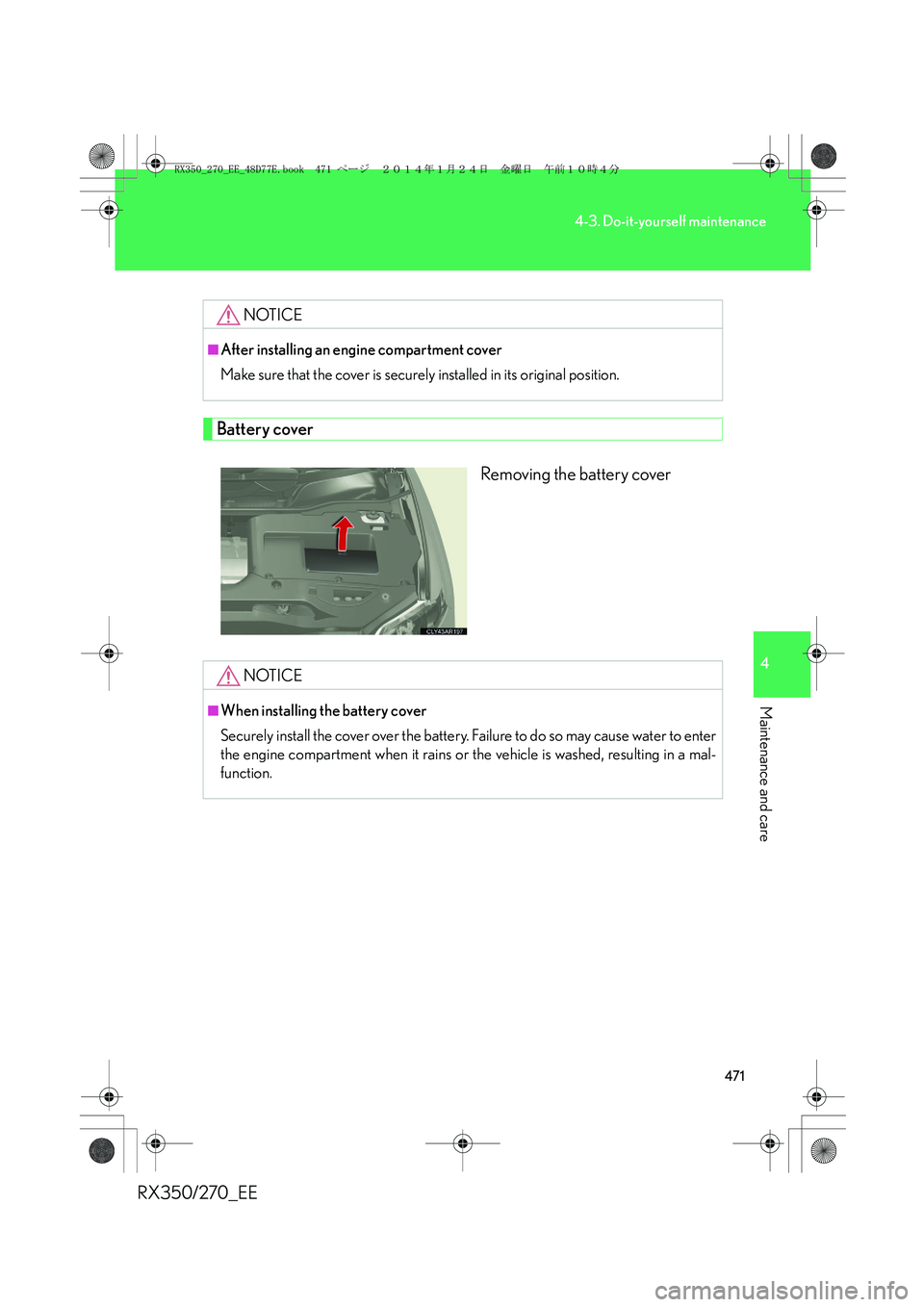

Battery cover
Removing the battery cover
NOTICE
■After installing an engine compartment cover
Make sure that the cover is securely installed in its original position.
NOTICE
■When installing the battery cover
Securely install the cover over the battery. Failure to do so may cause water to enter
the engine compartment when it rains or the vehicle is washed, resulting in a mal-
function.
RX350_270_EE_48D77E.book 471 ページ ２０１４年１月２４日　金曜日　午前１０時４分

472
4-3. Do-it-yourself maintenance
RX350/270_EE

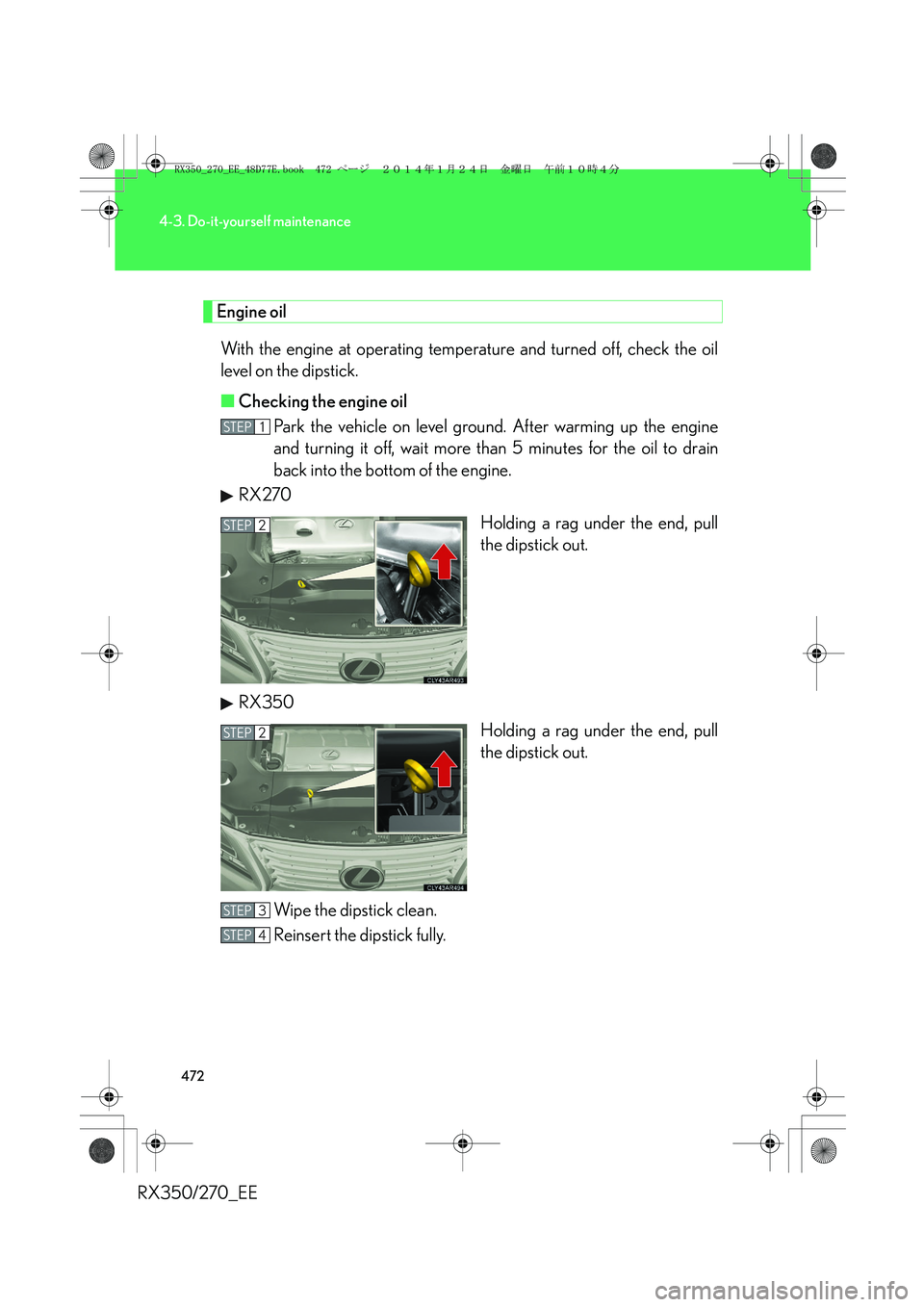

Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning it off, wait more than 5 minutes for the oil to drain
back into the bottom of the engine.
RX270
Holding a rag under the end, pull
the dipstick out.
RX350
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
STEP1
STEP2
STEP2
STEP3
STEP4
RX350_270_EE_48D77E.book 472 ページ ２０１４年１月２４日　金曜日　午前１０時４分

473
4-3. Do-it-yourself maintenance
4
Maintenance and care

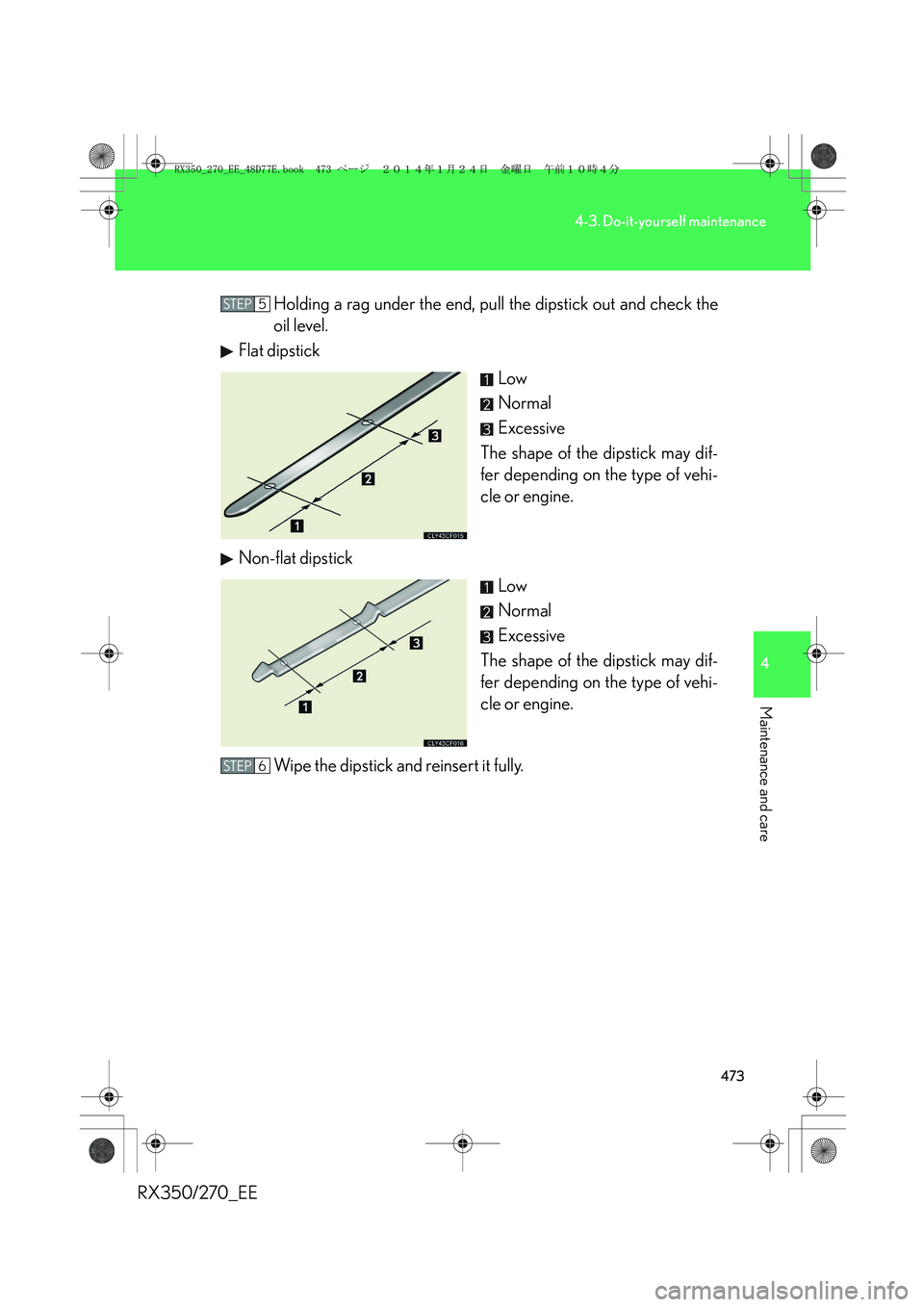

RX350/270_EEHolding a rag under the end, pull the dipstick out and check the
oil level.
Flat dipstick
Low
Normal
Excessive
The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.
Non-flat dipstick
Low
Normal
Excessive
The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.
Wipe the dipstick and reinsert it fully.
STEP5
STEP6
RX350_270_EE_48D77E.book 473 ページ ２０１４年１月２４日　金曜日　午前１０時４分

474
4-3. Do-it-yourself maintenance

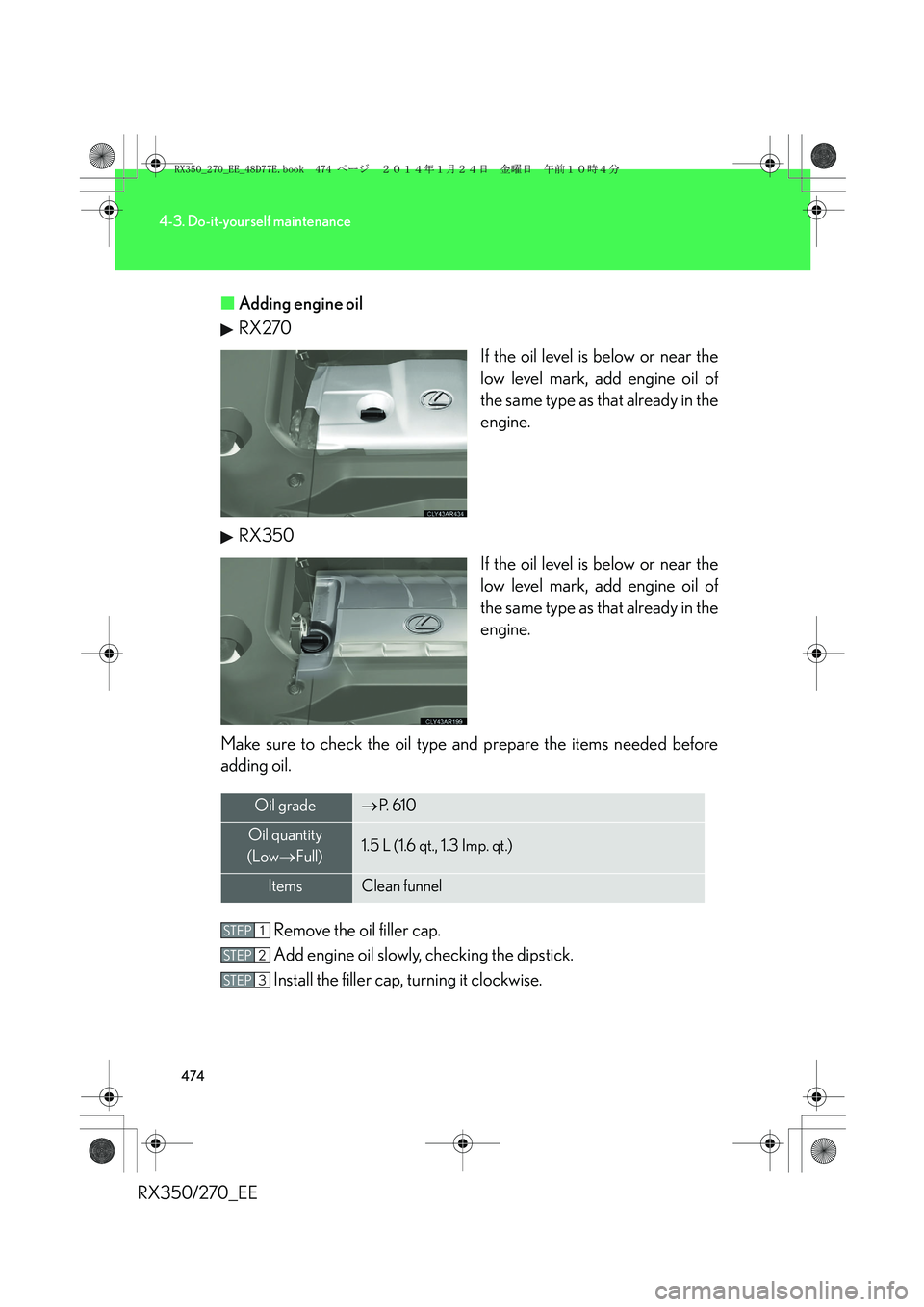

RX350/270_EE■Adding engine oil
RX270
If the oil level is below or near the
low level mark, add engine oil of
the same type as that already in the
engine.
RX350
If the oil level is below or near the
low level mark, add engine oil of
the same type as that already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.
Oil grade→P. 6 1 0
Oil quantity
(Low→Full)1.5 L (1.6 qt., 1.3 Imp. qt.)
ItemsClean funnel
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 474 ページ ２０１４年１月２４日　金曜日　午前１０時４分

475
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE

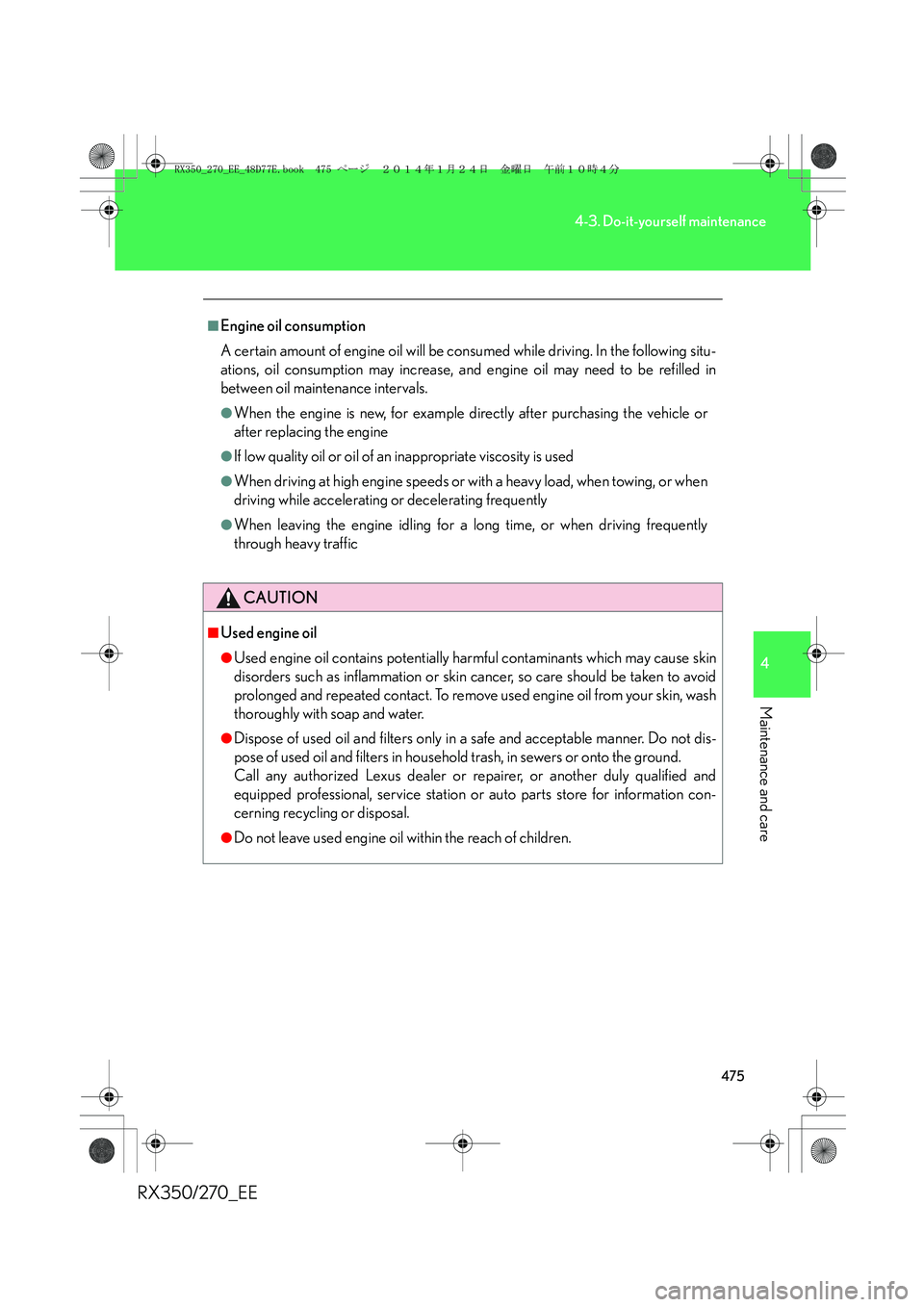

■Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following situ-
ations, oil consumption may increase, and engine oil may need to be refilled in
between oil maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine
●If low quality oil or oil of an inappropriate viscosity is used
●When driving at high engine speeds or with a heavy load, when towing, or when
driving while accelerating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin
disorders such as inflammation or skin cancer, so care should be taken to avoid
prolonged and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dis-
pose of used oil and filters in household trash, in sewers or onto the ground.
Call any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional, service station or auto parts store for information con-
cerning recycling or disposal.
●Do not leave used engine oil within the reach of children.
RX350_270_EE_48D77E.book 475 ページ ２０１４年１月２４日　金曜日　午前１０時４分

476
4-3. Do-it-yourself maintenance
RX350/270_EE

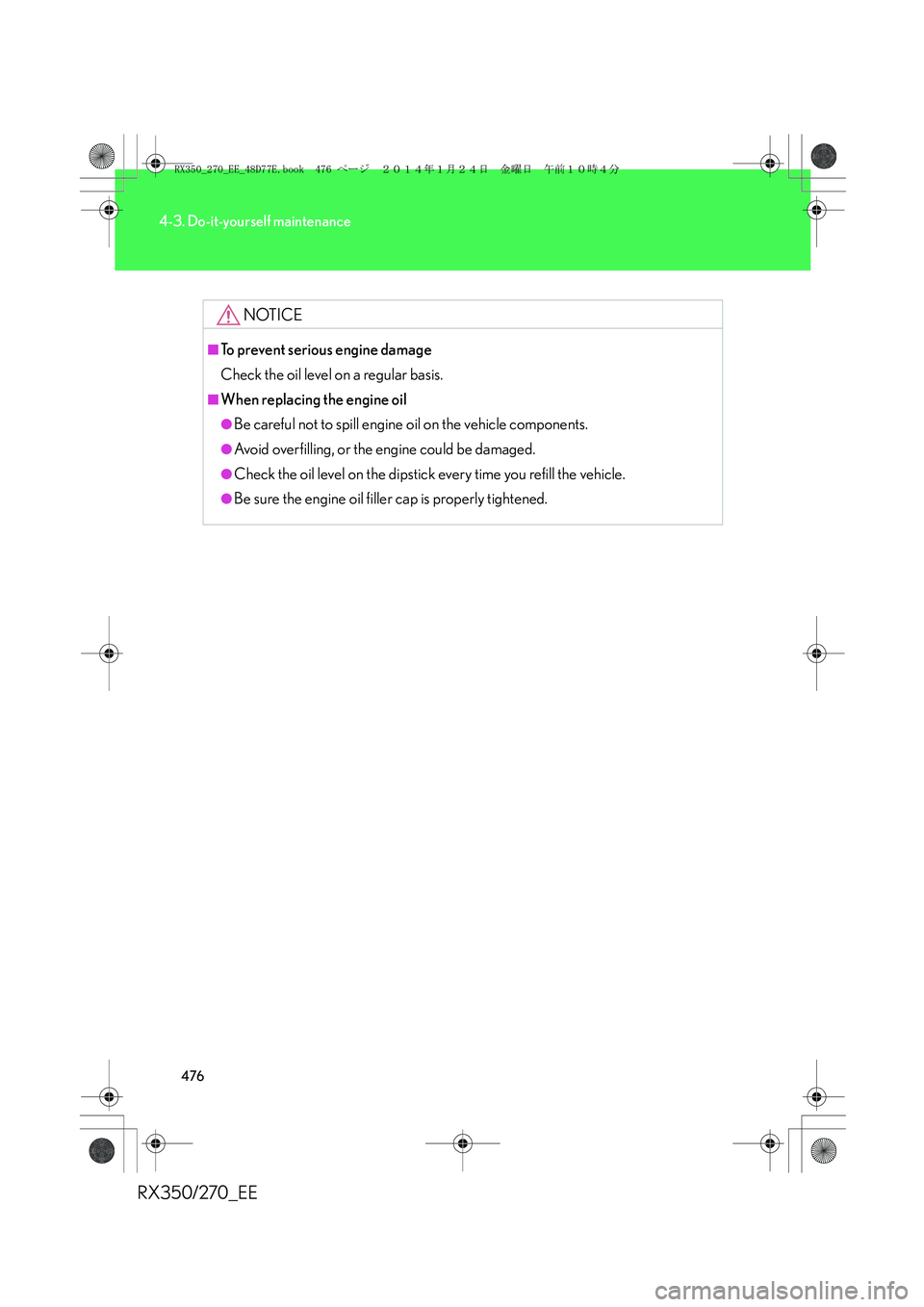

NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.
RX350_270_EE_48D77E.book 476 ページ ２０１４年１月２４日　金曜日　午前１０時４分

477
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE

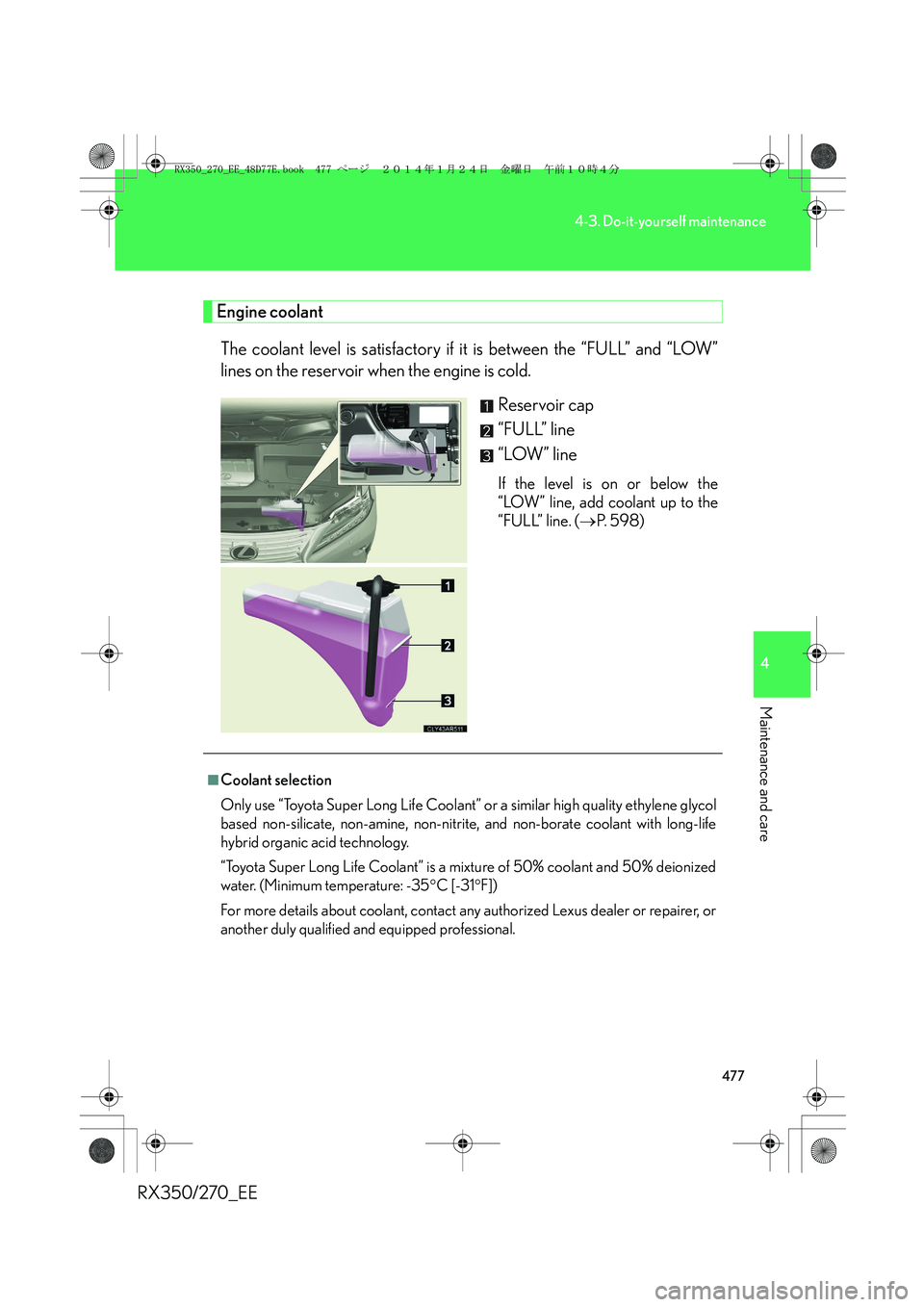

Engine coolant
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line. (→P. 5 9 8 )
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life
hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized
water. (Minimum temperature: -35°C [-31°F])
For more details about coolant, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
RX350_270_EE_48D77E.book 477 ページ ２０１４年１月２４日　金曜日　午前１０時４分

478
4-3. Do-it-yourself maintenance
RX350/270_EE
Radiator and condenser
Check the radiator and condenser and clear away any foreign objects.
If any of the above parts are extremely dirty or you are not sure of their
condition, have your vehicle checked by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.

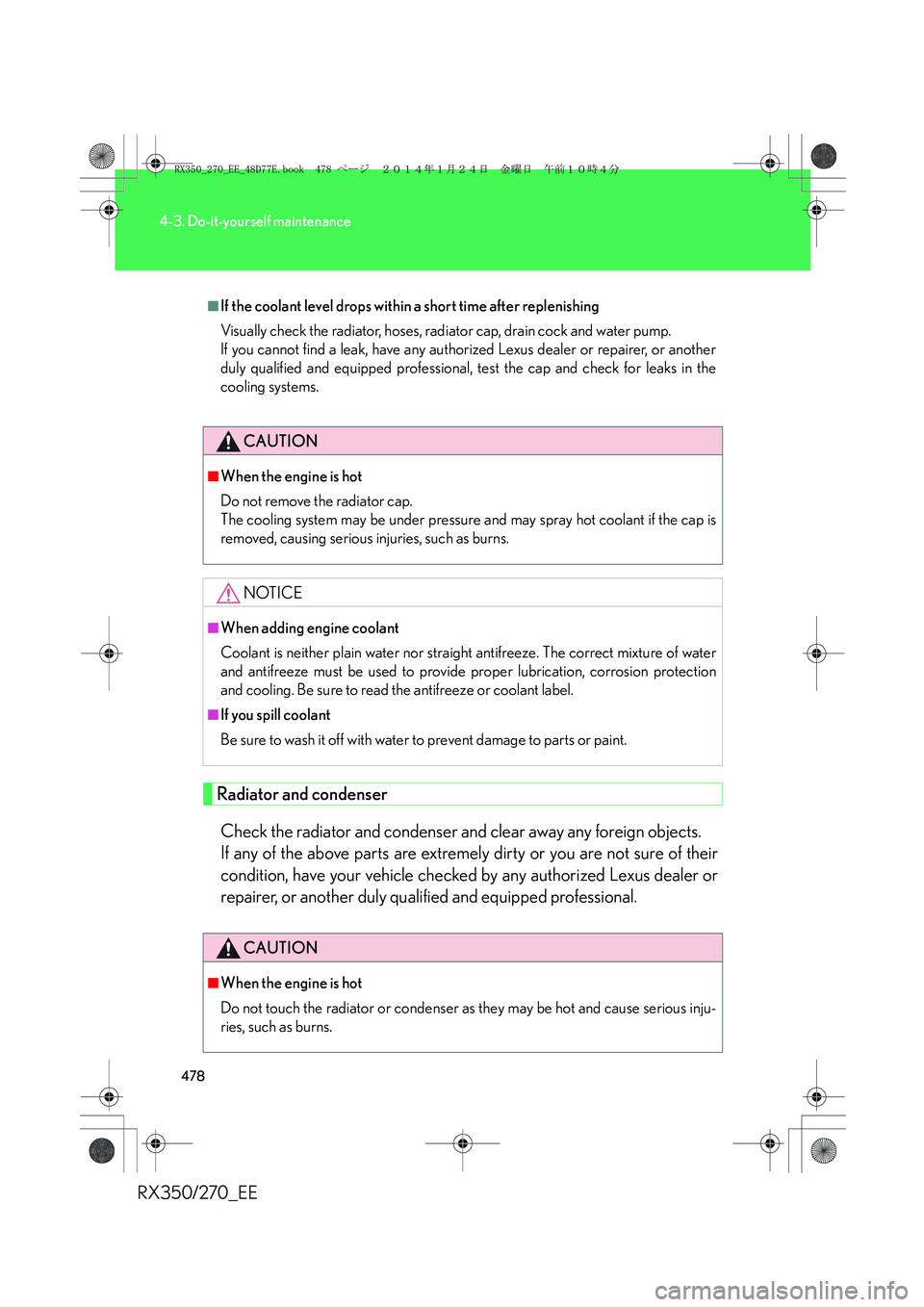

■If the coolant level drops within a short time after replenishing
Visually check the radiator, hoses, radiator cap, drain cock and water pump.
If you cannot find a leak, have any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional, test the cap and check for leaks in the
cooling systems.
CAUTION
■When the engine is hot
Do not remove the radiator cap.
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.
NOTICE
■When adding engine coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water
and antifreeze must be used to provide proper lubrication, corrosion protection
and cooling. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent damage to parts or paint.
CAUTION
■When the engine is hot
Do not touch the radiator or condenser as they may be hot and cause serious inju-
ries, such as burns.
RX350_270_EE_48D77E.book 478 ページ ２０１４年１月２４日　金曜日　午前１０時４分

479
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE

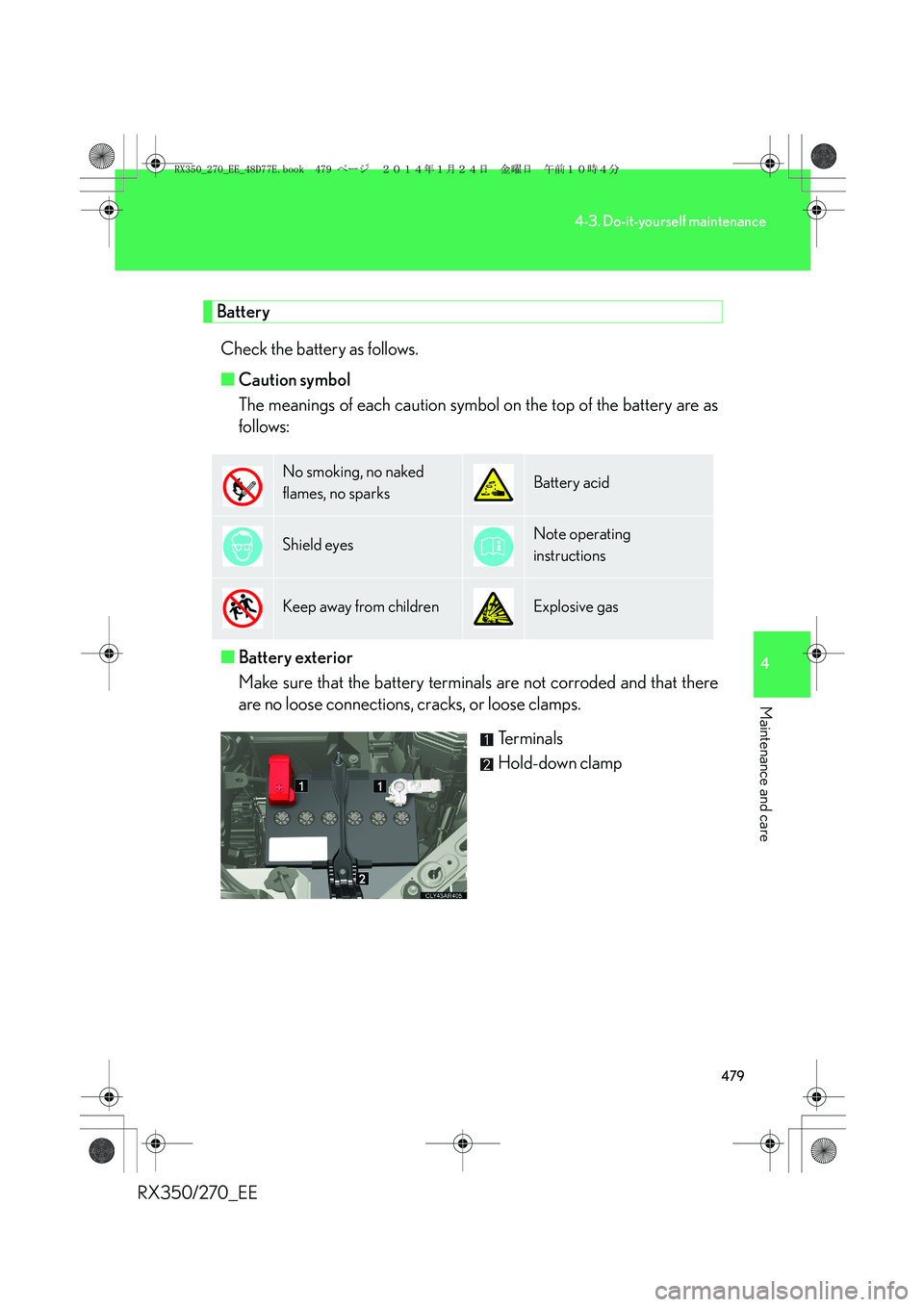

Battery
Check the battery as follows.
■Caution symbol
The meanings of each caution symbol on the top of the battery are as
follows:
■Battery exterior
Make sure that the battery terminals are not corroded and that there
are no loose connections, cracks, or loose clamps.
Terminals
Hold-down clamp
No smoking, no naked
flames, no sparksBattery acid
Shield eyesNote operating
instructions
Keep away from childrenExplosive gas
RX350_270_EE_48D77E.book 479 ページ ２０１４年１月２４日　金曜日　午前１０時４分

480
4-3. Do-it-yourself maintenance

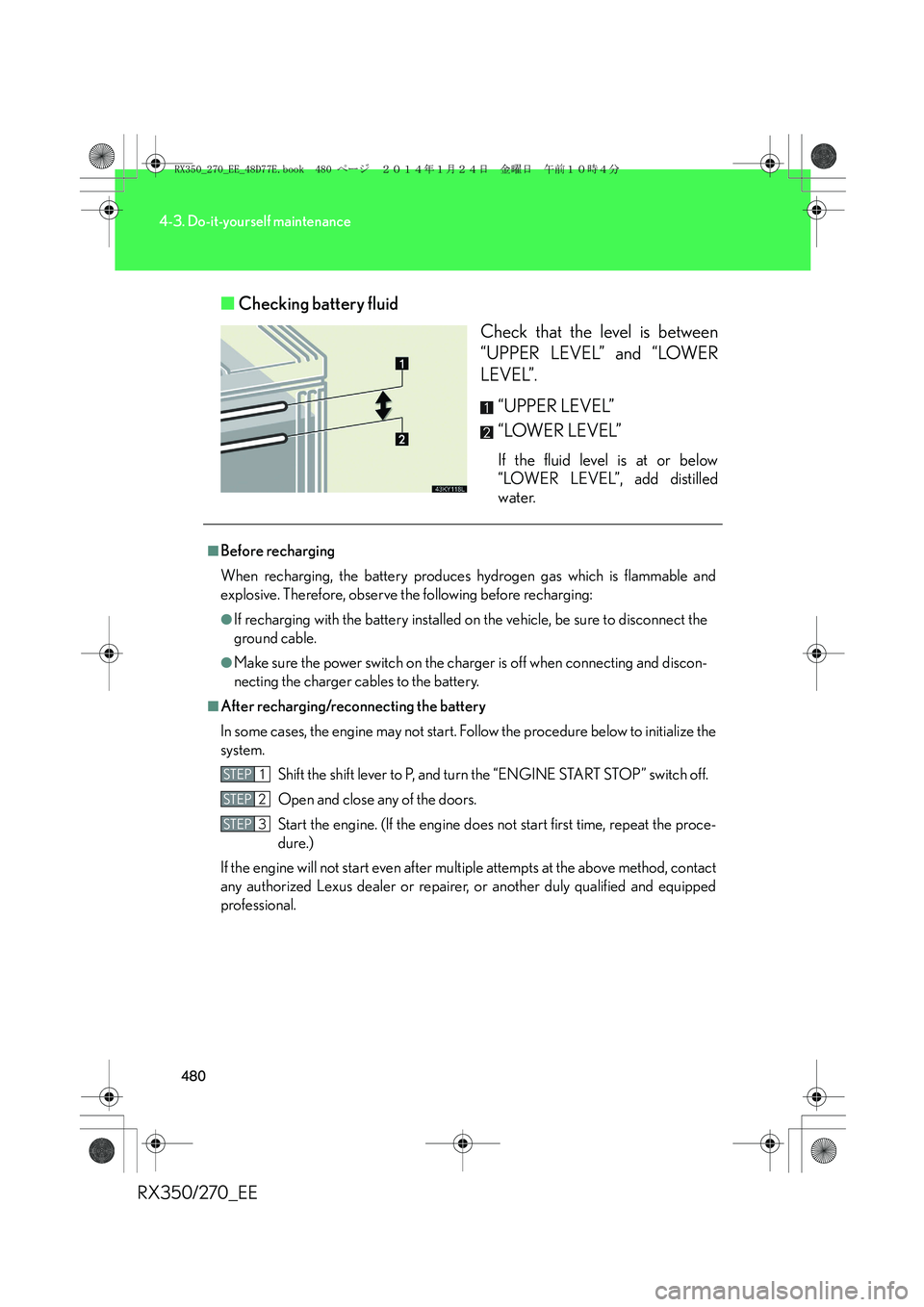

RX350/270_EE■Checking battery fluid
Check that the level is between
“UPPER LEVEL” and “LOWER
LEVEL”.
“UPPER LEVEL”
“LOWER LEVEL”
If the fluid level is at or below
“LOWER LEVEL”, add distilled
water.
■Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:
●If recharging with the battery installed on the vehicle, be sure to disconnect the
ground cable.
●Make sure the power switch on the charger is off when connecting and discon-
necting the charger cables to the battery.
■After recharging/reconnecting the battery
In some cases, the engine may not start. Follow the procedure below to initialize the
system.
Shift the shift lever to P, and turn the “ENGINE START STOP” switch off.
Open and close any of the doors.
Start the engine. (If the engine does not start first time, repeat the proce-
dure.)
If the engine will not start even after multiple attempts at the above method, contact
any authorized Lexus dealer or repairer, or another duly qualified and equipped
professional.
STEP1
STEP2
STEP3
