LEXUS RX270 2014 Owners Manual

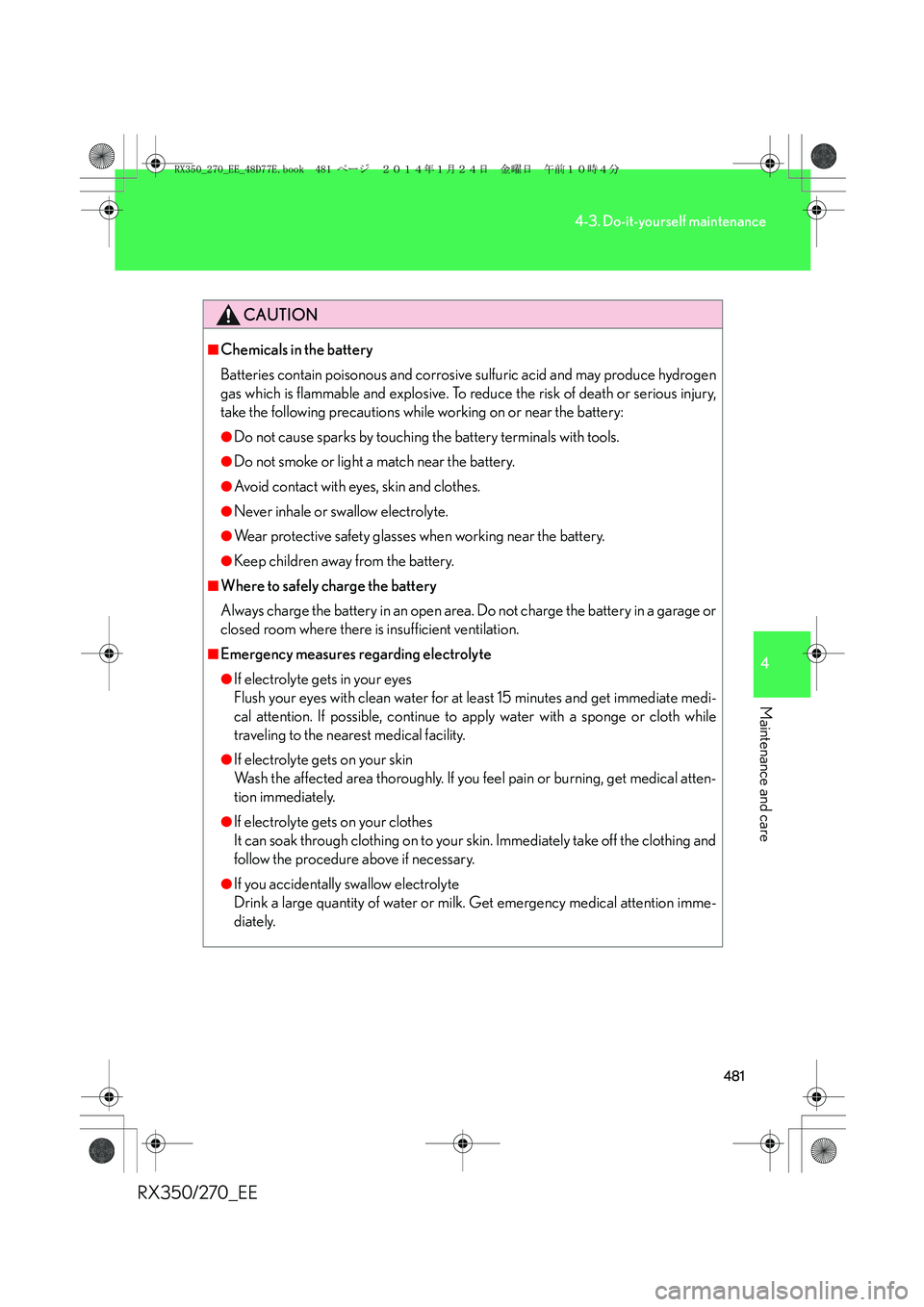

481
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
CAUTION
■Chemicals in the battery
Batteries contain poisonous and corrosive sulfuric acid and may produce hydrogen
gas which is flammable and explosive. To reduce the risk of death or serious injury,
take the following precautions while working on or near the battery:
●Do not cause sparks by touching the battery terminals with tools.
●Do not smoke or light a match near the battery.
●Avoid contact with eyes, skin and clothes.
●Never inhale or swallow electrolyte.
●Wear protective safety glasses when working near the battery.
●Keep children away from the battery.
■Where to safely charge the battery
Always charge the battery in an open area. Do not charge the battery in a garage or
closed room where there is insufficient ventilation.
■Emergency measures regarding electrolyte
●If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immediate medi-
cal attention. If possible, continue to apply water with a sponge or cloth while
traveling to the nearest medical facility.
●If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical atten-
tion immediately.
●If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the clothing and
follow the procedure above if necessary.
●If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention imme-
diately.
RX350_270_EE_48D77E.book 481 ページ ２０１４年１月２４日　金曜日　午前１０時４分

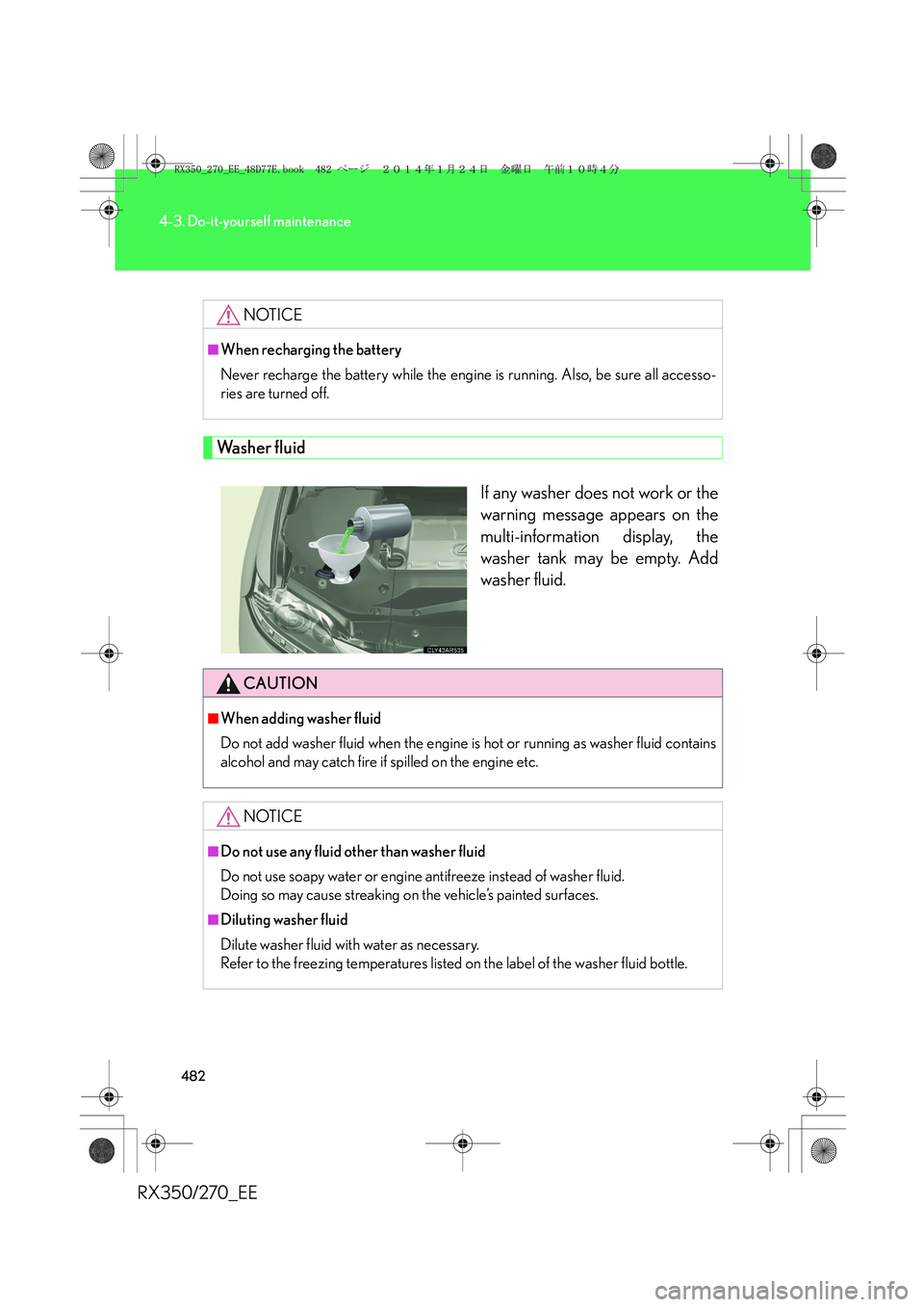

482
4-3. Do-it-yourself maintenance
RX350/270_EE
Washer fluid
If any washer does not work or the
warning message appears on the
multi-information display, the
washer tank may be empty. Add
washer fluid.
NOTICE
■When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all accesso-
ries are turned off.
CAUTION
■When adding washer fluid
Do not add washer fluid when the engine is hot or running as washer fluid contains
alcohol and may catch fire if spilled on the engine etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bottle.
RX350_270_EE_48D77E.book 482 ページ ２０１４年１月２４日　金曜日　午前１０時４分

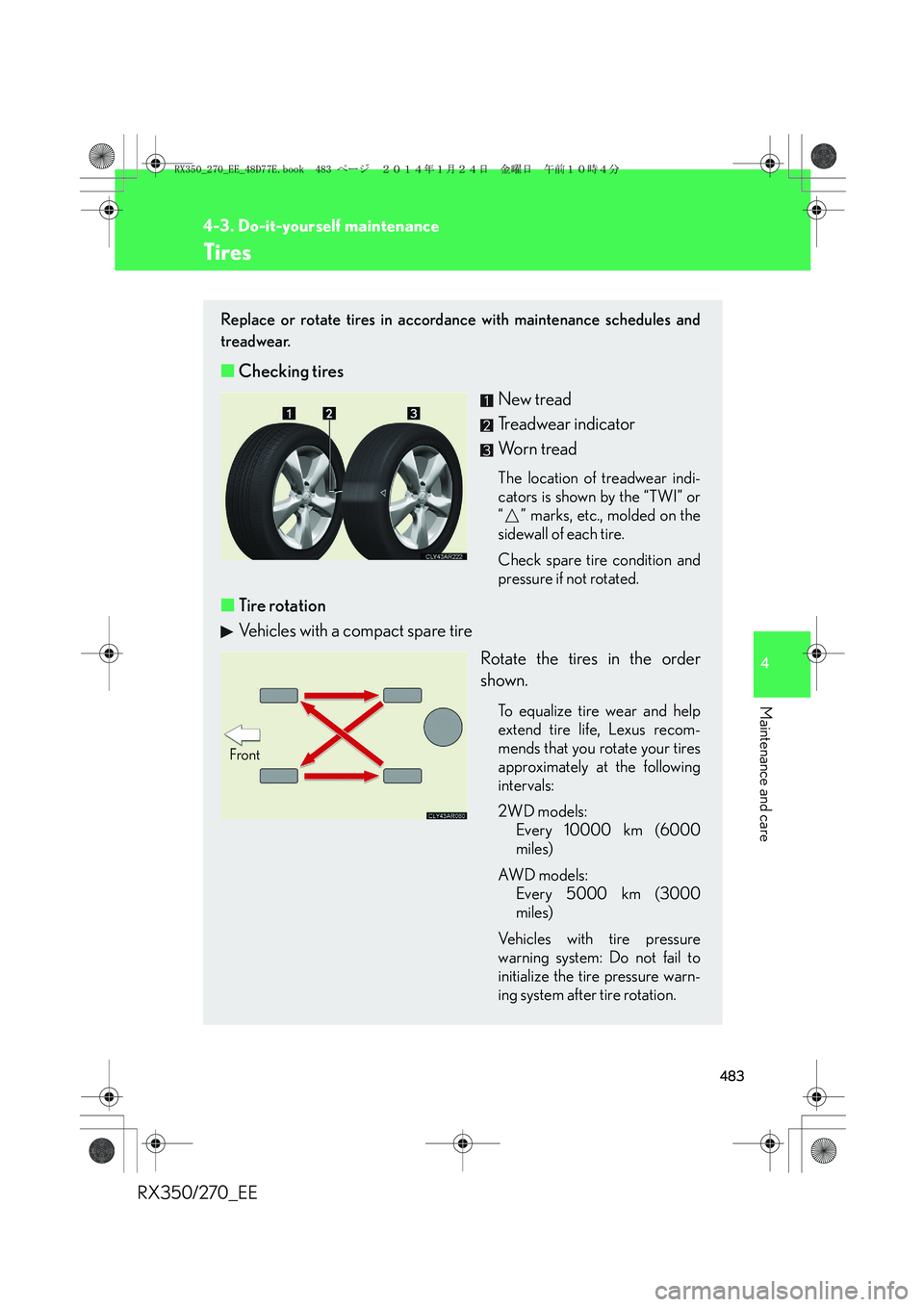

483
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
Tires
Replace or rotate tires in accordance with maintenance schedules and
treadwear.
■Checking tires
New tread
Treadwear indicator
Worn tread
The location of treadwear indi-
cators is shown by the “TWI” or
“ ” marks, etc., molded on the
sidewall of each tire.
Check spare tire condition and
pressure if not rotated.
■Tire rotation
Vehicles with a compact spare tire
Rotate the tires in the order
shown.
To equalize tire wear and help
extend tire life, Lexus recom-
mends that you rotate your tires
approximately at the following
intervals:
2WD models:
Every 10000 km (6000
miles)
AW D m o d e l s :
Every 5000 km (3000
miles)
Vehicles with tire pressure
warning system: Do not fail to
initialize the tire pressure warn-
ing system after tire rotation.
Front
RX350_270_EE_48D77E.book 483 ページ ２０１４年１月２４日　金曜日　午前１０時４分

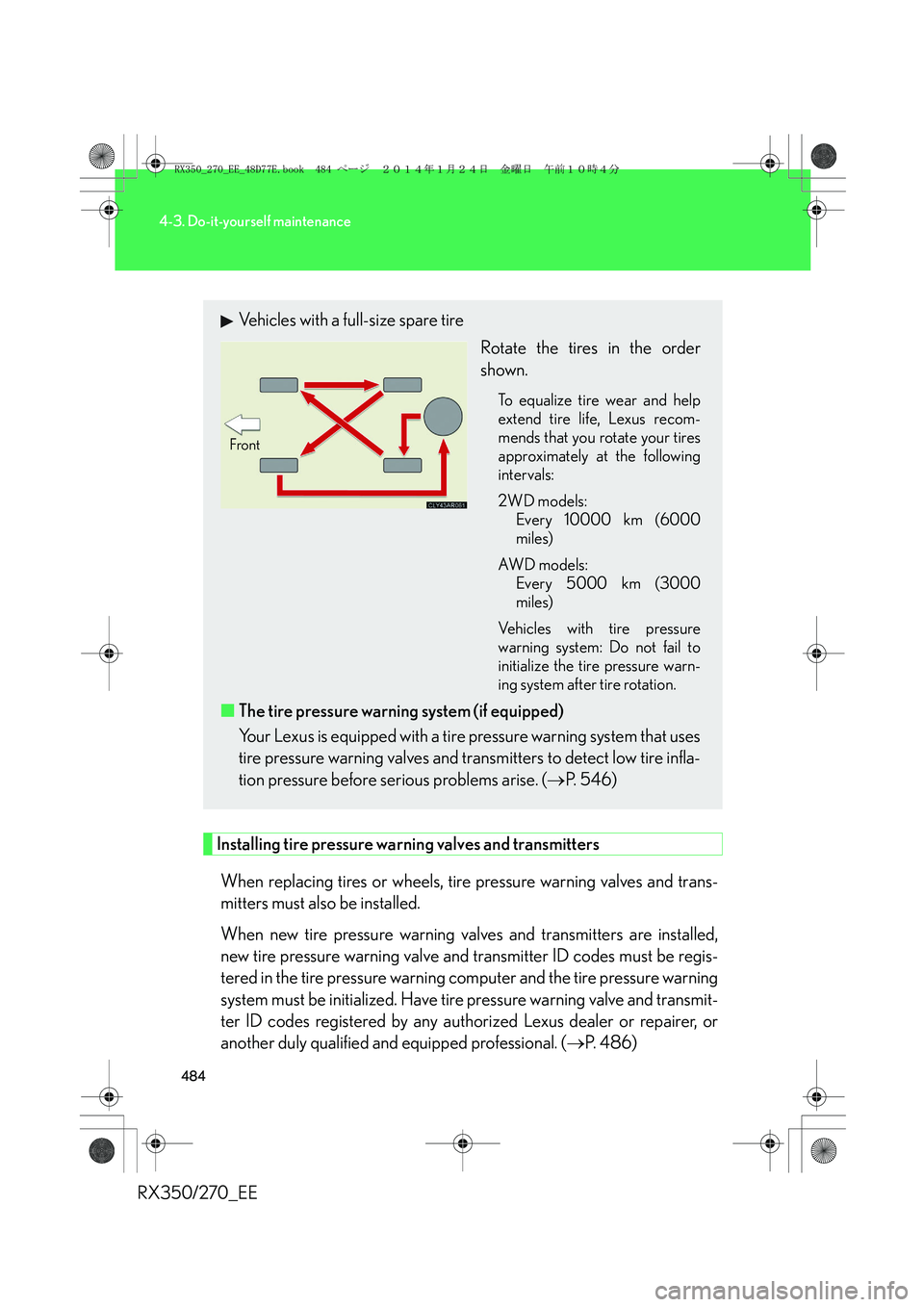

484
4-3. Do-it-yourself maintenance
RX350/270_EE
Installing tire pressure warning valves and transmitters
When replacing tires or wheels, tire pressure warning valves and trans-
mitters must also be installed.
When new tire pressure warning valves and transmitters are installed,
new tire pressure warning valve and transmitter ID codes must be regis-
tered in the tire pressure warning computer and the tire pressure warning
system must be initialized. Have tire pressure warning valve and transmit-
ter ID codes registered by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional. (→P. 4 8 6 )
Vehicles with a full-size spare tire
Rotate the tires in the order
shown.
To equalize tire wear and help
extend tire life, Lexus recom-
mends that you rotate your tires
approximately at the following
intervals:
2WD models:
Every 10000 km (6000
miles)
AW D m o d e l s :
Every 5000 km (3000
miles)
Vehicles with tire pressure
warning system: Do not fail to
initialize the tire pressure warn-
ing system after tire rotation.
■The tire pressure warning system (if equipped)
Your Lexus is equipped with a tire pressure warning system that uses
tire pressure warning valves and transmitters to detect low tire infla-
tion pressure before serious problems arise. (→P. 546)
Front
RX350_270_EE_48D77E.book 484 ページ ２０１４年１月２４日　金曜日　午前１０時４分

485
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE

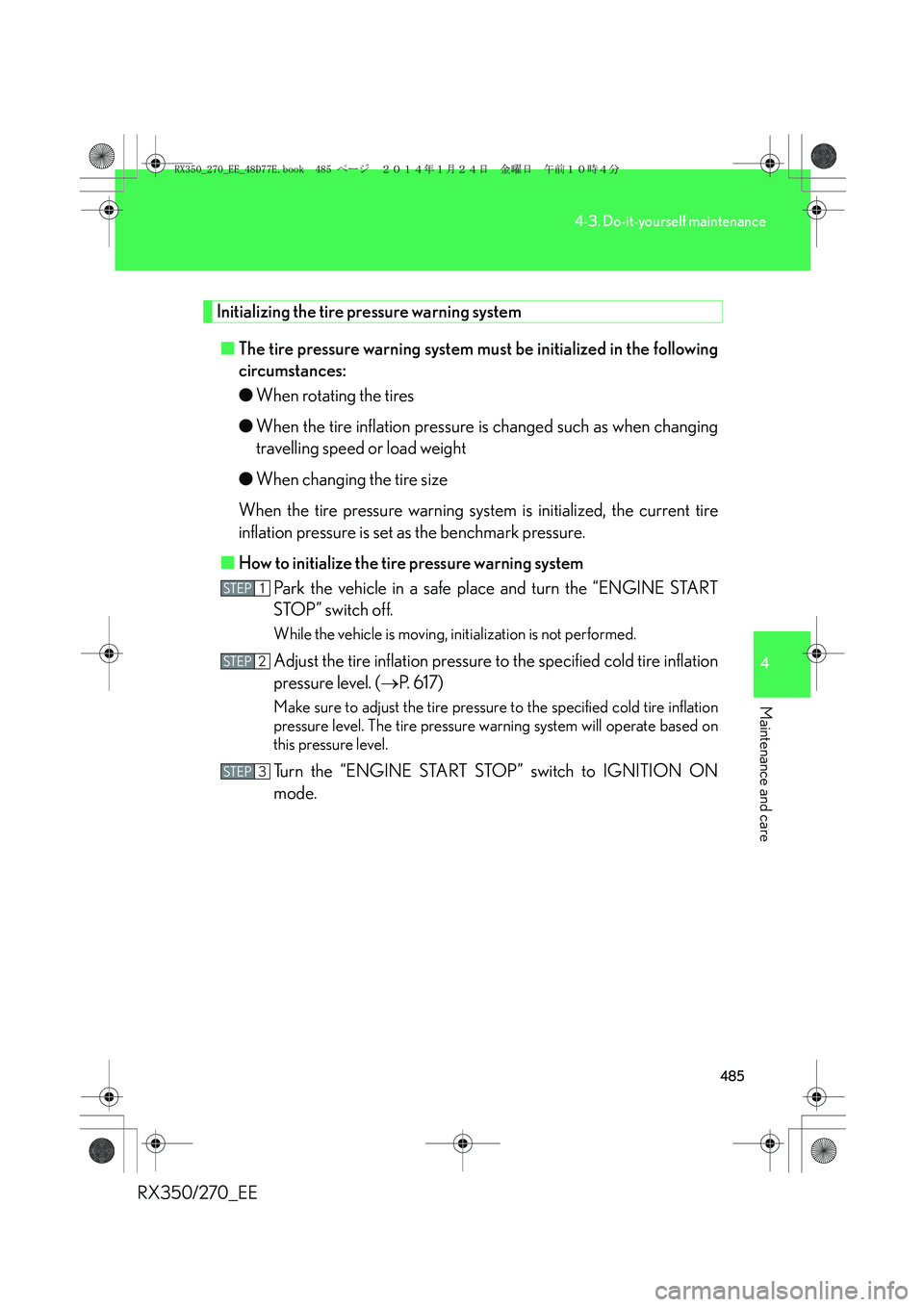

Initializing the tire pressure warning system
■The tire pressure warning system must be initialized in the following
circumstances:
●When rotating the tires
●When the tire inflation pressure is changed such as when changing
travelling speed or load weight
●When changing the tire size
When the tire pressure warning system is initialized, the current tire
inflation pressure is set as the benchmark pressure.
■How to initialize the tire pressure warning system
Park the vehicle in a safe place and turn the “ENGINE START
STOP” switch off.
While the vehicle is moving, initialization is not performed.
Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. (→P. 6 1 7 )
Make sure to adjust the tire pressure to the specified cold tire inflation
pressure level. The tire pressure warning system will operate based on
this pressure level.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 485 ページ ２０１４年１月２４日　金曜日　午前１０時４分

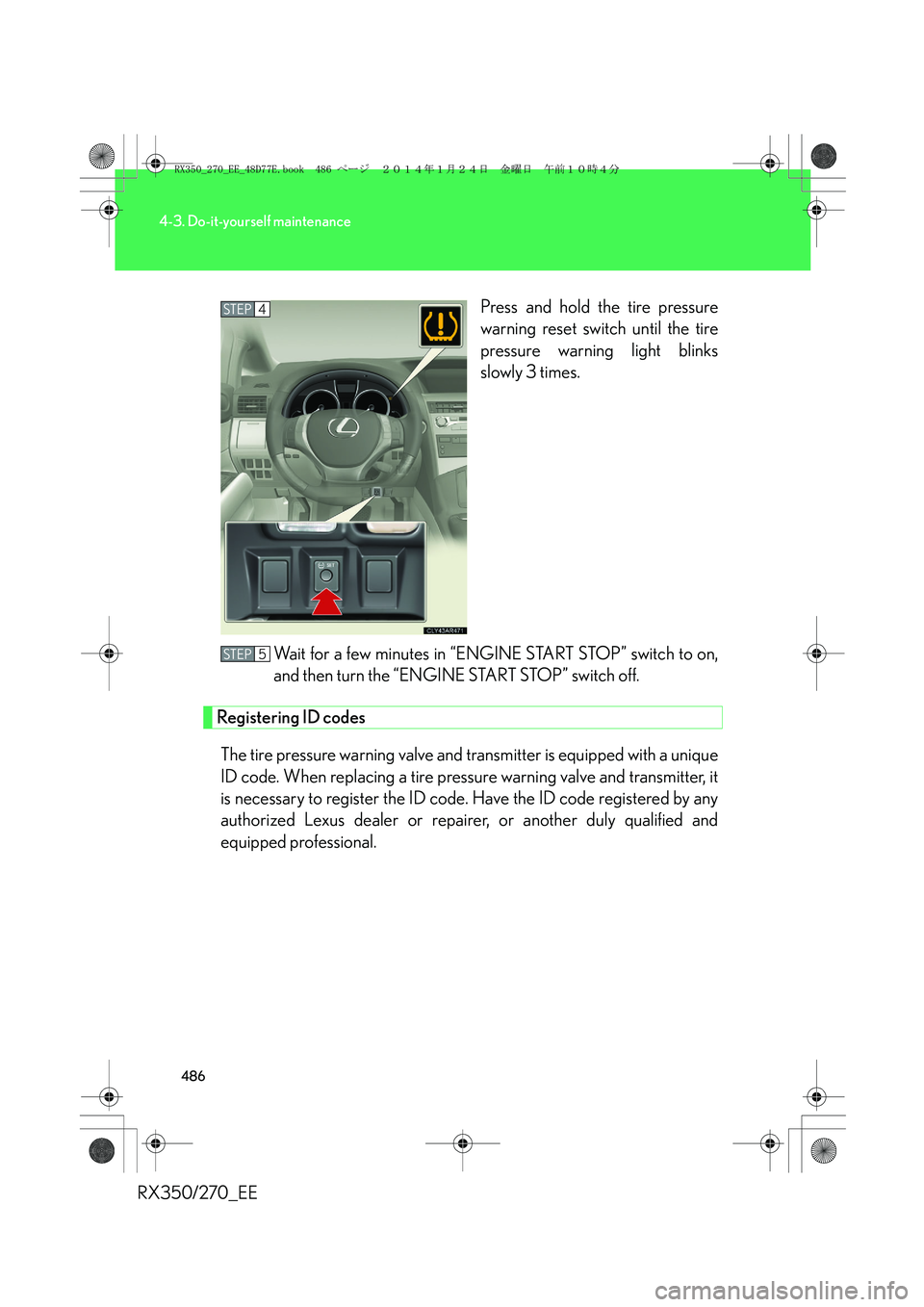

486
4-3. Do-it-yourself maintenance
RX350/270_EEPress and hold the tire pressure
warning reset switch until the tire
pressure warning light blinks
slowly 3 times.
Wait for a few minutes in “ENGINE START STOP” switch to on,
and then turn the “ENGINE START STOP” switch off.
Registering ID codes
The tire pressure warning valve and transmitter is equipped with a unique
ID code. When replacing a tire pressure warning valve and transmitter, it
is necessary to register the ID code. Have the ID code registered by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
STEP4
STEP5
RX350_270_EE_48D77E.book 486 ページ ２０１４年１月２４日　金曜日　午前１０時４分

487
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE

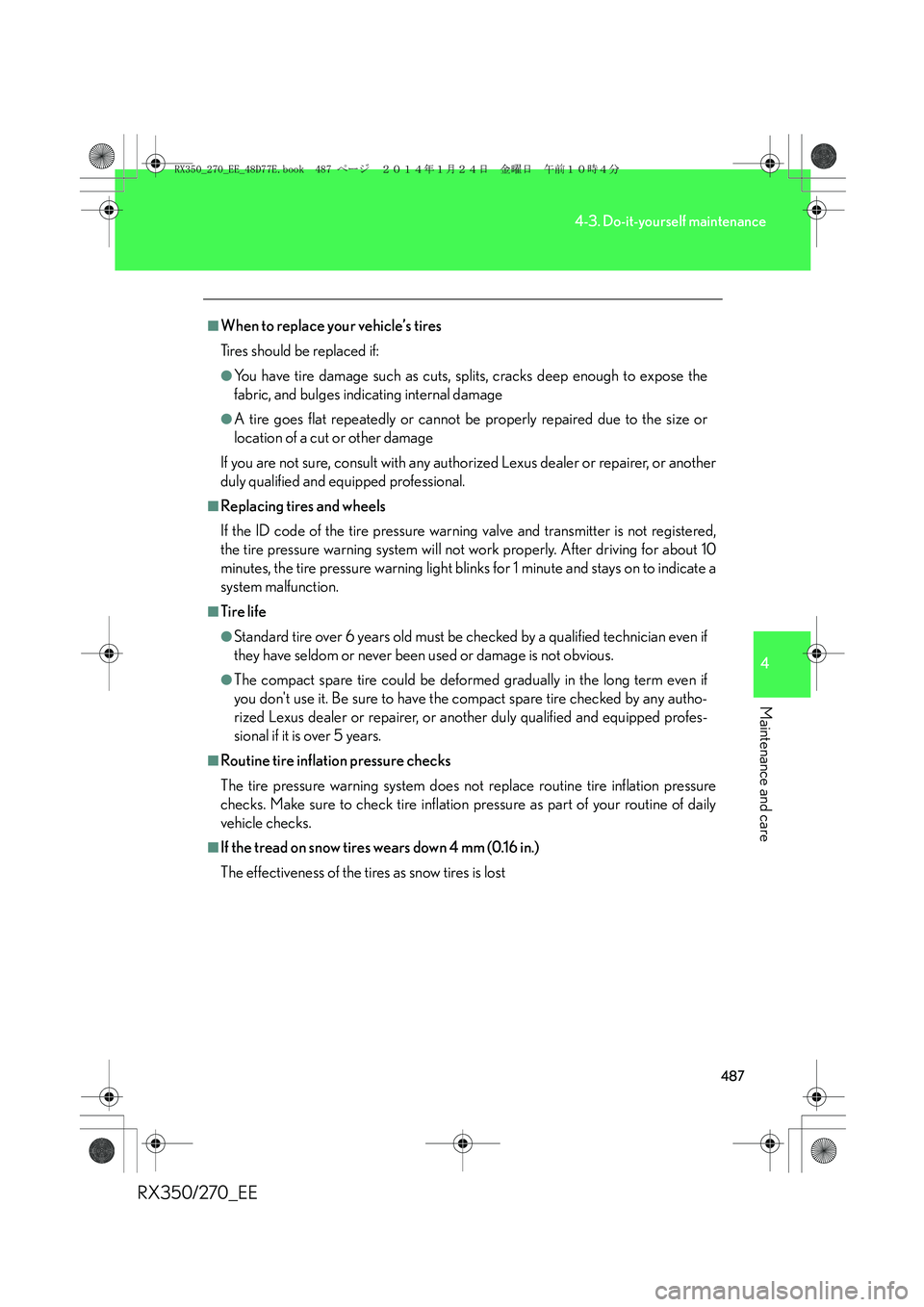

■When to replace your vehicle’s tires
Tires should be replaced if:
●You have tire damage such as cuts, splits, cracks deep enough to expose the
fabric, and bulges indicating internal damage
●A tire goes flat repeatedly or cannot be properly repaired due to the size or
location of a cut or other damage
If you are not sure, consult with any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
■Replacing tires and wheels
If the ID code of the tire pressure warning valve and transmitter is not registered,
the tire pressure warning system will not work properly. After driving for about 10
minutes, the tire pressure warning light blinks for 1 minute and stays on to indicate a
system malfunction.
■Tire life
●Standard tire over 6 years old must be checked by a qualified technician even if
they have seldom or never been used or damage is not obvious.
●The compact spare tire could be deformed gradually in the long term even if
you don't use it. Be sure to have the compact spare tire checked by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped profes-
sional if it is over 5 years.
■Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation pressure
checks. Make sure to check tire inflation pressure as part of your routine of daily
vehicle checks.
■If the tread on snow tires wears down 4 mm (0.16 in.)
The effectiveness of the tires as snow tires is lost
RX350_270_EE_48D77E.book 487 ページ ２０１４年１月２４日　金曜日　午前１０時４分

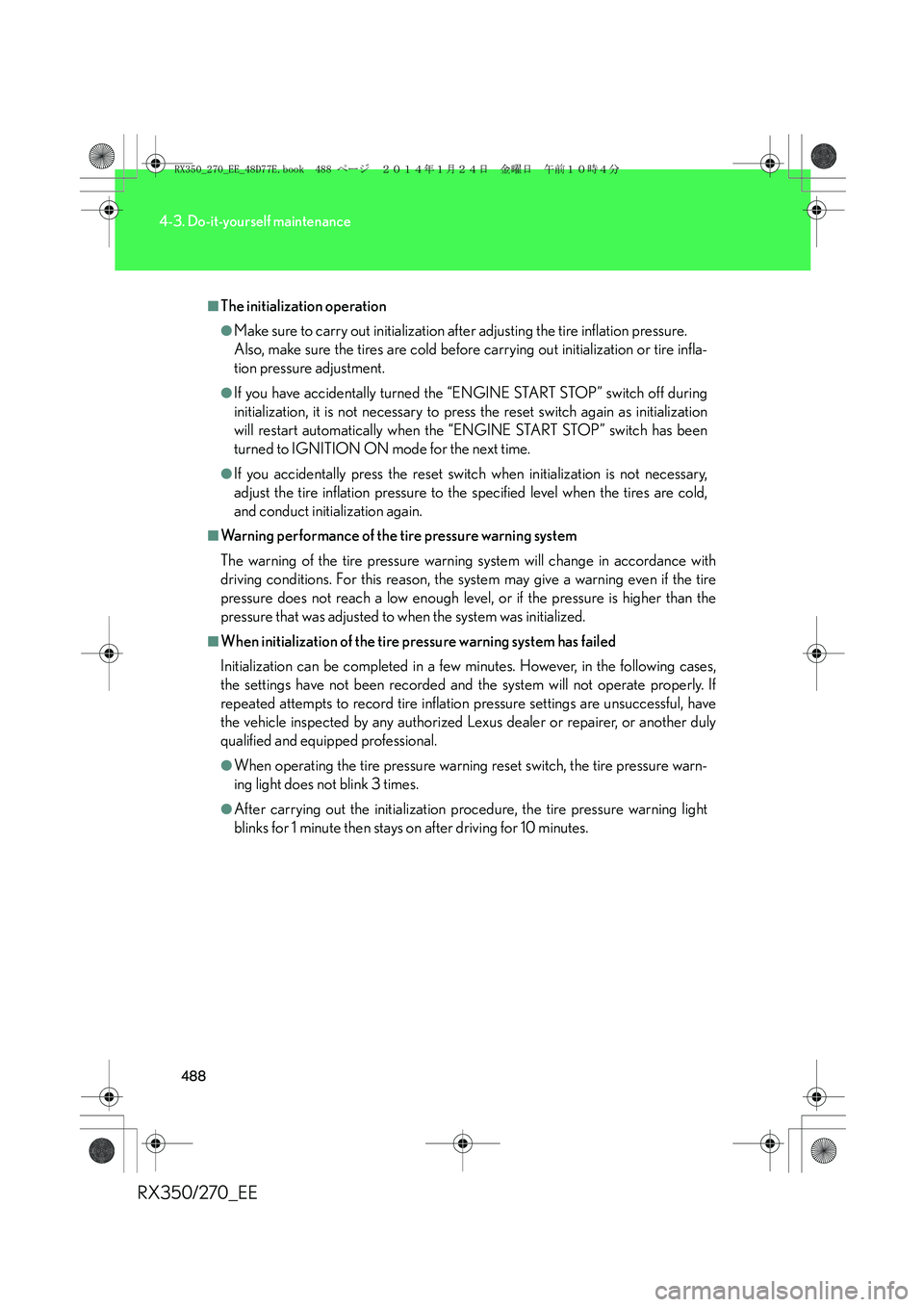

488
4-3. Do-it-yourself maintenance
RX350/270_EE
■The initialization operation
●Make sure to carry out initialization after adjusting the tire inflation pressure.
Also, make sure the tires are cold before carrying out initialization or tire infla-
tion pressure adjustment.
●If you have accidentally turned the “ENGINE START STOP” switch off during
initialization, it is not necessary to press the reset switch again as initialization
will restart automatically when the “ENGINE START STOP” switch has been
turned to IGNITION ON mode for the next time.
●If you accidentally press the reset switch when initialization is not necessary,
adjust the tire inflation pressure to the specified level when the tires are cold,
and conduct initialization again.
■Warning performance of the tire pressure warning system
The warning of the tire pressure warning system will change in accordance with
driving conditions. For this reason, the system may give a warning even if the tire
pressure does not reach a low enough level, or if the pressure is higher than the
pressure that was adjusted to when the system was initialized.
■When initialization of the tire pressure warning system has failed
Initialization can be completed in a few minutes. However, in the following cases,
the settings have not been recorded and the system will not operate properly. If
repeated attempts to record tire inflation pressure settings are unsuccessful, have
the vehicle inspected by any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
●When operating the tire pressure warning reset switch, the tire pressure warn-
ing light does not blink 3 times.
●After carrying out the initialization procedure, the tire pressure warning light
blinks for 1 minute then stays on after driving for 10 minutes.
RX350_270_EE_48D77E.book 488 ページ ２０１４年１月２４日　金曜日　午前１０時４分

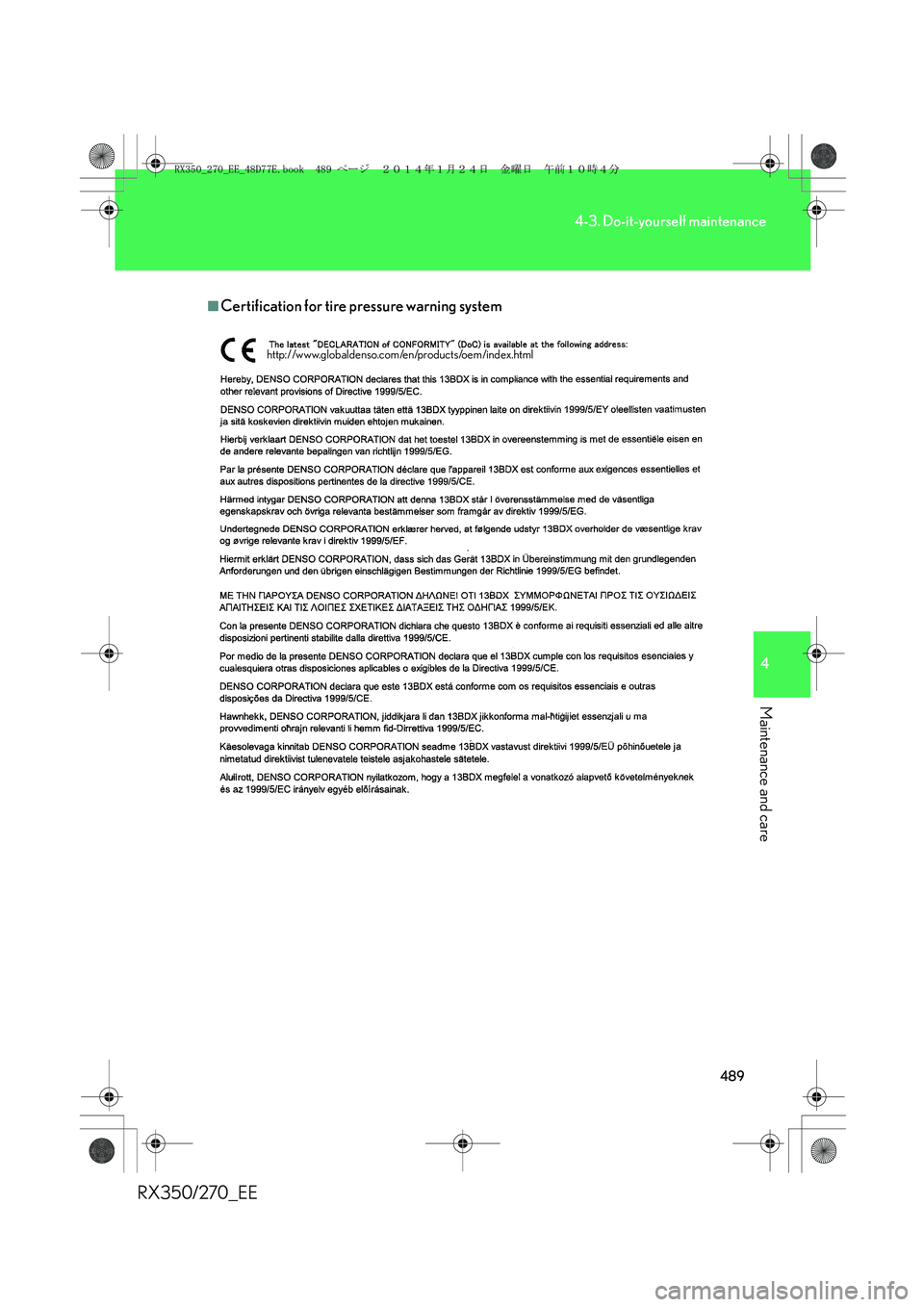

489
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
■Certification for tire pressure warning system
http://www.globaldenso.com/en/products/oem/index.html
RX350_270_EE_48D77E.book 489 ページ ２０１４年１月２４日　金曜日　午前１０時４分

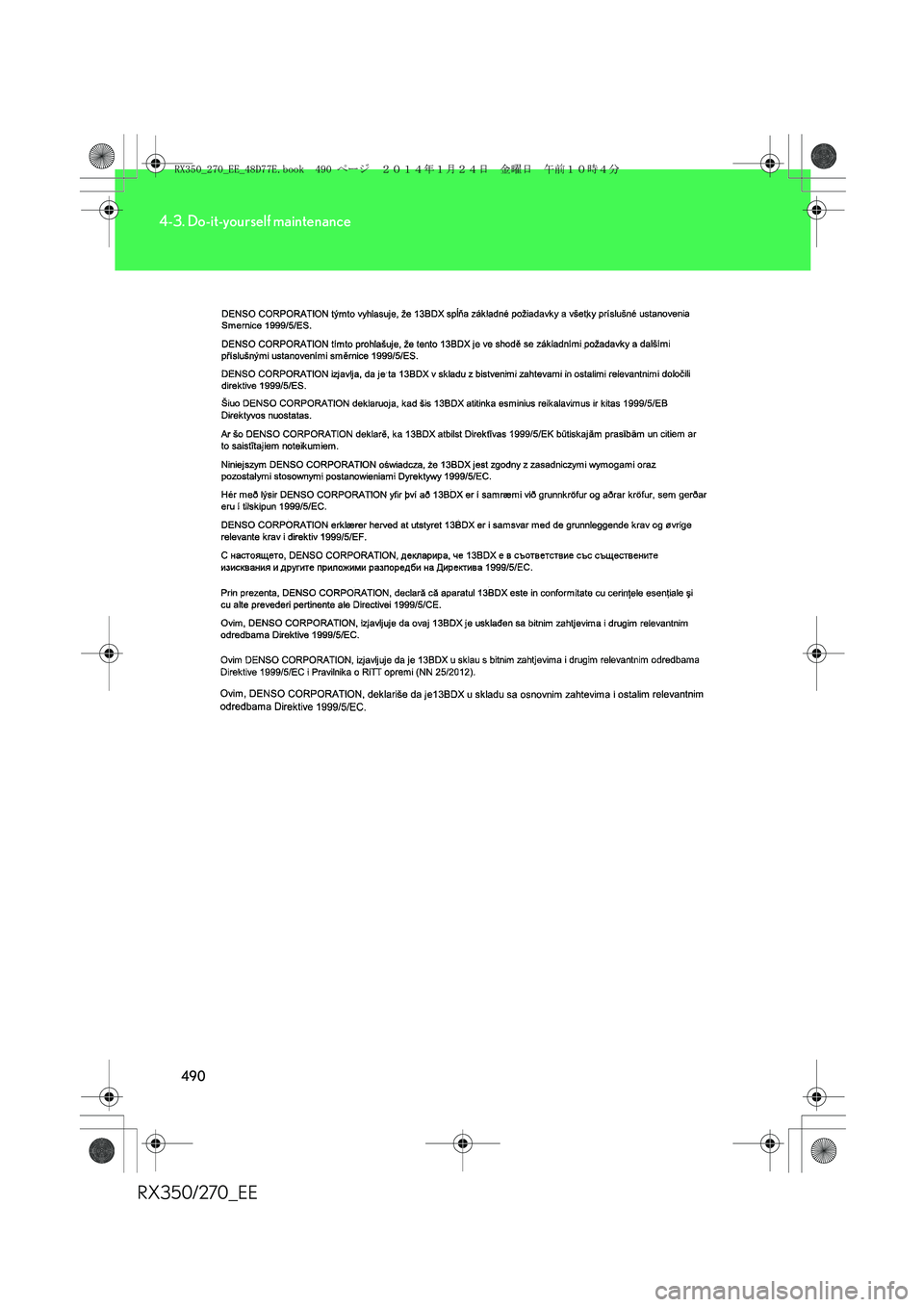

490
4-3. Do-it-yourself maintenance
RX350/270_EE
RX350_270_EE_48D77E.book 490 ページ ２０１４年１月２４日　金曜日　午前１０時４分
