LEXUS RX270 2014 Owners Manual

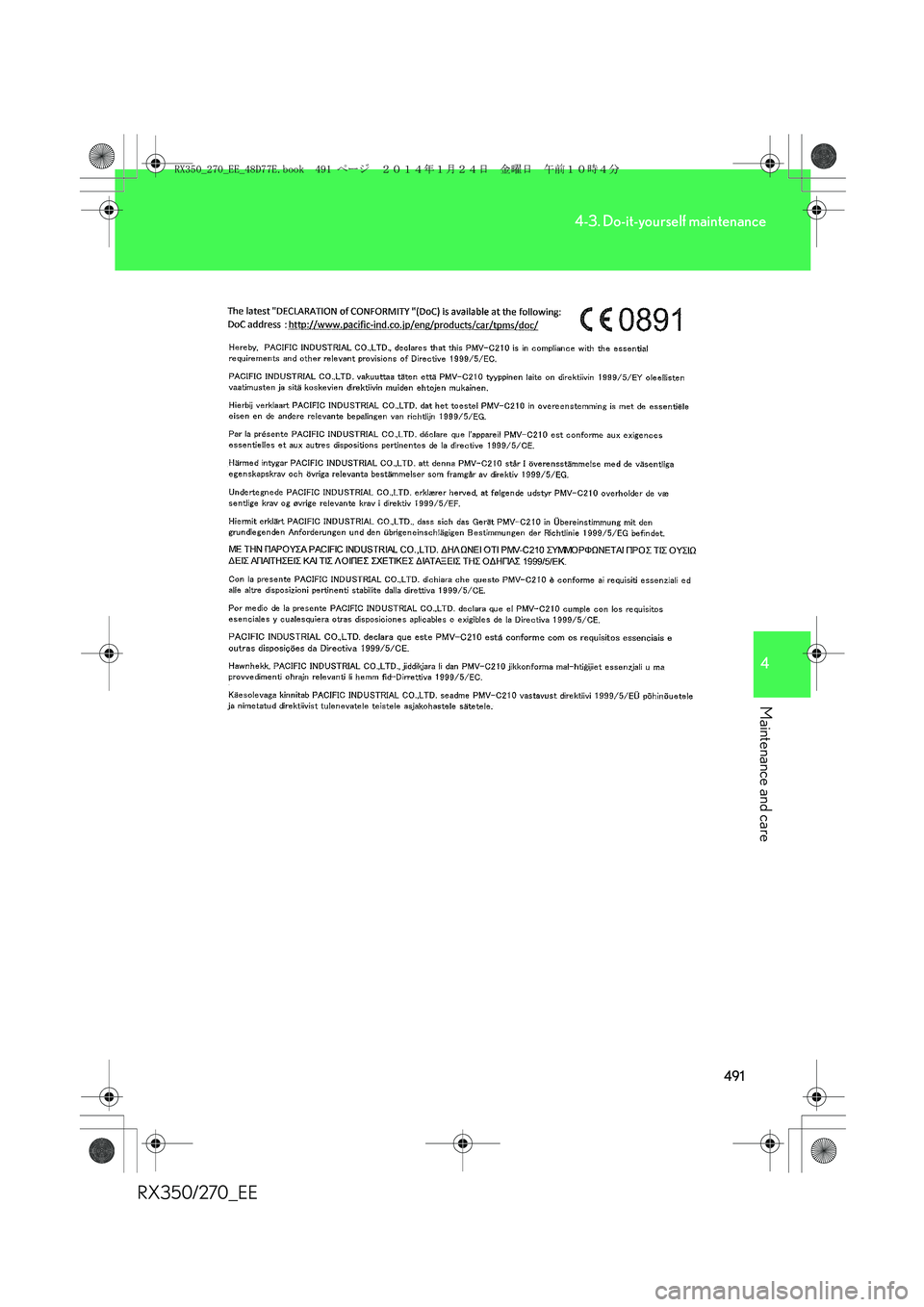

491
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
RX350_270_EE_48D77E.book 491 ページ ２０１４年１月２４日　金曜日　午前１０時４分

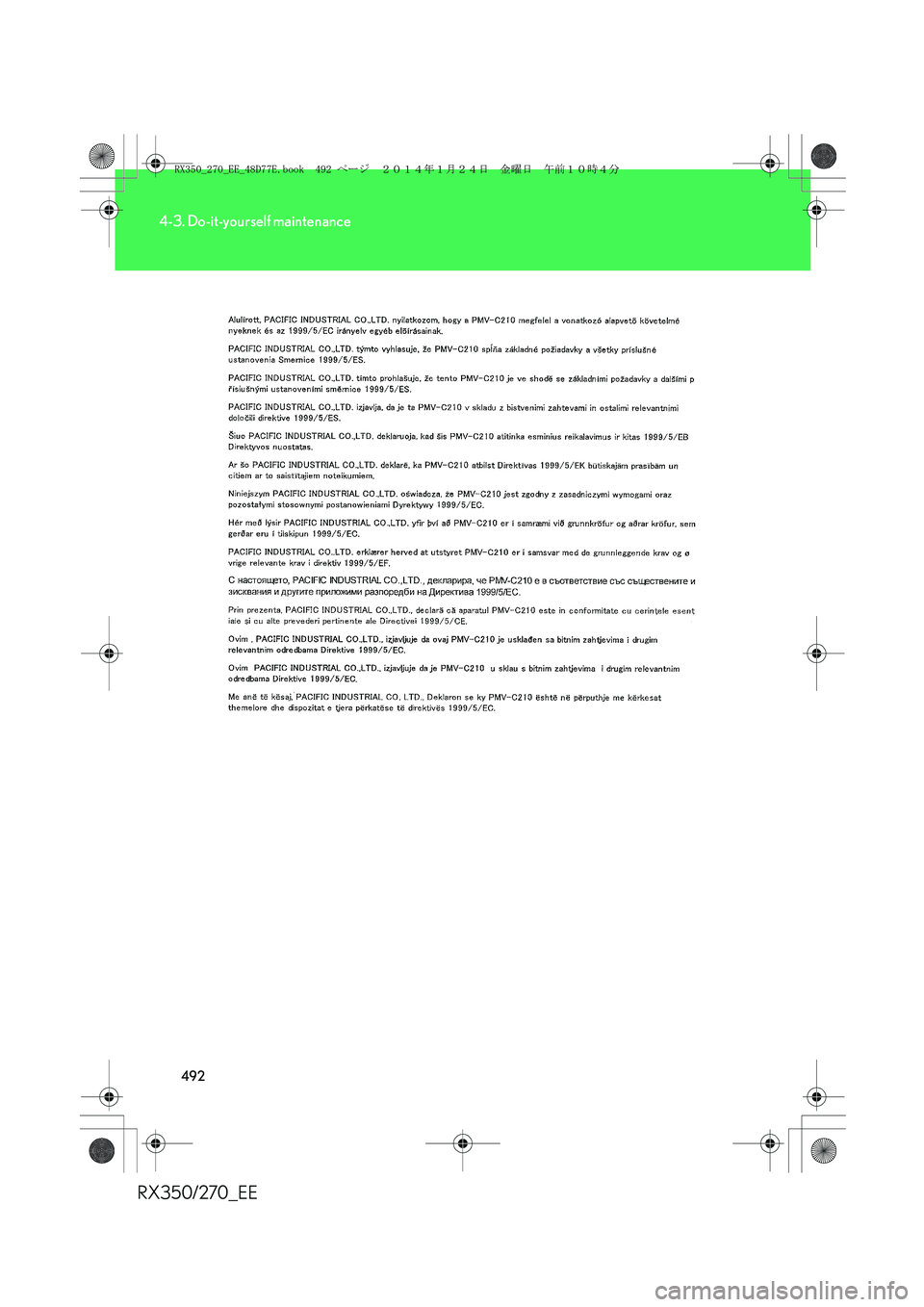

492
4-3. Do-it-yourself maintenance
RX350/270_EE
RX350_270_EE_48D77E.book 492 ページ ２０１４年１月２４日　金曜日　午前１０時４分

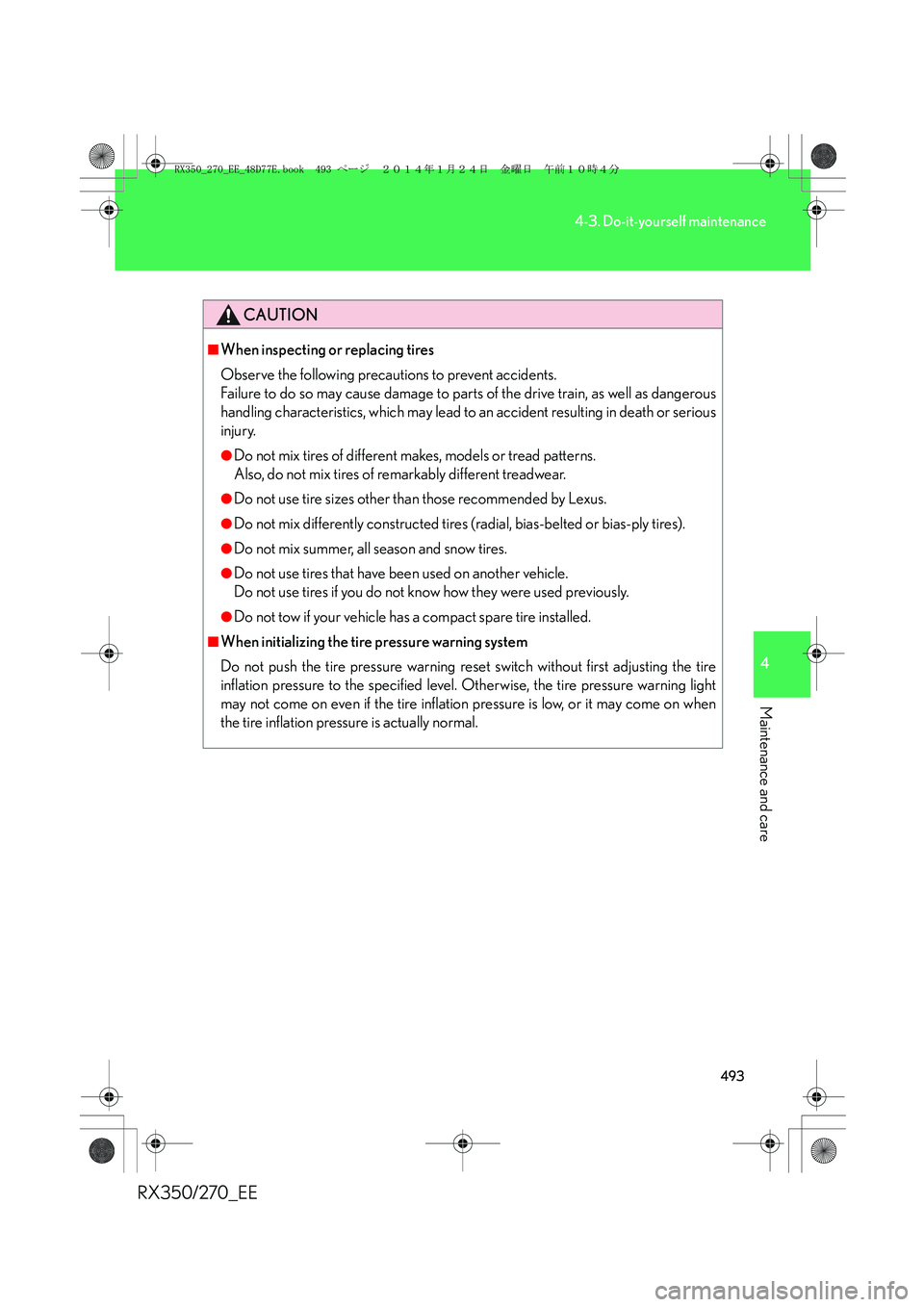

493
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
CAUTION
■When inspecting or replacing tires
Observe the following precautions to prevent accidents.
Failure to do so may cause damage to parts of the drive train, as well as dangerous
handling characteristics, which may lead to an accident resulting in death or serious
injury.
●Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear.
●Do not use tire sizes other than those recommended by Lexus.
●Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
●Do not mix summer, all season and snow tires.
●Do not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously.
●Do not tow if your vehicle has a compact spare tire installed.
■When initializing the tire pressure warning system
Do not push the tire pressure warning reset switch without first adjusting the tire
inflation pressure to the specified level. Otherwise, the tire pressure warning light
may not come on even if the tire inflation pressure is low, or it may come on when
the tire inflation pressure is actually normal.
RX350_270_EE_48D77E.book 493 ページ ２０１４年１月２４日　金曜日　午前１０時４分

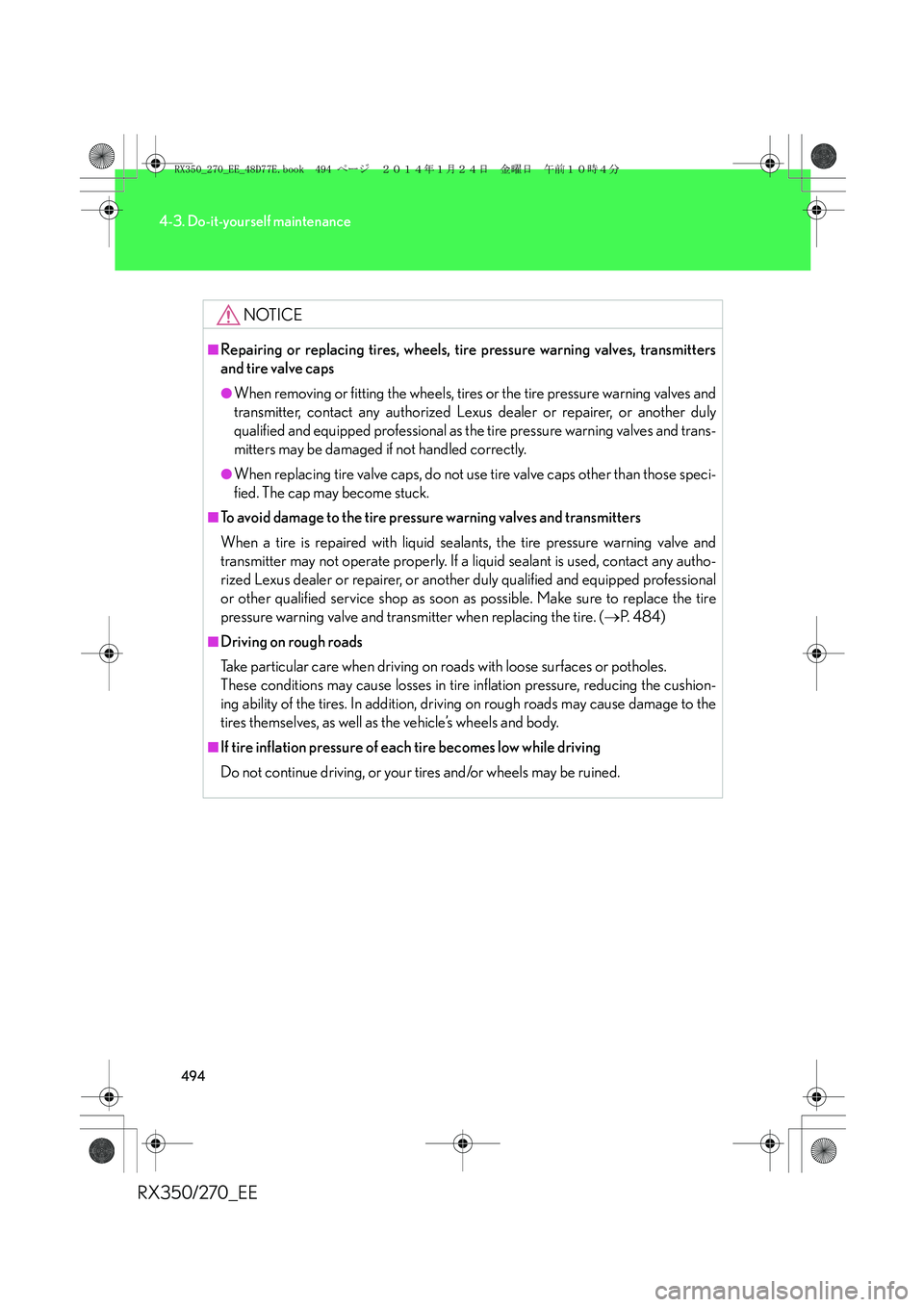

494
4-3. Do-it-yourself maintenance
RX350/270_EE
NOTICE
■Repairing or replacing tires, wheels, tire pressure warning valves, transmitters
and tire valve caps
●When removing or fitting the wheels, tires or the tire pressure warning valves and
transmitter, contact any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional as the tire pressure warning valves and trans-
mitters may be damaged if not handled correctly.
●When replacing tire valve caps, do not use tire valve caps other than those speci-
fied. The cap may become stuck.
■To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve and
transmitter may not operate properly. If a liquid sealant is used, contact any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped professional
or other qualified service shop as soon as possible. Make sure to replace the tire
pressure warning valve and transmitter when replacing the tire. (→P. 4 8 4 )
■Driving on rough roads
Take particular care when driving on roads with loose surfaces or potholes.
These conditions may cause losses in tire inflation pressure, reducing the cushion-
ing ability of the tires. In addition, driving on rough roads may cause damage to the
tires themselves, as well as the vehicle’s wheels and body.
■If tire inflation pressure of each tire becomes low while driving
Do not continue driving, or your tires and/or wheels may be ruined.
RX350_270_EE_48D77E.book 494 ページ ２０１４年１月２４日　金曜日　午前１０時４分

495
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE

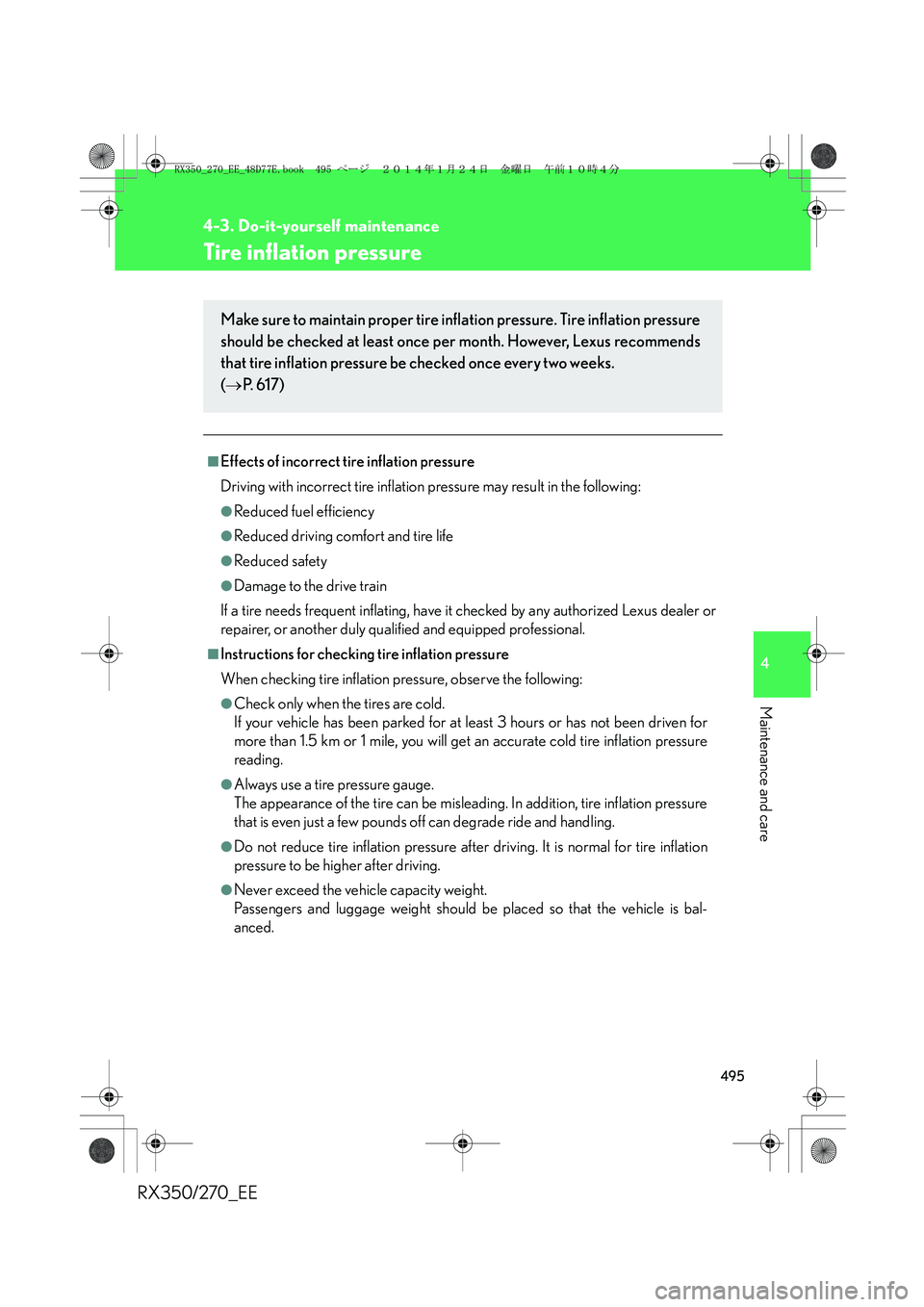

Tire inflation pressure
■Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
●Reduced fuel efficiency
●Reduced driving comfort and tire life
●Reduced safety
●Damage to the drive train
If a tire needs frequent inflating, have it checked by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
■Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
●Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been driven for
more than 1.5 km or 1 mile, you will get an accurate cold tire inflation pressure
reading.
●Always use a tire pressure gauge.
The appearance of the tire can be misleading. In addition, tire inflation pressure
that is even just a few pounds off can degrade ride and handling.
●Do not reduce tire inflation pressure after driving. It is normal for tire inflation
pressure to be higher after driving.
●Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle is bal-
anced.
Make sure to maintain proper tire inflation pressure. Tire inflation pressure
should be checked at least once per month. However, Lexus recommends
that tire inflation pressure be checked once every two weeks.
(→P. 6 1 7 )
RX350_270_EE_48D77E.book 495 ページ ２０１４年１月２４日　金曜日　午前１０時４分

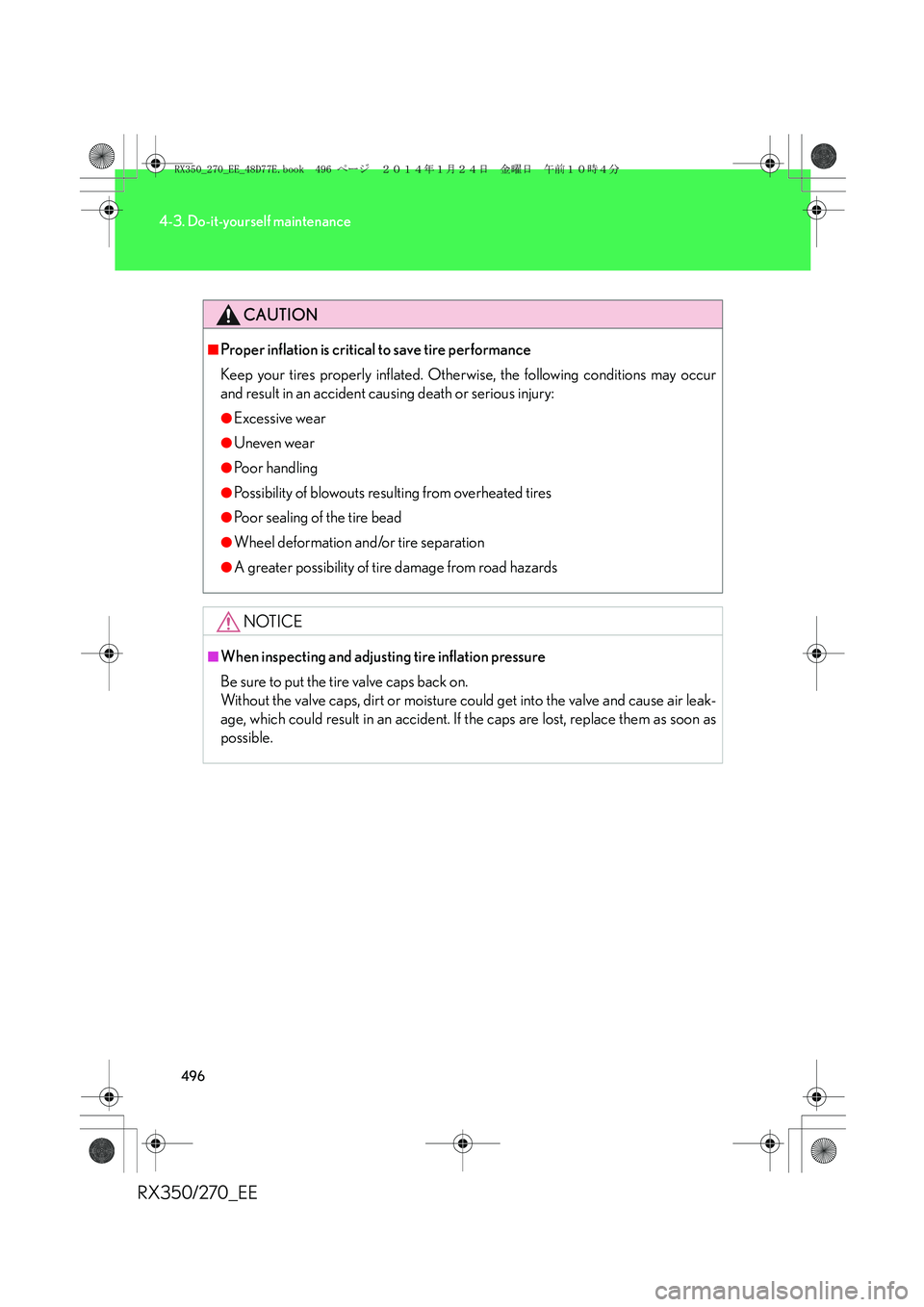

496
4-3. Do-it-yourself maintenance
RX350/270_EE
CAUTION
■Proper inflation is critical to save tire performance
Keep your tires properly inflated. Otherwise, the following conditions may occur
and result in an accident causing death or serious injury:
●Excessive wear
●Uneven wear
●Poor handling
●Possibility of blowouts resulting from overheated tires
●Poor sealing of the tire bead
●Wheel deformation and/or tire separation
●A greater possibility of tire damage from road hazards
NOTICE
■When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back on.
Without the valve caps, dirt or moisture could get into the valve and cause air leak-
age, which could result in an accident. If the caps are lost, replace them as soon as
possible.
RX350_270_EE_48D77E.book 496 ページ ２０１４年１月２４日　金曜日　午前１０時４分

497
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
Wheels
If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause a loss of han-
dling control.
■Wheel selection
When replacing wheels, care should be taken to ensure that they
are equivalent to those removed in load capacity, diameter, rim
width, and inset
*.
Replacement wheels are available at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
*: Conventionally referred to as “offset”.
Lexus does not recommend using the following:
●Wheels of different sizes or types
●Used wheels
●Bent wheels that have been straightened
■Aluminum wheel precautions
●Use only Lexus wheel nuts and wrenches designed for use with
your aluminum wheels.
●When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1600 km (1000 miles).
●Be careful not to damage the aluminum wheels when using tire
chains.
●Use only Lexus genuine balance weights or equivalent and a
plastic or rubber hammer when balancing your wheels.
RX350_270_EE_48D77E.book 497 ページ ２０１４年１月２４日　金曜日　午前１０時４分

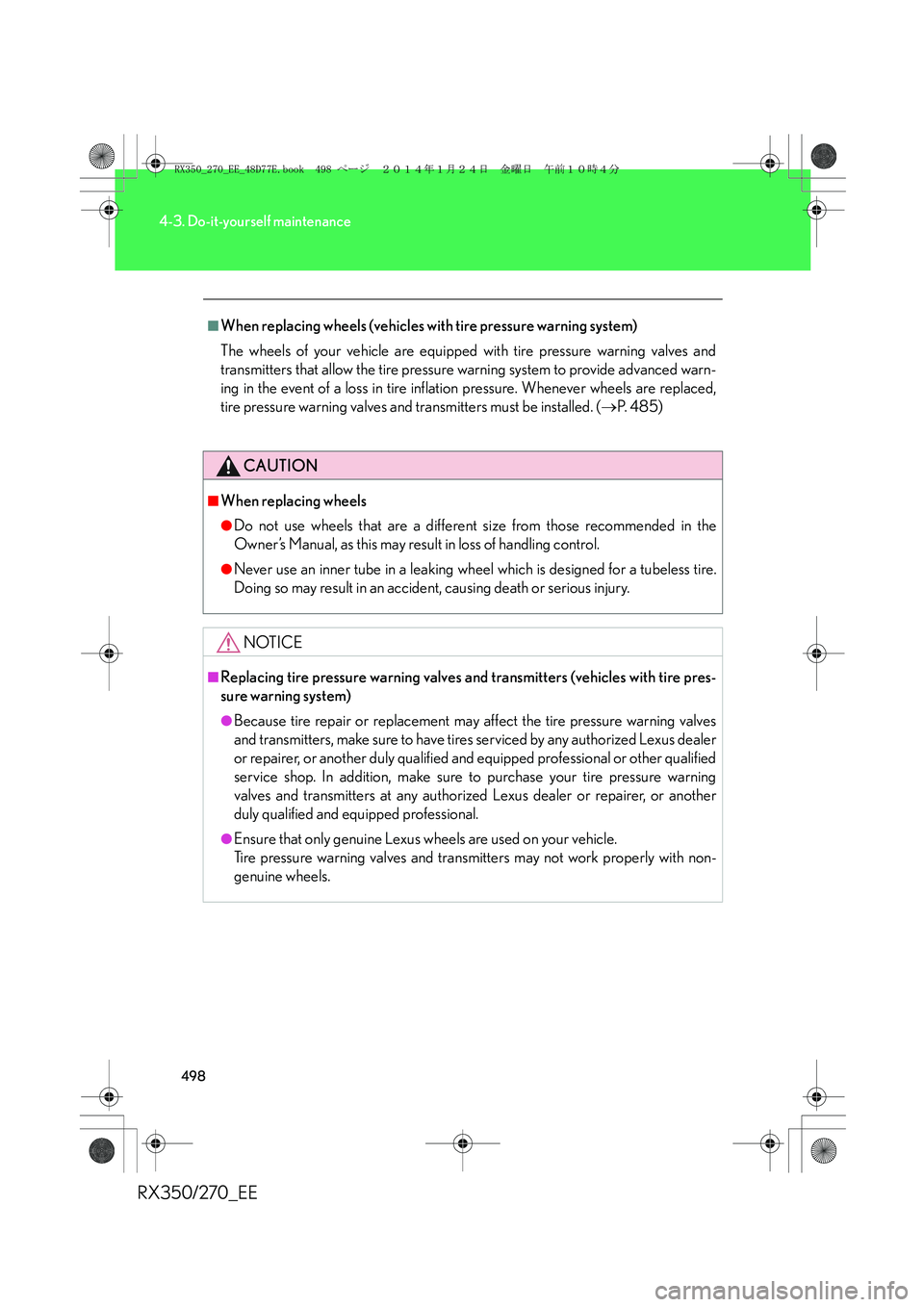

498
4-3. Do-it-yourself maintenance
RX350/270_EE
■When replacing wheels (vehicles with tire pressure warning system)
The wheels of your vehicle are equipped with tire pressure warning valves and
transmitters that allow the tire pressure warning system to provide advanced warn-
ing in the event of a loss in tire inflation pressure. Whenever wheels are replaced,
tire pressure warning valves and transmitters must be installed. (→P. 4 8 5 )
CAUTION
■When replacing wheels
●Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in loss of handling control.
●Never use an inner tube in a leaking wheel which is designed for a tubeless tire.
Doing so may result in an accident, causing death or serious injury.
NOTICE
■Replacing tire pressure warning valves and transmitters (vehicles with tire pres-
sure warning system)
●Because tire repair or replacement may affect the tire pressure warning valves
and transmitters, make sure to have tires serviced by any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional or other qualified
service shop. In addition, make sure to purchase your tire pressure warning
valves and transmitters at any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
●Ensure that only genuine Lexus wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly with non-
genuine wheels.
RX350_270_EE_48D77E.book 498 ページ ２０１４年１月２４日　金曜日　午前１０時４分

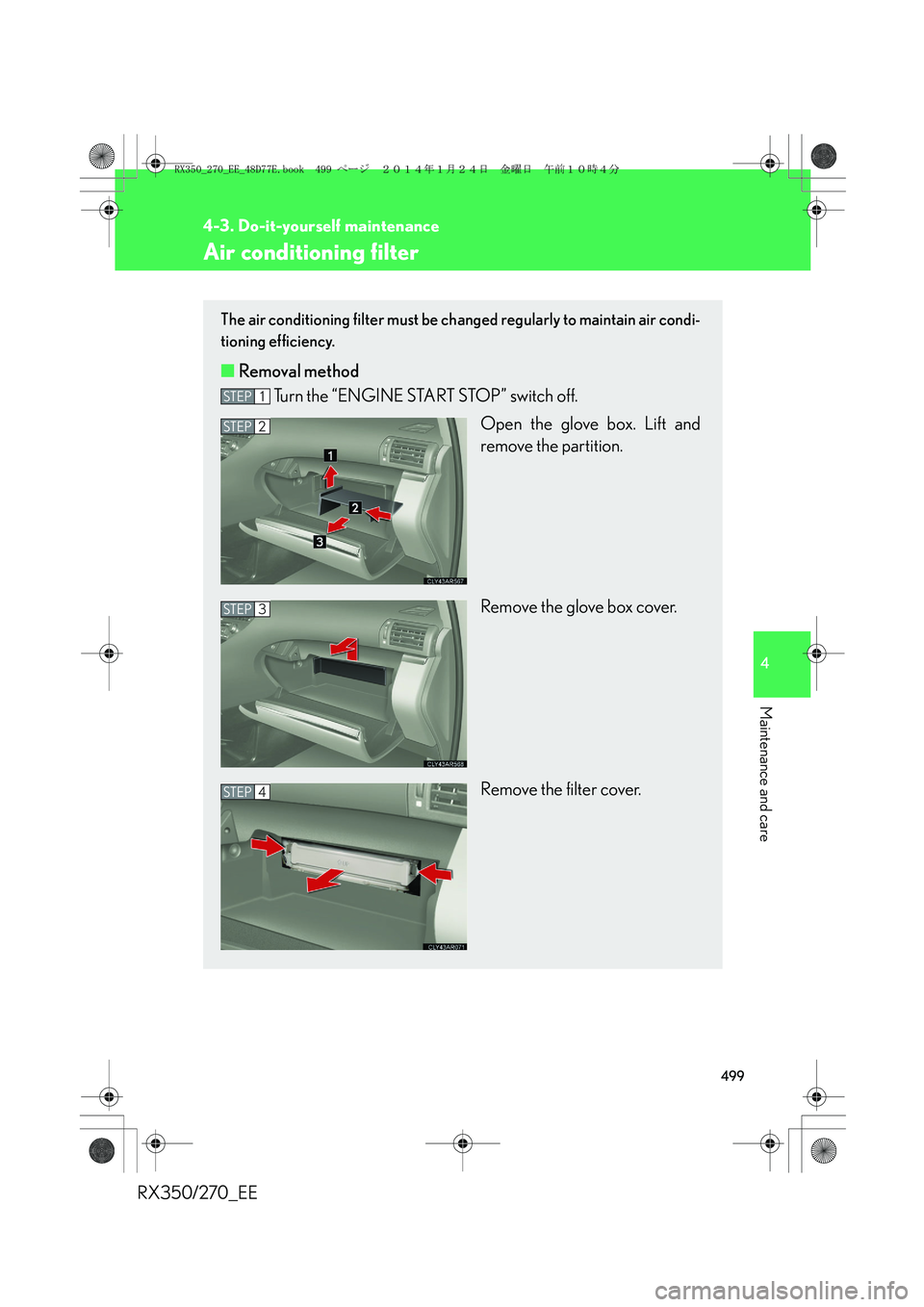

499
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
Air conditioning filter
The air conditioning filter must be changed regularly to maintain air condi-
tioning efficiency.
■Removal method
Turn the “ENGINE START STOP” switch off.
Open the glove box. Lift and
remove the partition.
Remove the glove box cover.
Remove the filter cover.
STEP1
STEP2
STEP3
STEP4
RX350_270_EE_48D77E.book 499 ページ ２０１４年１月２４日　金曜日　午前１０時４分

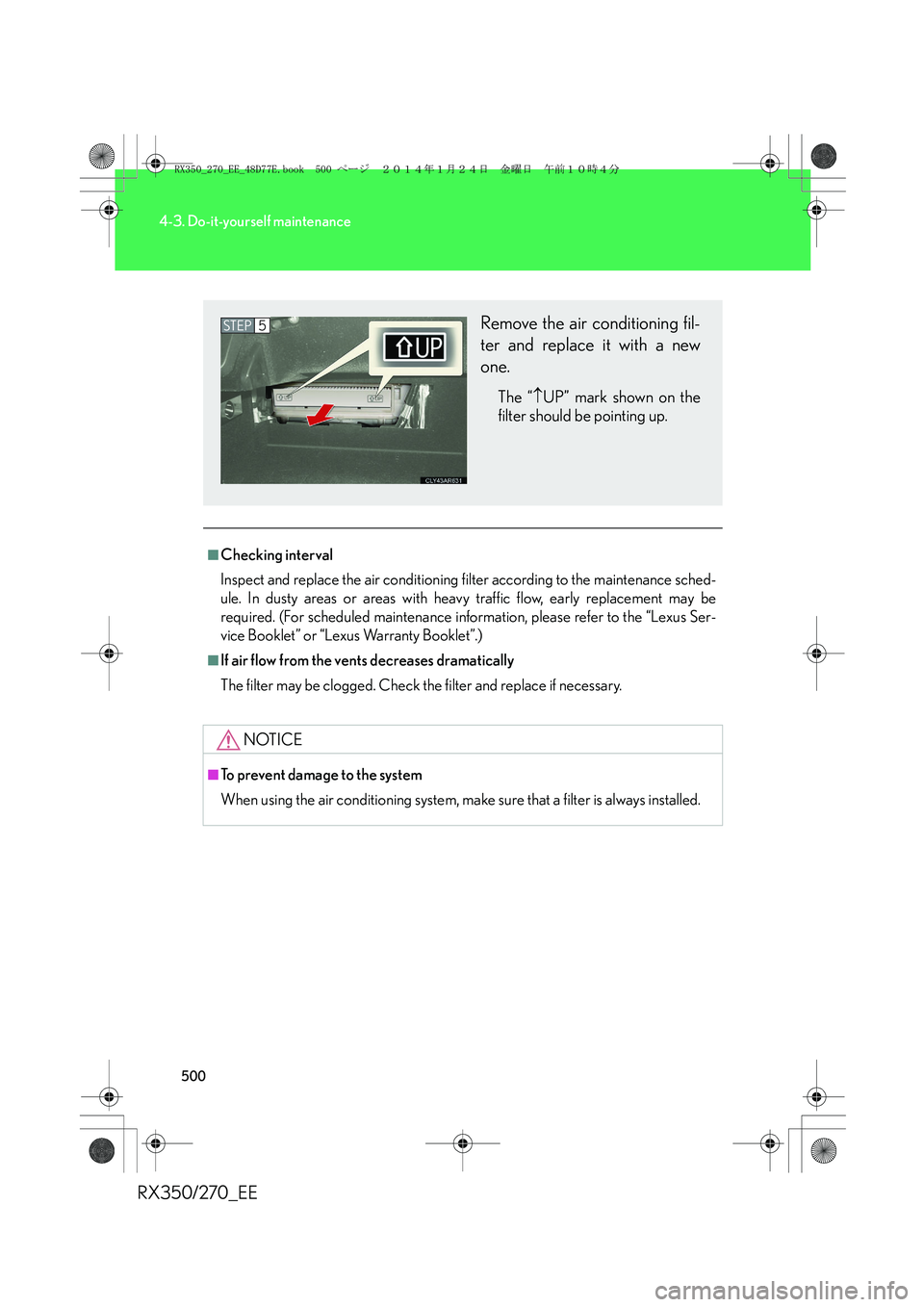

500
4-3. Do-it-yourself maintenance
RX350/270_EE
■Checking interval
Inspect and replace the air conditioning filter according to the maintenance sched-
ule. In dusty areas or areas with heavy traffic flow, early replacement may be
required. (For scheduled maintenance information, please refer to the “Lexus Ser-
vice Booklet” or “Lexus Warranty Booklet”.)
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
■To prevent damage to the system
When using the air conditioning system, make sure that a filter is always installed.
Remove the air conditioning fil-
ter and replace it with a new
one.
The “↑UP” mark shown on the
filter should be pointing up.
STEP5
