1-2. Opening, closing and locking the doors
1
Before driving
RX350/270_EE

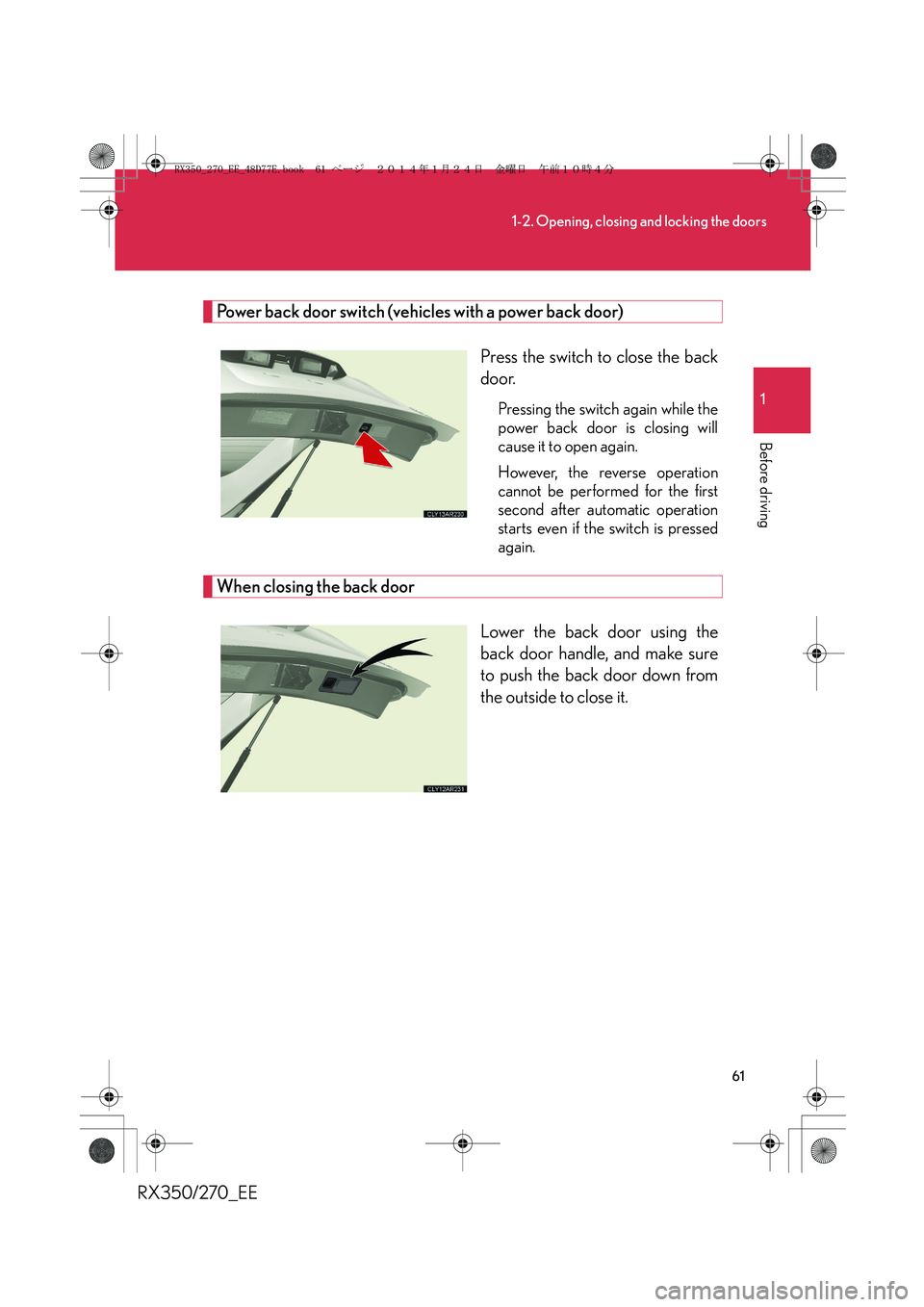

Power back door switch (vehicles with a power back door)
Press the switch to close the back
door.
Pressing the switch again while the
power back door is closing will
cause it to open again.
However, the reverse operation
cannot be performed for the first
second after automatic operation
starts even if the switch is pressed
again.
When closing the back door
Lower the back door using the
back door handle, and make sure
to push the back door down from
the outside to close it.
RX350_270_EE_48D77E.book 61 ページ ２０１４年１月２４日　金曜日　午前１０時４分

62
1-2. Opening, closing and locking the doors
RX350/270_EE
Canceling the power back door system (vehicles with a power back door)
Turn off the main switch in the glove box to disable the power back door
system.
On
Off
The back door cannot be operated
even with the wireless remote con-
trol or power back door switch.
■The power back door can be operated when (vehicles with a power back door)
●The back door is unlocked.
●The power back door main switch is on.
●To open the power back door when the “ENGINE START STOP” switch is in
IGNITION ON mode, the power back door main switch must be on, the vehi-
cle speed must be lower than 3 km/h (1 mph) and the shift lever must be in P.
(When using the back door opener button only)
●The “ENGINE START STOP” switch is turned off. (When using the wireless
remote control only)
RX350_270_EE_48D77E.book 62 ページ ２０１４年１月２４日　金曜日　午前１０時４分

63
1-2. Opening, closing and locking the doors
1
Before driving
RX350/270_EE

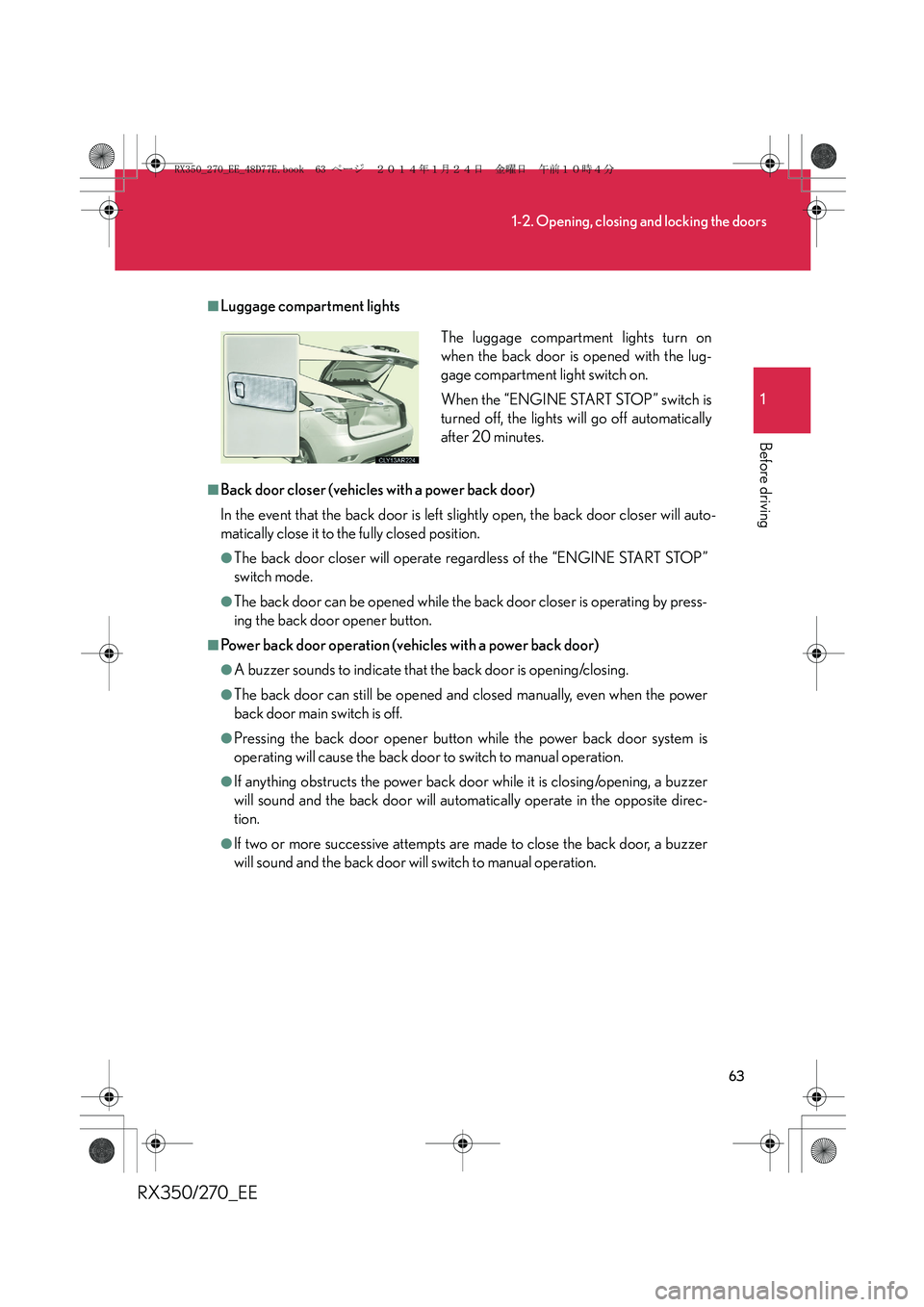

■Luggage compartment lights
■Back door closer (vehicles with a power back door)
In the event that the back door is left slightly open, the back door closer will auto-
matically close it to the fully closed position.
●The back door closer will operate regardless of the “ENGINE START STOP”
switch mode.
●The back door can be opened while the back door closer is operating by press-
ing the back door opener button.
■Power back door operation (vehicles with a power back door)
●A buzzer sounds to indicate that the back door is opening/closing.
●The back door can still be opened and closed manually, even when the power
back door main switch is off.
●Pressing the back door opener button while the power back door system is
operating will cause the back door to switch to manual operation.
●If anything obstructs the power back door while it is closing/opening, a buzzer
will sound and the back door will automatically operate in the opposite direc-
tion.
●If two or more successive attempts are made to close the back door, a buzzer
will sound and the back door will switch to manual operation.The luggage compartment lights turn on
when the back door is opened with the lug-
gage compartment light switch on.
When the “ENGINE START STOP” switch is
turned off, the lights will go off automatically
after 20 minutes.
RX350_270_EE_48D77E.book 63 ページ ２０１４年１月２４日　金曜日　午前１０時４分

64
1-2. Opening, closing and locking the doors
RX350/270_EE
■Jam protection function (vehicles with a power back door)
■After the back door has been opened and then closed
Lock the back door again as the back door will not lock automatically.
■Luggage mode (vehicles with electronically modulated air suspension)
Pressing the vehicle height selector switch to lower the vehicle height makes load-
ing luggage easier. (→P. 2 5 6 )Sensors are attached to the left and right
sides of the power back door. If these sensors
detect an obstruction while the power back
door is closing, the jam protection function
will return the door to the fully open position.
RX350_270_EE_48D77E.book 64 ページ ２０１４年１月２４日　金曜日　午前１０時４分

65
1-2. Opening, closing and locking the doors
1
Before driving
RX350/270_EE

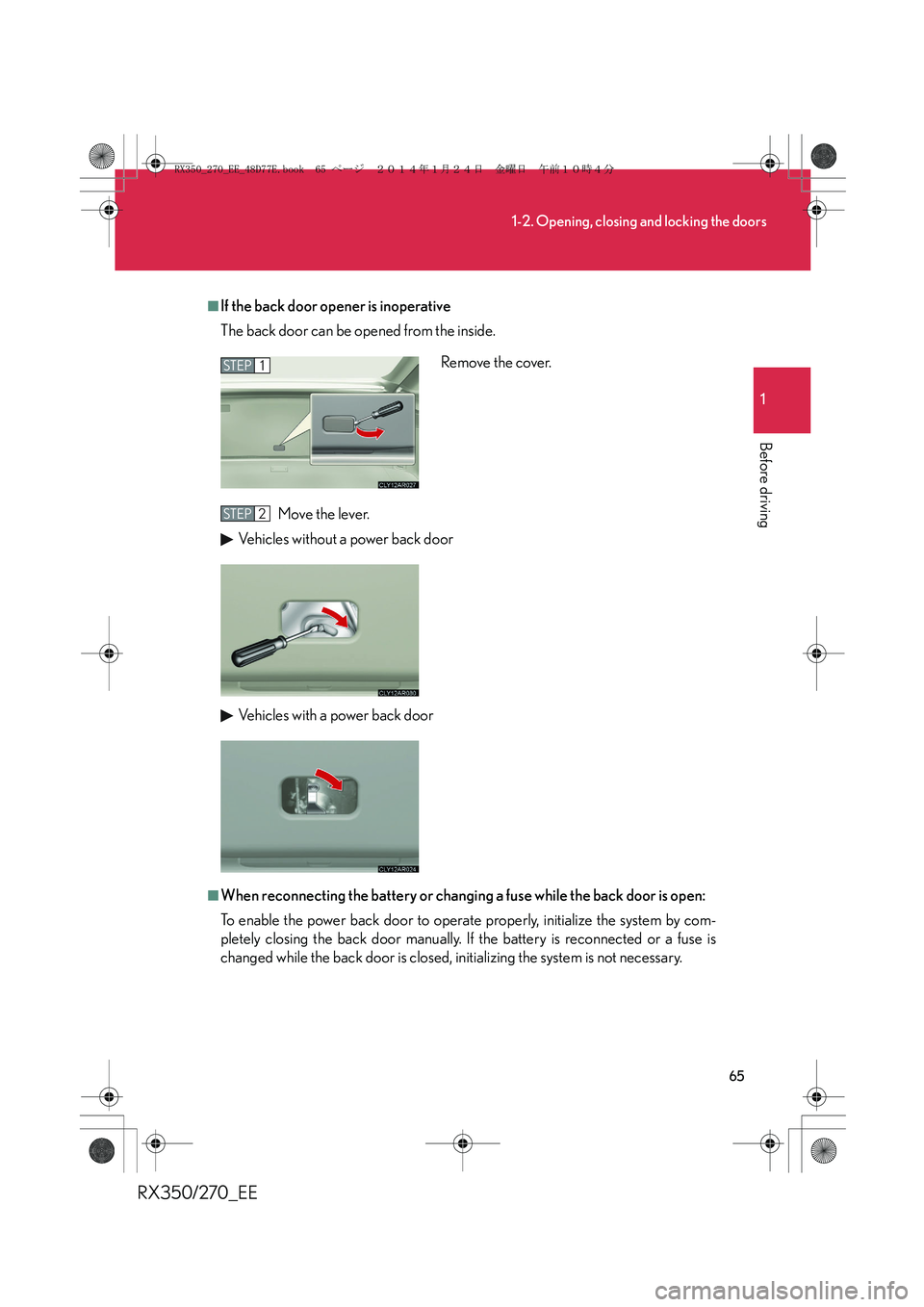

■If the back door opener is inoperative
The back door can be opened from the inside.
Move the lever.
Vehicles without a power back door
Vehicles with a power back door
■When reconnecting the battery or changing a fuse while the back door is open:
To enable the power back door to operate properly, initialize the system by com-
pletely closing the back door manually. If the battery is reconnected or a fuse is
changed while the back door is closed, initializing the system is not necessary.Remove the cover.
STEP1
STEP2
RX350_270_EE_48D77E.book 65 ページ ２０１４年１月２４日　金曜日　午前１０時４分

66
1-2. Opening, closing and locking the doors
RX350/270_EE
CAUTION
■Caution while driving
●Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or luggage
may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a serious
health hazard. Make sure to close the back door before driving.
●Before driving the vehicle, make sure that the back door is fully closed. If the back
door is not fully closed, it may open unexpectedly while driving, causing an acci-
dent.
●Never let anyone sit in the luggage compartment. In the event of sudden braking
or a collision, they are susceptible to death or serious injury.
■When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could have heat
exhaustion or other injuries.
●Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the child’s
hands, head, or neck to be caught by the closing back door, which may result in
death or serious injury of the child.
RX350_270_EE_48D77E.book 66 ページ ２０１４年１月２４日　金曜日　午前１０時４分

67
1-2. Opening, closing and locking the doors
1
Before driving
RX350/270_EE
CAUTION

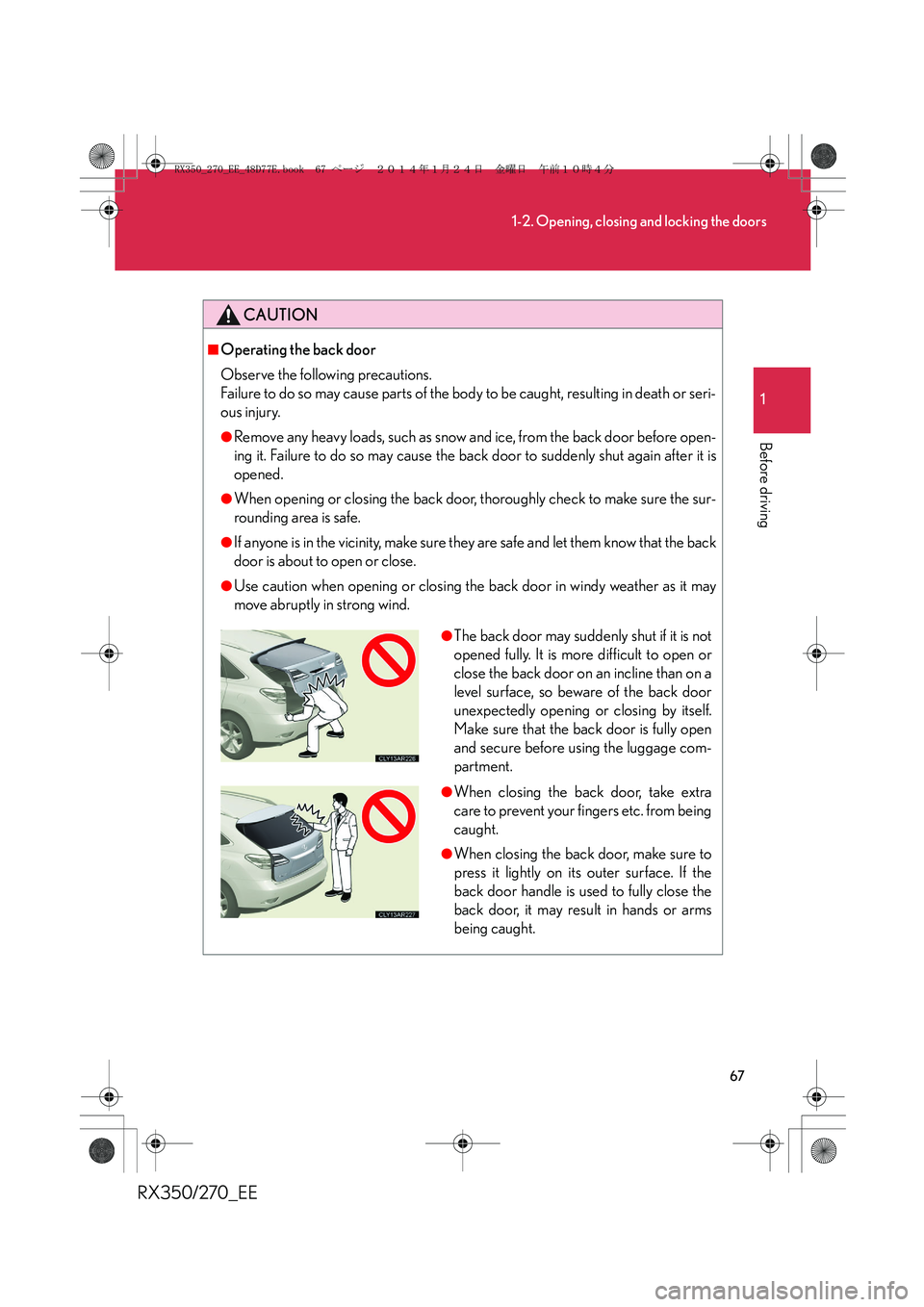

■Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death or seri-
ous injury.
●Remove any heavy loads, such as snow and ice, from the back door before open-
ing it. Failure to do so may cause the back door to suddenly shut again after it is
opened.
●When opening or closing the back door, thoroughly check to make sure the sur-
rounding area is safe.
●If anyone is in the vicinity, make sure they are safe and let them know that the back
door is about to open or close.
●Use caution when opening or closing the back door in windy weather as it may
move abruptly in strong wind.
●The back door may suddenly shut if it is not
opened fully. It is more difficult to open or
close the back door on an incline than on a
level surface, so beware of the back door
unexpectedly opening or closing by itself.
Make sure that the back door is fully open
and secure before using the luggage com-
partment.
●When closing the back door, take extra
care to prevent your fingers etc. from being
caught.
●When closing the back door, make sure to
press it lightly on its outer surface. If the
back door handle is used to fully close the
back door, it may result in hands or arms
being caught.
RX350_270_EE_48D77E.book 67 ページ ２０１４年１月２４日　金曜日　午前１０時４分

68
1-2. Opening, closing and locking the doors
RX350/270_EE
CAUTION
●Do not pull on the back door damper stay to close the back door, and do not
hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to break,
causing an accident.
●If a bicycle carrier or similar heavy object is attached to the back door, it may sud-
denly shut again after being opened, causing someone’s hands, head or neck to
be caught and injured. When installing an accessory part to the back door, using
a genuine Lexus part is recommended.
■Back door closer
●Use caution when using the back door closer as it still operates when the power
back door system is cancelled.
●In the event that the back door is left slightly
open, the back door closer will automati-
cally close it to the fully closed position. It
takes several seconds before the back
door closer begins to operate. Be careful
not to catch fingers or anything else in the
back door, as this may cause bone frac-
tures or other serious injuries.
RX350_270_EE_48D77E.book 68 ページ ２０１４年１月２４日　金曜日　午前１０時４分

69
1-2. Opening, closing and locking the doors
1
Before driving
RX350/270_EE
CAUTION
■Power back door
Observe the following precautions when operating the power back door.
Failure to do so may cause death or serious injury.
●Check the safety of the surrounding area to make sure there are no obstacles or
anything that could cause any of your belongings to get caught.
●If anyone is in the vicinity, make sure they are safe and let them know that the back
door is about to open or close.
●If the power back door system is turned off with the main switch while the back
door is operating automatically, the automatic operation is stopped. The back
door then has to be operated manually. Take extra care when on an incline, as the
back door may open or close unexpectedly.
●If the operating conditions of the power back door are no longer met, a buzzer
may sound and the back door may stop opening or closing. The back door then
has to be operated manually. Take extra care when on an incline, as the back door
may open or close abruptly.
●On an incline, the back door may suddenly shut after it opens. Make sure the
back door is fully open and secure.
●In the following situations, the power back door may detect an abnormality and
automatic operation may be stopped. In this case, the back door has to be oper-
ated manually. Take extra care when on an incline, as the back door may open or
close abruptly.
• When the back door contacts an obstacle
• When the battery voltage suddenly drops, such as when the “ENGINE
START STOP” switch is turned to IGNITION ON mode or the engine is
started during automatic operation
●If a bicycle carrier or similar heavy object is attached to the back door, the power
back door may not operate, causing itself to malfunction, or the back door may
suddenly shut again after being opened, causing someone’s hands, head or neck
to be caught and injured. When installing an accessory part to the back door,
using a genuine Lexus part is recommended.
RX350_270_EE_48D77E.book 69 ページ ２０１４年１月２４日　金曜日　午前１０時４分

70
1-2. Opening, closing and locking the doors
RX350/270_EE
CAUTION
■Jam protection function
Observe the following precautions.
Failure to do so may cause death or serious injury.
●Be careful while the jam protection function is operating. Being hit by the back
door may result in an injury.
●Although the back door stops closing when the jam protection function detects
an object, take extra care as you may still be injured if part of your body is already
caught.
●If anything obstructs the power back door while it is closing, the jam protection
function will cause the back door to automatically operate in the opposite direc-
tion. However, be careful not to jam body parts in the doorframe, as an injury may
result.
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the back door fully closes. Be careful not to catch fingers or anything else.
●The jam protection function may not work depending on the shape of the object
that is caught. Be careful not to catch fingers or anything else.
●The sensors located on the right and left sides of the power back door detect
obstructions and prevent them from becoming jammed in the door. Some objects
may not be detected depending on their shape or how they are jammed. Be care-
ful not to get fingers or other body parts caught in the back door while it is oper-
ating as this may result in a serious injury.
RX350_270_EE_48D77E.book 70 ページ ２０１４年１月２４日　金曜日　午前１０時４分
