display LEXUS RX270 2014 Owners Manual

1
2
3
4
5
6
RX350/270_EE
3
2-1. Driving procedures
Driving the vehicle ........................ 168
Engine (ignition) switch .............. 180
Automatic transmission.............. 186
Turn signal lever ............................ 193
Parking brake ................................. 194
Horn.................................................... 195
2-2. Instrument cluster
Gauges and meters ..................... 196
Indicators and warning
lights................................................. 198
Multi-information display.......... 203
Head-up display ............................ 212
2-3. Operating the lights and
windshield wipers
Headlight switch ............................. 217
Fog light switch ............................. 222
Windshield wipers and
washer............................................ 223
Rear window wiper and
washer............................................ 227
Headlight cleaner switch .......... 2292-4. Using other driving systems
Cruise control ............................... 230
Dynamic radar cruise
control............................................ 234
Lexus parking
assist-sensor................................ 248
Electronically modulated
air suspension ............................. 256
Rear view monitor system ........ 263
Driving assist systems................... 271
All-wheel drive lock switch ...... 277
Hill-start assist control ............... 278
Pre-Crash Safety system ......... 280
2-5. Driving information
Utility vehicle precautions ........ 289
Cargo and luggage ..................... 293
Winter driving tips ....................... 296
Trailer towing (RX350)........... 300
Trailer towing (RX270) ............... 311
2When driving
RX350_270_EE_48D77E.book 3 ページ ２０１４年１月２４日　金曜日　午前１０時４分

1
2
3
4
5
6
RX350/270_EE
5
3-4. Using the storage features
List of storage features .............. 420
• Glove box ..................................... 421
• Bottle holders/
door pockets ............................... 422
• Cup holders................................. 423
• Console box................................ 426
• Coin holder ................................. 427
• Auxiliary box ............................... 428
• Under tray .................................... 429
3-5. Other interior features
Sun visors........................................ 430
Vanity mirror................................... 431
Clock................................................. 432
Outside temperature
display ............................................ 433
Multi-display light control......... 434
Power outlets ................................. 435
Heated steering wheel............... 437
Seat heaters and
ventilators ..................................... 439
Armrest ............................................. 441
Coat hooks ..................................... 442
Assist grips...................................... 443
Floor mat.......................................... 444
Luggage compartment
features.......................................... 4464-1. Maintenance and care
Cleaning and protecting
the vehicle exterior................... 452
Cleaning and protecting
the vehicle interior .................... 455
4-2. Maintenance
Maintenance
requirements.............................. 458
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ................................... 461
Hood ................................................. 465
Positioning a floor jack............... 466
Engine compartment.................. 468
Tires ................................................... 483
Tire inflation pressure................. 495
Wheels ............................................. 497
Air conditioning filter.................. 499
Electronic key battery ................. 501
Checking and replacing
fuses ............................................... 504
Light bulbs ........................................ 516
4Maintenance and care
RX350_270_EE_48D77E.book 5 ページ ２０１４年１月２４日　金曜日　午前１０時４分

TABLE OF CONTENTSIndex
RX350/270_EE
6
5-1. Essential information
Emergency flashers..................... 532
If your vehicle needs to
be towed ....................................... 533
If you think something
is wrong .......................................... 541
Fuel pump shut off system ........ 542
5-2. Steps to take in an emergency
If a warning light turns
on or a warning buzzer
sounds... ........................................ 543
If a warning message is
displayed....................................... 552
If you have a flat tire..................... 572
If the engine will not start .......... 587
If the shift lever cannot be
shifted from P ............................. 589
If you lose your keys ................... 590
If the electronic key does not
operate properly ........................ 591
If the vehicle battery is
discharged ................................... 594
If your vehicle overheats .......... 598
If the vehicle becomes
stuck................................................. 601
If your vehicle has to
be stopped in an
emergency.................................. 6036-1. Specifications
Maintenance data
(fuel, oil level, etc.)..................... 606
Fuel information ............................ 620
6-2. Customization
Customizable features .............. 622
6-3. Initialization
Items to initialize ........................... 633
Abbreviation ......................................... 636
Alphabetical index .............................. 637
What to do if... ...................................... 650
5When trouble arises6Vehicle specifications
Index
RX350_270_EE_48D77E.book 6 ページ ２０１４年１月２４日　金曜日　午前１０時４分

RX350/270_EE
14
Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 217
P. 193
P. 222
Windshield wipers and washer switch
Rear window wiper and washer switch P. 223
P. 227
Power back door main
switch
∗ P. 62
Tilt and telescopic steering control switch P. 94
Parking brake pedal P. 194
Hood lock release
lever
P. 465
Gauges and meters
Multi-information display P. 196
P. 203
Glove box P. 421
Horn P. 195
Engine (ignition) switch P. 180
RX350_270_EE_48D77E.book 14 ページ ２０１４年１月２４日　金曜日　午前１０時４分

RX350/270_EE
15
A
With navigation system
Without navigation system
Security indicator
P. 115, 122
Audio system

P. 323
Emergency
flasher switch
P. 532
●Display light control
●Outside temperature
display

●
Clock
●
Air conditioning
display

●
Audio display
P. 434
P. 433
P. 432
P. 314
P. 323
Air conditioning
system
*
Multi display
Air conditioning
system
P. 314
Navigation system* Rear window and
outside rear view
mirror defogger
switch
*
Audio system*
Emergency
flasher switch
P. 532
Security indicator
P. 115, 122
∗: If equipped
*: Refer to the “Navigation System Owner's Manual”.
Clock*
Rear window and
outside rear view
mirror defogger
switch
P. 321
RX350_270_EE_48D77E.book 15 ページ ２０１４年１月２４日　金曜日　午前１０時４分

RX350/270_EE
17
C
Head-up display main switch ∗ P. 212
Display position adjustment
switch
∗ P. 212
Display contrast adjustment
switch
∗ P. 212
Heated steering wheel switch ∗
P. 437
D
Height control off switch ∗
P. 256
Pre-crash braking off
switch
∗ P. 280
Tire pressure warning reset
switch
∗ P. 485
∗: If equipped
*1: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
*2: Refer to the “Navigation System Owner's Manual”.
RX350_270_EE_48D77E.book 17 ページ ２０１４年１月２４日　金曜日　午前１０時４分

35
1-2. Opening, closing and locking the doors
1
Before driving
RX350/270_EE

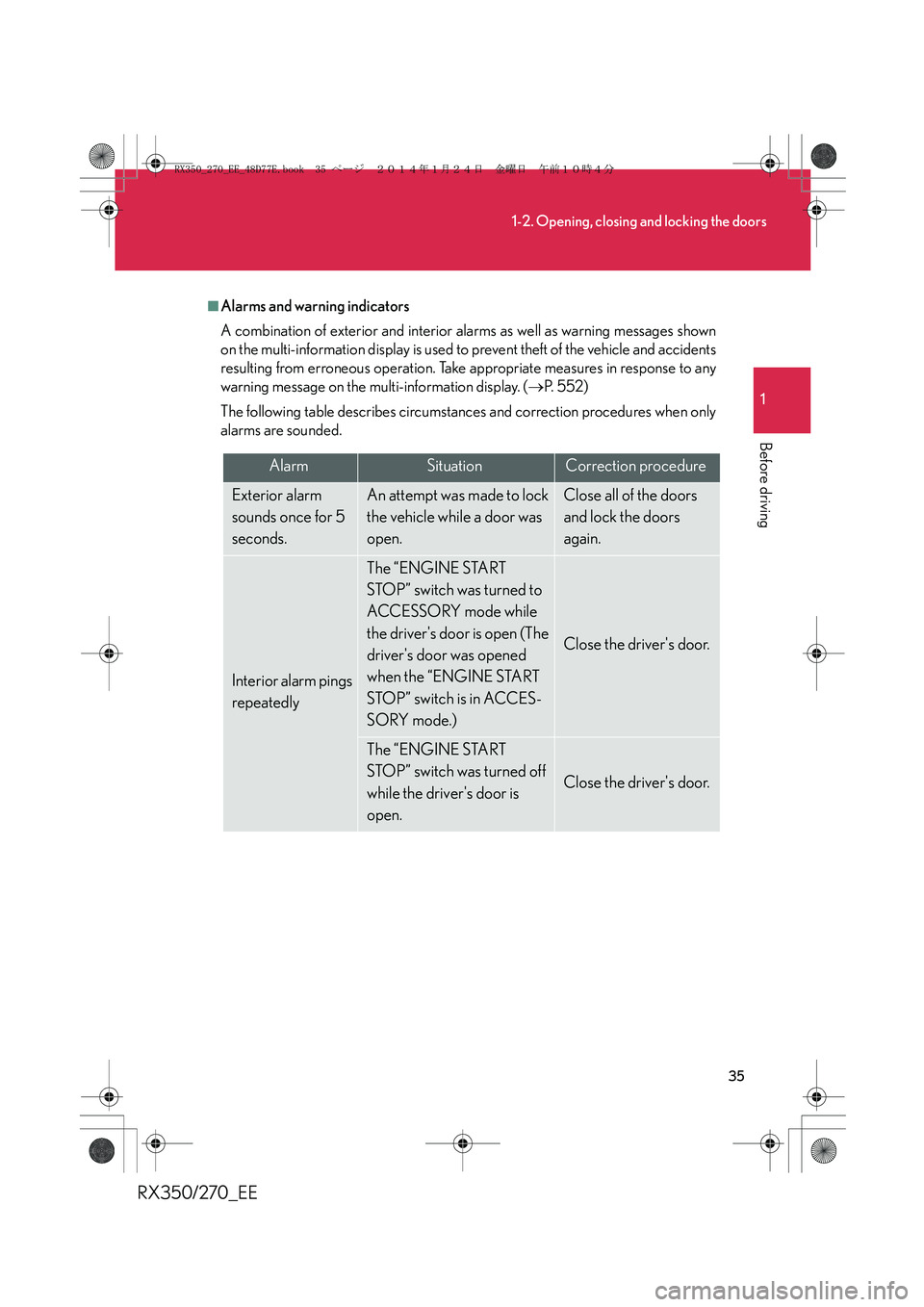

■Alarms and warning indicators
A combination of exterior and interior alarms as well as warning messages shown
on the multi-information display is used to prevent theft of the vehicle and accidents
resulting from erroneous operation. Take appropriate measures in response to any
warning message on the multi-information display. (→P. 5 5 2 )
The following table describes circumstances and correction procedures when only
alarms are sounded.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for 5
seconds.An attempt was made to lock
the vehicle while a door was
open.Close all of the doors
and lock the doors
again.
Interior alarm pings
repeatedly
The “ENGINE START
STOP” switch was turned to
ACCESSORY mode while
the driver's door is open (The
driver's door was opened
when the “ENGINE START
STOP” switch is in ACCES-
SORY mode.)
Close the driver's door.
The “ENGINE START
STOP” switch was turned off
while the driver's door is
open.
Close the driver's door.
RX350_270_EE_48D77E.book 35 ページ ２０１４年１月２４日　金曜日　午前１０時４分

37
1-2. Opening, closing and locking the doors
1
Before driving
RX350/270_EE
■Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situations,
the communication between the electronic key and the vehicle may be affected,
preventing the smart entry & start system, wireless remote control and immobilizer
system from operating properly.
(Ways of coping: →P. 5 9 1 )
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone, cordless phone or other wire-
less communication device
●When the electronic key is in contact with, or is covered by the following metal-
lic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When multiple electronic keys are in the vicinity
●When another wireless key (that emits radio waves) is being used nearby
●When carrying the electronic key together with the following devices that emit
radio waves
• Another vehicle's electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic content or metallic objects are attached to the rear
window
RX350_270_EE_48D77E.book 37 ページ ２０１４年１月２４日　金曜日　午前１０時４分

39
1-2. Opening, closing and locking the doors
1
Before driving
RX350/270_EE
■Notes for locking the doors
●Touching the door lock sensor while wearing gloves may delay or prevent lock
operation. Remove the gloves and touch the lock sensor again.
●If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. Place the key in a position 2 m
(6 ft.) or more separate from the vehicle while the vehicle is being washed. (Take
care to ensure that the key is not stolen.)
●If the electronic key is inside the vehicle and a door handle becomes wet during
a car wash, a message may be shown on the multi-information display and a
buzzer will sound outside the vehicle. To turn off the alarm, lock all the doors.
●The lock sensor may not work properly if it comes into contact with ice, snow,
mud, etc. Clean the lock sensor and attempt to operate it again, or use the lock
sensor on the lower part of the door handle.
●Fingernails may scrape against the door during operation of the door handle.
Be careful not to injure fingernails or damage the surface of the door.
■Notes for the unlocking function
●Gripping the door handle when wearing a glove may not unlock the door.
●A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the original
position and check that the doors unlock before pulling the door handle again.
●If there is another electronic key in the detection area, it may take slightly longer
to unlock the doors after the door handle is gripped.
■When the vehicle is not driven for extended periods
●To prevent theft of the vehicle, do not leave the electronic key within 2 m (6 ft.)
of the vehicle.
●The smart entry & start system can be deactivated in advance. (→P. 622)
■To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the
electronic key too close to the vehicle when operating the system from the outside
of the vehicle.
Depending on the position and holding condition of the electronic key, the key may
not be detected correctly and the system may not operate properly. (The alarm may
go off accidentally, or the door lock prevention function may not operate.)
RX350_270_EE_48D77E.book 39 ページ ２０１４年１月２４日　金曜日　午前１０時４分

103
1-4. Opening and closing the windows and moon roof
1
Before driving
RX350/270_EE
■Door lock linked window operation
●The power windows can be opened and closed using the mechanical key.
(→P. 5 9 1 )
●The power windows can be opened and closed using the wireless remote con-
trol if customized at any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional. (→P. 5 3 )
■Window close suggestion mode
If the “ENGINE START STOP” switch is turned off with the windows open, a sug-
gestion to close all the windows is shown on the multi-information display.
(→P. 2 0 8 )
■When the battery is disconnected
The window lock switch is disabled. If necessary, press the window lock switch after
reconnecting the battery.
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 6 2 2 )
CAUTION
■Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
The driver is responsible for instructing children not to operate the power win-
dows.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the window fully closes. Also, the jam protection does not operate when the
power window switch is pulled up continually to close the windows.
RX350_270_EE_48D77E.book 103 ページ ２０１４年１月２４日　金曜日　午前１０時４分
