511-1. For safe use
1
For safety and security
RC300h_EE(OM24740E)

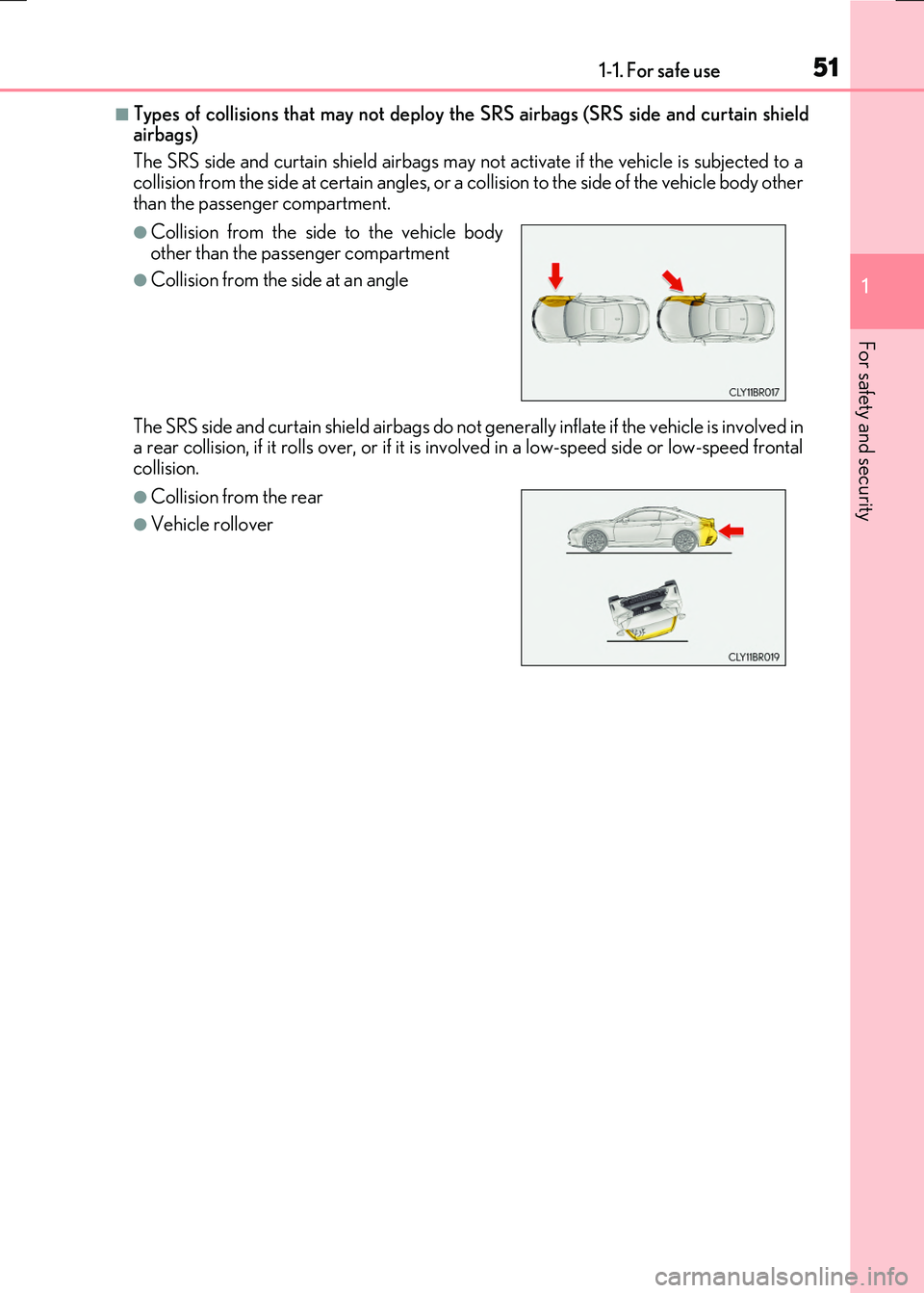

■Types of collisions that may not deploy the SRS airbags (SRS side and curtain shield airbags)
The SRS side and curtain shield airbags may not activate if the vehicle is subjected to a
collision from the side at certain angles, or a co llision to the side of the vehicle body other than the passenger compartment.
The SRS side and curtain shield airbags do not generally inflate if the vehicle is involved in a rear collision, if it rolls over, or if it is involved in a low-speed side or low-speed frontal
collision.
●Collision from the side to the vehicle body other than the passenger compartment
●Collision from the side at an angle
●Collision from the rear
●Vehicle rollover

521-1. For safe use
RC300h_EE(OM24740E)

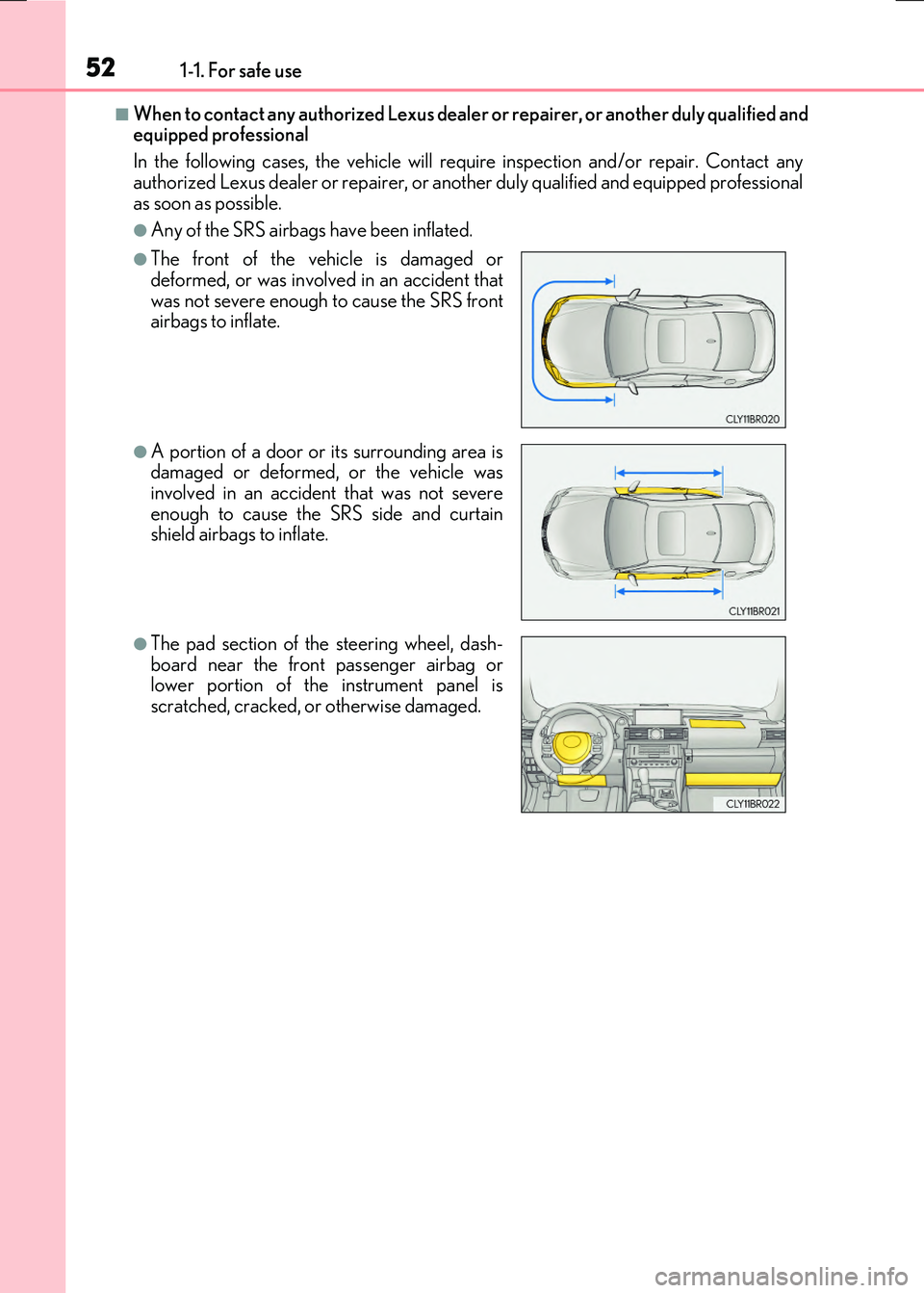

■When to contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional
In the following cases, the vehicle will requ ire inspection and/or repair. Contact any
authorized Lexus dealer or repairer, or anot her duly qualified and equipped professional as soon as possible.
●Any of the SRS airbags have been inflated.
●The front of the vehicle is damaged ordeformed, or was involved in an accident that
was not severe enough to cause the SRS front airbags to inflate.
●A portion of a door or its surrounding area isdamaged or deformed, or the vehicle was
involved in an accident that was not severe enough to cause the SRS side and curtainshield airbags to inflate.
●The pad section of the steering wheel, dash-board near the front passenger airbag orlower portion of the instrument panel is
scratched, cracked, or otherwise damaged.

531-1. For safe use
1
For safety and security
RC300h_EE(OM24740E)

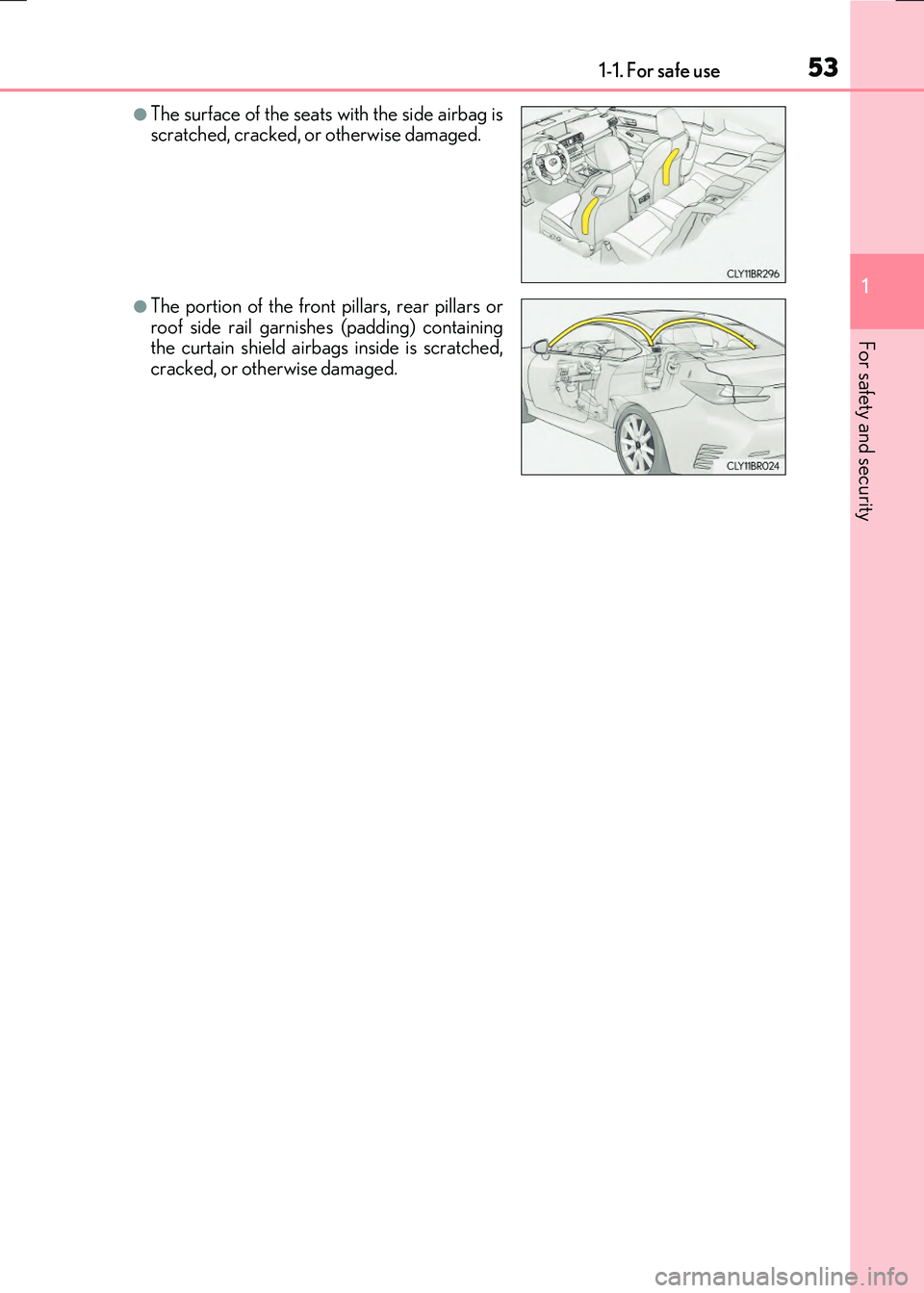

●The surface of the seats with the side airbag is scratched, cracked, or otherwise damaged.
●The portion of the front pillars, rear pillars orroof side rail garnishes (padding) containingthe curtain shield airbags inside is scratched,
cracked, or otherwise damaged.

541-1. For safe use
RC300h_EE(OM24740E)

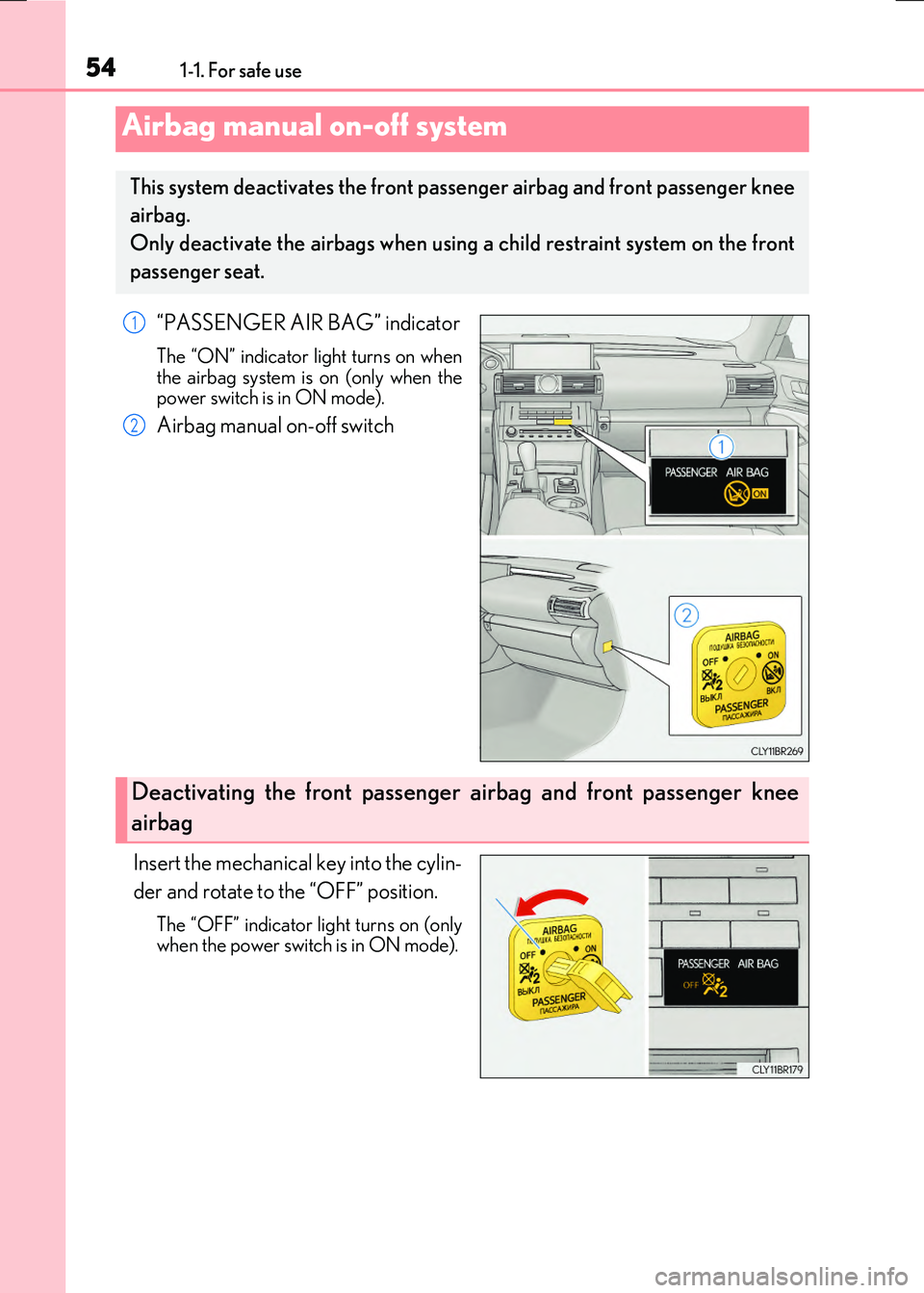

“PASSENGER AIR BAG” indicator
The “ON” indicator light turns on when the airbag system is on (only when thepower switch is in ON mode).
Airbag manual on-off switch
Insert the mechanical key into the cylin-
der and rotate to the “OFF” position.
The “OFF” indicator light turns on (only when the power switch is in ON mode).
Airbag manual on-off system
This system deactivates the front passenger airbag and front passenger knee
airbag.
Only deactivate the airbags when using a child restraint system on the front
passenger seat.
1
2
Deactivating the front passenger airbag and front passenger knee
airbag

551-1. For safe use
1
For safety and security
RC300h_EE(OM24740E)

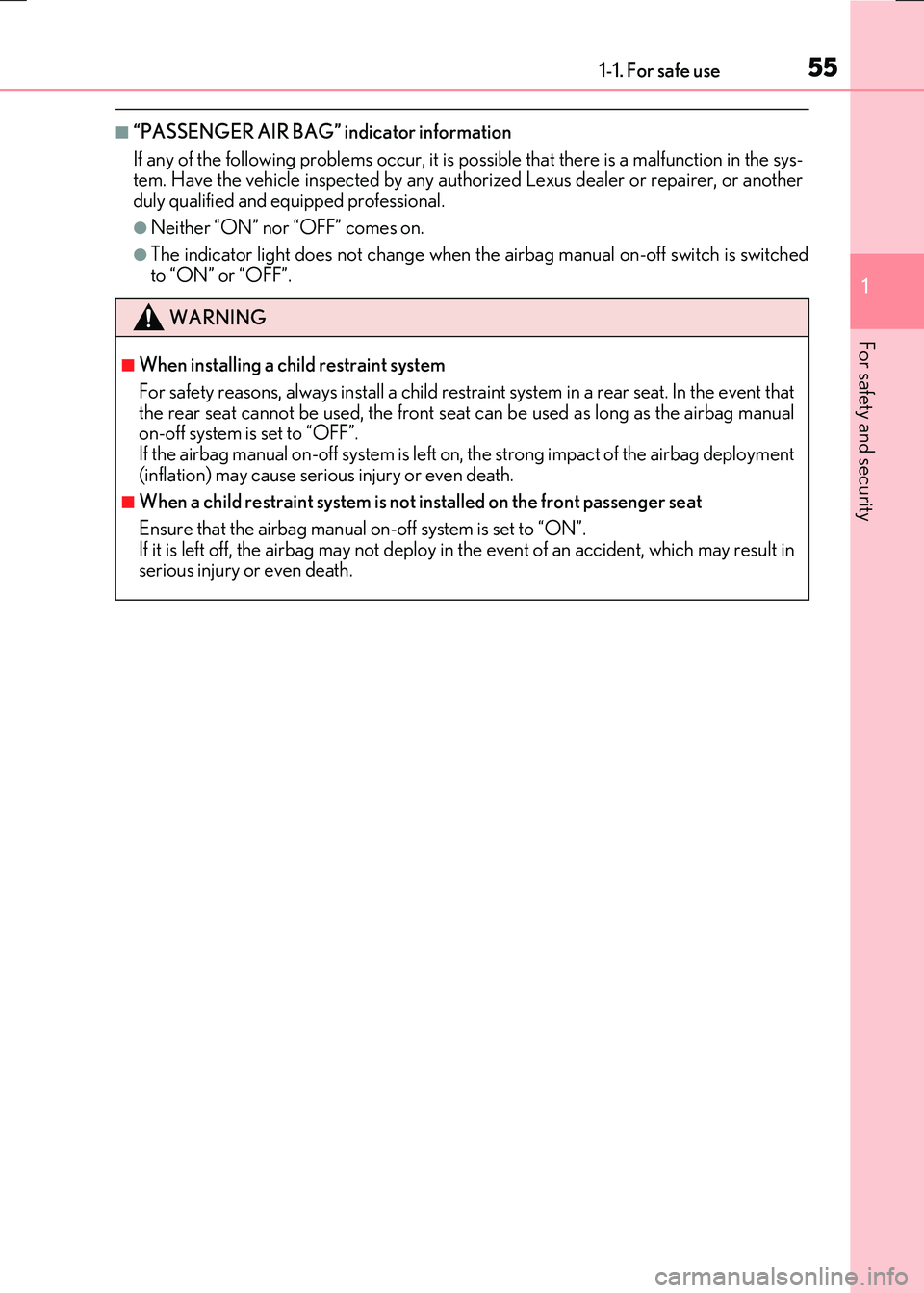

■“PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunction in the sys- tem. Have the vehicle inspected by any author ized Lexus dealer or repairer, or another duly qualified and equipped professional.
●Neither “ON” nor “OFF” comes on.
●The indicator light does not change when the airbag manual on-off switch is switchedto “ON” or “OFF”.
WARNING
■When installing a child restraint system
For safety reasons, always install a child rest raint system in a rear seat. In the event that the rear seat cannot be used, the front seat can be used as long as the airbag manualon-off system is set to “OFF”.
If the airbag manual on-off system is left on, the strong impact of the airbag deployment (inflation) may cause serious injury or even death.
■When a child restraint system is not installed on the front passenger seat
Ensure that the airbag manual on-off system is set to “ON”. If it is left off, the airbag may not deploy in the event of an accident, which may result inserious injury or even death.

561-1. For safe use
RC300h_EE(OM24740E)
When the sensors located at the back of the front bumper detect an impact with
a body, such as a pedestrian, which meet s or exceeds the threshold level while
the vehicle is being driven within the operational speed range, the system
becomes operational and raises the rear portion of the hood.
Sensors
Hood
Lifters
Pop Up Hood
In the event of a frontal collision with a body, such as a pedestrian, the Pop Up
Hood system raises the rear portion of the hood to reduce the possibility of a
serious impact to the pedestrian’s he ad area by adding clearance to the
engine compartment.
Pop Up Hood mechanism
1
2
3

571-1. For safe use
1
For safety and security
RC300h_EE(OM24740E)

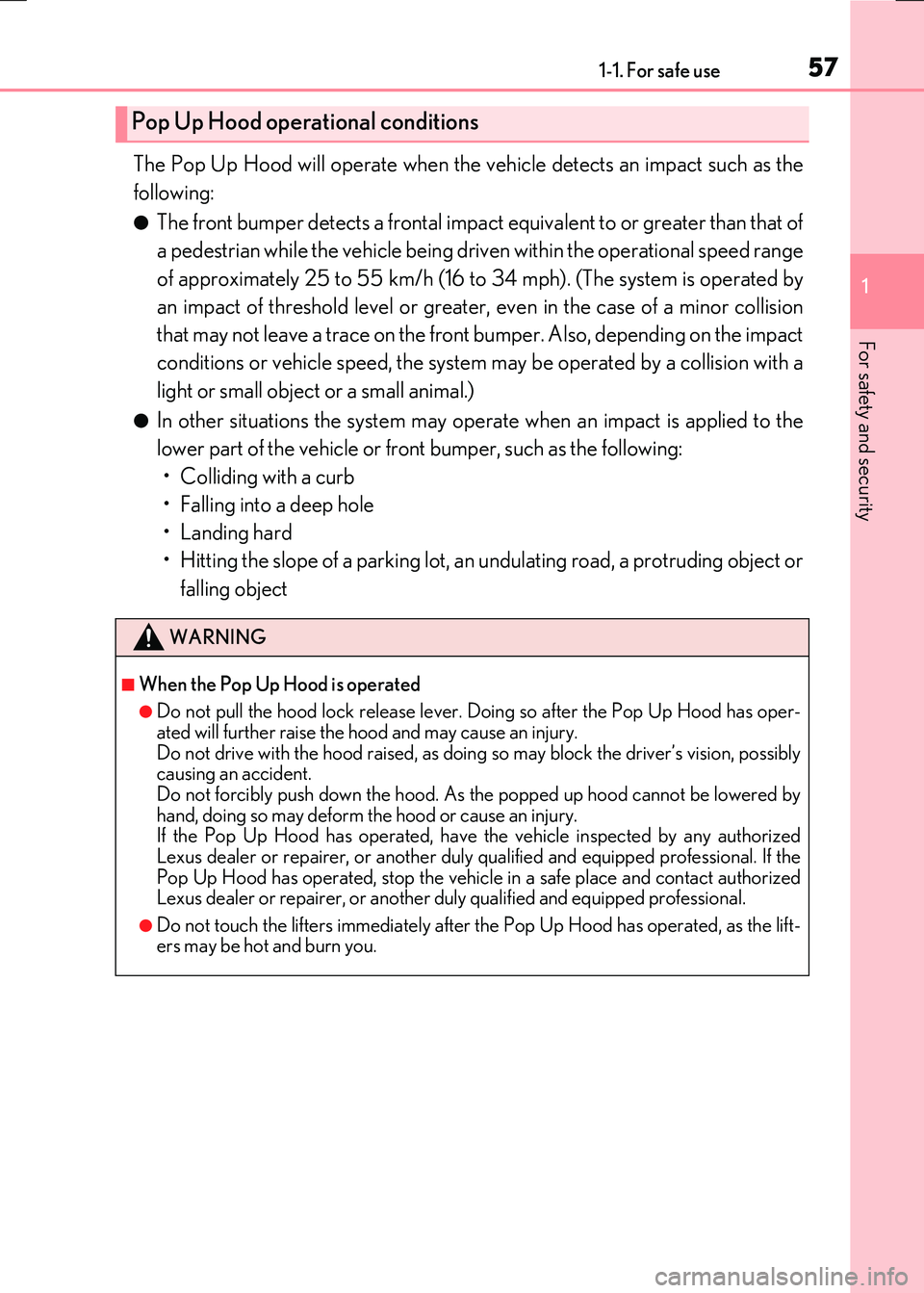

The Pop Up Hood will operate when the vehicle detects an impact such as the
following:
●The front bumper detects a frontal impact equivalent to or greater than that of
a pedestrian while the vehicle being driven within the operational speed range
of approximately 25 to 55 km/h (16 to 34 mph). (The system is operated by
an impact of threshold level or greater, even in the case of a minor collision
that may not leave a trace on the front bumper. Also, depending on the impact
conditions or vehicle speed, the system may be operated by a collision with a
light or small object or a small animal.)
●In other situations the system may operate when an impact is applied to the
lower part of the vehicle or front bumper, such as the following:
• Colliding with a curb
• Falling into a deep hole
•Landing hard
• Hitting the slope of a parking lot, an undulating road, a protruding object or
falling object
Pop Up Hood operational conditions
WARNING
■When the Pop Up Hood is operated
●Do not pull the hood lock release lever. Doing so after the Pop Up Hood has oper-
ated will further raise the h ood and may cause an injury. Do not drive with the hood raised, as doing so may block the driver’s vision, possiblycausing an accident.
Do not forcibly push down the hood. As the popped up hood cannot be lowered by hand, doing so may deform the hood or cause an injury. If the Pop Up Hood has operated, have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional. If the Pop Up Hood has operated, stop the vehicle in a safe place and contact authorizedLexus dealer or repairer, or another du ly qualified and equipped professional.
●Do not touch the lifters immediately after the Pop Up Hood has operated, as the lift- ers may be hot and burn you.

581-1. For safe use
RC300h_EE(OM24740E)
■Pop Up Hood precautions
●Before scrapping your vehicle, make sure to contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.
●The Pop Up Hood system cannot be reused once it has operated. Have it replaced by
any authorized Lexus dealer or repairer, or another duly qualified and equipped profes- sional.
■Conditions under which the Pop Up Hood may not operate properly
The Pop Up Hood may not operate prop erly under the following conditions:
●If a pedestrian collides with the right or left corner of the front bumper or the side of the vehicle. As such impacts may be difficul t to detect, the system may not operate.
●If the vehicle speed is not detected correctly, such as if the vehicle is sliding sideways, the system may not operate properly.
■Conditions under wh ich the Pop Up Hood may not operate
The Pop Up Hood may not operate in the following situations:
●Colliding with a lying pedestrian
●A frontal impact applied to the front bumper while driving at speeds outside of the
operational speed range
●A side impact or rear impact
●A vehicle rollover (In some accident situations, the Pop Up Hood may operate.)
NOTICE
■Pop Up Hood precautions
●Make sure to close the hood before driving, as the system may not operate properly if the hood is not fully closed.
●Make sure that all 4 tires are of the specif ied size and inflated to the specified tire
pressure ( P. 604). If tires of a different size are used, the system may not operate properly.
●If something has hit the area around the front bumper, the sensors may be damaged
even if the Pop Up Hood has not operated. Have the vehicle inspected by any autho- rized Lexus dealer or repairer, or anothe r duly qualified and equipped professional.
●Do not remove or repair the parts or wiring of the Pop Up Hood, as doing so may
cause accidental operation or prevent the sy stem from operating properly. If repair or replacement is necessary, contact any authorized Lexus dealer or repairer, oranother duly qualified an d equipped professional.
●Do not remove such components as the front bumper, hood or suspension, or replace them with non-genuine parts, as doing so may prevent the system from oper-ating properly.
●Do not install anything to the front bumper or hood, as doing so may prevent the sen-sors from detecting an impact correctly and prevent the system from operating prop-erly.
●Do not close the hood with force or apply load to the lifters, as doing so may damage the lifters and prevent the system from operating properly.
●Do not modify the suspension, as changes made to the vehicle height may prevent
the system from operating properly.

591-1. For safe use
1
For safety and security
RC300h_EE(OM24740E)

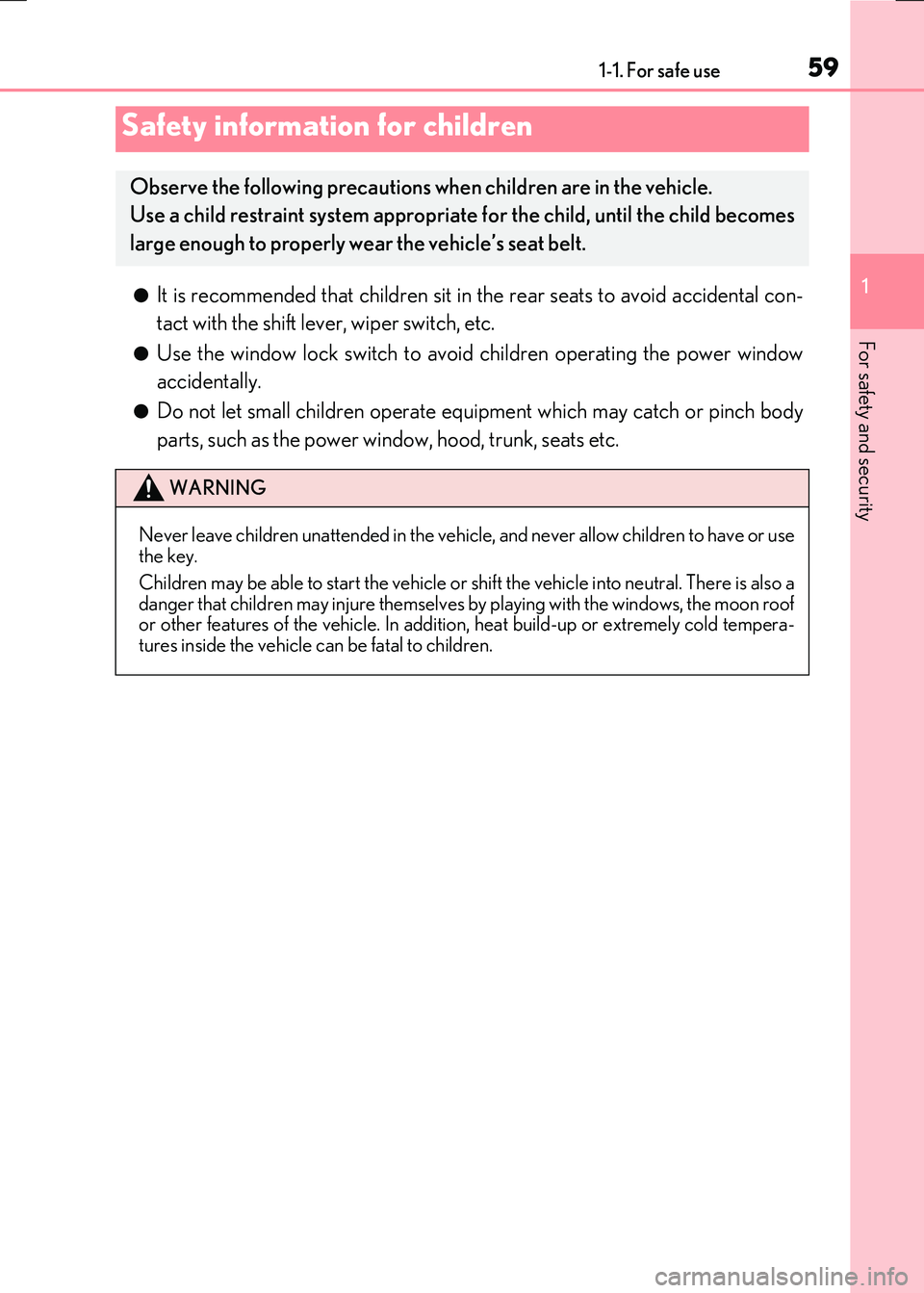

●It is recommended that children sit in the rear seats to avoid accidental con-
tact with the shift lever, wiper switch, etc.
●Use the window lock switch to avoid children operating the power window
accidentally.
●Do not let small children operate equipment which may catch or pinch body
parts, such as the power window, hood, trunk, seats etc.
Safety information for children
Observe the following precautions when children are in the vehicle.
Use a child restraint system appropriate for the child, until the child becomes
large enough to properly wea r the vehicle’s seat belt.
WARNING
Never leave children unattended in the vehicle, and never allow children to have or use the key.
Children may be able to start the vehicle or sh ift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the windows, the moon roof or other features of the vehicle. In addition, heat build-up or extremely cold tempera-
tures inside the vehicle can be fatal to children.

601-1. For safe use
RC300h_EE(OM24740E)
Points to remember ........................................................................................................ P. 60
Child restraint system ................................................................................................... P. 62
When using a child restraint system on the front passenger seat ............... P. 65
When using a child restraint system on a rear seat ........................................... P. 67
Child restraint system installation method
• Fixed with a seat belt................................................................................................. P. 68
• Fixed with ISOFIX rigid anchors ......................................................................... P. 75
• Using an anchor bracket (for top strap) ........................................................... P. 82
●Prioritize and observe the warnings, as well as the laws and regulations for
child restraint systems.
●Choose a child restraint system that suits your vehicle and is appropriate to
the age and size of the child.
●Use a child restraint system suitable for installation in the vehicle which con-
forms to ECE R44*.
●Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
*: ECE R44 is a U.N. regulation for Child restraint systems.

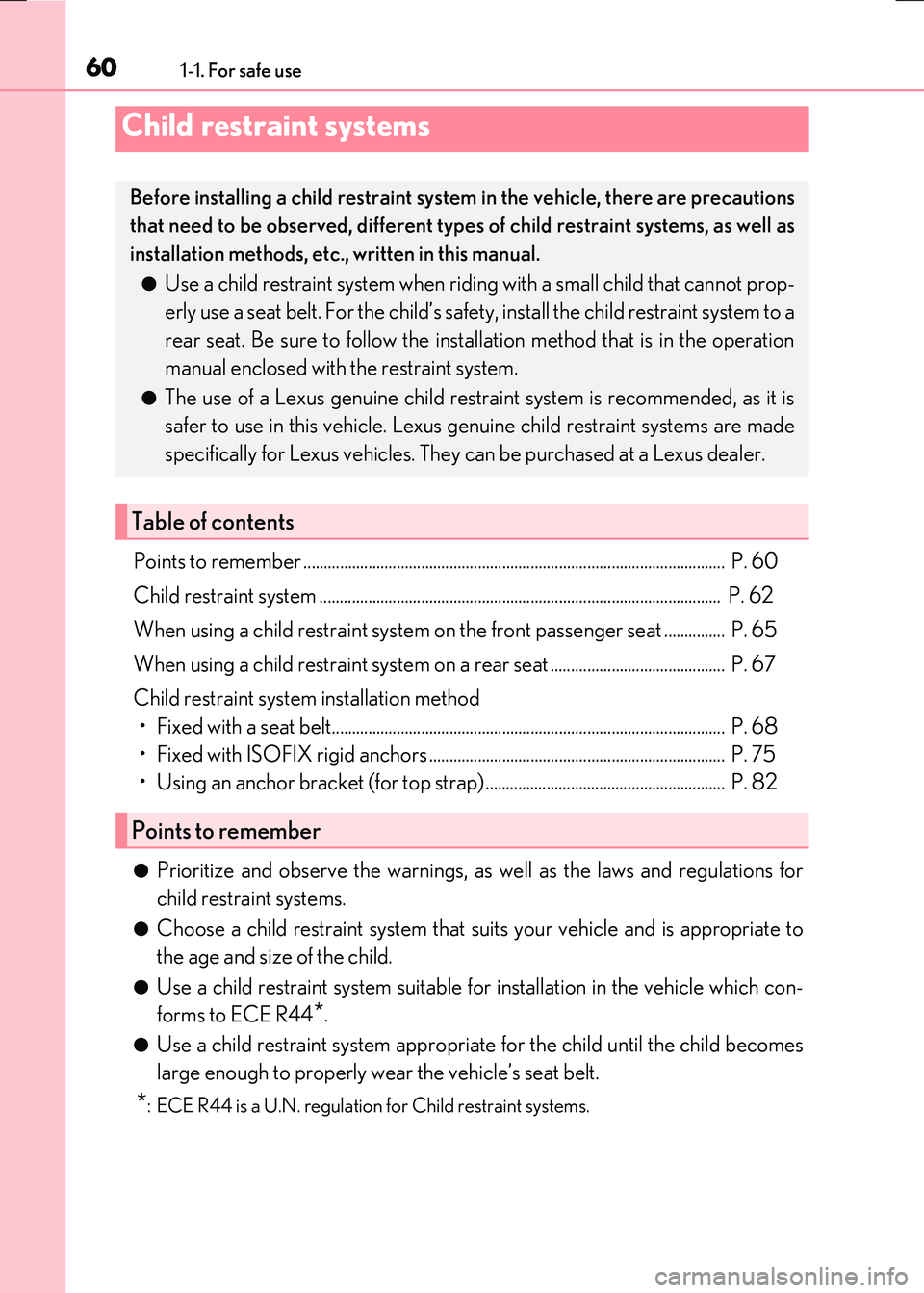

Child restraint systems
Before installing a child restraint system in the vehicle, there are precautions
that need to be observed, different types of child restraint systems, as well as
installation methods, etc., written in this manual.
●Use a child restraint system when riding with a small child that cannot prop-
erly use a seat belt. For the child’s safety, install the child restraint system to a
rear seat. Be sure to follow the installation method that is in the operation
manual enclosed with the restraint system.
●The use of a Lexus genuine child restraint system is recommended, as it is
safer to use in this vehicle. Lexus genuine child restraint systems are made
specifically for Lexus vehicles. They can be purchased at a Lexus dealer.
