PICTORIAL INDEX
xx
STEERING WHEEL AND COLUMN
Page
1Headlight, turn signal and
fog light switches 48, 52, 53. . . . . . . .
2Audio remote control
switches 304. . . . . . . . . . . . . . . . . . . . . . .
3Distance switch 416
. . . . . . . . . . . . . . . .
4Speech command button (See the
separate “Navigation System
Owner’s Manual”.)
5Telephone button (See the separate
“Navigation System Owner’s
Manual”.)
6Wiper and washer switches 53, 59 . .
7Cruise control switch 412, 416. . . . . .
8Tilt steering lock release
lever or tilt and telescopic
steering control switch 228, 229 . . . .
For detailed information, refer to the
description given in each Section.

SECTION 1 – 1
11
INSTRUMENTS AND CONTROLS
Keys and doors
Keys12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Engine immobilizer system 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Back door 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Power back door 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Theft deterrent system 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

KEYS AND DOORS
18

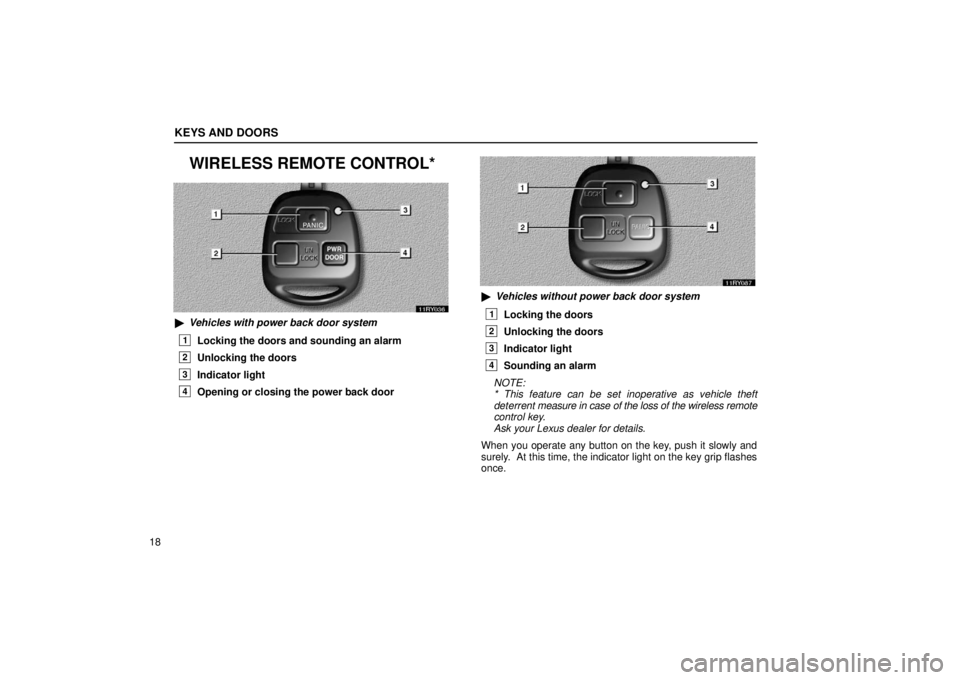

WIRELESS REMOTE CONTROL*
Vehicles with power back door system
1Locking the doors and sounding an alarm
2Unlocking the doors
3Indicator light
4Opening or closing the power back door
Vehicles without power back door system
1Locking the doors
2Unlocking the doors
3Indicator light
4Sounding an alarm
NOTE:
* This feature can be set inoperative as vehicle theft
deterrent measure in case of the loss of the wireless remote
control key.
Ask your Lexus dealer for details.
When you operate any button on the key, push it slowly and
surely. At this time, the indicator light on the key grip flashes
once.

KEYS AND DOORS
19
The operational range of the wireless remote control is
approximately 1 meter (3 ft.). The effective range may vary
with different conditions. To activate the wireless remote
control
without fail, do it approximately 1 meter (3 ft.) from your
Lexus.
In the following cases, the battery in the key may be
discharged. If this is the case, replace it using a special
screwdriver.
 The remote control does not work.
 The operational range of wireless remote control becomes
extremely short.
 The indicator light on the key is dimmed or does not come
on.
For the replacement of the battery, see “Replacing the battery”
on page 25. You can also have the battery of the key replaced
by your Lexus dealer.
If you lose the wireless key, contact your Lexus dealer as soon
as possible to avoid the possibility of theft, or an accident. (See
“If you lose your keys or lock yourself out” on page 525.)
You can use up to 4 wireless remote control keys for the same
vehicle. Contact your Lexus dealer for detailed information. The wireless remote control key is an electronic
component. Observe the following instructions in order
not to cause damage to the key.

Do not leave the wireless remote control key in places
where the temperature becomes high such as on the
dashboard.
 Do not disassemble it.
 Avoid knocking it hard against other objects or dropping it.
 Avoid putting it in water.

KEYS AND DOORS
29

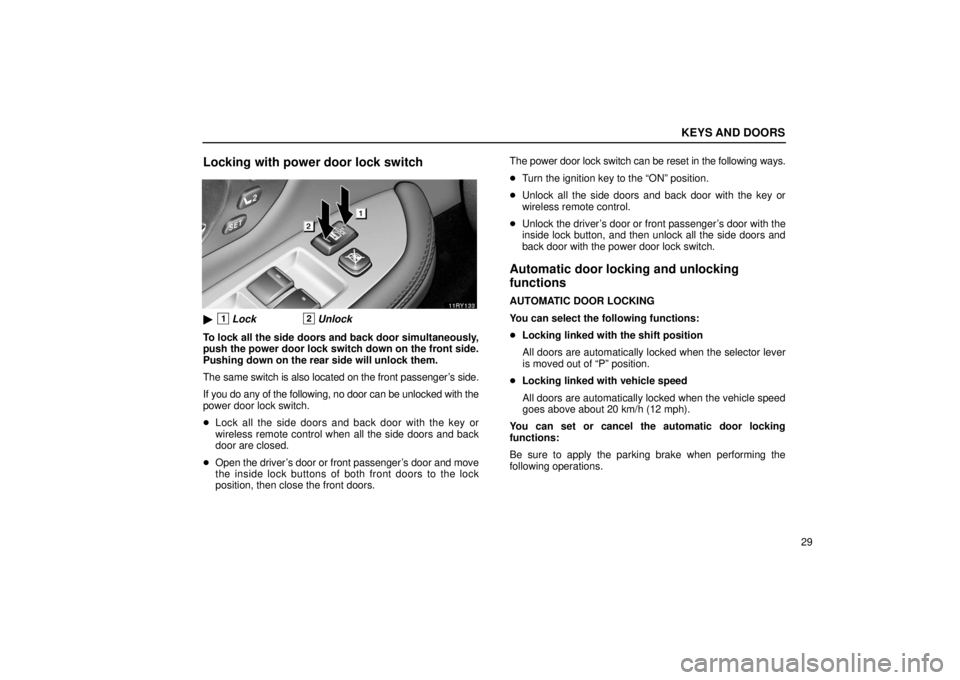

Locking with power door lock switch
1Lock2Unlock
To lock all the side doors and back door simultaneously,
push the power door lock switch down on the front side.
Pushing down on the rear side will unlock them.
The same switch is also located on the front passenger’s side.
If you do any of the following, no door can be unlocked with the
power door lock switch.
 Lock all the side doors and back door with the key or
wireless remote control when all the side doors and back
door are closed.
 Open the driver’s door or front passenger’s door and move
the inside lock buttons of both front doors to the lock
position, then close the front doors. The power door lock switch can be reset in the following ways.

Turn the ignition key to the “ON” position.
 Unlock all the side doors and back door with the key or
wireless remote control.
 Unlock the driver’s door or front passenger’s door with the
inside lock button, and then unlock all the side doors and
back door with the power door lock switch.
Automatic door locking and unlocking
functions
AUTOMATIC DOOR LOCKING
You can select the following functions:
Locking linked with the shift position
All doors are automatically locked when the selector lever
is moved out of “P” position.
 Locking linked with vehicle speed
All doors are automatically locked when the vehicle speed
goes above about 20 km/h (12 mph).
You can set or cancel the automatic door locking
functions:
Be sure to apply the parking brake when performing the
following operations.

KEYS AND DOORS
32
BACK DOOR

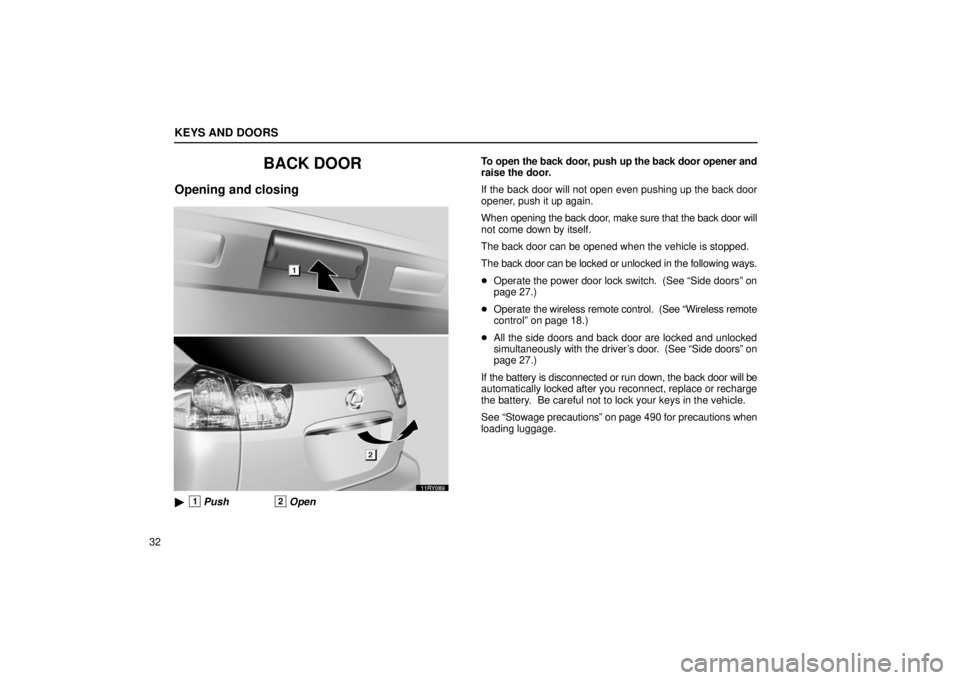

Opening and closing
1Push2OpenTo open the back door, push up the back door opener and
raise the door.
If the back door will not open even pushing up the back door
opener, push it up again.
When
opening the back door, make sure that the back door will
not come down by itself.
The back door can be opened when the vehicle is stopped.
The back door can be locked or unlocked in the following ways.
 Operate the power door lock switch. (See “Side doors” on
page 27.)
 Operate the wireless remote control. (See “Wireless remote
control” on page 18.)
 All the side doors and back door are locked and unlocked
simultaneously with the driver’s door. (See “Side doors” on
page 27.)
If the battery is disconnected or run down, the back door will be
automatically locked after you reconnect, replace or recharge
the battery. Be careful not to lock your keys in the vehicle.
See “Stowage precautions” on page 490 for precautions when
loading luggage.

KEYS AND DOORS
35
POWER BACK DOOR
Opening and closing by hand

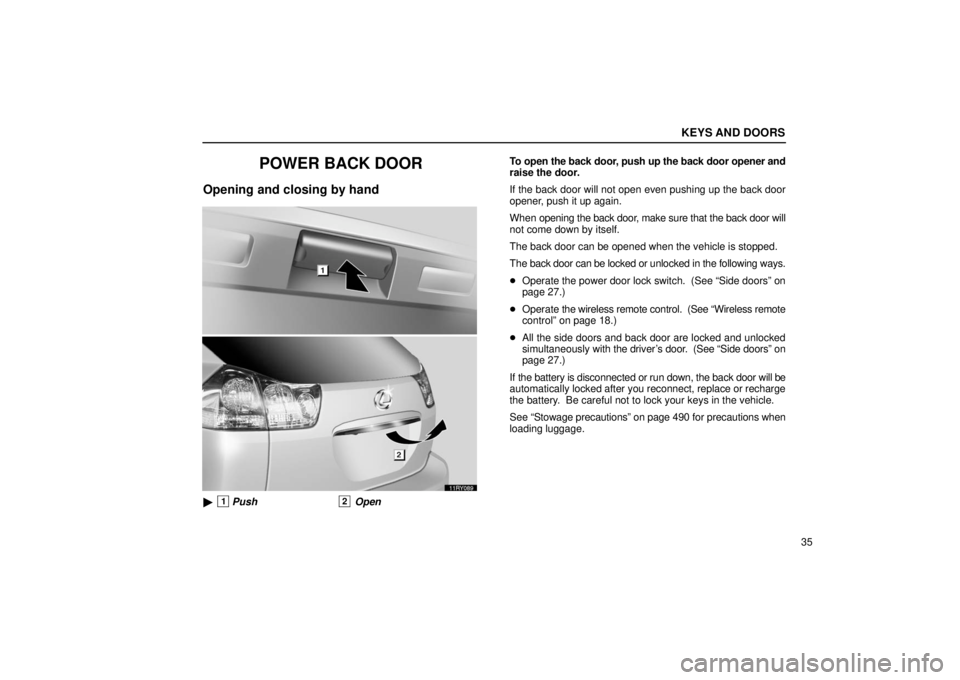

1Push2 OpenTo open the back door, push up the back door opener and
raise the door.
If the back door will not open even pushing up the back door
opener, push it up again.
When
opening the back door, make sure that the back door will
not come down by itself.
The back door can be opened when the vehicle is stopped.
The back door can be locked or unlocked in the following ways.
 Operate the power door lock switch. (See “Side doors” on
page 27.)
 Operate the wireless remote control. (See “Wireless remote
control” on page 18.)
 All the side doors and back door are locked and unlocked
simultaneously with the driver’s door. (See “Side doors” on
page 27.)
If the battery is disconnected or run down, the back door will be
automatically locked after you reconnect, replace or recharge
the battery. Be careful not to lock your keys in the vehicle.
See “Stowage precautions” on page 490 for precautions when
loading luggage.

KEYS AND DOORS
40Pull down the switch cover.
To open the back door, push the power back door
opener/closer switch on the
instrument panel for about 1
second.* At this time, the turn signal lights flash twice,
two beeps sound** and the back door fully opens
automatically.***
When pushing the switch while the opening operation is being
performed, the back door will close. At this time, a beep
sounds.**
To close the back door, push the power back door
opener/closer switch once again for about 1 second* or
push the power back door closer switch on the back door.
At this time, the turn signal lights flash twice, two beeps
sound** and the back door fully closes automatically.***
When pushing the switch while the closing operation is being
performed, the back door will open. At this time, a beep
sounds.**
NOTE:
* The time required to push the switch can be changed.
** The beep will sound from both the front and rear of the
vehicle. The front beep can be set not to sound.
*** It is possible to set the beep to sound while the back door
opens or closes and adjust its volume.
Ask your Lexus dealer for details. Opening or closing operation can be performed by the
switches under the following conditions:

The vehicle is stopped.
 The back door is unlocked. *
 The power back door system is on. (The power back door
off switch is pushed in.)
 To open — When the ignition key is in the “ON” position, the
transmission selector lever must be in “P”.
 To open — The back door is between in the fully −closed
position and half −opened position.
 To close — The back door is between in the fully −opened
position and half −opened position.
The power back door can be opened and closed using the
wireless remote control. For details, see “Wireless remote
control” on page 18. NOTE:
* The back door can be set to be opened without being
unlocked first.
Ask your Lexus dealer for details.

KEYS AND DOORS
41
Jam protection function
If anything with sufficient resistance obstructs the power back
door while it is closing or opening, the back door will
automatically reverse to the opposite direction.
If the jam protection function operates continuously at the
closing operation more than 2 times, the back door will be
stopped at that position.
Before operating the power back door, make sure there is
nobody near the back door.
The resistance must be as strong as the force of the moving
door, or stronger. As the back door approaches the
fully−closed or fully−opened position, its moving force
increases significantly.
If the back door receives a strong impact, this function may
operate even if nothing is caught.
Falling down protection function
When you open the back door with the switch or the wireless
remote control, if some loads such as snow on the back door
make the back door fall down, the back door will automatically
close. The beeps sound intermittently while closing the back
door.
Before opening the power back door, make sure there is no
load on the back door.
If you close the back door by hand right after the back door
opening, this function may work even there is no load on the
back door.

KEYS AND DOORS
43
THEFT DETERRENT SYSTEM
To deter theft of the vehicle, this system is designed to
sound an alarm if any of the doors or hood is forcibly
unlocked or the battery terminal is disconnected and then
reconnected while the vehicle is locked.
The alarm blows the horn intermittently and flashes the
headlights, tail lights and turn signal lights.
Further more when the interior light switch is in the “DOOR”
position, the interior light turns on.
 Security indicator light
Setting the system
1. Turn the ignition key to the “LOCK” position and
remove it.
The engine immobilizer system causes the indicator light to
flash.
2. Close and lock all the doors and hood using an ignition
key or wireless remote control.
The flashing indicator light will remain on when all the doors
and hood are closed and locked.
3. After 30 seconds, the indicator starts flashing and the
system is set.
