LEXUS RX350 2011 Owners Manual

431
3-7. Other interior features
3

Interior features
CAUTION
nWhen programming a garage door or other remote control device
The garage door or other device may operate, so ensure people and objects are
out of danger to prevent potential harm.
nConforming to federal safety standards
Do not use the HomeLink® compatible transceiver with any garage door opener
or device that lacks safety stop and reverse features as required by federal safety
standards.
This includes any garage door that cannot detect an obstruction object. A door or
device without these features increases the risk of death or serious injury.

432
3-7. Other interior features

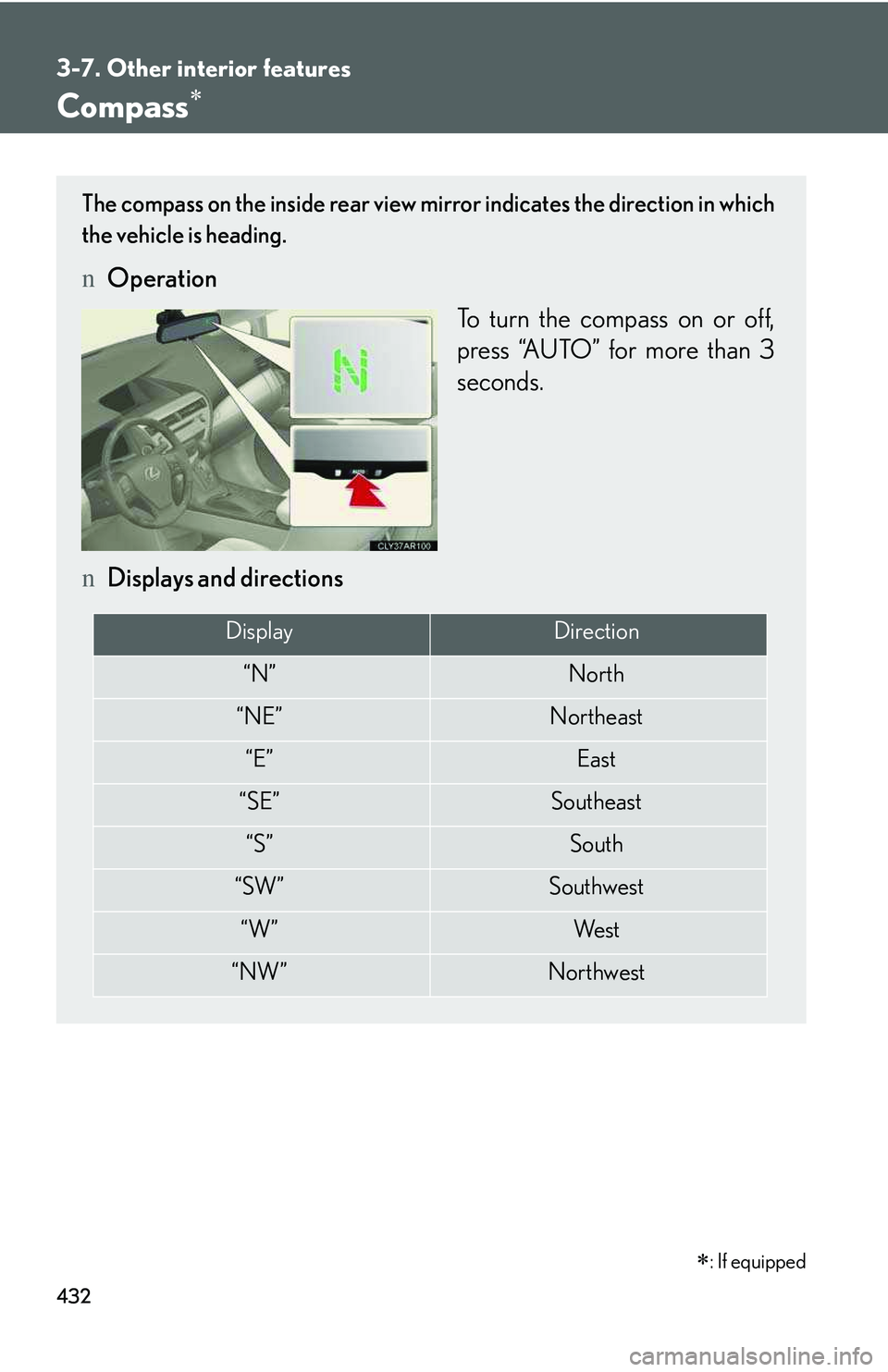

Compass∗
∗: If equipped
The compass on the inside rear view mirror indicates the direction in which
the vehicle is heading.
nOperation
To turn the compass on or off,
press “AUTO” for more than 3
seconds.
nDisplays and directions
DisplayDirection
“N”North
“NE”Northeast
“E”East
“SE”Southeast
“S”South
“SW”Southwest
“W”We s t
“NW”Northwest

433
3-7. Other interior features
3

Interior features

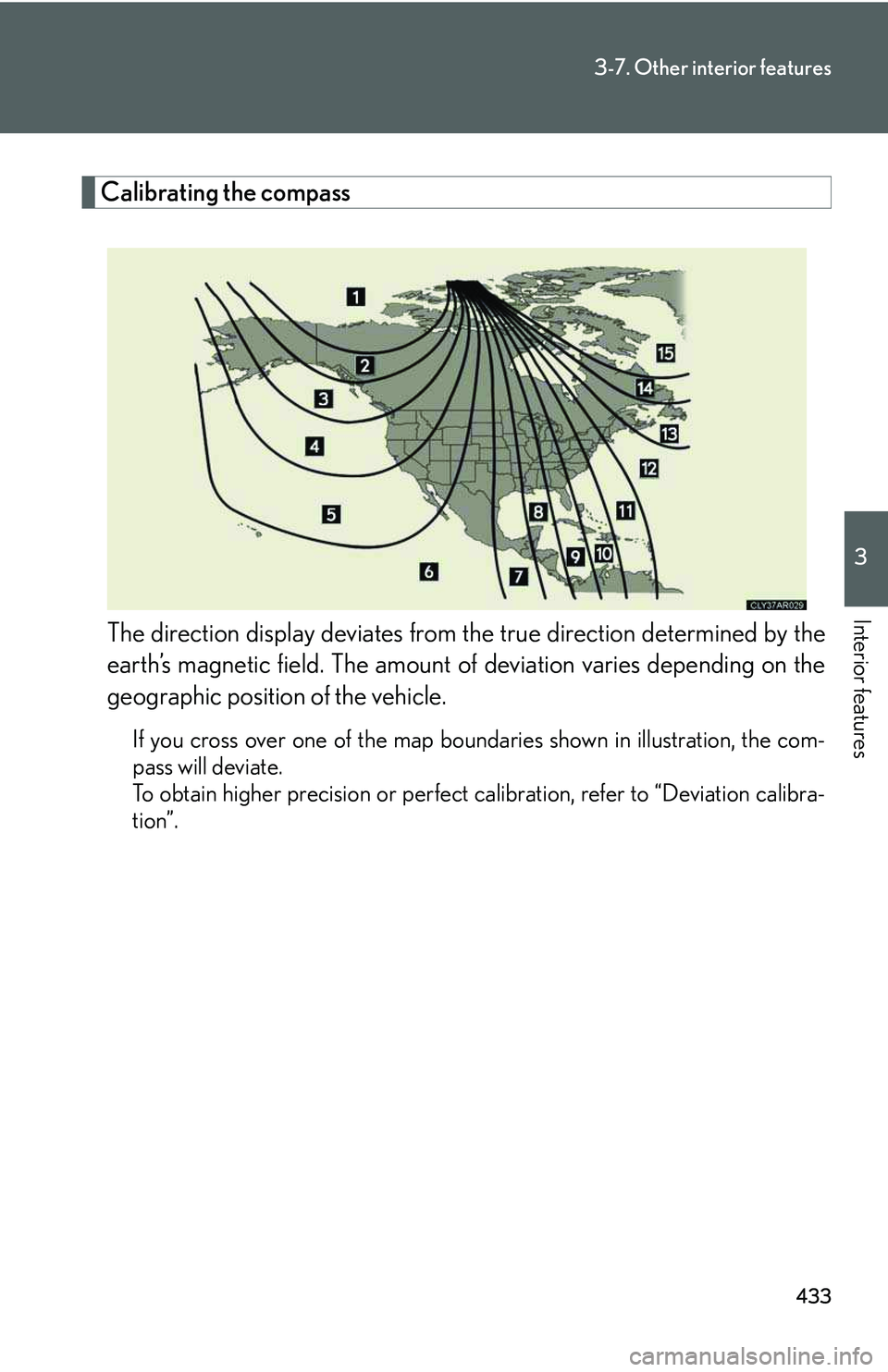

Calibrating the compass
The direction display deviates from the true direction determined by the
earth’s magnetic field. The amount of deviation varies depending on the
geographic position of the vehicle.
If you cross over one of the map boundaries shown in illustration, the com-
pass will deviate.
To obtain higher precision or perfect calibration, refer to “Deviation calibra-
tion”.

434
3-7. Other interior features
nDeviation calibration
Stop the vehicle.
Press and hold “AUTO”.
A number (1 to 15) appears on the
compass display.
Referring to the map above, press “AUTO” to select the number
of the zone where you are in.
If the direction is displayed for several seconds after adjustment, the
calibration is complete.
nCircling calibration
If “C” appears on the display, drive
the vehicle at 5 mph (8 km/h) or
less in a circle until a direction is
displayed.
If there is not enough space to
drive in a circle, drive around the
block until a direction is displayed.
STEP1
STEP2
STEP3

435
3-7. Other interior features
3

Interior features
nConditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
lThe vehicle is stopped immediately after turning.
lThe vehicle is on an inclined surface.
lThe vehicle is in a place where the earth's magnetic field is subject to interfer-
ence by artificial magnetic fields (underground car park/parking lot, under a
steel tower, between buildings, roof car park/parking lot, near an intersection,
near a large vehicle, etc.).
lThe vehicle has become magnetized. (There is a magnet or metal object near
the inside rear view mirror.)
lThe battery has been disconnected.
lA door is open.
CAUTION
nWhile driving the vehicle
Do not adjust the display. Adjust the display only when the vehicle is stopped.
nWhen doing the circling calibration
Secure a wide space, and watch out for people and vehicles in the vicinity. Do not
violate any local traffic rules while performing circling calibration.
NOTICE
nTo avoid compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror.
Doing this may cause the compass sensor malfunction.
nTo ensure normal operation of the compass
lDo not perform a circling calibration of the compass in a place where the earth's
magnetic field is subject to interference by artificial magnetic fields.
lDuring calibration, do not operate electric systems (moon roof, power windows,
etc.) as they may interfere with the calibration.

436
3-7. Other interior features

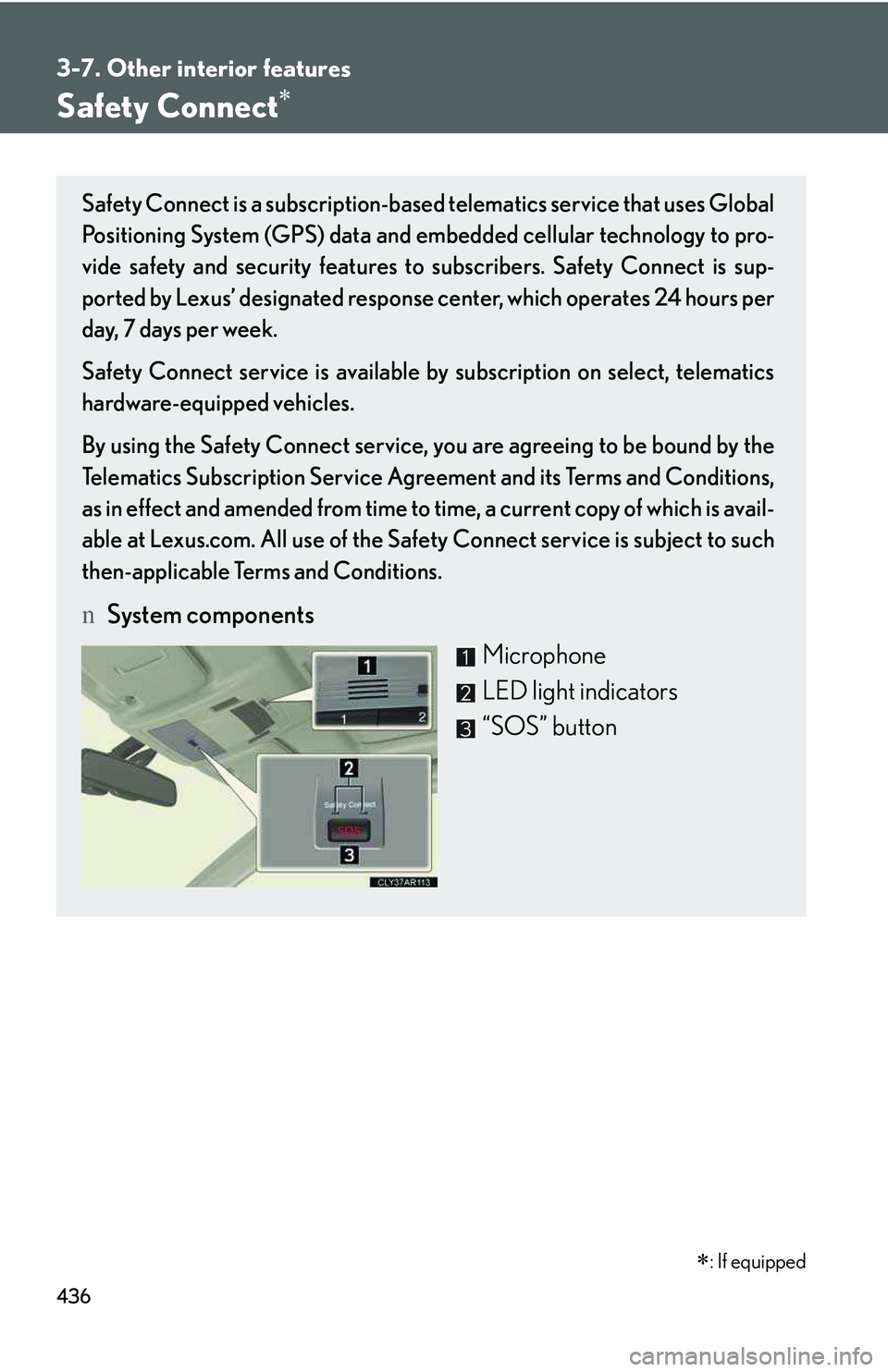

Safety Connect∗
∗: If equipped
Safety Connect is a subscription-based telematics service that uses Global
Positioning System (GPS) data and embedded cellular technology to pro-
vide safety and security features to subscribers. Safety Connect is sup-
ported by Lexus’ designated response center, which operates 24 hours per
day, 7 days per week.
Safety Connect service is available by subscription on select, telematics
hardware-equipped vehicles.
By using the Safety Connect service, you are agreeing to be bound by the
Telematics Subscription Service Agreement and its Terms and Conditions,
as in effect and amended from time to time, a current copy of which is avail-
able at Lexus.com. All use of the Safety Connect service is subject to such
then-applicable Terms and Conditions.
nSystem components
Microphone
LED light indicators
“SOS” button

437
3-7. Other interior features
3

Interior features

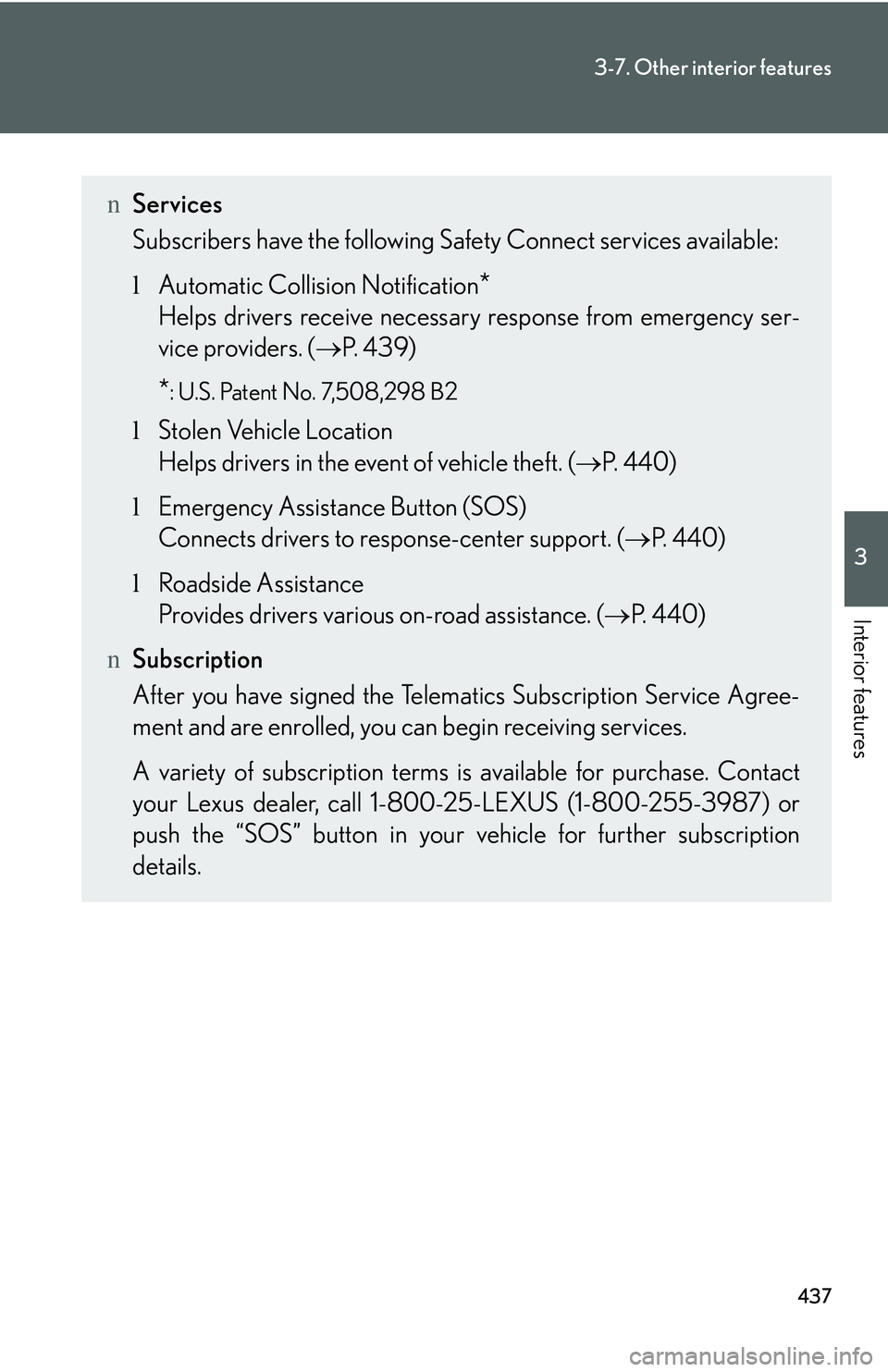

nServices
Subscribers have the following Safety Connect services available:
lAutomatic Collision Notification*
Helps drivers receive necessary response from emergency ser-
vice providers. (→P. 439)
*: U.S. Patent No. 7,508,298 B2
lStolen Vehicle Location
Helps drivers in the event of vehicle theft. (→P. 440)
lEmergency Assistance Button (SOS)
Connects drivers to response-center support. (→P. 440)
lRoadside Assistance
Provides drivers various on-road assistance. (→P. 440)
nSubscription
After you have signed the Telematics Subscription Service Agree-
ment and are enrolled, you can begin receiving services.
A variety of subscription terms is available for purchase. Contact
your Lexus dealer, call 1-800-25-LEXUS (1-800-255-3987) or
push the “SOS” button in your vehicle for further subscription
details.

438
3-7. Other interior features

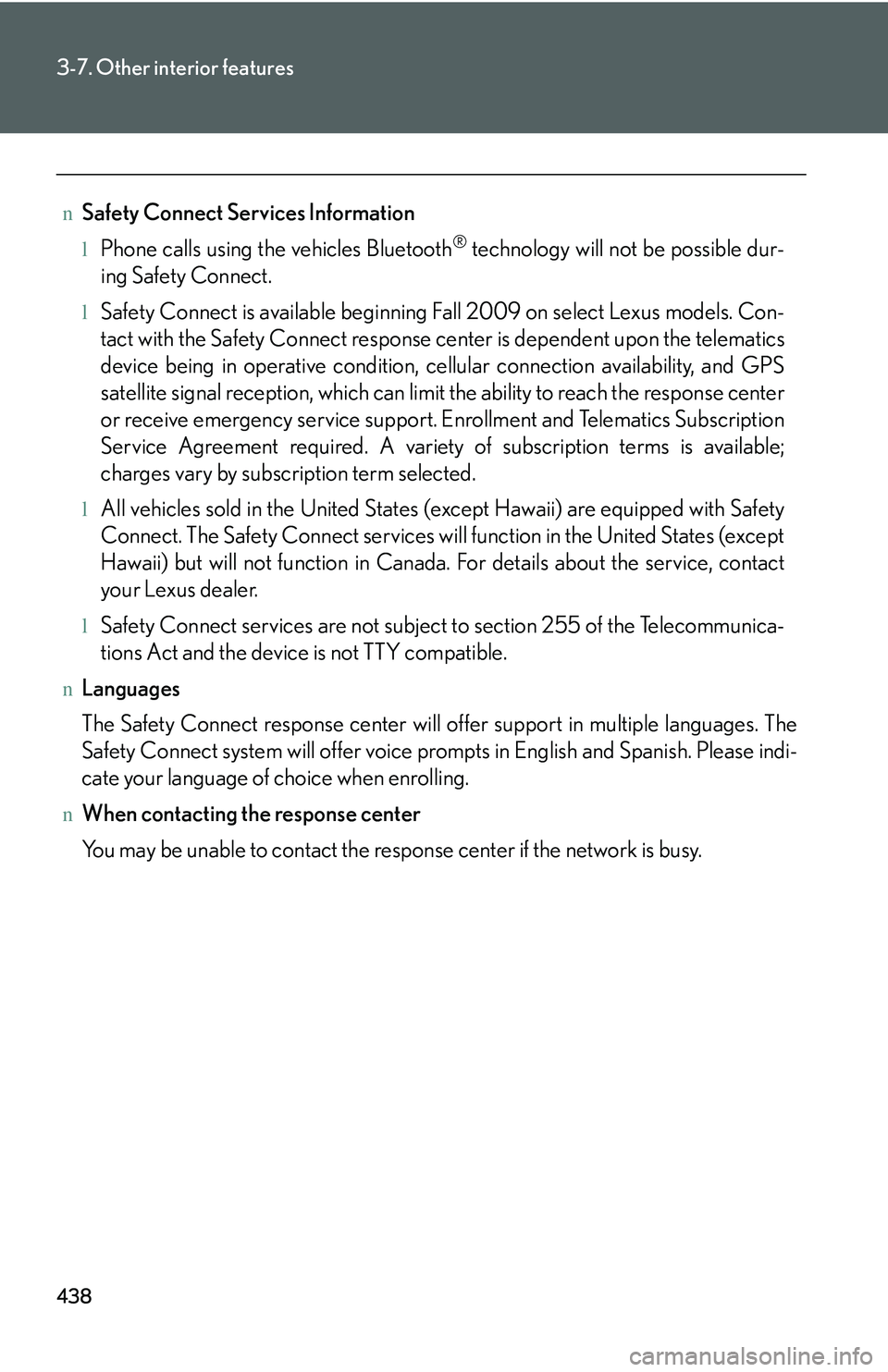

nSafety Connect Services Information
lPhone calls using the vehicles Bluetooth® technology will not be possible dur-
ing Safety Connect.
lSafety Connect is available beginning Fall 2009 on select Lexus models. Con-
tact with the Safety Connect response center is dependent upon the telematics
device being in operative condition, cellular connection availability, and GPS
satellite signal reception, which can limit the ability to reach the response center
or receive emergency service support. Enrollment and Telematics Subscription
Service Agreement required. A variety of subscription terms is available;
charges vary by subscription term selected.
lAll vehicles sold in the United States (except Hawaii) are equipped with Safety
Connect. The Safety Connect services will function in the United States (except
Hawaii) but will not function in Canada. For details about the service, contact
your Lexus dealer.
lSafety Connect services are not subject to section 255 of the Telecommunica-
tions Act and the device is not TTY compatible.
nLanguages
The Safety Connect response center will offer support in multiple languages. The
Safety Connect system will offer voice prompts in English and Spanish. Please indi-
cate your language of choice when enrolling.
nWhen contacting the response center
You may be unable to contact the response center if the network is busy.

439
3-7. Other interior features
3

Interior features

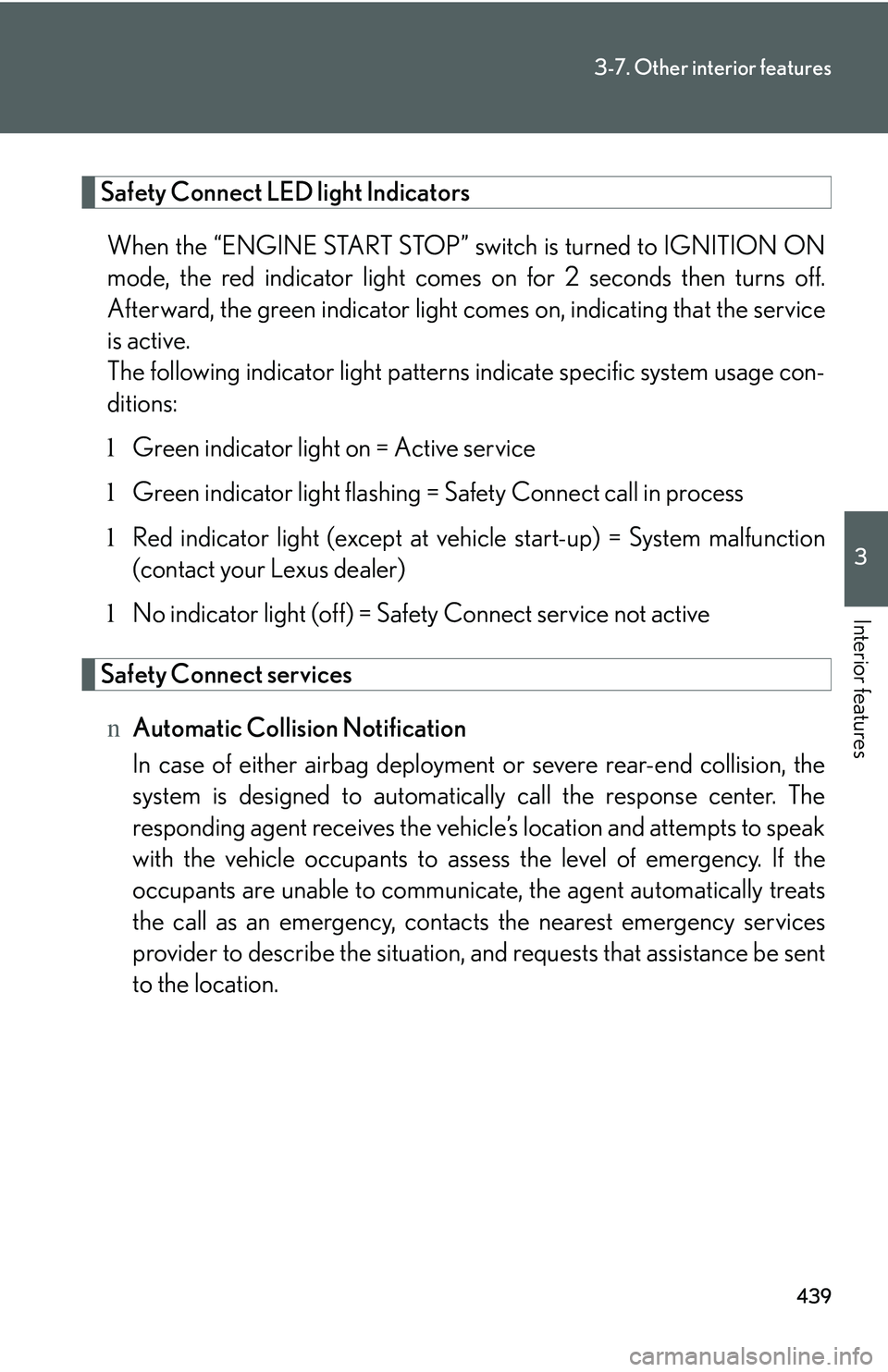

Safety Connect LED light Indicators
When the “ENGINE START STOP” switch is turned to IGNITION ON
mode, the red indicator light comes on for 2 seconds then turns off.
Afterward, the green indicator light comes on, indicating that the service
is active.
The following indicator light patterns indicate specific system usage con-
ditions:
lGreen indicator light on = Active service
lGreen indicator light flashing = Safety Connect call in process
lRed indicator light (except at vehicle start-up) = System malfunction
(contact your Lexus dealer)
lNo indicator light (off) = Safety Connect service not active
Safety Connect services
nAutomatic Collision Notification
In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding agent receives the vehicle’s location and attempts to speak
with the vehicle occupants to assess the level of emergency. If the
occupants are unable to communicate, the agent automatically treats
the call as an emergency, contacts the nearest emergency services
provider to describe the situation, and requests that assistance be sent
to the location.

440
3-7. Other interior features

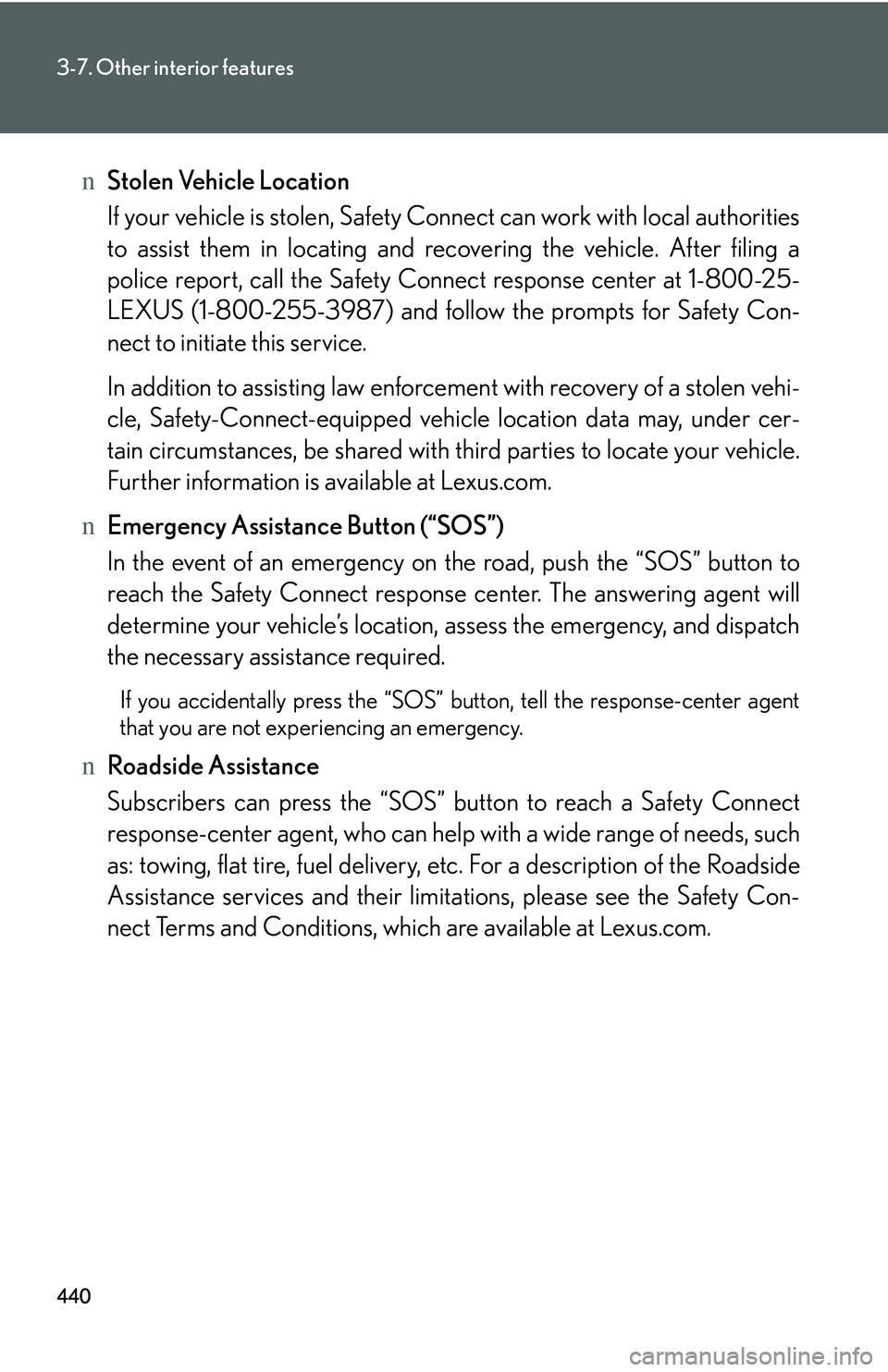

nStolen Vehicle Location
If your vehicle is stolen, Safety Connect can work with local authorities
to assist them in locating and recovering the vehicle. After filing a
police report, call the Safety Connect response center at 1-800-25-
LEXUS (1-800-255-3987) and follow the prompts for Safety Con-
nect to initiate this service.
In addition to assisting law enforcement with recovery of a stolen vehi-
cle, Safety-Connect-equipped vehicle location data may, under cer-
tain circumstances, be shared with third parties to locate your vehicle.
Further information is available at Lexus.com.
nEmergency Assistance Button (“SOS”)
In the event of an emergency on the road, push the “SOS” button to
reach the Safety Connect response center. The answering agent will
determine your vehicle’s location, assess the emergency, and dispatch
the necessary assistance required.
If you accidentally press the “SOS” button, tell the response-center agent
that you are not experiencing an emergency.
nRoadside Assistance
Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs, such
as: towing, flat tire, fuel delivery, etc. For a description of the Roadside
Assistance services and their limitations, please see the Safety Con-
nect Terms and Conditions, which are available at Lexus.com.
