LEXUS RX350 2011 Owners Manual

461
4-3. Do-it-yourself maintenance
4

Maintenance and care

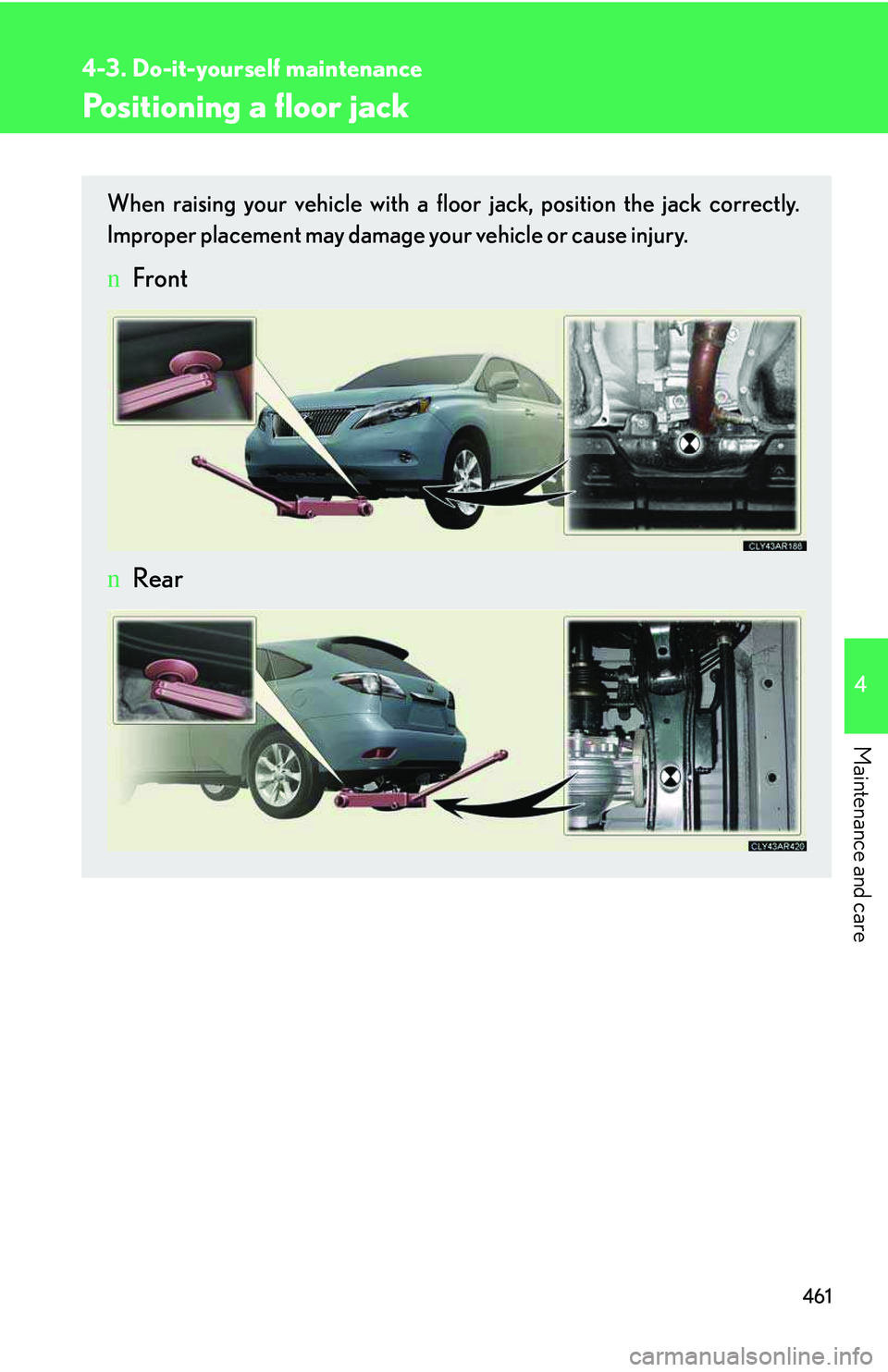

Positioning a floor jack
When raising your vehicle with a floor jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
nFront
nRear

462
4-3. Do-it-yourself maintenance

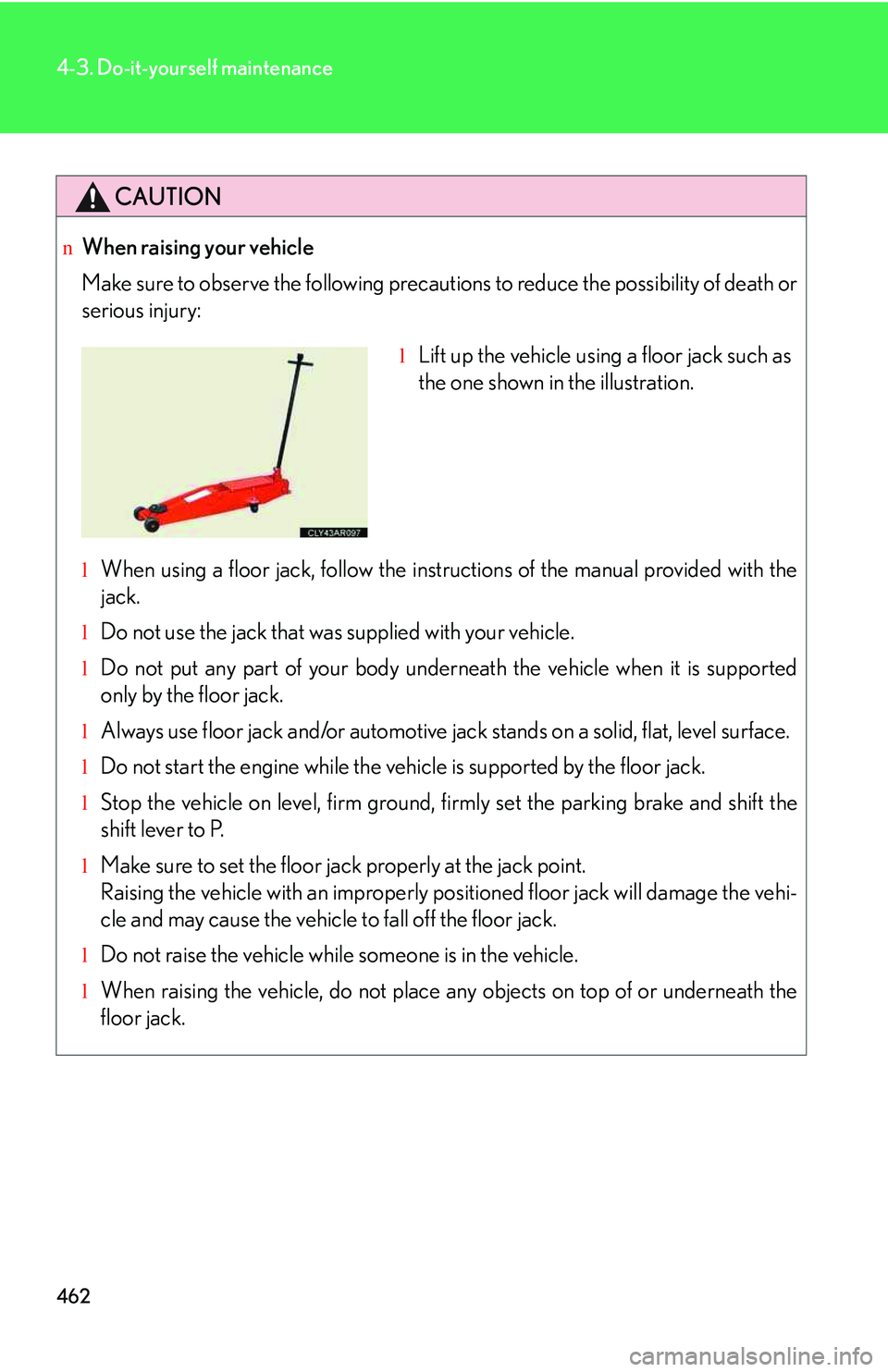

CAUTION
nWhen raising your vehicle
Make sure to observe the following precautions to reduce the possibility of death or
serious injury:
lWhen using a floor jack, follow the instructions of the manual provided with the
jack.
lDo not use the jack that was supplied with your vehicle.
lDo not put any part of your body underneath the vehicle when it is supported
only by the floor jack.
lAlways use floor jack and/or automotive jack stands on a solid, flat, level surface.
lDo not start the engine while the vehicle is supported by the floor jack.
lStop the vehicle on level, firm ground, firmly set the parking brake and shift the
shift lever to P.
lMake sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage the vehi-
cle and may cause the vehicle to fall off the floor jack.
lDo not raise the vehicle while someone is in the vehicle.
lWhen raising the vehicle, do not place any objects on top of or underneath the
floor jack.
lLift up the vehicle using a floor jack such as
the one shown in the illustration.

463
4-3. Do-it-yourself maintenance
4

Maintenance and care

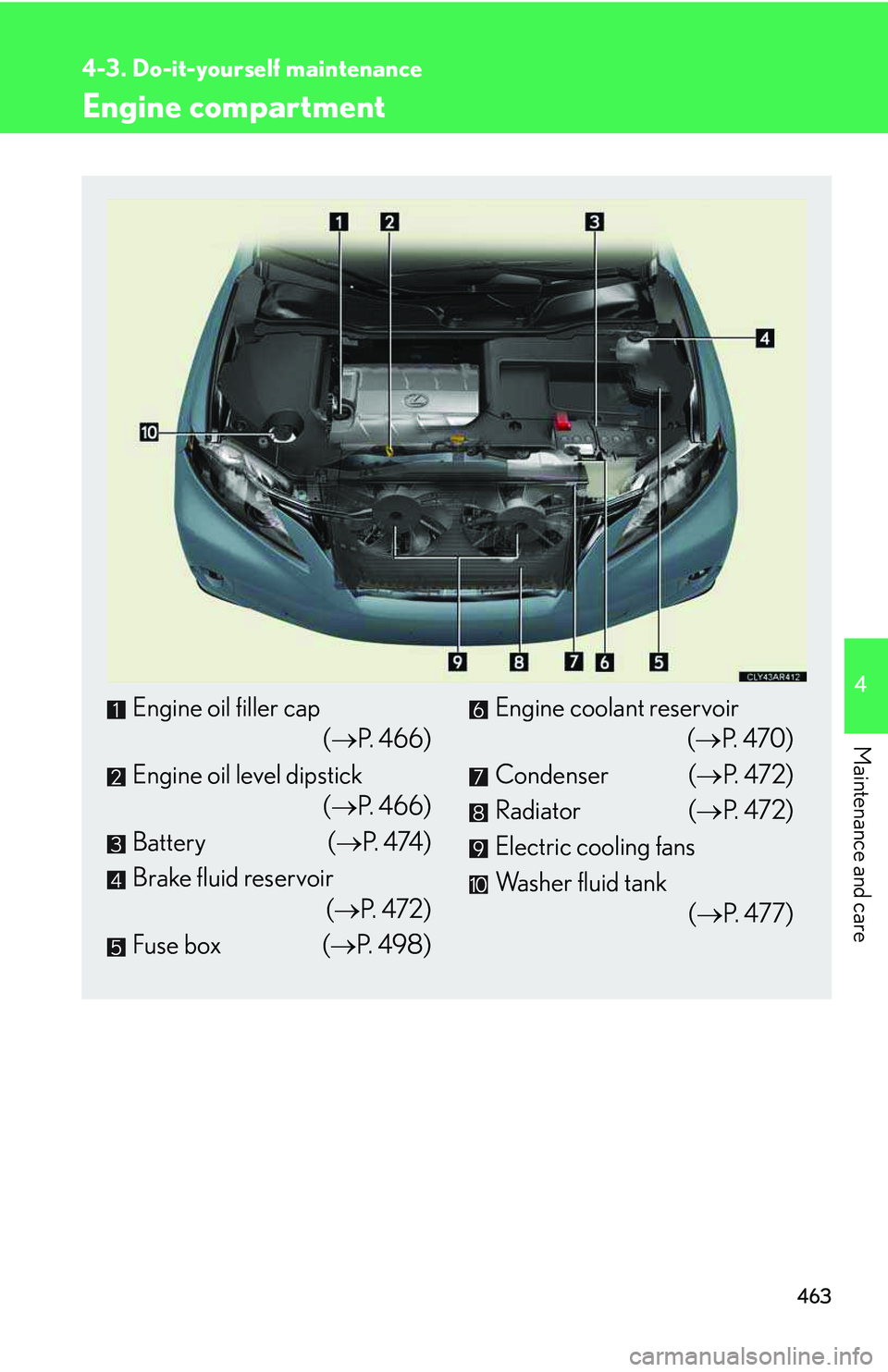

Engine compartment
Engine oil filler cap
(→P. 466)
Engine oil level dipstick
(→P. 466)
Battery (→P. 4 74 )
Brake fluid reservoir
(→P. 4 7 2 )
Fuse box (→P. 4 9 8 )
Engine coolant reservoir
(→P. 470)
Condenser (→P. 4 7 2 )
Radiator (→P. 4 7 2 )
Electric cooling fans
Washer fluid tank
(→P. 477)

464
4-3. Do-it-yourself maintenance

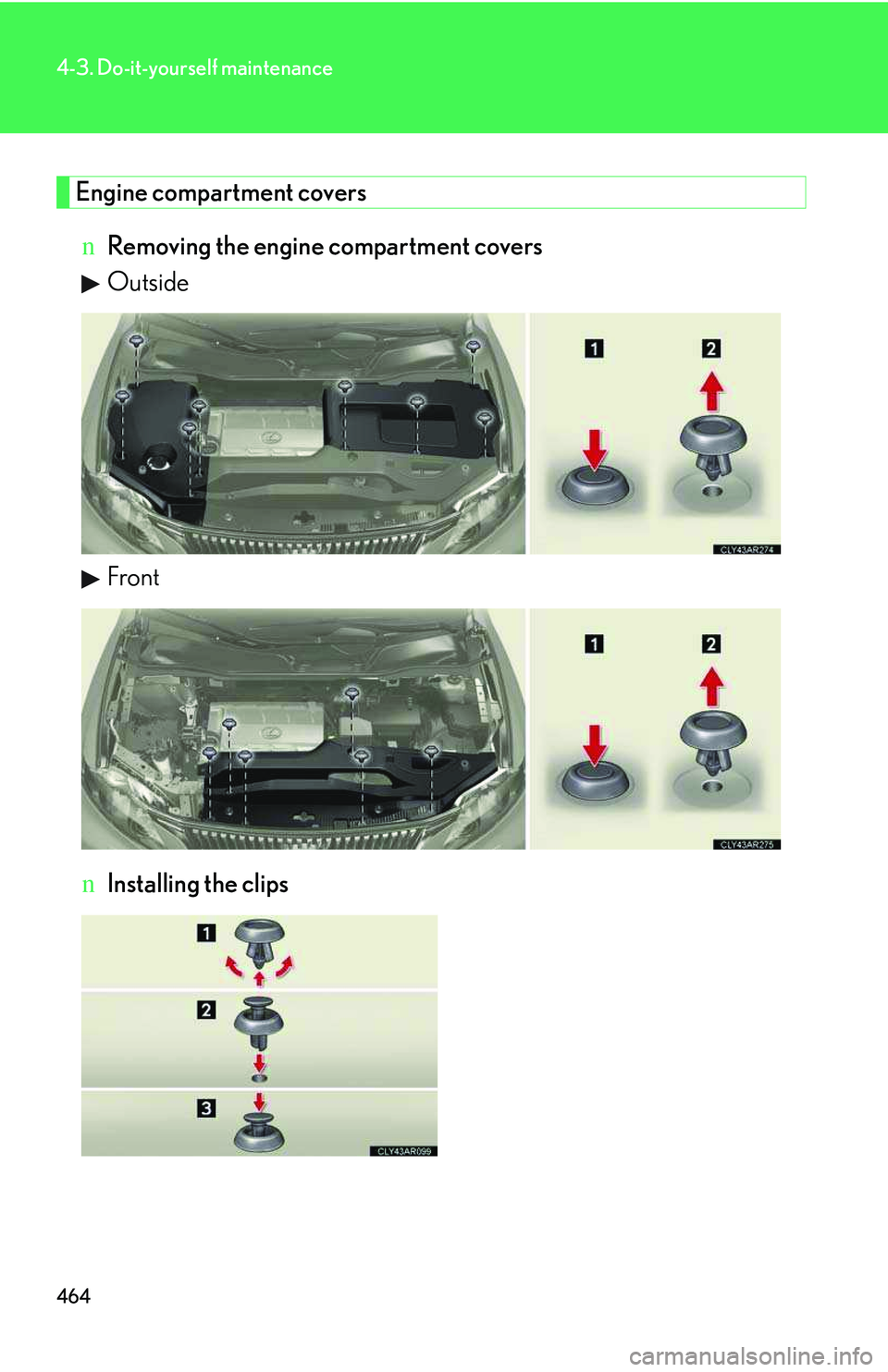

Engine compartment covers
nRemoving the engine compartment covers
Outside
Front
nInstalling the clips

465
4-3. Do-it-yourself maintenance
4

Maintenance and care

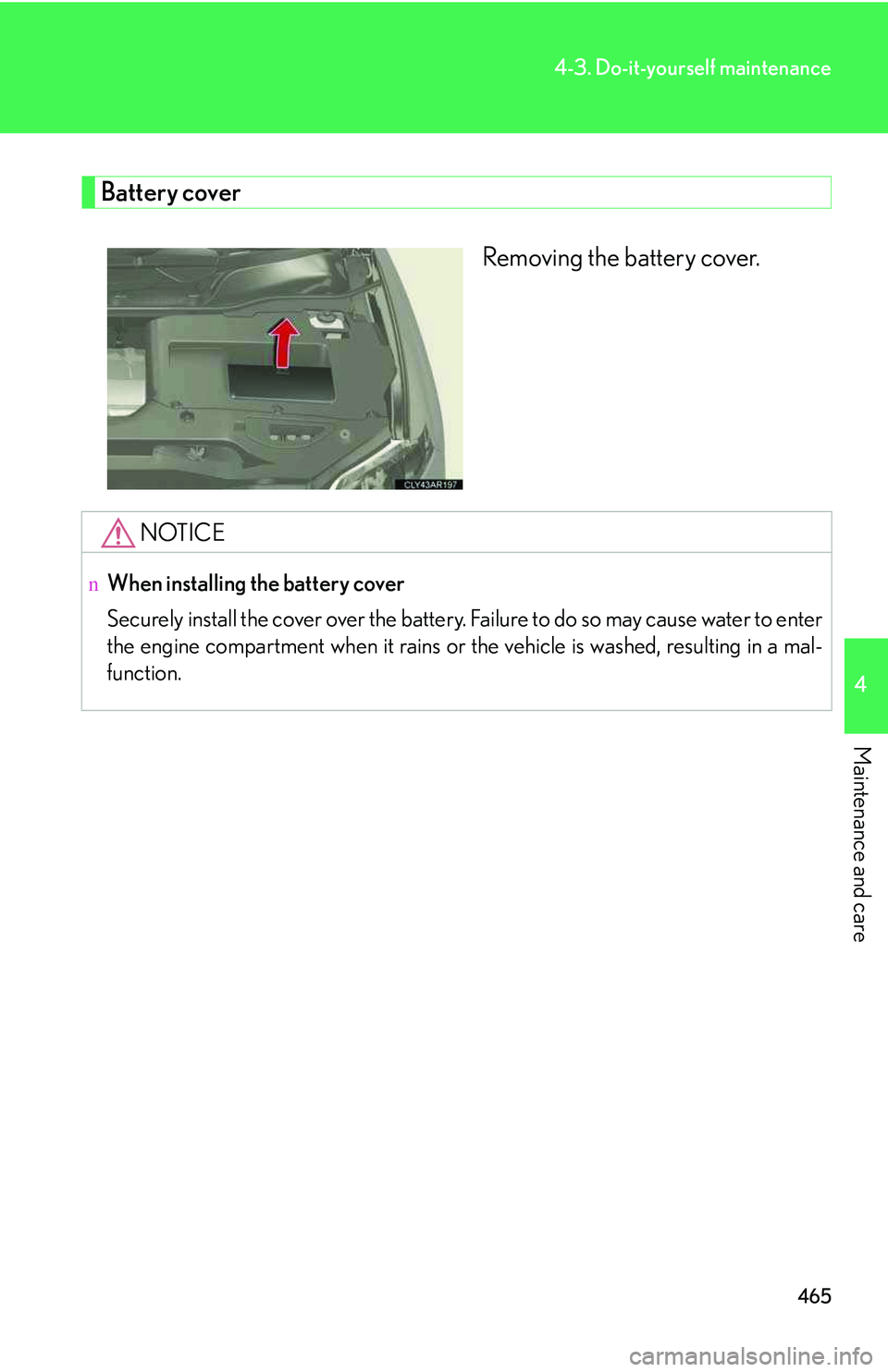

Battery cover
Removing the battery cover.
NOTICE
nWhen installing the battery cover
Securely install the cover over the battery. Failure to do so may cause water to enter
the engine compartment when it rains or the vehicle is washed, resulting in a mal-
function.

466
4-3. Do-it-yourself maintenance

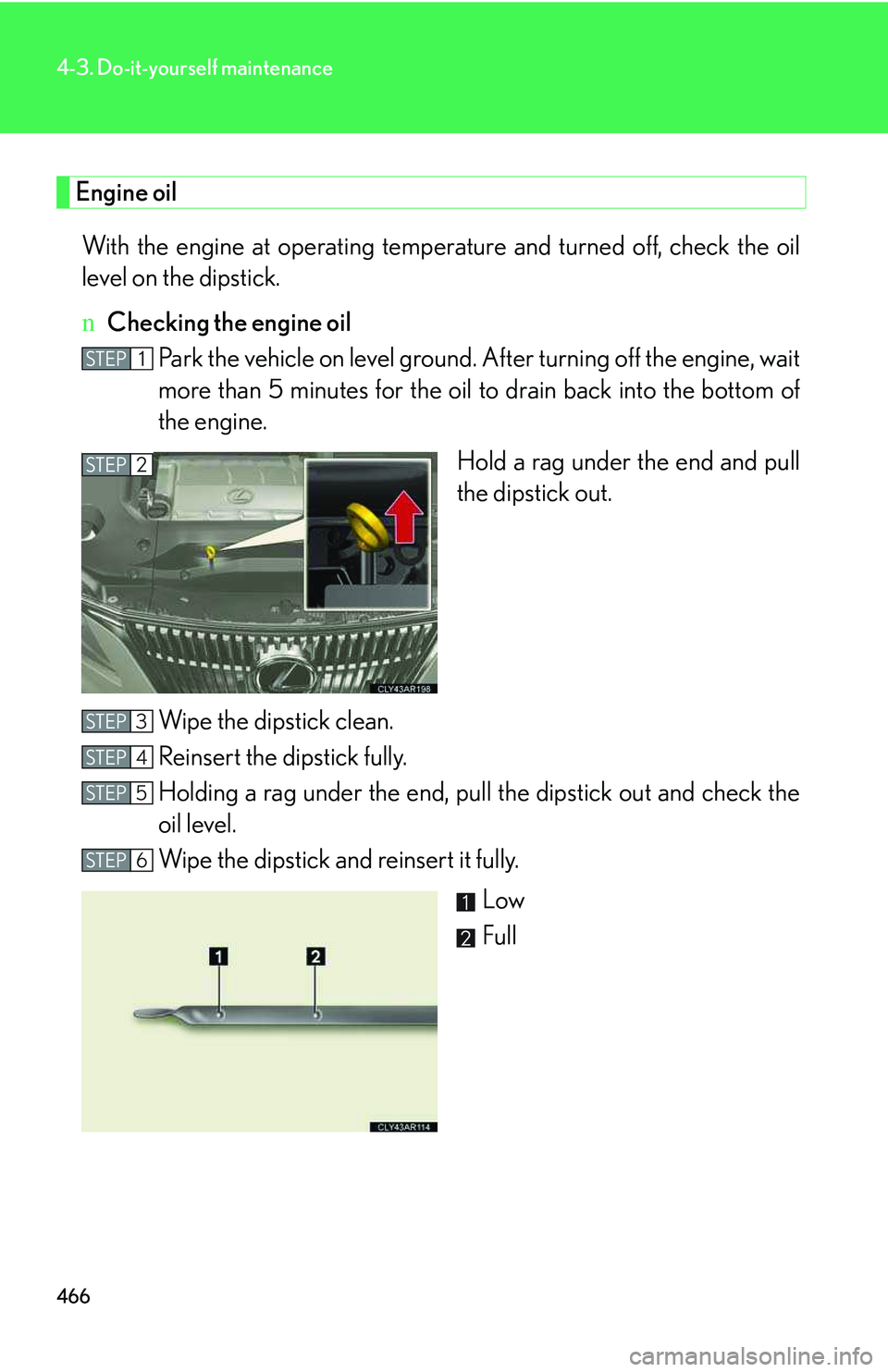

Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
nChecking the engine oil
Park the vehicle on level ground. After turning off the engine, wait
more than 5 minutes for the oil to drain back into the bottom of
the engine.
Hold a rag under the end and pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
Wipe the dipstick and reinsert it fully.
Low
Full
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

467
4-3. Do-it-yourself maintenance
4

Maintenance and care

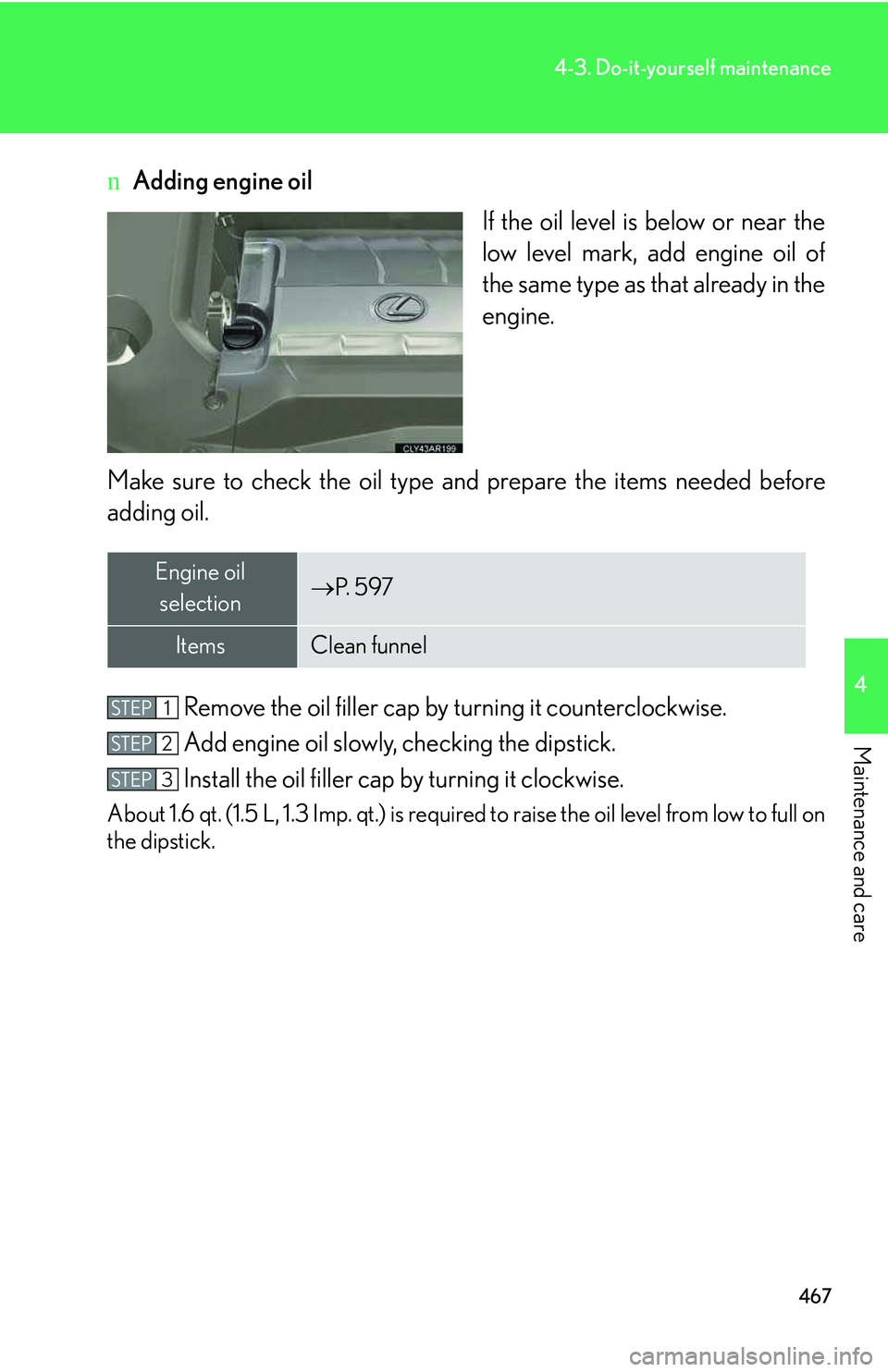

nAdding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as that already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
About 1.6 qt. (1.5 L, 1.3 Imp. qt.) is required to raise the oil level from low to full on
the dipstick.
Engine oil
selection→P. 5 9 7
ItemsClean funnel
STEP1
STEP2
STEP3

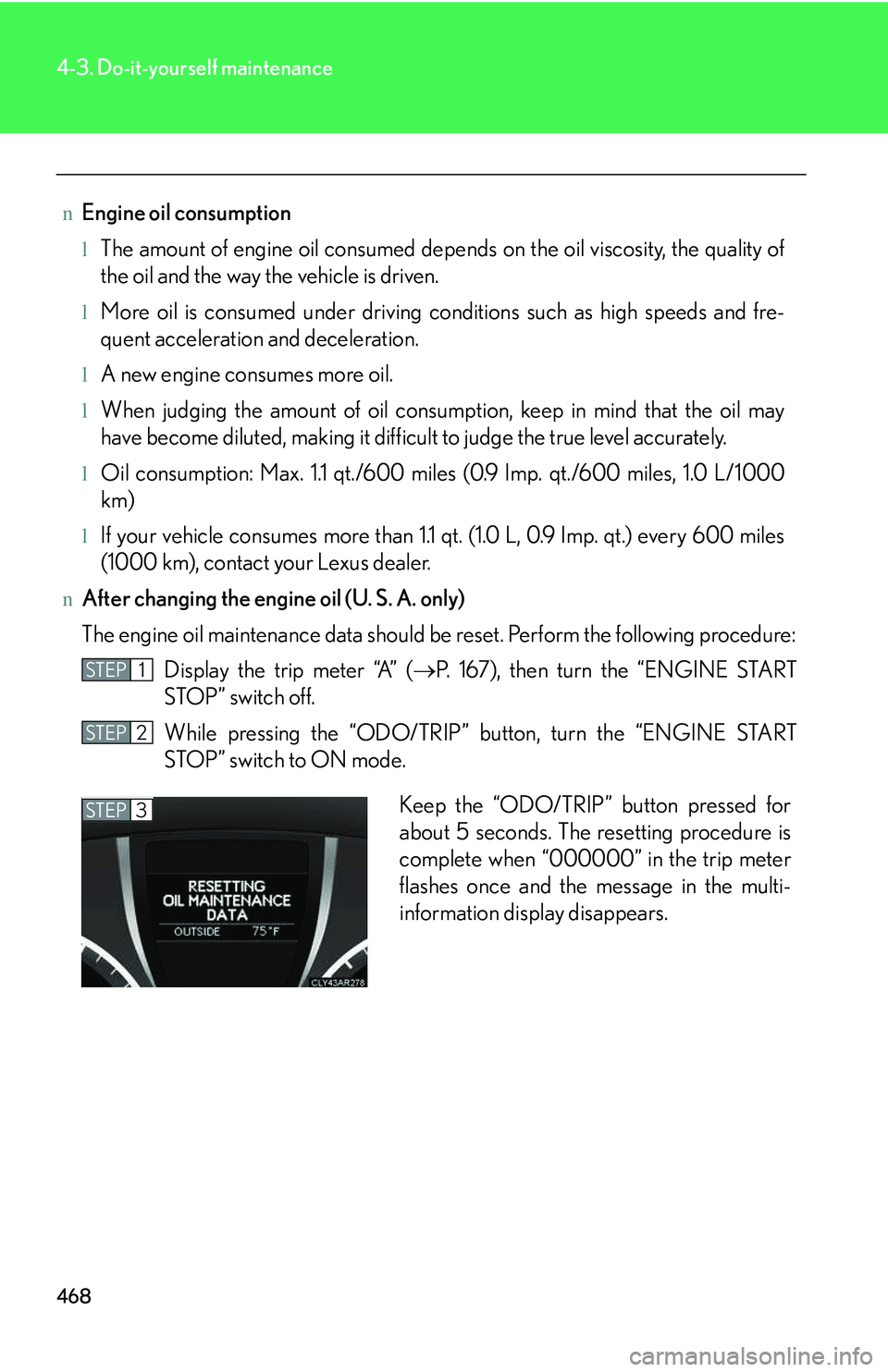

468
4-3. Do-it-yourself maintenance
nEngine oil consumption
lThe amount of engine oil consumed depends on the oil viscosity, the quality of
the oil and the way the vehicle is driven.
lMore oil is consumed under driving conditions such as high speeds and fre-
quent acceleration and deceleration.
lA new engine consumes more oil.
lWhen judging the amount of oil consumption, keep in mind that the oil may
have become diluted, making it difficult to judge the true level accurately.
lOil consumption: Max. 1.1 qt./600 miles (0.9 Imp. qt./600 miles, 1.0 L/1000
km)
lIf your vehicle consumes more than 1.1 qt. (1.0 L, 0.9 Imp. qt.) every 600 miles
(1000 km), contact your Lexus dealer.
nAfter changing the engine oil (U. S. A. only)
The engine oil maintenance data should be reset. Perform the following procedure:
Display the trip meter “A” (→P. 167), then turn the “ENGINE START
STOP” switch off.
While pressing the “ODO/TRIP” button, turn the “ENGINE START
STOP” switch to ON mode.
STEP1
STEP2
Keep the “ODO/TRIP” button pressed for
about 5 seconds. The resetting procedure is
complete when “000000” in the trip meter
flashes once and the message in the multi-
information display disappears.
STEP3

469
4-3. Do-it-yourself maintenance
4

Maintenance and care

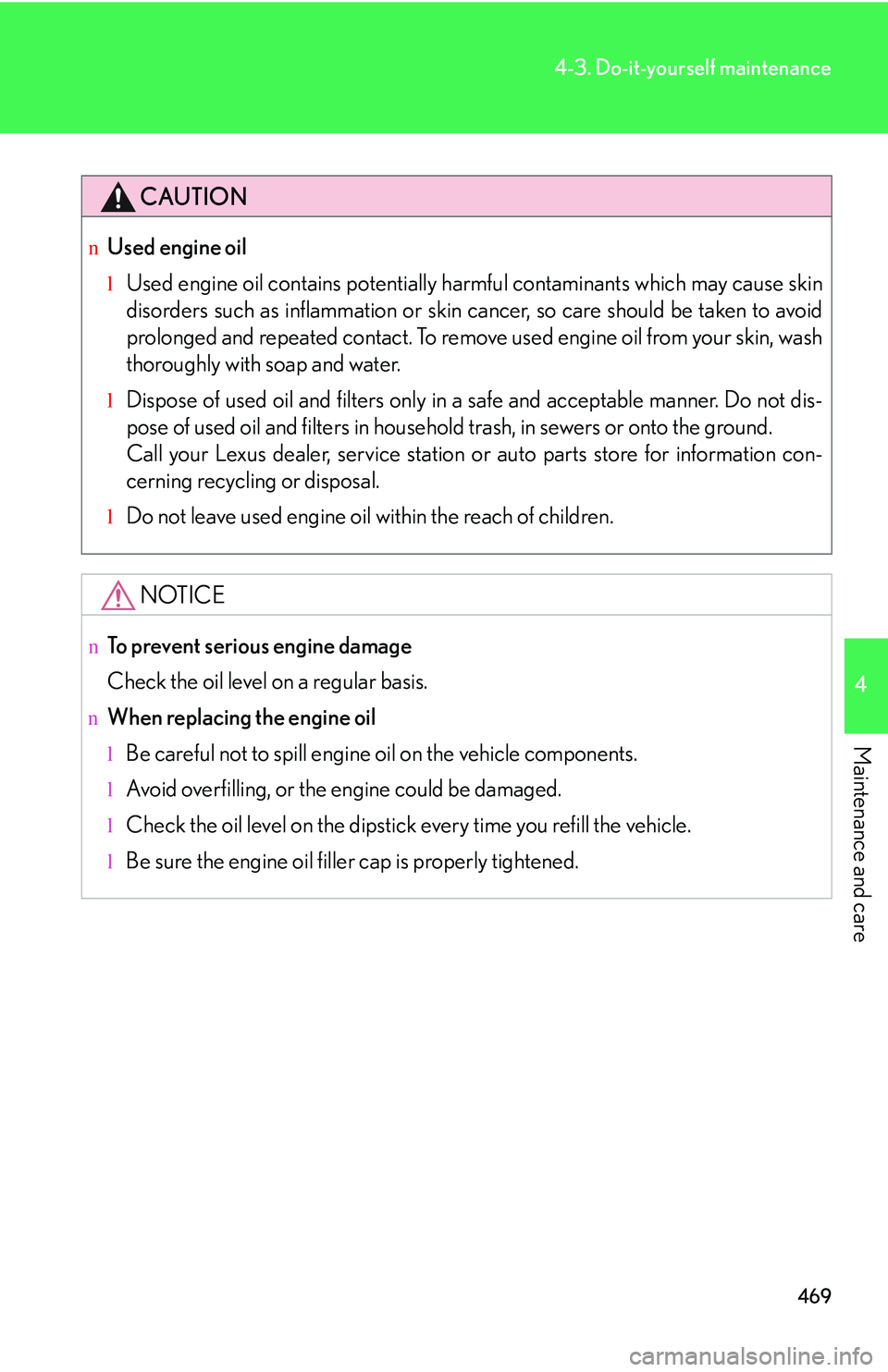

CAUTION
nUsed engine oil
lUsed engine oil contains potentially harmful contaminants which may cause skin
disorders such as inflammation or skin cancer, so care should be taken to avoid
prolonged and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
lDispose of used oil and filters only in a safe and acceptable manner. Do not dis-
pose of used oil and filters in household trash, in sewers or onto the ground.
Call your Lexus dealer, service station or auto parts store for information con-
cerning recycling or disposal.
lDo not leave used engine oil within the reach of children.
NOTICE
nTo prevent serious engine damage
Check the oil level on a regular basis.
nWhen replacing the engine oil
lBe careful not to spill engine oil on the vehicle components.
lAvoid overfilling, or the engine could be damaged.
lCheck the oil level on the dipstick every time you refill the vehicle.
lBe sure the engine oil filler cap is properly tightened.

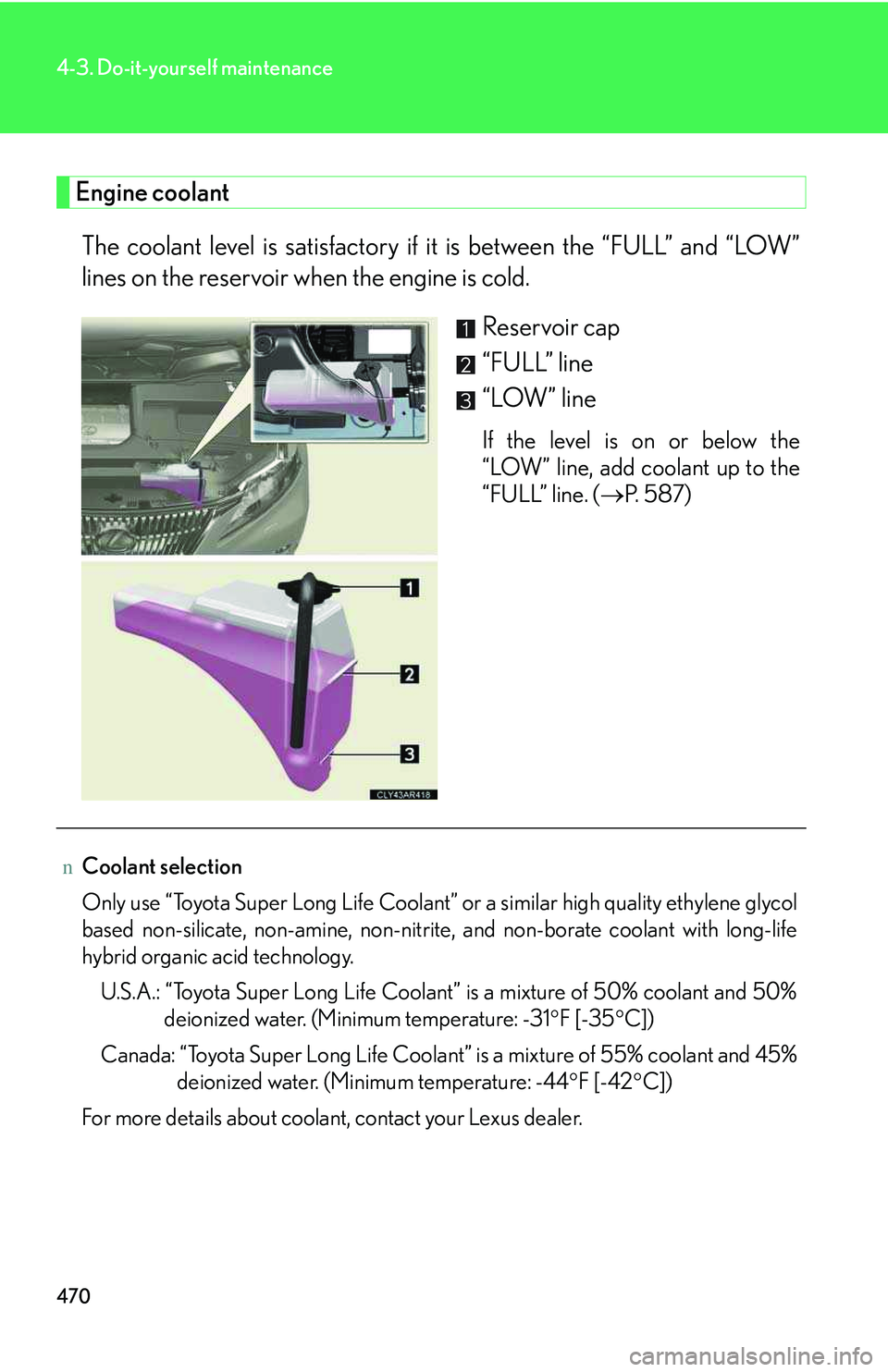

470
4-3. Do-it-yourself maintenance
Engine coolant
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line. (→P. 5 8 7 )
nCoolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life
hybrid organic acid technology.
U.S.A.: “Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50%
deionized water. (Minimum temperature: -31°F [-35°C])
Canada: “Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45%
deionized water. (Minimum temperature: -44°F [-42°C])
For more details about coolant, contact your Lexus dealer.
