LEXUS RX350 2011 Owners Manual

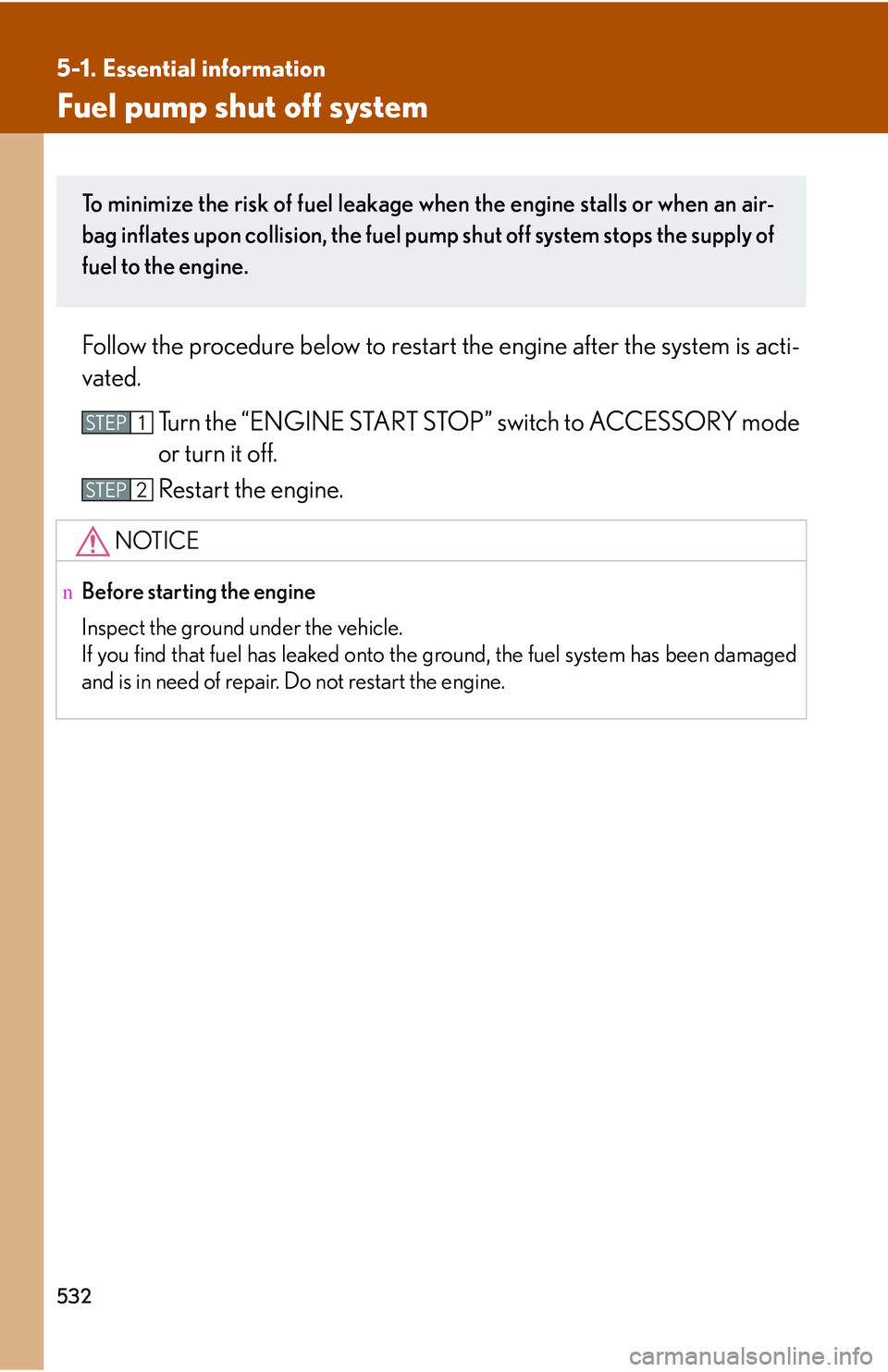

532
5-1. Essential information
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is acti-
vated.
Turn the “ENGINE START STOP” switch to ACCESSORY mode
or turn it off.
Restart the engine.
NOTICE
nBefore starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been damaged
and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or when an air-
bag inflates upon collision, the fuel pump shut off system stops the supply of
fuel to the engine.
STEP1
STEP2

5

When trouble arises
533
5-1. Essential information
Event data recorder
In a crash or a near crash event
The SRS airbag sensor assembly contains the EDR. In a crash or near
crash event, this device may record some or all of the following informa-
tion:
lEngine speed
lWhether the brake pedal was applied or not
lVehicle speed
lTo what extent the accelerator pedal was depressed
lPosition of the transmission shift lever
lWhether the driver and front passenger wore seat belts or not
lDriver's seat position
lSRS airbag deployment data
lSRS airbag system diagnostic data
lFront passenger’s occupant classification
The information above is intended to be used for the purpose of improv-
ing vehicle safety performance. Unlike general data recorders, the EDR
does not record sound data such as conversation between passengers.
Your vehicle has computers that monitor and control certain aspects of
your vehicle. These computers assist in driving and maintaining optimal
vehicle performance.
Besides storing data useful for troubleshooting, there is an event data
recorder (EDR) that records data in a crash or near crash event.

534
5-1. Essential information
Disclosure of the data
Lexus will not disclose the data recorded in an EDR to a third party
except when:
lAn agreement from the vehicle's owner (or the leasing company for a
leased vehicle) is obtained
lOfficially requested to by the police or other authorities
lNecessary, for use as a defense for Lexus in a law suit
lOrdered to by a court of law
However, if necessary Lexus will:
lUse the data for research on Lexus vehicle safety performance
lDisclose the data to a third party for research purposes without dis-
closing details of the vehicle owner, and that only when deemed neces-
sary
lDisclose summarized data cleared of vehicle identification information
to a non-Lexus organization for research purposes

5

When trouble arises
535

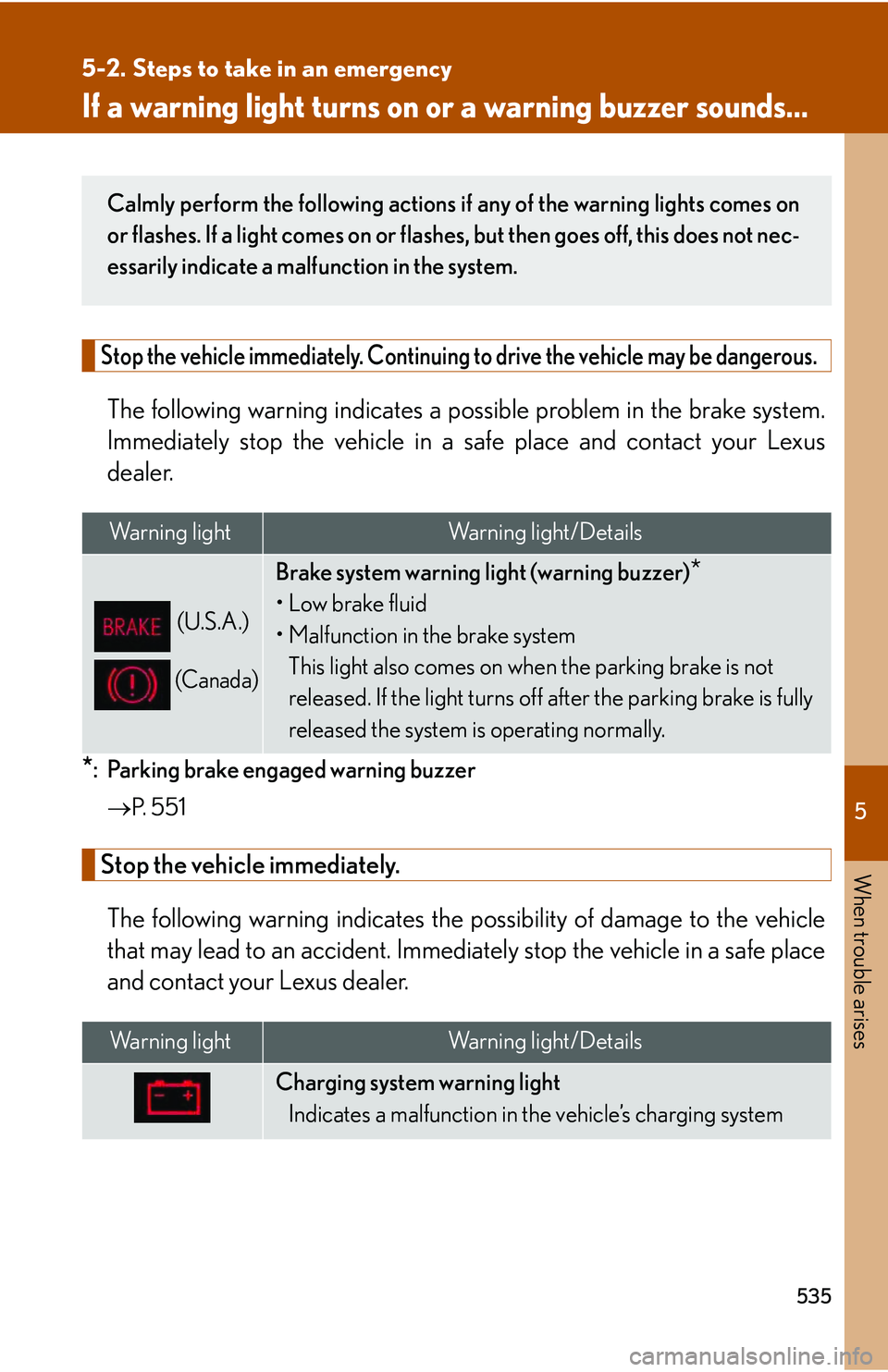

5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer sounds...
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
*: Parking brake engaged warning buzzer
→P. 5 5 1
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the vehicle
that may lead to an accident. Immediately stop the vehicle in a safe place
and contact your Lexus dealer.
Warning lightWarning light/Details
(U.S.A.)


(Canada)
Brake system warning light (warning buzzer)*

536

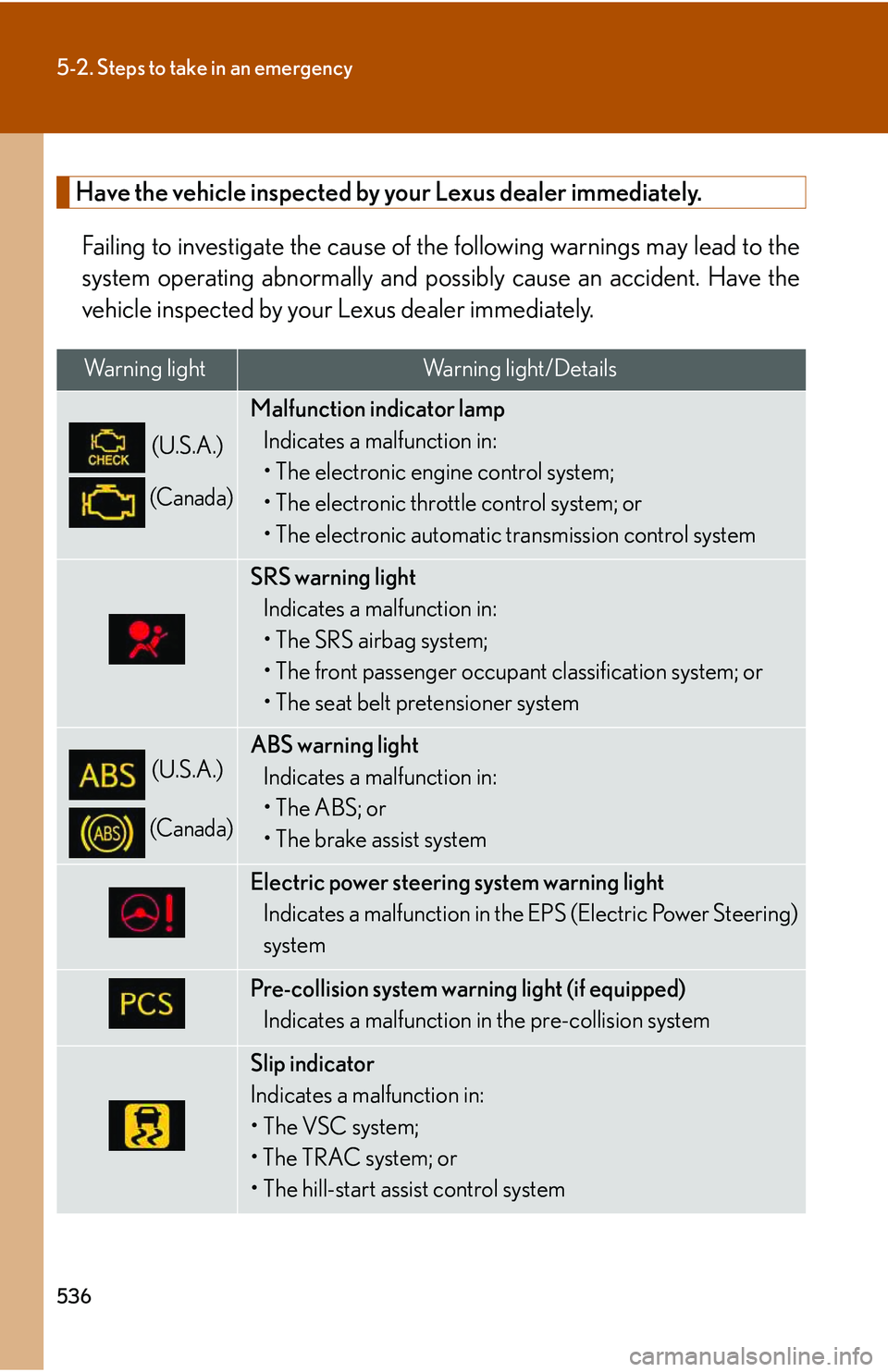

5-2. Steps to take in an emergency
Have the vehicle inspected by your Lexus dealer immediately.
Failing to investigate the cause of the following warnings may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
Warning lightWarning light/Details
(U.S.A.)

(Canada)
Malfunction indicator lamp
Indicates a malfunction in:

5

When trouble arises
537

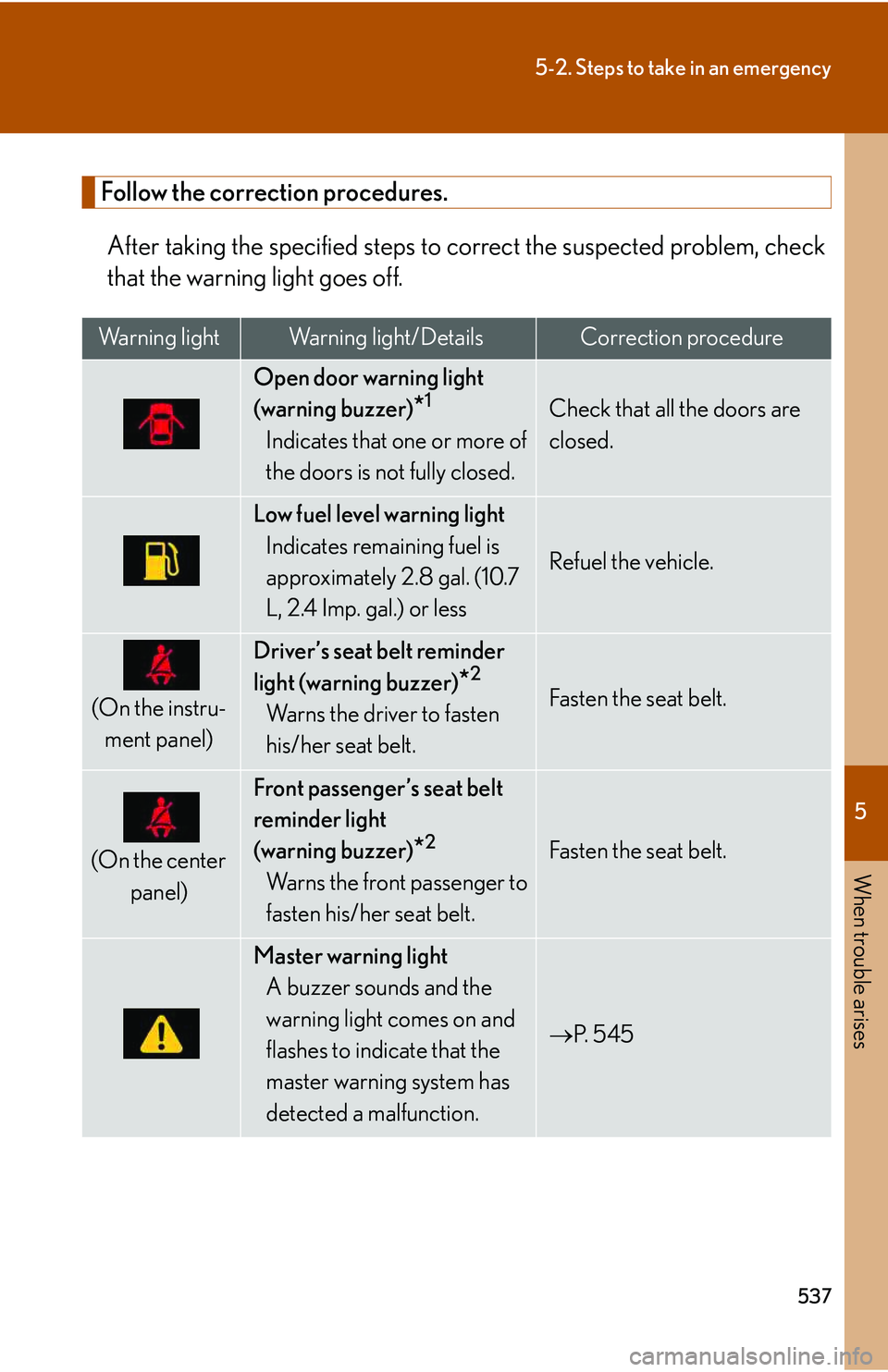

5-2. Steps to take in an emergency
Follow the correction procedures.
After taking the specified steps to correct the suspected problem, check
that the warning light goes off.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)*1
Indicates that one or more of
the doors is not fully closed.
Check that all the doors are
closed.
Low fuel level warning light
Indicates remaining fuel is
approximately 2.8 gal. (10.7
L, 2.4 Imp. gal.) or less
Refuel the vehicle.
(On the instru-
ment panel)
Driver’s seat belt reminder
light (warning buzzer)*2
Warns the driver to fasten
his/her seat belt.
Fasten the seat belt.
(On the center
panel)
Front passenger’s seat belt
reminder light
(warning buzzer)*2
Warns the front passenger to
fasten his/her seat belt.
Fasten the seat belt.
Master warning light
A buzzer sounds and the
warning light comes on and
flashes to indicate that the
master warning system has
detected a malfunction.
→P. 5 4 5

538

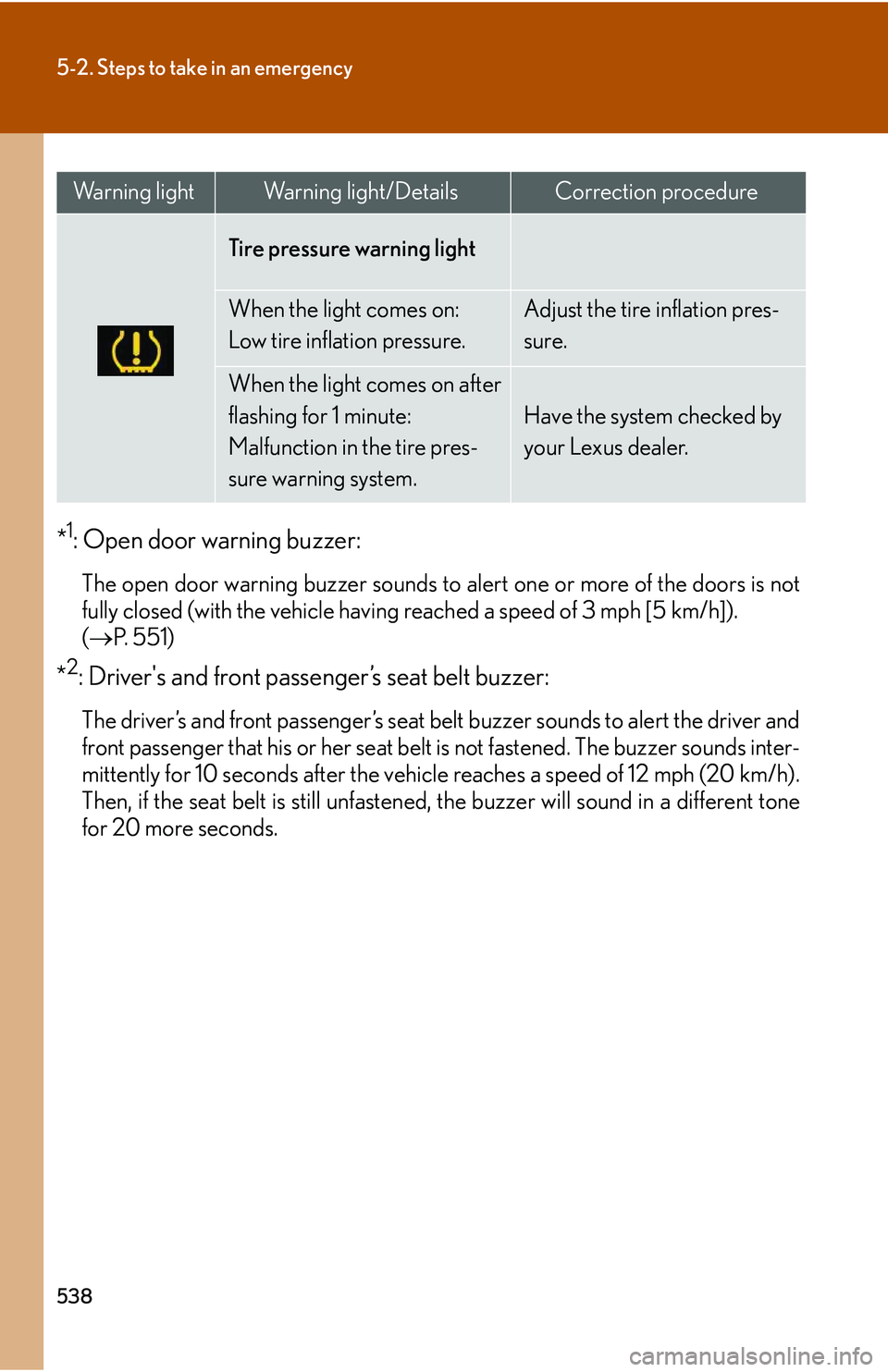

5-2. Steps to take in an emergency
*1: Open door warning buzzer:
The open door warning buzzer sounds to alert one or more of the doors is not
fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]).
(→P. 551)
*2: Driver's and front passenger’s seat belt buzzer:
The driver’s and front passenger’s seat belt buzzer sounds to alert the driver and
front passenger that his or her seat belt is not fastened. The buzzer sounds inter-
mittently for 10 seconds after the vehicle reaches a speed of 12 mph (20 km/h).
Then, if the seat belt is still unfastened, the buzzer will sound in a different tone
for 20 more seconds.
Tire pressure warning light
When the light comes on:
Low tire inflation pressure.
Adjust the tire inflation pres-
sure.
When the light comes on after
flashing for 1 minute:
Malfunction in the tire pres-
sure warning system.
Have the system checked by
your Lexus dealer.
Warning lightWarning light/DetailsCorrection procedure

5

When trouble arises
539
5-2. Steps to take in an emergency
nSRS warning light
This warning light system monitors the airbag sensor assembly, front airbag sensors,
side and curtain shield airbag sensors, curtain shield airbag sensors, driver's seat
position sensor, driver's seat belt buckle switch, front passenger occupant classifi-
cation system, “AIR BAG ON” indicator light, “AIR BAG OFF” indicator light, front
passenger's seat belt buckle switch, seat belt pretensioner assemblies, inflators,
interconnecting wiring and power sources. (→P. 1 0 9 )
nFront passenger detection sensor, passenger seat belt reminder and warning
buzzer
lIf luggage is placed on the front passenger seat, the front passenger detection
sensor may cause the warning light to flash and the warning buzzer to sound
even if a passenger is not sitting in the seat.
lIf a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.
nElectric power steering system warning light
When the voltage is low or drops, the power steering warning light may come on.
nIf the malfunction indicator lamp comes on while driving
First check the following:
lIs the fuel tank empty?
If it is, fill the fuel tank immediately.
lIs the fuel tank cap loose?
If it is, tighten it securely.
The lamp will go off after several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.

540

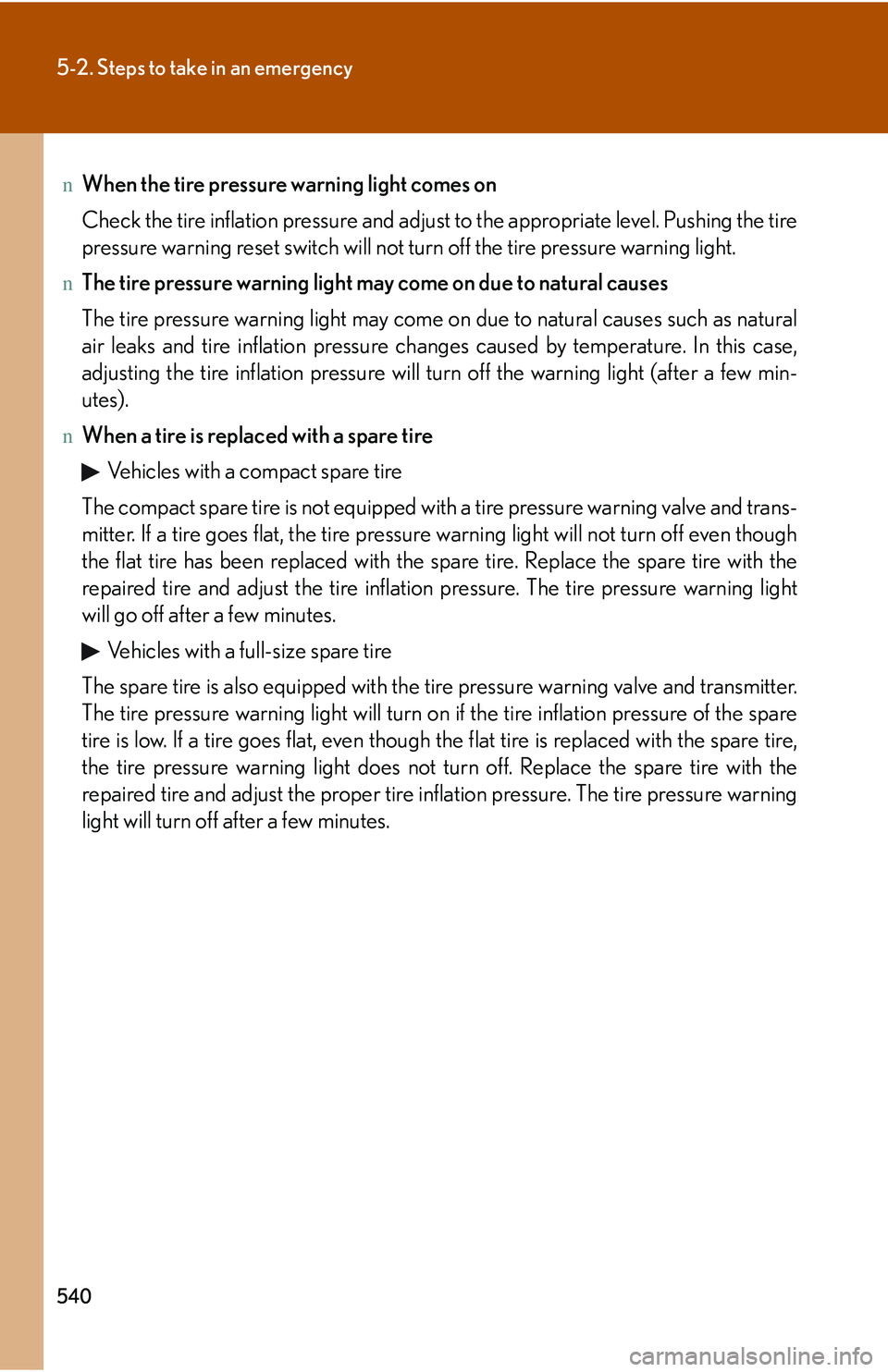

5-2. Steps to take in an emergency
nWhen the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire
pressure warning reset switch will not turn off the tire pressure warning light.
nThe tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural
air leaks and tire inflation pressure changes caused by temperature. In this case,
adjusting the tire inflation pressure will turn off the warning light (after a few min-
utes).
nWhen a tire is replaced with a spare tire
Vehicles with a compact spare tire
The compact spare tire is not equipped with a tire pressure warning valve and trans-
mitter. If a tire goes flat, the tire pressure warning light will not turn off even though
the flat tire has been replaced with the spare tire. Replace the spare tire with the
repaired tire and adjust the tire inflation pressure. The tire pressure warning light
will go off after a few minutes.
Vehicles with a full-size spare tire
The spare tire is also equipped with the tire pressure warning valve and transmitter.
The tire pressure warning light will turn on if the tire inflation pressure of the spare
tire is low. If a tire goes flat, even though the flat tire is replaced with the spare tire,
the tire pressure warning light does not turn off. Replace the spare tire with the
repaired tire and adjust the proper tire inflation pressure. The tire pressure warning
light will turn off after a few minutes.

5

When trouble arises
541

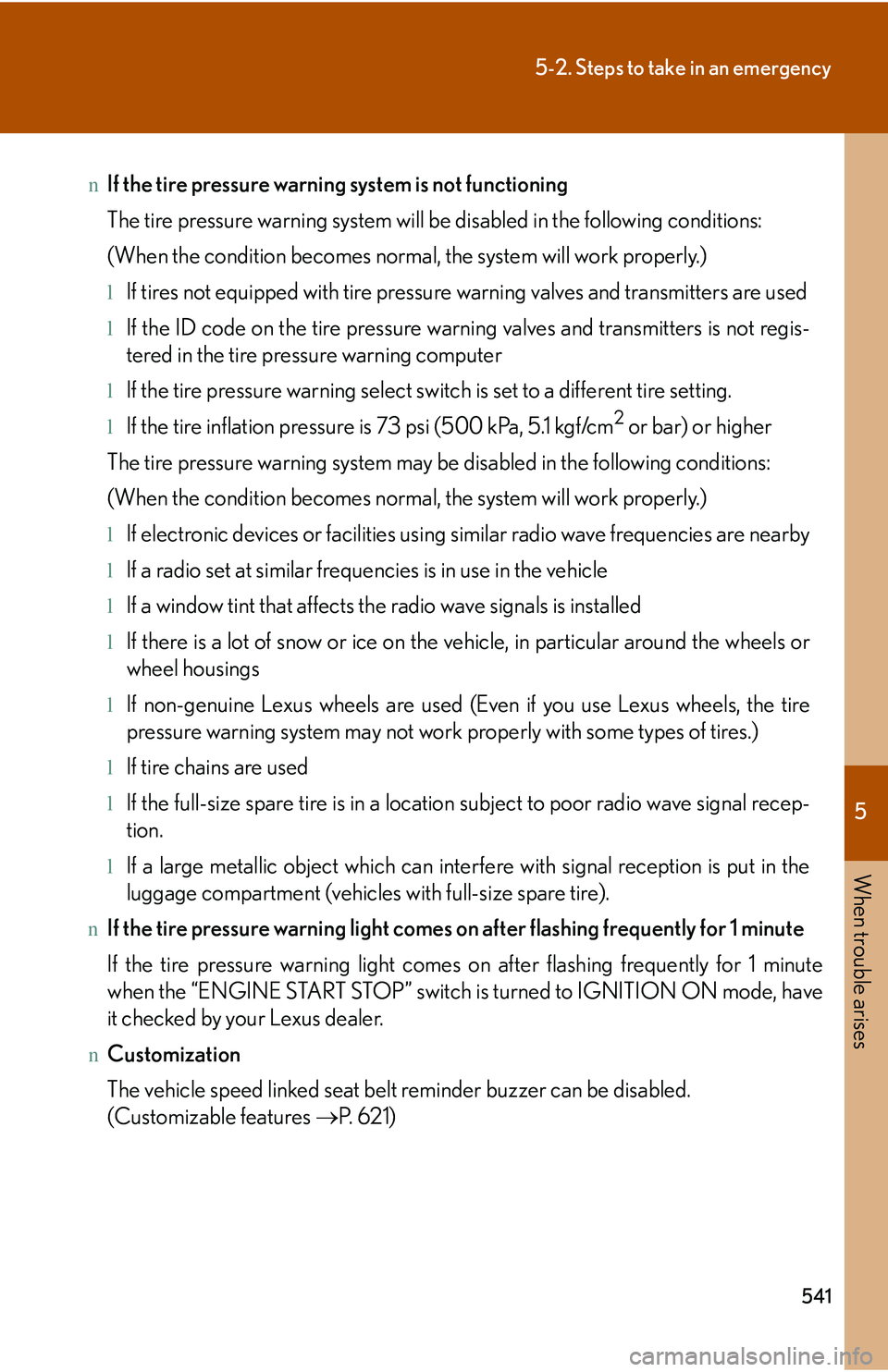

5-2. Steps to take in an emergency
nIf the tire pressure warning system is not functioning
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
lIf tires not equipped with tire pressure warning valves and transmitters are used
lIf the ID code on the tire pressure warning valves and transmitters is not regis-
tered in the tire pressure warning computer
lIf the tire pressure warning select switch is set to a different tire setting.
lIf the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm2 or bar) or higher
The tire pressure warning system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
lIf electronic devices or facilities using similar radio wave frequencies are nearby
lIf a radio set at similar frequencies is in use in the vehicle
lIf a window tint that affects the radio wave signals is installed
lIf there is a lot of snow or ice on the vehicle, in particular around the wheels or
wheel housings
lIf non-genuine Lexus wheels are used (Even if you use Lexus wheels, the tire
pressure warning system may not work properly with some types of tires.)
lIf tire chains are used
lIf the full-size spare tire is in a location subject to poor radio wave signal recep-
tion.
lIf a large metallic object which can interfere with signal reception is put in the
luggage compartment (vehicles with full-size spare tire).
nIf the tire pressure warning light comes on after flashing frequently for 1 minute
If the tire pressure warning light comes on after flashing frequently for 1 minute
when the “ENGINE START STOP” switch is turned to IGNITION ON mode, have
it checked by your Lexus dealer.
nCustomization
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features →P. 6 2 1 )
