LEXUS RX350 2011 Owners Manual

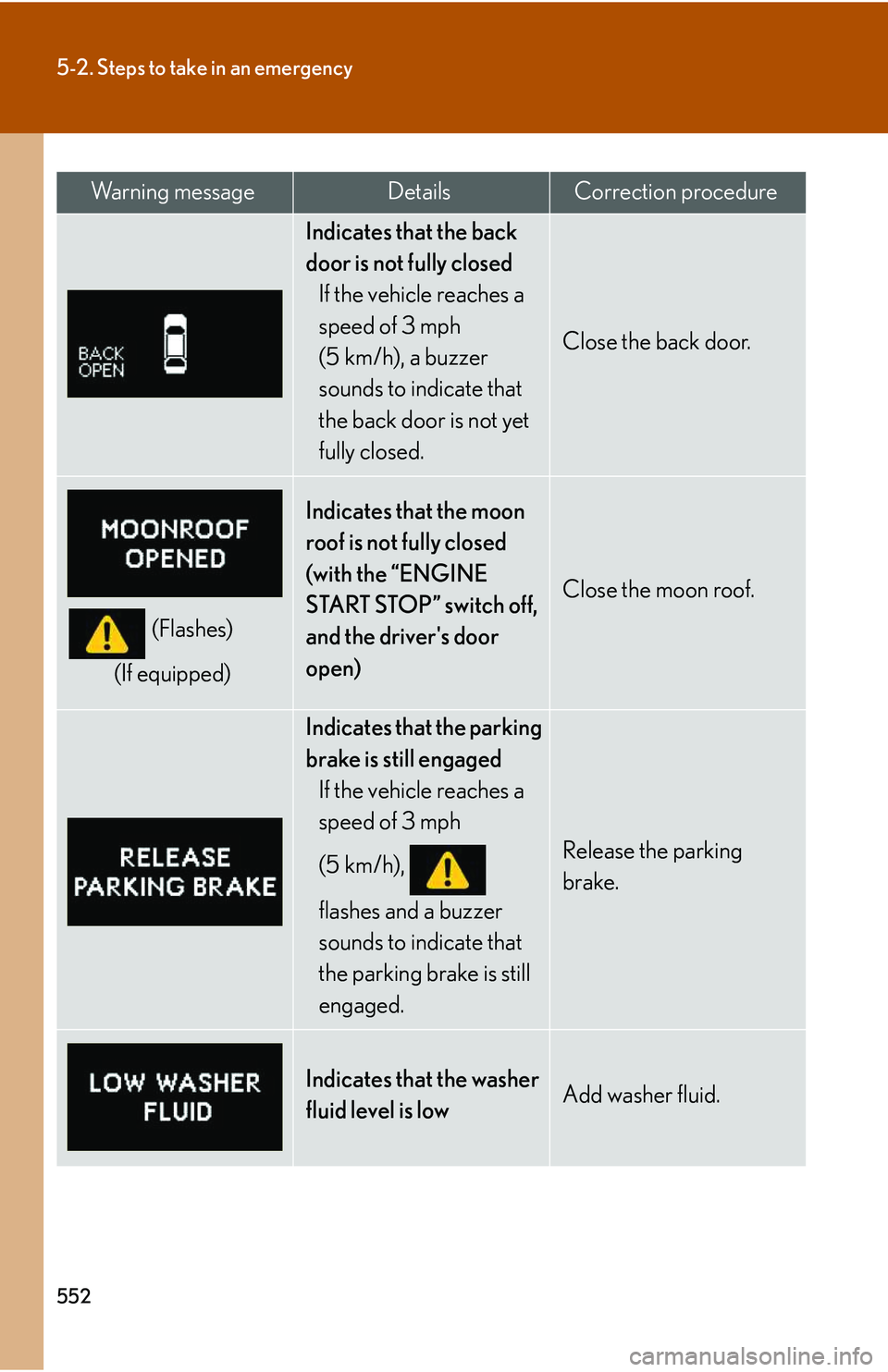

552
5-2. Steps to take in an emergency
Indicates that the back
door is not fully closed
If the vehicle reaches a
speed of 3 mph
(5 km/h), a buzzer
sounds to indicate that
the back door is not yet
fully closed.
Close the back door.
(Flashes)
(If equipped)
Indicates that the moon
roof is not fully closed
(with the “ENGINE
START STOP” switch off,
and the driver's door
open)
Close the moon roof.
Indicates that the parking
brake is still engaged
If the vehicle reaches a
speed of 3 mph
(5 km/h),
flashes and a buzzer
sounds to indicate that
the parking brake is still
engaged.
Release the parking
brake.
Indicates that the washer
fluid level is lowAdd washer fluid.
Wa r n i n g m e s s a g eDetailsCorrection procedure

5

When trouble arises
553
5-2. Steps to take in an emergency
(U.S.A. only)
Indicates that the engine
oil is scheduled to be
changed
Check the engine oil, and
change if necessary.
Comes on approximately
4500 miles (7200 km)
after the engine oil is
changed. (The indicator
will not work properly
unless the oil mainte-
nance data has been
reset.)
(U.S.A. only)
Indicates that the engine
oil and oil filter should be
changed
Have the engine oil and oil
filter checked and
changed by your Lexus
dealer.
(Flashes)
(If equipped)
Indicates that the AWD
system is not currently
functional
A buzzer also sounds.
Reduce vehicle speed or
stop the vehicle in a safe
place until the warnings
clear.
In this case, do not stop
the engine.
(If equipped)
Indicates that the pre-
collision system is not
currently functional
Clean the grille and the
sensor.
This message appears
when the pre-collision
system is hot. In this case,
wait until the system
cools down.
Wa r n i n g m e s s a g eDetailsCorrection procedure

554
5-2. Steps to take in an emergency
(If equipped)
Indicates that intuitive
parking assist is dirty or
covered with ice
A buzzer also sounds.
Clean the sensor.
(Flashes)
(If equipped)
Indicates that the radar
cruise control sensor is
dirty or covered with ice
A buzzer also sounds.
Clean the sensor.
(Flashes)
(If equipped)
Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distance
A buzzer also sounds.
If the windshield wipers
are on, turn them off or set
them to a mode other than
“AUTO” or high speed
wiper operation.
(Flashes)
(If equipped)
Indicates that your vehi-
cle is nearing the vehicle
ahead (in radar cruise
mode)
At the same time,
will appear on
the head-up display.
Slow the vehicle by apply-
ing the brakes.
Wa r n i n g m e s s a g eDetailsCorrection procedure

5

When trouble arises

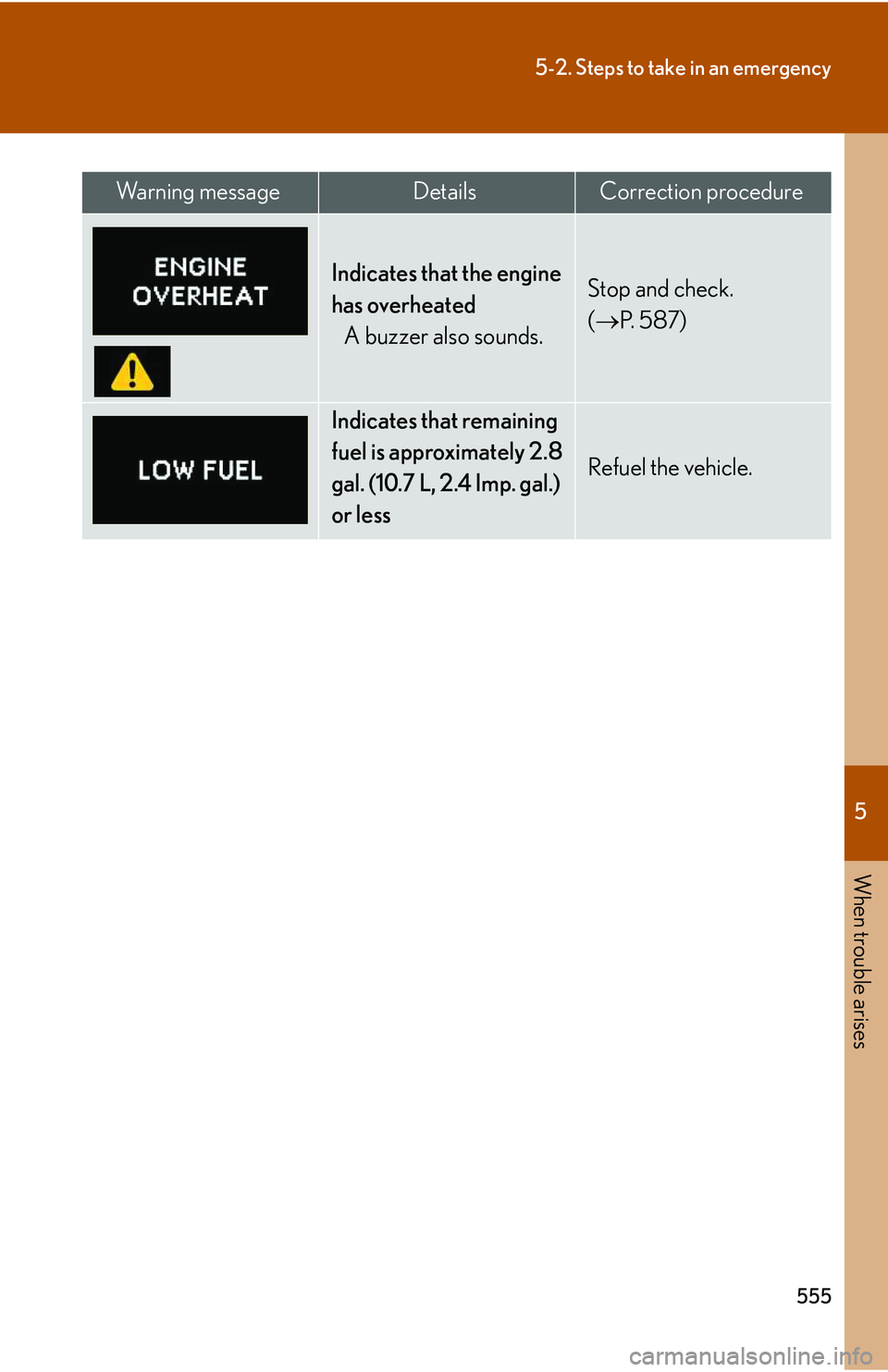

555
5-2. Steps to take in an emergency
Indicates that the engine
has overheated
A buzzer also sounds.
Stop and check.
(→P. 5 8 7 )
Indicates that remaining
fuel is approximately 2.8
gal. (10.7 L, 2.4 Imp. gal.)
or less
Refuel the vehicle.
Wa r n i n g m e s s a g eDetailsCorrection procedure

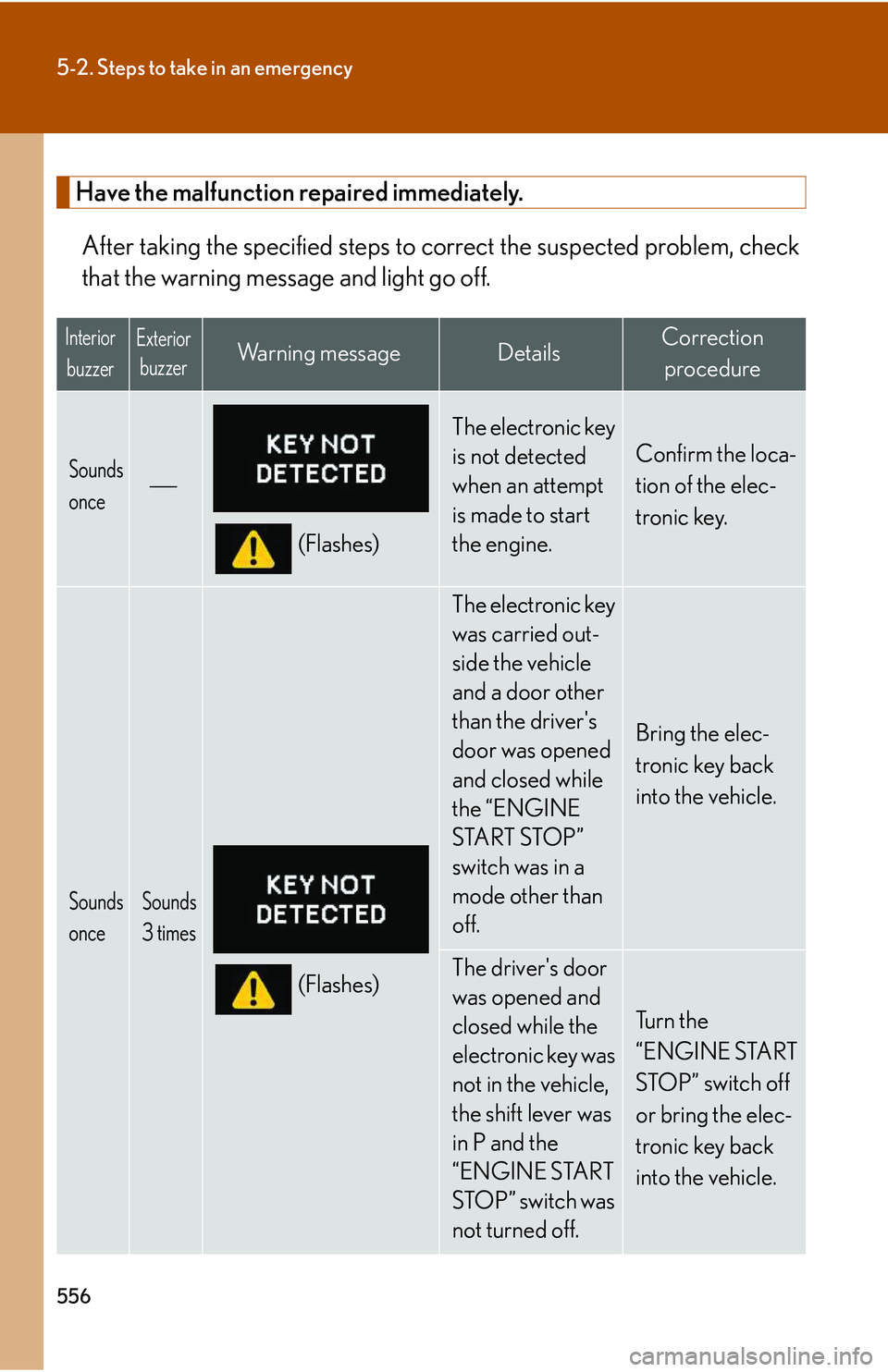

556
5-2. Steps to take in an emergency
Have the malfunction repaired immediately.
After taking the specified steps to correct the suspected problem, check
that the warning message and light go off.
Interior
buzzer Exterior
buzzer
Wa r n i n g m e s s a g eDetailsCorrection
procedure

Sounds
once
⎯
(Flashes)
The electronic key
is not detected
when an attempt
is made to start
the engine.
Confirm the loca-
tion of the elec-
tronic key.

Sounds
once Sounds
3 times
(Flashes)
The electronic key
was carried out-
side the vehicle
and a door other
than the driver's
door was opened
and closed while
the “ENGINE
START STOP”
switch was in a
mode other than
off.
Bring the elec-
tronic key back
into the vehicle.
The driver's door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
in P and the
“ENGINE START
STOP” switch was
not turned off.
Tu r n t h e
“ENGINE START
STOP” switch off
or bring the elec-
tronic key back
into the vehicle.

5

When trouble arises

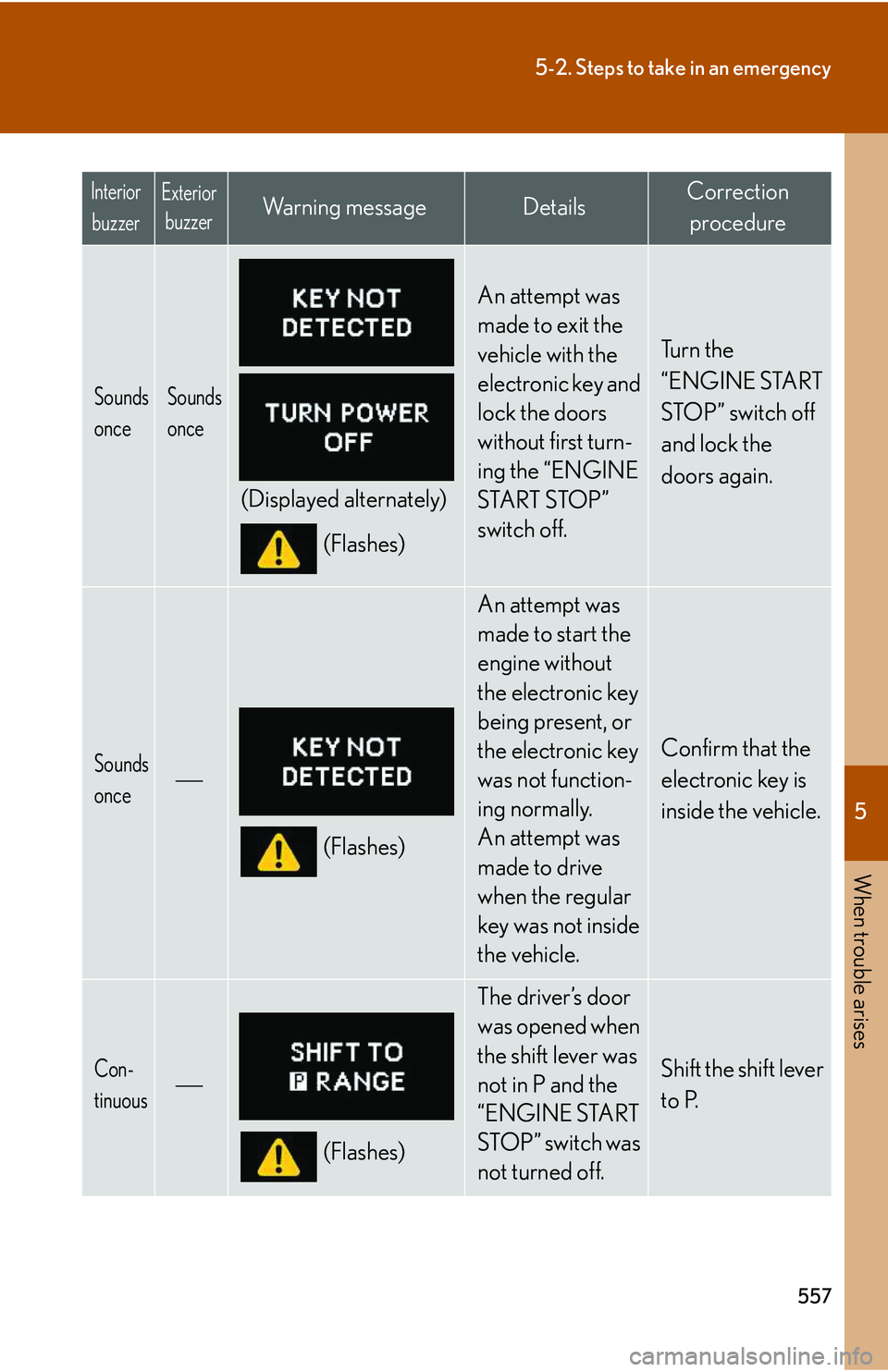

557
5-2. Steps to take in an emergency
Sounds
once Sounds
once
(Displayed alternately)
(Flashes)
An attempt was
made to exit the
vehicle with the
electronic key and
lock the doors
without first turn-
ing the “ENGINE
START STOP”
switch off.
Tu r n t h e
“ENGINE START
STOP” switch off
and lock the
doors again.

Sounds
once
⎯
(Flashes)
An attempt was
made to start the
engine without
the electronic key
being present, or
the electronic key
was not function-
ing normally.
An attempt was
made to drive
when the regular
key was not inside
the vehicle.
Confirm that the
electronic key is
inside the vehicle.

Con-
tinuous
⎯
(Flashes)
The driver’s door
was opened when
the shift lever was
not in P and the
“ENGINE START
STOP” switch was
not turned off.
Shift the shift lever
to P.
Interior
buzzer Exterior
buzzer
Wa r n i n g m e s s a g eDetailsCorrection
procedure

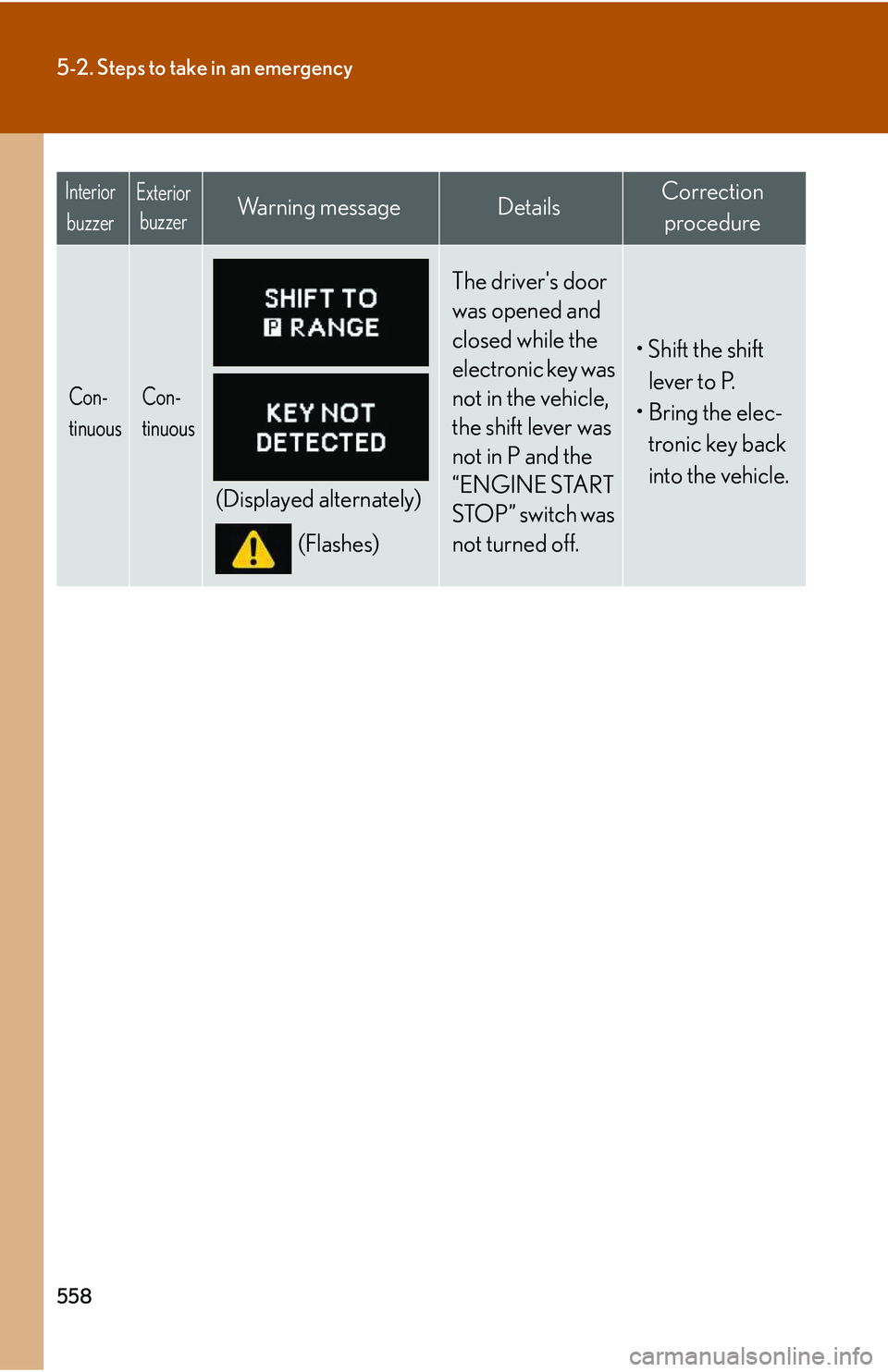

558
5-2. Steps to take in an emergency
Con-
tinuous Con-
tinuous
(Displayed alternately)
(Flashes)
The driver's door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
not in P and the
“ENGINE START
STOP” switch was
not turned off.

5

When trouble arises

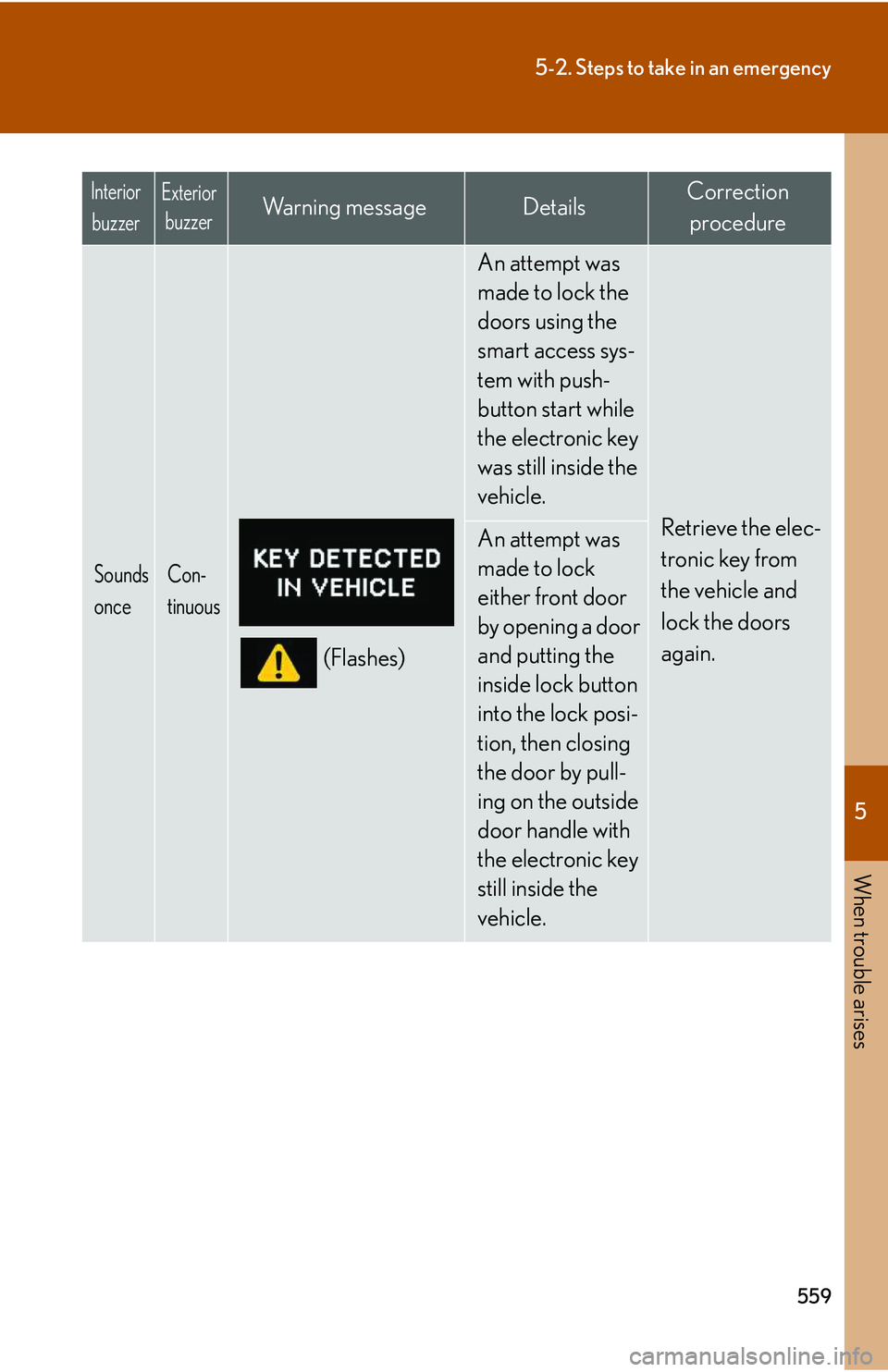

559
5-2. Steps to take in an emergency

Sounds
once Con-
tinuous
(Flashes)
An attempt was
made to lock the
doors using the
smart access sys-
tem with push-
button start while
the electronic key
was still inside the
vehicle.
Retrieve the elec-
tronic key from
the vehicle and
lock the doors
again.
An attempt was
made to lock
either front door
by opening a door
and putting the
inside lock button
into the lock posi-
tion, then closing
the door by pull-
ing on the outside
door handle with
the electronic key
still inside the
vehicle.
Interior
buzzer Exterior
buzzer
Wa r n i n g m e s s a g eDetailsCorrection
procedure

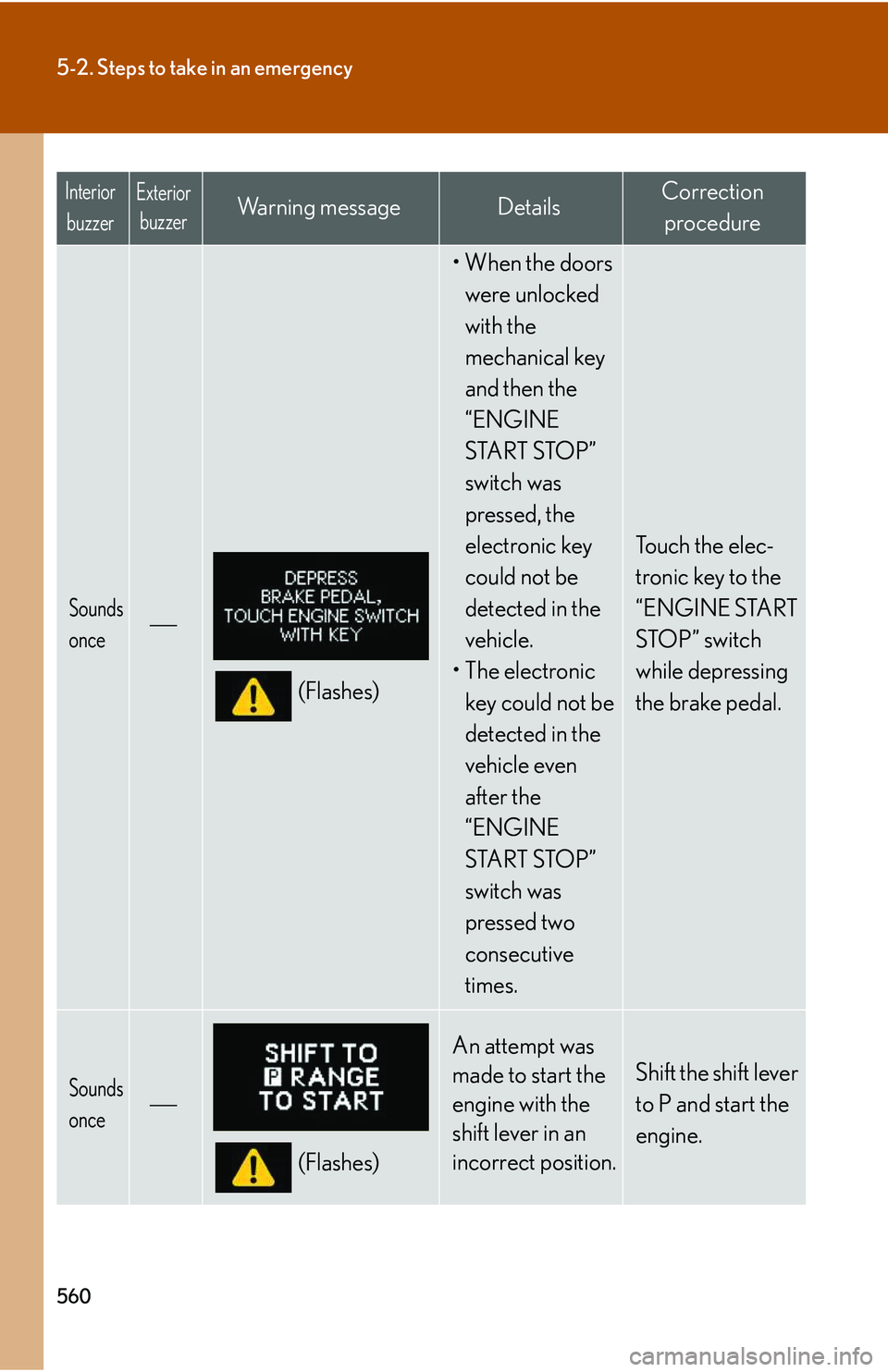

560
5-2. Steps to take in an emergency
Sounds
once
⎯
(Flashes)

5

When trouble arises

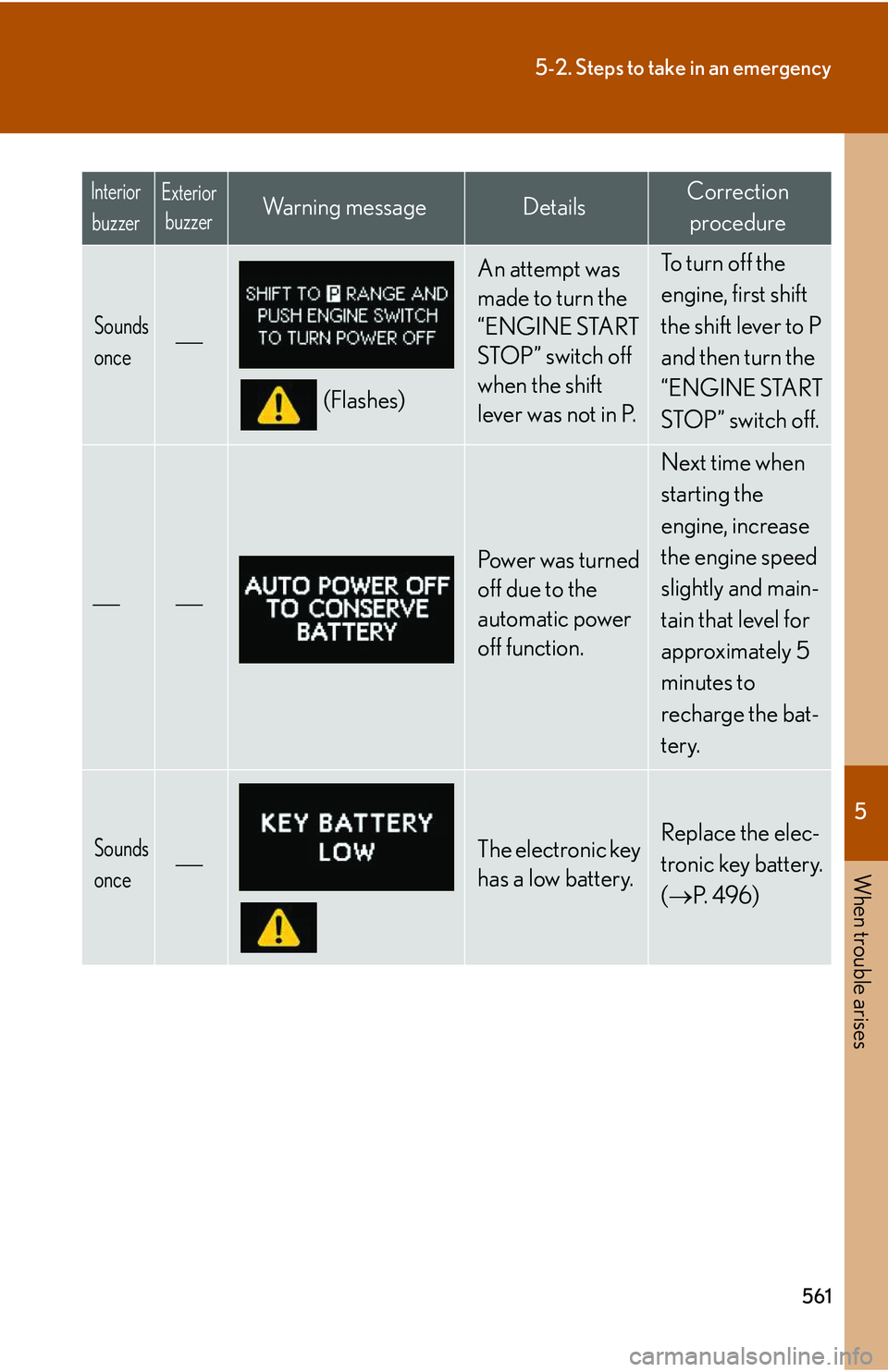

561
5-2. Steps to take in an emergency
Sounds
once
⎯
(Flashes)
An attempt was
made to turn the
“ENGINE START
STOP” switch off
when the shift
lever was not in P.
To turn off the
engine, first shift
the shift lever to P
and then turn the
“ENGINE START
STOP” switch off.
⎯⎯
Po w e r w a s t u r n e d
off due to the
automatic power
off function.
Next time when
starting the
engine, increase
the engine speed
slightly and main-
tain that level for
approximately 5
minutes to
recharge the bat-
tery.

Sounds
once
⎯The electronic key
has a low battery.
Replace the elec-
tronic key battery.
(→P. 4 9 6 )
Interior
buzzer Exterior
buzzer
Wa r n i n g m e s s a g eDetailsCorrection
procedure
