LEXUS RX350 2011 Owners Manual

Introduction
GENERAL MAINTENANCE AND REGULAR USE
MAINTENANCE
42
In addition to scheduled maintenance,
your Lexus requires ongoing general
maintenance such as fluid checks and
visual inspections. The recommended
guidelines for inspections are listed
below. Please refer to the “Mainte-
nance” section of the Owner’s Manual
for a detailed description of inspec-
tion procedures.
Every 30 Days
At least once every 30 days, perform
these inspections:
•Check engine oil level using
the dipstick
•Visually check engine coolant
level on the see-through
reservoir
•Visually check brake fluid level
on the see-through reservoir
•Visually check condition of
battery
•Check level of windshield
washer fluid
•Check tire pressure
•Check tires for damage
and wear
•Check installation of driver’s
floor mat
After a Car Wash
•Check installation of driver’s
floor mat
After Off-Road Driving
Whenever you drive off-road through
deep sand, mud or water, perform
these inspections daily:
•Check axle shaft boots
•Check ball joints and dust covers
•Check brake lines and hoses
•Check brake pads/rotors and
parking brake linings/drums
•Check differential oil
•Check engine air filter
•Check nuts and bolts on chassis
•Check steering linkage and
boots
•Check transfer case oil
(AWD models)
•Check transmission fluid
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀3฀9฀-฀4฀7฀b฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀1฀9฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀4฀2

Introduction
GENERAL MAINTENANCE AND REGULAR USE

MAINTENANCE
43

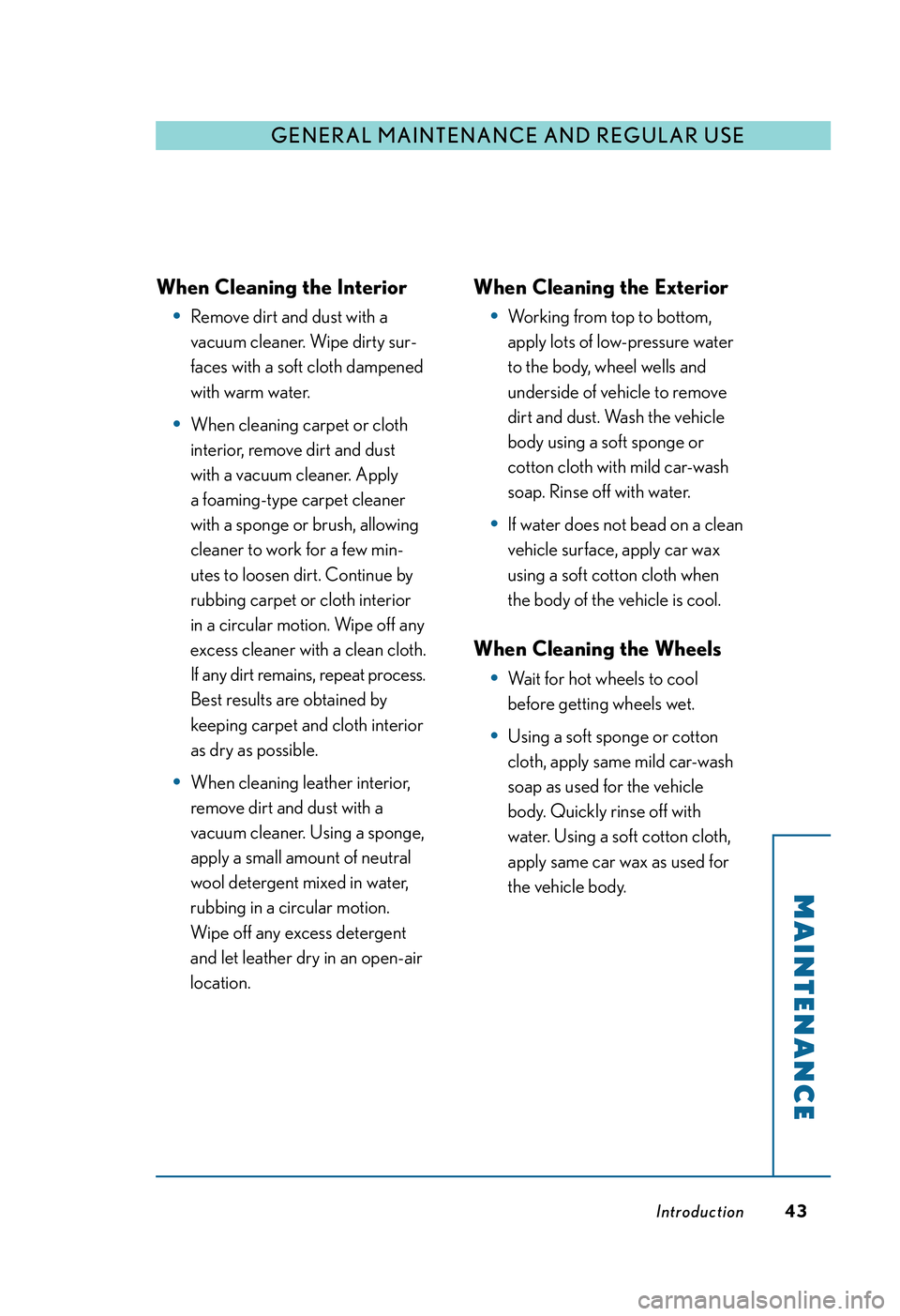

When Cleaning the Interior
•Remove dirt and dust with a
vacuum cleaner. Wipe dirty sur-
faces with a soft cloth dampened
with warm water.
•When cleaning carpet or cloth
interior, remove dirt and dust
with a vacuum cleaner. Apply
a foaming-type carpet cleaner
with a sponge or brush, allowing
cleaner to work for a few min-
utes to loosen dirt. Continue by
rubbing carpet or cloth interior
in a circular motion. Wipe off any
excess cleaner with a clean cloth.
If any dirt remains, repeat process.
Best results are obtained by
keeping carpet and cloth interior
as dry as possible.
•When cleaning leather interior,
remove dirt and dust with a
vacuum cleaner. Using a sponge,
apply a small amount of neutral
wool detergent mixed in water,
rubbing in a circular motion.
Wipe off any excess detergent
and let leather dry in an open-air
location.
When Cleaning the Exterior
•Working from top to bottom,
apply lots of low-pressure water
to the body, wheel wells and
underside of vehicle to remove
dirt and dust. Wash the vehicle
body using a soft sponge or
cotton cloth with mild car-wash
soap. Rinse off with water.
•If water does not bead on a clean
vehicle surface, apply car wax
using a soft cotton cloth when
the body of the vehicle is cool.
When Cleaning the Wheels
•Wait for hot wheels to cool
before getting wheels wet.
•Using a soft sponge or cotton
cloth, apply same mild car-wash
soap as used for the vehicle
body. Quickly rinse off with
water. Using a soft cotton cloth,
apply same car wax as used for
the vehicle body.
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀3฀9฀-฀4฀7฀b฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀1฀9฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀4฀3

Scheduled Maintenance Log
SCHEDULED MAINTENANCE LOG
MAINTENANCE
44

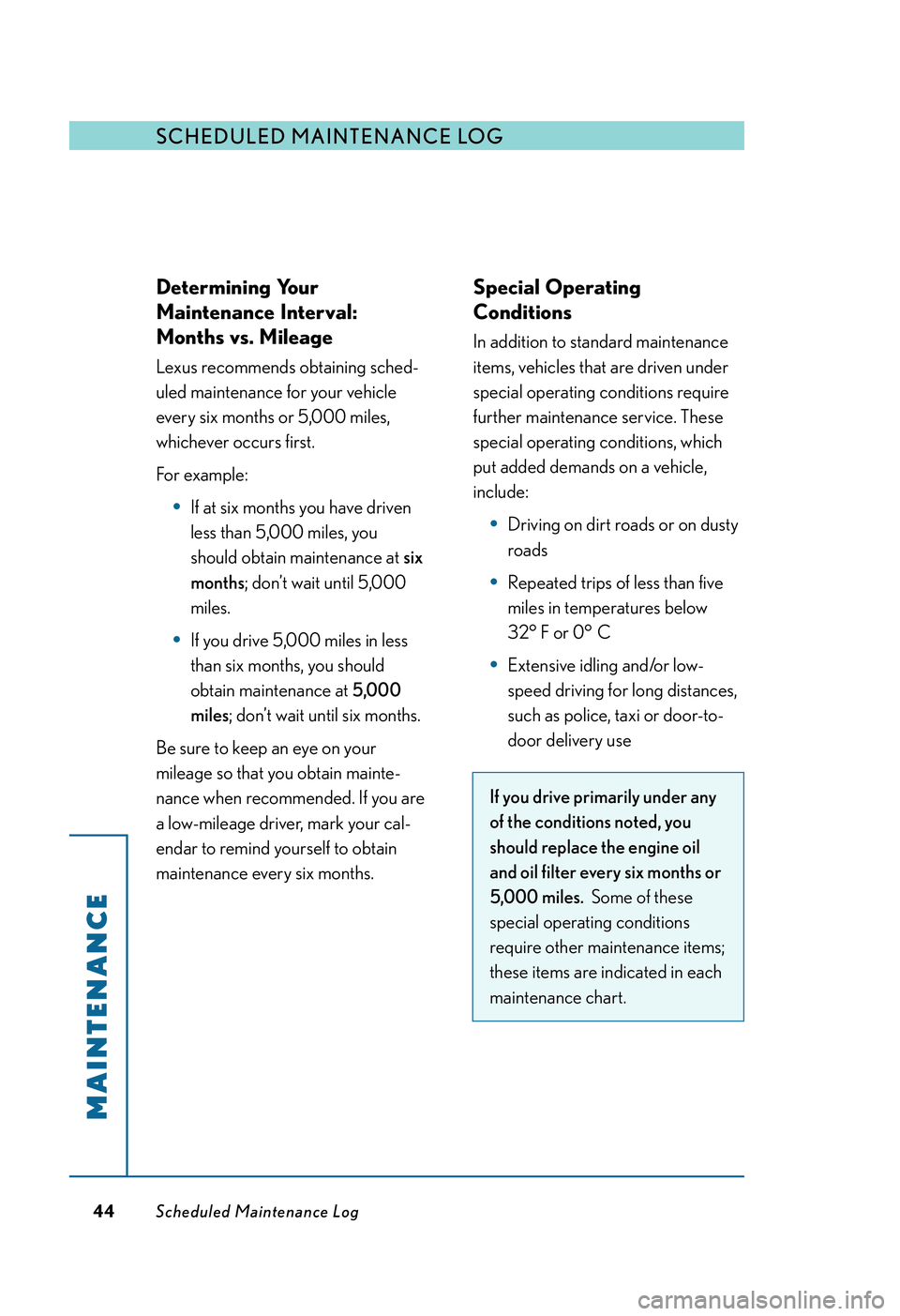

Determining Your
Maintenance Interval:
Months vs. Mileage
Lexus recommends obtaining sched-
uled maintenance for your vehicle
every six months or 5,000 miles,
whichever occurs first.
For example:
•If at six months you have driven
less than 5,000 miles, you
should obtain maintenance at six
months; don’t wait until 5,000
miles.
•If you drive 5,000 miles in less
than six months, you should
obtain maintenance at 5,000
miles; don’t wait until six months.
Be sure to keep an eye on your
mileage so that you obtain mainte-
nance when recommended. If you are
a low-mileage driver, mark your cal-
endar to remind yourself to obtain
maintenance every six months.
Special Operating
Conditions
In addition to standard maintenance
items, vehicles that are driven under
special operating conditions require
further maintenance service. These
special operating conditions, which
put added demands on a vehicle,
include:
•Driving on dirt roads or on dusty
roads
•Repeated trips of less than five
miles in temperatures below
32° F or 0° C
•Extensive idling and/or low-
speed driving for long distances,
such as police, taxi or door-to-
door delivery use
If you drive primarily under any
of the conditions noted, you
should replace the engine oil
and oil filter every six months or
5,000 miles. Some of these
special operating conditions
require other maintenance items;
these items are indicated in each
maintenance chart.
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀3฀9฀-฀4฀7฀b฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀1฀9฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀4฀4

Scheduled Maintenance Log
SCHEDULED MAINTENANCE LOG

MAINTENANCE
45

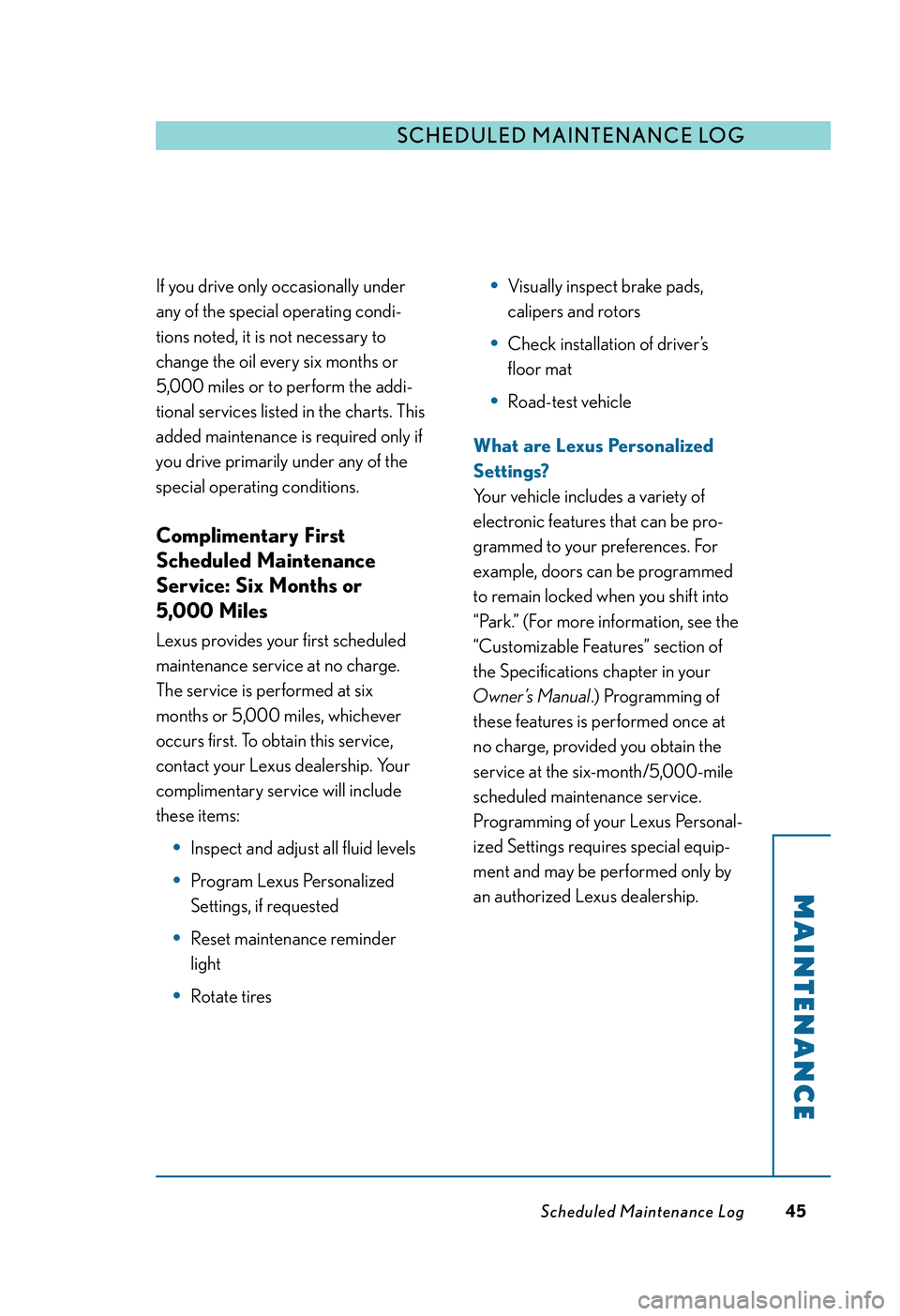

If you drive only occasionally under
any of the special operating condi-
tions noted, it is not necessary to
change the oil every six months or
5,000 miles or to perform the addi-
tional services listed in the charts. This
added maintenance is required only if
you drive primarily under any of the
special operating conditions.
Complimentary First
Scheduled Maintenance
Service: Six Months or
5,000 Miles
Lexus provides your first scheduled
maintenance service at no charge.
The service is performed at six
months or 5,000 miles, whichever
occurs first. To obtain this service,
contact your Lexus dealership. Your
complimentary service will include
these items:
•Inspect and adjust all fluid levels
•Program Lexus Personalized
Settings, if requested
•Reset maintenance reminder
light
•Rotate tires
•Visually inspect brake pads,
calipers and rotors
•Check installation of driver’s
floor mat
•Road-test vehicle
What are Lexus Personalized
Settings?
Your vehicle includes a variety of
electronic features that can be pro-
grammed to your preferences. For
example, doors can be programmed
to remain locked when you shift into
“Park.” (For more information, see the
“Customizable Features” section of
the Specifications chapter in your
Owner’s Manual.) Programming of
these features is performed once at
no charge, provided you obtain the
service at the six-month/5,000-mile
scheduled maintenance service.
Programming of your Lexus Personal-
ized Settings requires special equip-
ment and may be performed only by
an authorized Lexus dealership.
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀3฀9฀-฀4฀7฀b฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀1฀9฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀4฀5

Scheduled Maintenance Log

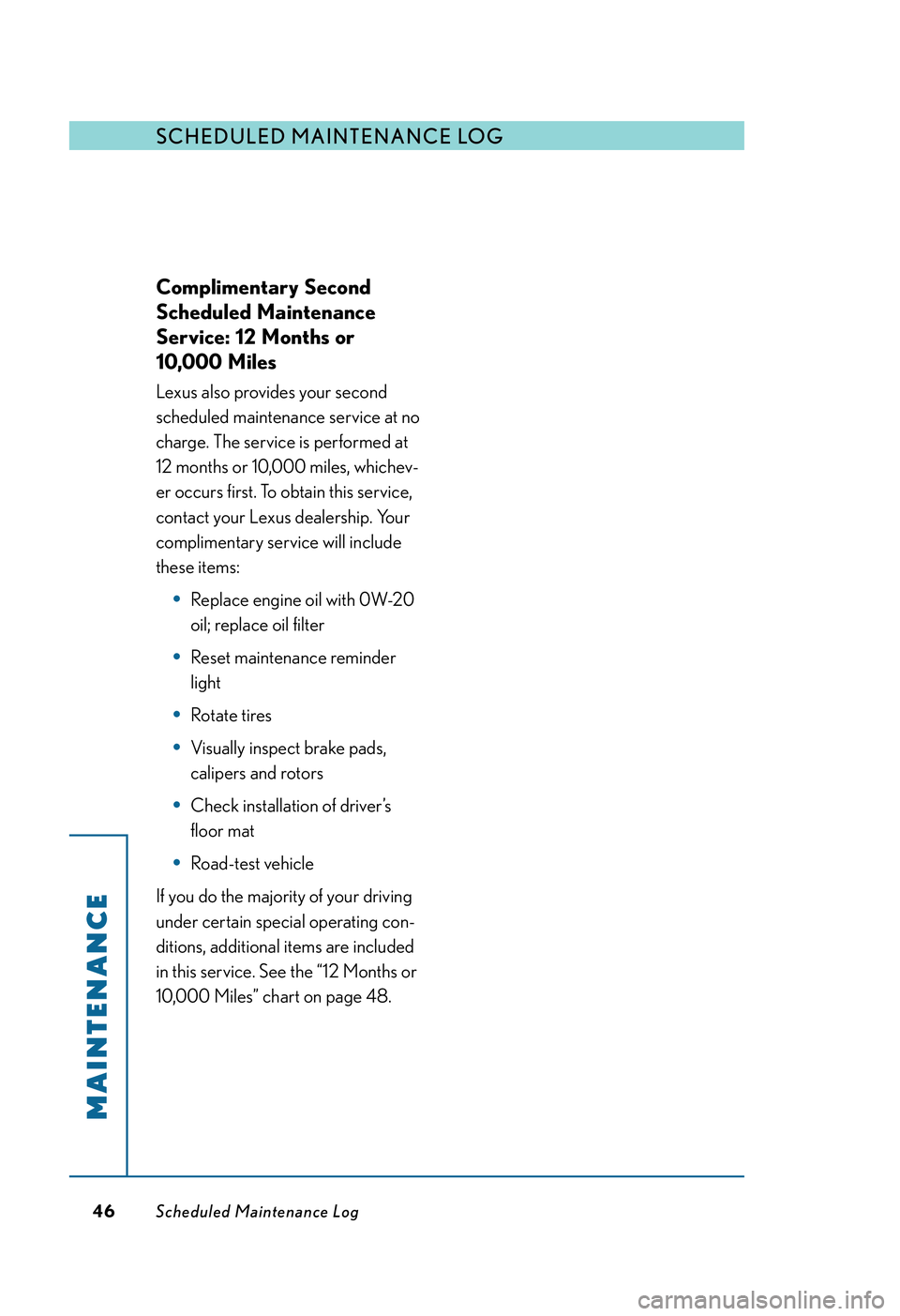

Complimentary Second
Scheduled Maintenance
Service: 12 Months or
10,000 Miles
Lexus also provides your second
scheduled maintenance service at no
charge. The service is performed at
12 months or 10,000 miles, whichev-
er occurs first. To obtain this service,
contact your Lexus dealership. Your
complimentary service will include
these items:
•Replace engine oil with 0W-20
oil; replace oil filter
•Reset maintenance reminder
light
•Rotate tires
•Visually inspect brake pads,
calipers and rotors
•Check installation of driver’s
floor mat
•Road-test vehicle
If you do the majority of your driving
under certain special operating con-
ditions, additional items are included
in this service. See the “12 Months or
10,000 Miles” chart on page 48.
SCHEDULED MAINTENANCE LOG
MAINTENANCE
46
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀3฀9฀-฀4฀7฀b฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀1฀9฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀4฀6

Scheduled Maintenance Log
NOTES
SCHEDULED MAINTENANCE LOG

MAINTENANCE
47
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀3฀9฀-฀4฀7฀b฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀1฀9฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀4฀7

SCHEDULED MAINTENANCE LOG
MAINTENANCE
Scheduled Maintenance Log48

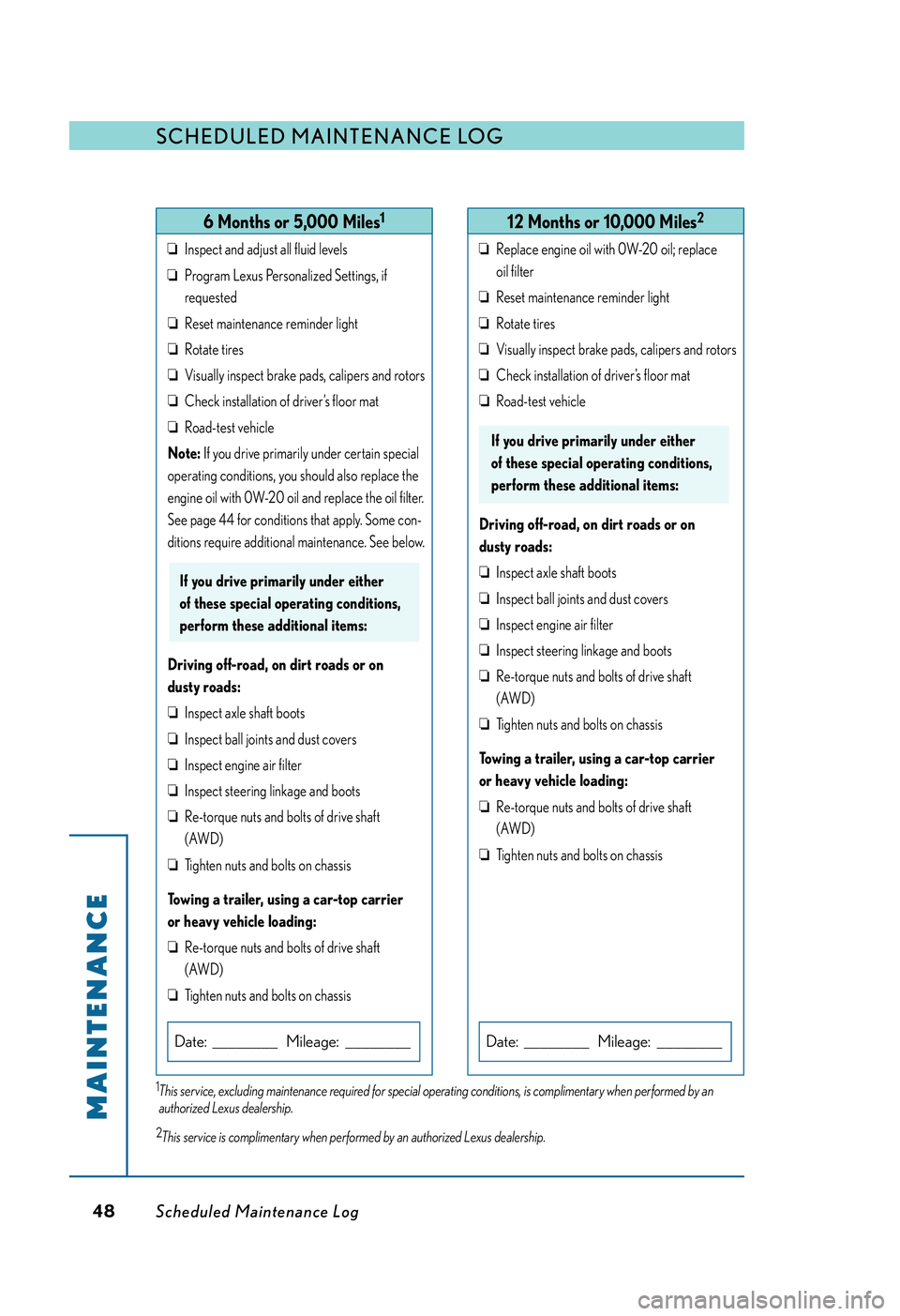

6 Months or 5,000 Miles 1
12 Months or 10,000 Miles 2
R eplace engine oil with 0W-20 oil; r eplace
oil filter
Reset maintenance reminder light
Rotate tires
Visually inspect brake pads, calipers and rotors
Check installation of driver’s floor mat
Road-test vehicle
If you drive primarily under either
of these special operating conditions,
perform these additional items:
Driving off-road, on dirt roads or on
dusty roads:
Inspect axle shaft boots
Inspect ball joints and dust covers
Inspect engine air filter
Inspect steering linkage and boots
Re-torque nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis
To wing a trailer, using a car-top carrier
or heavy vehicle loading:
Re-tor que nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis
Date: ________ Mileage: ________

1
This service, excluding maintenance required for special operating conditions, is complimentary when performed by an
authorized Lexus dealership.
2
This service is complimentary when performed by an authorized Lexus dealership. Inspect and adjust all fluid levels
Program Lexus Personalized Settings, if
requested
Reset maintenance reminder light
Rotate tires
Visually inspect brake pads, calipers and rotors
Check installation of driver’s floor mat
Road-test vehicle
Note: If you drive primarily under certain special
operating conditions, you should also replace the
engine oil with 0W-20 oil and replace the oil filter.
See page 44 for conditions that apply. Some con-
ditions require additional maintenance. See below.
If you drive primarily under either
of these special operating conditions,
perform these additional items:
Driving off-road, on dirt roads or on
dusty roads:
Inspect axle shaft boots
Inspect ball joints and dust covers
Inspect engine air filter
Inspect steering linkage and boots
Re-torque nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis
To wing a trailer, using a car-top carrier
or heavy vehicle loading:
Re-tor que nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis
Date: ________ Mileage: ________
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀4฀8฀-฀8฀0฀j฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀5฀2฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀4฀8

SCHEDULED MAINTENANCE LOG

MAINTENANCE
Scheduled Maintenance Log49

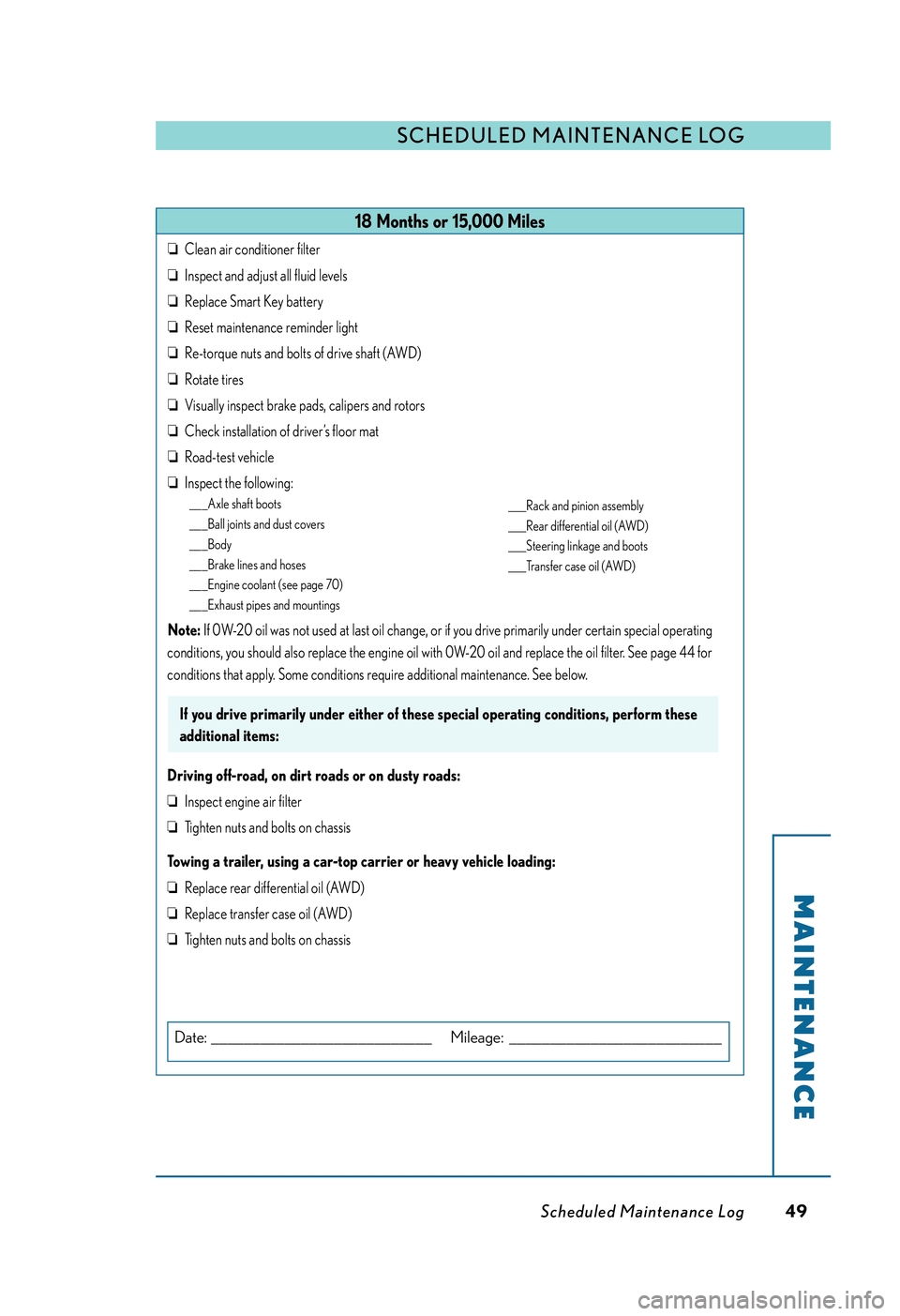

18 Months or 15,000 Miles
Clean air conditioner filter
Inspect and adjust all fluid levels
Replace Smart Key battery
Reset maintenance reminder light
Re-torque nuts and bolts of drive shaft (AWD)
Rotate tires
Visually inspect brake pads, calipers and rotors
Check installation of driver’s floor mat
Road-test vehicle
Inspect the following:
___ Axle shaft boots
___Ball joints and dust covers
___Body
___Brake lines and hoses
___Engine coolant (see page 70)
___Exhaust pipes and mountings
Note: If 0W-20 oil was not used at last oil change, or if you drive primarily under certain special operating
conditions, you should also replace the engine oil with 0W-20 oil and replace the oil filter. See page 44 for
conditions that apply. Some conditions require additional maintenance. See below.
If you drive primarily under either of these special operating conditions, perform these
additional items:
Driving off-road, on dirt roads or on dusty roads:
Inspect engine air filter
Tighten nuts and bolts on chassis
To wing a trailer, using a car-top carrier or heavy vehicle loading:
R eplace rear differential oil (AWD)
Replace transfer case oil (AWD)
Tighten nuts and bolts on chassis ___R ack and pinion assembly
___Rear differential oil (AWD)
___Steering linkage and boots
___Transfer case oil (AWD)
Date: ___________________________ Mileage: __________________________
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀4฀8฀-฀8฀0฀j฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀5฀2฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀4฀9

SCHEDULED MAINTENANCE LOG
MAINTENANCE
Scheduled Maintenance Log50

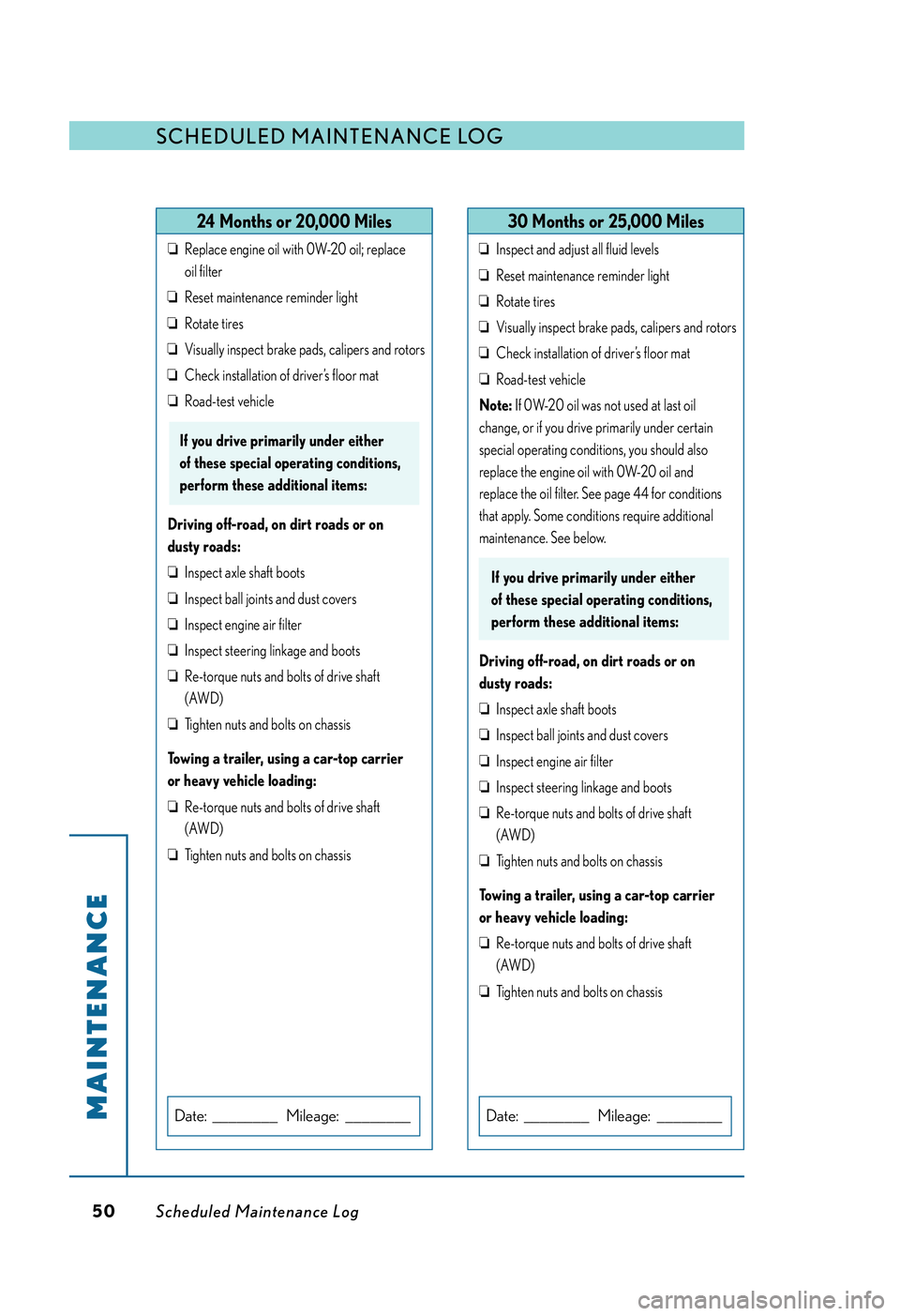

2 4 Months or 20,000 Miles
R eplace engine oil with 0W-20 oil; r eplace
oil filter
Reset maintenance reminder light
Rotate tires
Visually inspect brake pads, calipers and rotors
Check installation of driver’s floor mat
Road-test vehicle
If you drive primarily under either
of these special operating conditions,
perform these additional items:
Driving off-road, on dirt roads or on
dusty roads:
Inspect axle shaft boots
Inspect ball joints and dust covers
Inspect engine air filter
Inspect steering linkage and boots
Re-torque nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis
To wing a trailer, using a car-top carrier
or heavy vehicle loading:
Re-tor que nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis 30 Months or 25,000 Miles
Date: ________ Mileage: ________Date: ________ Mileage: ________

Inspect and adjust all fluid levels
Reset maintenance reminder light
Rotate tires
Visually inspect brake pads, calipers and rotors
Check installation of driver’s floor mat
Road-test vehicle
Note: If 0W-20 oil was not used at last oil
change, or if you drive primarily under cer tain
special operating conditions, you should also
replace the engine oil with 0W-20 oil and
replace the oil filter. See page 44 for conditions
that apply. Some conditions require additional
maintenance. See below.
If you drive primarily under either
of these special operating conditions,
perform these additional items:
Driving off-road, on dirt roads or on
dusty roads:
Inspect axle shaft boots
Inspect ball joints and dust covers
Inspect engine air filter
Inspect steering linkage and boots
Re-torque nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis
To wing a trailer, using a car-top carrier
or heavy vehicle loading:
Re-tor que nuts and bolts of drive shaf t
(AWD)
T ighten nuts and bolts on chassis
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀4฀8฀-฀8฀0฀j฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀5฀2฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀5฀0

SCHEDULED MAINTENANCE LOG

MAINTENANCE
Scheduled Maintenance Log5 1

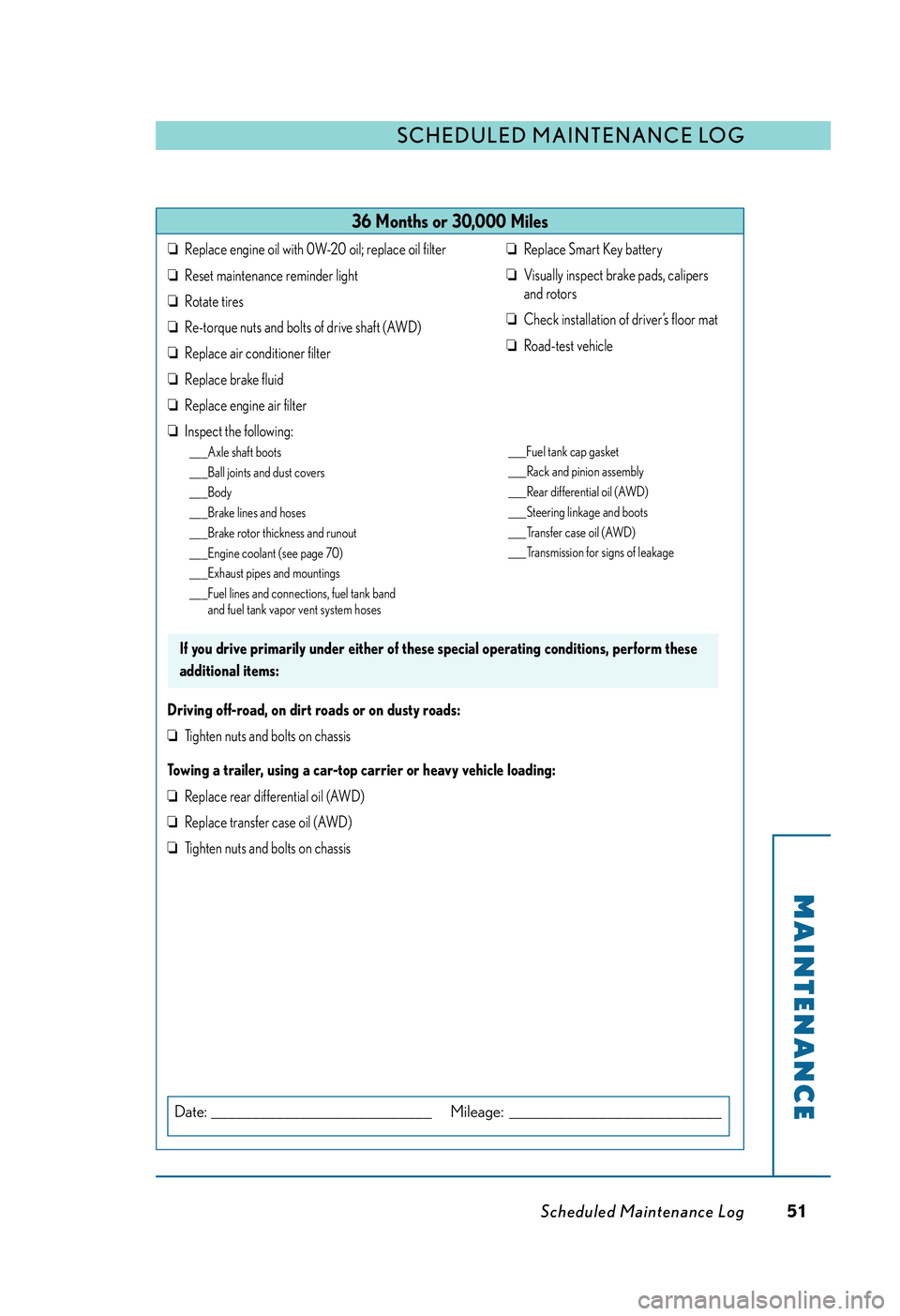

36 Months or 30,000 Miles
R eplace engine oil with 0W-20 oil; replace oil filter
Reset maintenance reminder light
Rotate tires
Re-torque nuts and bolts of drive shaft (AWD)
Replace air conditioner filter
Replace brake fluid
Replace engine air filter
Inspect the following:
___ Axle shaft boots
___Ball joints and dust covers
___Body
___Brake lines and hoses
___Brake rotor thickness and runout
___Engine coolant (see page 70)
___Exhaust pipes and mountings
___Fuel lines and connections, fuel tank band
and fuel tank vapor vent s y stem hoses
If you drive primarily under either of these special operating conditions, perform these
additional items:
Driving off-road, on dirt roads or on dusty roads:
T ighten nuts and bolts on chassis
To wing a trailer, using a car-top carrier or heavy vehicle loading:
R eplace rear differential oil (AWD)
Replace transfer case oil (AWD)
Tighten nuts and bolts on chassis ___F uel tank cap gasket
___Rack and pinion assembly
___Rear differential oil (AWD)
___Steering linkage and boots
___Transfer case oil (AWD)
___Transmission for signs of leakage R eplace Smart Key batter y
V isually inspect brake pads, caliper s
and rotors
Check installation of driver’s floor mat
Road-test vehicle
Date: ___________________________ Mileage: __________________________
฀8฀9฀5฀7฀7฀_฀2฀0฀1฀1฀฀฀R฀X฀฀฀3฀5฀0฀_฀4฀8฀-฀8฀0฀j฀_฀R฀1฀.฀q฀x฀d฀฀฀฀฀8฀/฀6฀/฀1฀0฀฀฀฀฀7฀:฀5฀2฀฀฀P฀M฀฀฀฀฀P฀a฀g฀e฀฀฀5฀1
