LEXUS RX350 2015 Owners Manual

1311-7. Safety information
1
Before driving CAUTION■
SRS airbag precautions ●
Do not place anything, such as a cushion, on the front passenger's seat. Doing so
will disperse the passenger's weight, wh ich prevents the sensor from detecting
the passenger's weight properly. As a re sult, the SRS front passenger airbag may
not deploy in the event of a collision.■
Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perfor m any of the following modifications with-
out consulting your Lexus dealer.
The SRS airbags may malfunction or deploy (inflate) accidentally, causing death or
serious injury. ●
Installation, removal, disassembly and repair of the SRS airbags●
Repairs, modifications, removal or replace ment of the steering wheel, instrument
panel, dashboard, seats or seat upholstery, front, side and rear pillars or roof side
rails●
Repairs or modifications of the front fend er, front bumper, or side of the occupant
compartment●
Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows or winches●
Modifications to the vehi cle's suspension system●
Installation of elec tronic devices such as mobile two-way radios or CD players●
Modifications to your vehicle for a person with a physical disability

1321-7. Safety information

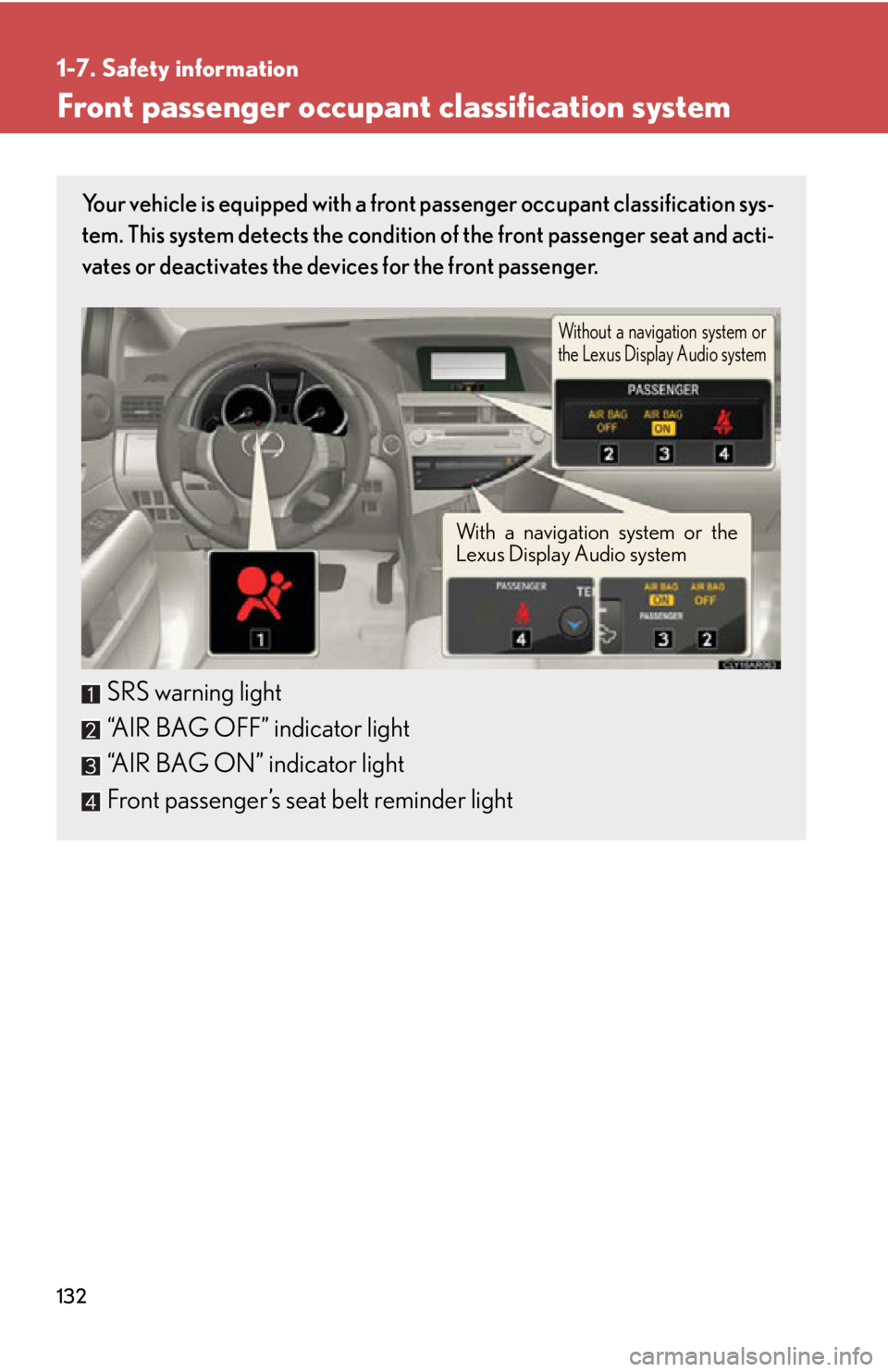

Front passenger occupant classification system Your vehicle is equipped with a front passenger occupant classification sys-
tem. This system detects the condition of the front passenger seat and acti-
vates or deactivates the devices for the front passenger.
SRS warning light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
Front passenger’s seat belt reminder light Without a navigation system or
the Lexus Display Audio system
With a navigation system or the
Lexus Display Audio system

1331-7. Safety information
1
Before driving Condition and operation in the front passenger occupant classification system
■ Adult *1
■ Child *3
or child restraint system *4Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
ON”
SRS warning light Off
Front passenger’s seat belt reminder light
Flashing *2
Devices Front passenger airbag
ActivatedSide airbag on the front
passenger seats
Curtain shield airbag in the front passenger
side
Front passenger knee airbag
Front passenger’s seat belt pretensioner
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
OFF” *5
SRS warning light Off
Front passenger’s seat belt reminder light
Flashing *2
Devices Front passenger airbag Deactivated
Side airbag on the front
passenger seats
Activated
Curtain shield airbag in the front passenger
side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated

1341-7. Safety information
■ Unoccupied
■ There is a malfunction in the system
* 1
: The system judges a person of adul t size as an adult. When a smaller
adult sits in the front passenger se at, the system may recognize him/
her as a child depending on his/her physique and posture.
* 2
: In the event the front passenger does not wear a seat belt. Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights Not illuminated
SRS warning light
Off
Front passenger’s seat belt reminder light
Devices Front passenger airbag Deactivated
Side airbag on the front
passenger seats
Activated
Curtain shield airbag in the front passenger
side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Deactivated or
activated* 6
Indicator/
warning light “AIR BAG ON” and “AIR BAG OFF”
indicator lights “A I R B A G
OFF”
SRS warning light On
Front passenger’s seat belt reminder light Flashing
Devices Front passenger airbag Deactivated
Side airbag on the front
passenger seats
Activated
Curtain shield airbag in the front passenger
side
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated

1351-7. Safety information
1
Before driving * 3
: When a larger child who has outgrow n a child restraint system sits in
the front passenger seat, the system may recognize him/her as an
adult depending on his/her physique or posture.
* 4
: Never install a rear-facing child re straint system on the front passen-
ger seat. A forward-facing child restraint system should only be
installed on the front passenger seat when it is unavoidable.
(  P. 137)
* 5
: If the indicator light is not illuminated, consult this manual on how to
install the child restraint system properly. (  P. 141)
* 6
: Activated only in cases of side impact CAUTION■
Front passenger occupant classi fication system precautions
Observe the following precautions regarding the front passenger occupant classifi-
cation system.
Failure to do so may cause death or serious injury. ●
Wear the seat belt properly.●
Make sure the front passenge r’s seat belt tab has not b een left inserted into the
buckle before someone sits in the front passenger seat.●
Make sure the “AIR BAG OFF” indicator light is not illuminated when using the
seat belt extender for the front passen ger seat. If the “AIR BAG OFF” indicator
light is illuminated, disconnect the extender tongue from the seat belt buckle,
then reconnect the seat belt. Reconnect the seat belt extender after making sure
the “AIR BAG ON” indicator light is illuminated. If you use the seat belt extender
while the “AIR BAG OFF” indicator light is illuminated, the SRS airbags for the
passenger may not activate correctly, which could cause death or serious injury
in the event of collision.
●
Do not apply a heavy load to the front passenger seat or equipment.
●
Do not put weight on the front passenger seat by putting your hands or feet on
the front passenger seat seatback from the rear passenger seat.
●
Do not let a rear passenger lift the front passenger seat with their feet or press on
the seatback with their legs.
●
Do not put objects under the front passenger seat.

1361-7. Safety information
CAUTION■
Front passenger occupant classi fication system precautions●
Do not recline the front passenger seatback so far that it touches a rear seat. This
may cause the “AIR BAG OFF” indicator ligh t to be illuminate d, which indicates
that the passenger’s airbags will not deploy in the event of a severe accident. If the
seatback touches the rear se at, return the seatback to a position where it does
not touch the rear seat. Keep the front pa ssenger seatback as upright as possible
when the vehicle is moving. Reclining the seatback excessively may lessen the
effectiveness of the seat belt system.●
If an adult sits in the front passenger se at, the “AIR BAG ON” indicator light is illu-
minated. If the “AIR BAG OFF” indicator is illuminated, ask the passenger to sit
up straight, well back in the seat, feet on the floor, and with the seat belt worn cor-
rectly. If the “AIR BAG OFF” indicator still rema ins illuminated, either ask the pas-
senger to move to the rear seat, or if th at is not possible, move the front passenger
seat fully rearward.●
When it is unavoidable to install the forw ard-facing child restraint system on the
front passenger seat, install the child rest raint system on the front passenger seat
in the proper order. (  P. 141)●
Do not modify or remove the front seats.●
Do not kick the front passenger seat or subject it to severe impact. Otherwise,
the SRS warning light may come on to indicate a malfunction of the detection sys-
tem. In this case, contact your Lexus dealer immediately.●
Child restraint systems installed on the rear seat should not contact the front seat-
backs.●
Do not use a seat accessory, such as a cushion or seat cover, that covers the seat
cushion surface.●
Do not modify or replace the upholstery of the front seat.

13711-7. Safety information
Before driving Child restraint systems
Points to remember
Studies have shown that installing a ch ild restraint on a rear seat is much
safer than installing one to the front passenger seat.
● Choose a child restraint system that suits your vehicle and is appropri-
ate to the age and size of the child.
● For installation details, follow the instructions provided with the child
restraint system.
General installation instructions ar e provided in this manual. (  P. 141)
Types of child restraints
Child restraint systems are classified into the following 3 types according
to the age and size of the child.
Rear facing  Infant seat/convertible seatA child restraint system for a small child or baby must itself be properly
restrained on the seat with the lap portion of the lap/shoulder belt.
The laws of all 50 states of the U.S.A. and Canada now require the use of
child restraint systems.

1381-7. Safety information
Forward facing  Convertible seat
Booster seat
■
Selecting an appropriate child restraint system ●
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.●
If the child is too large for a child restraint system, sit the child on a rear seat and
use the vehicle's seat belt. (  P. 8 3 )

1391-7. Safety information
1
Before driving CAUTION■
Child restraint precautions ●
For effective protection in automobile accidents and sudden stops, a child must
be properly restrained, using a seat belt or child restraint system depending on
the age and size of the child. Holding a chil d in your arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the wind-
shield, or between you and the vehicle's interior. This may cause death or serious
injury to the child in the event of a sudden stop or an accident.●
Lexus strongly urges the use of a proper child restraint system that conforms to
the size of the child, installed on the rear seat. According to accident statistics, the
child is safer when properly restrained in the rear seat than in the front seat.●
Never install a rear-facing child restraint system on the front passenger seat even
if the “AIR BAG OFF” indicator light is illumi nated. In the event of an accident, the
force of the rapid inflation of the front passenger airbag can cause death or seri-
ous injury to the child if a rear-facing child restraint system is installed on the front
passenger seat.●
A forward-facing child restraint system may be installed on the front passenger
seat only when it is unavoidable. A child restraint system that requires a top tether
strap should not be used in the front passenger seat since there is no top tether
strap anchor for the front passenger seat. Adjust the seatback as upright as possi-
ble and always move the seat as far back as possible even if the “AIR BAG OFF”
indicator light is illuminated, because th e front passenger airbag could inflate with
considerable speed and force. Otherwise, the child may be killed or seriously
injured.●
Do not use the seat belt extender when installing a child restraint system on the
front or rear passenger seat. If installing a child restraint system with the seat belt
extender connected to the seat belt, the seat belt will not securely hold the child
restraint system, which could cause death or serious injury to the child or other
passengers in the event of a sudden stop, sudden swerve or accident.

1401-7. Safety information
CAUTION■
Child restraint precautions ●
Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front and rear pillars or roof side rails from which the
SRS side airbags or SRS curtain shield airbags deploy even if the child is seated in
the child restraint system. It is dangerous if the side airbags and curtain shield air-
bags inflate, and the impact could cause death or serious injury to the child.●
Make sure you have complied with all inst allation instructions provided by the
child restraint manufacturer and that the sy stem is properly secured. If it is not
secured properly, it may cause death or seri ous injury to the child in the event of a
sudden stop, sudden swerve or an accident.■
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be un fastened, scissors shou ld be used to cut
the belt.■
When the child restraint system is not in use ●
Keep the child restraint system properly secu red on the seat even if it is not in use.
Do not store the child restraint system unsecured in the passenger compartment.●
If it is necessary to detach the child restraint system, remove it from the vehicle or
store it securely in the luggage compartment. This will prevent it from injuring
passengers in the event of a sudden stop, sudden swerve or accident.
