14111-7. Safety information

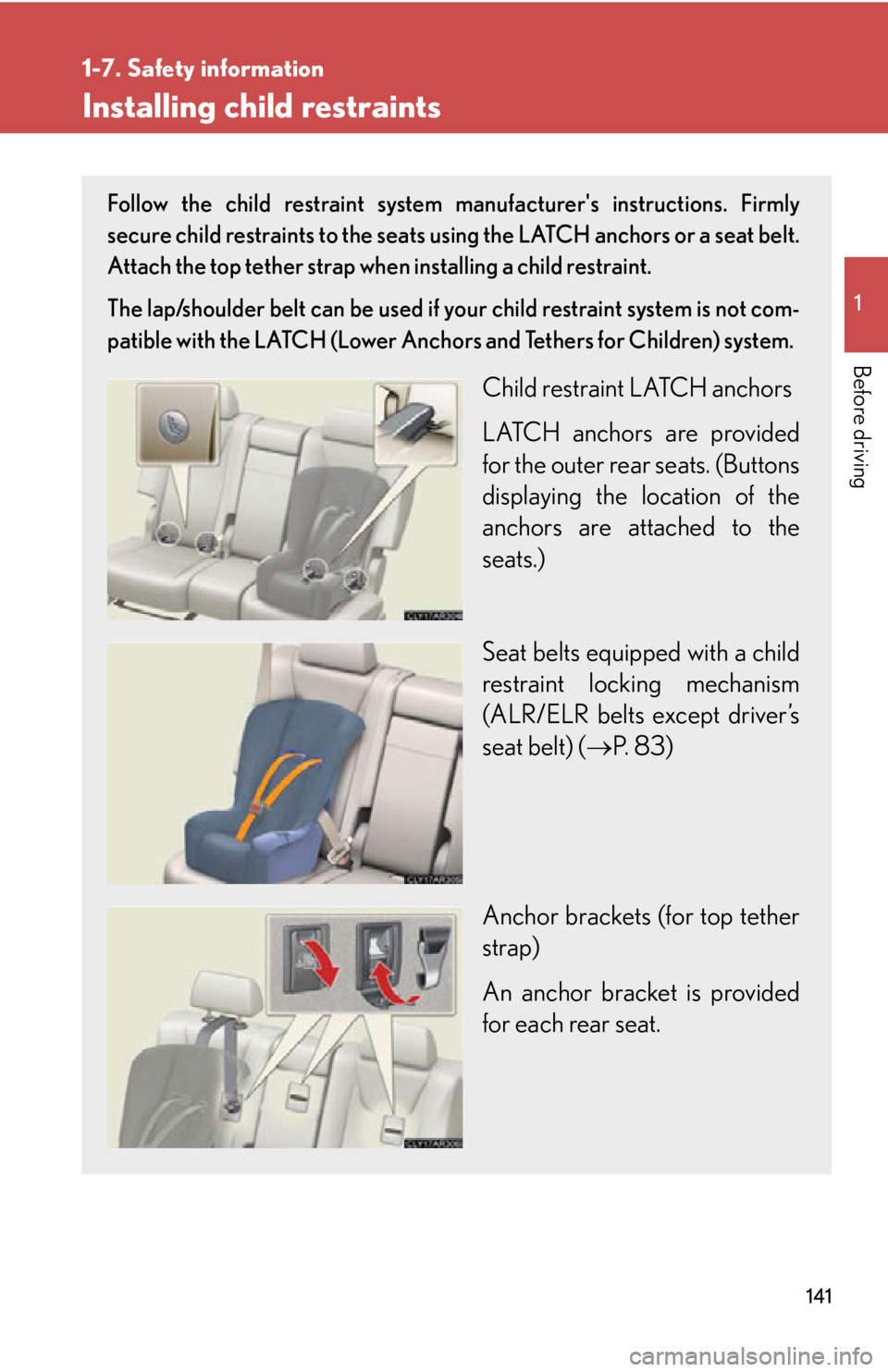

Before driving Installing child restraints Follow the child restraint system ma nufacturer's instructions. Firmly
secure child restraints to the seats using the LATCH anchors or a seat belt.
Attach the top tether strap when installing a child restraint.
The lap/shoulder belt can be used if your child restraint system is not com-
patible with the LATCH (Lower Anchor s and Tethers for Children) system.
Child restraint LATCH anchors
LATCH anchors are provided
for the outer rear seats. (Buttons
displaying the location of the
anchors are attached to the
seats.)
Seat belts equipped with a child
restraint locking mechanism
(ALR/ELR belts except driver’s
seat belt) (  P. 8 3 )
Anchor brackets (for top tether
strap)
An anchor bracket is provided
for each rear seat.

1421-7. Safety information
Installation with LATCH system
Fold the seatback while pulling the
seatback angle adjustment lever.
Return the seatback and secure it
at the first lock position. (  P. 7 2 )
Widen the gap between the seat cushion and seatback slightly.
Type A
Latch the hooks of the lower straps
onto the LATCH anchors. If the
child restraint has a top tether
strap, the top tether strap should
be latched onto the top tether
strap anchor bracket.
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.STEP 1
STEP 2
Canada onlySTEP 3

1431-7. Safety information
1
Before driving Type B
Latch the buckles onto the LATCH
anchors. If the child restraint has a
top tether strap, the top tether
strap should be latched onto the
top tether strap anchor bracket.
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.
If the child restraint has a top tether strap, the top tether strap
should be latched onto th e top tether strap anchor. (  P. 1 4 8 )Canada onlySTEP 3
STEP 4

1441-7. Safety information
Installing child restraints using a seat belt (child restraint lock function belt)
■ Rear-facing  Infant seat/convertible seat
Fold the seatback while pulling the
seatback angle adjustment lever.
Return the seatback and secure it
at the first lock position. (  P. 7 2 )
Place the child restraint system on
the rear seat facing the rear of the
vehicle.
Run the seat belt through the child
restraint system and insert the
plate into the buckle. Make sure
that the belt is not twisted.STEP 1
STEP 2
STEP 3

1451-7. Safety information
1
Before driving Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place. After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■ Forward-facing  Convertible seat
Fold the seatback while pulling the
seatback angle adjustment lever.
Return the seatback and secure it
at the first lock position. (  P. 7 2 )
Place the child restraint system on
the seat facing the front of the vehi-
cle.STEP 4
STEP 5
STEP 1
STEP 2

1461-7. Safety information
Run the seat belt through the child
restraint system and insert the
plate into the buckle. Make sure
that the belt is not twisted.
Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
While pushing the child restraint
system into the re ar seat, allow the
shoulder belt to retract until the
child restraint system is securely in
place. After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (  P. 1 4 8 )STEP 3
STEP 4
STEP 5
STEP 6

1471-7. Safety information
1
Before driving ■ Booster seat
Fold the seatback while pulling the
seatback angle adjustment lever.
Return the seatback and secure it
at the first lock position. (  P. 7 2 )
Place the child restraint system on
the seat facing the front of the vehi-
cle.
Sit the child in the child restraint
system. Fit the seat belt to the child
restraint system according to the
manufacturer's instructions and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Check that the shoulder belt is cor-
rectly positioned over the child's
shoulder, and that the lap belt is as
low as possible. (  P. 8 3
)STEP 1
STEP 2
STEP 3

1481-7. Safety information
Removing a child restraint installed with a seat belt
Press the buckle release button
and fully retract the seat belt.
Child restraint systems with a top tether strap
Secure the child restraint system
using a seat belt or the LATCH
anchors, and remove the head
restraint.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched. STEP 1
STEP 2

1491-7. Safety information
1
Before driving Replace the head restraint and lift
it up to the up permost lock posi-
tion.STEP 3
■
Laws and regulations pertaining to anchors
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems co nforming to FMVSS213 or CMVSS213 specifications
can be used.
This vehicle is designed to conform to the SAE J1819.
CAUTION■
When installing a booster seat
To prevent the belt from going into ALR lo ck mode, do not fully extend the shoulder
belt. ALR mode causes the belt to tighten only. This could cause injury or discom-
fort to the child. (  P. 8 5 )

1501-7. Safety information
CAUTION■
When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix
the child restraint system securely in place.
If the child restraint system is not correctl y fixed in place, the child or other passen-
gers may be injured or even killed in the event of sudden braking, sudden swerving
or an accident.
●
When installing a child restraint system in the rear center seat, adjust both seat
cushions to the same position and align both seatbacks at the same angle. The
seatbacks must be adjusted to the same angle. Otherwise, the child restraint sys-
tem cannot be securely restrained and this may cause death or serious injuries in
the event of sudden braking, sudden swerving or an accident.
●
When using the LATCH system, move the se at as far back as possible and adjust
the seatback as upright as possible.
●
When a booster seat is installed, always ensure that the shoulder belt is posi-
tioned across the center of the child's shoulder. The belt should be kept away
from the child's neck, but not so that it could fall off the child's shoulder. Failing to
do so may result in death or serious inju ry in the event of sudden braking, sudden
swerving or an accident. ●
If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand rear seat. ●
Adjust the front passen ger seat so that it
does not interfere with the child restraint
system. ●
Only put a forward-facing child restraint
system on the front seat when unavoidable.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as possible
even if the “AIR BAG OFF” indicator light is
illuminated. Failure to do so may result in
death or serious injury if the airbags deploy
(inflate).
