8111-3. Adjustable components (seats, mirrors, steering wheel)
Before driving Head restraints
■
Removing the head restraints
■
Installing the head restraintsHead restraints are provided for all seats.
Up Pull the head restraints up.
Down Push the head restraint down
while pressing the lock release
button.Lock release button
Pull the head restraint up while pressing the
lock release button.
Lock release button
Align the head restrain t with the installation
holes and push it down to the lock position.
Press and hold the lock release button when
lowering the head restraint.

821-3. Adjustable components (s eats, mirrors, steering wheel)
■
Adjusting the height of the head restraints (front seats)
■
Adjusting the rear seat head restraints
Always raise the head restraints to th e uppermost lock position during use.
CAUTION■
Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so
may result in death or serious injury. ●
Use the head restraints design ed for each respective seat.●
Adjust the head restraints to the correct position at all times.●
After adjusting the head restraints, push down on them and make sure they are
locked in position.●
Do not drive with the head restraints removed. Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

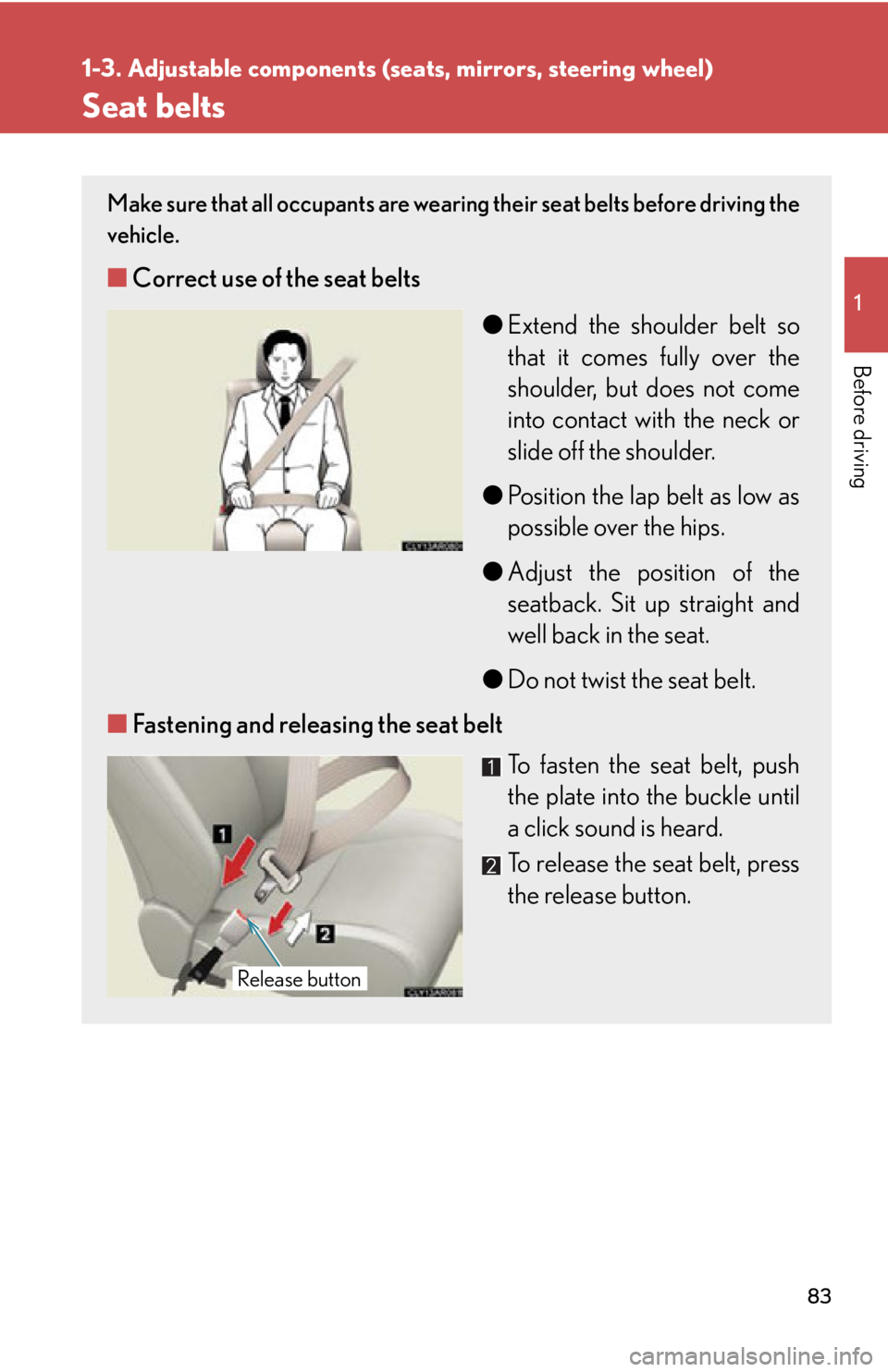

8311-3. Adjustable components (seats, mirrors, steering wheel)
Before driving Seat belts Make sure that all occupants are wearing their seat belts before driving the
vehicle.
■ Correct use of the seat belts
● Extend the shoulder belt so
that it comes fully over the
shoulder, but does not come
into contact with the neck or
slide off the shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the
seatback. Sit up straight and
well back in the seat.
● Do not twist the seat belt.
■ Fastening and releasing the seat belt
To fasten the seat belt, push
the plate into the buckle until
a click sound is heard.
To release the seat belt, press
the release button.
Release button

841-3. Adjustable components (s eats, mirrors, steering wheel)
Seat belt pretensioners (front and outside rear seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicl e is subjected to
certain types of severe frontal colli-
sion or a vehicle rollover. The pretensioner may not activate
in the event of a minor frontal
impact, a side impact or a rear
impact.■ Adjusting the seat belt shoulder anchor height (front seats)
Push the seat belt shoulder
anchor down while pressing
the release button.
Push the seat belt shoulder
anchor up. Move the height adjuster up and
down as needed until you hear a
click.

851-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving Pre-collision seat belts (front seats of vehicles with a pre-collision system)
If the system determines that a collision is unavoidable, the front seat belts
will retract before the collision. (  P. 2 7 8 )■
Emergency locking retractor (ELR)
The retractor will lock the belt during a sudd en stop or on impact. It may also lock if
you lean forward too quickly. To allow the belt to extend, retract the belt and then
pull it slowly.■
Automatic locking retractor (ALR)
When a passenger's shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and cannot be extended. This feature is
used to hold the child restraint system (CRS) firmly. To free the belt again, fully
retract the belt and then pull the belt out once more. (  P. 141)■
Child seat belt usage
The seat belts of your vehicle were princi pally designed for persons of adult size. ●
Use a child restraint system appropriate for the child, until the child becomes
large enough to properly wear the vehicle's seat belt. (  P. 1 3 7 )●
When the child becomes large enough to properly wear the vehicle's seat belt,
follow the instructions on P. 83 regarding seat belt usage.■
Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the second or subsequent collisions.

861-3. Adjustable components (s eats, mirrors, steering wheel)
■
Seat belt extender
CAUTION
Observe the following precautions to reduce the risk of injury in the event of sudden
braking, sudden swerving or an accident.
Failing to do so may cause death or serious injury. ■
Wearing a seat belt ●
Ensure that all passengers wear a seat belt.●
Always wear a seat belt properly.●
Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at on ce, including children.●
Lexus recommends that children be seated in the rear seat and always use a seat
belt and/or an appropriate child restraint system.●
To achieve a proper seating position, do not recline the seat more than necessary.
The seat belt is most effective when the occupants are sitting up straight and well
back in the seats.●
Do not wear the shoulder belt under your arm.●
Always wear your seat belt low and snug across your hips. If your seat belts cann ot be fastened securely
because they are not long enough, a person-
alized seat belt extender is available from
your Lexus dealer free of charge.

871-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving CAUTION■
Pregnant women
■
People suffering illness
Obtain medical advice and wear the seat belt in the proper way.■
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be un fastened, scissors shou ld be used to cut
the belt. Obtain medical advice and wear the seat belt
in the proper way. (  P. 8 3 )
Women who are pregnant should position
the lap belt as low as possible over the hips in
the same manner as other occupants. Extend
the shoulder belt completely over the shoul-
der and position the belt across the chest.
Avoid belt contact over the round part of the
abdominal area.
If the seat belt is not worn properly, not only
the pregnant woman, but also the fetus could
suffer death or serious injury as a result of
sudden braking or a collision.

881-3. Adjustable components (s eats, mirrors, steering wheel)
CAUTION■
Seat belt pretensioners ●
Do not place anything, such as a cushion, on the front passenger's seat. Doing so
will disperse the passenger's weight, wh ich prevents the sensor from detecting
the passenger's weight properly. As a resu lt, the seat belt pretensioner for the
front passenger's seat may not activate in the event of a collision.●
If the pretensioner has activated, the SRS warning light will come on. In that case,
the seat belt cannot be used again and must be replaced at your Lexus dealer.■
Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoul-
der. The belt should be kept away from yo ur neck, but not falling off your shoulder.
Failure to do so could reduce the amount of protection in an accident and cause
death or serious injuries in the event of a sudden stop, sudden swerve or accident.
(  P. 8 4 )■
Seat belt damage and wear ●
Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed
in the door.●
Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.
Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot
protect an occupant from death or serious injury.●
Ensure that the belt and tab are lo cked and the belt is not twisted.
If the seat belt does not function co rrectly, immediately contact your Lexus
dealer.●
Replace the seat assembly, including the belt s, if your vehicle has been involved in
a serious accident, even if there is no obvious damage.●
Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate han-
dling of the pretensioner may prevent it from operating properly, resulting in
death or serious injury.

891-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving CAUTION■
Using a seat belt extender ●
Do not wear the seat belt extender if you can fasten the seat belt without the
extender.●
Do not use the seat belt extender when installing a child restraint system because
the belt will not securely hold the child restraint system, increasing the risk of
death or serious injury in the event of an accident.●
The personalized extender may not be safe on another vehicle, when used by
another person, or at a different seatin g position other than the one originally
intended.
NOTICE■
When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender,
not on the seat belt.
This helps prevent damage to the vehi cle interior and the extender itself.

901-3. Adjustable components (seats, mirrors, steering wheel)
Steering wheel
Auto tilt away
When the “ENGINE START
STOP” switch is turned off, the
steering wheel returns to its
stowed position by moving up and
away to enable easier driver entry
and exit.
Turning the “ENGINE START
STOP” switch to ACCESSORY or
IGNITION ON mode will return
the steering wheel to the original
position. The steering wheel can be adjusted to a comfortable position.
Operating the switch moves the s teering wheel in the following direc-
tions:
Up
Down
Away from the driver
Toward the driver
