Bulb locations
Front turn signal light (vehicles with single-beam headlights)
Front side marker light (vehicles with single-beam headlights) 1
2

612 7-3. Do-it-yourself maintenance
RX350_U_OM48E90U ■
Rear
Back-up light
Rear turn signal light (vehic les with single-beam headlights)1
2

6137-3. Do-it-yourself maintenance
7
Maintenance and care
RX350_U_OM48E90U ■
Front side marker lights (vehicles with single-beam headlights)

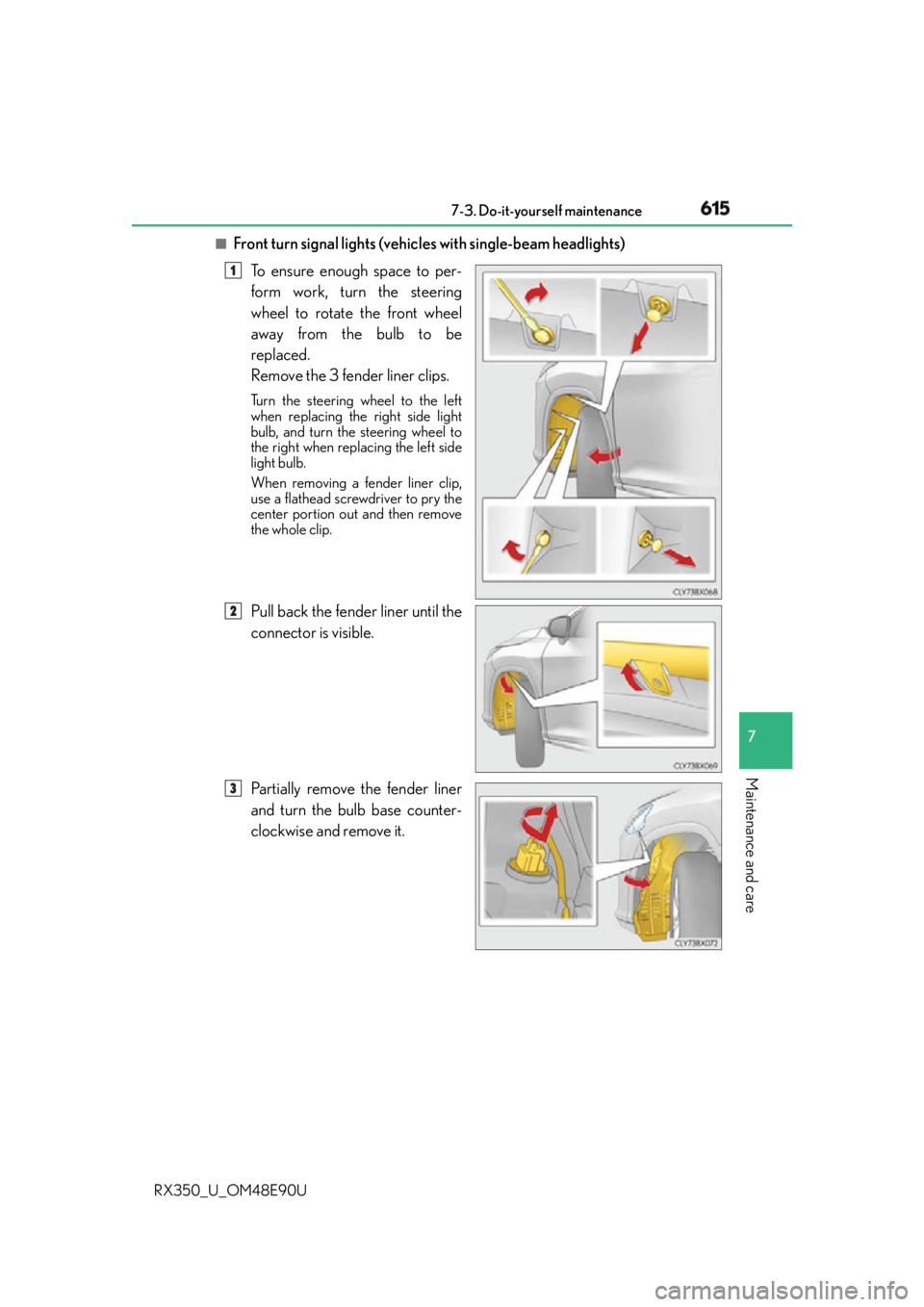

To ensure enough space to per-
form work, turn the steering
wheel to rotate the front wheel
away from the bulb to be
replaced.
Remove the 3 fender liner clips. Turn the steering wheel to the left
when replacing the right side light
bulb, and turn the steering wheel to
the right when replacing the left side
light bulb.
When removing a fender liner clip,
use a flathead screwdriver to pry the
center portion out and then remove
the whole clip.
Pull back the fender liner until the
connector is visible.
Partially remove the fender liner
and turn the bulb base counter-
clockwise and remove it.Replacing light bulbs 1
8 2
3

614 7-3. Do-it-yourself maintenance
RX350_U_OM48E90U Remove the light bulb.
Install a new light bulb and then
install the bulb base to the light
unit by inserting it and turning it
clockwise. After installing the bulb base, wiggle
it lightly to make sure it is securely
installed and turn the lights on to
visually check that there is no light
leaking from between the bulb base
and light unit.
Reinstall the fender liner and
install the 3 fender liner clips. 4
5
6

6157-3. Do-it-yourself maintenance
7
Maintenance and care
RX350_U_OM48E90U ■
Front turn signal lights (vehic les with single-beam headlights)
To ensure enough space to per-
form work, turn the steering
wheel to rotate the front wheel
away from the bulb to be
replaced.
Remove the 3 fender liner clips. Turn the steering wheel to the left
when replacing the right side light
bulb, and turn the steering wheel to
the right when replacing the left side
light bulb.
When removing a fender liner clip,
use a flathead screwdriver to pry the
center portion out and then remove
the whole clip.
Pull back the fender liner until the
connector is visible.
Partially remove the fender liner
and turn the bulb base counter-
clockwise and remove it. 1
8 2
3

616 7-3. Do-it-yourself maintenance
RX350_U_OM48E90U Remove the light bulb.
Install a new light bulb and then
install the bulb base to the light
unit by inserting it and turning it
clockwise. After installing the bulb base, wiggle
it lightly to make sure it is securely
installed and turn on the turn signal
lights to visually check that there is no
light leaking from between the bulb
base and light unit.
Reinstall the fender liner and
install the 3 fender liner clips. 4
5
6

6177-3. Do-it-yourself maintenance
7
Maintenance and care
RX350_U_OM48E90U ■
Rear turn signal lights (vehic les with single-beam headlights)

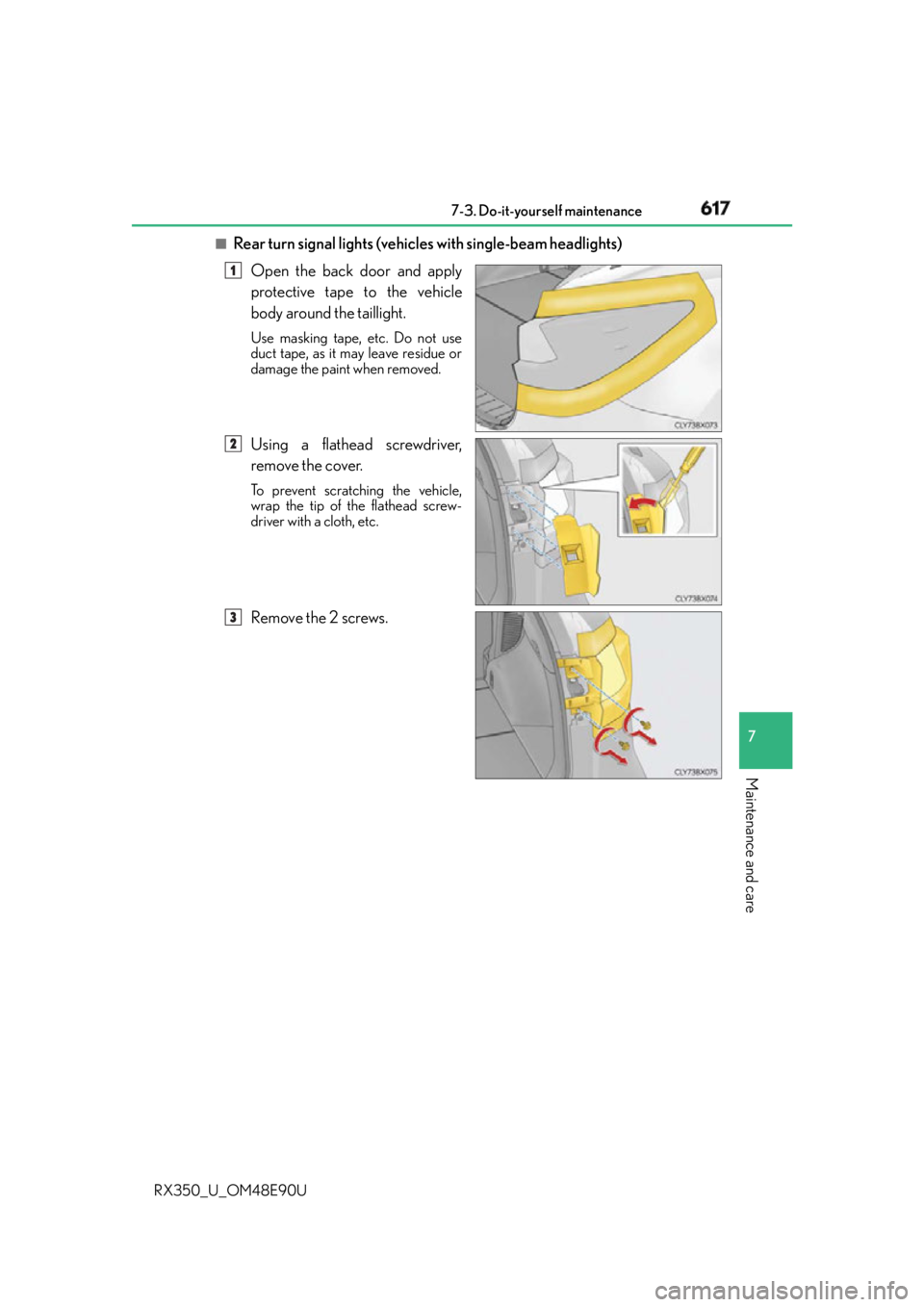

Open the back door and apply
protective tape to the vehicle
body around the taillight. Use masking tape, etc. Do not use
duct tape, as it may leave residue or
damage the paint when removed.
Using a flathead screwdriver,
remove the cover. To prevent scratching the vehicle,
wrap the tip of the flathead screw-
driver with a cloth, etc.
Remove the 2 screws. 1
2
3

618 7-3. Do-it-yourself maintenance
RX350_U_OM48E90U Remove the taillight unit.
Attach 2 long pieces of mask-
ing tape to the taillight unit and
fold the excess in half.
Hold the folded portion and
pull it toward the rear of the
vehicle to remove the light unit.
Turn the bulb base counterclock-
wise and remove it.
Remove the light bulb. 4
1
2
5
6

6197-3. Do-it-yourself maintenance
7
Maintenance and care
RX350_U_OM48E90U Install a new light bulb and then
install the bulb base to the light
unit by inserting it and turning it
clockwise. After installing the bulb base, wiggle
it lightly to make sure it is securely
installed and turn on the rear turn sig-
nal lights to visually check that there
is no light leaking from between the
bulb base and light unit.

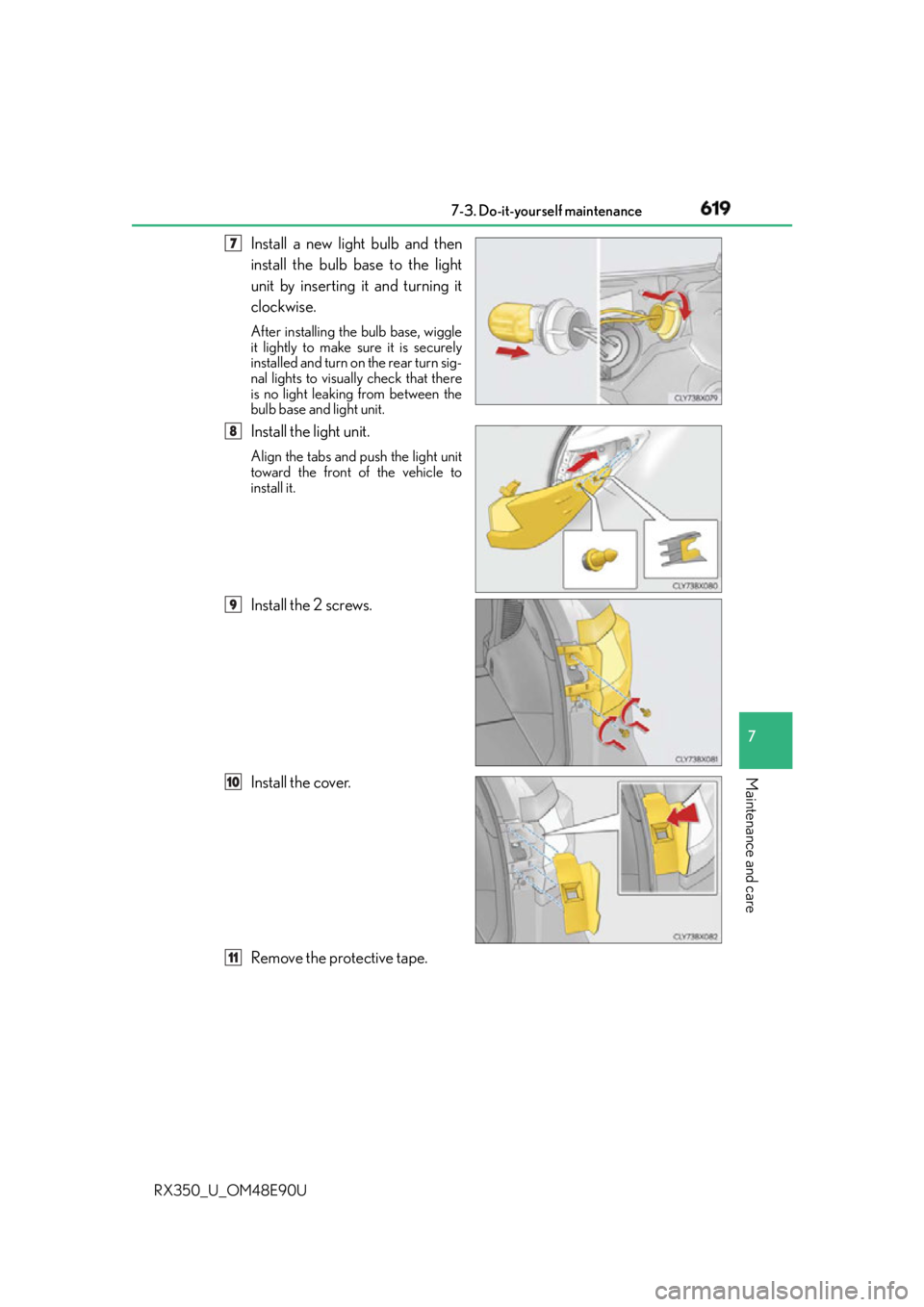

Install the light unit. Align the tabs and push the light unit
toward the front of the vehicle to
install it.
Install the 2 screws.
Install the cover.
Remove the protective tape. 47
8
9
10
11

620 7-3. Do-it-yourself maintenance
RX350_U_OM48E90U ■
Back-up lights

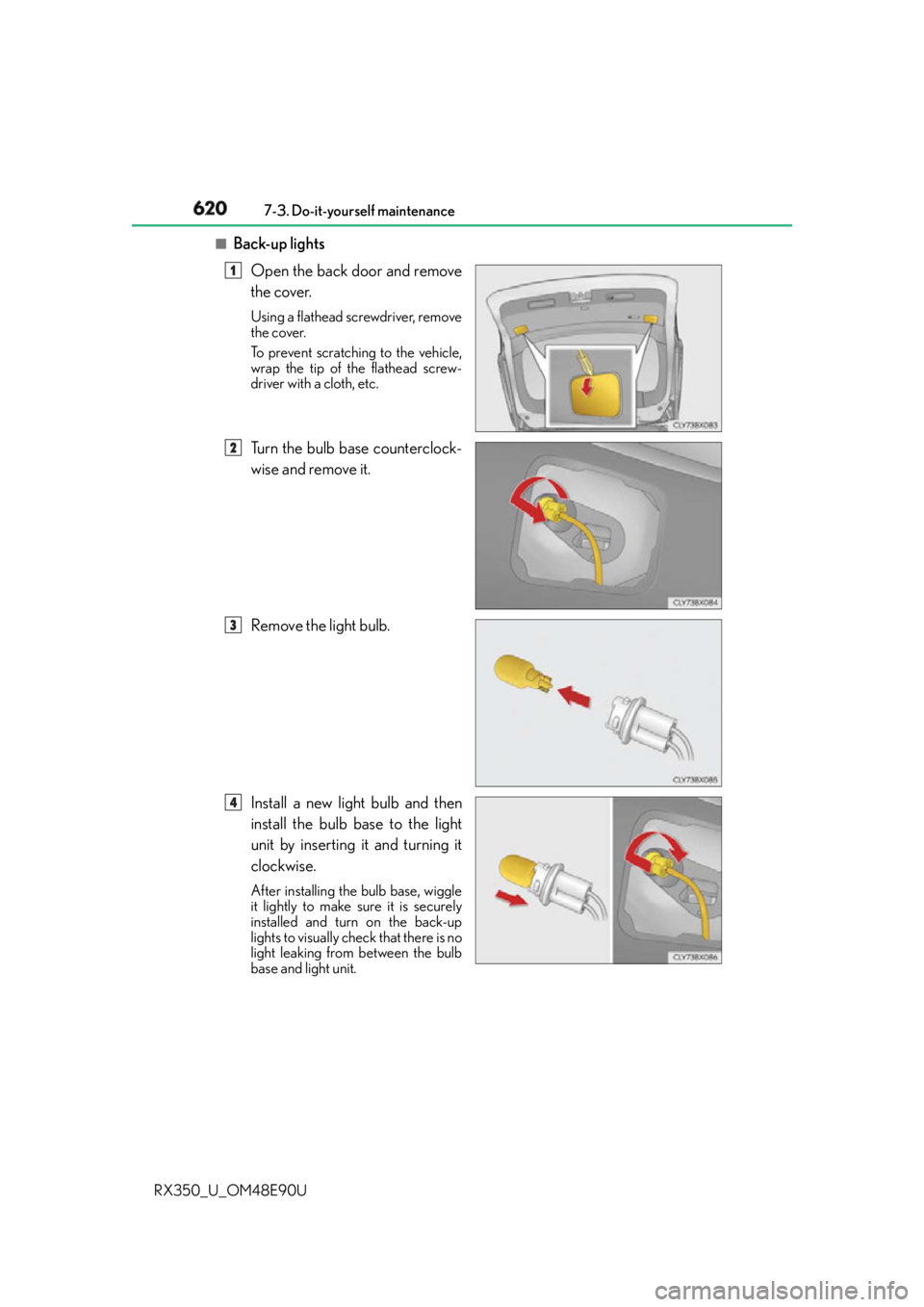

Open the back door and remove
the cover. Using a flathead screwdriver, remove
the cover.
To prevent scratching to the vehicle,
wrap the tip of the flathead screw-
driver with a cloth, etc.
Turn the bulb base counterclock-
wise and remove it.
Remove the light bulb.
Install a new light bulb and then
install the bulb base to the light
unit by inserting it and turning it
clockwise. After installing the bulb base, wiggle
it lightly to make sure it is securely
installed and turn on the back-up
lights to visually check that there is no
light leaking from between the bulb
base and light unit. 1
2
3
4
