LEXUS RX350 2019 Owners Manual

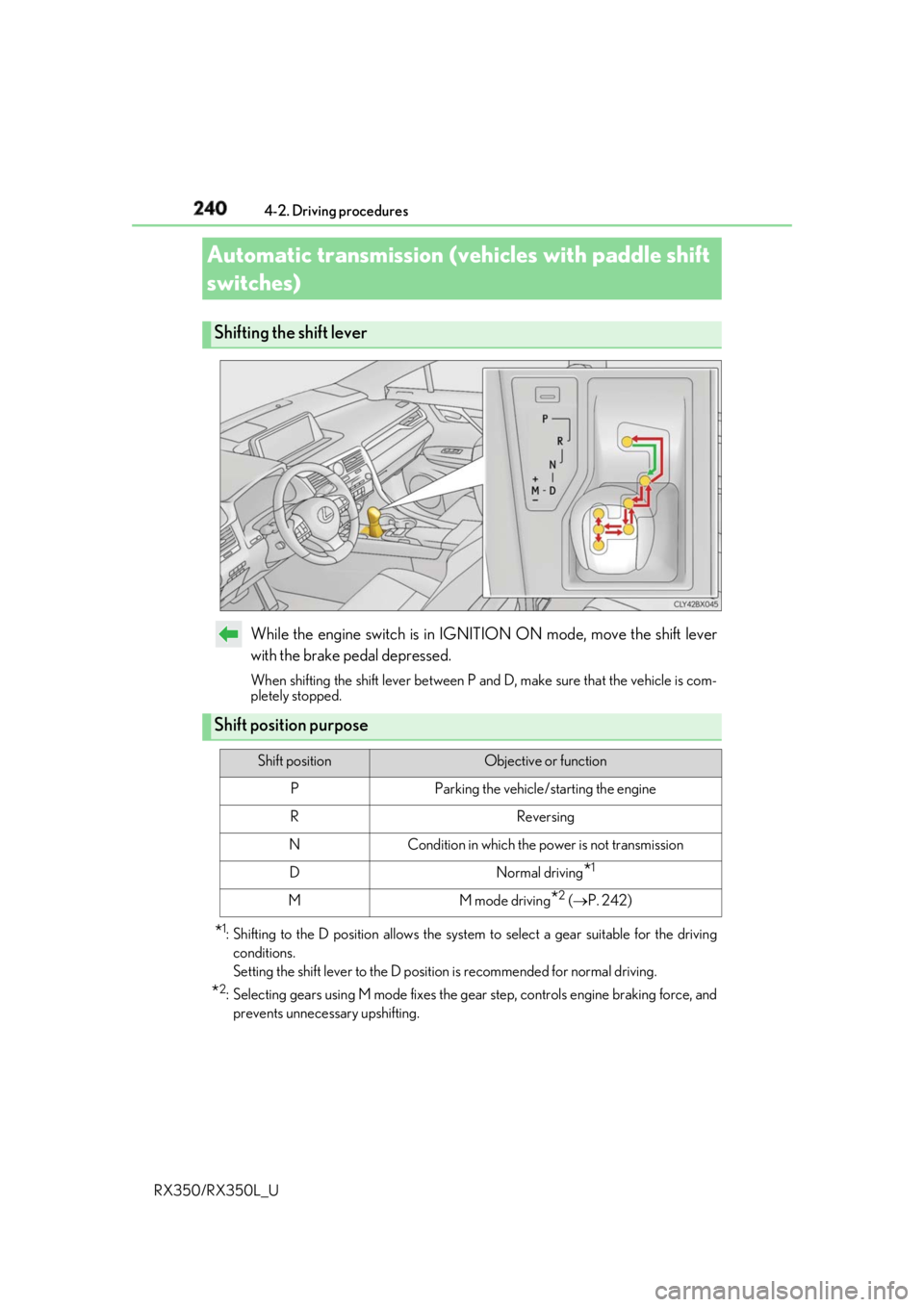

240 4-2. Driving procedures
RX350/RX350L_U While the engine switch is in IGNITION ON mode, move the shift lever
with the brake pedal depressed. When shifting the shift lever between P and D, make sure that the vehicle is com-
pletely stopped.
* 1
: Shifting to the D position allows the system to select a gear suitable for the driving
conditions.
Setting the shift lever to the D positi on is recommended for normal driving.
* 2
: Selecting gears using M mode fixes the gear step, controls engine braking force, and
prevents unnecessa ry upshifting.Automatic transmission (ve hicles with paddle shift
switches) Shifting the shift lever
Shift position purpose Shift position Objective or function
P Parking the vehicle/starting the engine
R Reversing
N Condition in which the power is not transmission
D Normal driving
* 1
M M mode driving
* 2
(  P. 242)

2414-2. Driving procedures
4
Driving
RX350/RX350L_U  P. 373
To drive using temporary shift range selection, operate the “-” or “+” paddle shift
switch.
When the “-” paddle shift switch is oper ated, the shift range will be downshifted
to a range that enables engine braking forc e that is suitable to driving conditions.
When the “+” paddle shift switch is operated, the shift range will be one gear
higher than the gear in use during normal D position driving.
Changing the shift range allows restrictio n of the highest gear, preventing unnec-
essary upshifting and enabling the level of engine braking force to be selected.
Upshifting
Downshifting The selected shift rang e, from D1 to D8,
will be displayed on the meters.
■
Shift ranges and their functions
A lower shift range will provide greater engi ne braking forces than a higher shift
range.Selecting the driving mode
Selecting shift ranges in the D position 1
2
Meter display Function
D2 - D8 A gear in the range between 1 and the selected gear is auto-
matically chosen depending on vehicle speed and driving
conditions
D1 Setting the gear at 1

242 4-2. Driving procedures
RX350/RX350L_U To enter M mode, shift the shift lever to M. Gears can then be selected by oper-
ating the shift lever or paddle shift switch es, allowing you to drive in the gear of
your choosing.
Upshifting
Downshifting The gear changes once every time the
shift lever or paddle shift switch is oper-
ated.
The selected gear, fr om M1 to M8, will
be fixed and displayed on the meters.
When in the M position, the gear will not change unless the shift lever or pad-
dle shift switches are operated.
However, even when in the M positi on, the gears will be automatically
changed in the following situation: ●
When vehicle speed drops (downshift only). ●
When the automatic transmission fluid or engine coolant temperature is
low. ●
When automatic transmission fluid temperature is high (upshift only). ●
When the needle of the tachometer is in the red zone (the range which
exceeds the allowable revs of the engine).
In the following situations, the gear will no t shift even if the shift lever or paddle
shift switches are operated. ●
The vehicle speed is low (upshift only).Selecting gears in the M position 1
2

2434-2. Driving procedures
4
Driving
RX350/RX350L_U ■
Automatic deactivation of shift range selection in the D position
Shift range selection in the D position will be deactivated in the following situations:●
The “+” paddle shift switch is held down for a period of time●
When the vehicle comes to a stop ●
If the accelerator pedal is depressed fo r more than a certain period of time●
When the shift lever is shifted to a position other than D ■
To protect the automatic transmission
If the automatic transmission fluid temperat ure is high, “Transmission Fluid Temp High
See Owner’s Manual” will be displayed on the multi-information display and the vehicle
will go into transmission protection mode automatically. Have th e vehicle inspected by
your Lexus dealer. ■
Downshifting restriction warning buzzer
To help ensure safety and driving performance, downshifti ng operation may sometimes
be restricted. In some circum stances, downshifting may not be possible even when the
shift lever or paddle shif t switch is operated. (A buzzer will sound twice.)■
When driving with dynamic radar cruise control with full-speed range activated
Even when performing the following actions with the intent of enabling engine braking,
engine braking will not occur because dynamic radar cruise control with full-speed
range will not be canceled. ●
While driving in D position, downshifting to 7, 6, 5 or 4. (  P. 300)●
When switching the driving mode to spor t mode while driving in the D position
(  P. 373)■
Restraining sudden start (Drive-Start Control)
When the following unusual operation is performed, the engine output may be
restrained. ●
When the shift lever is shifted from R to D, D to R, N to R, P to D, or P to R (D includes
M) with the accelerator pedal depressed, a warning message appears on the multi-
information display. If a wa rning message is shown on the multi-information display,
read the message and follow the instructions. ●
When the accelerator pedal is depressed too while the vehicle is in reverse. ■
Shift lock system
The shift lock system is a system to prevent ac cidental operation of the shift lever in start-
ing.
The shift lever can be shifted from P only when the engine switch is in IGNITION ON
mode and the brake pedal is being depressed.

244 4-2. Driving procedures
RX350/RX350L_U ■
If the shift lever cannot be shifted from P
First, check whether the brak e pedal is being depressed.
If the shift lever cannot be shifted with your foot on the brake pedal, there may be a prob-
lem with the shift lock system. Have the vehi cle inspected by your Lexus dealer immedi-
ately.
The following steps may be used as an emergency measure to ensure that the shift lever
can be shifted.
Releasing the shift lock:
Turn the engine switch to IGNITION ON mode and check that the parking brake is
set. (  P. 232, 247)
Turn the engine switch to off.
Depress the brake pedal.
■
AI-SHIFT ●
The AI-SHIFT automatically selects the suitab le gear according to driver performance
and driving conditions.
The AI-SHIFT automatically operates when th e shift lever is in D. (Shifting the shift
lever to the M position cancels the function.) ●
G AI-SHIFT automatically selects a suitable gear for sporty driving according to
driver’s input and driving conditions. G AI-S HIFT operates automatically when the shift
lever is in D and sport mode is selected for the driving mode. (Selecting normal mode
with the driving mode select switch or shifting the shift lever to the M position cancels
this function.) 1
2
3
Pry the cover up with a flathead screwdriver
or equivalent tool.
To prevent damage to the cover, cover the tip
of the screwdriver with a rag.
Press the shift lock override button.
The shift lever can be shifted while the button
is pressed 4
5

2454-2. Driving procedures
4
Driving
RX350/RX350L_U WARNING ■
When driving on slippery road surfaces
Be careful of downshifting an d sudden acceleration, as this could result in the vehicle
skidding to the side or spinning. ■
To prevent an accident wh en releasing the shift lock
Before pressing the shift lock override butto n, make sure to set the parking brake and
depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal when the
shift lock override button is pressed and the shift lever is shifted out of P, the vehicle
may suddenly start, possibly leading to an a ccident resulting in death or serious injury.

246 4-2. Driving procedures
RX350/RX350L_U Right turn
Lane change to the right (move the
lever partway and release it) The right hand signals will flash 3 times.
Lane change to the left (move the
lever partway and release it) The left hand signals will flash 3 times.
Left turn
■
Turn signals can be operated when
The engine switch is in IGNITION ON mode. ■
If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.■
If the turn signals stop flashing befo re a lane change has been performed
Operate the lever again. ■
Customization
Some functions can be customized. (  P. 722)Turn signal lever Operating instructions 1
2
3
4

2474-2. Driving procedures
4
Driving
RX350/RX350L_U The parking brake is set or released au tomatically according to the shift lever
operation.
Even when in automatic mode, the parkin g brake can be set and released manu-
ally. (  P. 248)
Turns automatic mode on (while the
vehicle is stopped, pull and hold the
parking brake switch until the auto-
matic mode lamp turns on) • When the shift lever is moved out of
P, the parking brake will be released,
and the parking brake indicator light
and parking brake light turn off.
• When the shift lever is moved into P,
the parking brake will be set, and the
parking brake indicator light and
parking brake light turn on.
Operate the shift lever with the brake
pedal depressed.
Turns automatic mode off (while the
vehicle is stopped, press and hold
the parking brake switch until the
automatic mode lamp turns off)Parking brake A mode can be selected from the following modes.
Automatic mode
Automatic
mode lamp U.S.A. Canada
Parking
brake light1
2

248 4-2. Driving procedures
RX350/RX350L_U The parking brake can be set and released manually.
Sets the parking brake The parking brake indicator light and
parking brake light will turn on.
Pull and hold the parking brake switch if
an emergency occurs and it is necessary
to operate the parking brake while driv-
ing.
Releases the parking brake Operate the parking brake switch while
depressing the brake pedal. Make sure
that the parking brake indicator light
and parking brake light turn off.
If the parking brake indicator light and
parking brake lamp flashes, operate the
switch again. (  P. 654)■
Parking the vehicle
 P. 202 ■
Parking brake operation ●
When the engine switch is not in IGNITION ON mode, the parking brake cannot be
released using the parking brake switch. ●
When the engine switch is not in IGNITION ON mode, automatic mode (automatic
brake setting and releasing) is not available. ■
If “Parking Brake Overheated Parking Brak e Unavailable” is displayed on the multi-
information display
If the parking brake is operated repeatedly over a short period of time, the system may
restrict operation to prevent overheating. If this happens, refrain from operating the
parking brake. Normal operation wi ll return after about 1 minute.■
If “EPB Activation Stopped Incompletely” or “Parking Brake Unavailable” is displayed
on the multi-information display
Operate the parking brake switch. If the message does not disappear after operating the
switch several times, the system may be ma lfunctioning. Have th e vehicle inspected by
your Lexus dealer immediately. ■
Parking brake operation sound
When the parking brake operates, a motor so und (whirring sound) may be heard. This
does not indicate a malfunction.Manual mode U.S.A. Canada
Parking
brake light1
2

2494-2. Driving procedures
4
Driving
RX350/RX350L_U ■
Parking brake indicator light and parking brake light ●
Depending on the engine switch mode, the parking brake indicator light and parking
brake light will turn on and stay on as described below:
IGNITION ON mode: Comes on unt il the parking brake is released.
Not in IGNITION ON mode: Stays on for approximat ely 15 seconds.●
When the engine switch is turned off with the parking brake set, the parking brake indi-
cator light and parking brake light will stay on for about 15 seconds. This does not indi-
cate a malfunction. ■
Changing the mode
When changing the automatic mode on/off , the message will be shown on the multi-
information display and the buzzer sounds. ■
Parking brake engaged warning buzzer
A buzzer will sound if the vehicle is driv en with the parking brake engaged. “Release
Parking Brake” is displayed on the multi-information display.■
Warning messages and buzzers
Warning messages and buzzers are used to indicate a system malfunction or to inform
the driver of the need for caution. If a warn ing message is shown on the multi-information
display, read the message and follow the instructions.■
If the brake system warning light comes on
 P. 654 ■
Usage in winter time
 P. 385
WARNING ■
When parking the vehicle
Do not leave a child in the vehicle alone. The parking brake may be released uninten-
tionally and there is the danger of the ve hicle moving that may lead to an accident
resulting in death or serious injury. ■
Parking brake switch
Do not set any objects near the parking br ake switch. Objects may interfere with the
switch and may lead the parking brake to unexpectedly operate.
NOTICE ■
When parking the vehicle
Before you leave the vehicle, shift the shif t lever to P, set the parking brake and make
sure that the vehicle does not move. ■
When the system malfunctions
Stop the vehicle in a safe place and check the warning messages.■
When the parking brake cannot be released due to a malfunction
Driving the vehicle with the parking brake se t will lead to brake components overheat-
ing, which may affect bra king performance and increase brake wear. Contact your
Lexus dealer immediately if this occurs.
