LEXUS RX450h 2015 Owners Manual

1211-6. Refueling
1
Before driving ■
When the fuel filler door cannot be opened by pressing the inside switch
Open the back door and li ft the deck board up. (  P. 6 6 4 )
With a compact spare tire only:
Remove the spare tire cover. (  P. 664)
Remove the 12-volt battery cover. (  P. 664)
Install the 12-volt battery cover using the clips. (  P. 6 6 7 )
Using the lever to open the fuel filler door may not allow for an adequate reduction
in fuel tank pressure before refueling. To prevent fuel from spilling out, turn the cap
slowly when removing it.
During refueling, fuel may spill out from the filler opening due to air being dis-
charged from inside the fuel tank. Therefore, fill the fuel tank carefully and slowly.■
Fuel types
Unleaded gasoline (Octane rating 91 [R esearch Octane Number 96] or higher)STEP 1
STEP 2
STEP 3
If the fuel filler door opener switch cannot be
operated, contact your Lexus dealer to ser-
vice the vehicle. In case where refueling is
urgently necessary, the fuel filler door can be
opened using the lever in the luggage com-
partment.STEP 4
STEP 5

1221-6. Refueling
CAUTION■
When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so may
result in death or serious injury. ●
After exiting the vehicle and before opening the fuel door, touch an unpainted
metal surface to discharge any static electricity. It is important to discharge static
electricity before refueling because sparks resulting from static electricity can
cause fuel vapors to ignite while refueling.●
Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully re moving the cap. In hot weather, pressur-
ized fuel may spray out of the filler neck and cause injury.●
Do not allow anyone that has not discharged static electricity from their body to
come close to an open fuel tank.●
Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.●
Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.●
Do not return to the vehicle or touch an y person or object that is statically
charged.
This may cause static electricity to build up , resulting in a possible ignition hazard.■
When refueling
Observe the following precautions to prevent fuel overflowing from the fuel tank: ●
Securely insert the fuel nozzle into the fuel filler neck●
Stop filling the tank after the fuel nozzle automatically clicks off●
Do not top off the fuel tank
■
When replacing the fuel cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.
Doing so may cause a fire or other incident which may result in death or serious
injury.

1231-6. Refueling
1
Before driving NOTICE■
Refueling ●
Finish refueling within 30 minutes. If more than 30 minutes passes, the internal
valve closes. In this condition, fuel may overflow during the refueling process.
Press the fuel filler d oor opener switch again.●
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control system to
operate abnormally or damaging fuel system components or the vehicle's
painted surface.

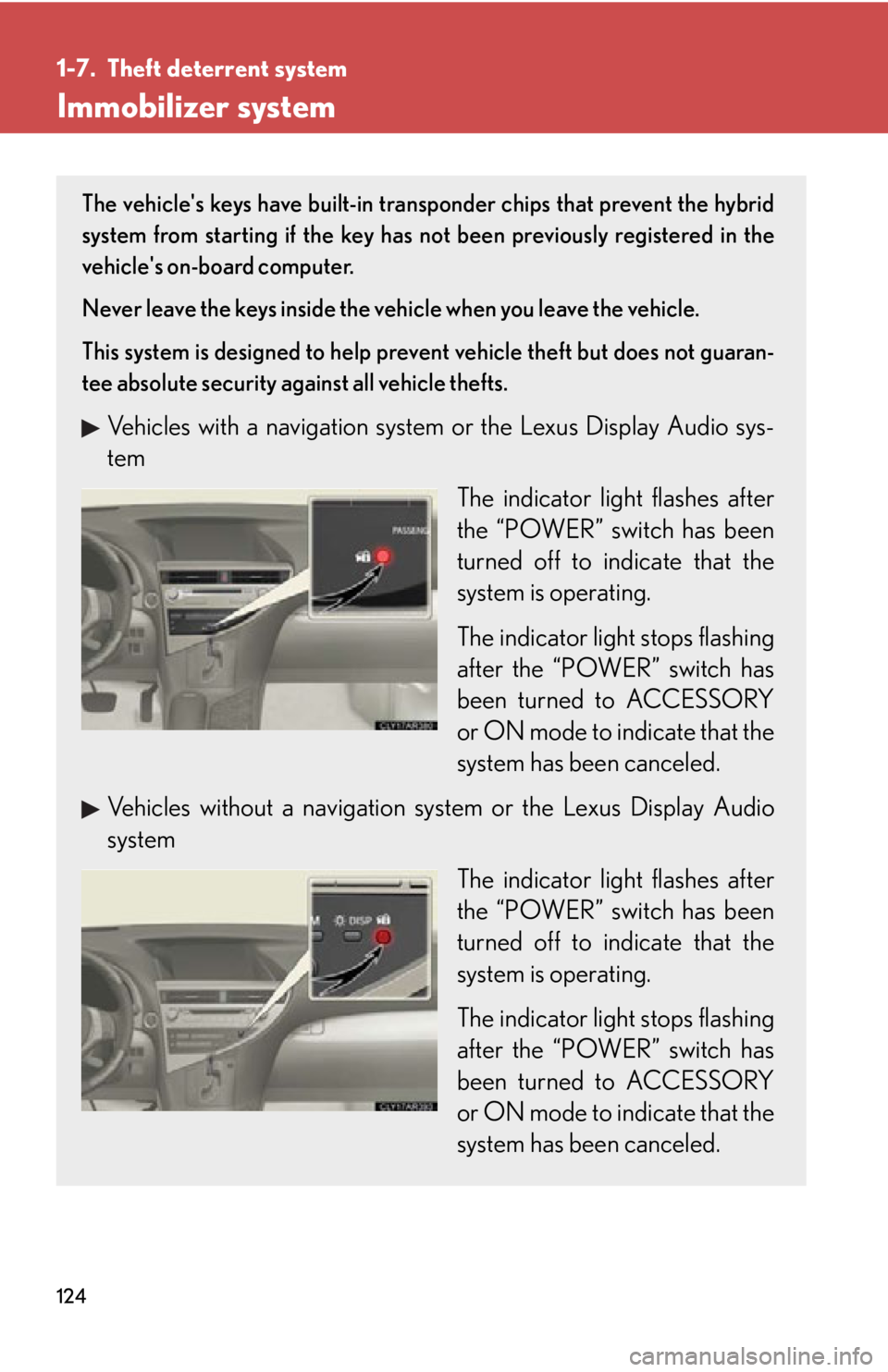

1241-7. Theft deterrent system
Immobilizer system The vehicle's keys have built-in tran sponder chips that prevent the hybrid
system from starting if the key has not been previously registered in the
vehicle's on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prev ent vehicle theft but does not guaran-
tee absolute security ag ainst all vehicle thefts.
Vehicles with a navigation system or the Lexus Display Audio sys-
tem
The indicator light flashes after
the “POWER” switch has been
turned off to indicate that the
system is operating.
The indicator light stops flashing
after the “POWER” switch has
been turned to ACCESSORY
or ON mode to indicate that the
system has been canceled.
Vehicles without a navigation sy stem or the Lexus Display Audio
system
The indicator light flashes after
the “POWER” switch has been
turned off to indicate that the
system is operating.
The indicator light stops flashing
after the “POWER” switch has
been turned to ACCESSORY
or ON mode to indicate that the
system has been canceled.

1251-7. Theft deterrent system
1
Before driving ■
System maintenance
The vehicle has a maintenance-free type immobilizer system.■
Conditions affecting operation
Depending on surrounding environment and conditions, the immobilizer system
may not operate properly. This may prevent the hybrid system from starting.
(  P. 6 2 )■
Certifications for the immobilizer system
This system meets the certification requirements of Radio Law.
For vehicles sold in the U.S.A.
FCC ID: NI4TMIMB-1
This device complies with part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
For vehicles sold in Canada
This device complies with Industry Cana da licence-exempt RSS standard(s). Oper-
ation is subject to the following two conditions: (1) this device may not cause inter-
ference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
CAUTION■
Certifications for the immobilizer system
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTICE
■
To ensure the system operates correctly
Do not modify or remove the system. If mo dified or removed, the proper operation
of the system cannot be guaranteed.

1261-7. Theft deterrent system
Alarm The system sounds the alarm and flashe s the lights when forcible entry is
detected.
■ Triggering of the alarm
The alarm is triggered in the follow ing situations when the alarm is
set:
● A locked door is unlocked or open ed in any way other than using
the entry function, wireless r emote control or mechanical key.
(The doors will lock again automatically.)
● The hood is opened.
■ Setting the alarm system
Vehicles with a navigation system or the Lexus Display Audio sys-
tem Close the doors and hood, and
lock all the doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
Vehicles without a navigation sy stem or the Lexus Display Audio
system
Close the doors and hood, and
lock all the doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.

1271-7. Theft deterrent system
1
Before driving ■
System maintenance
The vehicle has a maintenance-free type alarm system.■
Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the
following: ●
Nobody is in the vehicle.●
The windows and moon roof are closed before the alarm is set.●
No valuables or other personal items are left in the vehicle.■ Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarms:
● Unlock the doors.
● Turn the “POWER” switch to ACCESSORY or ON mode, or
start the hybrid system. (The alarm will be deactivated or stopped
after a few seconds.)

1281-7. Theft deterrent system
■
Tr i g g e r i n g o f t h e a l a r m
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■
Alarm-operated door lock ●
When the alarm is operating, the door s are locked automatically to prevent
intruders.●
Do not leave the key inside the vehicle when the alarm is operating, and make
sure the key is not inside the vehicle when recharging or replacing the 12-volt
battery.
NOTICE■
To ensure the system operates correctly
Do not modify or remove the system. If mo dified or removed, the proper operation
of the system cannot be guaranteed. ●
A person inside the vehicle opens a door
or the hood.
●
The 12-volt battery is recharged or
replaced when the vehicle is locked.

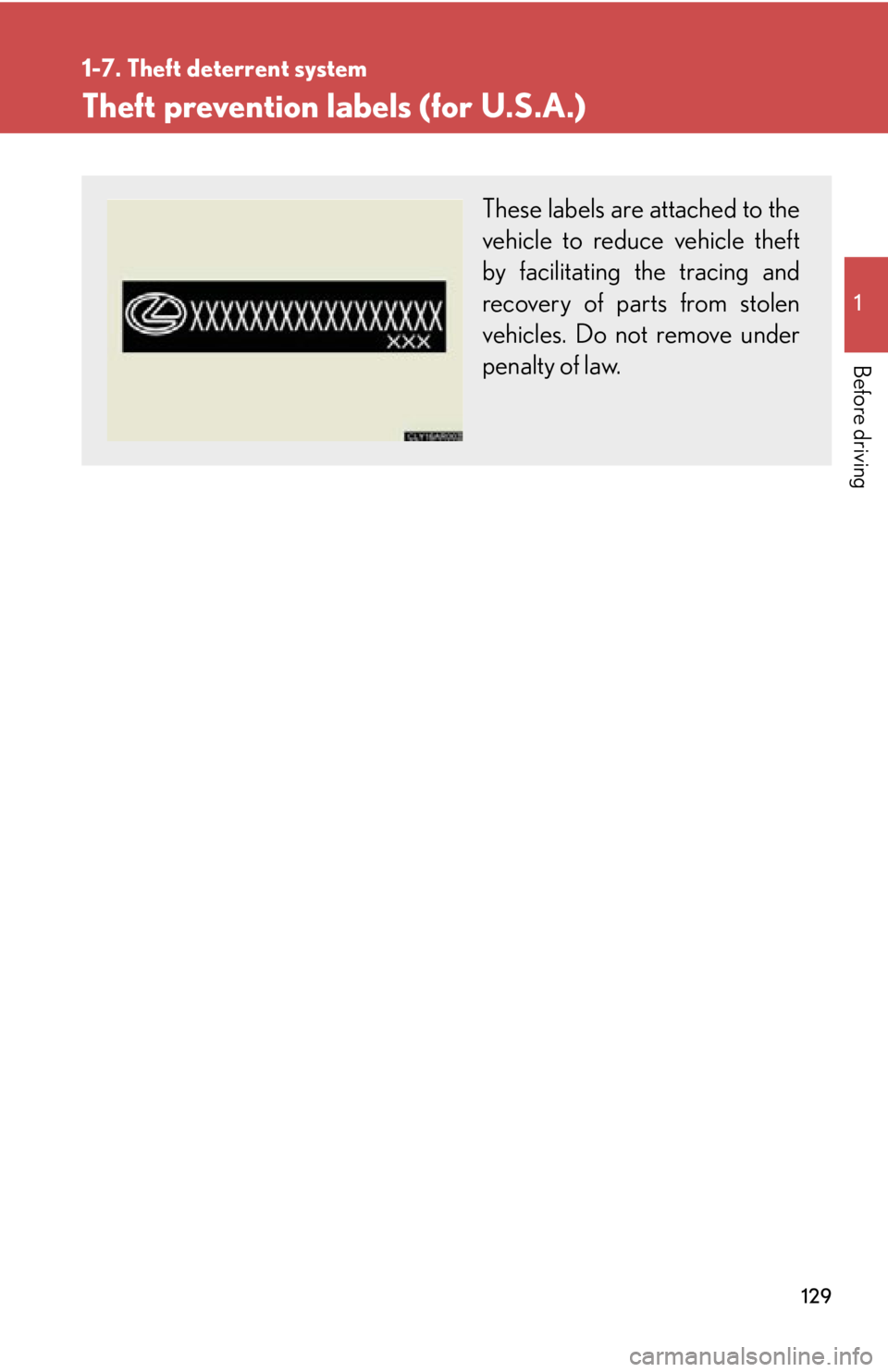

12911-7. Theft deterrent system
Before driving Theft prevention labels (for U.S.A.) These labels are attached to the
vehicle to reduce vehicle theft
by facilitating the tracing and
recovery of parts from stolen
vehicles. Do not remove under
penalty of law.

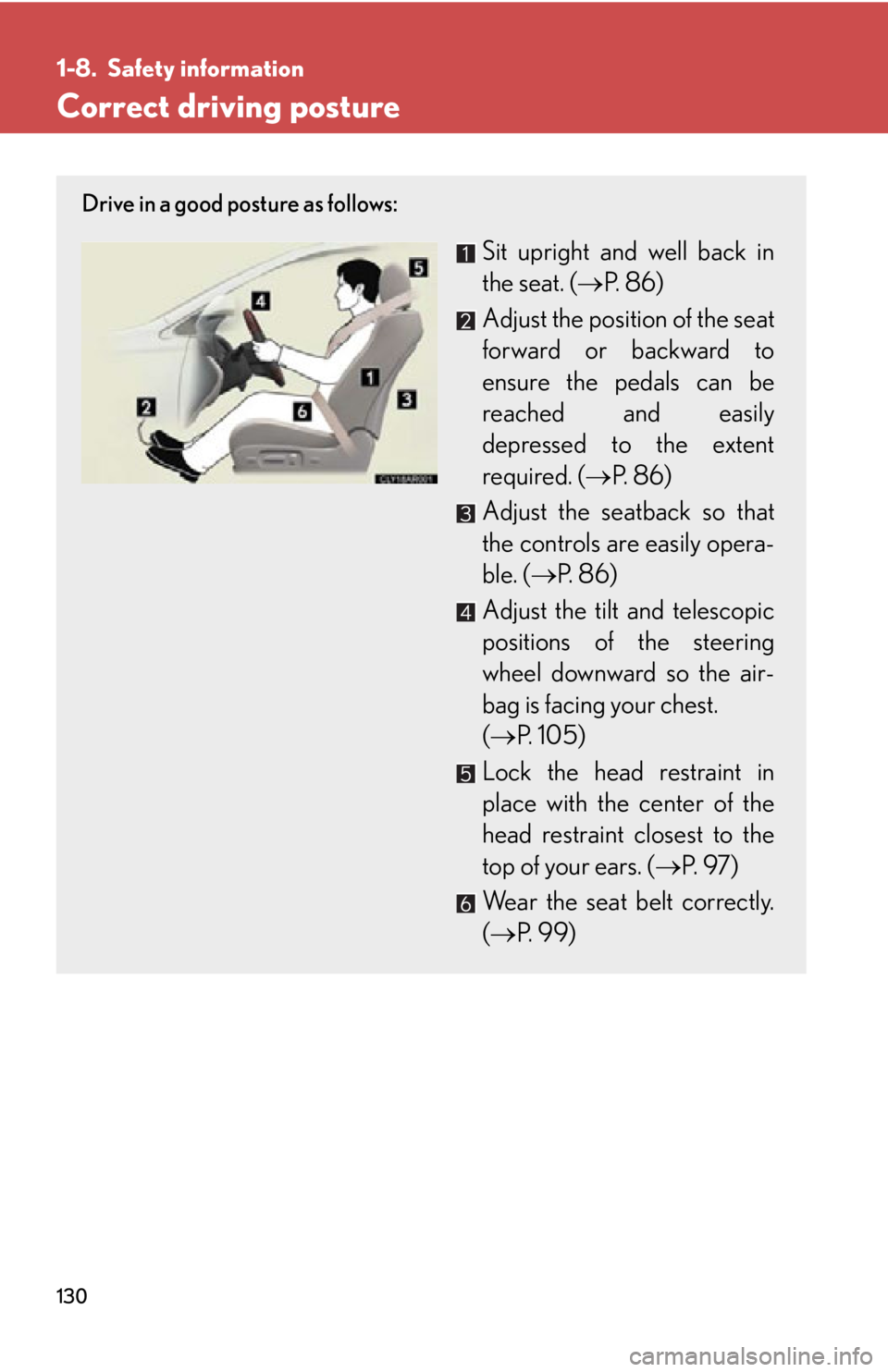

1301-8. Safety information
Correct driving posture Drive in a good posture as follows:
Sit upright and well back in
the seat. (  P. 8 6 )
Adjust the position of the seat
forward or backward to
ensure the pedals can be
reached and easily
depressed to the extent
required. (  P. 8 6 )
Adjust the seatback so that
the controls are easily opera-
ble. (  P. 8 6 )
Adjust the tilt and telescopic
positions of the steering
wheel downward so the air-
bag is facing your chest.
(  P. 105)
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. (  P. 9 7 )
Wear the seat belt correctly.
(  P. 99)
