LEXUS RX450h 2015 Owners Manual

1111-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving ■
When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn on
the rear window defogger to turn on the outside rear view mirror defoggers.
(  P. 3 5 8 )■
Automatic adjustment of the mirror angl e (vehicles with driving position mem-
ory)
A desired mirror face angle can be entered to memory and recalled automatically
by the driving position memory. (  P. 9 3 )■
Auto anti-glare function
When the anti-glare inside rear view mirr or is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light. (  P. 1 0 7 )
CAUTION■
When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an accident,
resulting in death or serious injury. ●
Do not adjust the mirrors while driving.●
Do not drive with the mirrors folded.●
Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.■
When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your hand
caught by the moving mirror.■
When the mirror defoggers are operating
Do not touch the rear view mirror surface s, as they can become very hot and burn
you.

1121-5. Opening and closing th e windows and moon roof

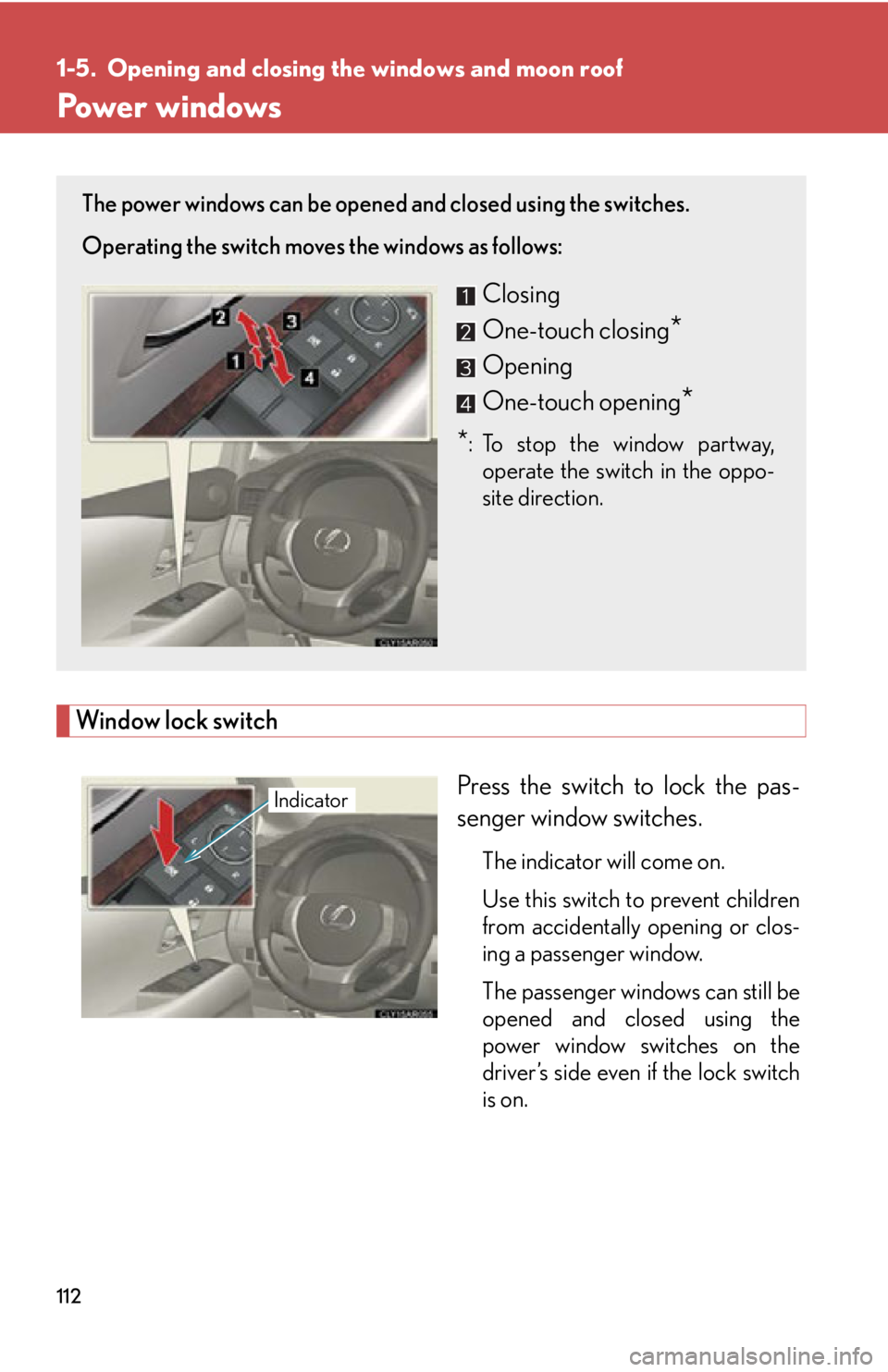

Power windows
Window lock switch
Press the switch to lock the pas-
senger window switches. The indicator will come on.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
The passenger windows can still be
opened and closed using the
power window switches on the
driver’s side even if the lock switch
is on.The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
One-touch closing
*Opening
One-touch opening
** :To stop the window partway,
operate the switch in the oppo-
site direction.
Indicator

1131-5. Opening and closing the windows and moon roof
1
Before driving ■
The power windows can be operated when
The “POWER” switch is in ON mode.■
Operating the power windows after turning the hybrid system off
The power windows can be operated for ap proximately 45 seconds even after the
“POWER” switch is turned to ACCESSORY mode or turned off. They cannot,
however, be operated once either front door is opened. ■
Jam protection function
If an object becomes caught between th e window and the window frame, window
travel is stopped and the window is opened slightly. ■
When the power window does not close normally
If the jam protection function is oper ating abnormally and a window cannot be
closed, perform the following operations using the power window switch on the rel-
evant door. ●
After stopping the vehicle, the window can be closed by holding the power win-
dow switch in the one-touch closing position while the “POWER” switch is
turned to ON mode.●
If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following procedure.
Hold the power window switch in the one-touch closing position. Con-
tinue holding the switch for a further 6 seconds after the window has
closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for a further 2 seconds after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win-
dow has closed.
If you release the switch while the window is moving, start again from the beginning.
If the window continues to close but then re-open slightly even after performing the
above procedure correctly, have the vehicle inspected by your Lexus dealer. STEP 1
STEP 2
STEP 3

1141-5. Opening and closing the windows and moon roof
■
Door lock linked window operation ●
The power windows can be opened and closed using the mechanical key.
(  P. 7 8 1 )●
The power windows can be opened using the wireless remote control.
(  P. 6 9 )■
When the 12-volt battery is disconnected
The window lock switch is disabled. If necessary, press the window lock switch after
reconnecting the battery.■
Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features  P. 825)
CAUTION■
Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury. ●
Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.●
Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
The driver is responsible for instructin g children not to operate the power win-
dows.■
Jam protection function ●
Never use any part of your body to intent ionally activate the jam protection func-
tion.●
The jam protection function may not work if something gets caught just before
the window fully closes. Also, the jam protection does not operate when the
power window switch is pulled up continually to close the windows.

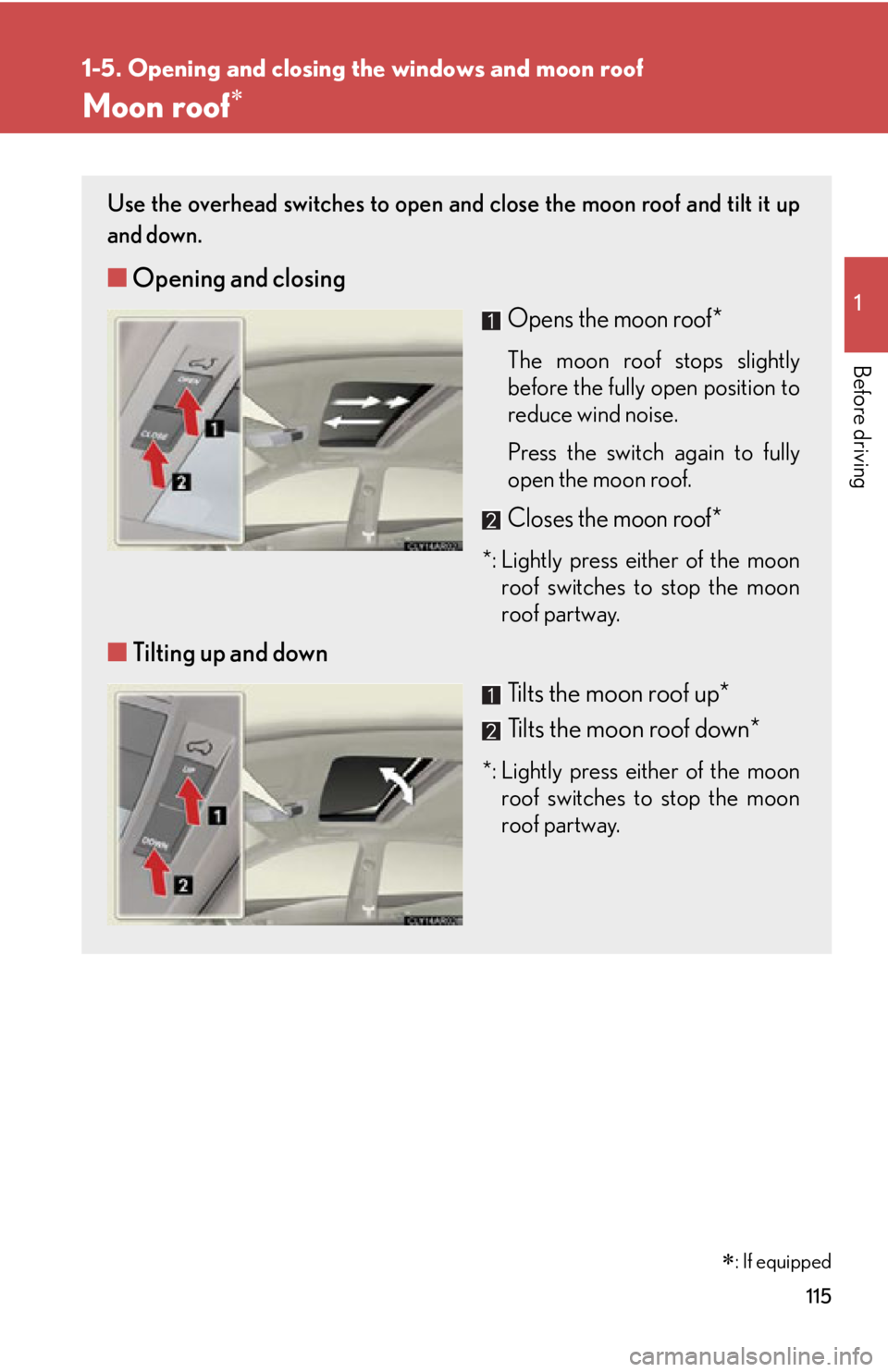

11511-5. Opening and closing the windows and moon roof
Before driving Moon roof Use the overhead switches to open an d close the moon roof and tilt it up
and down.
■ Opening and closing
Opens the moon roof* The moon roof stops slightly
before the fully open position to
reduce wind noise.
Press the switch again to fully
open the moon roof.
Closes the moon roof**: Lightly press either of the moon
roof switches to stop the moon
roof partway.
■ Tilting up and down
Tilts the moon roof up *
Tilts the moon roof down **: Lightly press either of the moon
roof switches to stop the moon
roof partway.
 : If equipped

1161-5. Opening and closing the windows and moon roof
■
The moon roof can be operated when
The “POWER” switch is in ON mode. ■
Operating the moon roof after turning the hybrid system off
The moon roof can be operated for ap proximately 45 seconds even after the
“POWER” switch is turned to ACCESSORY mode or turned off. It cannot, how-
ever, be operated once either front door is opened. ■
Jam protection function
If an object is detected between the moon roof and the frame while the moon roof is
closing or tilting down, travel is stopped and the moon roof opens slightly.■
Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened. ■
Door lock linked moon roof operation ●
The moon roof can be opened and closed using the mechanical key. (  P. 7 8 1 )●
The moon roof can be opened using the wireless remote control. (  P. 6 9 )

1171-5. Opening and closing the windows and moon roof
1
Before driving ■
When the moon roof does not close normally
Perform the following procedure: ●
If the moon roof closes but then re-opens slightly
Stop the vehicle.
Press and hold the “CLOSE” switch.* 1
The moon roof will close, reopen and pause for approximately 10 sec-
onds.* 2
Then it will close again, tilt up and pause for approximately 1 sec-
ond. Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then
release the switch.●
If the moon roof tilts down but then tilts back up
Stop the vehicle.
Press and hold the “UP” switch* 1
until the moon roof moves into the tilt up
position and stops.
Release the “UP” switch once and th en press and hold the “UP” switch
again.* 1
The moon roof will pause for approximately 10 seconds in the tilt up posi-
tion.* 2
Then it will adjust slightly and pause for approximately 1 second.
Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then
release the switch.
* 1
: If the switch is released at the incorrect time, the procedure will have
to be performed again from the beginning.
* 2
: If the switch is released after the above mentioned 10 second pause,
automatic operation will be disabled. In that case, press and hold the
“CLOSE” or “UP” switch, and the moon roof will tilt up and pause for
approximately 1 second. Then it will tilt down, open and close. Check
to make sure that the moon roof is completely closed and then release
the switch.
If the moon roof does not fully close even after performing the above procedure
correctly, have the vehicle inspected by your Lexus dealer.
■
Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features  P. 825)STEP 1
STEP 2
STEP 3
STEP 1
STEP 2
STEP 3
STEP 4

1181-5. Opening and closing the windows and moon roof
CAUTION■
Opening the moon roof
Observe the following precautions.
Failing to do so may cause death or serious injury. ●
Do not allow any passengers to put their hands or heads outside the vehicle while
it is moving.●
Do not sit on top of the moon roof.■
Closing the moon roof
Observe the following precautions.
Failing to do so may result in death or serious injury. ●
Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when the moon roof is being operated. ●
Do not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury. The driver
is responsible for instructing childr en not to operate the moon roof.■
Jam protection function
Observe the following precautions.
Failing to do so may result in death or serious injury. ●
Never use any part of your body to intent ionally activate the jam protection func-
tion.●
The jam protection function may not work if something gets caught just before
the moon roof fully closes. Be careful not to catch fingers or anything else.

1191

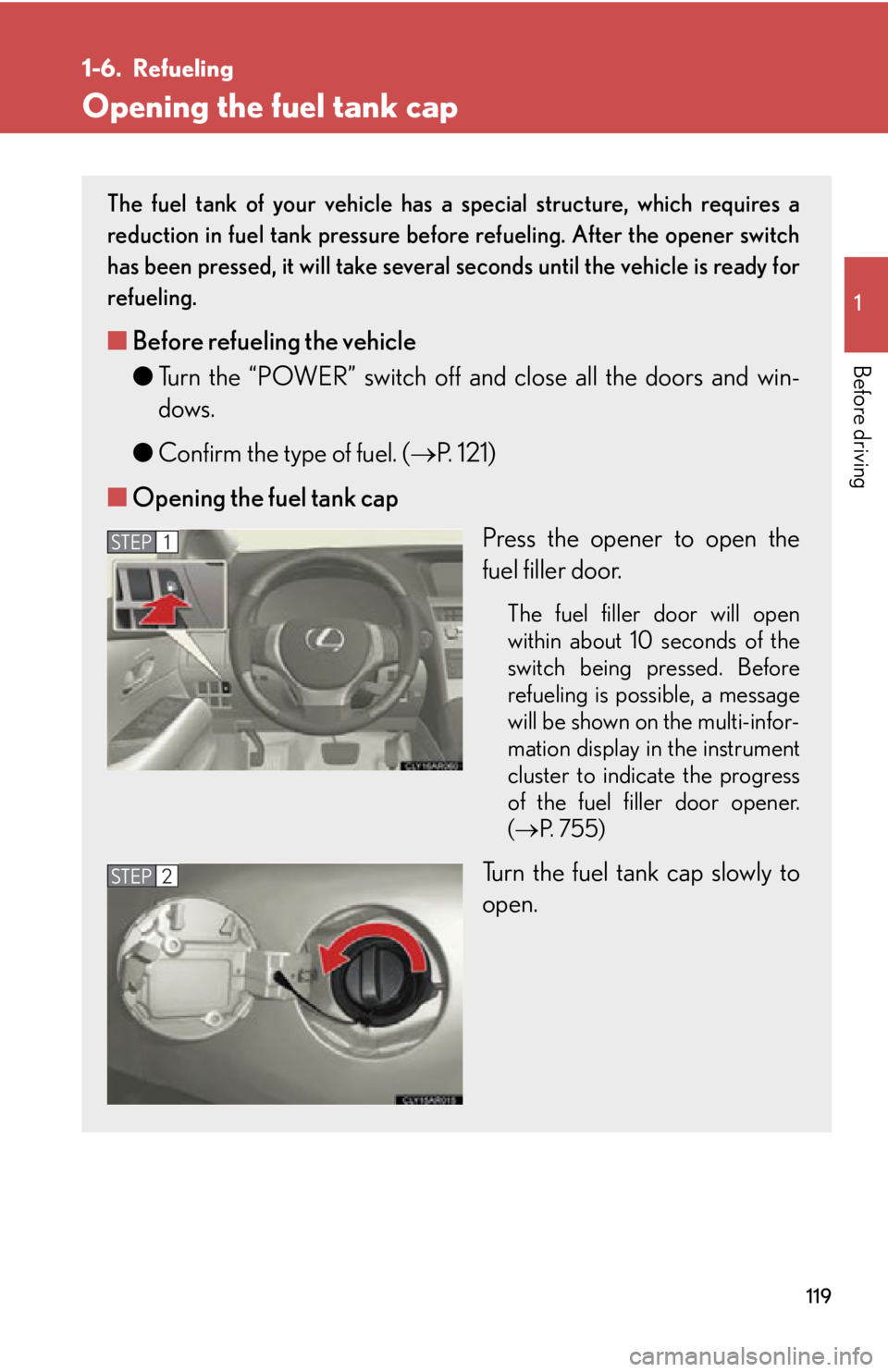

Before driving 1-6. Refueling
Opening the fuel tank cap The fuel tank of your vehicle has a special structure, which requires a
reduction in fuel tank pressure before refueling. After the opener switch
has been pressed, it will take severa l seconds until the vehicle is ready for
refueling.
■ Before refueling the vehicle
● Turn the “POWER” switch off and close all the doors and win-
dows.
● Confirm the type of fuel. (  P. 121)
■ Opening the fuel tank cap
Press the opener to open the
fuel filler door. The fuel filler door will open
within about 10 seconds of the
switch being pressed. Before
refueling is poss ible, a message
will be shown on the multi-infor-
mation display in the instrument
cluster to indicate the progress
of the fuel filler door opener.
(  P. 7 5 5 )
Turn the fuel tank cap slowly to
open.STEP 1
STEP 2

1201-6. Refueling
Closing the fuel tank cap
After refueling, turn the fuel tank
cap until you hear a click.Hang the fuel tank cap on the
back of the fuel filler door.STEP 3
