1511-8. Safety information
1
Before driving Forward facing  Convertible seat
Booster seat
■
Selecting an appropriate child restraint system ●
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.●
If the child is too large for a child restraint system, sit the child on a rear seat and
use the vehicle's seat belt. (  P. 9 9 )

1521-8. Safety information
CAUTION■
Child restraint precautions ●
For effective protection in automobile accidents and sudden stops, a child must
be properly restrained, using a seat belt or child restraint system depending on
the age and size of the child. Holding a chil d in your arms is not a substitute for a
child restraint system. In an accident, th e child can be crushed against the wind-
shield, or between you and the vehicle's interior. This may cause death or serious
injury to the child in the event of a sudden stop or an accident.●
Lexus strongly urges the use of a proper child restraint system that conforms to
the size of the child, installed on the rear seat. According to accident statistics, the
child is safer when properly restrained in the rear seat than in the front seat.●
Never install a rear-facing child restraint system on the front passenger seat even
if the “AIR BAG OFF” indicator light is illumi nated. In the event of an accident, the
force of the rapid inflation of the front passenger airbag can cause death or seri-
ous injury to the child if a rear-facing child restraint system is installed on the front
passenger seat.●
A forward-facing child restraint system may be installed on the front passenger
seat only when it is unavoidable. A child restraint system that requires a top tether
strap should not be used in the front passenger seat since there is no top tether
strap anchor for the front passenger seat. Adjust the seatback as upright as possi-
ble and always move the seat as far back as possible even if the “AIR BAG OFF”
indicator light is illuminated, because th e front passenger airbag could inflate with
considerable speed and force. Otherwise, the child may be killed or seriously
injured.●
Do not use the seat belt extender when installing a child restraint system on the
front or rear passenger seat. If installing a child restraint system with the seat belt
extender connected to the seat belt, the seat belt will not securely hold the child
restraint system, which could cause death or serious injury to the child or other
passengers in the event of a sudden stop, sudden swerve or accident.
●
Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front and rear pillars or roof side rails from which the
SRS side airbags or SRS curtain shield airbags deploy even if the child is seated in
the child restraint system. It is dangerous if the side airbags and curtain shield air-
bags inflate, and the impact could cause death or serious injury to the child.

1531-8. Safety information
1
Before driving CAUTION■
Child restraint precautions
Make sure you have complied with all instal lation instructions provided by the child
restraint manufacturer and that the system is properly secured. If it is not secured
properly, it may cause death or serious injury to the child in the event of a sudden
stop, sudden swerve or an accident.■
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be un fastened, scissors shou ld be used to cut
the belt.■
When the child restraint system is not in use ●
Keep the child restraint system properly secu red on the seat even if it is not in use.
Do not store the child restraint system unsecured in the passenger compartment.●
If it is necessary to detach the child restraint system, remove it from the vehicle or
store it securely in the luggage compartment. This will prevent it from injuring
passengers in the event of a sudden stop, sudden swerve or accident.

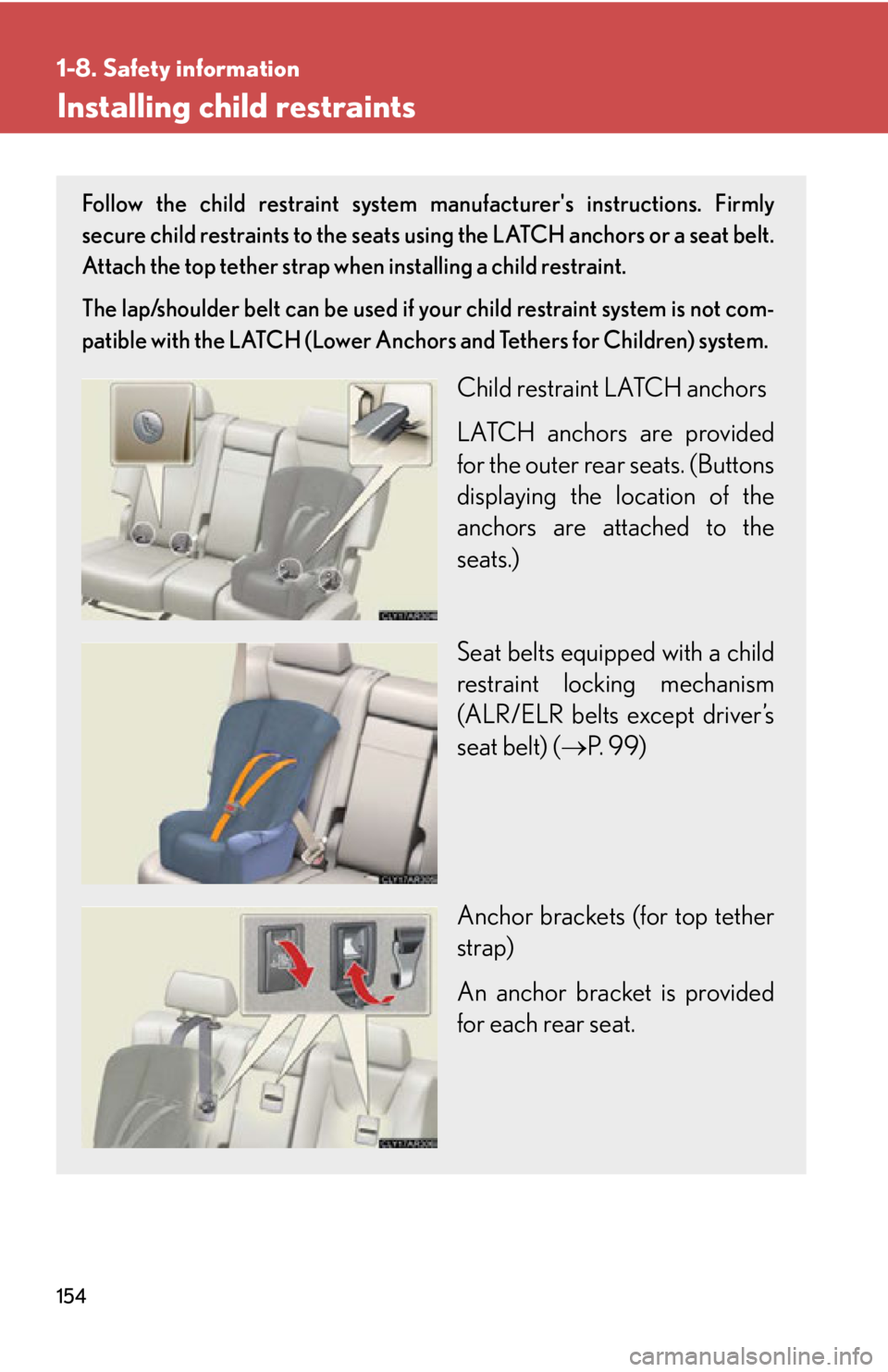

1541-8. Safety information
Installing child restraints Follow the child restraint system ma nufacturer's instructions. Firmly
secure child restraints to the seats using the LATCH anchors or a seat belt.
Attach the top tether strap when installing a child restraint.
The lap/shoulder belt can be used if your child restraint system is not com-
patible with the LATCH (Lower Anchor s and Tethers for Children) system.
Child restraint LATCH anchors
LATCH anchors are provided
for the outer rear seats. (Buttons
displaying the location of the
anchors are attached to the
seats.)
Seat belts equipped with a child
restraint locking mechanism
(ALR/ELR belts except driver’s
seat belt) (  P. 99)
Anchor brackets (for top tether
strap)
An anchor bracket is provided
for each rear seat.

1551-8. Safety information
1
Before driving Installation with LATCH system
Fold the seatback while pulling the
seatback angle adjustment lever.
Return the seatback and secure it
at the first lock position. (  P. 8 9 )
Widen the gap between the seat cushion and seatback slightly.
Type A
Latch the hooks of the lower straps
onto the LATCH anchors. If the
child restraint has a top tether
strap, the top tether strap should
be latched onto the top tether
strap anchor bracket.
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.STEP 1
STEP 2
Canada onlySTEP 3

1561-8. Safety information
Type B
Latch the buckles onto the LATCH
anchors. If the child restraint has a
top tether strap, the top tether
strap should be latched onto the
top tether strap anchor bracket.
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (  P. 161)Canada onlySTEP 3
STEP 4

1571-8. Safety information
1
Before driving Installing child restraints using a seat belt (child restraint lock function belt)
■ Rear-facing  Infant seat/convertible seat
Fold the seatback while pulling the
seatback angle adjustment lever.
Return the seatback and secure it
at the first lock position. (  P. 8 9 )
Place the child restraint system on
the rear seat facing the rear of the
vehicle.
Run the seat belt through the child
restraint system and insert the
plate into the bu ckle. Make sure
that the belt is not twisted.STEP 1
STEP 2
STEP 3

1581-8. Safety information
Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place. After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■ Forward-facing  Convertible seat
Fold the seatback while pulling the
seatback angle adjustment lever.
Return the seatback and secure it
at the first lock position. (  P. 8 9 )
Place the child restraint system on
the seat facing the front of the vehi-
cle.STEP 4
STEP 5
STEP 1
STEP 2

1591-8. Safety information
1
Before driving Run the seat belt through the child
restraint system and insert the
plate into the bu ckle. Make sure
that the belt is not twisted.
Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
While pushing the child restraint
system into the rear seat, allow the
shoulder belt to retract until the
child restraint system is securely in
place. After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top tether strap, the top tether strap
should be latched onto th e top tether strap anchor. (  P. 161)STEP 3
STEP 4
STEP 5
STEP 6

1601-8. Safety information
■ Booster seat
Fold the seatback while pulling the
seatback angle adjustment lever.
Return the seatback and secure it
at the first lock position. (  P. 8 9 )
Place the child restraint system on
the seat facing the front of the vehi-
cle.
Sit the child in the child restraint
system. Fit the seat belt to the child
restraint system according to the
manufacturer's instructions and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Check that the shoulder belt is cor-
rectly positioned over the child's
shoulder, and that the lap belt is as
low as possible. (  P. 9 9
)STEP 1
STEP 2
STEP 3
