811-3. Opening, closing and locking the doors
1
Before driving CAUTION●
Use caution when opening or closing the back door in windy weather as it may
move abruptly in strong wind.
●
Do not pull on the back door damper stay to close the back door, and do not
hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to break,
causing an accident.●
If a bicycle carrier or similar heavy object is attached to the back door, it may sud-
denly shut again after being opened, caus ing someone’s hands, head or neck to
be caught and injured. When installing an accessory part to the back door, using
a genuine Lexus part is recommended. ●
The back door may suddenly shut if it is not
opened fully. It is more difficult to open or
close the back door on an incline than on a
level surface, so beware of the back door
unexpectedly opening or closing by itself.
Make sure that the back door is fully open
and secure before using the luggage com-
partment. ●
When closing the back door, take extra
care to prevent your fingers etc. from being
caught. ●
When closing the back door, make sure to
press it lightly on it s outer surface. If the
back door handle is used to fully close the
back door, it may result in hands or arms
being caught.

821-3. Opening, closing and locking the doors
CAUTION■
Back door closer
●
Use caution when using the back door clos er as it still operates when the power
back door system is cancelled.■
Power back door
Observe the following precautions when operating the power back door.
Failure to do so may cause death or serious injury. ●
Check the safety of the surrounding area to make sure there are no obstacles or
anything that could cause any of your belongings to get caught. ●
If anyone is in the vicinity, make sure th ey are safe and let them know that the back
door is about to open or close.●
If the power back door system is turned off with the main switch while the back
door is operating automatically, the automatic operation is stopped. The back
door then has to be operated manually. Take extra care when on an incline, as the
back door may open or close unexpectedly.●
If the operating conditions of the power back door are no longer met, a buzzer
may sound and the back door may stop opening or closing. The back door then
has to be operated manually. Take extra ca re when on an incline, as the back door
may open or close abruptly.
●
On an incline, the back door may suddenl y shut after it opens. Make sure the
back door is fully open and secure. ●
In the event that the back door is left slightly
open, the back door closer will automati-
cally close it to the fully closed position. It
takes several seconds before the back
door closer begins to operate. Be careful
not to catch fingers or anything else in the
back door, as this may cause bone frac-
tures or other serious injuries.

831-3. Opening, closing and locking the doors
1
Before driving CAUTION●
In the following situations, the power b ack door may detect an abnormality and
automatic operation may be stopped. In this case, the back door has to be oper-
ated manually. Take extra care when on an incline, as the back door may open or
close abruptly.
• When the back door contacts an obstacle
• When the 12-volt battery voltage suddenly drops, such as when the
“POWER” switch is turned to ON mode or the hybrid system is started dur-
ing automatic operation●
If a bicycle carrier or similar heavy object is attached to the back door, the power
back door may not operate, causing itself to malfunction, or the back door may
suddenly shut again after being opened, causing someone’s hands, head or neck
to be caught and injured. When installing an accessory part to the back door,
using a genuine Lexus part is recommended.■
Jam protection function
Observe the following precautions.
Failure to do so may cause death or serious injury. ●
Be careful while the jam protection function is operating. Being hit by the back
door may result in an injury.●
Although the back door stops closing wh en the jam protection function detects
an object, take extra care as you may still be injured if part of your body is already
caught.●
If anything obstructs the power back door while it is closing, the jam protection
function will cause the back door to automatically operate in the opposite direc-
tion. However, be careful not to jam body parts in the doorframe, as an injury may
result.●
Never use any part of your body to intent ionally activate the jam protection func-
tion.
●
The jam protection function may not work if something gets caught just before
the back door fully closes. Be careful not to catch fingers or anything else.

841-3. Opening, closing and locking the doors
CAUTION●
The jam protection function may not work depending on the shape of the object
that is caught. Be careful not to catch fingers or anything else.●
The sensors located on the right and left sides of the power back door detect
obstructions and prevent them from becoming jammed in the door. Some objects
may not be detected depending on their shape or how they are jammed. Be care-
ful not to get fingers or other body parts caught in the back door while it is oper-
ating as this may result in a serious injury.
NOTICE■
Back door damper stays
The back door is equipped with damper stays that hold the back door in place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting in mal-
function.
■
To prevent back door closer malfunction
●
Do not apply excessive force to the back d oor while the back door closer is oper-
ating.
●
If the back door is opened and closed repeatedly in a short amount of time, the
back door closer may stop operating. In this case, manually open the back door
once and wait for a while before attempting to close it again. ●
Do not attach any foreign objects, such as
stickers, plastic sheets, or adhesives to the
damper stay rod. ●
Do not touch the damper stay rod with
gloves or other fabric items. ●
Do not attach any accessories other than
genuine Lexus parts to the back door. ●
Do not place your hand on the damper stay
or apply lateral forces to it.

851-3. Opening, closing and locking the doors
1
Before driving NOTICE■
To prevent damage to the power back door ●
Make sure that there is no ice between the back door and frame that would pre-
vent movement of the back door. Operating the power back door when exces-
sive load is present on the back door may cause a malfunction.●
Do not apply excessive force to the back door while the power back door is oper-
ating.●
Take care not to damage the sensors (installed on the right and left edges of the
power back door) with a knife or other sharp object. If the sensor is disconnected,
the power back door will not operate in automatic operation.●
When manually closing the back door immediately after the power back door
has been automatically opened full y, some resistan ce may be felt.

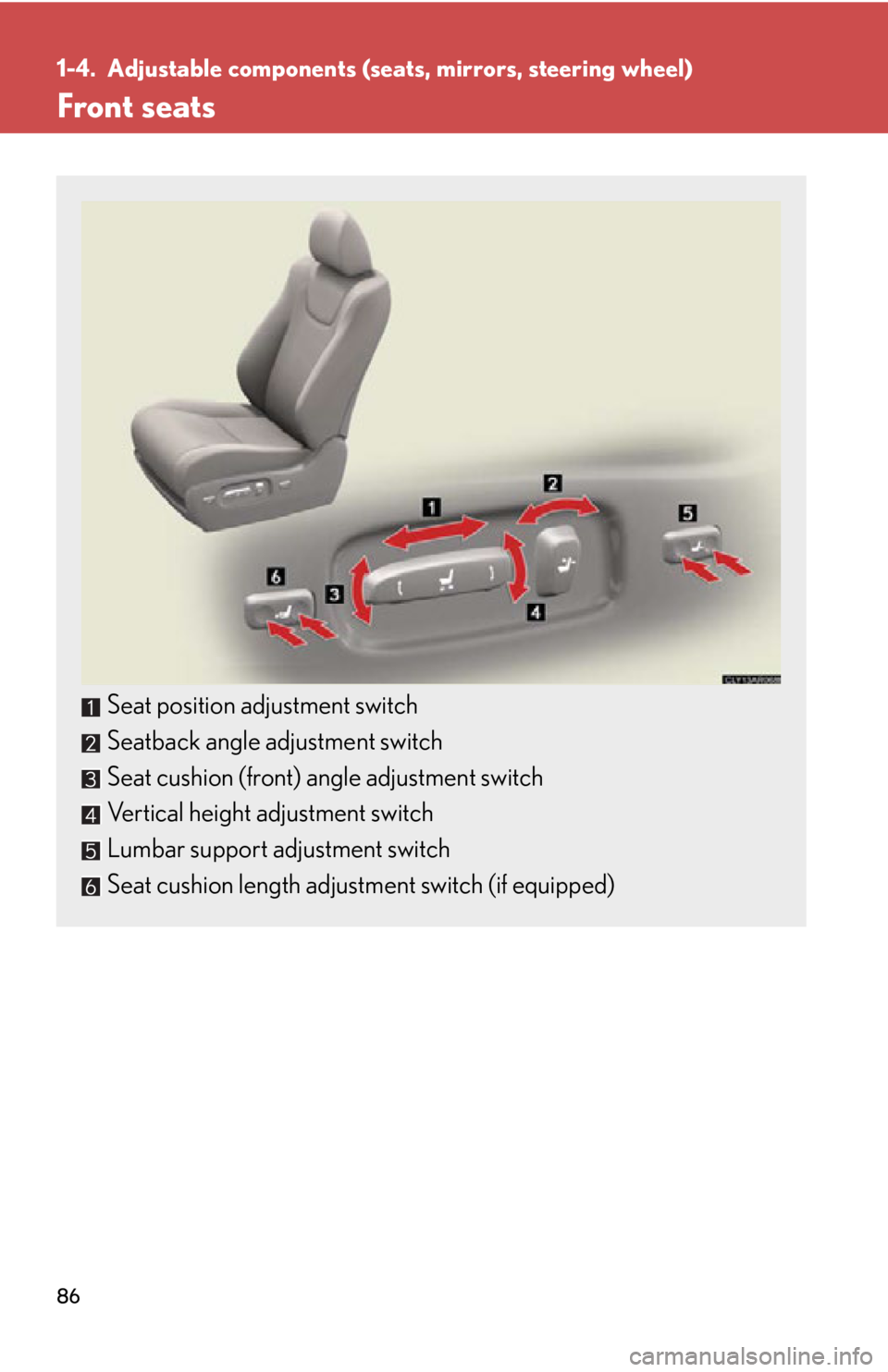

861-4. Adjustable components (s eats, mirrors, steering wheel)
Front seats
Seat position adjustment switch
Seatback angle adjustment switch
Seat cushion (front) angle adjustment switch
Vertical height adjustment switch
Lumbar support adjustment switch
Seat cushion length adjustment switch (if equipped)

871-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving Flattening the front seatbacks
■ Before flattening the front seatbacks
Slide the rear seats as far back as possible. (  P. 8 9 )
■ Flattening the front seatbacks
Move the front seat forward, raise
the seat, and remove the head
restraint. (  P. 9 7 )After returning the seat to its origi-
nal position, make sure to replace
the head restraint.
Move the seatback angle adjust-
ment switch backward to flatten
the seatback.
Active head restraints
When the occupant’s lower back
presses against the seatback dur-
ing a rear-end collision, the head
restraint moves slightly forward
and upward to help reduce the risk
of whiplash to the seat occupant.STEP 1
STEP 2

881-4. Adjustable components (s eats, mirrors, steering wheel)
■
Active head restraints
Even small forces applied to the seatback may cause the head restraint to move.
Pushing up a locked head restraint forcibly may appear the head restraint inner
structure. These do not indicate problems.
CAUTION■
Seat adjustment ●
To reduce the risk of sliding under the lap belt during a collision, do not recline the
seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen, or yo ur neck may contact the shoulder belt,
increasing the risk of death or seriou s injury in the event of an accident.●
Adjustments should not be made while driving as the seat may unexpectedly
move and cause the driver to lose control of the vehicle.
■
While driving
Do not allow passengers to ride on the flattened seat. Inner
structure During
rear-end
collision

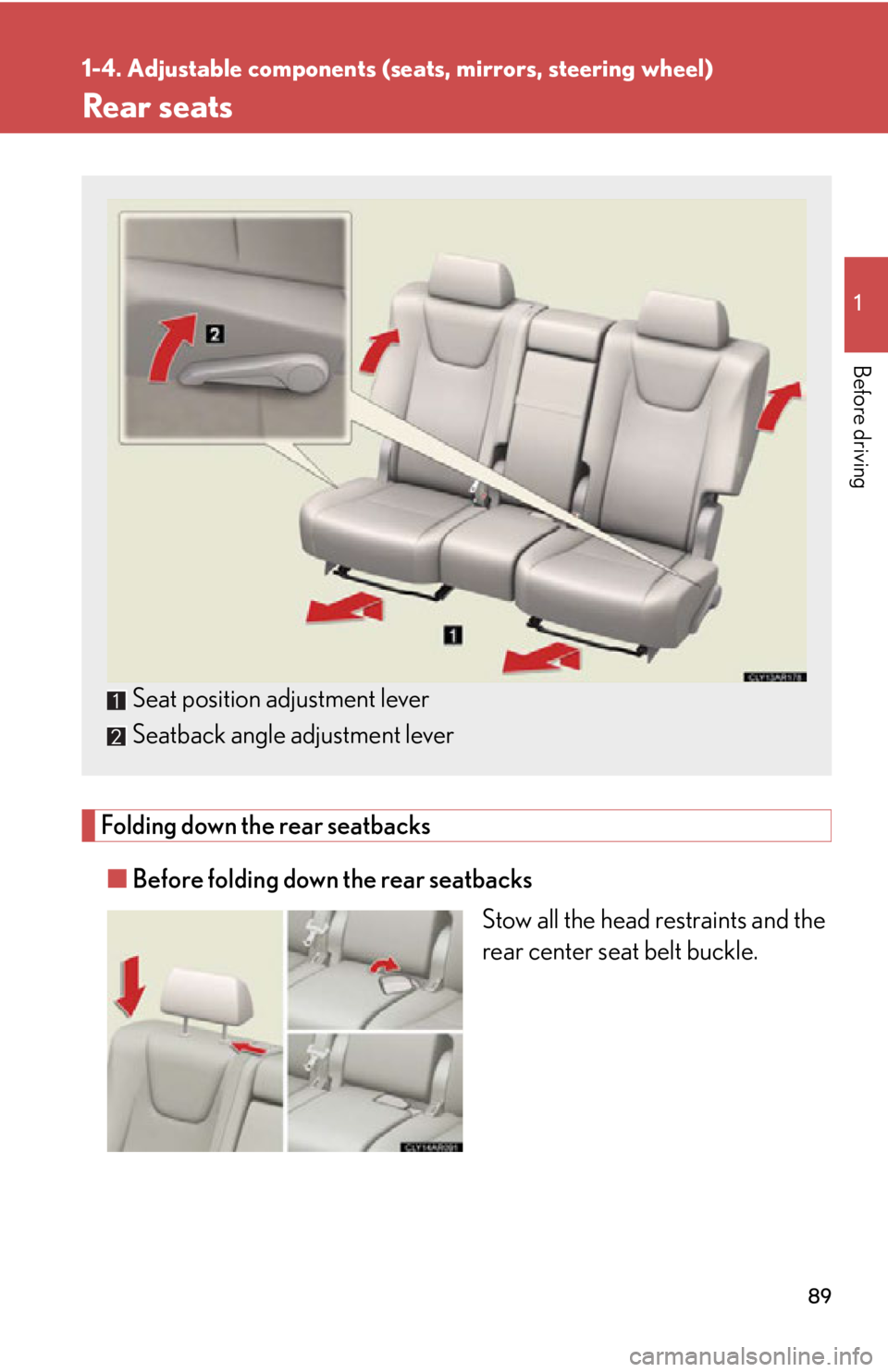

8911-4. Adjustable components (s eats, mirrors, steering wheel)
Before driving Rear seats
Folding down the rear seatbacks
■ Before folding down the rear seatbacks
Stow all the head restraints and the
rear center seat belt buckle.Seat position adjustment lever
Seatback angle adjustment lever

901-4. Adjustable components (s eats, mirrors, steering wheel)
■ Folding down the rear seatbacks
From inside
Pull the seatback angle adjustment
lever. To return the rear seatbacks to
their original positions, lift them up
until they lock.
From outside
Pull the levers.
Left side lever: Folds down the
left side rear seat
Right side lever: Folds down the
right side and
center rear seatsTo return the rear seatbacks to
their original positions, lift them up
until they lock.
■ Folding down the rear center seatback
Pull the center seatback angle
lever behind the seatback and fold
the seatback down.
To return the rear center seatback
to its original position, lift it up until
it locks.
