LEXUS RX450h 2015 Owners Manual

1912-1. Driving procedures
2
When driving ■
AI-SHIFT
AI-SHIFT automatically selects the suitable gear according to driver performance
and driving conditions.
AI-SHIFT automatically operates when the sh ift lever is in the D position. (Shifting
the shift lever to the S posi tion cancels the function.)■
When driving with cruise control or radar cruise control activated
Even when performing the following acti ons with the intent of enabling engine
braking, engine braking will not activate because cruise control or radar cruise
control will not be canceled. ●
While driving in D or S mode, downshifting to 5 or 4. (  P. 232, 236)●
When switching the driving mode to sport mode while driving in D position.
(  P. 1 8 9 )■
If the shift lever cannot be shifted from P
 P. 7 7 9■
If S does not come on even after shifting the shift lever to S
This may indicate a malfunction in the hybr id transmission system. Have the vehicle
inspected by your Lexus dealer immediately.
(In this situation, the hybrid transmission will operate in the same as manner as when
the shift lever is in D.)■
Downshift restriction warning buzzer (S mode)
To help ensure safety and driving perfor mance, downshifting operation may some-
times be restricted. In some circumstances, downshifting may not be possible even
when the shift lever is operated. (The buzzer will sound twice.)

1922-1. Driving procedures
CAUTION■
When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid, resulting in
an accident.
NOTICE■
Hybrid battery (traction battery) charge precaution
If the shift lever is in N, the hybrid battery (traction battery) wi ll not be charged even
when the engine is running. Therefore, if the vehicle is left with the shift lever in N for
a long period of time, the hybrid battery (traction battery) will discharge, and this
may result in the vehicle not being able to start.

1932-1. Driving procedures
2
When driving Turn signal lever The turn signal lever can be used to show the following intention of the
driver:
Type A
Right turn
Left turn
Lane change to the right
(move the lever partway and
release it) The right hand signals will flash
3 times.
Lane change to the left (move
the lever partway and release
it) The left hand signals will flash 3
times.

1942-1. Driving procedures
■
Turn signals can be operated when
The “POWER” switch is in ON mode.■
If the indicators flash faster than usual
Check that a light bulb in the front or re ar turn signal lights has not burned out.■
If the turn signals stop flashing before a lane change has been performed
Operate the lever again.■
To discontinue flashing of the tu rn signals during a lane change
Operate the lever in the opposite direction.
■
Customization
The number of times the turn signals flash during a lane change can be changed.

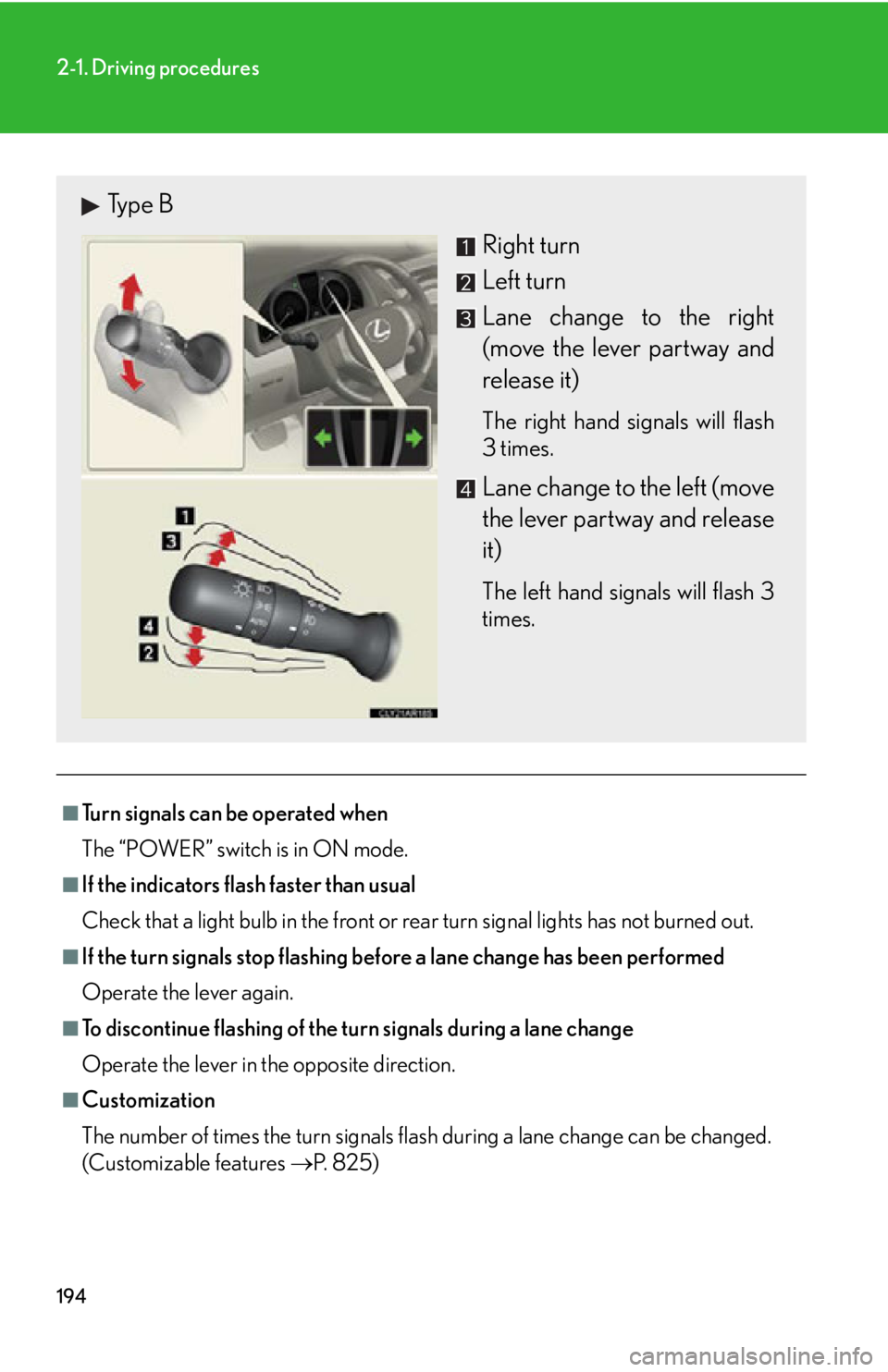

(Customizable features  P. 825)Type B
Right turn
Left turn
Lane change to the right
(move the lever partway and
release it) The right hand signals will flash
3 times.
Lane change to the left (move
the lever partway and release
it) The left hand signals will flash 3
times.

1952-1. Driving procedures
2

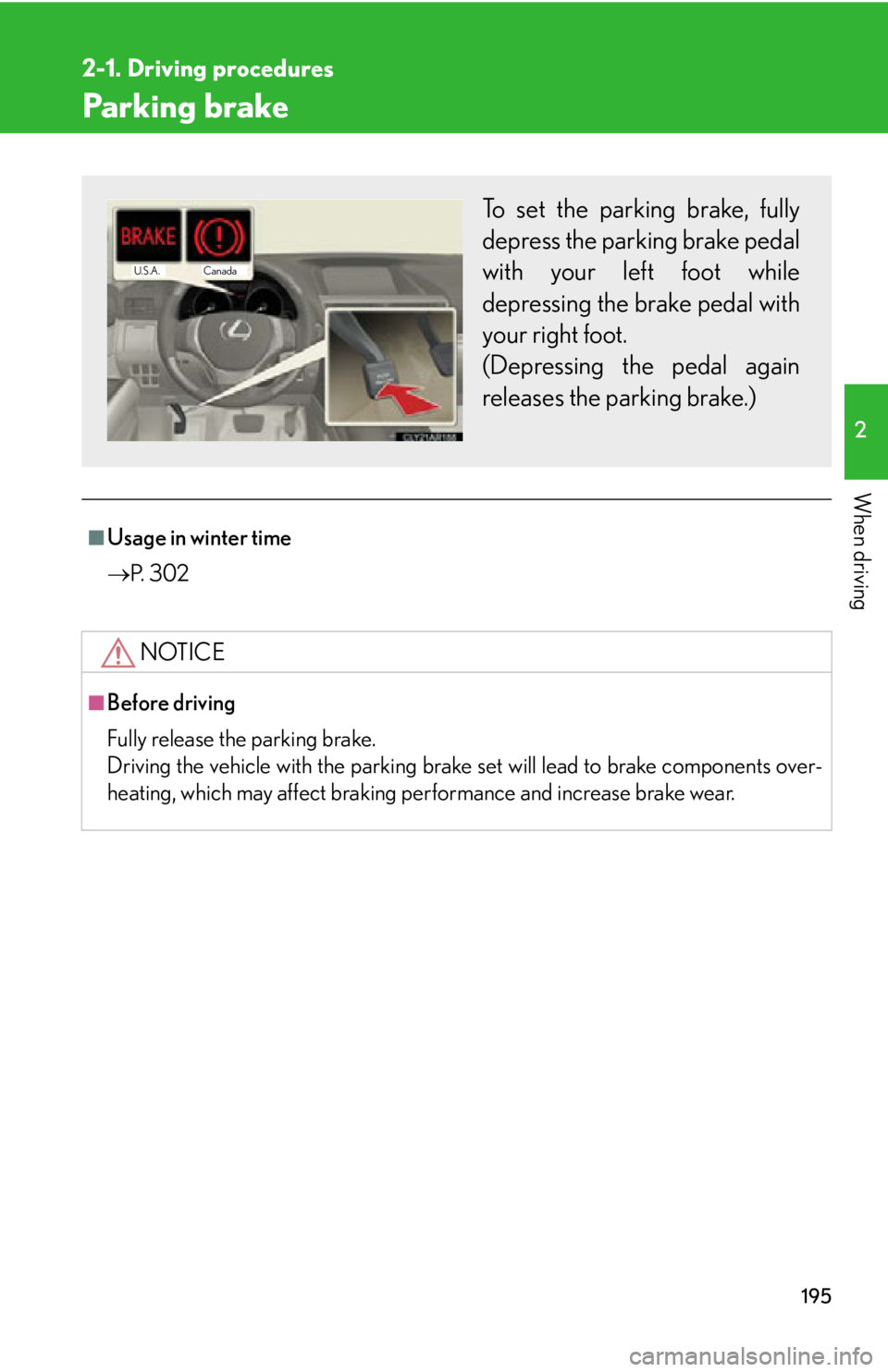

When driving Parking brake ■
Usage in winter time
 P. 3 0 2
NOTICE■
Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components over-
heating, which may affect braking performance and increase brake wear. To set the parking brake, fully
depress the parking brake pedal
with your left foot while
depressing the brake pedal with
your right foot.
(Depressing the pedal again
releases the parking brake.) Canada
U.S.A.

1962-1. Driving procedures

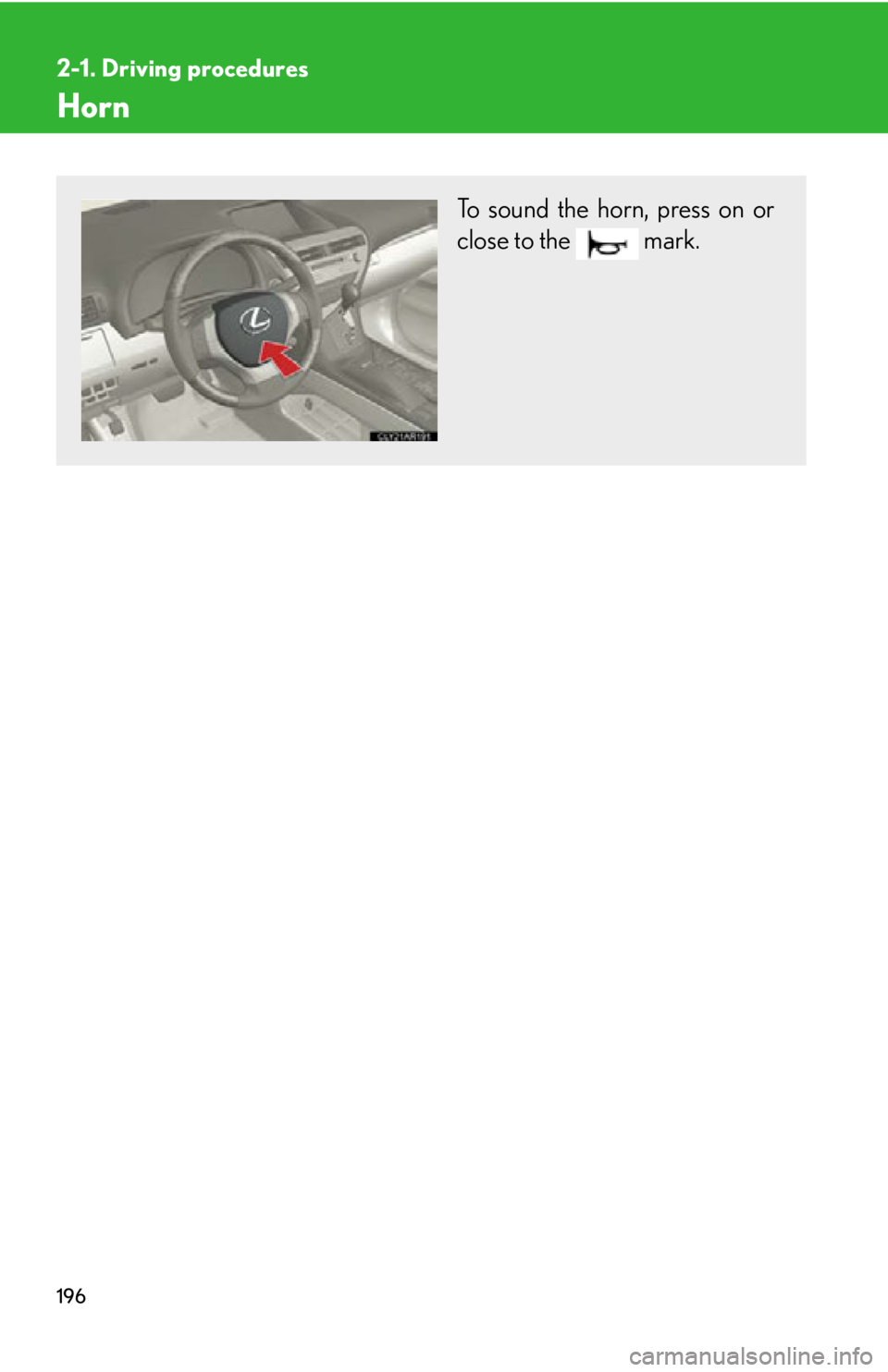

Horn To sound the horn, press on or
close to the mark.

1972
When driving 2-2. Instrument cluster

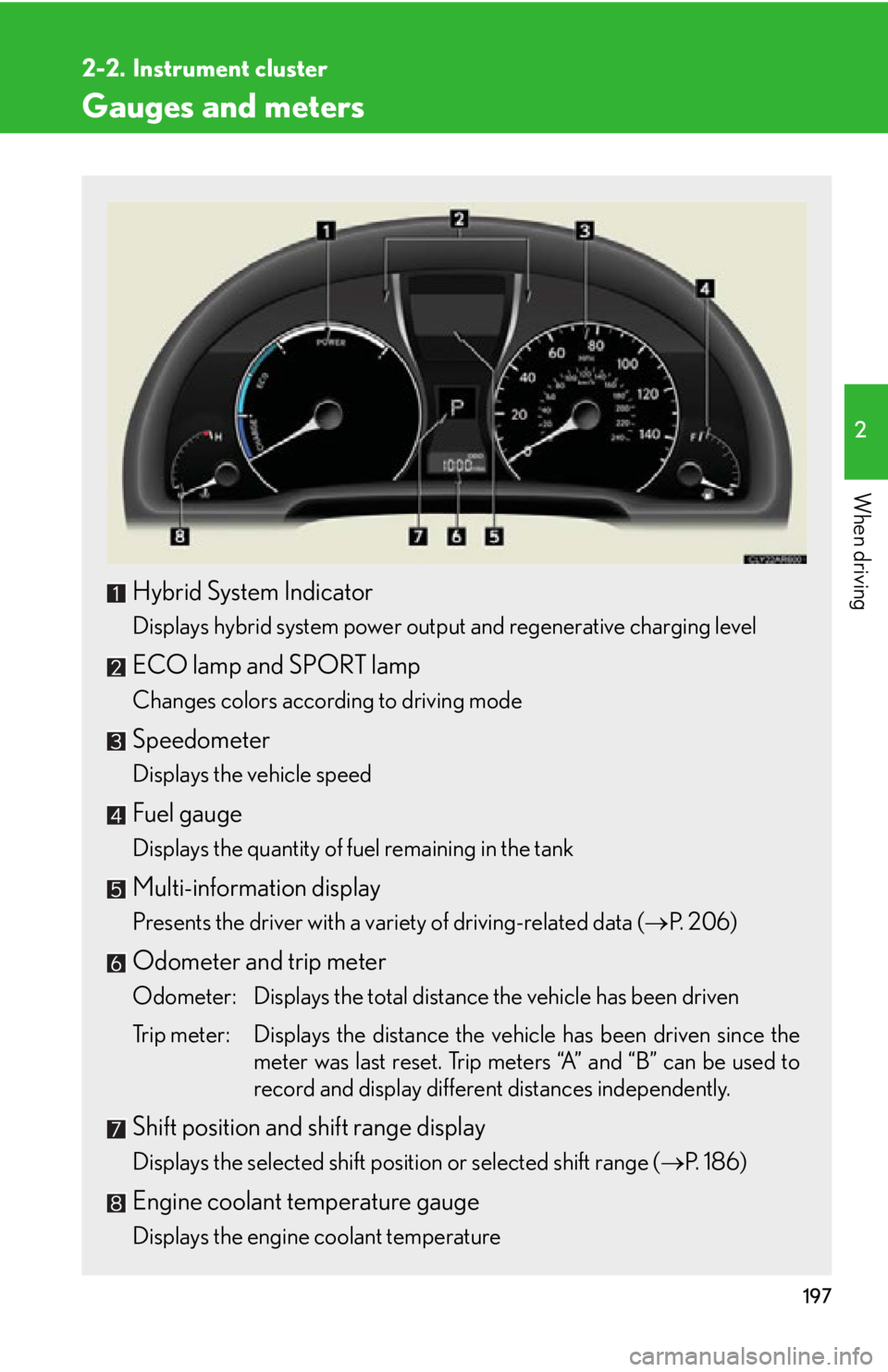

Gauges and meters
Hybrid System Indicator Displays hybrid system power output and regenerative charging level
ECO lamp and SPORT lamp Changes colors according to driving mode
Speedometer Displays the vehicle speed
Fuel gauge Displays the quantity of fuel remaining in the tank
Multi-information display Presents the driver with a variety of driving-related data (  P. 2 0 6 )
Odometer and trip meter
Odometer: Displays the total distance the vehicle has been driven
Trip meter: Displays the distance the vehicle has been driven since the
meter was last reset. Trip meters “A” and “B” can be used to
record and display different distances independently.
Shift position and shift range display
Displays the selected shift position or selected shift range (  P. 1 8 6 )
Engine coolant temperature gauge
Displays the engine coolant temperature

1982-2. Instrument cluster
Changing the display
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the
trip meter.
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
■
The meters and displa y illuminate when
The “POWER” switch is in ON mode.

1992-2. Instrument cluster
2
When driving ■
Hybrid System Indicator
●
By keeping the indicator within Eco area, more Eco-friendly driving can be
achieved.●
Charge area indicates regeneration* st atus. Regenerated energy will be used
to charge the hybrid battery (traction battery).
*: When used in this manual, “regeneration” refers to the conversion of energy cre-
ated by the movement of the ve hicle into electrical energy.■
ECO lamp and SPORT lamp ●
When sport mode is selected, the SPORT lamp (red) will illuminate.●
When all of the following conditions are satisfied and the Eco-friendly driving,
the ECO lamp (blue) will illuminate:
• When driving with the shift lever in D
• When either normal mode or Eco mode are selected, and EV drive mode
and snow mode are not in use
• The vehicle speed is approximately 80 mph (130 km/h) or below.
■
Customization
Settings (e.g. on/off operation of the ECO lamp) can be changed.
(Customizable features  P. 8 2 5 ) Po w e r a r e a
Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)
Eco area
Shows that the vehicle is being driven in an
Eco-friendly manner.
Hybrid Eco area
Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically
stop and restart under various conditions.
Charge area
Shows that energy is being recovered via
regenerative braking.

2002-2. Instrument cluster
NOTICE■
To prevent damage to the engine and its components
The engine may be overheating if the engi ne coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. (  P. 7 8 8 )
