15Pictorial index
When the warning messages are displayed.......................................................... P.428
Parking brake switch ............................................................................................. P.195
Applying/releasing ........................................................................................................... P.195
Precautions for winter season .. ................................................................................... P.292
Warning buzzer/messages.......................................................................................... P.428
Turn signal lever ...................................................................................................... P.194
Headlight switch.................................................................................................... P.200
Headlights/side marker lights/parking lights/tail lights/license plate lights/daytime
running lights ................................................................................................................. .....P.200
Fog lights
*1........................................................................................................................... P.20 6
Windshield wiper and washer switch ..................................................... P.206, 210
Usage.......................................................................................................................... .P.206, 210
Adding washer fluid ......................................................................................................... P.3 75
Warning messages .......................................................................................................... P.428
Emergency flasher switch ....................................................................................P.410
Hood lock release lever .......................................................................................P.369
Tilt and telescopic steering contro l switch................................ ......................P.148
Adjustment ..................................................................................................................... ...... P.148
Driving position memory
*1..............................................................................................P.142
Air conditioning system ...................................................................................... P.304
Usage.....................................................................................................................................P.304
Rear window defogger...................................................................................................P.304
Audio system
*2
*1
: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
E
F
G
H
I
J
K
L

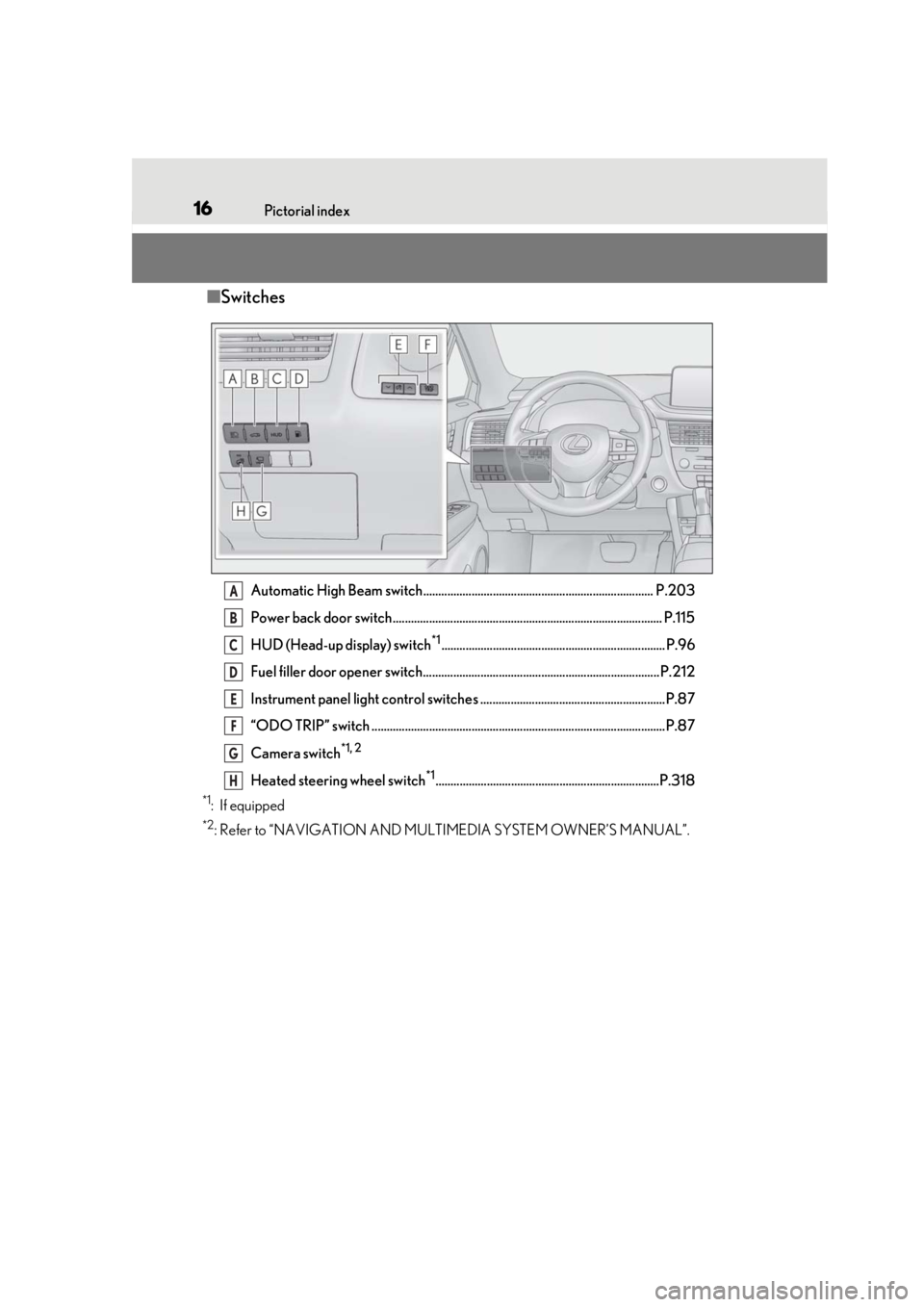

16Pictorial index
■Switches
Automatic High Beam switch............................................................................ P.203
Power back door switch......................................................................................... P.115
HUD (Head-up display) switch
*1.......................................................................... P.96
Fuel filler door opener switch.............................................................................. P.212
Instrument panel light control switches .............................................................P.87
“ODO TRIP” switch .................................................................................................P.87
Camera switch
*1, 2
Heated steering wheel switch*1..........................................................................P.318
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
A
B
C
D
E
F
G
H

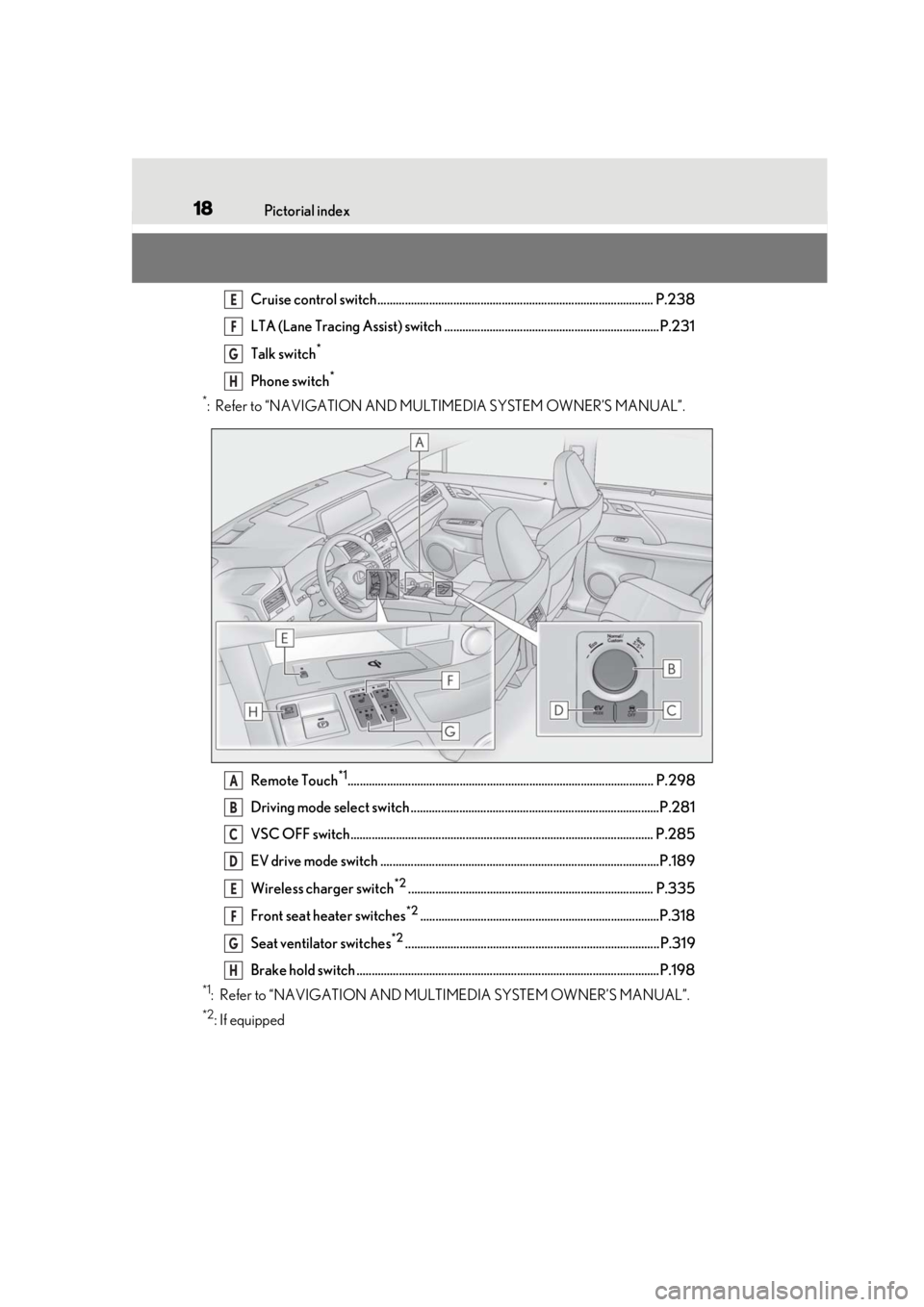

18Pictorial index
Cruise control switch........................................................................................... P.238
LTA (Lane Tracing Assist) switch .......................................................................P.231
Talk switch
*
Phone switch*
*
: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
Remote Touch
*1..................................................................................................... P.298
Driving mode select switch ..................................................................................P.281
VSC OFF switch.................................................................................................... P.285
EV drive mode switch ............................................................................................P.189
Wireless charger switch
*2................................................................................. P.335
Front seat heater switches
*2...............................................................................P.318
Seat ventilator switches
*2.................................................................................... P.319
Brake hold switch ....................................................................................................P.198
*1: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2: If equipped
E
F
G
H
A
B
C
D
E
F
G
H

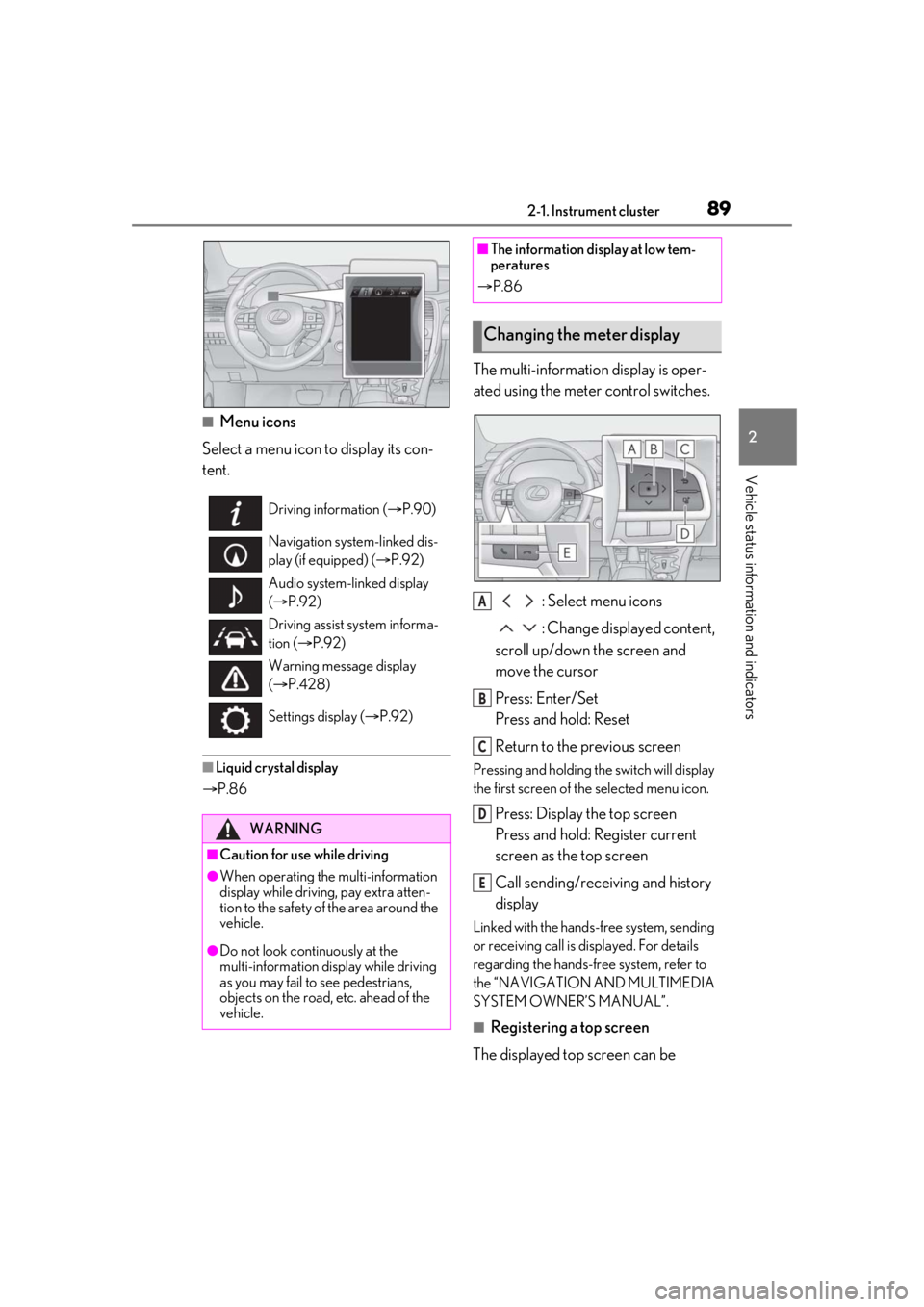

892-1. Instrument cluster
2
Vehicle status information and indicators
■Menu icons
Select a menu icon to display its con-
tent.
■Liquid crystal display
 P.86
The multi-information display is oper-
ated using the meter control switches.
: Select menu icons
: Change displayed content,
scroll up/down the screen and
move the cursor
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Pressing and holding the switch will display
the first screen of the selected menu icon.
Press: Display the top screen
Press and hold: Register current
screen as the top screen
Call sending/receiving and history
display
Linked with the hands-free system, sending
or receiving call is di splayed. For details
regarding the hands-free system, refer to
the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.
■Registering a top screen
The displayed top screen can be
Driving information ( P.90)
Navigation syst em-linked dis-
play (if equipped) ( P.92)
Audio system-linked display
(  P.92)
Driving assist system informa-
tion ( P.92)
Warning message display
(  P.428)
Settings display ( P.92)
WARNING
■Caution for use while driving
●When operating the multi-information
display while driving, pay extra atten-
tion to the safety of the area around the
vehicle.
●Do not look continuously at the
multi-information di splay while driving
as you may fail to see pedestrians,
objects on the road, etc. ahead of the
vehicle.
■The information display at low tem-
peratures
 P.86
Changing the meter display
A
B
C
D
E

922-1. Instrument cluster
switch is turned to ON mode. It may also
take a few minutes to display the tire infla-
tion pressure after inflation pressure has
been adjusted.
• “---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
• Tire inflation pressure changes with tem- perature. The displayed values may also
be different from the values measured
using a tire pressure gauge.
Select to display the following naviga-
tion system-linked information.
 Route guidance
 Compass display (heading-up dis-
play)
Select to enable selection of an audio
source or track on the meter using the
meter control switches.
Select to display the operational status
of the following systems:
 LTA (Lane Tracing Assist) ( P.227)
 RSA (Road Sign Assist) (if
equipped) ( P.236)
 Dynamic radar cruise control with
full-speed range ( P.238)
■Meter display settings that can be
changed
 Clock
Select to switch between 12-hour display
and 24-hour display.
Language
Select to change the language displayed.
Units
Select to change the units of measure dis-
played.
 EV indicator ( P.189)
Select to enable/disable the EV indicator.
 Switch settings
Select to display how to change the top
screen.
Drive information 1/Drive informa-
tion 2/Drive information 3
Select to select up to 2 items ( P.90) that
will be displayed on each Drive information
screen (Drive information 1 screen, Drive
information 2 screen, and Drive informa-
tion 3 screen) respectively.
 Pop-up display
Select to enable/disable the pop-up dis-
play.
• Intersection guidance
• Incoming calls
• Brightness adjustment
Color (except F SPORT models)
Select to set the color of the cursor on the
multi-information display.
Tachometer setting
Select to set the tachometer or Hybrid
System Indicator to always be displayed or
Navigation system-linked dis-
play (if equipped)
Audio system-linked display
Driving assist system information
Settings display

952-1. Instrument cluster
2
Vehicle status information and indicators
*:If equipped
Illustrations used in this text are intended as examples, and may differ from the image that is
actually displayed by the head-up display.
Navigation system-linked display area (if equipped) ( P.98)
Message display area ( P.98)
Displays the following items:
• Warning/Message (if equipped)
• Audio system operation status
• Outside temperature
Displays the following item, which ar e linked to the navigation system:
•Street name
/ icon ( P.97)
Driving assist system status display area (if equipped)
Displays the operational stat us of the following systems:
• Dynamic radar cruise control with full-speed range ( P.238)
• LTA (Lane Tracing Assist) ( P.227)
• Intuitive parking assist ( P.255)
• Parking Support Brake function (for static objects) (P.271)
Displayed content is the same as that displaye d on the multi-information display. For details,

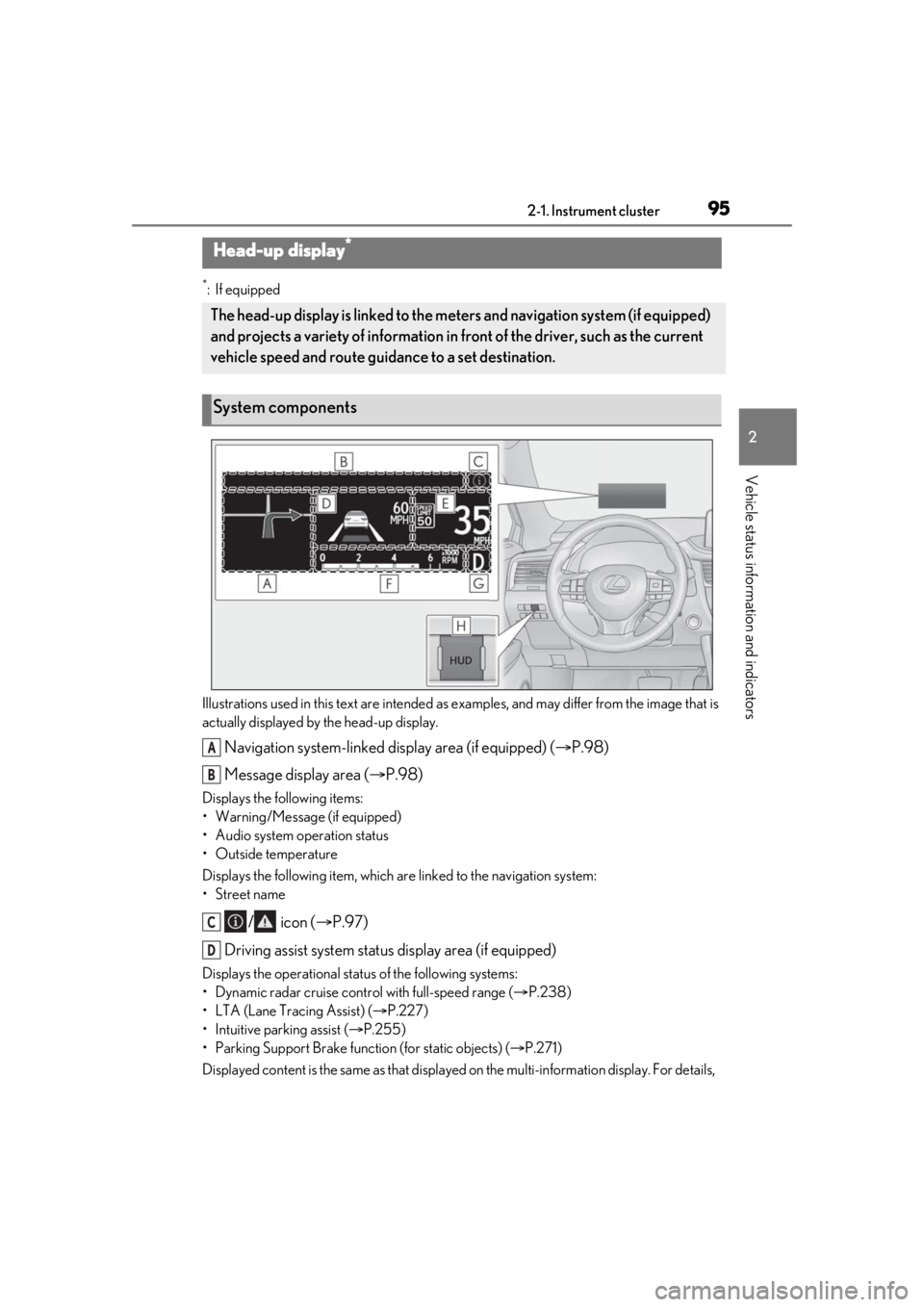

Head-up display*
The head-up display is linked to the meters and navigation system (if equipped)
and projects a variety of information in front of the driver, such as the current
vehicle speed and route guidance to a set destination.
System components
A
B
C
D

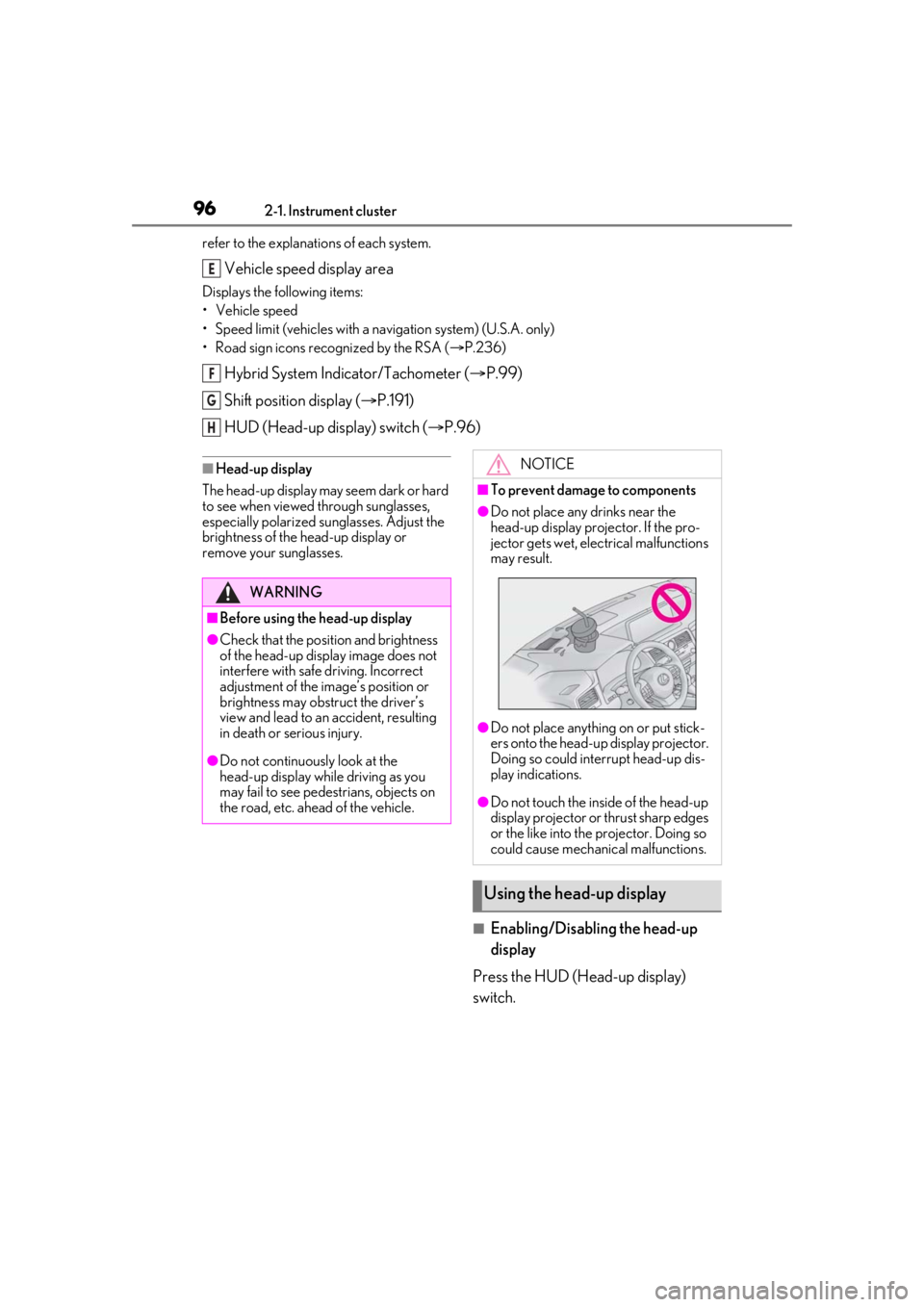

962-1. Instrument cluster
refer to the explanations of each system.
Vehicle speed display area
Displays the following items:
• Vehicle speed
• Speed limit (vehicles with a navigation system) (U.S.A. only)
• Road sign icons recognized by the RSA ( P.236)
Hybrid System Indicator/Tachometer ( P.99)
Shift position display ( P.191)
HUD (Head-up display) switch ( P.96)
■Head-up display
The head-up display may seem dark or hard
to see when viewed through sunglasses,
especially polarized su nglasses. Adjust the
brightness of the head-up display or
remove your sunglasses.
■Enabling/Disabling the head-up
display
Press the HUD (Head-up display)
switch.
E
F
G
H
WARNING
■Before using the head-up display
●Check that the position and brightness
of the head-up display image does not
interfere with safe driving. Incorrect
adjustment of the image’s position or
brightness may obstruct the driver’s
view and lead to an accident, resulting
in death or serious injury.
●Do not continuously look at the
head-up display while driving as you
may fail to see pedestrians, objects on
the road, etc. ahead of the vehicle.
NOTICE
■To prevent damage to components
●Do not place any drinks near the
head-up display projector. If the pro-
jector gets wet, electrical malfunctions
may result.
●Do not place anything on or put stick-
ers onto the head-up display projector.
Doing so could interrupt head-up dis-
play indications.
●Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector. Doing so
could cause mechanical malfunctions.
Using the head-up display

982-1. Instrument cluster
played on the multi-information display.
( P.428)
: Information icon
Displayed when a suggestion/advice
pop-up display is displayed on the
multi-information display. ( P.93)
Displays the following items in the
appropriate situation:
■Warning/Message (if equipped)
Displays the following system warn-
ing/messages:
 PCS (Pre-Collision System)
( P.220)
 Parking Support Brake function (for
static objects) ( P.271)
 Dynamic radar cruise control with
full-speed range ( P.238)
 Brake Override System ( P.164)
 Drive-Start Control ( P.165)
Details of content displayed on the
head-up display may differ from that dis-
played on the multi-information display. For
details, refer to the explanation of each sys-
tem.
■Audio system operation status
Displayed when the audio system is
operated.
■Outside temperature
Displayed in the following situations:
 When the power switch is turned to
ON mode
 When the low outside temperature
indicator is flashing Displayed content is the same as that
displayed on the multi-information dis-
play. For details, refer to the explana-
tion of the outside temperature display
on the multi-information display.
(
P.86)
Displays the following items which are
linked to the navigation system:
■Street name
The name of the street that the vehicle
is currently driving on is displayed on
the bottom of the display area.
When the navigation system is per-
forming route guidance, the name of
the next street will be displayed on the
top of the display area.
■Street name display (vehicles with a nav-
igation system)
Only street names which are included in the
map data will be displayed.
Displays the following items which are
linked to the navigation system:
■Route guidance to destination
Displayed when the navigation system
is performing route guidance. When
approaching an intersection, an arrow
will be displayed to indicate the sug-
gested direction of travel.
■Compass
Displays the direction of travel.
Message display area
Navigation system-linked dis-
play area (if equipped)

1243-2. Opening, closing and locking the doors
The Hands Free Power Back Door
(kick sensor) can be enabled/disabled
on the multi-information display.
( P.88)
1 Press or of the meter con-
trol switches and select .
2 Press or of the meter con-
trol switches, select the “Vehicle
Settings” and then press .
3 Press or of the meter con-
trol switches, select and
then press .
4 Press or of the meter con-
trol switches, and then select “Kick
Sensor”.
5 ON and OFF will be switched over
with presses of on the meter
control switches.
When OFF is selected and the operations
of the Hands Free Power Back Door is
made to stop from the of multi-infor-
mation display, unless it is set to ON, the
operation of the Hands Free Power Back
Door will not return. (No return in the
power switch operation)
The open position of the power back-
door can be adjusted.
1 Stop the power back door at the
desired position. ( P.115) 2
Press and hold the switch on
the lower part of the power back
door for 2 seconds.
 When setting is complete, a buzzer
will sound 4 times.
 The next time the power back door
is opened, it will stop at that position.
■Returning the power back door opening
position to the default setting
Press and hold the switch on the
lower part of the power back door for 7
seconds.
A buzzer will sound twice. The next time
the power back door is opened, it will open
to the default position.
■Customization
The opening position can be set with the
navigation system or multimedia system.
Priority for the stop position is given to the
last position set by either the switch,
navigation system or multimedia system.
(Customizable features: P.480)
Canceling the Hands Free
Power Back Door (if equipped)
Adjusting the open position of
the power back door

2384-5. Using the driving support systems
●Side road speed signs may be detected
and displayed (if positioned in sight of the
front camera) while the vehicle is travel-
ing on the main road.
●Roundabout exit road speed signs may
be detected and displayed (if positioned
in sight of the front camera) while travel-
ing on a roundabout.
●The front of the vehicle is raised or low-
ered due to the carried load.
●The surrounding brightness is not suffi-
cient or changes suddenly.
●When a sign intended for trucks, etc. is
recognized.
●The speed information displayed on the
meter and on the navigation system may
be different due to the navigation system
using map data.
■Speed limit sign display
If the power switch was last turned off while
a speed limit sign wa s displayed on the
multi-information display, the same sign dis-
plays again when the power switch is turned
to ON mode.
■Customization
Some functions can be customized. (Cus-
tomizable features: P.480)
Vehicle-to-vehicle distance switch
Multi-information display
Set speed
Indicators

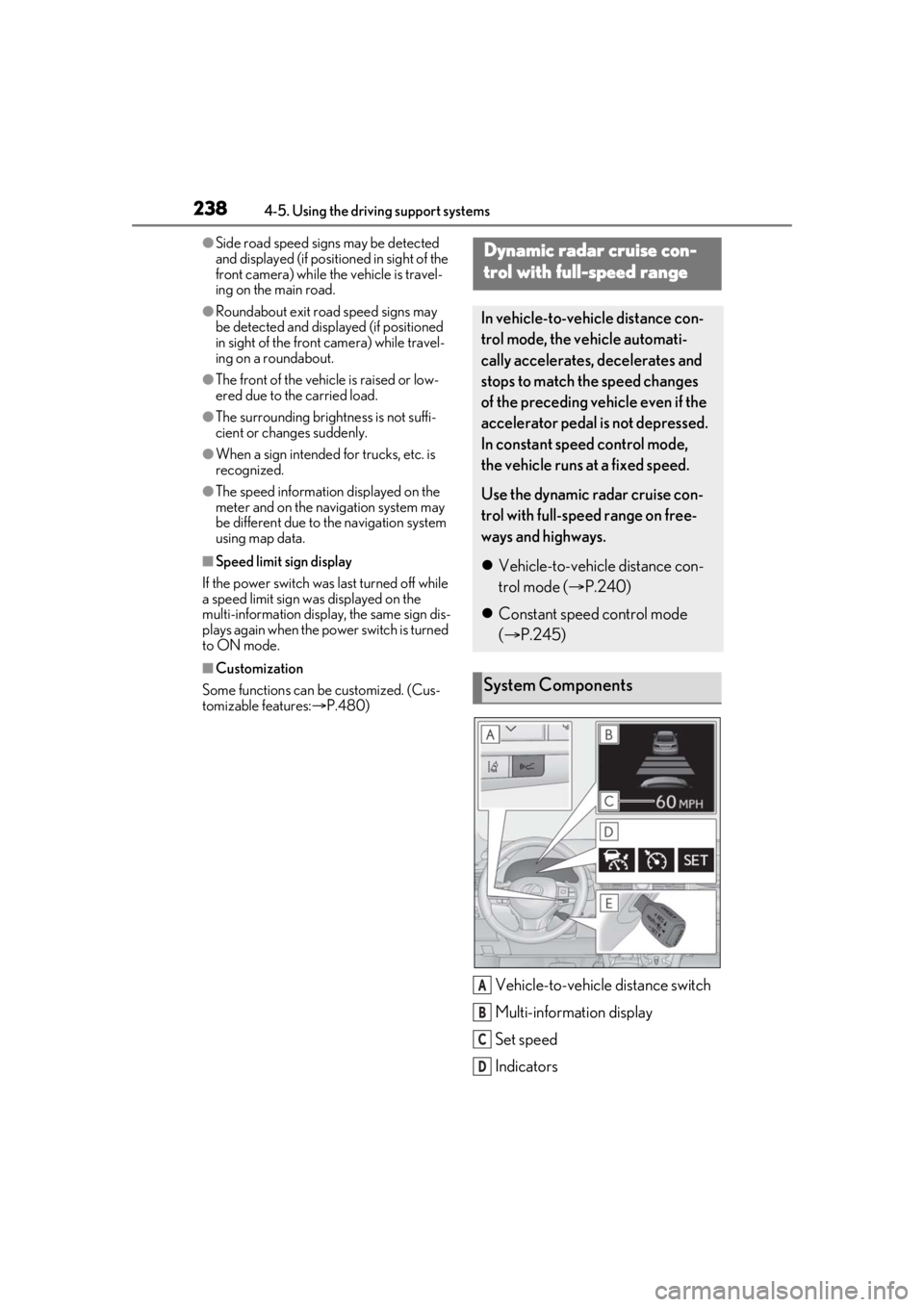

Dynamic radar cruise con-
trol with full-speed range
In vehicle-to-vehicle distance con-
trol mode, the ve hicle automati-
cally accelerates, decelerates and
stops to match the speed changes
of the preceding vehicle even if the
accelerator pedal is not depressed.
In constant speed control mode,
the vehicle runs at a fixed speed.
Use the dynamic radar cruise con-
trol with full-speed range on free-
ways and highways.
 Vehicle-to-vehicle distance con-
trol mode ( P.240)
 Constant speed control mode
( P.245)
System Components
A
B
C
D
