LEXUS SC400 1991 Service Repair Manual

OKNG
OKNG
YESNO

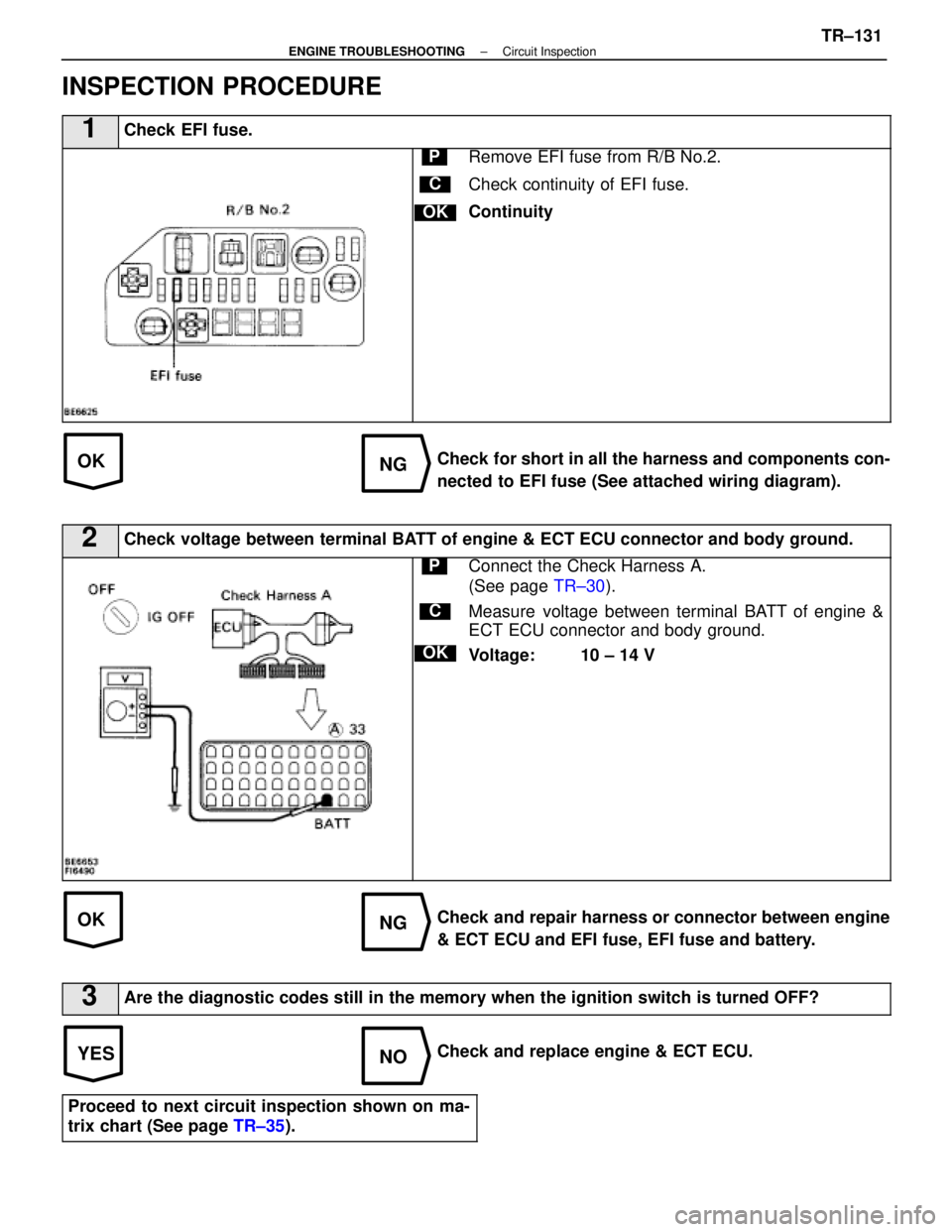

INSPECTION PROCEDURE
1Check EFI fuse.
C
OK
PRemove EFI fuse from R/B No. 2
Check continuity of EFI fuse.
Continuity
Check for short in all the harness and components
connected to EFI fuse (See attached wiring diagram).
2Check voltage between terminal BATT of engine (& ECT) ECU connector and body ground.
C
OK
PConnect the Check Harness A. (See page TR±34)
Measure voltage between terminal BATT of engine
(& ECT) ECU connector and body ground.
Voltage: 10 ± 14 V
Check and repair harness or connector between engine
(& ECT) ECU and EFI fuse, EFI fuse and battery.
3Are the diagnostic trouble codes still in the memory when the ignition s\
witch is turned OFF?
Check and replace engine (& ECT) ECU.
Proceed to next circuit inspection shown on
matrix chart (See page TR±39).
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±127
WhereEverybodyKnowsYourName

Injector Circuit
CIRCUIT DESCRIPTION
The injectors are provided to the intake manifold. They inject fuel into th\
e cylinders based on the
signals from the engine (& ECT) ECU.

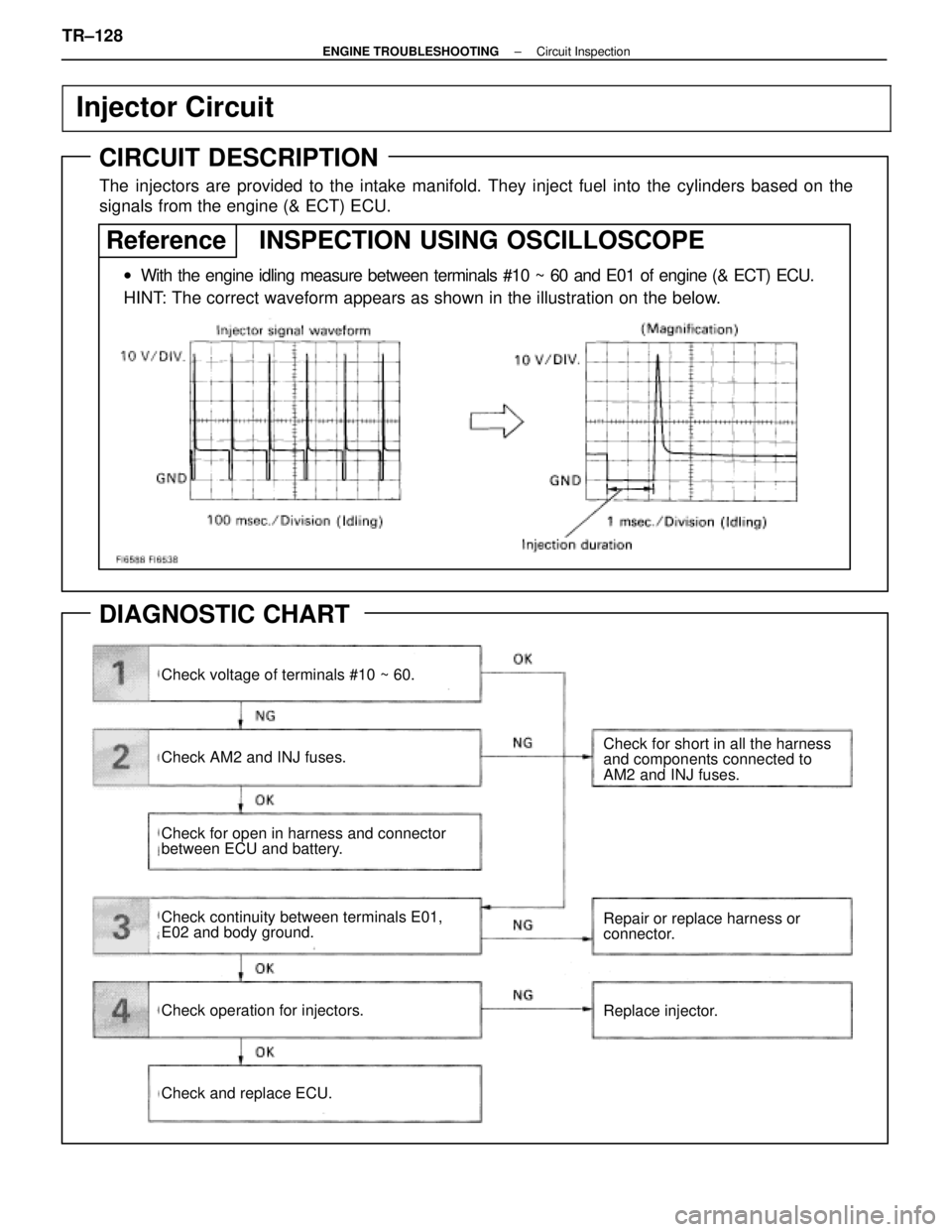

Reference INSPECTION USING OSCILLOSCOPE
w With the engine idling measure between terminals #10 ~ 60 and E01 of engine (& ECT) ECU.
HINT: The correct waveform appears as shown in the illustration on the below\
.
DIAGNOSTIC CHART
Check voltage of terminals #10 ~ 60.
Check AM2 and INJ fuses.
Check for open in harness and connector
between ECU and battery.
Check continuity between terminals E01,
E02 and body ground.
Check operation for injectors.
Check and replace ECU. Check for short in all the harness
and components connected to
AM2 and INJ fuses.
Repair or replace harness or
connector.
Replace injector.
TR±128±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

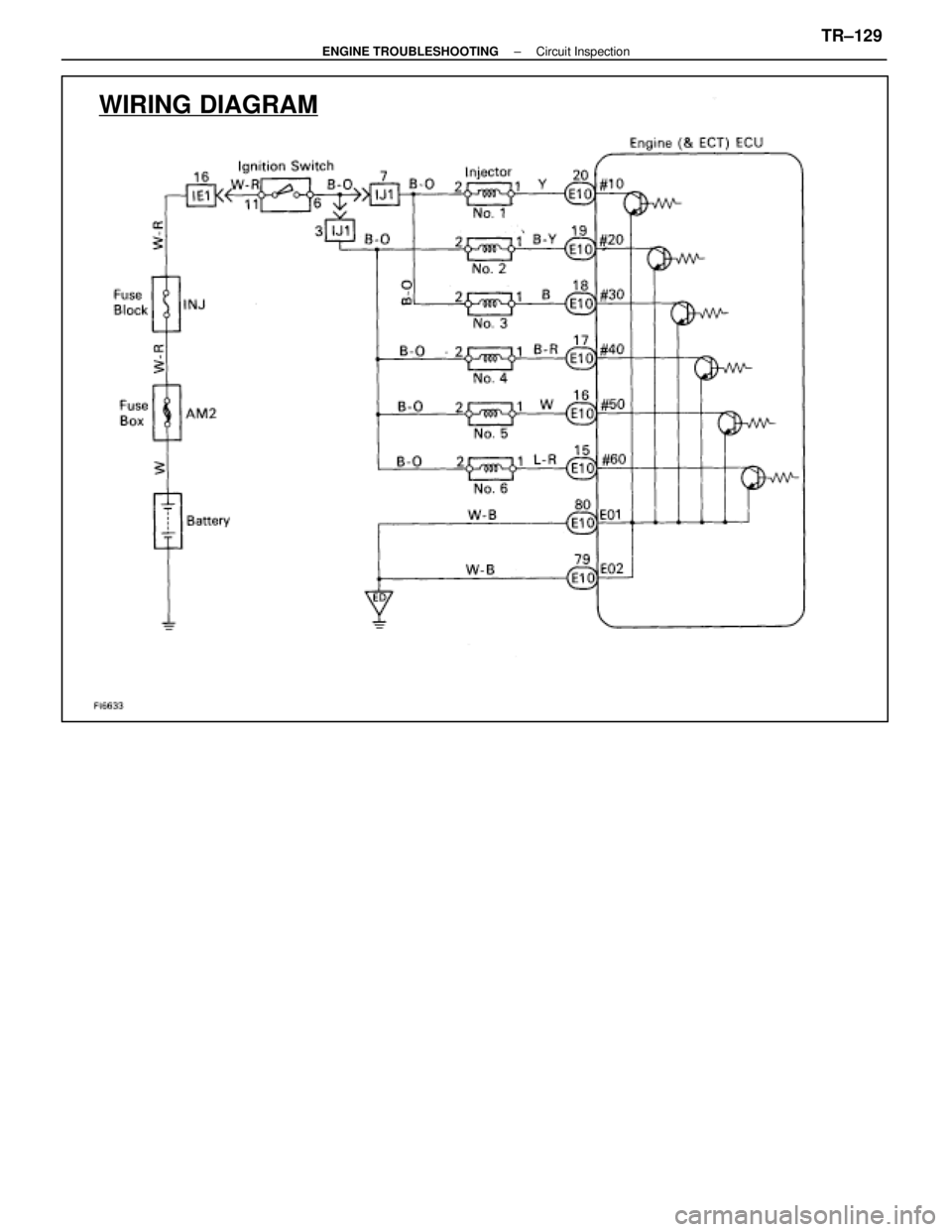

WIRING DIAGRAM
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±129
WhereEverybodyKnowsYourName

NGOK
OKNG

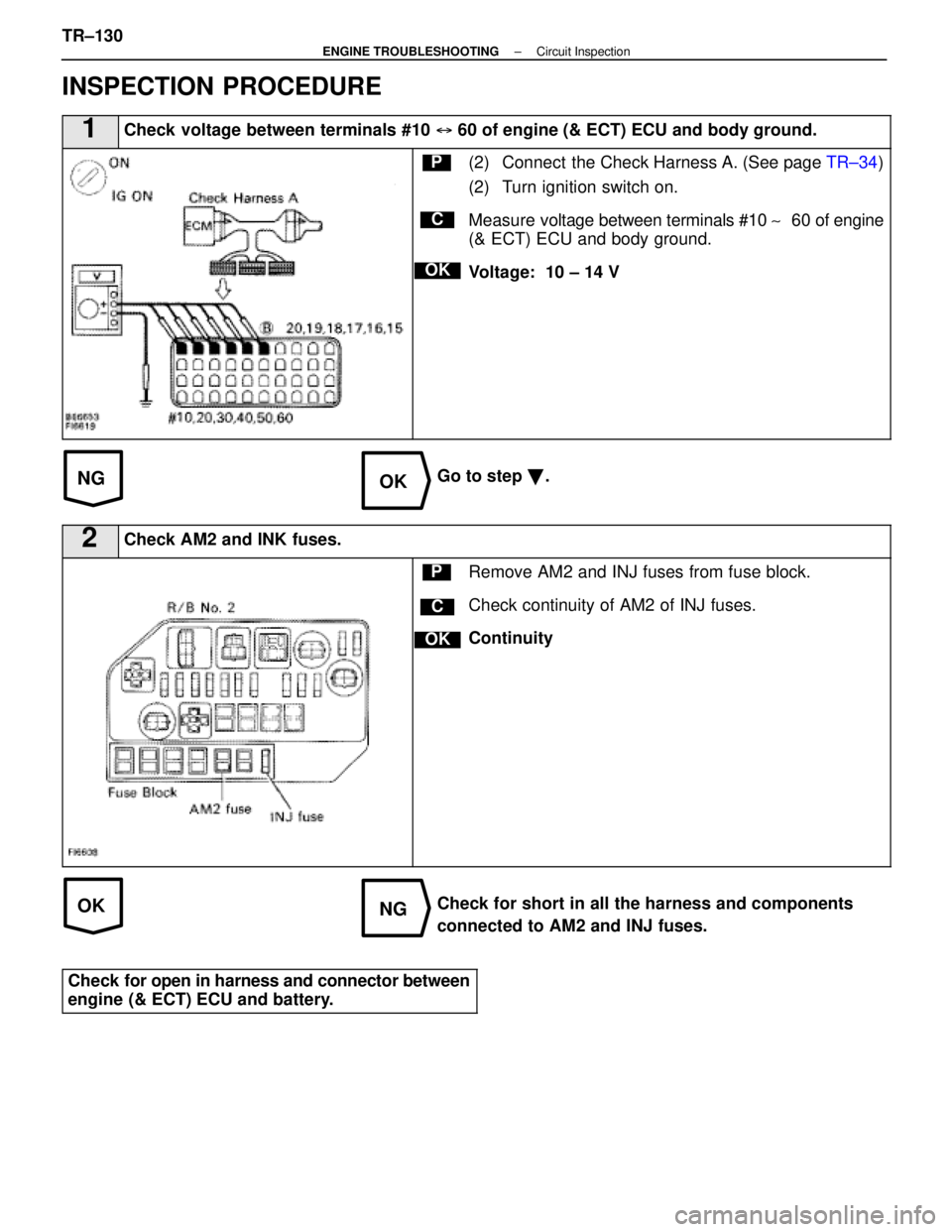

INSPECTION PROCEDURE
1Check voltage between terminals #10  60 of engine (& ECT) ECU and body ground.
C
OK
P(2) Connect the Check Harness A. (See page TR±34)
(2) Turn ignition switch on.
Measure voltage between terminals #10 ~ 60 of engine
(& ECT) ECU and body ground.
Voltage: 10 ± 14 V
Go to step
.
2Check AM2 and INK fuses.
C
OK
PRemove AM2 and INJ fuses from fuse block.
Check continuity of AM2 of INJ fuses.
Continuity
Check for short in all the harness and components
connected to AM2 and INJ fuses.
Check for open in harness and connector between
engine (& ECT) ECU and battery.
TR±130±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

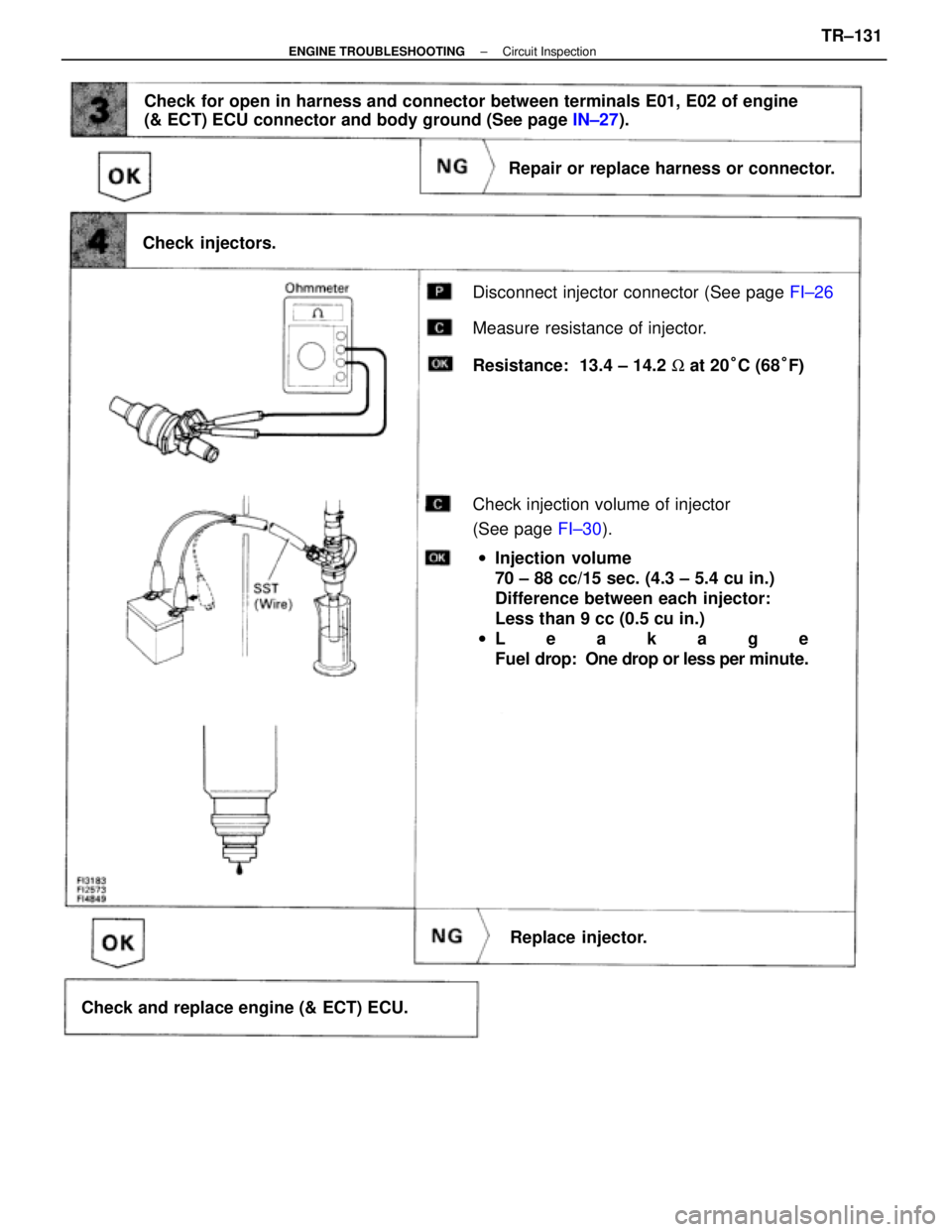

Check for open in harness and connector between terminals E01, E02 of engine
(& ECT) ECU connector and body ground (See page IN±27).
Disconnect injector connector (See page FI±26
Resistance: 13.4 ± 14.2 W at 20 °C (68 °F)
w Injection volume
70 ± 88 cc/15 sec. (4.3 ± 5.4 cu in.)
Difference between each injector:
Less than 9 cc (0.5 cu in.)
w Leakage
Fuel drop: One drop or less per minute.
Measure resistance of injector.
Check injection volume of injector
(See page
FI±30).
Replace injector.
Check and replace engine (& ECT) ECU. Repair or replace harness or connector.
Check injectors.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±131
WhereEverybodyKnowsYourName

Back Up Power Source Circuit
CIRCUIT DESCRIPTION
Battery voltage is supplied to terminal BATT of the ECU even when the ignition switch is off for use by
the diagnostic code memory and air±fuel ratio adaptive control value mem\
ory, etc.

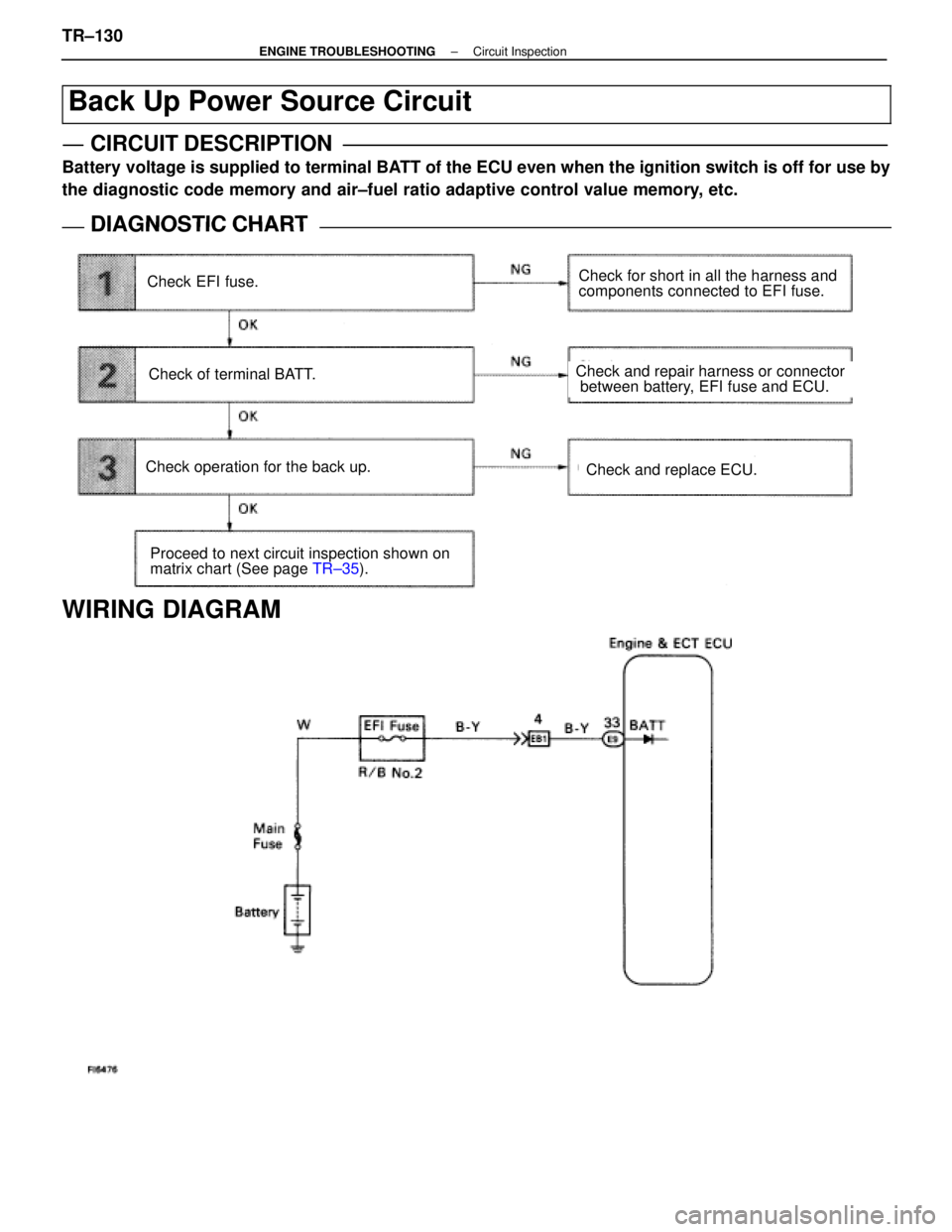

DIAGNOSTIC CHARTDIAGNOSTIC CHART
Check for short in all the harness and
components connected to EFI fuse.Check EFI fuse.
Check of terminal BATT.
Proceed to next circuit inspection shown on
matrix chart (See page TR±35).
Check operation for the back up.Check and replace ECU.
Check and repair harness or connector
between battery, EFI fuse and ECU.
WIRING DIAGRAM
TR±130±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

OKNG
OKNG
YESNO
INSPECTION PROCEDURE
1Check EFI fuse.
C
OK
PRemove EFI fuse from R/B No.2.
Check continuity of EFI fuse.
Continuity
Check for short in all the harness and components con-
nected to EFI fuse (See attached wiring diagram).
2Check voltage between terminal BATT of engine & ECT ECU connector and body ground.
C
OK
PConnect the Check Harness A.
(See page TR±30).
Measure voltage between terminal BATT of engine &
ECT ECU connector and body ground.
Voltage: 10 ± 14 V
Check and repair harness or connector between engine
& ECT ECU and EFI fuse, EFI fuse and battery.
3Are the diagnostic codes still in the memory when the ignition switch is\
turned OFF?
Check and replace engine & ECT ECU.
Proceed to next circuit inspection shown on ma-
trix chart (See page TR±35).
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±131
WhereEverybodyKnowsYourName

Injector Circuit
CIRCUIT DESCRIPTION
The injectors are provided to the intake manifold. They inject fuel into th\
e cylinders based on the signals from
the engine & ECT ECU.
DIAGNOSTIC CHARTDIAGNOSTIC CHART
Replace ignition relay.
Check voltage between terminals #10 ~ 40 of
engine & ECT ECU and body ground.
Check ignition relay.
Check continuity between terminal E01, E02
and body ground.Repair or replace harness or
connector.
Repair or replace harness or
connector.
Replace injector.
Check for open in harness and connector
between ignition relay and ECU.
Check operation for injectors.
Proceed to next circuit inspection shown on
matrix chart (See page TR±35).
Check and repair harness and connector
between ignition relay and battery.
TR±132±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

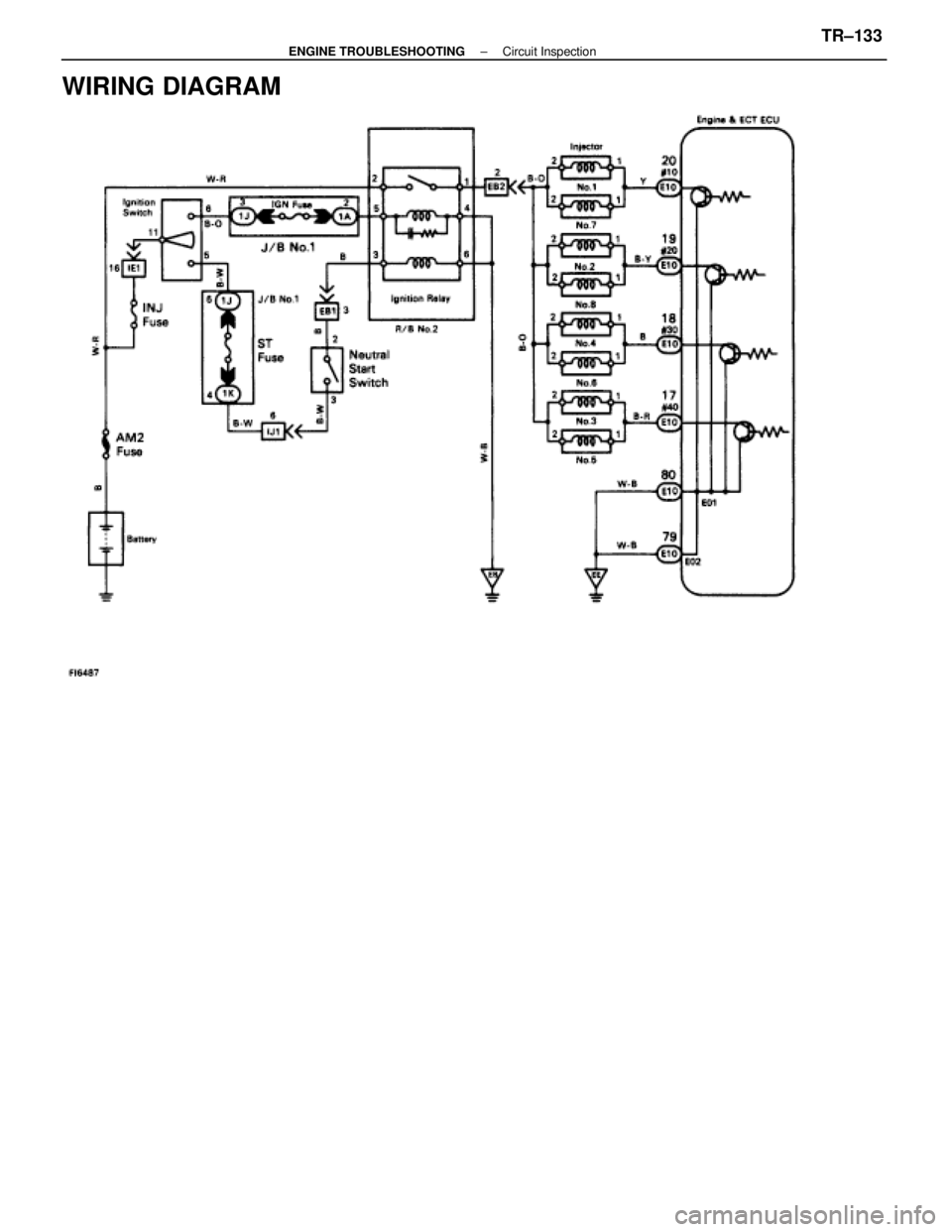

WIRING DIAGRAM
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±133
WhereEverybodyKnowsYourName

NGOK
OKNG

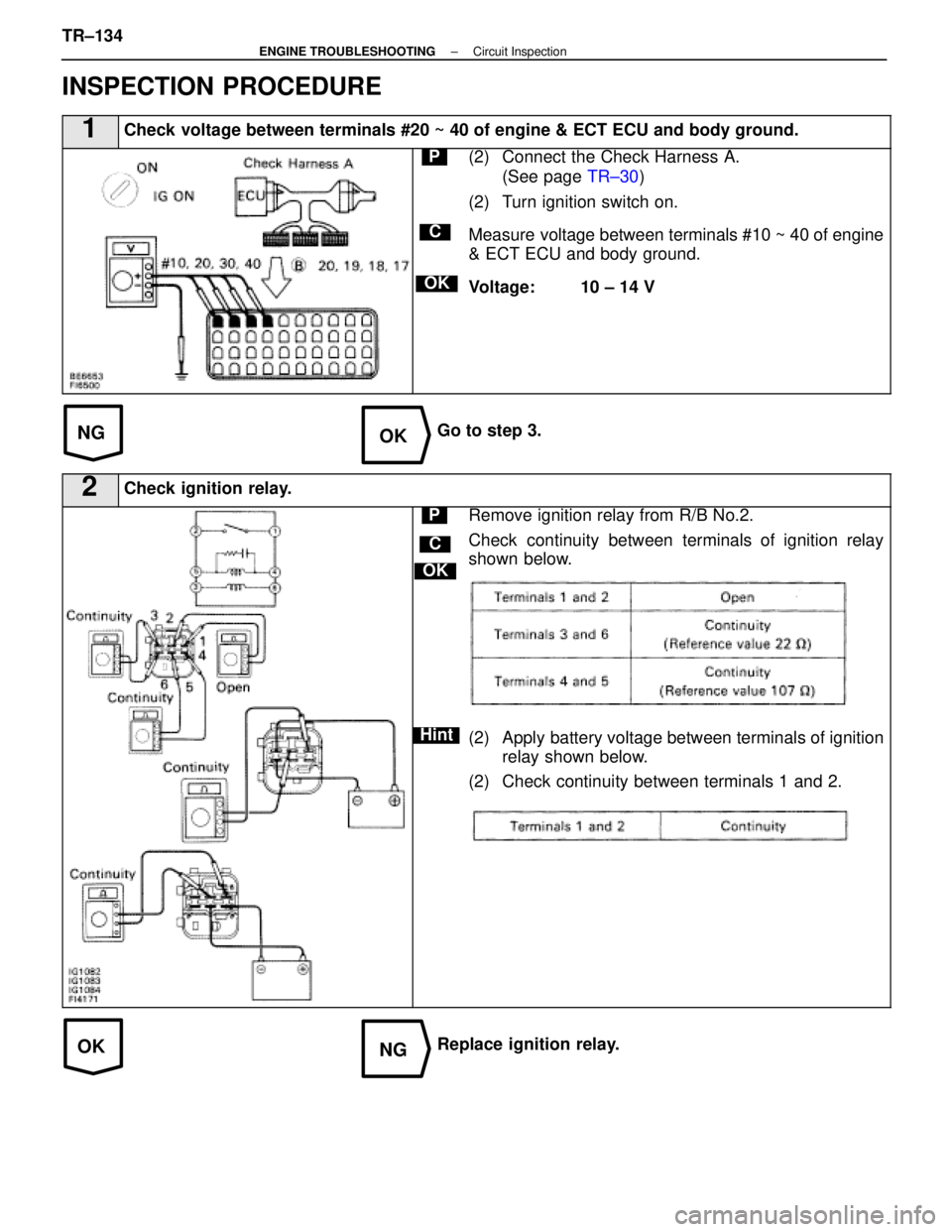

INSPECTION PROCEDURE
1Check voltage between terminals #20 ~ 40 of engine & ECT ECU and body ground.\
C
OK
P(2) Connect the Check Harness A.(See page TR±30)
(2) Turn ignition switch on.
Measure voltage between terminals #10 ~ 40 of engine
& ECT ECU and body ground.
Voltage: 10 ± 14 V
Go to step 3.
2Check ignition relay.
C
OK
Hint
PRemove ignition relay from R/B No.2.
Check continuity between terminals of ignition relay
shown below.
(2) Apply battery voltage between terminals of ignition relay shown below.
(2) Check continuity between terminals 1 and 2.
Replace ignition relay.
TR±134
±
ENGINE TROUBLESHOOTING Circuit Inspection
