tow LINCOLN AVIATOR 2023 Manual Online

HD Radio Technology manufactured under
license from iBiquity Digital Corporation and
foreign patents. HD Radio and the HD and
HD Radio logos are proprietary trademarks
of DTS. Ford and DTS are not responsible
for the content sent using HD Radio
technology. Content may be changed, added
or deleted at any time at the station owner's
discretion.SATELLITE RADIO
SiriusXM® Satellite Radio broadcasts a
variety of music, news, sports, weather, traffic
and entertainment satellite radio channels.
For more information and a complete list of
SiriusXM satellite radio channels, visit
www.siriusxm.com in the United States,
www.siriusxm.ca in Canada, or call SiriusXM
at 1-888-539-7474.Note:This receiver includes the eCos
real-time operating system. eCos is
published under the eCos License.
Satellite Radio Reception Factors
Potential Satellite Radio Reception Issues
For optimal reception performance, keep the antenna clear of snow and ice build-up and keep luggage and
other material as far away from the antenna as possible.
Factory-installed and aftermarket vehicle structures including, but not limited to, roof racks and soft top roofs
in a partially open position could reduce reception performance. Antenna obstructions
Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with your reception. Terrain
When you pass a ground-based broadcast-repeating tower, a stronger signal may overtake a weaker one and
the audio system could mute. Station overload
Your display may show ACQUIRING . . . to indicate the interference and the audio system could mute. Satellite radio signal interfer-
ence
502
Audio System

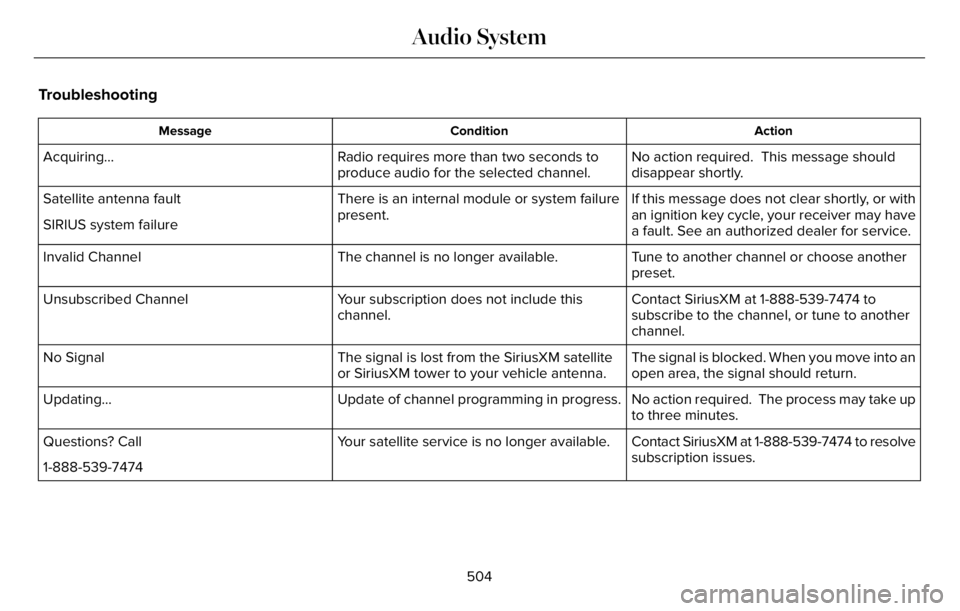

Troubleshooting
Action Condition Message
No action required. This message should
disappear shortly. Radio requires more than two seconds to
produce audio for the selected channel. Acquiring…
If this message does not clear shortly, or with
an ignition key cycle, your receiver may have
a fault. See an authorized dealer for service. There is an internal module or system failure
present. Satellite antenna fault
SIRIUS system failure
Tune to another channel or choose another
preset. The channel is no longer available. Invalid Channel
Contact SiriusXM at 1-888-539-7474 to
subscribe to the channel, or tune to another
channel. Your subscription does not include this
channel. Unsubscribed Channel
The signal is blocked. When you move into an
open area, the signal should return. The signal is lost from the SiriusXM satellite
or SiriusXM tower to your vehicle antenna. No Signal
No action required. The process may take up
to three minutes. Update of channel programming in progress. Updating…
Contact SiriusXM at 1-888-539-7474 to resolve
subscription issues. Your satellite service is no longer available. Questions? Call
1-888-539-7474
504
Audio System

Route Guidance
Description Voice Command
Cancel the current route. Cancel Route
Select an alternate route. Detour
Repeat the last guidance prompt. Repeat Instruction
Display an overview of the route. Show Route
Display a list of traffic events on your route. Show Traffic
Display the map on the touchscreen. Show Map
Display a two-dimensional map with north toward the top of the touchscreen. North Up
Display a two-dimensional map with the direction you are traveling toward the top
of the touchscreen. Heading Up
Display a three-dimensional map with the direction you are traveling toward the
front. Show 3D
517
SYNC™ 3

SiriusXM Satellite Radio Reception Factors and Troubleshooting
Potential Reception Issues
For optimal reception performance, keep the antenna clear of snow and ice build-up and keep
luggage and other materials as far away from the antenna as possible. Antenna obstructions
Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree
foliage and thunderstorms can interfere with your reception. Terrain
When you pass a ground-based broadcast-repeating tower, a stronger signal may overtake a
weaker one and the audio system may mute. Station overload
Your display may show ACQUIRING... to indicate the interference and the audio system may mute. Satellite radio signal interference
Troubleshooting Tips
Action Cause Message
No action required. This message should disap-
pear shortly. Radio requires more than two seconds to produce
audio for the selected channel. Acquiring Signal
If this message does not clear shortly, or with an
ignition key cycle, your receiver may have a fault.
See an authorized dealer for service. There is an internal module or system failure
present. Satellite antenna fault
SIRIUS system failure
Tune to another channel or choose another preset. The channel is no longer available. Invalid Channel
525
SYNC™ 3

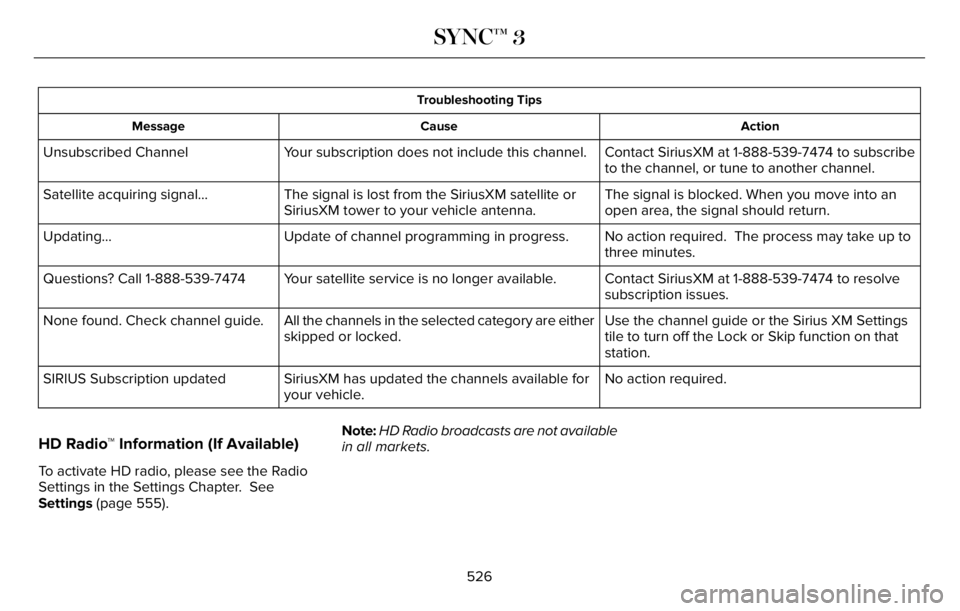

Troubleshooting Tips
Action Cause Message
Contact SiriusXM at 1-888-539-7474 to subscribe
to the channel, or tune to another channel. Your subscription does not include this channel. Unsubscribed Channel
The signal is blocked. When you move into an
open area, the signal should return. The signal is lost from the SiriusXM satellite or
SiriusXM tower to your vehicle antenna. Satellite acquiring signal…
No action required. The process may take up to
three minutes. Update of channel programming in progress. Updating…
Contact SiriusXM at 1-888-539-7474 to resolve
subscription issues. Your satellite service is no longer available. Questions? Call 1-888-539-7474
Use the channel guide or the Sirius XM Settings
tile to turn off the Lock or Skip function on that
station. All the channels in the selected category are either
skipped or locked. None found. Check channel guide.
No action required. SiriusXM has updated the channels available for
your vehicle. SIRIUS Subscription updated
HD Radio™ Information (If Available)
To activate HD radio, please see the Radio
Settings in the Settings Chapter. See
Settings (page 555).Note:HD Radio broadcasts are not available
in all markets.
526
SYNC™ 3

Changing the Format of the Map
Display the map in one of the following
formats:
• A two-dimensional map with the direction
you are traveling toward the top of the
screen.
• A two-dimensional map with north toward
the top of the screen.
• A three-dimensional map with the
direction you are traveling toward the
front.
Zoom
Display more or less detail on the map.
Note:Use pinch gestures to zoom in and
out. Place two fingers on the screen and
move them apart to zoom in. Place two
fingers on the screen and bring them
together to zoom out.
Route Guidance
E297859E297859
Turn indicator. Select to hear the
last voice prompt. A
Point of interest. BEstimated time of arrival, distance
to destination or time to
destination. C
Current road. D
Mute guidance prompts. E
Note:To change guidance prompt volume,
turn the volume control when a guidance
prompt plays.
542
SYNC™ 3

Protect yourself from the rising cost of
vehicle repairs with a Lincoln Protect
Extended Service Plan.
Lincoln Protect Extended Service Plans
- United States Only
Lincoln Protect means peace of mind. It is
the extended service plan backed by Lincoln,
and provides more protection beyond the
New Vehicle Limited Warranty coverage.
When you visit your Lincoln Dealer, insist on
genuine Lincoln Protect extended service
plans.
Lincoln Protect Extended Service Plan Can
Quickly Pay for Itself
One trip to the Service Center could easily
exceed the price of your Lincoln Protect
extended service plan. With Lincoln Protect
you minimize your risk for unexpected repair
bills and rising repair costs.Up to 1000+ Covered Vehicle Components
There are four mechanical Lincoln Protect
extended service plans with different levels
of coverage. Ask your authorized dealer for
details.
1. PremiumCARE - Our most comprehensive
coverage. With over 1,000 covered
components, this plan is so complete it’s
probably easier to list what’s not covered.
2. ExtraCARE - Covers 113 components, and
includes many high-tech items.
3. BaseCARE - Covers 84 components.
4. PowertrainCARE - Covers 29 critical
components.
Lincoln Protect extended service plans are
honored by all authorized Lincoln dealers in
the United States, Canada and Mexico.
That means you get:
• Reliable, quality service at any Lincoln or
Ford dealership.
• Repairs performed by factory trained
technicians, using genuine parts.Rental Car Reimbursement
First Day Rental Benefit
If you bring your car into your dealer for
service, we will give you a loaner to use for
the day.
Extended Rental Benefits
If your vehicle is kept overnight for covered
repairs, you are eligible for rental car
coverage, including bumper to bumper
warranty repairs, and Field Service Actions.
Roadside Assistance
Exclusive 24/7 roadside assistance, including:
• Towing, flat-tire change and battery jump
starts.
• Out of fuel and lock-out assistance.
• Travel expense reimbursement for
lodging, meals and rental car.
• Assistance for taxi, shuttle, rental car
coverage and other transportation.
576
Lincoln Protect

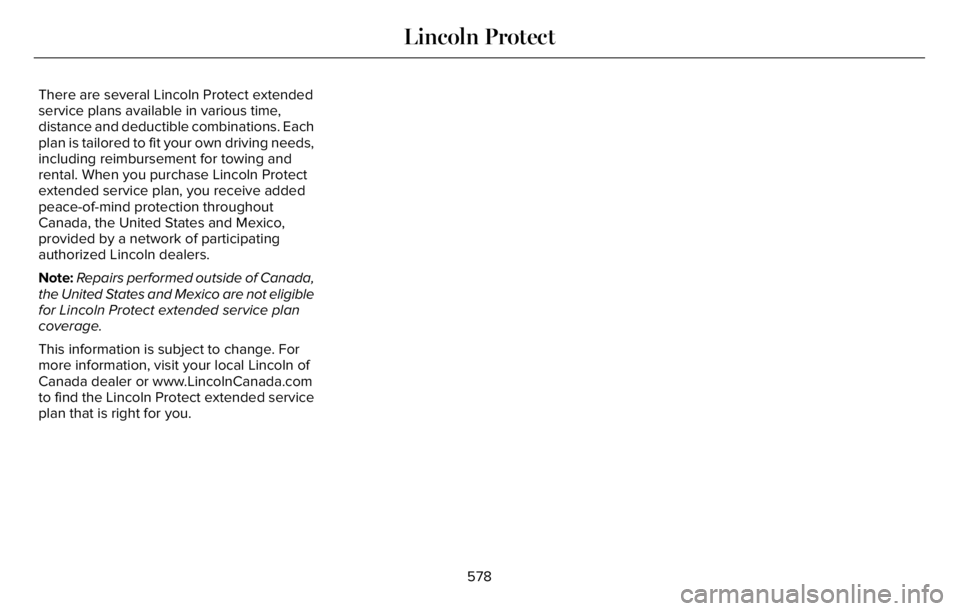

There are several Lincoln Protect extended
service plans available in various time,
distance and deductible combinations. Each
plan is tailored to fit your own driving needs,
including reimbursement for towing and
rental. When you purchase Lincoln Protect
extended service plan, you receive added
peace-of-mind protection throughout
Canada, the United States and Mexico,
provided by a network of participating
authorized Lincoln dealers.
Note:Repairs performed outside of Canada,
the United States and Mexico are not eligible
for Lincoln Protect extended service plan
coverage.
This information is subject to change. For
more information, visit your local Lincoln of
Canada dealer or www.LincolnCanada.com
to find the Lincoln Protect extended service
plan that is right for you.
578
Lincoln Protect

When to Expect the OIL CHANGE REQUIRED Message
Vehicle Use and Example
Interval
1
Normal
7,500–10,000 mi (12,000–16,000 km)Normal commuting with highway driving
No, or moderate, load or towing
Flat to moderately hilly roads
No extended idling
Severe
5,000–7,500 mi (8,000–12,000 km)Moderate to heavy load or towing
Mountainous or off-road conditions
Extended idling
Extended hot or cold operation
Extreme
3,000–5,000 mi (4,800–8,000 km)Maximum load or towing
Extreme hot or cold operation
Extended engine idling
1 Hybrid vehicles may achieve longer distances between oil changes, but do not exceed the 1 year maximum oil change interval. Remaining
oil life can be accessed through the information display. See Information Displays (page 136).
584
Scheduled Maintenance

Towing a Trailer or Using a Car-top Carrier
Change engine oil and filter as indicated by the information display and perform services listed in the Normal
Scheduled Maintenance chart. As required
Inspect front axle. Inspect frequently, service
as required
Inspect rear axle and U-joints.
Inspect half-shaft boots.
See axle maintenance items under Exceptions.
Replace spark plugs. Every 60,000 mi
(96,000 km)
Extensive Idling or Low-speed Driving for Long Distances, as in Heavy Commercial Use
Change engine oil and filter as indicated by the information display and perform services listed in the Normal
Scheduled Maintenance chart. As required
Replace cabin air filter. Inspect frequently, service
as required
Replace engine air filter.
Replace spark plugs. Every 60,000 mi
(96,000 km)
588
Scheduled Maintenance
